Isuzu WW
▶
TRUCKS
▶
FXR
▶
11196 - FXR/GXR SOUTH AFRICA
▶
5 - Frame, Cab Mounting
▶
5-16 - OIL PUMP; CAB TILT
▶
5-16 — OIL PUMP; CAB TILT
(#18221) — 107 parça
Tümü
A - FGR5MX
B - GGR5MX
◀

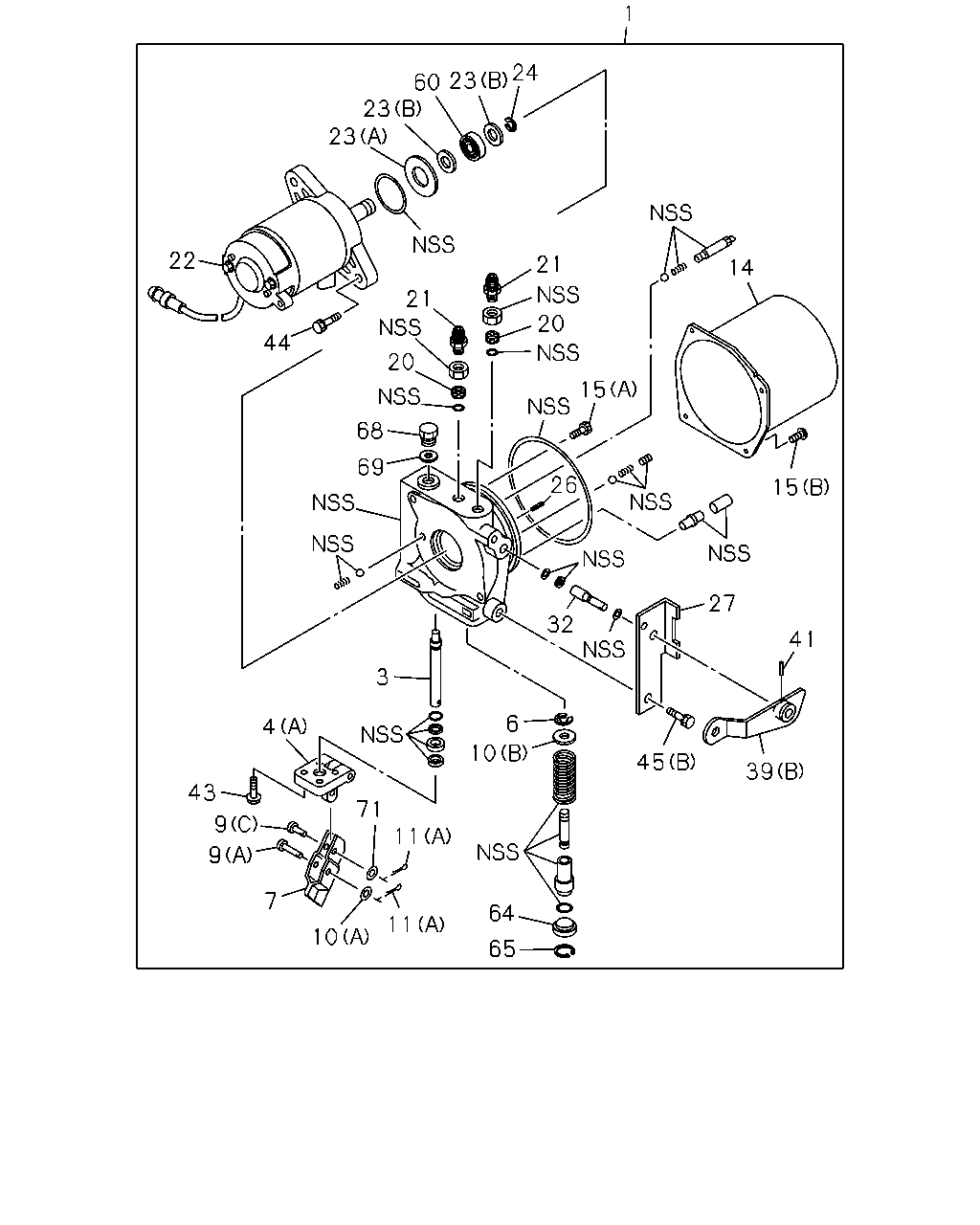

[516A] -'14/8 COMPONENT;OIL PUMP (42 parça)

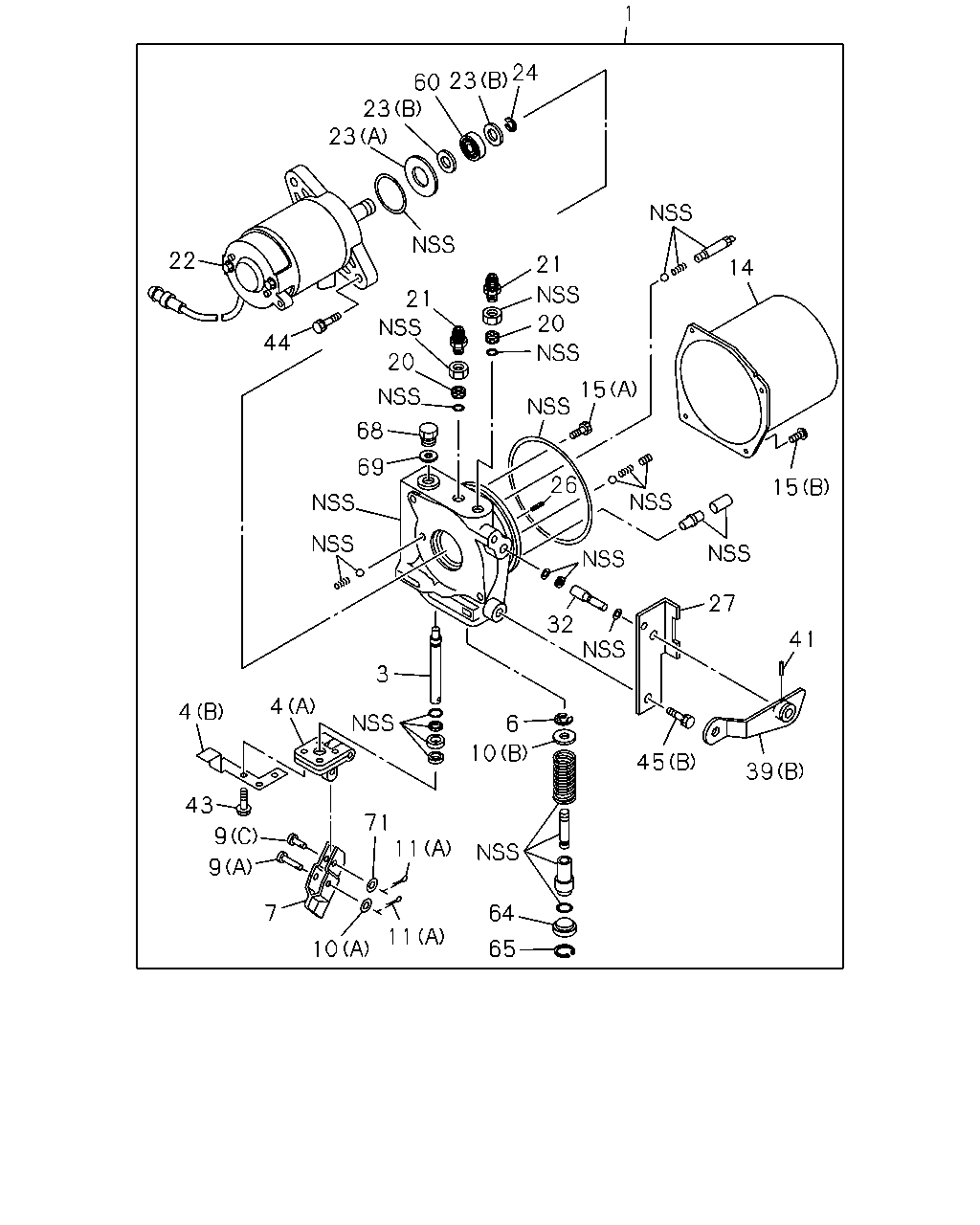

[516A] '14/9- COMPONENT;OIL PUMP (42 parça)

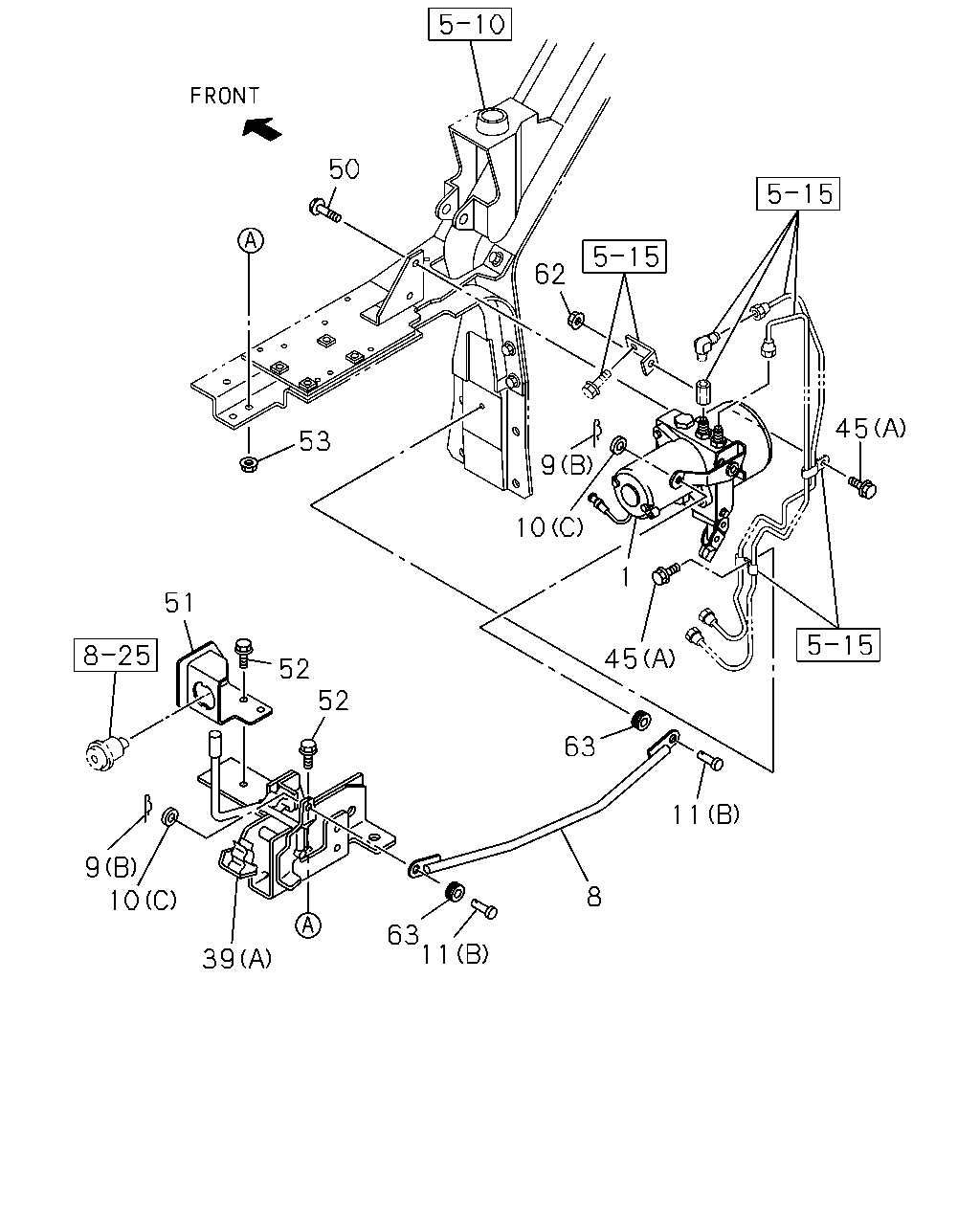

[516A] OIL PUMP AND LEVER ASM FIXING (21 parça)
[516A] REPAIR KIT;OIL PUMP (2 parça)
▶
1
24
23
60
23
23
22
21
44
21
20
20
68
15
69
26
14
15
27
41
32
45
39
3
4
43
9
9
7
71
11
11
10
10
64
6
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PUMP; OIL,CAB TILT
1-53457-064-1
01
1
1004-1408
●
●
1
PUMP; OIL,CAB TILT
8-98279-120-0
01
1
1409-
●
●
3
PISTON; MANUAL
1-53457-204-0
01
1
1004-
●
●
4
BRACKET; OIL PUMP
(B)
8-98281-606-0
01
1
1409-
●
●
4
BRACKET; OIL PUMP
(A)
1-53457-205-0
01
1
1004-
●
●
6
RING; SNAP
1-53458-411-0
01
1
1004-
●
●
7
SOCKET; OIL PUMP
1-53457-207-0
01
1
1004-
●
●
9
PIN; OIL PUMP
(B) L=27.7 SOU
1-09987-141-0
02
1
1004-
●
●
9
PIN; OIL PUMP
(C)
1-53458-057-0
01
1
1004-
●
●
9
PIN; OIL PUMP
(A)
1-53458-060-0
01
1
1004-
●
●
10
WASHER; OIL PUMP
(C) ID=8.4 OD=22 SOU
0-91610-708-0
02
1
1004-
●
●
10
WASHER; OIL PUMP
(A)
1-53458-013-0
01
1
1004-
●
●
10
WASHER; OIL PUMP
(B)
1-53458-561-0
01
1
1004-
●
●
11
PIN; SPLIT,OIL PUMP
(B) OD=8 L=17
0-82253-817-0
02
1
1004-
●
●
11
PIN; SPLIT,OIL PUMP
(A)
1-53457-209-0
02
1
1004-
●
●
14
RESERVOIR; OIL PUMP
1-53458-432-0
01
1
1004-
●
●
15
BOLT; RESERVOIR
(B) M5X8
1-53458-005-0
04
1
1004-
●
●
15
BOLT; RESERVOIR
(A) M5X8
1-53458-433-0
02
1
1004-
●
●
20
FILTER; OIL PUMP
1-53457-081-0
02
1
1004-
●
●
21
CONNECTOR; OIL PUMP
M12
1-53458-941-0
02
1
1004-
●
●
22
MOTOR; OIL PUMP
1-53457-080-0
01
1
1004-
●
●
23
WASHER; MOTOR
(A)
1-53458-018-0
01
1
1004-
●
●
23
WASHER; MOTOR
(B)
1-53458-045-0
02
1
1004-1408
●
●
23
WASHER; MOTOR
(B)
8-97613-686-0
02
1
1409-
●
●
24
RING; SNAP,MOTOR
1-53458-044-0
01
1
1004-
●
●
26
PIN; SPR,OIL PUMP
1-53458-038-0
01
1
1004-
●
●
27
COVER; OIL PUMP
1-53458-568-0
01
1
1004-
●
●
32
VALVE; OIL PUMP
1-53458-569-0
01
1
1004-
●
●
39
LEVER; OIL PUMP
(B)
1-53458-567-0
01
1
1004-
●
●
39
LEVER; OIL PUMP
(A)
8-98055-528-1
01
1
1004-
●
●
41
PIN; SPR,LEVER
1-53458-019-0
01
1
1004-
●
●
43
BOLT; LEVER
M5X16
1-53457-206-0
03
1
1004-
●
●
44
BOLT; MOTOR
M6X20
1-53458-007-0
02
1
1004-
●
●
45
BOLT; COVER
(A) M8X20 FLANGE
0-28650-820-0
02
1
1004-
●
●
45
BOLT; COVER
(B) M6X8
1-53458-004-0
02
1
1004-
●
●
60
BEARING; OIL PUMP
1-53458-423-0
01
1
1004-
●
●
64
SLEEVE; OIL PUMP
1-53458-572-0
01
1
1004-1408
●
●
64
SLEEVE; OIL PUMP
8-98249-572-0
01
1
1409-
●
●
65
RING; SNAP,SLEEVE
1-53458-570-0
01
1
1004-
●
●
68
PLUG; FILLER
1-53458-428-0
01
1
1004-
●
●
69
GASKET; FILLER PLUG
1-53458-427-0
01
1
1004-
●
●
71
NUT; PUSH
1-53457-208-0
01
1
1004-
●
●
1
24
23
60
23
23
22
44
21
21
20
20
68
69
15
26
14
15
27
41
32
45
39
6
10
3
4
4
43
9
9
7
10
71
11
11
64
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PUMP; OIL,CAB TILT
1-53457-064-1
01
1
1004-1408
●
●
1
PUMP; OIL,CAB TILT
8-98279-120-0
01
1
1409-
●
●
3
PISTON; MANUAL
1-53457-204-0
01
1
1004-
●
●
4
BRACKET; OIL PUMP
(B)
8-98281-606-0
01
1
1409-
●
●
4
BRACKET; OIL PUMP
(A)
1-53457-205-0
01
1
1004-
●
●
6
RING; SNAP
1-53458-411-0
01
1
1004-
●
●
7
SOCKET; OIL PUMP
1-53457-207-0
01
1
1004-
●
●
9
PIN; OIL PUMP
(B) L=27.7 SOU
1-09987-141-0
02
1
1004-
●
●
9
PIN; OIL PUMP
(C)
1-53458-057-0
01
1
1004-
●
●
9
PIN; OIL PUMP
(A)
1-53458-060-0
01
1
1004-
●
●
10
WASHER; OIL PUMP
(C) ID=8.4 OD=22 SOU
0-91610-708-0
02
1
1004-
●
●
10
WASHER; OIL PUMP
(A)
1-53458-013-0
01
1
1004-
●
●
10
WASHER; OIL PUMP
(B)
1-53458-561-0
01
1
1004-
●
●
11
PIN; SPLIT,OIL PUMP
(B) OD=8 L=17
0-82253-817-0
02
1
1004-
●
●
11
PIN; SPLIT,OIL PUMP
(A)
1-53457-209-0
02
1
1004-
●
●
14
RESERVOIR; OIL PUMP
1-53458-432-0
01
1
1004-
●
●
15
BOLT; RESERVOIR
(B) M5X8
1-53458-005-0
04
1
1004-
●
●
15
BOLT; RESERVOIR
(A) M5X8
1-53458-433-0
02
1
1004-
●
●
20
FILTER; OIL PUMP
1-53457-081-0
02
1
1004-
●
●
21
CONNECTOR; OIL PUMP
M12
1-53458-941-0
02
1
1004-
●
●
22
MOTOR; OIL PUMP
1-53457-080-0
01
1
1004-
●
●
23
WASHER; MOTOR
(A)
1-53458-018-0
01
1
1004-
●
●
23
WASHER; MOTOR
(B)
1-53458-045-0
02
1
1004-1408
●
●
23
WASHER; MOTOR
(B)
8-97613-686-0
02
1
1409-
●
●
24
RING; SNAP,MOTOR
1-53458-044-0
01
1
1004-
●
●
26
PIN; SPR,OIL PUMP
1-53458-038-0
01
1
1004-
●
●
27
COVER; OIL PUMP
1-53458-568-0
01
1
1004-
●
●
32
VALVE; OIL PUMP
1-53458-569-0
01
1
1004-
●
●
39
LEVER; OIL PUMP
(B)
1-53458-567-0
01
1
1004-
●
●
39
LEVER; OIL PUMP
(A)
8-98055-528-1
01
1
1004-
●
●
41
PIN; SPR,LEVER
1-53458-019-0
01
1
1004-
●
●
43
BOLT; LEVER
M5X16
1-53457-206-0
03
1
1004-
●
●
44
BOLT; MOTOR
M6X20
1-53458-007-0
02
1
1004-
●
●
45
BOLT; COVER
(A) M8X20 FLANGE
0-28650-820-0
02
1
1004-
●
●
45
BOLT; COVER
(B) M6X8
1-53458-004-0
02
1
1004-
●
●
60
BEARING; OIL PUMP
1-53458-423-0
01
1
1004-
●
●
64
SLEEVE; OIL PUMP
1-53458-572-0
01
1
1004-1408
●
●
64
SLEEVE; OIL PUMP
8-98249-572-0
01
1
1409-
●
●
65
RING; SNAP,SLEEVE
1-53458-570-0
01
1
1004-
●
●
68
PLUG; FILLER
1-53458-428-0
01
1
1004-
●
●
69
GASKET; FILLER PLUG
1-53458-427-0
01
1
1004-
●
●
71
NUT; PUSH
1-53457-208-0
01
1
1004-
●
●
50
62
45
53
9
10
1
51
45
52
52
63
11
9
10
8
63
11
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PUMP; OIL,CAB TILT
1-53457-064-1
01
1
1004-1408
●
●
1
PUMP; OIL,CAB TILT
8-98279-120-0
01
1
1409-
●
●
8
LINK; OIL PUMP
1-53457-155-0
01
1
1004-
●
●
9
PIN; OIL PUMP
(B) L=27.7 SOU
1-09987-141-0
02
1
1004-
●
●
9
PIN; OIL PUMP
(C)
1-53458-057-0
01
1
1004-
●
●
9
PIN; OIL PUMP
(A)
1-53458-060-0
01
1
1004-
●
●
10
WASHER; OIL PUMP
(C) ID=8.4 OD=22 SOU
0-91610-708-0
02
1
1004-
●
●
10
WASHER; OIL PUMP
(A)
1-53458-013-0
01
1
1004-
●
●
10
WASHER; OIL PUMP
(B)
1-53458-561-0
01
1
1004-
●
●
11
PIN; SPLIT,OIL PUMP
(B) OD=8 L=17
0-82253-817-0
02
1
1004-
●
●
11
PIN; SPLIT,OIL PUMP
(A)
1-53457-209-0
02
1
1004-
●
●
39
LEVER; OIL PUMP
(B)
1-53458-567-0
01
1
1004-
●
●
39
LEVER; OIL PUMP
(A)
8-98055-528-1
01
1
1004-
●
●
45
BOLT; COVER
(A) M8X20 FLANGE
0-28650-820-0
02
1
1004-
●
●
45
BOLT; COVER
(B) M6X8
1-53458-004-0
02
1
1004-
●
●
50
BOLT; OIL PUMP
M10X16 FLANGE
0-28051-016-0
02
1
1004-
●
●
51
BRACKET; OIL PUMP
8-98108-629-0
01
1
1004-
●
●
52
BOLT; BRKT
M8X20 FLANGE
0-28050-820-0
04
1
1004-
●
●
53
NUT; BRKT
M8 FLANGE SOU
0-91180-108-0
03
1
1004-
●
●
62
NUT; COVER
M8 FLANGE SOU
0-91180-108-0
01
1
1004-
●
●
63
GROMMET
ID=10 OD=23 T=8
1-09983-010-0
02
1
1004-
●
●
2
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B

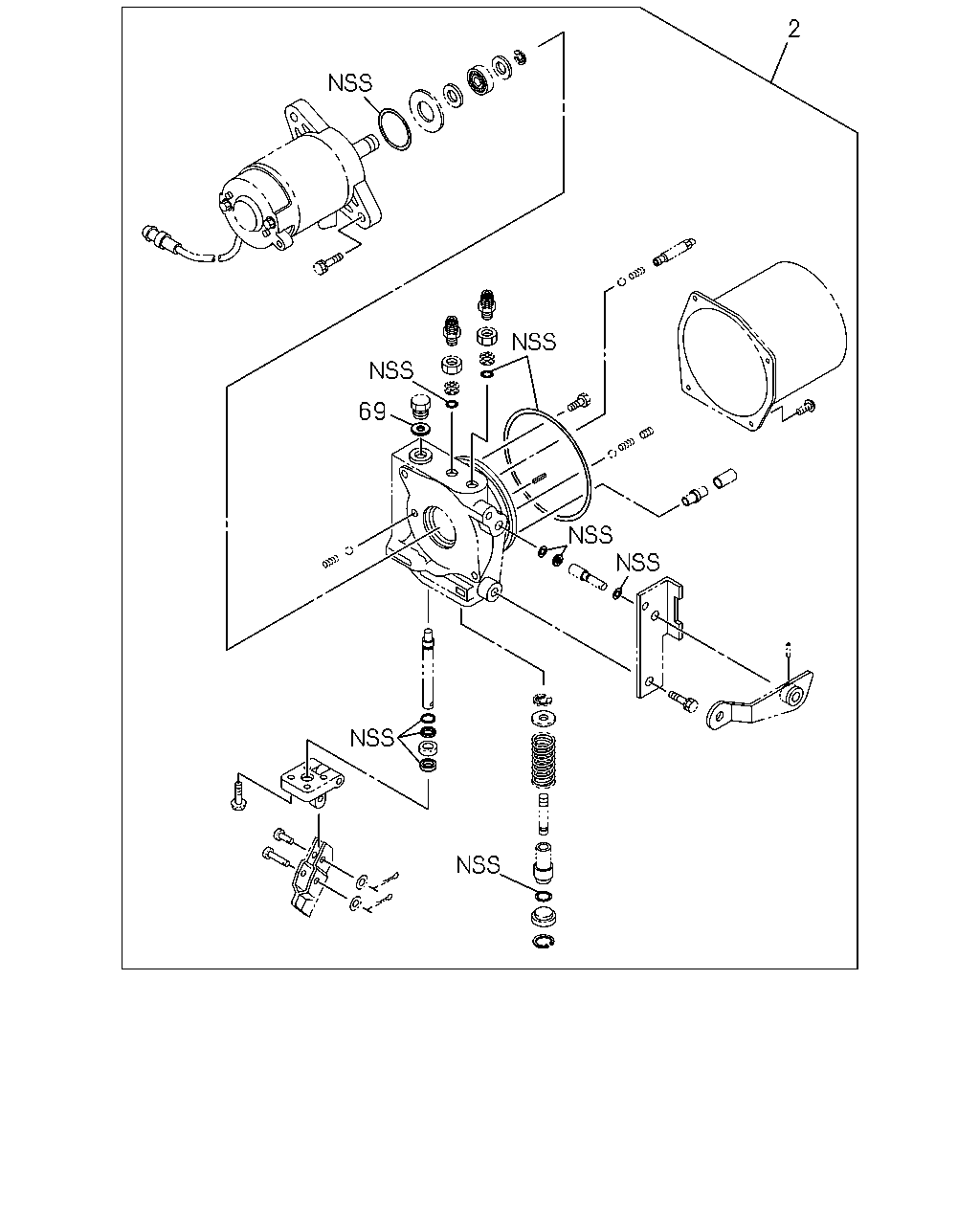

2
REPAIR KIT; OIL PUMP
1-85579-069-0
01
1
1004-
●
●
69
GASKET; FILLER PLUG
1-53458-427-0
01
1
1004-
●
●
