◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11196 - FXR/GXR SOUTH AFRICA ▶ 5 - Frame, Cab Mounting ▶ 5-15 - CAB MOUNTING; CAB SIDE ▶
5-15 — CAB MOUNTING; CAB SIDE (#18220) — 93 parça

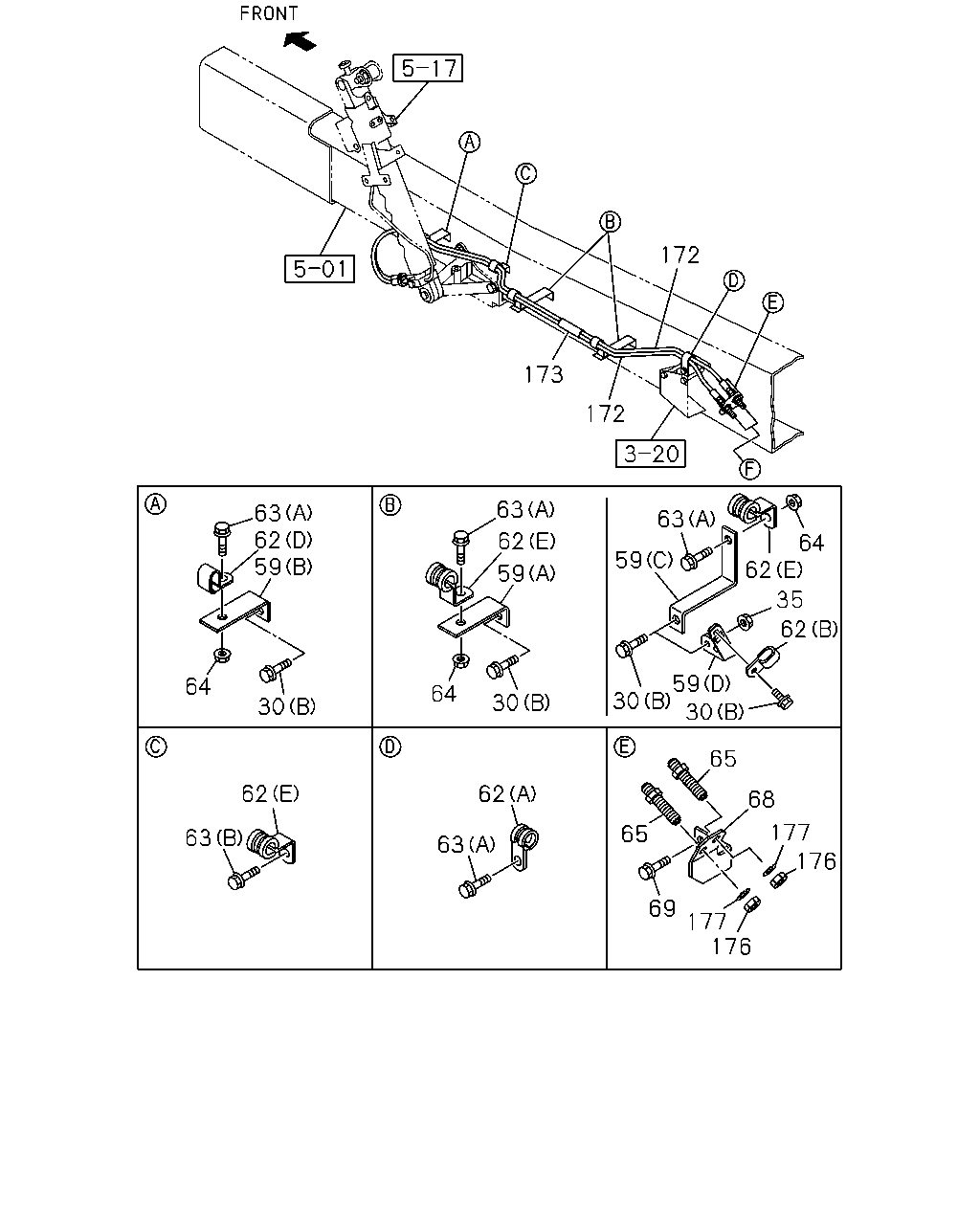

çizim 129202
172 173 172 63 63 62 59 63 62 64 62 59 59 35 62 59 30 30 64 64 30 30 65 62 62 68 177 65 63 63 176 69 177 176
BalonParca AdiParca NoAdetTipApplied Date A B
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1004- ●
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1004- ● ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1004-1108 ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1109- ●
30 BOLT; BRKT FIX
VIN MODEL YEAR 2011<VZB> (B) M8X30 FLANGE 		0-28650-830-0 02 1 1109- ●
35 NUT; BRKT
VIN MODEL YEAR 2011<VZB> M8 FLANGE SOU 		0-91180-108-0 02 1 1109- ●
59 BRACKET; CLIP
VIN MODEL YEAR 2011<VZB> (D) 		8-98187-074-0 01 1 1109- ●
59 BRACKET; CLIP
ANTILOCK BRAKE SYSTEM(BFA) (A) L=115 B=25 		1-47476-758-0 02 1 1004- ●
59 BRACKET; CLIP
(B) L=75 		1-47478-323-0 01 1 1004- ● ●
59 BRACKET; CLIP
(B) L=75 		1-47478-323-0 01 1 1004- ● ●
59 BRACKET; CLIP
(C) 		1-47479-248-0 01 1 1004- ●
62 CLIP; OIL PIPE
VIN MODEL YEAR 2011<VZB> (E) ID=21 L=30 H=40 		1-09700-991-1 02 1 1109- ●
62 CLIP; OIL PIPE
(B) ID=7X2 L=20 		0-95324-635-0 01 1 1004-1108 ● ●
62 CLIP; OIL PIPE
(B) ID=7X2 L=20 		0-95324-635-0 01 1 1109- ● ●
62 CLIP; OIL PIPE
VIN MODEL YEAR 2011<VZB> (B) ID=7X2 L=20 		0-95324-635-0 01 1 1109- ●
62 CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 1004- ● ●
62 CLIP; OIL PIPE
(E) ID=21 L=30 H=40 		1-09700-991-1 03 1 1004-1108 ● ●
62 CLIP; OIL PIPE
(E) ID=21 L=30 H=40 		1-09700-991-1 03 1 1109- ●
62 CLIP; OIL PIPE
EXC. VIN MODEL YEAR 2011<VZB> (E) ID=21 L=30 H=40 		1-09700-991-1 03 1 1109- ●
62 CLIP; OIL PIPE
(D) ID=9 & 9 L=20 		1-09701-321-0 01 1 1004- ● ●
62 CLIP; OIL PIPE
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=24 L=27 		1-09700-809-0 01 1 1004- ● ●
63 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1004- ● ●
63 BOLT; CLIP
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1004- ● ●
63 BOLT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X20 FLANGE 		0-28650-820-0 01 1 1004- ● ●
64 NUT; CLIP
VIN MODEL YEAR 2011<VZB> M8 FLANGE SOU 		0-91180-108-0 02 1 1109- ●
64 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 03 1 1004-1108 ● ●
64 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 03 1 1109- ●
64 NUT; CLIP
EXC. VIN MODEL YEAR 2011<VZB> M8 FLANGE SOU 		0-91180-108-0 03 1 1109- ●
65 UNION; OIL PIPE
M12 L=66.5 		0-92113-306-0 02 1 1004- ● ●
68 BRACKET; UNION
VIN MODEL YEAR 2011<VZB> 		8-98192-283-0 01 1 1109- ● ●
68 BRACKET; UNION 8-98109-453-0 01 1 1004-1108 ● ●
68 BRACKET; UNION
EXC. VIN MODEL YEAR 2011<VZB> 		8-98109-453-0 01 1 1109- ● ●
69 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1004- ● ●
172 HOSE; FLEX,OIL TILT
VIN MODEL YEAR 2011<VZB> 		1-09365-302-0 02 1 1109- ●
172 HOSE; FLEX,OIL TILT 8-98086-335-0 02 1 1004-1108 ● ●
172 HOSE; FLEX,OIL TILT 8-98086-335-0 02 1 1109-1201 ●
172 HOSE; FLEX,OIL TILT
EXC. VIN MODEL YEAR 2011<VZB> 		8-98086-335-0 02 1 1109-1201 ●
172 HOSE; FLEX,OIL TILT 8-98086-335-0 01 1 1202- ●
172 HOSE; FLEX,OIL TILT 8-98086-335-0 01 1 1202- ●
172 HOSE; FLEX,OIL TILT
EXC. VIN MODEL YEAR 2011<VZB> 		8-98086-335-0 01 1 1202- ●
172 HOSE; FLEX,OIL TILT
EXC. VIN MODEL YEAR 2011<VZB> 		8-98086-335-0 01 1 1202- ●
173 SLEEVE; RUBBER,FLEX HOSE
VIN MODEL YEAR 2011<VZB> 		8-98077-126-0 01 1 1109- ●
176 NUT; UNION
M12 		9-09840-280-0 02 1 1004- ● ●
177 WASHER; LK,UNION
ID=12.2 SOU 		0-91510-512-0 02 1 1004- ● ●

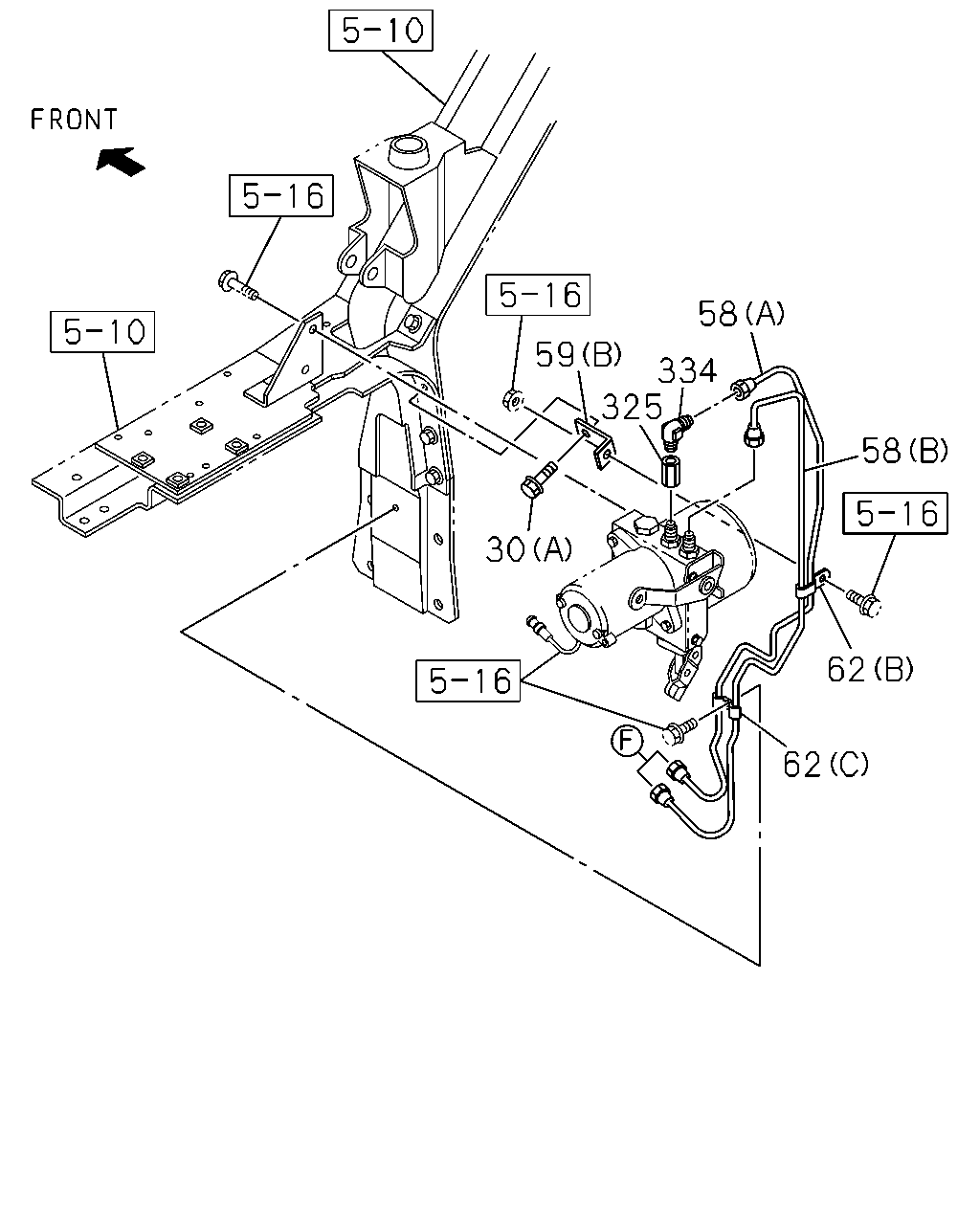

çizim 129205
58 59 334 325 58 30 62 62
BalonParca AdiParca NoAdetTipApplied Date A B
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1004- ●
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1004- ● ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1004-1108 ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1109- ●
30 BOLT; BRKT FIX
VIN MODEL YEAR 2011<VZB> (B) M8X30 FLANGE 		0-28650-830-0 02 1 1109- ●
58 PIPE; OIL,POWER UNIT
EXC. VIN MODEL YEAR 2011<VZB> (A) L=865 SERVICED BY L=900 		1-47428-729-0 01 1 1109- ● ●
58 PIPE; OIL,POWER UNIT
EXC. VIN MODEL YEAR 2011<VZB> (B) L=983 SERVICED BY L=1000 		1-47428-730-0 01 1 1109- ● ●
58 PIPE; OIL,POWER UNIT
(A) L=865 SERVICED BY L=900 		1-47428-729-0 01 1 1004-1108 ● ●
58 PIPE; OIL,POWER UNIT
VIN MODEL YEAR 2011<VZB> (A) L=860 SERVICED BY L=900 		1-47428-729-0 01 1 1109- ● ●
58 PIPE; OIL,POWER UNIT
(B) L=983 SERVICED BY L=1000 		1-47428-730-0 01 1 1004-1108 ● ●
58 PIPE; OIL,POWER UNIT
VIN MODEL YEAR 2011<VZB> (B) L=977 SERVICED BY L=1000 		1-47428-730-0 01 1 1109- ● ●
59 BRACKET; CLIP
VIN MODEL YEAR 2011<VZB> (D) 		8-98187-074-0 01 1 1109- ●
59 BRACKET; CLIP
ANTILOCK BRAKE SYSTEM(BFA) (A) L=115 B=25 		1-47476-758-0 02 1 1004- ●
59 BRACKET; CLIP
(B) L=75 		1-47478-323-0 01 1 1004- ● ●
59 BRACKET; CLIP
(B) L=75 		1-47478-323-0 01 1 1004- ● ●
59 BRACKET; CLIP
(C) 		1-47479-248-0 01 1 1004- ●
62 CLIP; OIL PIPE
VIN MODEL YEAR 2011<VZB> (E) ID=21 L=30 H=40 		1-09700-991-1 02 1 1109- ●
62 CLIP; OIL PIPE
(B) ID=7X2 L=20 		0-95324-635-0 01 1 1004-1108 ● ●
62 CLIP; OIL PIPE
(B) ID=7X2 L=20 		0-95324-635-0 01 1 1109- ● ●
62 CLIP; OIL PIPE
VIN MODEL YEAR 2011<VZB> (B) ID=7X2 L=20 		0-95324-635-0 01 1 1109- ●
62 CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 1004- ● ●
62 CLIP; OIL PIPE
(E) ID=21 L=30 H=40 		1-09700-991-1 03 1 1004-1108 ● ●
62 CLIP; OIL PIPE
(E) ID=21 L=30 H=40 		1-09700-991-1 03 1 1109- ●
62 CLIP; OIL PIPE
EXC. VIN MODEL YEAR 2011<VZB> (E) ID=21 L=30 H=40 		1-09700-991-1 03 1 1109- ●
62 CLIP; OIL PIPE
(D) ID=9 & 9 L=20 		1-09701-321-0 01 1 1004- ● ●
62 CLIP; OIL PIPE
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=24 L=27 		1-09700-809-0 01 1 1004- ● ●
325 ADAPTER; PUMP
M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 1004- ● ●
334 CONNECTOR; PUMP
M12 & PT1/4 ELBOW SOU 		1-09650-430-0 01 1 1004- ● ●

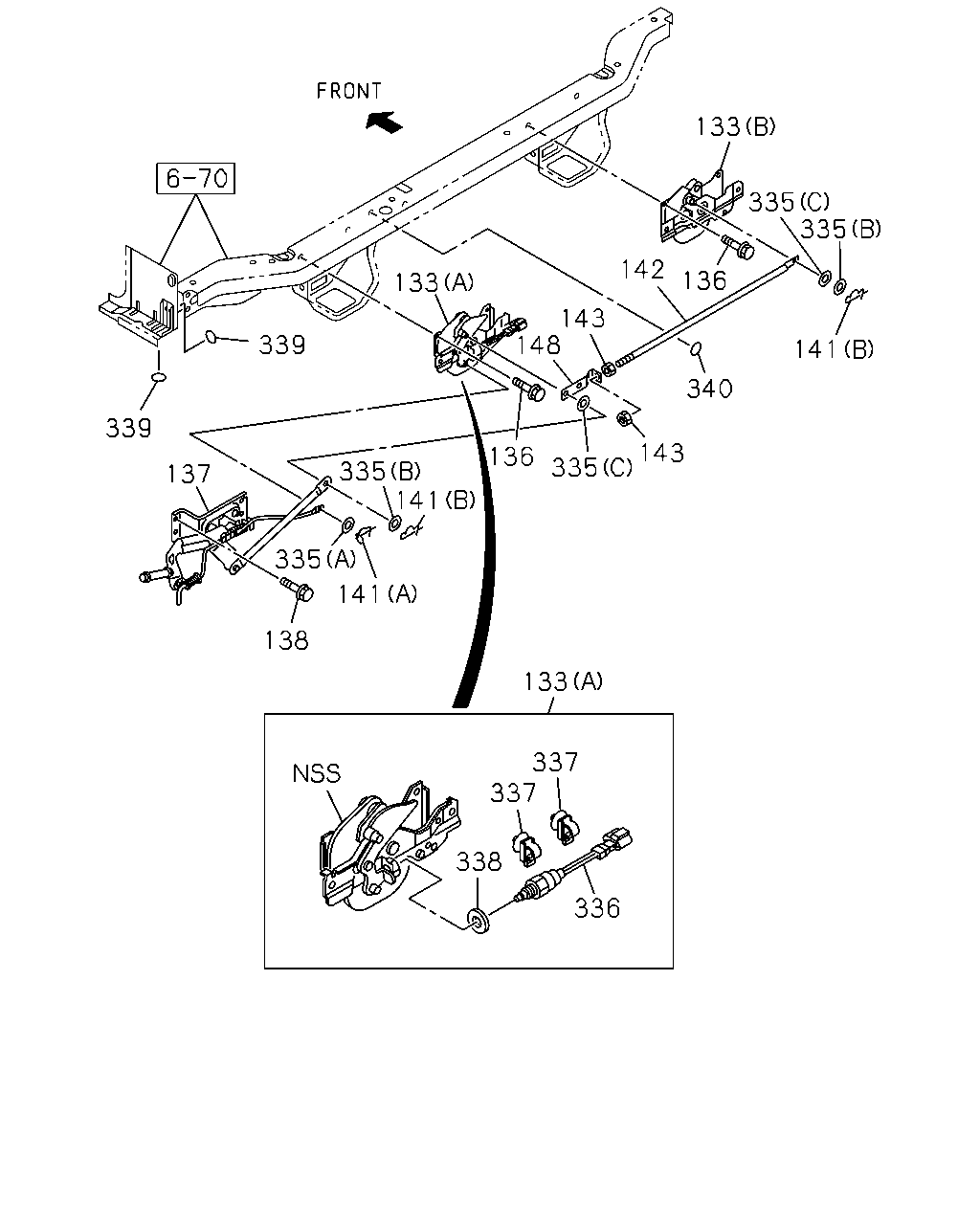

çizim 129218
133 335 335 142 136 133 143 148 339 141 340 339 143 335 136 335 141 137 335 141 138 133 337 337 338 336
BalonParca AdiParca NoAdetTipApplied Date A B
133 LOCK ASM; CAB
(A) 		8-98094-285-2 01 1 1004- ● ●
133 LOCK ASM; CAB
(B) 		8-98061-489-1 01 1 1004- ● ●
136 BOLT; CAB LK
M8X20 FLANGE 		0-28650-820-0 08 1 1004- ● ●
137 CONTROL UNIT; CAB LOCK 8-98053-683-2 01 1 1004- ● ●
138 BOLT; CAB LOCK CONT UNIT
M8X20 FLANGE 		0-28650-820-0 04 1 1004- ● ●
141 PIN; SNAP,CAB LOCK ROD
(A) L=25.3 		8-98039-045-1 01 1 1004- ● ●
141 PIN; SNAP,CAB LOCK ROD
(B) L=32.6 		8-98062-280-0 02 1 1004- ● ●
142 ROD; HOOK TO HOOK 8-97587-990-0 01 1 1004- ● ●
143 NUT; JAW JOINT,HOOK TO HOOK
M10 SOU 		0-91110-510-0 02 1 1004- ● ●
148 JOINT; JAW,HOOK TO HOOK 8-97410-736-0 01 1 1004- ● ●
335 WASHER; CAB LOCK ROD
(A) ID=8.4 OD=16 SOU 		0-91610-508-0 01 1 1004- ● ●
335 WASHER; CAB LOCK ROD
(B) ID=12.5 OD=26 		0-91610-612-0 02 1 1004- ● ●
335 WASHER; CAB LOCK ROD
(C) ID=13 OD=22 		8-98060-839-0 02 1 1004- ● ●
336 SWITCH; CAB LOCK 8-98091-155-1 01 1 1004- ● ●
337 CLIP; CAB LOCK
L=155 SOU 		8-97173-307-0 02 1 1004-1008 ● ●
338 WASHER; CAB LOCK
ID=17 OD=30 		0-91610-516-0 01 1 1004- ● ●
339 SEAL; TILT HANDLE
OD=25 BLACK SOU 		1-76798-019-0 04 1 1004- ● ●
340 SEAL; HOLE
OD=25 BLACK SOU 		1-76798-019-0 02 1 1004- ● ●

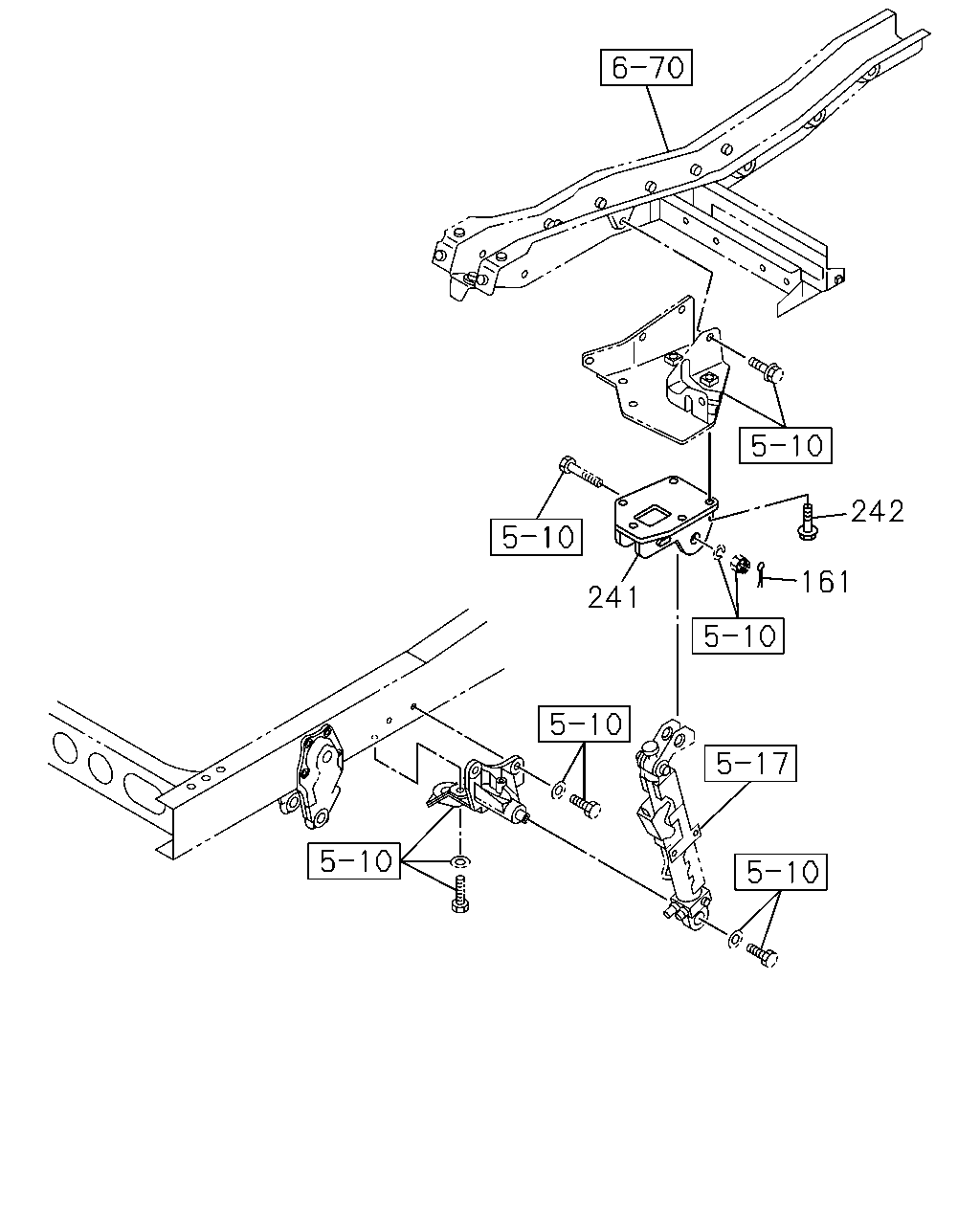

çizim 129223
242 161 241
BalonParca AdiParca NoAdetTipApplied Date A B
161 PIN; SPLIT
OD=2.8 L=25 SOU 		0-81123-025-0 01 1 1004- ● ●
241 BRACKET; POWER CYL UPR,CAB TILT 8-98054-834-0 01 1 1004- ● ●
242 BOLT; POWER CYL BRKT,CAB TILT
M10X25 FLANGE 		0-28051-025-0 05 1 1004- ● ●
