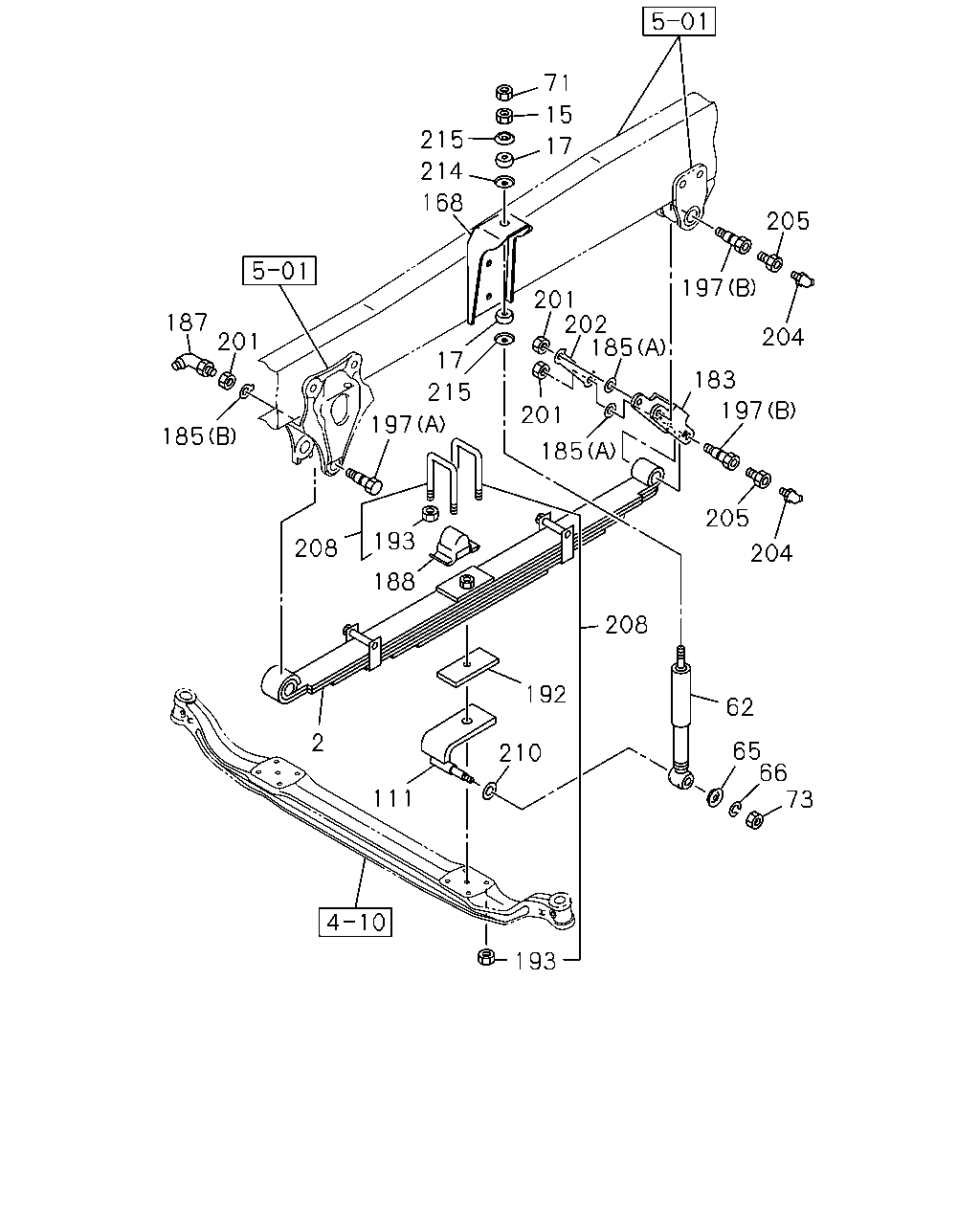

4-50 — FRONT SUSPENSION
(#18219) — 33 parça
71
15
215
17
214
168
205
197
201
202
185
187
201
204
17
183
215
197
201
197
185
185
205
193
208
204
188
208
192
62
2
65
66
73
210
111
193
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
1-51130-266-0
02
1
9510-0207
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
1-51130-110-0
02
1
0208-0210
15
NUT; S/ABS,UPR
M10 FLANGE
0-91150-110-0
02
1
9510-9608
15
NUT; S/ABS,UPR
M10 FLANGE
0-91150-210-0
02
1
9609-0210
17
BUSHING; RUBBER,S/ABS
1-51631-004-0
04
1
9510-0210
62
ABSORBER ASM; SHOCK,FRT
1-51630-381-0
02
1
9510-0210
65
WASHER; S/ABS
ID=17
9-09164-516-0
02
1
9510-0210
66
WASHER; LK,S/ABS SETTING
ID=12.2
9-09150-512-0
02
1
9510-0210
71
NUT; LK,S/ABS,UPR
M10
9-09111-410-0
02
1
9510-0210
73
NUT; BRKT,SHOCK
M12
9-99110-512-0
02
1
9510-0210
111
SUPPORTER; S/ABS,FRT SUSP
1-51681-742-0
01
1
9510-0210
111
SUPPORTER; S/ABS,FRT SUSP
1-51681-741-0
01
1
9510-0210
168
BRACKET; S/ABS,FRT SUSP
1-51681-494-0
02
1
9510-0210
183
SHACKLE; FRT SUSP
1-51162-037-0
02
1
9510-0210
185
WASHER; LK,PIN
(A) ID=25.5
1-09503-011-0
04
1
9510-0210
185
WASHER; LK,PIN
(B) ID=23
1-51169-003-0
02
1
9510-0210
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW
9-09031-210-0
02
1
9510-0210
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-107-0
02
1
9510-0004
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-112-0
02
1
0005-0210
192
PIECE; DIST
T=4.5
1-51177-149-0
01
1
9510-0210
193
NUT; U BOLT
M16
1-09440-028-1
08
1
9510-0210
197
PIN; FRT SPR,FRT
(A)
1-51161-004-3
02
1
9510-0210
197
PIN; FRT SPR,FRT
(B)
1-51161-005-3
04
1
9510-0210
201
NUT; PIN LK
M22
9-09111-522-0
06
1
9510-0210
202
PLATE; LK,SPR PIN
1-51169-016-0
02
1
9510-0210
204
NIPPLE; GREASE,RR
PT1/8 STRAIGHT
9-09031-010-0
04
1
9510-0210
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
04
1
9510-0210
208
U-BOLT SET; FRT SPRING
L=175
1-87870-350-0
04
1
9510-0004
208
U-BOLT SET; FRT SPRING
L=165
1-87870-407-0
04
1
0005-0210
210
WASHER; S/ABS,OUTER
ID=12.5 OD=26
9-09164-612-0
02
1
9510-9612
210
WASHER; S/ABS,OUTER
ID=12.5
1-09503-171-0
02
1
9701-0210
214
WASHER; S/ABS,UPR,INNER
1-51631-023-0
02
1
9510-0210
215
WASHER; S/ABS,UPR,OUTER
ID=10.5 OD=40 T=3.2
9-09651-094-0
04
1
9510-0210
