◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11288 - FTS THAILAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#18214) — 31 parça

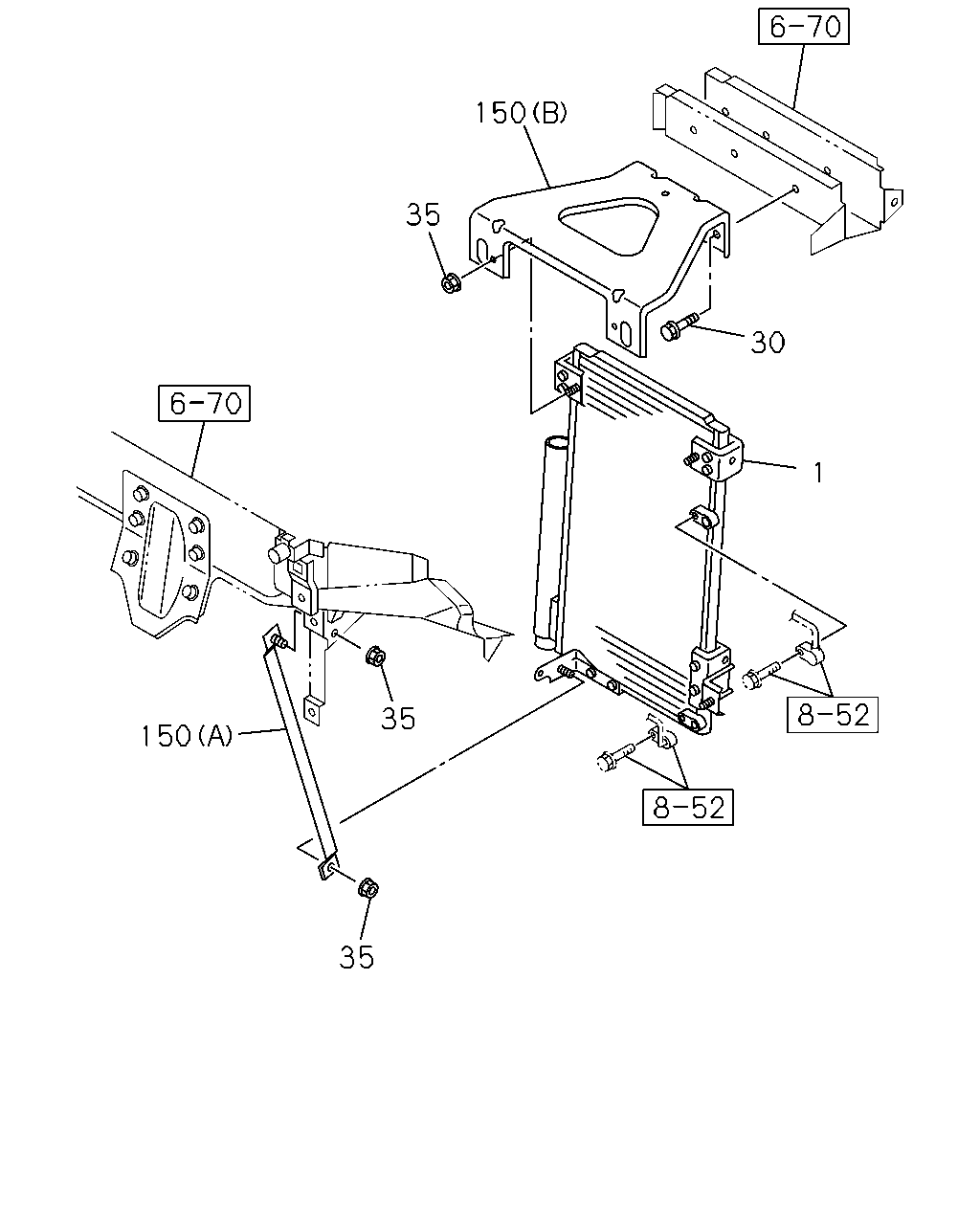

çizim 130361
150 35 30 1 35 150 35
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C 8-98041-320-0 01 1 1006-1301
1 CONDENSER; A/C 8-98235-911-2 01 1 1302-
30 BOLT; CONDENSER,A/C
M8X20 FLANGE 		0-28650-820-0 02 1 1006-
35 NUT; CONDENSER,A/C
M8 FLANGE 		0-91180-108-0 05 1 1006-
150 BRACKET; CONDENSER,MTG
(A) 		8-98041-321-0 01 1 1006-1405
150 BRACKET; CONDENSER,MTG
(A) 		8-98270-947-0 01 1 1406-
150 BRACKET; CONDENSER,MTG
(B) 		8-98041-322-0 01 1 1006-1409
150 BRACKET; CONDENSER,MTG
(B) 		8-98242-412-0 01 1 1410-

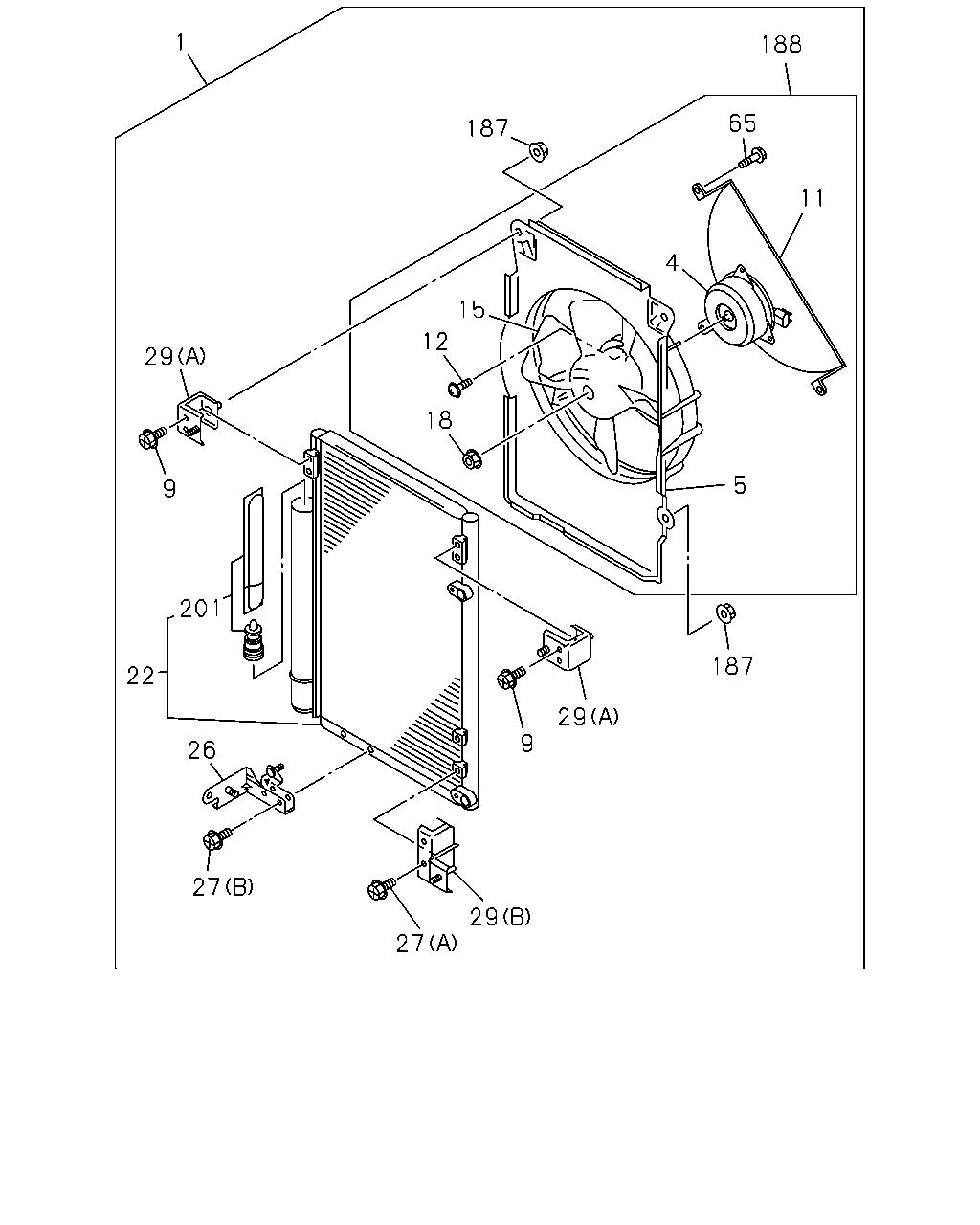

çizim 130367
1 188 65 187 11 4 15 12 29 18 5 9 201 187 22 29 9 26 27 29 27
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C 8-98041-320-0 01 1 1006-1301
1 CONDENSER; A/C 8-98235-911-2 01 1 1302-
4 MOTOR ASM; FAN 8-98076-091-0 01 1 1006-
5 SHROUD; FAN MOTOR 8-98076-093-0 01 1 1006-
9 BOLT; BRKT
M6X14 		1-83539-382-0 04 1 1006-
11 COVER; SHROUD 8-98068-234-0 01 1 1006-1308
12 BOLT; FAN MOTOR 8-97180-269-0 03 1 1006-
15 FAN; MOTOR 8-98076-092-0 01 1 1006-1301
15 FAN; MOTOR 8-98152-860-0 01 1 1302-
18 NUT; FAN,CENTER
M5 FLANGE 		8-94157-075-0 01 1 1006-
22 CONDENSER ASM; A/C 1-83534-261-0 01 1 1006-1409
22 CONDENSER ASM; A/C 8-98275-189-0 01 1 1410-
26 BRACKET; LOW 1-83573-281-0 01 1 1006-
27 BOLT; BRKT,LOW SIDE
(A) M6X14 		1-83539-382-0 02 1 1006-
27 BOLT; BRKT,LOW SIDE
(B) M5X25 		8-97178-770-0 02 1 1006-
29 BRACKET; SIDE
(A) 		8-98065-914-0 02 1 1006-
29 BRACKET; SIDE
(B) 		8-98065-915-0 01 1 1006-
65 BOLT; SHROUD
M6X16 		8-97096-525-0 03 1 1006-1308
187 NUT; SHROUD
M6 		1-83539-354-0 04 1 1006-
188 BLOWER ASM; SHROUD 8-98065-913-0 01 1 1006-1301
188 BLOWER ASM; SHROUD 8-98235-916-1 01 1 1302-
201 DRYER ASM; CONDENSER 1-83535-097-0 01 1 1006-1409
201 DRYER ASM; CONDENSER 8-98282-482-0 01 1 1410-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
