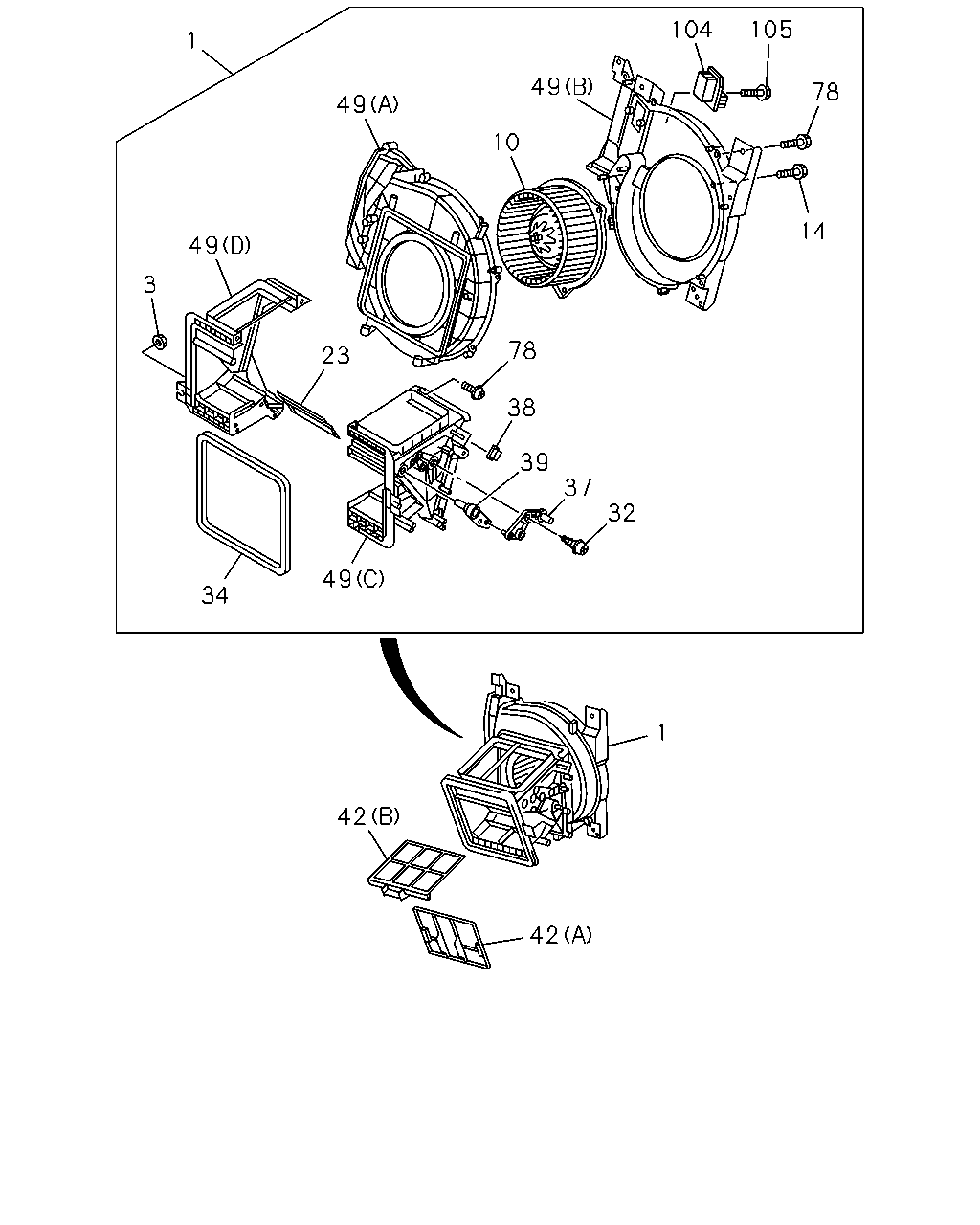

8-73 — BLOWER UNIT
(#18213) — 39 parça
104
105
1
49
78
49
10
14
49
3
78
23
38
39
37
32
49
34
1
42
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BLOWER ASM
8-98171-720-0
01
1
1103-
1
BLOWER ASM
8-98041-323-1
01
1
1006-1012
1
BLOWER ASM
8-98171-720-0
01
1
1101-1102
3
NUT; CASE
M6
1-83539-354-0
02
1
1103-
3
NUT; CASE
M6
1-83539-354-0
02
1
1006-1102
10
MOTOR ASM; FAN,BLOWER UNIT
8-98183-924-0
01
1
1103-
10
MOTOR ASM; FAN,BLOWER UNIT
8-98047-767-0
01
1
1006-1012
10
MOTOR ASM; FAN,BLOWER UNIT
8-98183-924-0
01
1
1101-1102
14
SCREW; COVER TO CASE
M5X16
8-98047-448-0
03
1
1103-
14
SCREW; COVER TO CASE
M5X16
8-98047-448-0
03
1
1006-1102
23
SHUTTER; BLOWER UNIT
8-98171-863-0
01
1
1103-
23
SHUTTER; BLOWER UNIT
8-98047-437-0
01
1
1006-1012
23
SHUTTER; BLOWER UNIT
8-98171-863-0
01
1
1101-1102
32
SCREW; LEVER
M4X16
8-98047-416-0
01
1
1103-
32
SCREW; LEVER
M4X16
8-98047-416-0
01
1
1006-1102
34
LINING; BLOWER UNIT
8-98096-453-0
01
1
1103-
34
LINING; BLOWER UNIT
8-98096-453-0
01
1
1006-1102
37
LEVER; MODE LEVER
8-98047-436-0
01
1
1103-
37
LEVER; MODE LEVER
8-98047-436-0
01
1
1006-1102
38
CLIP; BLOWER UNIT
8-98047-417-0
01
1
1103-
38
CLIP; BLOWER UNIT
8-98047-417-0
01
1
1006-1102
39
LEVER; SHUTTER,BLOWER UNIT
8-98047-435-0
01
1
1103-
39
LEVER; SHUTTER,BLOWER UNIT
8-98047-435-0
01
1
1006-1102
42
FILTER; BLOWER UNIT
(B)
8-98025-006-1
01
1
1006-
42
FILTER; BLOWER UNIT
(A)
8-98041-327-0
01
1
1006-
49
CASE; BLOWER UNIT
(B)
8-98047-440-0
01
1
1006-1102
49
CASE; BLOWER UNIT
(B)
8-98047-440-0
01
1
1103-
49
CASE; BLOWER UNIT
(A)
8-98047-441-0
01
1
1006-1102
49
CASE; BLOWER UNIT
(A)
8-98047-441-0
01
1
1103-
49
CASE; BLOWER UNIT
(D)
8-98077-413-0
01
1
1006-1102
49
CASE; BLOWER UNIT
(D)
8-98077-413-0
01
1
1103-
49
CASE; BLOWER UNIT
(C)
8-98077-414-0
01
1
1006-1102
49
CASE; BLOWER UNIT
(C)
8-98077-414-0
01
1
1103-
78
SCREW; CASE TO CASE
M4X16 TAPPING
8-97957-708-0
15
1
1103-
78
SCREW; CASE TO CASE
M4X16 TAPPING
8-97957-708-0
15
1
1006-1102
104
RESISTOR; BLOWER UNIT
8-98074-113-0
01
1
1103-
104
RESISTOR; BLOWER UNIT
8-98074-113-0
01
1
1006-1102
105
SCREW; RESISTOR
M4X16 TAPPING
8-97957-708-0
02
1
1103-
105
SCREW; RESISTOR
M4X16 TAPPING
8-97957-708-0
02
1
1006-1102
