◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10653 - EXZ ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#1821) — 1098 parça

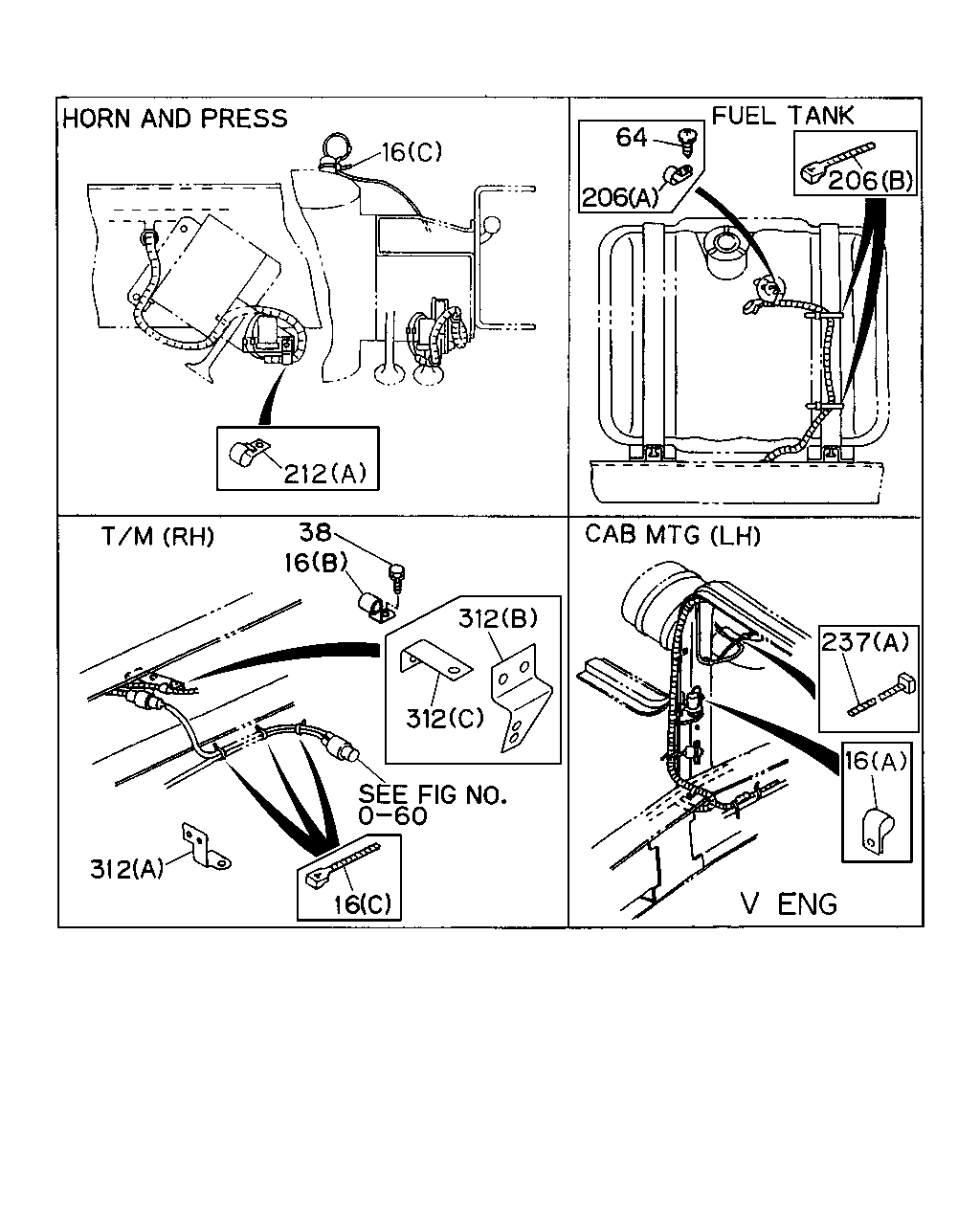

çizim 29412
16 64 206 206 237 16 312 312 16 38 212 312 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 04 1 9002-9206 ●
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (D) ID=11 L=41 		1-09700-403-0 01 1 9207-9306 ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 05 1 9104-9306 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 06 1 9307- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (B) ID=13 H=46 L=12 		1-09700-493-0 01 1 9002- ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (G) ID=35 L=35 W/NUT 		1-09700-684-0 01 1 9002- ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (F) ID=35 L=35 		1-09700-726-0 01 1 9002- ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=20 L=50 		9-09917-430-0 04 1 9002- ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (I) OD=9 H=6 		1-09709-178-0 08 1 9104- ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=50 		9-09525-085-0 02 1 9104- ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-0 01 1 9002-9003 ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-0 01 1 9002-9003 ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (N) ID=29 L=35 		5-09700-293-1 01 1 9002- ●
16 CLIP; HARNESS
(N) ID=29 L=35 		5-09700-293-1 01 1 9002- ●
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (D) ID=11 L=41 		1-09700-403-0 01 1 9307- ●
16 CLIP; HARNESS
L TYPE ENG<90L> (U) ID=19 H=50 L=25 		9-09916-622-0 01 1 9307- ●
16 CLIP; HARNESS
NYLON TUBE AIR PIPING<Z29> (E) L=150 		1-09707-145-0 01 1 9002- ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (L) ID=21 L=30 H=40 		1-09700-991-1 01 1 9002- ●
16 CLIP; HARNESS
(L) ID=21 L=30 H=40 		1-09700-991-1 01 1 9002- ●
16 CLIP; HARNESS
6RB1TC ENG(30L) INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 05 1 9012- ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 06 1 9002-9210 ● ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 03 1 9211-9306 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 06 1 9002-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 06 1 9002-9306 ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=14 L=44 		9-09917-427-0 01 1 9307- ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 06 1 9002-9206 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9011 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9104-9306 ● ●
16 CLIP; HARNESS
(R) ID=15 H=24 L=20 		1-09700-606-0 01 1 9002- ● ●
16 CLIP; HARNESS
(P) 		1-09700-894-0 01 1 9002- ● ●
16 CLIP; HARNESS
EXC. INTERMITTENT WIPER<C13> (P) 		1-09700-894-0 01 1 9002- ● ●
16 CLIP; HARNESS
(S) WO/SPONGE RUBBER 		1-09709-103-1 01 1 9002- ● ●
16 CLIP; HARNESS
(T) L=219.5 		1-09987-136-0 04 1 9002- ● ●
16 CLIP; HARNESS
(J) L=135 		1-09987-143-1 01 1 9002-9201 ● ●
16 CLIP; HARNESS
(Z) L=175 		8-94155-593-1 03 1 9202- ● ●
16 CLIP; HARNESS
(L) ID=11 H=20 L=20 		5-09700-351-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-0 01 1 9002- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-0 01 1 9002- ● ●
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 02 1 9002- ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-032-0 01 1 9002-9410 ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (A) ID=11 L=20 		9-09525-032-0 01 1 9411- ● ●
16 CLIP; HARNESS
(A) ID=11 L=28 		9-09525-055-0 01 1 9002- ● ●
16 CLIP; HARNESS
(U) ID=19 H=50 L=25 		9-09916-622-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
(D) ID=20 L=70 		1-09700-485-0 12 1 9307-9404 ● ●
16 CLIP; HARNESS
(D) ID=20 L=70 		1-09700-485-0 11 1 9405- ● ●
16 CLIP; HARNESS
(D) ID=6 L=36 		9-09917-423-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
(D) ID=18 L=48 		9-09917-429-0 02 1 9002- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=18 L=48 		9-09917-429-0 02 1 9002- ●
16 CLIP; HARNESS
(D) ID=20 L=50 		9-09917-430-0 08 1 9002-9306 ● ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 05 1 9307- ● ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 03 1 9002- ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 9004- ● ●
16 CLIP; HARNESS
(E) L=300 		1-09707-001-0 01 1 9007- ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9104- ● ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 01 1 9307-9309 ● ●
16 CLIP; HARNESS
(L) ID=11 H=20 L=20 		5-09700-351-0 01 1 9307- ● ●
16 CLIP; HARNESS
(D) ID=6 L=36 		9-09917-423-0 01 1 9307- ● ●
16 CLIP; HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 9309- ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 02 1 9411- ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (R) ID=12 H=24 L=20 		1-09700-605-0 02 1 9002- ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (D) ID=11 L=41 		1-09700-403-0 02 1 9002-9007 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ● ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 01 1 9012- ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 03 1 9002-9008 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (D) ID=20 L=50 		9-09917-430-0 01 1 9009-9103 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 02 1 9002-9306 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (Y) ID=18 L=44 		8-94225-185-0 01 1 9307-9309 ●
16 CLIP; HARNESS
(Y) ID=18 L=44 		8-94225-185-0 02 1 9310- ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (O) ID=11 L=30 		1-09700-511-0 01 1 9002-9204 ● ●
16 CLIP; HARNESS
(O) ID=11 L=30 		1-09700-511-0 01 1 9205- ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L),6RB1TC ENG(30L) (O) ID=11 L=30 		1-09700-511-0 01 1 9205- ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (M) ID=15 L=35 		1-09700-507-0 03 1 9002-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (Y) ID=18 L=44 		8-94225-185-0 02 1 9307-9309 ●
16 CLIP; HARNESS
(Y) ID=18 L=44 		8-94225-185-0 02 1 9307-9309 ●
16 CLIP; HARNESS
V TYPE ENG<91L> (M) ID=15 L=35 		1-09700-507-0 01 1 9310- ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (C) L=140 		5-09707-031-0 01 1 9002-9402 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-0 01 1 9002-9402 ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (C) L=140 		5-09707-031-0 01 1 9403- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-0 01 1 9403- ●
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5) (C) L=140 		5-09707-031-0 01 1 9403- ●
16 CLIP; HARNESS
V TYPE ENG<91L> (R) ID=24.5 H=35 L=25 		1-09700-990-0 01 1 9307- ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) INTAKE HEATER<SL2> (A) ID=11 L=28 		9-09525-052-0 01 1 9002- ● ●
16 CLIP; HARNESS
12PD1 STD ENG(42L) (W) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 9002-9306 ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 9307-9410 ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=20 		9-09525-035-0 01 1 9411- ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28010-820-0 02 1 9104-9204 ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9205-9302 ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 02 1 9303-9410 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 FLANGE 		0-28080-820-0 02 1 9411- ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9411- ●
38 BOLT; CLIP,HARNESS
EXC. NYLON TUBE AIR PIPING<Z29> M6X20 W/LK WASHER 		9-01900-620-0 02 1 9002-9011 ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28010-820-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 03 1 9205-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X16 FLANGE 		0-28080-816-0 02 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 02 1 9002-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 07 1 9002-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 08 1 9303- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 02 1 9002- ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9002- ● ●
38 BOLT; CLIP,HARNESS
M6X22 W/LK&PL WASHER 		8-94122-770-0 01 1 9002-9212 ● ●
38 BOLT; CLIP,HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-9301 ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9002- ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9307-9410 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 FLANGE 		0-28080-620-0 01 1 9411- ● ●
38 BOLT; CLIP,HARNESS
M8X18 W/LK WASHER 		9-01900-818-0 02 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X18 W/LK WASHER 		0-50040-818-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9303- ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		9-01911-020-0 02 1 9002-9002 ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 01 1 9003-9306 ● ●
38 BOLT; CLIP,HARNESS
M12X25 W/LK&PL WASHER 		9-01961-225-0 01 1 9002-9101 ● ●
38 BOLT; CLIP,HARNESS
M12X16 FLANGE 		1-09044-079-0 01 1 9102- ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9003-9106 ● ●
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9107- ● ●
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9303- ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 03 1 9411- ● ●
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X25 W/LK WASHER 		9-01900-825-0 02 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X25 FLANGE 		0-28080-825-0 02 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X25 FLANGE 		0-28080-825-0 02 1 9307- ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 02 1 9307- ●
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X20 FLANGE 		0-28080-820-0 04 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 FLANGE 		0-28080-820-0 04 1 9307- ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 04 1 9307- ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 01 1 9002-9205 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 01 1 9206-9206 ● ●
38 BOLT; CLIP,HARNESS
HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE 		0-28080-825-0 01 1 9206-9206 ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 01 1 9207-9306 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) INTAKE HEATER<SL2> M6X16 FLANGE 		0-28080-616-0 01 1 9002- ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L), 10PD1 STD ENG(40L) M8X30 FLANGE 		0-28080-830-0 13 1 9002- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 04 1 9002-9204 ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 04 1 9205- ●
38 BOLT; CLIP,HARNESS
12PD1 STD ENG(42L) M8X30 FLANGE 		0-28080-830-0 14 1 9002-9306 ●
38 BOLT; CLIP,HARNESS
12PD1 STD ENG(42L) M8X35 W/LK WASHER 		0-50040-835-0 01 1 9002-9302 ●
38 BOLT; CLIP,HARNESS
12PD1 STD ENG(42L) M8X35 FLANGE 		0-28080-835-0 01 1 9303-9306 ●
64 SCREW; CLIP
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9002- ● ●
64 SCREW; CLIP
INTAKE HEATER<SL2> M5X16 W/LK WASHER 		9-03910-516-0 01 1 9002- ●
206 CLIP; FUEL TANK HARNESS
10PD1 STD ENG(40L) HONG KONG EQUIPMENT(PQ1) (B) L=250 		5-09707-030-0 01 1 9002- ●
206 CLIP; FUEL TANK HARNESS
(A) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 9002-9306 ● ●
206 CLIP; FUEL TANK HARNESS
(B) L=140 		5-09707-031-0 02 1 9002- ● ●
206 CLIP; FUEL TANK HARNESS
(A) ID=11 L=16 		9-09525-022-0 01 1 9002-9002 ● ●
212 CLIP; HORN HARNESS
(A) ID=11 L=30 		1-09700-511-0 01 1 9002- ● ●
212 CLIP; HORN HARNESS
(C) L=250 		5-09707-030-0 01 1 9002- ● ●
212 CLIP; HORN HARNESS
(B) ID=15 L=45 		1-09700-402-0 01 1 9012- ● ●
212 CLIP; HORN HARNESS
(D) L=150 		1-09707-145-0 01 1 9305- ● ●
237 CLIP; BAND,ACL
(A) L=600 		1-09707-107-0 01 1 9002- ● ●
237 CLIP; BAND,ACL
(B) L=140 		5-09707-031-0 01 1 9002- ● ●
312 BRACKET; CLIP HARNESS
(C) 		1-82699-085-0 01 1 9002- ● ●
312 BRACKET; CLIP HARNESS
V TYPE ENG<91L> (C) 		1-82699-085-0 01 1 9002- ● ●
312 BRACKET; CLIP HARNESS
(B) 		1-82699-141-1 01 1 9002- ● ●
312 BRACKET; CLIP HARNESS
V TYPE ENG<91L> (A) 		1-82699-348-0 01 1 9002- ● ●

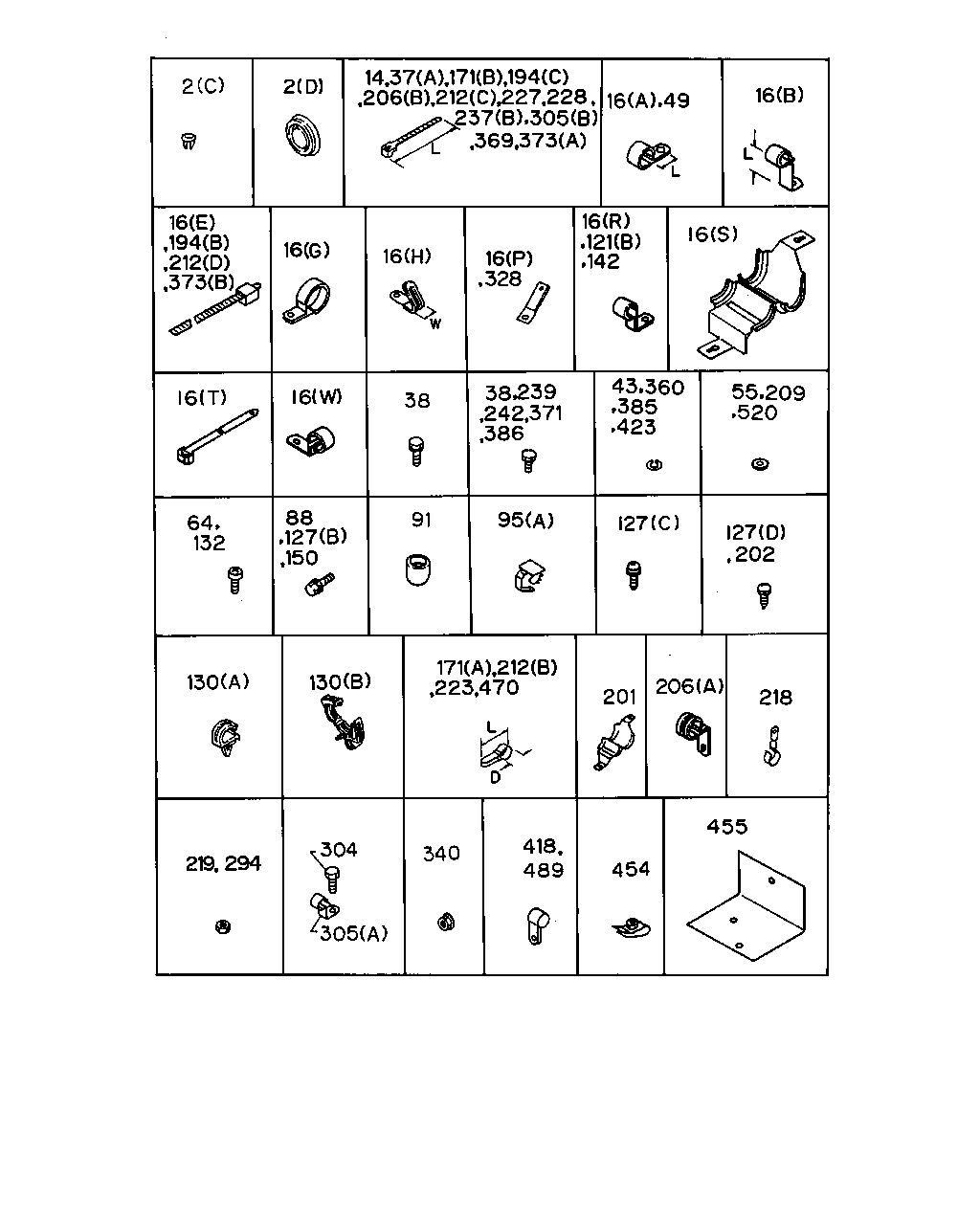

çizim 29413
2 2 14 37 171 194 206 212 227 228 237 305 369 373 16 49 16 373 212 194 16 16 16 328 16 142 121 16 16 16 16 38 386 242 371 38 239 423 385 43 360 520 55 209 132 64 88 127 150 91 95 127 127 202 130 130 171 212 223 470 201 206 218 219 294 305 304 340 418 489 454 455
BalonParca AdiParca NoAdetTipApplied Date A B
2 GROMMET; CLIP HOLE,HARNESS
(D) OD=48.5 		1-73907-231-0 01 1 9202- ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. AUTO CAB TILT<WV2> (C) OD=12.8 		1-09983-065-0 07 1 9002- ●
2 GROMMET; CLIP HOLE,HARNESS
(C) OD=12.8 		1-09983-065-0 07 1 9002- ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. LAMPS FOUR ROOF MARKER<PJ5> (A) ID=20 OD=40 		1-09983-077-0 01 1 9002- ●
2 GROMMET; CLIP HOLE,HARNESS
(A) ID=20 OD=40 		1-09983-077-0 01 1 9002- ●
2 GROMMET; CLIP HOLE,HARNESS
COURTESY LAMP<C97> EXC. POWER WINDOW<A30> (B) OD=47 		1-09983-039-1 01 1 9002- ● ●
2 GROMMET; CLIP HOLE,HARNESS
COURTESY LAMP<C97> EXC. POWER WINDOW<A30> (C) OD=12.8 		1-09983-065-0 01 1 9002- ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. COURTESY LAMP<C97> (B) OD=47 		1-09983-039-1 02 1 9002- ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. COURTESY LAMP<C97> (C) OD=12.8 		1-09983-065-0 02 1 9002- ● ●
14 CLIP; BAND,HARNESS
FULLER M/T<X9B> L=140 		5-09707-031-0 02 1 9002- ● ●
14 CLIP; BAND,HARNESS
INTAKE HEATER<SL2> L=100 		5-09707-036-0 01 1 9002- ●
14 CLIP; BAND,HARNESS
OIL FILTER CENTRIFUGAL<E6S> L=150 		1-09707-145-0 06 1 9010-9011 ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 04 1 9002-9206 ●
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (D) ID=11 L=41 		1-09700-403-0 01 1 9207-9306 ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 05 1 9104-9306 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 06 1 9307- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (B) ID=13 H=46 L=12 		1-09700-493-0 01 1 9002- ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (G) ID=35 L=35 W/NUT 		1-09700-684-0 01 1 9002- ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (F) ID=35 L=35 		1-09700-726-0 01 1 9002- ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=20 L=50 		9-09917-430-0 04 1 9002- ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (I) OD=9 H=6 		1-09709-178-0 08 1 9104- ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=50 		9-09525-085-0 02 1 9104- ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-0 01 1 9002-9003 ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-0 01 1 9002-9003 ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (N) ID=29 L=35 		5-09700-293-1 01 1 9002- ●
16 CLIP; HARNESS
(N) ID=29 L=35 		5-09700-293-1 01 1 9002- ●
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (D) ID=11 L=41 		1-09700-403-0 01 1 9307- ●
16 CLIP; HARNESS
L TYPE ENG<90L> (U) ID=19 H=50 L=25 		9-09916-622-0 01 1 9307- ●
16 CLIP; HARNESS
NYLON TUBE AIR PIPING<Z29> (E) L=150 		1-09707-145-0 01 1 9002- ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (L) ID=21 L=30 H=40 		1-09700-991-1 01 1 9002- ●
16 CLIP; HARNESS
(L) ID=21 L=30 H=40 		1-09700-991-1 01 1 9002- ●
16 CLIP; HARNESS
6RB1TC ENG(30L) INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 05 1 9012- ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 06 1 9002-9210 ● ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 03 1 9211-9306 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 06 1 9002-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 06 1 9002-9306 ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=14 L=44 		9-09917-427-0 01 1 9307- ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 06 1 9002-9206 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9011 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9104-9306 ● ●
16 CLIP; HARNESS
(R) ID=15 H=24 L=20 		1-09700-606-0 01 1 9002- ● ●
16 CLIP; HARNESS
(P) 		1-09700-894-0 01 1 9002- ● ●
16 CLIP; HARNESS
EXC. INTERMITTENT WIPER<C13> (P) 		1-09700-894-0 01 1 9002- ● ●
16 CLIP; HARNESS
(S) WO/SPONGE RUBBER 		1-09709-103-1 01 1 9002- ● ●
16 CLIP; HARNESS
(T) L=219.5 		1-09987-136-0 04 1 9002- ● ●
16 CLIP; HARNESS
(J) L=135 		1-09987-143-1 01 1 9002-9201 ● ●
16 CLIP; HARNESS
(Z) L=175 		8-94155-593-1 03 1 9202- ● ●
16 CLIP; HARNESS
(L) ID=11 H=20 L=20 		5-09700-351-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-0 01 1 9002- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-0 01 1 9002- ● ●
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 02 1 9002- ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-032-0 01 1 9002-9410 ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (A) ID=11 L=20 		9-09525-032-0 01 1 9411- ● ●
16 CLIP; HARNESS
(A) ID=11 L=28 		9-09525-055-0 01 1 9002- ● ●
16 CLIP; HARNESS
(U) ID=19 H=50 L=25 		9-09916-622-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
(D) ID=20 L=70 		1-09700-485-0 12 1 9307-9404 ● ●
16 CLIP; HARNESS
(D) ID=20 L=70 		1-09700-485-0 11 1 9405- ● ●
16 CLIP; HARNESS
(D) ID=6 L=36 		9-09917-423-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
(D) ID=18 L=48 		9-09917-429-0 02 1 9002- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=18 L=48 		9-09917-429-0 02 1 9002- ●
16 CLIP; HARNESS
(D) ID=20 L=50 		9-09917-430-0 08 1 9002-9306 ● ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 05 1 9307- ● ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 03 1 9002- ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 9004- ● ●
16 CLIP; HARNESS
(E) L=300 		1-09707-001-0 01 1 9007- ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9104- ● ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 01 1 9307-9309 ● ●
16 CLIP; HARNESS
(L) ID=11 H=20 L=20 		5-09700-351-0 01 1 9307- ● ●
16 CLIP; HARNESS
(D) ID=6 L=36 		9-09917-423-0 01 1 9307- ● ●
16 CLIP; HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 9309- ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 02 1 9411- ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (R) ID=12 H=24 L=20 		1-09700-605-0 02 1 9002- ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (D) ID=11 L=41 		1-09700-403-0 02 1 9002-9007 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ● ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 01 1 9012- ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 03 1 9002-9008 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (D) ID=20 L=50 		9-09917-430-0 01 1 9009-9103 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 02 1 9002-9306 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (Y) ID=18 L=44 		8-94225-185-0 01 1 9307-9309 ●
16 CLIP; HARNESS
(Y) ID=18 L=44 		8-94225-185-0 02 1 9310- ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (O) ID=11 L=30 		1-09700-511-0 01 1 9002-9204 ● ●
16 CLIP; HARNESS
(O) ID=11 L=30 		1-09700-511-0 01 1 9205- ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L),6RB1TC ENG(30L) (O) ID=11 L=30 		1-09700-511-0 01 1 9205- ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (M) ID=15 L=35 		1-09700-507-0 03 1 9002-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (Y) ID=18 L=44 		8-94225-185-0 02 1 9307-9309 ●
16 CLIP; HARNESS
(Y) ID=18 L=44 		8-94225-185-0 02 1 9307-9309 ●
16 CLIP; HARNESS
V TYPE ENG<91L> (M) ID=15 L=35 		1-09700-507-0 01 1 9310- ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (C) L=140 		5-09707-031-0 01 1 9002-9402 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-0 01 1 9002-9402 ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (C) L=140 		5-09707-031-0 01 1 9403- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-0 01 1 9403- ●
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5) (C) L=140 		5-09707-031-0 01 1 9403- ●
16 CLIP; HARNESS
V TYPE ENG<91L> (R) ID=24.5 H=35 L=25 		1-09700-990-0 01 1 9307- ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) INTAKE HEATER<SL2> (A) ID=11 L=28 		9-09525-052-0 01 1 9002- ● ●
16 CLIP; HARNESS
12PD1 STD ENG(42L) (W) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 9002-9306 ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 9307-9410 ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=20 		9-09525-035-0 01 1 9411- ● ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (B) ID=11 L=30 		1-09700-511-0 01 1 9002- ●
37 CLIP; HARNESS,POWER TILT
HONG KONG EQUIPMENT(PQ1) AUTO CAB TILT<WV2> (A) L=140 		5-09707-031-0 01 1 9307- ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28010-820-0 02 1 9104-9204 ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9205-9302 ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 02 1 9303-9410 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 FLANGE 		0-28080-820-0 02 1 9411- ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9411- ●
38 BOLT; CLIP,HARNESS
EXC. NYLON TUBE AIR PIPING<Z29> M6X20 W/LK WASHER 		9-01900-620-0 02 1 9002-9011 ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28010-820-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 03 1 9205-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X16 FLANGE 		0-28080-816-0 02 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 02 1 9002-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 07 1 9002-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 08 1 9303- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 02 1 9002- ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9002- ● ●
38 BOLT; CLIP,HARNESS
M6X22 W/LK&PL WASHER 		8-94122-770-0 01 1 9002-9212 ● ●
38 BOLT; CLIP,HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-9301 ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9002- ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9307-9410 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 FLANGE 		0-28080-620-0 01 1 9411- ● ●
38 BOLT; CLIP,HARNESS
M8X18 W/LK WASHER 		9-01900-818-0 02 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X18 W/LK WASHER 		0-50040-818-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9303- ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		9-01911-020-0 02 1 9002-9002 ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 01 1 9003-9306 ● ●
38 BOLT; CLIP,HARNESS
M12X25 W/LK&PL WASHER 		9-01961-225-0 01 1 9002-9101 ● ●
38 BOLT; CLIP,HARNESS
M12X16 FLANGE 		1-09044-079-0 01 1 9102- ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9003-9106 ● ●
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9107- ● ●
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9303- ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 03 1 9411- ● ●
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X25 W/LK WASHER 		9-01900-825-0 02 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X25 FLANGE 		0-28080-825-0 02 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X25 FLANGE 		0-28080-825-0 02 1 9307- ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 02 1 9307- ●
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X20 FLANGE 		0-28080-820-0 04 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 FLANGE 		0-28080-820-0 04 1 9307- ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 04 1 9307- ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 01 1 9002-9205 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 01 1 9206-9206 ● ●
38 BOLT; CLIP,HARNESS
HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE 		0-28080-825-0 01 1 9206-9206 ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 01 1 9207-9306 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) INTAKE HEATER<SL2> M6X16 FLANGE 		0-28080-616-0 01 1 9002- ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L), 10PD1 STD ENG(40L) M8X30 FLANGE 		0-28080-830-0 13 1 9002- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 04 1 9002-9204 ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 04 1 9205- ●
38 BOLT; CLIP,HARNESS
12PD1 STD ENG(42L) M8X30 FLANGE 		0-28080-830-0 14 1 9002-9306 ●
38 BOLT; CLIP,HARNESS
12PD1 STD ENG(42L) M8X35 W/LK WASHER 		0-50040-835-0 01 1 9002-9302 ●
38 BOLT; CLIP,HARNESS
12PD1 STD ENG(42L) M8X35 FLANGE 		0-28080-835-0 01 1 9303-9306 ●
43 WASHER; LK,HARNESS
L TYPE ENG<90L> ID=5.1 		9-09150-505-0 01 1 9002- ● ●
49 CLIP; GEN HARNESS
L TYPE ENG<90L> ID=16 L=20 		9-09525-532-0 01 1 9002- ● ●
49 CLIP; GEN HARNESS
V TYPE ENG<91L> ID=19 L=20 		9-09525-832-0 01 1 9002- ● ●
55 WASHER; PL,CLIP
L TYPE ENG<90L> ID=5.3 		9-09160-505-0 01 1 9002- ● ●
64 SCREW; CLIP
M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9002- ● ●
64 SCREW; CLIP
INTAKE HEATER<SL2> M5X16 W/LK WASHER 		9-03910-516-0 01 1 9002- ●
88 BOLT; DOOR HARNESS EARTH
COURTESY LAMP<C97> EXC. POWER WINDOW<A30> M6X22 W/LK&PL WASHER 		1-09980-537-0 01 1 9002-9303 ● ●
88 BOLT; DOOR HARNESS EARTH
COURTESY LAMP<C97> EXC. POWER WINDOW<A30> M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9304- ● ●
91 CAP; BOLT,HARNESS 1-82699-340-0 02 1 9004- ●
95 CLIP; CABLE
(B) 		1-09987-143-1 02 1 9002-9201 ● ●
95 CLIP; CABLE
(C) 		8-94155-593-1 02 1 9202-9205 ● ●
95 CLIP; CABLE
INTAKE HEATER<SL2> (C) 		8-94155-593-1 01 1 9206- ● ●
95 CLIP; CABLE
(A) 		1-09987-155-0 02 1 9002- ● ●
121 CLIP; FACIA HARNESS
(A) ID=21 L=28 		1-09700-673-1 01 1 9002- ● ●
121 CLIP; FACIA HARNESS
(B) ID=23 H=23 L=24 		1-09700-738-0 03 1 9002- ● ●
121 CLIP; FACIA HARNESS
(A) ID=16 L=20 		9-09525-532-0 01 1 9002- ● ●
121 CLIP; FACIA HARNESS
(B) ID=16 H=24 L=20 		9-09527-015-0 02 1 9002- ● ●
121 CLIP; FACIA HARNESS
(A) ID=9 L=16 		9-09524-822-0 02 1 9002- ●
127 SCREW; FACIA HARNESS CLIP
(A) M6X16 W/LK WASHER 		9-03910-616-0 02 1 9002- ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X22 W/LK&PL WASHER 		1-09980-430-0 01 1 9002-9003 ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X22 W/LK&PL WASHER 		1-09980-584-0 01 1 9004-9303 ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9304- ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X16 W/LK&PL WASHER 		1-09981-375-0 01 1 9002-9304 ● ●
127 SCREW; FACIA HARNESS CLIP
(A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9305- ● ●
127 SCREW; FACIA HARNESS CLIP
(C) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 9002- ●
127 SCREW; FACIA HARNESS CLIP
(D) M5X14 W/PL WASHER 		5-09981-050-0 02 1 9002- ●
130 CLIP; WASHER HARNESS
(A) ID=6.5 		8-94206-730-0 02 1 9002-9202 ● ●
130 CLIP; WASHER HARNESS
(B) ID=7-10 		8-94472-578-0 02 1 9203-9301 ● ●
132 SCREW; HARNESS
NEW ZEALAND EQUIPMENT(PK5) M5X12 W/LK&PL WASHER 		1-09981-464-0 02 1 9211- ●
142 CLIP; HARNESS,ENG
12PD1 STD ENG(42L) ID=18 H=23 L=28 		1-09700-860-0 01 1 9002-9306 ●
150 BOLT; CLIP
M6X16 W/LK&PL WASHER 		1-09980-497-0 03 1 9002- ● ●
171 CLIP; STARTER HARNESS
AUTO CAB TILT<WV2> (A) ID=15 L=45 		1-09700-402-0 02 1 9206- ●
171 CLIP; STARTER HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=41 		1-09700-403-0 04 1 9206- ●
171 CLIP; STARTER HARNESS
L TYPE ENG<90L> (B) L=140 		5-09707-031-0 02 1 9002- ●
171 CLIP; STARTER HARNESS
V TYPE ENG<91L> (B) L=140 		5-09707-031-0 05 1 9002- ● ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (A) L=180 		1-09707-162-0 01 1 9002- ●
194 CLIP; BAND
HONG KONG EQUIPMENT(PQ1) (A) L=180 		1-09707-162-0 01 1 9002- ●
194 CLIP; BAND
L TYPE ENG<90L> (A) L=180 		1-09707-162-0 01 1 9002- ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (C) L=250 		5-09707-030-0 05 1 9002-9306 ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=300 		1-09707-001-0 01 1 9206-9306 ●
194 CLIP; BAND
6RB1TC ENG(30L) INTAKE HEATER<SL2> (C) L=250 		5-09707-030-0 03 1 9307- ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (C) L=250 		5-09707-030-0 03 1 9307- ●
194 CLIP; BAND
(A) L=180 		1-09707-162-0 03 1 9002- ● ●
194 CLIP; BAND
(C) L=250 		5-09707-030-0 01 1 9002- ● ●
194 CLIP; BAND
L TYPE ENG<90L> (C) L=250 		5-09707-030-0 01 1 9002- ●
194 CLIP; BAND
(C) L=140 		5-09707-031-0 01 1 9002- ● ●
194 CLIP; BAND
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) INTAKE HEATER<SL2> (C) L=250 		5-09707-030-0 03 1 9206-9306 ● ●
194 CLIP; BAND
HONG KONG EQUIPMENT(PQ1) AUTO CAB TILT<WV2> (C) L=250 		5-09707-030-0 02 1 9307- ●
201 CLIP; RR COMB CONN
WO/SPONGE RUBBER 		1-09709-103-1 02 1 9002- ● ●
202 SCREW; RR COMB LAMP CONN
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 9002- ● ●
206 CLIP; FUEL TANK HARNESS
10PD1 STD ENG(40L) HONG KONG EQUIPMENT(PQ1) (B) L=250 		5-09707-030-0 01 1 9002- ●
206 CLIP; FUEL TANK HARNESS
(A) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 9002-9306 ● ●
206 CLIP; FUEL TANK HARNESS
(B) L=140 		5-09707-031-0 02 1 9002- ● ●
206 CLIP; FUEL TANK HARNESS
(A) ID=11 L=16 		9-09525-022-0 01 1 9002-9002 ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 9002- ● ●
212 CLIP; HORN HARNESS
(A) ID=11 L=30 		1-09700-511-0 01 1 9002- ● ●
212 CLIP; HORN HARNESS
(C) L=250 		5-09707-030-0 01 1 9002- ● ●
212 CLIP; HORN HARNESS
(B) ID=15 L=45 		1-09700-402-0 01 1 9012- ● ●
212 CLIP; HORN HARNESS
(D) L=150 		1-09707-145-0 01 1 9305- ● ●
218 CLIP; BAND,RR COMB
ID=15 L=42 		1-09700-479-0 02 1 9002- ● ●
219 NUT
M5 FLANGE 		5-09440-003-0 05 1 9002- ● ●
219 NUT
M6 		9-09110-406-0 01 1 9002- ● ●
219 NUT
M8 		9-09110-408-0 03 1 9002- ● ●
219 NUT
M8 		9-09110-408-0 10 1 9002- ● ●
219 NUT
M10 		9-09110-510-0 02 1 9002- ● ●
219 NUT
M10 		9-09110-510-0 01 1 9002- ● ●
219 NUT
M5 		9-99110-405-0 01 1 9002- ● ●
219 NUT
M8 		9-09110-408-0 02 1 9307- ● ●
219 NUT
L TYPE ENG<90L> M8 		9-09110-408-0 01 1 9002-9306 ● ●
219 NUT
6RB1 STD ENG(07L) M8 		9-09110-408-0 01 1 9002-9306 ● ●
219 NUT
6RB1TC ENG(30L) M8 		9-09110-408-0 01 1 9307- ●
219 NUT
V TYPE ENG<91L> M8 		9-09110-408-0 04 1 9002- ● ●
219 NUT
12PD1 STD ENG(42L) M8 		9-09110-408-0 14 1 9002-9306 ●
223 CLIP; AIR TANK HARNESS
ID=15 L=45 		1-09700-402-0 05 1 9002- ● ●
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> ID=11 L=41 		1-09700-403-0 02 1 9002- ● ●
227 CLIP; FOG LAMP HARNESS
L=140 		5-09707-031-0 02 1 9002- ● ●
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) L=140 		5-09707-031-0 05 1 9002- ●
237 CLIP; BAND,ACL
(A) L=600 		1-09707-107-0 01 1 9002- ● ●
237 CLIP; BAND,ACL
(B) L=140 		5-09707-031-0 01 1 9002- ● ●
239 BOLT; GRAND
M5X8 		0-20800-508-0 01 1 9002- ● ●
242 BOLT; BRKT,HARNESS
AUTO CAB TILT<WV2> M8X20 W/LK WASHER 		0-50040-820-0 01 1 9206-9302 ●
242 BOLT; BRKT,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 01 1 9303-9306 ●
242 BOLT; BRKT,HARNESS
AUTO ENG SHUTOFF<KB6> M6X20 W/LK&PL WASHER 		1-09980-493-0 02 1 9307- ●
242 BOLT; BRKT,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 03 1 9002-9204 ● ●
242 BOLT; BRKT,HARNESS
M8X30 W/LK WASHER 		0-50040-830-0 03 1 9205-9302 ● ●
242 BOLT; BRKT,HARNESS
M8X30 FLANGE 		0-28080-830-0 03 1 9303- ● ●
242 BOLT; BRKT,HARNESS
POWER WINDOW<A30> M6X20 W/LK&PL WASHER 		1-09980-493-0 01 1 9307- ● ●
294 NUT
M6 		9-09110-406-0 01 1 9002- ● ●
294 NUT
M8 		9-09110-408-0 06 1 9002- ● ●
294 NUT
V TYPE ENG<91L> M8 		9-09110-408-0 01 1 9002- ● ●
304 BOLT; ENG HARNESS CLIP
10PD1 STD ENG(40L) M10X16 W/LK WASHER 		9-01931-016-0 04 1 9002-9004 ● ●
304 BOLT; ENG HARNESS CLIP
10PD1 STD ENG(40L) M10X16 W/LK WASHER 		1-09033-012-0 04 1 9005- ● ●
305 CLIP; ENG HARNESS
V TYPE ENG<91L> (B) L=140 		5-09707-031-0 02 1 9002- ● ●
305 CLIP; ENG HARNESS
10PD1 STD ENG(40L) (A) ID=11 H=20 L=17.5 		1-09700-562-1 06 1 9002- ● ●
328 CLIP; HARNESS,RESISTOR
INTAKE HEATER<SL2> 		1-09700-894-0 01 1 9002- ●
340 NUT; HARNESS CAB TO FRAME
M6 FLANGE 		0-91150-106-0 02 1 9002- ●
340 NUT; HARNESS CAB TO FRAME
M6 FLANGE 		0-91150-106-0 01 1 9307-9309 ●
360 WASHER; LK,CLIP
ID=5.1 		9-09150-505-0 01 1 9012- ● ●
369 CLIP; BAND EDS HARNESS
L=140 		5-09707-031-0 01 1 9002- ● ●
371 BOLT; GEN HARNESS
L TYPE ENG<90L> M5X8 		0-20800-508-0 01 1 9002- ● ●
371 BOLT; GEN HARNESS
V TYPE ENG<91L> M6X16 FLANGE 		0-28080-616-0 01 1 9307- ● ●
373 CLIP; BAND,GEN HARNESS
L TYPE ENG<90L> (A) L=250 		5-09707-030-0 01 1 9002- ● ●
373 CLIP; BAND,GEN HARNESS
V TYPE ENG<91L> (B) L=300 		1-09707-001-0 02 1 9002- ● ●
385 WASHER; LK,CAB EARTH
ID=8.2 		9-09150-508-0 02 1 9002-9212 ● ●
386 BOLT; GRAND HARNESS
M8X20 		9-02040-820-0 02 1 9002-9204 ● ●
386 BOLT; GRAND HARNESS
M8X20 		0-20800-820-0 02 1 9205-9212 ● ●
386 BOLT; GRAND HARNESS
M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 9301- ● ●
418 CLIP; LAMP HARNESS
NEW ZEALAND EQUIPMENT(PK5) ID=6 		9-09524-532-0 02 1 9002- ●
423 WASHER; HARNESS,EARTH
ID=6.4 		1-09503-263-0 01 1 9301- ● ●
454 NUT
M6 FLANGE 		1-09466-001-0 02 1 9002- ●
455 BRACKET; POWER TILT HARNESS
AUTO CAB TILT<WV2> 		1-82699-125-0 01 1 9002- ●
470 CLIP; HARNESS,LICENSE LAMP
ID=11 L=41 		1-09700-403-0 01 1 9002- ● ●
489 CLIP; HARNESS,OIL PRESS SW
L TYPE ENG<90L> ID=11 L=20 		9-09525-035-0 01 1 9002- ● ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 02 1 9301- ● ●

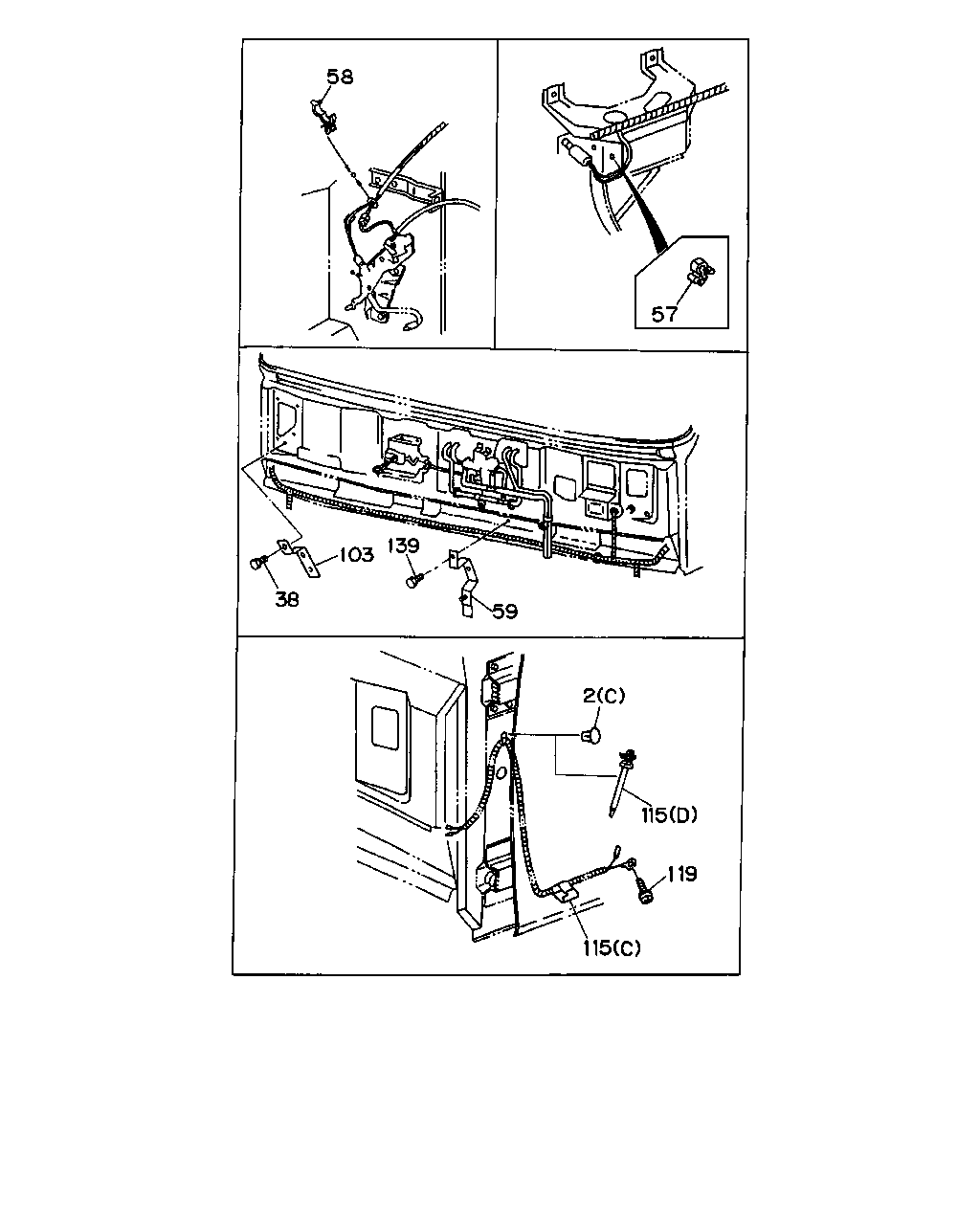

çizim 93595
58 57 59 139 103 38 2 115 119 115
BalonParca AdiParca NoAdetTipApplied Date A B
2 GROMMET; CLIP HOLE,HARNESS
(D) OD=48.5 		1-73907-231-0 01 1 9202- ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. AUTO CAB TILT<WV2> (C) OD=12.8 		1-09983-065-0 07 1 9002- ●
2 GROMMET; CLIP HOLE,HARNESS
(C) OD=12.8 		1-09983-065-0 07 1 9002- ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. LAMPS FOUR ROOF MARKER<PJ5> (A) ID=20 OD=40 		1-09983-077-0 01 1 9002- ●
2 GROMMET; CLIP HOLE,HARNESS
(A) ID=20 OD=40 		1-09983-077-0 01 1 9002- ●
2 GROMMET; CLIP HOLE,HARNESS
COURTESY LAMP<C97> EXC. POWER WINDOW<A30> (B) OD=47 		1-09983-039-1 01 1 9002- ● ●
2 GROMMET; CLIP HOLE,HARNESS
COURTESY LAMP<C97> EXC. POWER WINDOW<A30> (C) OD=12.8 		1-09983-065-0 01 1 9002- ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. COURTESY LAMP<C97> (B) OD=47 		1-09983-039-1 02 1 9002- ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. COURTESY LAMP<C97> (C) OD=12.8 		1-09983-065-0 02 1 9002- ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28010-820-0 02 1 9104-9204 ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9205-9302 ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 02 1 9303-9410 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 FLANGE 		0-28080-820-0 02 1 9411- ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9411- ●
38 BOLT; CLIP,HARNESS
EXC. NYLON TUBE AIR PIPING<Z29> M6X20 W/LK WASHER 		9-01900-620-0 02 1 9002-9011 ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28010-820-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 03 1 9205-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X16 FLANGE 		0-28080-816-0 02 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 02 1 9002-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 07 1 9002-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 08 1 9303- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 02 1 9002- ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9002- ● ●
38 BOLT; CLIP,HARNESS
M6X22 W/LK&PL WASHER 		8-94122-770-0 01 1 9002-9212 ● ●
38 BOLT; CLIP,HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-9301 ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9002- ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9307-9410 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 FLANGE 		0-28080-620-0 01 1 9411- ● ●
38 BOLT; CLIP,HARNESS
M8X18 W/LK WASHER 		9-01900-818-0 02 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X18 W/LK WASHER 		0-50040-818-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9303- ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		9-01911-020-0 02 1 9002-9002 ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 01 1 9003-9306 ● ●
38 BOLT; CLIP,HARNESS
M12X25 W/LK&PL WASHER 		9-01961-225-0 01 1 9002-9101 ● ●
38 BOLT; CLIP,HARNESS
M12X16 FLANGE 		1-09044-079-0 01 1 9102- ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9003-9106 ● ●
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9107- ● ●
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9303- ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 03 1 9411- ● ●
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X25 W/LK WASHER 		9-01900-825-0 02 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X25 FLANGE 		0-28080-825-0 02 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X25 FLANGE 		0-28080-825-0 02 1 9307- ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 02 1 9307- ●
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X20 FLANGE 		0-28080-820-0 04 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 FLANGE 		0-28080-820-0 04 1 9307- ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 04 1 9307- ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 01 1 9002-9205 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 01 1 9206-9206 ● ●
38 BOLT; CLIP,HARNESS
HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE 		0-28080-825-0 01 1 9206-9206 ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 01 1 9207-9306 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) INTAKE HEATER<SL2> M6X16 FLANGE 		0-28080-616-0 01 1 9002- ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L), 10PD1 STD ENG(40L) M8X30 FLANGE 		0-28080-830-0 13 1 9002- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 04 1 9002-9204 ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 04 1 9205- ●
38 BOLT; CLIP,HARNESS
12PD1 STD ENG(42L) M8X30 FLANGE 		0-28080-830-0 14 1 9002-9306 ●
38 BOLT; CLIP,HARNESS
12PD1 STD ENG(42L) M8X35 W/LK WASHER 		0-50040-835-0 01 1 9002-9302 ●
38 BOLT; CLIP,HARNESS
12PD1 STD ENG(42L) M8X35 FLANGE 		0-28080-835-0 01 1 9303-9306 ●
57 CLIP; INST HARNESS,SW CLU 1-09987-161-0 01 1 9002- ● ●
58 CLIP; INST HARNESS,SW ACCEL
ID=7-10 		8-94472-578-0 01 1 9302- ●
59 BRACKET; FRAME HARNESS 1-82699-264-0 01 1 9002- ●
59 BRACKET; FRAME HARNESS 1-82699-076-3 01 1 9002- ●
103 BRACKET; HD LAMP HARNESS
POWER WINDOW<A30> 		1-61470-692-0 01 1 9307- ● ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (C) 1 SET=5 PIECE 		1-09987-214-0 05 1 9205- ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (A) ID=9 		5-09707-027-0 02 1 9205-9305 ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (D) L=142 		8-94232-619-0 02 1 9306- ● ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (B) ID=15 		1-09987-115-0 01 1 9205-9208 ●
115 CLIP; DOOR HARNESS
COURTESY LAMP<C97> EXC. POWER WINDOW<A30> (A) ID=9 		5-09707-027-0 01 1 9002- ● ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (C) 1 SET=5 PIECE 		1-09987-214-0 01 1 9009-9306 ●
119 SCREW; DOOR HARNESS EARTH
COURTESY LAMP<C97> EXC. POWER WINDOW<A30> M4X13 		1-09981-148-0 01 1 9002- ● ●
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M4X13 		1-09981-148-0 02 1 9002- ● ●
139 BOLT; BRKT
8PD1 STD ENG(38L) 14INCH TWO PLATE SPICER CLUTCH(M07) M10X18 FLANGE 		0-28181-018-0 01 1 9307- ●
139 BOLT; BRKT
M6X20 		1-09980-279-0 02 1 9002- ● ●
139 BOLT; BRKT
10PD1 STD ENG(40L) M10X20 W/LK WASHER 		0-50051-020-0 01 1 9002- ● ●
139 BOLT; BRKT
12PD1 STD ENG(42L) M10X18 FLANGE 		0-28181-018-0 01 1 9002-9306 ●

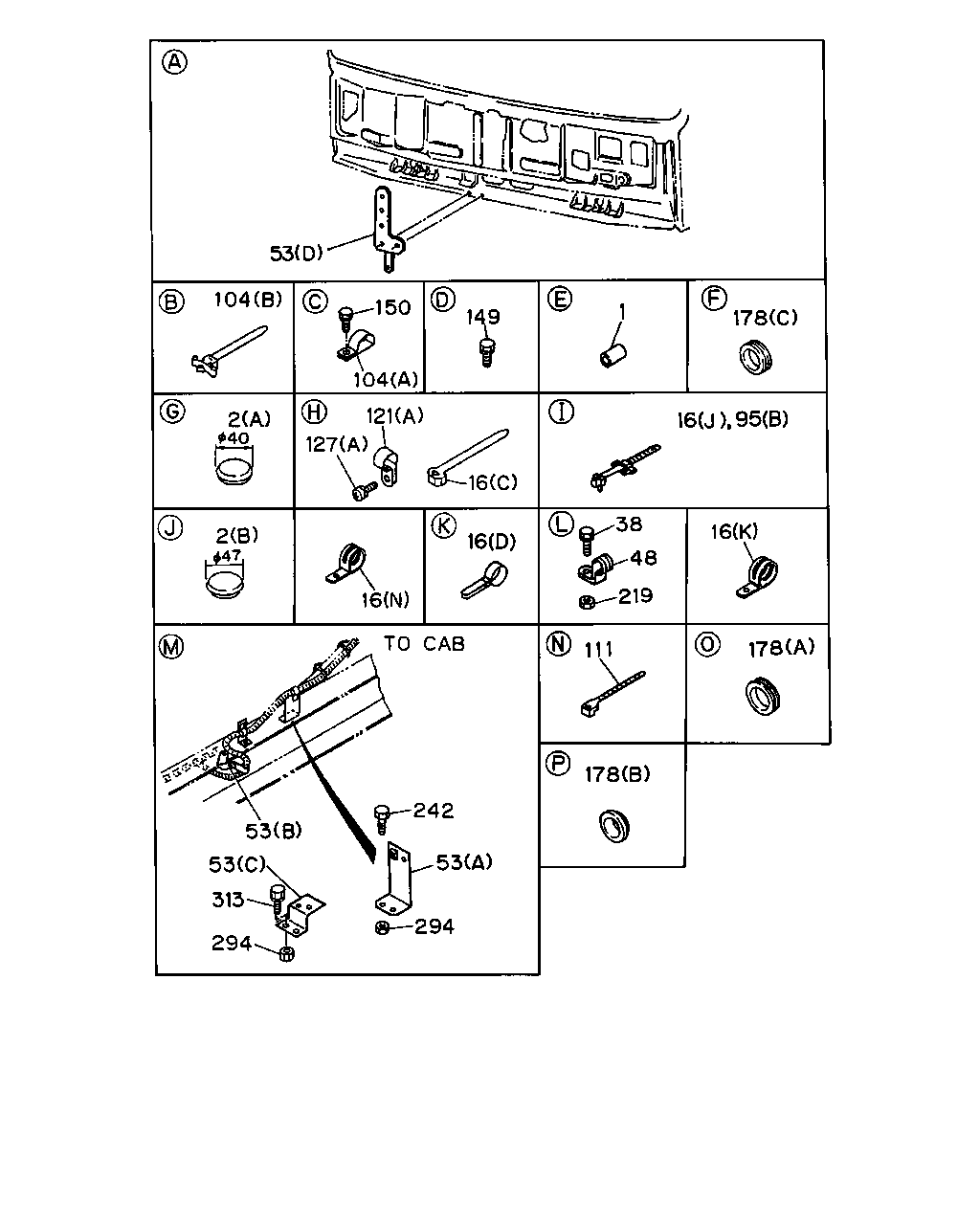

çizim 93781
104 53 149 150 104 1 178 95 16 16 178 219 48 38 16 16 121 127 2 2 16 242 53 294 294 313 53 53 111 178
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
ID=15 OD=19 L=20 		1-09337-007-0 01 1 9002- ● ●
2 GROMMET; CLIP HOLE,HARNESS
(D) OD=48.5 		1-73907-231-0 01 1 9202- ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. AUTO CAB TILT<WV2> (C) OD=12.8 		1-09983-065-0 07 1 9002- ●
2 GROMMET; CLIP HOLE,HARNESS
(C) OD=12.8 		1-09983-065-0 07 1 9002- ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. LAMPS FOUR ROOF MARKER<PJ5> (A) ID=20 OD=40 		1-09983-077-0 01 1 9002- ●
2 GROMMET; CLIP HOLE,HARNESS
(A) ID=20 OD=40 		1-09983-077-0 01 1 9002- ●
2 GROMMET; CLIP HOLE,HARNESS
COURTESY LAMP<C97> EXC. POWER WINDOW<A30> (B) OD=47 		1-09983-039-1 01 1 9002- ● ●
2 GROMMET; CLIP HOLE,HARNESS
COURTESY LAMP<C97> EXC. POWER WINDOW<A30> (C) OD=12.8 		1-09983-065-0 01 1 9002- ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. COURTESY LAMP<C97> (B) OD=47 		1-09983-039-1 02 1 9002- ● ●
2 GROMMET; CLIP HOLE,HARNESS
EXC. COURTESY LAMP<C97> (C) OD=12.8 		1-09983-065-0 02 1 9002- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 04 1 9002-9206 ●
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (D) ID=11 L=41 		1-09700-403-0 01 1 9207-9306 ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 05 1 9104-9306 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 06 1 9307- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (B) ID=13 H=46 L=12 		1-09700-493-0 01 1 9002- ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (G) ID=35 L=35 W/NUT 		1-09700-684-0 01 1 9002- ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (F) ID=35 L=35 		1-09700-726-0 01 1 9002- ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=20 L=50 		9-09917-430-0 04 1 9002- ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (I) OD=9 H=6 		1-09709-178-0 08 1 9104- ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=50 		9-09525-085-0 02 1 9104- ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-0 01 1 9002-9003 ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-0 01 1 9002-9003 ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (N) ID=29 L=35 		5-09700-293-1 01 1 9002- ●
16 CLIP; HARNESS
(N) ID=29 L=35 		5-09700-293-1 01 1 9002- ●
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (D) ID=11 L=41 		1-09700-403-0 01 1 9307- ●
16 CLIP; HARNESS
L TYPE ENG<90L> (U) ID=19 H=50 L=25 		9-09916-622-0 01 1 9307- ●
16 CLIP; HARNESS
NYLON TUBE AIR PIPING<Z29> (E) L=150 		1-09707-145-0 01 1 9002- ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (L) ID=21 L=30 H=40 		1-09700-991-1 01 1 9002- ●
16 CLIP; HARNESS
(L) ID=21 L=30 H=40 		1-09700-991-1 01 1 9002- ●
16 CLIP; HARNESS
6RB1TC ENG(30L) INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 05 1 9012- ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 06 1 9002-9210 ● ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 03 1 9211-9306 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 06 1 9002-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 06 1 9002-9306 ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=14 L=44 		9-09917-427-0 01 1 9307- ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 06 1 9002-9206 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9011 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9104-9306 ● ●
16 CLIP; HARNESS
(R) ID=15 H=24 L=20 		1-09700-606-0 01 1 9002- ● ●
16 CLIP; HARNESS
(P) 		1-09700-894-0 01 1 9002- ● ●
16 CLIP; HARNESS
EXC. INTERMITTENT WIPER<C13> (P) 		1-09700-894-0 01 1 9002- ● ●
16 CLIP; HARNESS
(S) WO/SPONGE RUBBER 		1-09709-103-1 01 1 9002- ● ●
16 CLIP; HARNESS
(T) L=219.5 		1-09987-136-0 04 1 9002- ● ●
16 CLIP; HARNESS
(J) L=135 		1-09987-143-1 01 1 9002-9201 ● ●
16 CLIP; HARNESS
(Z) L=175 		8-94155-593-1 03 1 9202- ● ●
16 CLIP; HARNESS
(L) ID=11 H=20 L=20 		5-09700-351-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-0 01 1 9002- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-0 01 1 9002- ● ●
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 02 1 9002- ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-032-0 01 1 9002-9410 ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (A) ID=11 L=20 		9-09525-032-0 01 1 9411- ● ●
16 CLIP; HARNESS
(A) ID=11 L=28 		9-09525-055-0 01 1 9002- ● ●
16 CLIP; HARNESS
(U) ID=19 H=50 L=25 		9-09916-622-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
(D) ID=20 L=70 		1-09700-485-0 12 1 9307-9404 ● ●
16 CLIP; HARNESS
(D) ID=20 L=70 		1-09700-485-0 11 1 9405- ● ●
16 CLIP; HARNESS
(D) ID=6 L=36 		9-09917-423-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
(D) ID=18 L=48 		9-09917-429-0 02 1 9002- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=18 L=48 		9-09917-429-0 02 1 9002- ●
16 CLIP; HARNESS
(D) ID=20 L=50 		9-09917-430-0 08 1 9002-9306 ● ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 05 1 9307- ● ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 03 1 9002- ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 9004- ● ●
16 CLIP; HARNESS
(E) L=300 		1-09707-001-0 01 1 9007- ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9104- ● ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 01 1 9307-9309 ● ●
16 CLIP; HARNESS
(L) ID=11 H=20 L=20 		5-09700-351-0 01 1 9307- ● ●
16 CLIP; HARNESS
(D) ID=6 L=36 		9-09917-423-0 01 1 9307- ● ●
16 CLIP; HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 9309- ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 02 1 9411- ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (R) ID=12 H=24 L=20 		1-09700-605-0 02 1 9002- ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (D) ID=11 L=41 		1-09700-403-0 02 1 9002-9007 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ● ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 01 1 9012- ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 03 1 9002-9008 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (D) ID=20 L=50 		9-09917-430-0 01 1 9009-9103 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 02 1 9002-9306 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (Y) ID=18 L=44 		8-94225-185-0 01 1 9307-9309 ●
16 CLIP; HARNESS
(Y) ID=18 L=44 		8-94225-185-0 02 1 9310- ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (O) ID=11 L=30 		1-09700-511-0 01 1 9002-9204 ● ●
16 CLIP; HARNESS
(O) ID=11 L=30 		1-09700-511-0 01 1 9205- ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L),6RB1TC ENG(30L) (O) ID=11 L=30 		1-09700-511-0 01 1 9205- ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (M) ID=15 L=35 		1-09700-507-0 03 1 9002-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (Y) ID=18 L=44 		8-94225-185-0 02 1 9307-9309 ●
16 CLIP; HARNESS
(Y) ID=18 L=44 		8-94225-185-0 02 1 9307-9309 ●
16 CLIP; HARNESS
V TYPE ENG<91L> (M) ID=15 L=35 		1-09700-507-0 01 1 9310- ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (C) L=140 		5-09707-031-0 01 1 9002-9402 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-0 01 1 9002-9402 ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (C) L=140 		5-09707-031-0 01 1 9403- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-0 01 1 9403- ●
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5) (C) L=140 		5-09707-031-0 01 1 9403- ●
16 CLIP; HARNESS
V TYPE ENG<91L> (R) ID=24.5 H=35 L=25 		1-09700-990-0 01 1 9307- ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) INTAKE HEATER<SL2> (A) ID=11 L=28 		9-09525-052-0 01 1 9002- ● ●
16 CLIP; HARNESS
12PD1 STD ENG(42L) (W) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 9002-9306 ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 9307-9410 ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=20 		9-09525-035-0 01 1 9411- ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28010-820-0 02 1 9104-9204 ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9205-9302 ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 02 1 9303-9410 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 FLANGE 		0-28080-820-0 02 1 9411- ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9411- ●
38 BOLT; CLIP,HARNESS
EXC. NYLON TUBE AIR PIPING<Z29> M6X20 W/LK WASHER 		9-01900-620-0 02 1 9002-9011 ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28010-820-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 03 1 9205-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X16 FLANGE 		0-28080-816-0 02 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 02 1 9002-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 07 1 9002-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 08 1 9303- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 02 1 9002- ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9002- ● ●
38 BOLT; CLIP,HARNESS
M6X22 W/LK&PL WASHER 		8-94122-770-0 01 1 9002-9212 ● ●
38 BOLT; CLIP,HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-9301 ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9002- ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9307-9410 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 FLANGE 		0-28080-620-0 01 1 9411- ● ●
38 BOLT; CLIP,HARNESS
M8X18 W/LK WASHER 		9-01900-818-0 02 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X18 W/LK WASHER 		0-50040-818-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9303- ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		9-01911-020-0 02 1 9002-9002 ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 01 1 9003-9306 ● ●
38 BOLT; CLIP,HARNESS
M12X25 W/LK&PL WASHER 		9-01961-225-0 01 1 9002-9101 ● ●
38 BOLT; CLIP,HARNESS
M12X16 FLANGE 		1-09044-079-0 01 1 9102- ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9003-9106 ● ●
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9107- ● ●
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9303- ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 03 1 9411- ● ●
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X25 W/LK WASHER 		9-01900-825-0 02 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X25 FLANGE 		0-28080-825-0 02 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X25 FLANGE 		0-28080-825-0 02 1 9307- ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 02 1 9307- ●
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X20 FLANGE 		0-28080-820-0 04 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 FLANGE 		0-28080-820-0 04 1 9307- ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 04 1 9307- ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 01 1 9002-9205 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 01 1 9206-9206 ● ●
38 BOLT; CLIP,HARNESS
HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE 		0-28080-825-0 01 1 9206-9206 ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 01 1 9207-9306 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) INTAKE HEATER<SL2> M6X16 FLANGE 		0-28080-616-0 01 1 9002- ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L), 10PD1 STD ENG(40L) M8X30 FLANGE 		0-28080-830-0 13 1 9002- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 04 1 9002-9204 ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 04 1 9205- ●
38 BOLT; CLIP,HARNESS
12PD1 STD ENG(42L) M8X30 FLANGE 		0-28080-830-0 14 1 9002-9306 ●
38 BOLT; CLIP,HARNESS
12PD1 STD ENG(42L) M8X35 W/LK WASHER 		0-50040-835-0 01 1 9002-9302 ●
38 BOLT; CLIP,HARNESS
12PD1 STD ENG(42L) M8X35 FLANGE 		0-28080-835-0 01 1 9303-9306 ●
48 CLIP; FRAME HARNESS
ID=14.5 H=23 L=30 		1-09700-859-0 02 1 9002- ● ●
48 CLIP; FRAME HARNESS
ID=20 H=23 L=27 		1-09700-861-0 04 1 9002-9404 ● ●
48 CLIP; FRAME HARNESS
ID=20 H=23 L=27 		1-09700-861-0 05 1 9405- ● ●
48 CLIP; FRAME HARNESS
ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9002- ● ●
48 CLIP; FRAME HARNESS
6RB1 STD ENG(07L) ID=20 H=23 L=27 		1-09700-861-0 01 1 9002-9306 ● ●
48 CLIP; FRAME HARNESS
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L), 10PD1 STD ENG(40L) ID=24.5 H=23 L=25 		1-09700-862-0 13 1 9002-9404 ● ●
48 CLIP; FRAME HARNESS
6RB1TC ENG(30L),10PD1 STD ENG(40L) ID=24.5 H=23 L=25 		1-09700-862-0 14 1 9405- ●
48 CLIP; FRAME HARNESS
ID=24.5 H=23 L=25 		1-09700-862-0 14 1 9405- ●
48 CLIP; FRAME HARNESS
ID=24.5 H=23 L=25 		1-09700-862-0 04 1 9002- ●
48 CLIP; FRAME HARNESS
12PD1 STD ENG(42L) ID=24.5 H=23 L=25 		1-09700-862-0 14 1 9002-9306 ●
53 BRACKET; HARNESS
AUTO CAB TILT<WV2> CAB UP 50MM(W60) (C) 		1-82699-295-0 01 1 9002-9306 ●
53 BRACKET; HARNESS
AUTO ENG SHUTOFF<KB6> (D) 		1-71907-151-0 01 1 9307-9307 ●
53 BRACKET; HARNESS
AUTO ENG SHUTOFF<KB6> (D) 		1-71997-996-1 01 1 9308- ●
53 BRACKET; HARNESS
(B) 		1-82699-199-0 01 1 9002- ● ●
53 BRACKET; HARNESS
(A) 		1-82699-390-2 01 1 9002- ● ●
95 CLIP; CABLE
(B) 		1-09987-143-1 02 1 9002-9201 ● ●
95 CLIP; CABLE
(C) 		8-94155-593-1 02 1 9202-9205 ● ●
95 CLIP; CABLE
INTAKE HEATER<SL2> (C) 		8-94155-593-1 01 1 9206- ● ●
95 CLIP; CABLE
(A) 		1-09987-155-0 02 1 9002- ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=112 		8-94232-618-0 08 1 9002-9302 ●
104 CLIP; HEADLAMP HARNESS
(B) L=142 		8-94232-619-0 08 1 9303- ●
104 CLIP; HEADLAMP HARNESS
AUTO CAB TILT<WV2> (C) ID=12 		1-09987-201-0 09 1 9002- ●
104 CLIP; HEADLAMP HARNESS
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) L=142 		8-94232-619-0 02 1 9307- ●
104 CLIP; HEADLAMP HARNESS
(C) ID=9 		5-09707-027-0 02 1 9002- ● ●
104 CLIP; HEADLAMP HARNESS
(A) ID=19 L=20 		9-09525-832-0 01 1 9002- ● ●
104 CLIP; HEADLAMP HARNESS
(A) ID=19 L=32 		9-09525-862-0 01 1 9002- ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=112 		8-94232-618-0 09 1 9002-9003 ●
104 CLIP; HEADLAMP HARNESS
(B) L=142 		8-94232-619-0 09 1 9004- ●
111 CLIP; STOP LAMP SW HARNESS
L=140 		5-09707-031-0 01 1 9002- ●
121 CLIP; FACIA HARNESS
(A) ID=21 L=28 		1-09700-673-1 01 1 9002- ● ●
121 CLIP; FACIA HARNESS
(B) ID=23 H=23 L=24 		1-09700-738-0 03 1 9002- ● ●
121 CLIP; FACIA HARNESS
(A) ID=16 L=20 		9-09525-532-0 01 1 9002- ● ●
121 CLIP; FACIA HARNESS
(B) ID=16 H=24 L=20 		9-09527-015-0 02 1 9002- ● ●
121 CLIP; FACIA HARNESS
(A) ID=9 L=16 		9-09524-822-0 02 1 9002- ●
127 SCREW; FACIA HARNESS CLIP
(A) M6X16 W/LK WASHER 		9-03910-616-0 02 1 9002- ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X22 W/LK&PL WASHER 		1-09980-430-0 01 1 9002-9003 ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X22 W/LK&PL WASHER 		1-09980-584-0 01 1 9004-9303 ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9304- ● ●
127 SCREW; FACIA HARNESS CLIP
(B) M6X16 W/LK&PL WASHER 		1-09981-375-0 01 1 9002-9304 ● ●
127 SCREW; FACIA HARNESS CLIP
(A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9305- ● ●
127 SCREW; FACIA HARNESS CLIP
(C) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 9002- ●
127 SCREW; FACIA HARNESS CLIP
(D) M5X14 W/PL WASHER 		5-09981-050-0 02 1 9002- ●
149 BOLT; HEADLAMP HARNESS EARTH
M6X22 W/LK&PL WASHER 		1-09980-537-0 01 1 9002-9303 ● ●
149 BOLT; HEADLAMP HARNESS EARTH
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9304- ● ●
150 BOLT; CLIP
M6X16 W/LK&PL WASHER 		1-09980-497-0 03 1 9002- ● ●
178 GROMMET; HARNESS
AUTO CAB TILT<WV2> (C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9002-9205 ●
178 GROMMET; HARNESS
AUTO CAB TILT<WV2> (A) ID=28 OD=35 		1-09332-127-0 01 1 9206-9306 ●
178 GROMMET; HARNESS
AUTO CAB TILT<WV2> (A) ID=28 OD=35 T=12 		9-09956-725-0 01 1 9307- ●
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 9002-9306 ● ●
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=22 		1-09332-104-0 01 1 9307- ● ●
178 GROMMET; HARNESS
(A) ID=32 OD=40 T=18 		1-09891-003-0 03 1 9002- ● ●
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=17 		9-09956-092-1 01 1 9002-9302 ● ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9303-9306 ● ●
178 GROMMET; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) ID=28 OD=35 T=17 		9-09956-256-1 01 1 9307- ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-1 01 1 9307- ●
178 GROMMET; HARNESS
(A) ID=19 OD=23 T=18 		9-09956-130-1 01 1 9002-9011 ● ●
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=22 		9-09956-181-0 01 1 9002- ● ●
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=22 		9-09956-181-0 01 1 9002-9011 ● ●
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=22 		9-09956-181-0 01 1 9002-9011 ● ●
178 GROMMET; HARNESS
(C) ID=15 OD=20 T=26 		1-09332-132-0 01 1 9003- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-1 01 1 9004-9306 ● ●
178 GROMMET; HARNESS
AUTO CAB TILT<WV2> (A) ID=28 OD=35 T=17 		9-09956-256-1 01 1 9004-9306 ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9307- ● ●
178 GROMMET; HARNESS
AUTO CAB TILT<WV2> (C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9307- ●
178 GROMMET; HARNESS
(A) ID=19 OD=23 T=18 		9-09956-130-1 01 1 9012- ● ●
219 NUT
M5 FLANGE 		5-09440-003-0 05 1 9002- ● ●
219 NUT
M6 		9-09110-406-0 01 1 9002- ● ●
219 NUT
M8 		9-09110-408-0 03 1 9002- ● ●
219 NUT
M8 		9-09110-408-0 10 1 9002- ● ●
219 NUT
M10 		9-09110-510-0 02 1 9002- ● ●
219 NUT
M10 		9-09110-510-0 01 1 9002- ● ●
219 NUT
M5 		9-99110-405-0 01 1 9002- ● ●
219 NUT
M8 		9-09110-408-0 02 1 9307- ● ●
219 NUT
L TYPE ENG<90L> M8 		9-09110-408-0 01 1 9002-9306 ● ●
219 NUT
6RB1 STD ENG(07L) M8 		9-09110-408-0 01 1 9002-9306 ● ●
219 NUT
6RB1TC ENG(30L) M8 		9-09110-408-0 01 1 9307- ●
219 NUT
V TYPE ENG<91L> M8 		9-09110-408-0 04 1 9002- ● ●
219 NUT
12PD1 STD ENG(42L) M8 		9-09110-408-0 14 1 9002-9306 ●
242 BOLT; BRKT,HARNESS
AUTO CAB TILT<WV2> M8X20 W/LK WASHER 		0-50040-820-0 01 1 9206-9302 ●
242 BOLT; BRKT,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 01 1 9303-9306 ●
242 BOLT; BRKT,HARNESS
AUTO ENG SHUTOFF<KB6> M6X20 W/LK&PL WASHER 		1-09980-493-0 02 1 9307- ●
242 BOLT; BRKT,HARNESS
M8X30 W/LK WASHER 		9-01900-830-0 03 1 9002-9204 ● ●
242 BOLT; BRKT,HARNESS
M8X30 W/LK WASHER 		0-50040-830-0 03 1 9205-9302 ● ●
242 BOLT; BRKT,HARNESS
M8X30 FLANGE 		0-28080-830-0 03 1 9303- ● ●
242 BOLT; BRKT,HARNESS
POWER WINDOW<A30> M6X20 W/LK&PL WASHER 		1-09980-493-0 01 1 9307- ● ●
294 NUT
M6 		9-09110-406-0 01 1 9002- ● ●
294 NUT
M8 		9-09110-408-0 06 1 9002- ● ●
294 NUT
V TYPE ENG<91L> M8 		9-09110-408-0 01 1 9002- ● ●
313 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 02 1 9002-9306 ● ●
313 BOLT; BRKT
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9002-9302 ● ●
313 BOLT; BRKT
M6X20 FLANGE 		0-28080-620-0 01 1 9303- ● ●
313 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 03 1 9307-9411 ● ●
313 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9412- ● ●
313 BOLT; BRKT
V TYPE ENG<91L> M8X30 W/LK WASHER 		9-01900-830-0 01 1 9002-9204 ● ●
313 BOLT; BRKT
V TYPE ENG<91L> M8X30 W/LK WASHER 		0-50040-830-0 01 1 9205-9302 ● ●
313 BOLT; BRKT
M8X30 FLANGE 		0-28080-830-0 01 1 9303-9306 ● ●
313 BOLT; BRKT
V TYPE ENG<91L> M8X30 FLANGE 		0-28080-830-0 01 1 9303-9306 ● ●
313 BOLT; BRKT
10PD1 STD ENG(40L) M8X30 FLANGE 		0-28080-830-0 01 1 9307-9411 ● ●
313 BOLT; BRKT
M8X30 FLANGE 		0-28080-830-0 01 1 9412- ● ●
313 BOLT; BRKT
V TYPE ENG<91L> M8X30 FLANGE 		0-28080-830-0 01 1 9412- ● ●
çizim 94864
16 38 16 16 16 16 37 208 16 16 16 95 115 115 194 334 380 421 428 104
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 04 1 9002-9206 ●
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (D) ID=11 L=41 		1-09700-403-0 01 1 9207-9306 ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 05 1 9104-9306 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 06 1 9307- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (B) ID=13 H=46 L=12 		1-09700-493-0 01 1 9002- ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (G) ID=35 L=35 W/NUT 		1-09700-684-0 01 1 9002- ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (F) ID=35 L=35 		1-09700-726-0 01 1 9002- ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=20 L=50 		9-09917-430-0 04 1 9002- ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (I) OD=9 H=6 		1-09709-178-0 08 1 9104- ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=50 		9-09525-085-0 02 1 9104- ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-0 01 1 9002-9003 ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-0 01 1 9002-9003 ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (N) ID=29 L=35 		5-09700-293-1 01 1 9002- ●
16 CLIP; HARNESS
(N) ID=29 L=35 		5-09700-293-1 01 1 9002- ●
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (D) ID=11 L=41 		1-09700-403-0 01 1 9307- ●
16 CLIP; HARNESS
L TYPE ENG<90L> (U) ID=19 H=50 L=25 		9-09916-622-0 01 1 9307- ●
16 CLIP; HARNESS
NYLON TUBE AIR PIPING<Z29> (E) L=150 		1-09707-145-0 01 1 9002- ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (L) ID=21 L=30 H=40 		1-09700-991-1 01 1 9002- ●
16 CLIP; HARNESS
(L) ID=21 L=30 H=40 		1-09700-991-1 01 1 9002- ●
16 CLIP; HARNESS
6RB1TC ENG(30L) INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 05 1 9012- ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 06 1 9002-9210 ● ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 03 1 9211-9306 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 06 1 9002-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 06 1 9002-9306 ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=14 L=44 		9-09917-427-0 01 1 9307- ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 06 1 9002-9206 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9011 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9104-9306 ● ●
16 CLIP; HARNESS
(R) ID=15 H=24 L=20 		1-09700-606-0 01 1 9002- ● ●
16 CLIP; HARNESS
(P) 		1-09700-894-0 01 1 9002- ● ●
16 CLIP; HARNESS
EXC. INTERMITTENT WIPER<C13> (P) 		1-09700-894-0 01 1 9002- ● ●
16 CLIP; HARNESS
(S) WO/SPONGE RUBBER 		1-09709-103-1 01 1 9002- ● ●
16 CLIP; HARNESS
(T) L=219.5 		1-09987-136-0 04 1 9002- ● ●
16 CLIP; HARNESS
(J) L=135 		1-09987-143-1 01 1 9002-9201 ● ●
16 CLIP; HARNESS
(Z) L=175 		8-94155-593-1 03 1 9202- ● ●
16 CLIP; HARNESS
(L) ID=11 H=20 L=20 		5-09700-351-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-0 01 1 9002- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-0 01 1 9002- ● ●
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 02 1 9002- ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-032-0 01 1 9002-9410 ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (A) ID=11 L=20 		9-09525-032-0 01 1 9411- ● ●
16 CLIP; HARNESS
(A) ID=11 L=28 		9-09525-055-0 01 1 9002- ● ●
16 CLIP; HARNESS
(U) ID=19 H=50 L=25 		9-09916-622-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
(D) ID=20 L=70 		1-09700-485-0 12 1 9307-9404 ● ●
16 CLIP; HARNESS
(D) ID=20 L=70 		1-09700-485-0 11 1 9405- ● ●
16 CLIP; HARNESS
(D) ID=6 L=36 		9-09917-423-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
(D) ID=18 L=48 		9-09917-429-0 02 1 9002- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=18 L=48 		9-09917-429-0 02 1 9002- ●
16 CLIP; HARNESS
(D) ID=20 L=50 		9-09917-430-0 08 1 9002-9306 ● ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 05 1 9307- ● ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 03 1 9002- ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 9004- ● ●
16 CLIP; HARNESS
(E) L=300 		1-09707-001-0 01 1 9007- ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9104- ● ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 01 1 9307-9309 ● ●
16 CLIP; HARNESS
(L) ID=11 H=20 L=20 		5-09700-351-0 01 1 9307- ● ●
16 CLIP; HARNESS
(D) ID=6 L=36 		9-09917-423-0 01 1 9307- ● ●
16 CLIP; HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 9309- ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 02 1 9411- ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (R) ID=12 H=24 L=20 		1-09700-605-0 02 1 9002- ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (D) ID=11 L=41 		1-09700-403-0 02 1 9002-9007 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ● ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 01 1 9012- ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 03 1 9002-9008 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (D) ID=20 L=50 		9-09917-430-0 01 1 9009-9103 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 02 1 9002-9306 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (Y) ID=18 L=44 		8-94225-185-0 01 1 9307-9309 ●
16 CLIP; HARNESS
(Y) ID=18 L=44 		8-94225-185-0 02 1 9310- ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (O) ID=11 L=30 		1-09700-511-0 01 1 9002-9204 ● ●
16 CLIP; HARNESS
(O) ID=11 L=30 		1-09700-511-0 01 1 9205- ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L),6RB1TC ENG(30L) (O) ID=11 L=30 		1-09700-511-0 01 1 9205- ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (M) ID=15 L=35 		1-09700-507-0 03 1 9002-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (Y) ID=18 L=44 		8-94225-185-0 02 1 9307-9309 ●
16 CLIP; HARNESS
(Y) ID=18 L=44 		8-94225-185-0 02 1 9307-9309 ●
16 CLIP; HARNESS
V TYPE ENG<91L> (M) ID=15 L=35 		1-09700-507-0 01 1 9310- ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (C) L=140 		5-09707-031-0 01 1 9002-9402 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-0 01 1 9002-9402 ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (C) L=140 		5-09707-031-0 01 1 9403- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-0 01 1 9403- ●
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5) (C) L=140 		5-09707-031-0 01 1 9403- ●
16 CLIP; HARNESS
V TYPE ENG<91L> (R) ID=24.5 H=35 L=25 		1-09700-990-0 01 1 9307- ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) INTAKE HEATER<SL2> (A) ID=11 L=28 		9-09525-052-0 01 1 9002- ● ●
16 CLIP; HARNESS
12PD1 STD ENG(42L) (W) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 9002-9306 ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 9307-9410 ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=20 		9-09525-035-0 01 1 9411- ● ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (B) ID=11 L=30 		1-09700-511-0 01 1 9002- ●
37 CLIP; HARNESS,POWER TILT
HONG KONG EQUIPMENT(PQ1) AUTO CAB TILT<WV2> (A) L=140 		5-09707-031-0 01 1 9307- ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28010-820-0 02 1 9104-9204 ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9205-9302 ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 02 1 9303-9410 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 FLANGE 		0-28080-820-0 02 1 9411- ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9411- ●
38 BOLT; CLIP,HARNESS
EXC. NYLON TUBE AIR PIPING<Z29> M6X20 W/LK WASHER 		9-01900-620-0 02 1 9002-9011 ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28010-820-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 03 1 9205-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X16 FLANGE 		0-28080-816-0 02 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 02 1 9002-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 07 1 9002-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 08 1 9303- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 02 1 9002- ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9002- ● ●
38 BOLT; CLIP,HARNESS
M6X22 W/LK&PL WASHER 		8-94122-770-0 01 1 9002-9212 ● ●
38 BOLT; CLIP,HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-9301 ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9002- ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9307-9410 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 FLANGE 		0-28080-620-0 01 1 9411- ● ●
38 BOLT; CLIP,HARNESS
M8X18 W/LK WASHER 		9-01900-818-0 02 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X18 W/LK WASHER 		0-50040-818-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9303- ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		9-01911-020-0 02 1 9002-9002 ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 01 1 9003-9306 ● ●
38 BOLT; CLIP,HARNESS
M12X25 W/LK&PL WASHER 		9-01961-225-0 01 1 9002-9101 ● ●
38 BOLT; CLIP,HARNESS
M12X16 FLANGE 		1-09044-079-0 01 1 9102- ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9003-9106 ● ●
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9107- ● ●
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9303- ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 03 1 9411- ● ●
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X25 W/LK WASHER 		9-01900-825-0 02 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X25 FLANGE 		0-28080-825-0 02 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X25 FLANGE 		0-28080-825-0 02 1 9307- ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 02 1 9307- ●
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X20 FLANGE 		0-28080-820-0 04 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 FLANGE 		0-28080-820-0 04 1 9307- ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 04 1 9307- ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 01 1 9002-9205 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 01 1 9206-9206 ● ●
38 BOLT; CLIP,HARNESS
HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE 		0-28080-825-0 01 1 9206-9206 ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 01 1 9207-9306 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) INTAKE HEATER<SL2> M6X16 FLANGE 		0-28080-616-0 01 1 9002- ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L), 10PD1 STD ENG(40L) M8X30 FLANGE 		0-28080-830-0 13 1 9002- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 04 1 9002-9204 ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 04 1 9205- ●
38 BOLT; CLIP,HARNESS
12PD1 STD ENG(42L) M8X30 FLANGE 		0-28080-830-0 14 1 9002-9306 ●
38 BOLT; CLIP,HARNESS
12PD1 STD ENG(42L) M8X35 W/LK WASHER 		0-50040-835-0 01 1 9002-9302 ●
38 BOLT; CLIP,HARNESS
12PD1 STD ENG(42L) M8X35 FLANGE 		0-28080-835-0 01 1 9303-9306 ●
95 CLIP; CABLE
(B) 		1-09987-143-1 02 1 9002-9201 ● ●
95 CLIP; CABLE
(C) 		8-94155-593-1 02 1 9202-9205 ● ●
95 CLIP; CABLE
INTAKE HEATER<SL2> (C) 		8-94155-593-1 01 1 9206- ● ●
95 CLIP; CABLE
(A) 		1-09987-155-0 02 1 9002- ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=112 		8-94232-618-0 08 1 9002-9302 ●
104 CLIP; HEADLAMP HARNESS
(B) L=142 		8-94232-619-0 08 1 9303- ●
104 CLIP; HEADLAMP HARNESS
AUTO CAB TILT<WV2> (C) ID=12 		1-09987-201-0 09 1 9002- ●
104 CLIP; HEADLAMP HARNESS
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) L=142 		8-94232-619-0 02 1 9307- ●
104 CLIP; HEADLAMP HARNESS
(C) ID=9 		5-09707-027-0 02 1 9002- ● ●
104 CLIP; HEADLAMP HARNESS
(A) ID=19 L=20 		9-09525-832-0 01 1 9002- ● ●
104 CLIP; HEADLAMP HARNESS
(A) ID=19 L=32 		9-09525-862-0 01 1 9002- ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=112 		8-94232-618-0 09 1 9002-9003 ●
104 CLIP; HEADLAMP HARNESS
(B) L=142 		8-94232-619-0 09 1 9004- ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (C) 1 SET=5 PIECE 		1-09987-214-0 05 1 9205- ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (A) ID=9 		5-09707-027-0 02 1 9205-9305 ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (D) L=142 		8-94232-619-0 02 1 9306- ● ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (B) ID=15 		1-09987-115-0 01 1 9205-9208 ●
115 CLIP; DOOR HARNESS
COURTESY LAMP<C97> EXC. POWER WINDOW<A30> (A) ID=9 		5-09707-027-0 01 1 9002- ● ●
115 CLIP; DOOR HARNESS
POWER WINDOW<A30> (C) 1 SET=5 PIECE 		1-09987-214-0 01 1 9009-9306 ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (A) L=180 		1-09707-162-0 01 1 9002- ●
194 CLIP; BAND
HONG KONG EQUIPMENT(PQ1) (A) L=180 		1-09707-162-0 01 1 9002- ●
194 CLIP; BAND
L TYPE ENG<90L> (A) L=180 		1-09707-162-0 01 1 9002- ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (C) L=250 		5-09707-030-0 05 1 9002-9306 ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=300 		1-09707-001-0 01 1 9206-9306 ●
194 CLIP; BAND
6RB1TC ENG(30L) INTAKE HEATER<SL2> (C) L=250 		5-09707-030-0 03 1 9307- ●
194 CLIP; BAND
AUTO CAB TILT<WV2> (C) L=250 		5-09707-030-0 03 1 9307- ●
194 CLIP; BAND
(A) L=180 		1-09707-162-0 03 1 9002- ● ●
194 CLIP; BAND
(C) L=250 		5-09707-030-0 01 1 9002- ● ●
194 CLIP; BAND
L TYPE ENG<90L> (C) L=250 		5-09707-030-0 01 1 9002- ●
194 CLIP; BAND
(C) L=140 		5-09707-031-0 01 1 9002- ● ●
194 CLIP; BAND
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) INTAKE HEATER<SL2> (C) L=250 		5-09707-030-0 03 1 9206-9306 ● ●
194 CLIP; BAND
HONG KONG EQUIPMENT(PQ1) AUTO CAB TILT<WV2> (C) L=250 		5-09707-030-0 02 1 9307- ●
208 CLIP; HARNESS,MAG VLV
ID=11 L=30 		1-09700-511-0 01 1 9002- ● ●
334 BRACKET
AUTO CAB TILT<WV2> L=55 		1-47475-304-0 01 1 9206-9306 ●
380 CLIP; EARTH HARNESS
L TYPE ENG<90L> ID=11 L=41 		1-09700-403-0 01 1 9002-9404 ● ●
380 CLIP; EARTH HARNESS
L TYPE ENG<90L> ID=11 L=41 		1-09700-403-0 02 1 9405- ● ●
421 CLIP; FLOOR HARNESS
EXC. DELUXE CARPET<BF2> ID=7 		1-09987-055-0 01 1 9002-9003 ● ●
421 CLIP; FLOOR HARNESS
DELUXE CARPET<BF2> NYLON TUBE AIR PIPING<Z29> ID=7 		1-09987-055-0 01 1 9002-9003 ●
421 CLIP; FLOOR HARNESS
EXC. DELUXE CARPET<BF2> 1 SET=5 PIECE 		1-09987-214-0 01 1 9004- ● ●
421 CLIP; FLOOR HARNESS
DELUXE CARPET<BF2> NYLON TUBE AIR PIPING<Z29> 1 SET=5 PIECE 		1-09987-214-0 01 1 9004- ●
428 BRACKET 1-82699-109-0 01 1 9002- ● ●
çizim 95176
171 16 38 27 231
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 04 1 9002-9206 ●
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (D) ID=11 L=41 		1-09700-403-0 01 1 9207-9306 ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 05 1 9104-9306 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 06 1 9307- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (B) ID=13 H=46 L=12 		1-09700-493-0 01 1 9002- ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (G) ID=35 L=35 W/NUT 		1-09700-684-0 01 1 9002- ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (F) ID=35 L=35 		1-09700-726-0 01 1 9002- ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=20 L=50 		9-09917-430-0 04 1 9002- ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (I) OD=9 H=6 		1-09709-178-0 08 1 9104- ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=50 		9-09525-085-0 02 1 9104- ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (K) ID=28 L=32 		1-09701-107-0 01 1 9002-9003 ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-0 01 1 9002-9003 ●
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (N) ID=29 L=35 		5-09700-293-1 01 1 9002- ●
16 CLIP; HARNESS
(N) ID=29 L=35 		5-09700-293-1 01 1 9002- ●
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1) (D) ID=11 L=41 		1-09700-403-0 01 1 9307- ●
16 CLIP; HARNESS
L TYPE ENG<90L> (U) ID=19 H=50 L=25 		9-09916-622-0 01 1 9307- ●
16 CLIP; HARNESS
NYLON TUBE AIR PIPING<Z29> (E) L=150 		1-09707-145-0 01 1 9002- ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (L) ID=21 L=30 H=40 		1-09700-991-1 01 1 9002- ●
16 CLIP; HARNESS
(L) ID=21 L=30 H=40 		1-09700-991-1 01 1 9002- ●
16 CLIP; HARNESS
6RB1TC ENG(30L) INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 05 1 9012- ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 06 1 9002-9210 ● ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 03 1 9211-9306 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 06 1 9002-9306 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=11 L=41 		1-09700-403-0 06 1 9002-9306 ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=14 L=44 		9-09917-427-0 01 1 9307- ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 06 1 9002-9206 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9007 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9002-9011 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> INTAKE HEATER<SL2> (D) ID=11 L=41 		1-09700-403-0 03 1 9012-9103 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9104-9306 ● ●
16 CLIP; HARNESS
(R) ID=15 H=24 L=20 		1-09700-606-0 01 1 9002- ● ●
16 CLIP; HARNESS
(P) 		1-09700-894-0 01 1 9002- ● ●
16 CLIP; HARNESS
EXC. INTERMITTENT WIPER<C13> (P) 		1-09700-894-0 01 1 9002- ● ●
16 CLIP; HARNESS
(S) WO/SPONGE RUBBER 		1-09709-103-1 01 1 9002- ● ●
16 CLIP; HARNESS
(T) L=219.5 		1-09987-136-0 04 1 9002- ● ●
16 CLIP; HARNESS
(J) L=135 		1-09987-143-1 01 1 9002-9201 ● ●
16 CLIP; HARNESS
(Z) L=175 		8-94155-593-1 03 1 9202- ● ●
16 CLIP; HARNESS
(L) ID=11 H=20 L=20 		5-09700-351-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
(C) L=250 		5-09707-030-0 01 1 9002- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) L=250 		5-09707-030-0 01 1 9002- ● ●
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 02 1 9002- ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-032-0 01 1 9002-9410 ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (A) ID=11 L=20 		9-09525-032-0 01 1 9411- ● ●
16 CLIP; HARNESS
(A) ID=11 L=28 		9-09525-055-0 01 1 9002- ● ●
16 CLIP; HARNESS
(U) ID=19 H=50 L=25 		9-09916-622-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
(D) ID=20 L=70 		1-09700-485-0 12 1 9307-9404 ● ●
16 CLIP; HARNESS
(D) ID=20 L=70 		1-09700-485-0 11 1 9405- ● ●
16 CLIP; HARNESS
(D) ID=6 L=36 		9-09917-423-0 01 1 9002-9306 ● ●
16 CLIP; HARNESS
(D) ID=18 L=48 		9-09917-429-0 02 1 9002- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) ID=18 L=48 		9-09917-429-0 02 1 9002- ●
16 CLIP; HARNESS
(D) ID=20 L=50 		9-09917-430-0 08 1 9002-9306 ● ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 05 1 9307- ● ●
16 CLIP; HARNESS
(D) ID=25 L=55 		9-09917-573-0 03 1 9002- ● ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 9004- ● ●
16 CLIP; HARNESS
(E) L=300 		1-09707-001-0 01 1 9007- ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 9104- ● ●
16 CLIP; HARNESS
(M) ID=15 L=35 		1-09700-507-0 01 1 9307-9309 ● ●
16 CLIP; HARNESS
(L) ID=11 H=20 L=20 		5-09700-351-0 01 1 9307- ● ●
16 CLIP; HARNESS
(D) ID=6 L=36 		9-09917-423-0 01 1 9307- ● ●
16 CLIP; HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 9309- ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 02 1 9411- ● ●
16 CLIP; HARNESS
FULLER M/T<X9B> (R) ID=12 H=24 L=20 		1-09700-605-0 02 1 9002- ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (D) ID=11 L=41 		1-09700-403-0 02 1 9002-9007 ● ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (D) ID=11 L=41 		1-09700-403-0 02 1 9008-9011 ● ●
16 CLIP; HARNESS
(D) ID=15 L=45 		1-09700-402-0 01 1 9012- ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 03 1 9002-9008 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (D) ID=20 L=50 		9-09917-430-0 01 1 9009-9103 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=15 L=35 		1-09700-507-0 02 1 9002-9306 ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (Y) ID=18 L=44 		8-94225-185-0 01 1 9307-9309 ●
16 CLIP; HARNESS
(Y) ID=18 L=44 		8-94225-185-0 02 1 9310- ● ●
16 CLIP; HARNESS
L TYPE ENG<90L> (O) ID=11 L=30 		1-09700-511-0 01 1 9002-9204 ● ●
16 CLIP; HARNESS
(O) ID=11 L=30 		1-09700-511-0 01 1 9205- ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L),6RB1TC ENG(30L) (O) ID=11 L=30 		1-09700-511-0 01 1 9205- ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (M) ID=15 L=35 		1-09700-507-0 03 1 9002-9306 ● ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (Y) ID=18 L=44 		8-94225-185-0 02 1 9307-9309 ●
16 CLIP; HARNESS
(Y) ID=18 L=44 		8-94225-185-0 02 1 9307-9309 ●
16 CLIP; HARNESS
V TYPE ENG<91L> (M) ID=15 L=35 		1-09700-507-0 01 1 9310- ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (C) L=140 		5-09707-031-0 01 1 9002-9402 ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-0 01 1 9002-9402 ●
16 CLIP; HARNESS
10PD1 STD ENG(40L) (C) L=140 		5-09707-031-0 01 1 9403- ● ●
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (C) L=140 		5-09707-031-0 01 1 9403- ●
16 CLIP; HARNESS
NEW ZEALAND EQUIPMENT(PK5) (C) L=140 		5-09707-031-0 01 1 9403- ●
16 CLIP; HARNESS
V TYPE ENG<91L> (R) ID=24.5 H=35 L=25 		1-09700-990-0 01 1 9307- ● ●
16 CLIP; HARNESS
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) INTAKE HEATER<SL2> (A) ID=11 L=28 		9-09525-052-0 01 1 9002- ● ●
16 CLIP; HARNESS
12PD1 STD ENG(42L) (W) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 9002-9306 ●
16 CLIP; HARNESS
(A) ID=11 L=20 		9-09525-035-0 01 1 9307-9410 ● ●
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=20 		9-09525-035-0 01 1 9411- ● ●
27 PROTECTOR; EDGE
120X150 		1-72370-001-0 01 1 9002- ● ●
27 PROTECTOR; EDGE
150X315 		1-72370-002-0 01 1 9002- ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28010-820-0 02 1 9104-9204 ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9205-9302 ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 02 1 9303-9410 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M8X20 FLANGE 		0-28080-820-0 02 1 9411- ● ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9411- ●
38 BOLT; CLIP,HARNESS
EXC. NYLON TUBE AIR PIPING<Z29> M6X20 W/LK WASHER 		9-01900-620-0 02 1 9002-9011 ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28010-820-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 03 1 9205-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X16 FLANGE 		0-28080-816-0 02 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 02 1 9002-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 07 1 9002-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 08 1 9303- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 02 1 9002- ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9002- ● ●
38 BOLT; CLIP,HARNESS
M6X22 W/LK&PL WASHER 		8-94122-770-0 01 1 9002-9212 ● ●
38 BOLT; CLIP,HARNESS
M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9301-9301 ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9002- ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 01 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9307-9410 ● ●
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> M6X20 FLANGE 		0-28080-620-0 01 1 9411- ● ●
38 BOLT; CLIP,HARNESS
M8X18 W/LK WASHER 		9-01900-818-0 02 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X18 W/LK WASHER 		0-50040-818-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9303- ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		9-01911-020-0 02 1 9002-9002 ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 01 1 9003-9306 ● ●
38 BOLT; CLIP,HARNESS
M12X25 W/LK&PL WASHER 		9-01961-225-0 01 1 9002-9101 ● ●
38 BOLT; CLIP,HARNESS
M12X16 FLANGE 		1-09044-079-0 01 1 9102- ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9003-9106 ● ●
38 BOLT; CLIP,HARNESS
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9107- ● ●
38 BOLT; CLIP,HARNESS
M6X20 FLANGE 		0-28080-620-0 01 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9303- ● ●
38 BOLT; CLIP,HARNESS
M10X20 W/LK WASHER 		0-50041-020-0 01 1 9307- ● ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 03 1 9411- ● ●
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X25 W/LK WASHER 		9-01900-825-0 02 1 9002-9204 ● ●
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9302 ● ●
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X25 FLANGE 		0-28080-825-0 02 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X25 FLANGE 		0-28080-825-0 02 1 9307- ●
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 02 1 9307- ●
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> M8X20 FLANGE 		0-28080-820-0 04 1 9303-9306 ● ●
38 BOLT; CLIP,HARNESS
10PD1 STD ENG(40L) M8X20 FLANGE 		0-28080-820-0 04 1 9307- ●
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 04 1 9307- ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 01 1 9002-9205 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 01 1 9206-9206 ● ●
38 BOLT; CLIP,HARNESS
HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE 		0-28080-825-0 01 1 9206-9206 ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L) M8X25 FLANGE 		0-28080-825-0 01 1 9207-9306 ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L) INTAKE HEATER<SL2> M6X16 FLANGE 		0-28080-616-0 01 1 9002- ● ●
38 BOLT; CLIP,HARNESS
6RB1 STD ENG(07L),6RA1TC ENG(19L),6RB1TC ENG(30L), 10PD1 STD ENG(40L) M8X30 FLANGE 		0-28080-830-0 13 1 9002- ● ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 04 1 9002-9204 ●
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 04 1 9205- ●
38 BOLT; CLIP,HARNESS
12PD1 STD ENG(42L) M8X30 FLANGE 		0-28080-830-0 14 1 9002-9306 ●
38 BOLT; CLIP,HARNESS
12PD1 STD ENG(42L) M8X35 W/LK WASHER 		0-50040-835-0 01 1 9002-9302 ●
38 BOLT; CLIP,HARNESS
12PD1 STD ENG(42L) M8X35 FLANGE 		0-28080-835-0 01 1 9303-9306 ●
171 CLIP; STARTER HARNESS
AUTO CAB TILT<WV2> (A) ID=15 L=45 		1-09700-402-0 02 1 9206- ●
171 CLIP; STARTER HARNESS
AUTO CAB TILT<WV2> (A) ID=11 L=41 		1-09700-403-0 04 1 9206- ●
171 CLIP; STARTER HARNESS
L TYPE ENG<90L> (B) L=140 		5-09707-031-0 02 1 9002- ●
171 CLIP; STARTER HARNESS
V TYPE ENG<91L> (B) L=140 		5-09707-031-0 05 1 9002- ● ●
231 CLIP; BAND,OIL PRESS
L=250 		5-09707-030-0 01 1 9002- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
