8-52 — PIPING; AIR CONDITIONING
(#18209) — 30 parça
◀
[852A] NO.1 (18 parça)
[852A] NO.2 (12 parça)
▶

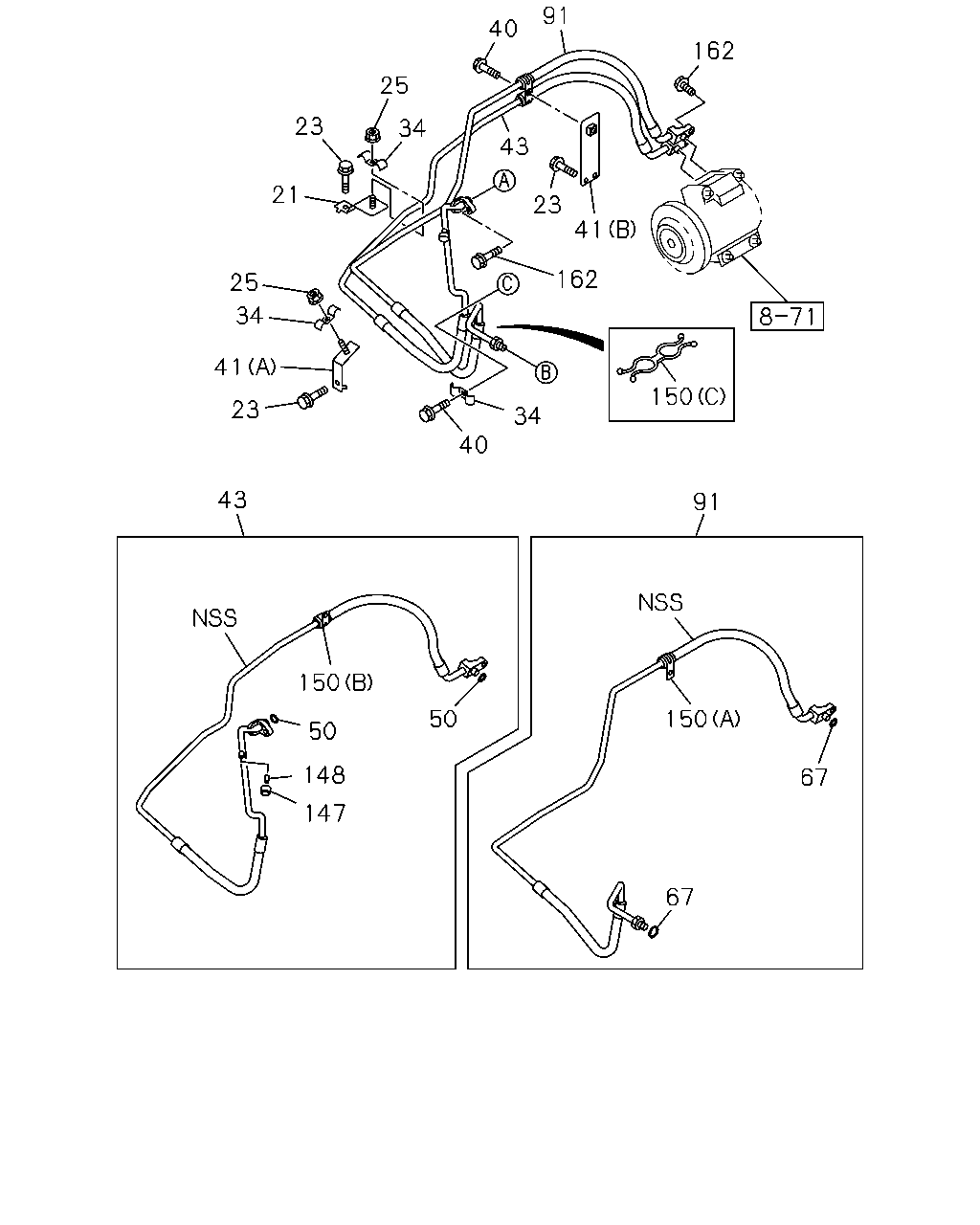

91
40
162
25
23
34
43
21
23
41
162
25
34
41
150
23
34
40
43
91
150
50
150
50
148
67
147
67
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
BRACKET; COOLER HOSE
8-98010-187-0
01
1
1006-
23
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
01
1
1006-
23
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
03
1
1006-
25
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1006-
34
CLIP; COOLER PIPE
8-98043-673-0
03
1
1006-
40
BOLT; CLIP BRKT
M8X25 FLANGE
0-28650-825-0
02
1
1006-
41
BRACKET; PIPE CLIP
(A)
8-98010-188-1
01
1
1006-
41
BRACKET; PIPE CLIP
(B)
8-98032-049-0
01
1
1006-
43
HOSE; FLEX,A/C,EVAP TO CMPR
8-98043-672-2
01
1
1006-
50
GASKET; FLEX HOSE,A/C
ID=14.5
8-97095-908-0
02
1
1006-
67
GASKET; FLEX HOSE
ID=11.7
8-97095-907-0
02
1
1006-
91
HOSE; FLEX,CMPR
8-98043-674-2
01
1
1006-
147
CAP; FLEX HOSE
CAP MARK L
1-83539-331-0
01
1
1006-
148
VALVE; FLEX HOSE
8-97095-909-0
01
1
1006-
150
CLIP; HOSE
(A)
1-83574-249-0
01
1
1006-
150
CLIP; HOSE
(B)
1-83574-264-0
01
1
1006-
150
CLIP; HOSE
(C)
8-94423-042-0
01
1
1006-
162
BOLT; FLEX HOSE
M6X25 FLANGE
0-28050-625-0
03
1
1006-

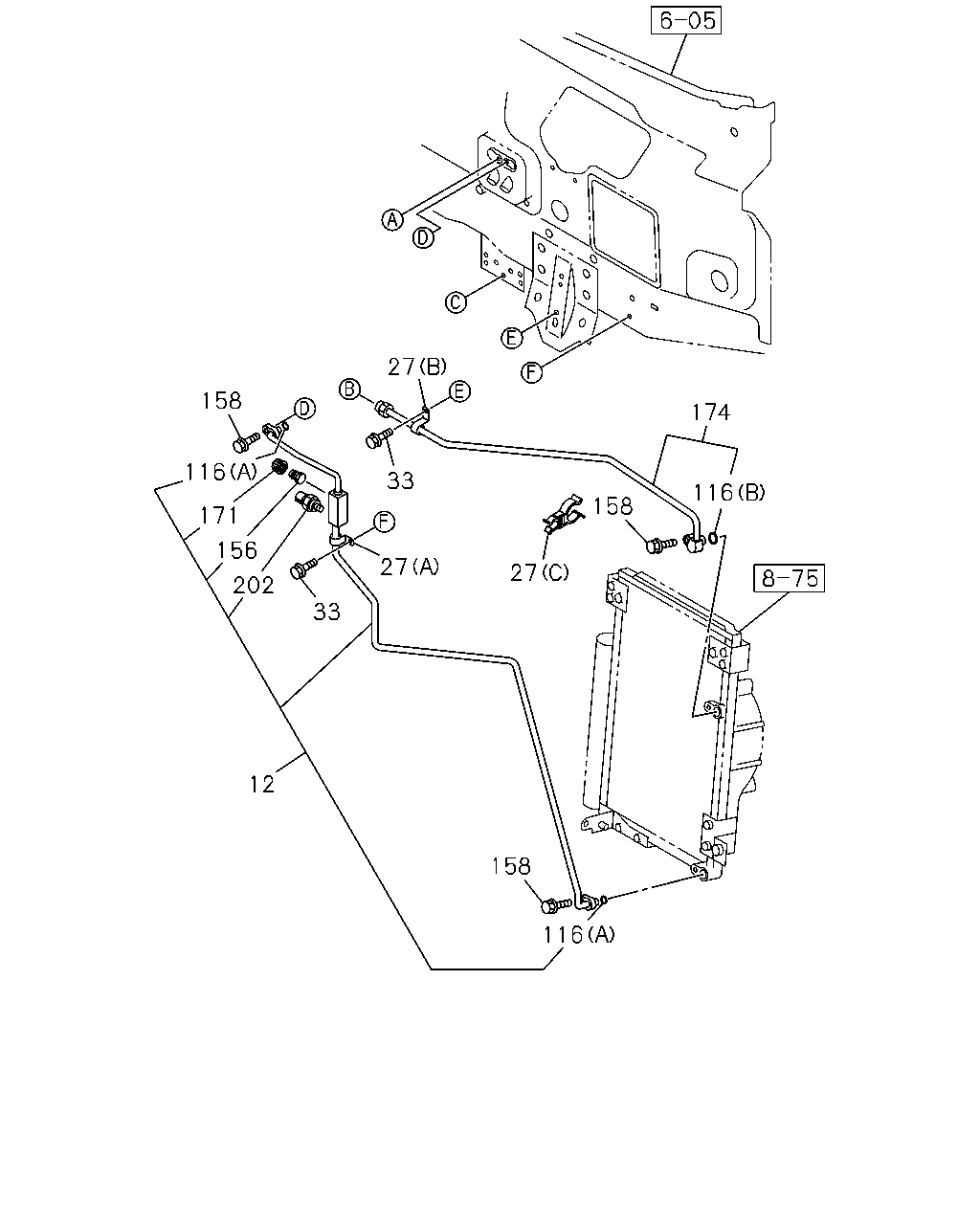

27
158
174
116
33
116
158
171
156
27
27
202
33
12
158
116
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
PIPE; COOLER,EVAP TO TANK
8-98041-329-0
01
1
1006-
27
CLIP; COOLER PIPE
(A) ID=9 H=20 L=20
0-95207-308-0
01
1
1006-
27
CLIP; COOLER PIPE
(B) ID=16 H=24 L=20
0-95207-315-0
01
1
1006-
27
CLIP; COOLER PIPE
(C) ID=11.8 & 7.5
1-09709-182-0
01
1
1006-
33
BOLT; CLIP
M6X16 FLANGE
0-28650-616-0
02
1
1006-
116
GASKET; PIPE
(A) ID=7.4
8-97095-906-0
02
1
1006-
116
GASKET; PIPE
(B) ID=11.7
8-97095-907-0
01
1
1006-
156
VALVE; PIPE
8-98151-702-0
01
1
1006-
158
BOLT; PIPE FIX
M6X25 FLANGE
0-28050-625-0
03
1
1006-
171
CAP; PIPE
CAP MARK H
8-97095-911-0
01
1
1006-
174
PIPE; COOLER,CONDENSER TO FLEX HOSE
8-98041-331-0
01
1
1006-
202
SWITCH; PRESSURE
1-83564-391-0
01
1
1006-
