8-15 — FIXING PARTS; WIRING HARNESS (#18202) — 173 parça

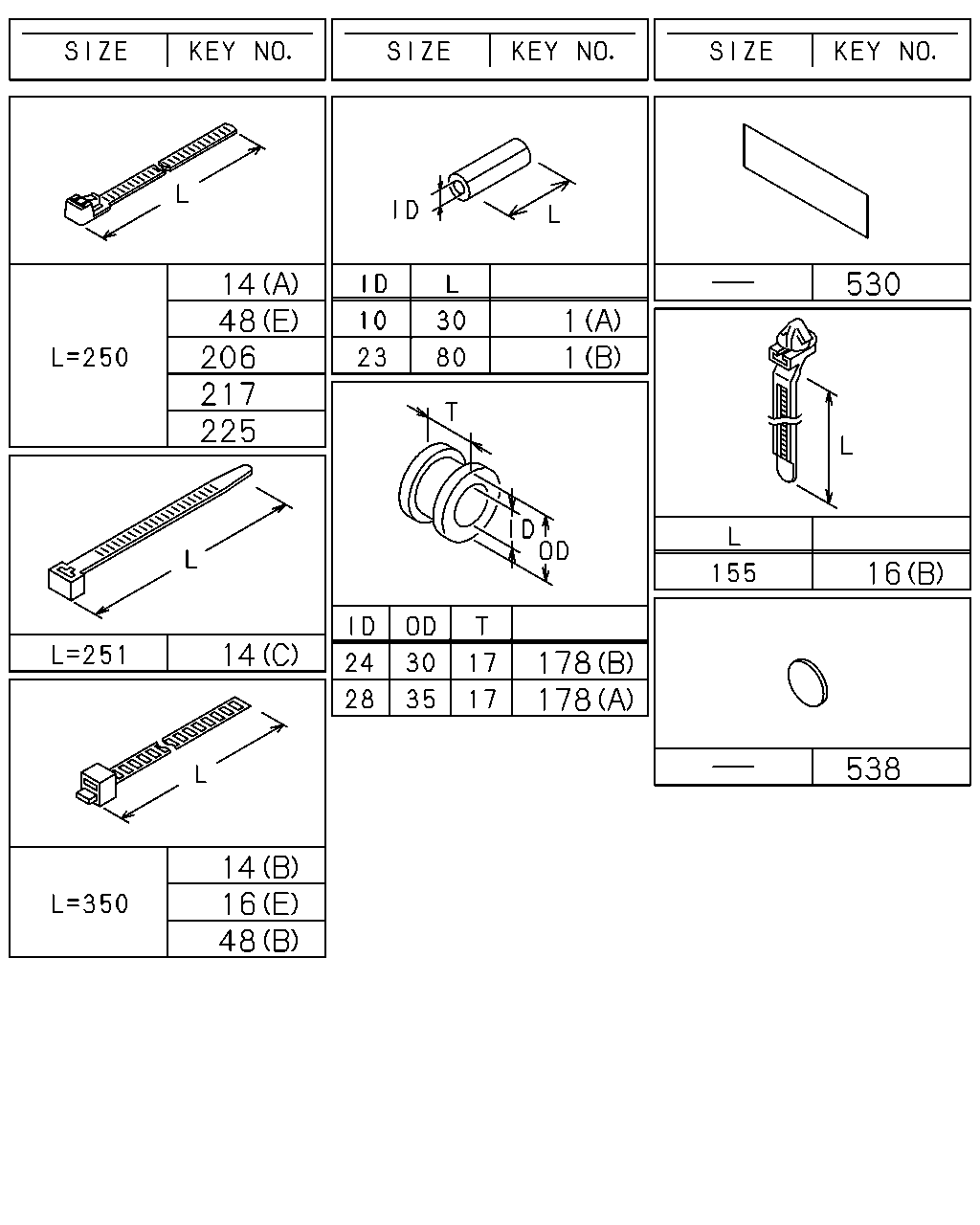

çizim 130303
530 14 48 206 217 225 1 1 16 14 178 178 538 14 16 48
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 1006-
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1006-
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 01 1 1006-
14 CLIP; BAND,HARNESS
(A) L=250 		5-09707-030-1 01 1 1006-
14 CLIP; BAND,HARNESS
(A) L=250 		5-09707-030-1 13 1 1006-1205
14 CLIP; BAND,HARNESS
(A) L=250 		8-98216-430-0 13 1 1206-
14 CLIP; BAND,HARNESS
(C) L=251 		8-97619-917-0 01 1 1006-
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 01 1 1006-
16 CLIP; HARNESS
(F) ID=16 L=28 		0-95235-556-0 02 1 1006-
16 CLIP; HARNESS
(I) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1006-
16 CLIP; HARNESS
(I) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1006-
16 CLIP; HARNESS
(D) ID=35 L=33 		1-09700-945-0 01 1 1006-
16 CLIP; HARNESS
(E) L=350 		1-09707-183-0 02 1 1006-
16 CLIP; HARNESS
(J) ID=10 & 10 		1-09709-277-1 05 1 1006-
16 CLIP; HARNESS
(G) ID=10 & 16 		8-94413-325-0 01 1 1006-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1006-
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1006-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1006-
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 1006-
48 CLIP; FRAME HARNESS
(C) ID=35 L=50 		1-09701-214-0 01 1 1006-
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 1006-
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 02 1 1006-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 09 1 1006-
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1006-
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1006-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1006-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1006-
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 1006-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1006-
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 03 1 1006-
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 1006-1305
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1306-
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 1006-1305
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1306-
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1006-

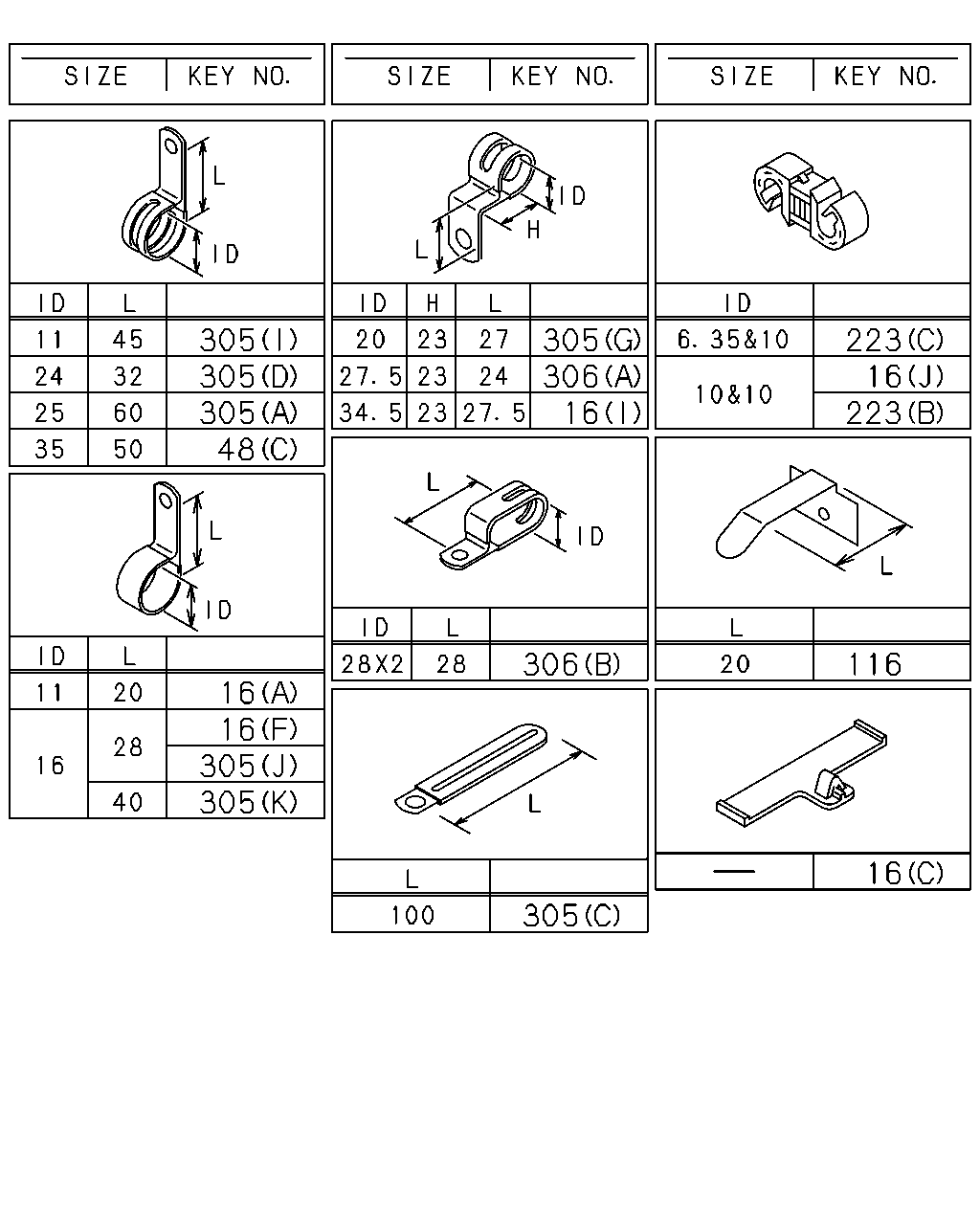

çizim 130304
305 305 305 48 305 306 16 223 16 223 306 116 16 16 305 305 16 305
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 01 1 1006-
16 CLIP; HARNESS
(F) ID=16 L=28 		0-95235-556-0 02 1 1006-
16 CLIP; HARNESS
(I) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1006-
16 CLIP; HARNESS
(I) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1006-
16 CLIP; HARNESS
(D) ID=35 L=33 		1-09700-945-0 01 1 1006-
16 CLIP; HARNESS
(E) L=350 		1-09707-183-0 02 1 1006-
16 CLIP; HARNESS
(J) ID=10 & 10 		1-09709-277-1 05 1 1006-
16 CLIP; HARNESS
(G) ID=10 & 16 		8-94413-325-0 01 1 1006-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1006-
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1006-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1006-
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 1006-
48 CLIP; FRAME HARNESS
(C) ID=35 L=50 		1-09701-214-0 01 1 1006-
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 1006-
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 02 1 1006-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 09 1 1006-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 1006-1201
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1202-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1006-
223 CLIP; AIR TANK HARNESS
(C) ID=6.35 & 10.0 		1-09709-274-1 01 1 1006-
223 CLIP; AIR TANK HARNESS
(B) ID=10 & 10 		1-09709-277-1 02 1 1006-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1006-
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 1006-
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 1006-
305 CLIP; ENG HARNESS
(G) ID=20 H=23 L=27 		1-09700-861-0 01 1 1006-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1006-
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 1006-
305 CLIP; ENG HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 1006-
305 CLIP; ENG HARNESS
(E) ID=21 L=47.5 		8-94178-108-0 01 1 1006-
305 CLIP; ENG HARNESS
(I) ID=11 L=45 		8-94296-897-1 01 1 1006-
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 1006-
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1006-
306 CLIP; HARNESS,ELEC GOV
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1006-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1006-

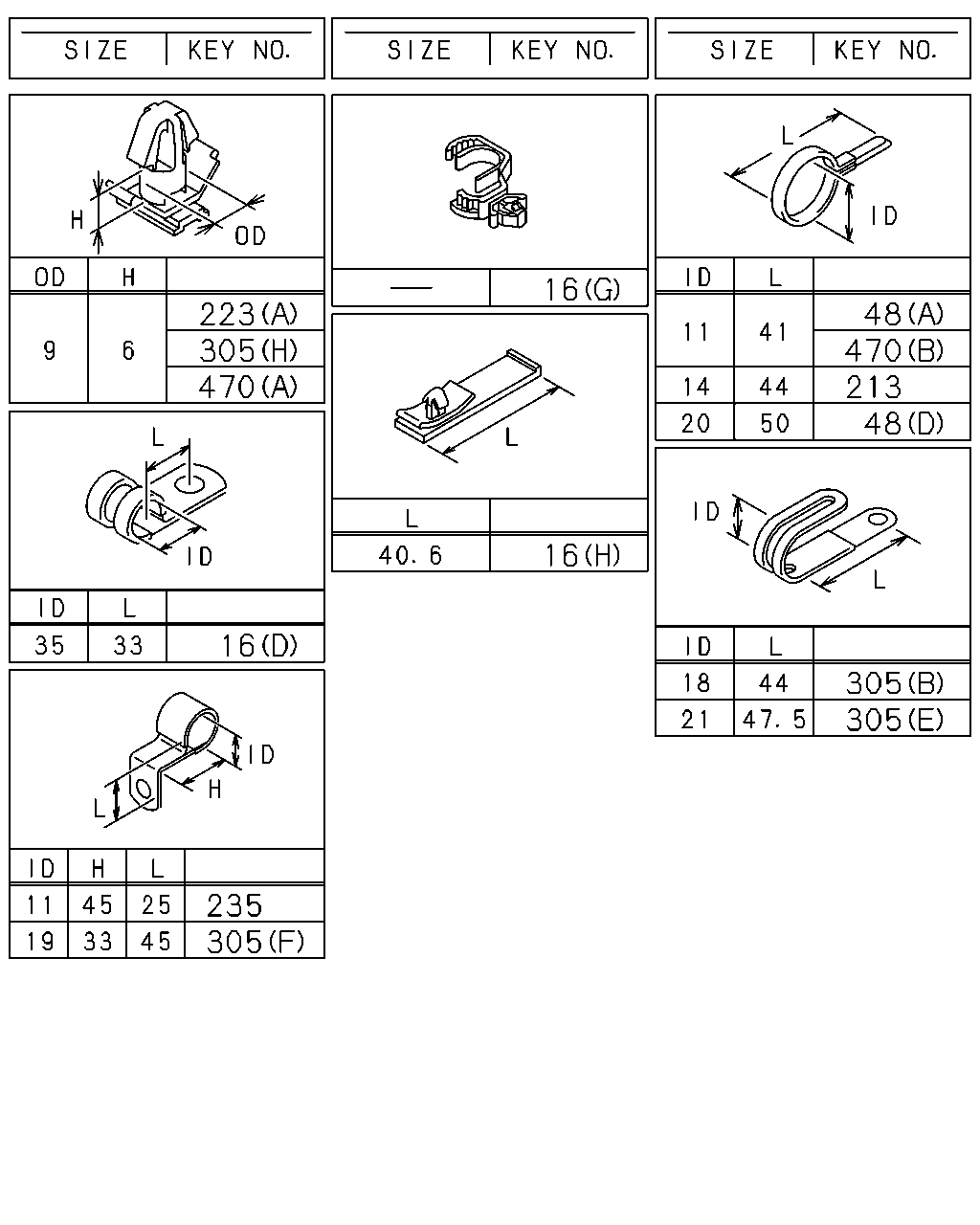

çizim 130305
16 223 305 470 48 470 213 48 16 16 305 305 235 305
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 01 1 1006-
16 CLIP; HARNESS
(F) ID=16 L=28 		0-95235-556-0 02 1 1006-
16 CLIP; HARNESS
(I) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1006-
16 CLIP; HARNESS
(I) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1006-
16 CLIP; HARNESS
(D) ID=35 L=33 		1-09700-945-0 01 1 1006-
16 CLIP; HARNESS
(E) L=350 		1-09707-183-0 02 1 1006-
16 CLIP; HARNESS
(J) ID=10 & 10 		1-09709-277-1 05 1 1006-
16 CLIP; HARNESS
(G) ID=10 & 16 		8-94413-325-0 01 1 1006-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1006-
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1006-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1006-
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 1006-
48 CLIP; FRAME HARNESS
(C) ID=35 L=50 		1-09701-214-0 01 1 1006-
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 1006-
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 02 1 1006-
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 09 1 1006-
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1006-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 1006-
223 CLIP; AIR TANK HARNESS
(C) ID=6.35 & 10.0 		1-09709-274-1 01 1 1006-
223 CLIP; AIR TANK HARNESS
(B) ID=10 & 10 		1-09709-277-1 02 1 1006-
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=11 H=45 L=25 		1-09700-866-0 01 1 1006-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1006-
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 1006-
305 CLIP; ENG HARNESS
(D) ID=24 L=32 		1-09700-766-1 01 1 1006-
305 CLIP; ENG HARNESS
(G) ID=20 H=23 L=27 		1-09700-861-0 01 1 1006-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1006-
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 1006-
305 CLIP; ENG HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 1006-
305 CLIP; ENG HARNESS
(E) ID=21 L=47.5 		8-94178-108-0 01 1 1006-
305 CLIP; ENG HARNESS
(I) ID=11 L=45 		8-94296-897-1 01 1 1006-
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 1006-
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1006-
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 1006-
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 1006-
çizim 130327
304 304 304 304 139 304 38 139 313 139 139 38 313 38 242 150 139 294 525 294 219 524 47 184 127 386 516 377 38 38 386
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1006-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1006-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1006-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1006-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 03 1 1006-
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 1006-
38 BOLT; CLIP,HARNESS
(C) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 1006-1201
38 BOLT; CLIP,HARNESS
(E) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202-
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1006-
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 1006-
139 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 01 1 1006-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1006-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1006-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1006-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1006-
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1006-
139 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 01 1 1006-
150 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1006-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1006-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1006-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1006-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1006-
242 BOLT; BRKT,HARNESS
M8X20 FLANGE 		0-28650-820-0 01 1 1006-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 1006-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 1006-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1006-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1006-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 1006-
304 BOLT; ENG HARNESS CLIP
(E) M6X12 FLANGE 		0-28050-612-0 01 1 1006-
304 BOLT; ENG HARNESS CLIP
(D) M8X10 FLANGE 		0-28050-810-0 01 1 1006-1010
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 03 1 1006-
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 03 1 1006-
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1006-
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1006-
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1006-
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 1006-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1006-
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1006-1202
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203-
516 BOLT; HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1006-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1006-
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 1006-
525 NUT; CLIP
T=8.5 M8 FLANGE 		5-09440-010-0 01 1 1006-
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 02 1 1006-

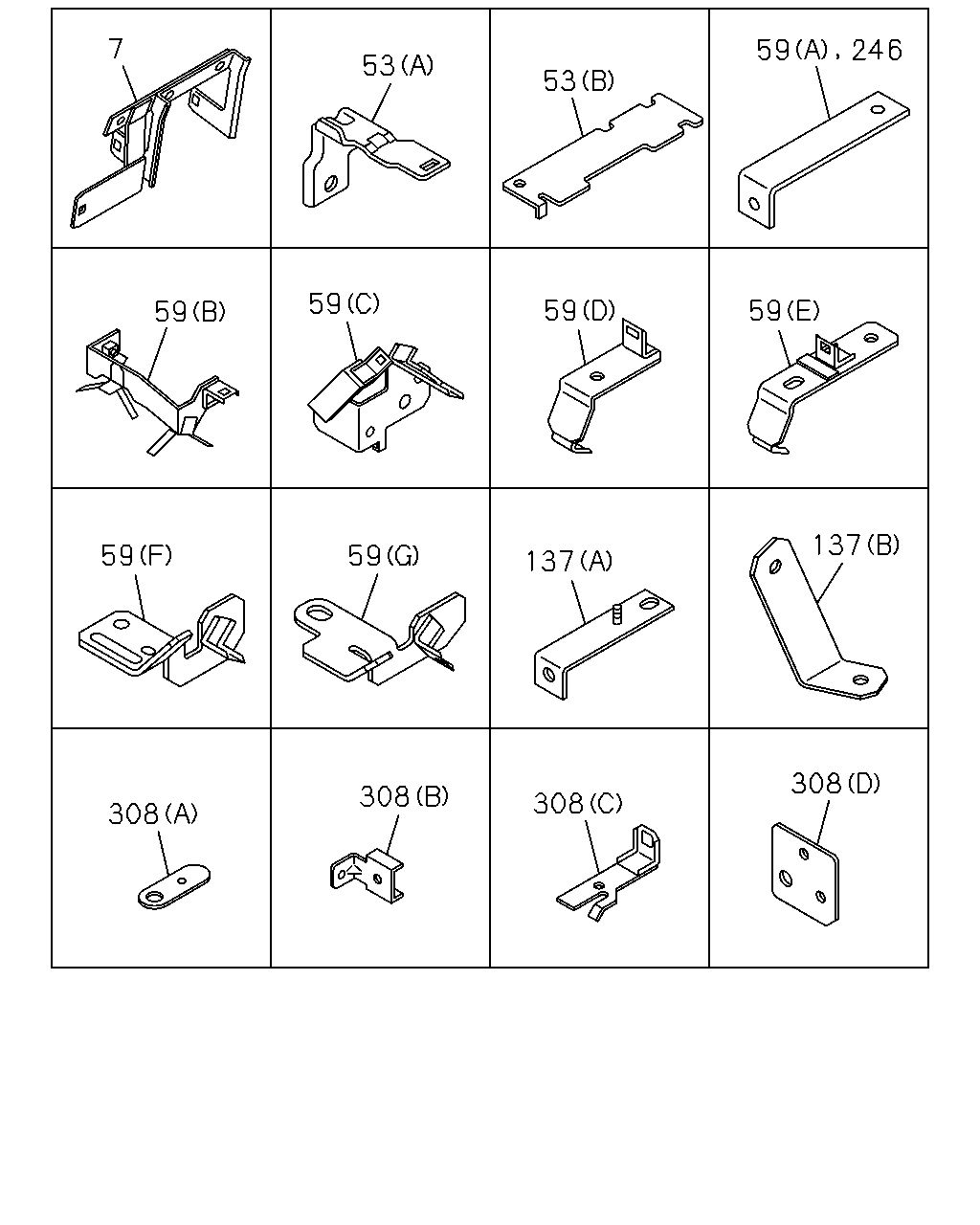

çizim 130333
7 53 53 59 246 59 59 59 59 59 59 137 137 308 308 308 308
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1006-1308
7 BRACKET; CONNECTOR 8-98248-632-0 01 1 1309-
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1006-
53 BRACKET; HARNESS
(B) 		8-98127-093-0 01 1 1006-
59 BRACKET; FRAME HARNESS
(A) L=95 		1-82699-085-0 01 1 1006-
59 BRACKET; FRAME HARNESS
(B) 		8-97609-264-2 01 1 1006-
59 BRACKET; FRAME HARNESS
(C) 		8-97622-828-0 01 1 1006-
59 BRACKET; FRAME HARNESS
(D) 		8-98118-500-0 01 1 1006-
59 BRACKET; FRAME HARNESS
(E) 		8-98152-282-0 01 1 1006-
59 BRACKET; FRAME HARNESS
(F) 		8-97616-305-0 01 1 1006-1502
59 BRACKET; FRAME HARNESS
(G) 		8-98254-592-0 01 1 1503-
137 BRACKET; HARNESS CLAMP
(B) 		8-97614-728-1 01 1 1006-
137 BRACKET; HARNESS CLAMP
(A) 		8-97624-013-0 01 1 1006-
246 BRACKET; CLIP,SPD SENSOR
L=95 		1-82699-085-0 01 1 1006-
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 03 1 1006-1010
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1011-
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 1006-
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 1006-
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 1006-
çizim 130335
428 335 428 428 312 312
BalonParca AdiParca NoAdetTipApplied Date
312 BRACKET; CLIP HARNESS
(B) L=55 		1-47475-304-0 01 1 1006-
312 BRACKET; CLIP HARNESS
(A) 		8-97609-110-1 01 1 1006-
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 1006-
428 BRACKET
(B) 		1-47475-519-0 01 1 1006-
428 BRACKET
(C) 		8-98049-870-2 01 1 1006-
428 BRACKET
(A) 		8-98090-953-1 01 1 1006-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
