Isuzu WW
▶
TRUCKS
▶
FTS
▶
11288 - FTS THAILAND
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-01 - LAMP; FRONT AND FRONT SIDE
▶
8-01 — LAMP; FRONT AND FRONT SIDE
(#18198) — 69 parça
◀

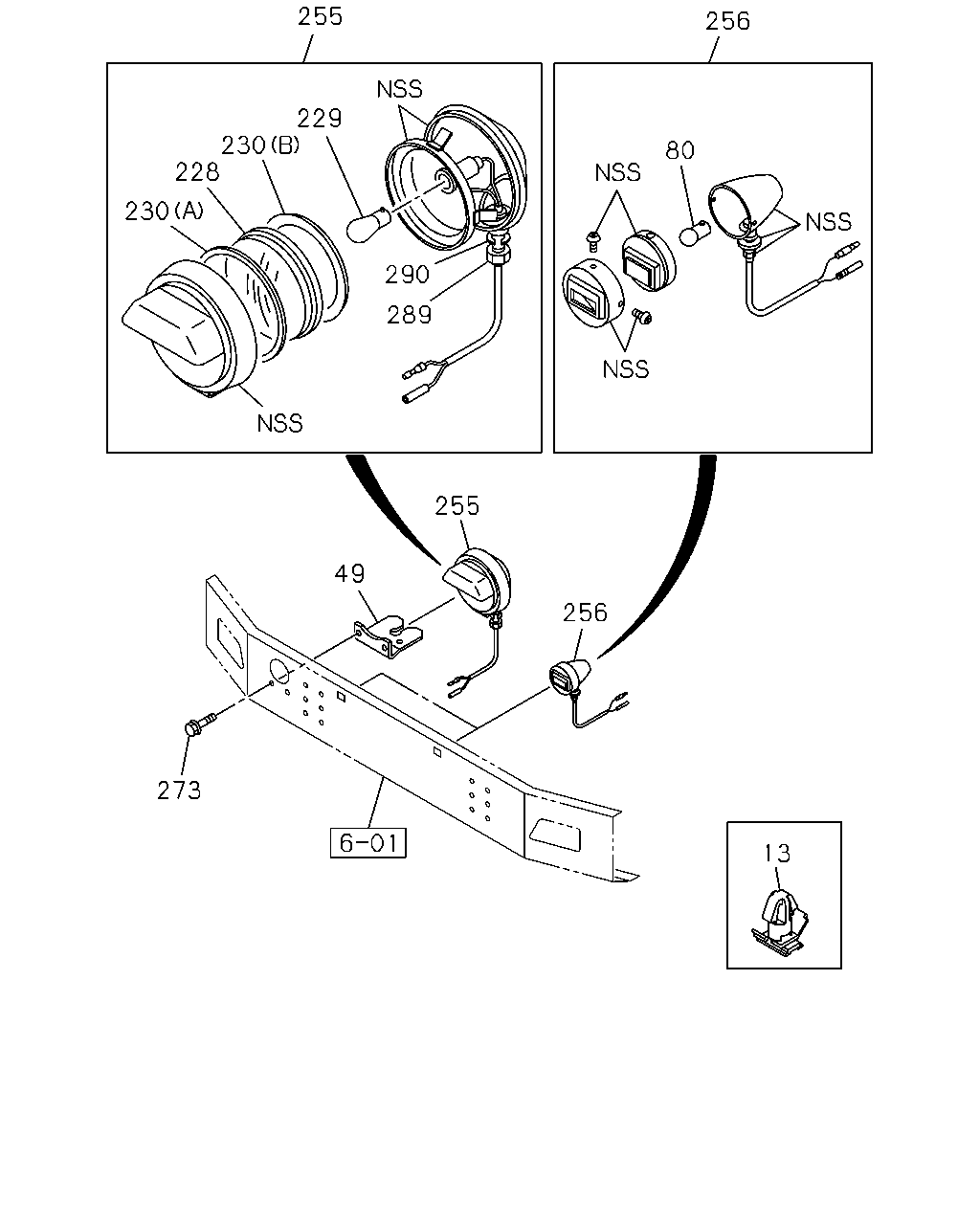

[801A] DRIVING LAMP,MARKER LAMP (12 parça)
[801A] FIXING (16 parça)

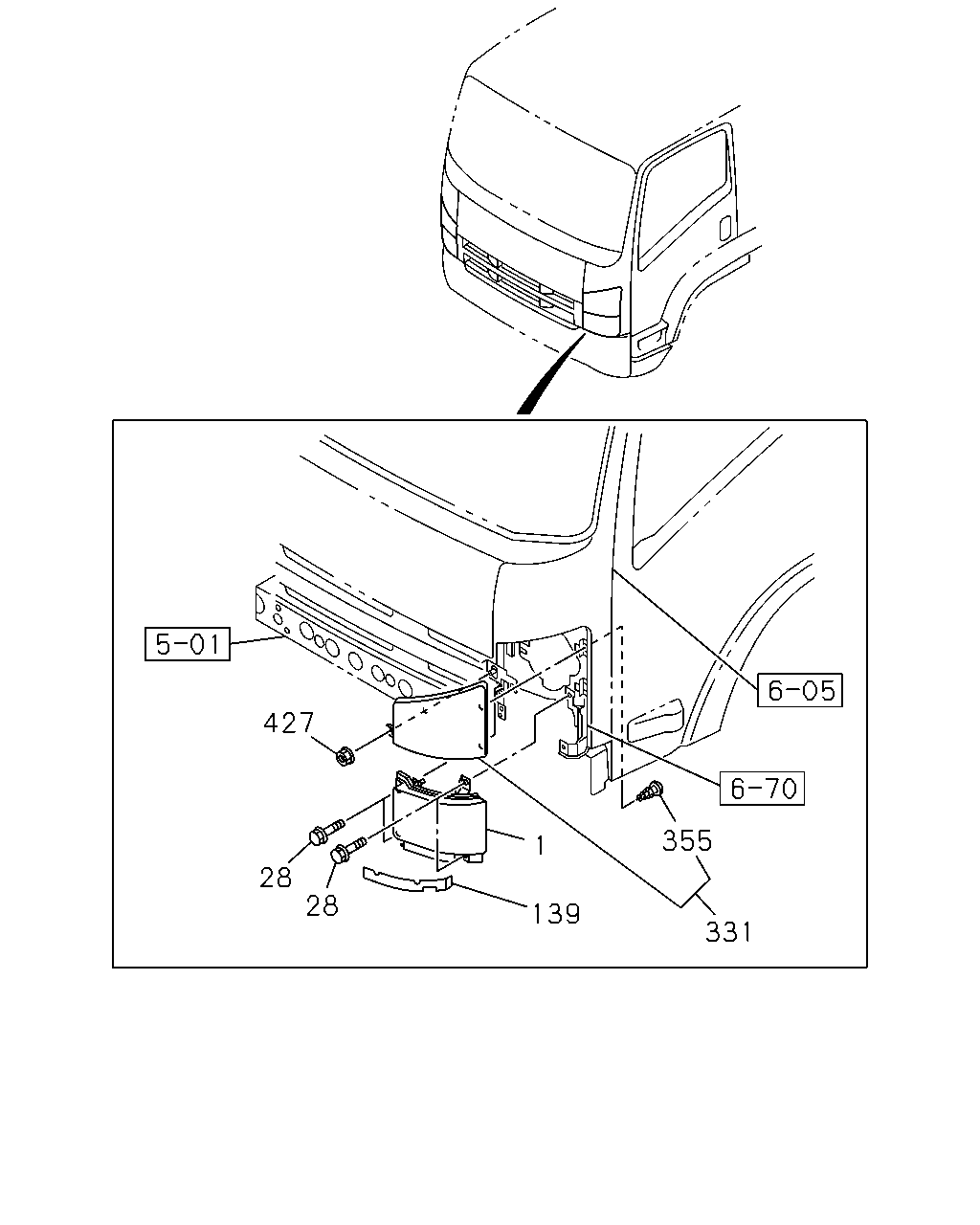

[801A] COMPONENT;HEADLAMP,TURN SIGNAL LAMP (29 parça)

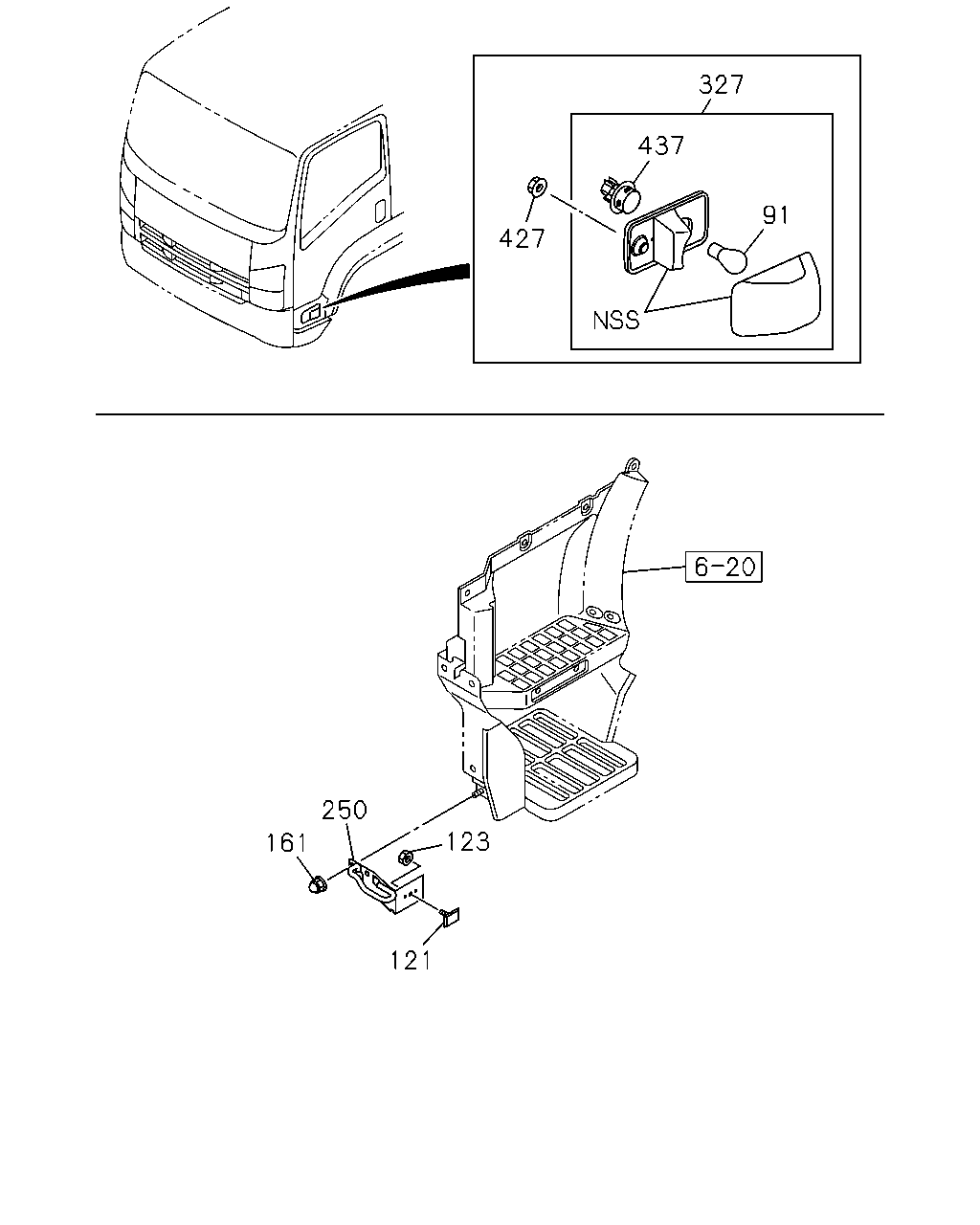

[801A] SIDE TURN SIGNAL LAMP,REFLECTOR (12 parça)
▶
255
256
229
230
228
80
230
290
289
255
49
256
273
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
CLIP; HEADLAMP
OD=9 H=6
1-09709-178-0
03
1
1006-
49
BRACKET; LAMP
8-98164-818-0
01
1
1006-
80
BULB; MARKER LAMP
24V 6W
9-82691-306-0
02
1
1006-
228
LENS; DRIVING LAMP
9-82611-231-0
01
1
1006-
229
BULB; DRIVING LAMP
24V 25W
9-82691-347-0
01
1
1006-
230
GASKET; DRIVING LAMP
(A)
9-82611-752-0
01
1
1006-
230
GASKET; DRIVING LAMP
(B)
9-82611-753-0
01
1
1006-
255
LAMP; DRIVING
1-82210-239-1
01
1
1006-
256
LAMP; MARKER
1-82210-240-1
02
1
1006-
273
BOLT; BRKT
M10X30 FLANGE
0-28651-030-0
02
1
1006-
289
NUT; DRIVING LAMP
M12
9-99110-412-0
01
1
1006-
290
WASHER; DRIVING LAMP
ID=12.2
9-09150-612-0
01
1
1006-
427
355
1
28
28
139
331
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
8-98098-480-1
01
1
1006-1208
1
LAMP ASM; HEAD
8-98225-600-0
01
1
1209-1301
1
LAMP ASM; HEAD
8-98225-641-0
01
1
1302-1305
1
LAMP ASM; HEAD
8-98241-326-0
01
1
1306-
1
LAMP ASM; HEAD
8-98098-479-1
01
1
1006-1208
1
LAMP ASM; HEAD
8-98225-599-0
01
1
1209-1301
1
LAMP ASM; HEAD
8-98225-640-0
01
1
1302-1305
1
LAMP ASM; HEAD
8-98241-325-0
01
1
1306-
28
BOLT; HEADLAMP
M6X20 W/LK&PL WASHER
8-98031-842-0
08
1
1006-1006
28
BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER
8-98164-723-0
08
1
1006-
139
COVER; HEADLAMP
8-98054-342-0
02
1
1006-
331
LAMP; TURN SIGNAL
8-98155-459-0
01
1
1006-
331
LAMP; TURN SIGNAL
8-98155-458-0
01
1
1006-
355
SCREW; TURN SIGNAL
8-98051-428-0
04
1
1006-
427
NUT; TURN SIGNAL LAMP
M6 FLANGE
0-91180-106-0
02
1
1006-
427
NUT; TURN SIGNAL LAMP
M6 FLANGE
0-91180-106-0
02
1
1006-
331
431
357
399
355
432
1
4
408
420
20
5
5
382
457
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
8-98098-480-1
01
1
1006-1208
1
LAMP ASM; HEAD
8-98225-600-0
01
1
1209-1301
1
LAMP ASM; HEAD
8-98225-641-0
01
1
1302-1305
1
LAMP ASM; HEAD
8-98241-326-0
01
1
1306-
1
LAMP ASM; HEAD
8-98098-479-1
01
1
1006-1208
1
LAMP ASM; HEAD
8-98225-599-0
01
1
1209-1301
1
LAMP ASM; HEAD
8-98225-640-0
01
1
1302-1305
1
LAMP ASM; HEAD
8-98241-325-0
01
1
1306-
4
HEADLAMP UNIT
8-98051-401-0
01
1
1006-1301
4
HEADLAMP UNIT
8-98226-183-0
01
1
1302-
4
HEADLAMP UNIT
8-98051-400-0
01
1
1006-1301
4
HEADLAMP UNIT
8-98226-182-0
01
1
1302-
5
BULB; HEADLAMP
(B) 24V 5W
1-82194-042-0
02
1
1006-
5
BULB; HEADLAMP
(A) 24V 75/70W
1-82194-063-0
02
1
1006-
20
SCREW; HEADLAMP
8-97378-871-0
06
1
1006-
23
COVER; BULB,HEADLAMP
8-97232-491-0
02
1
1006-
331
LAMP; TURN SIGNAL
8-98155-459-0
01
1
1006-
331
LAMP; TURN SIGNAL
8-98155-458-0
01
1
1006-
355
SCREW; TURN SIGNAL
8-98051-428-0
04
1
1006-
357
BULB; TURN SIGNAL
24V 21W AMBER
8-97323-806-0
02
1
1006-
382
PLUG; SOCKET,HEADLAMP
8-98069-364-0
02
1
1006-1208
382
PLUG; SOCKET,HEADLAMP
8-98225-685-0
02
1
1209-
399
SOCKET; TURN SIGNAL
8-98051-387-0
02
1
1006-
408
CAP; BREATHER,HEADLAMP
8-97378-874-0
02
1
1006-
420
SPRING; BULB,HEADLAMP
8-97378-875-0
02
1
1006-1301
420
SPRING; BULB,HEADLAMP
8-98218-601-0
02
1
1302-
431
CAP; TURN SIGNAL,LAMP
8-97378-874-0
02
1
1006-
432
FASTENER; TURN SIGNAL,LAMP
8-98051-431-0
04
1
1006-
457
GRIP; HEADLAMP
8-98241-354-0
02
1
1306-
327
437
91
427
250
123
161
121
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
91
BULB; SIDE TURN SIGNAL
24V 21W
8-98051-495-0
02
1
1006-
121
REFLECTOR; REFLEX
1-82290-066-0
02
1
1006-
123
NUT; REFLECTOR
M6 FLANGE
0-91180-106-0
02
1
1006-
161
NUT; BRKT
M8 CAP NUT FLANGE
8-97372-242-0
04
1
1006-1312
161
NUT; BRKT
M8 CAP NUT FLANGE
8-98261-347-0
04
1
1401-
250
BRACKET ASM
8-98070-243-1
01
1
1006-
250
BRACKET ASM
8-98070-242-1
01
1
1006-
327
LAMP ASM; SIDE TURN SIGNAL
8-97410-181-3
01
1
1006-
327
LAMP ASM; SIDE TURN SIGNAL
8-97410-180-4
01
1
1006-
427
NUT; TURN SIGNAL LAMP
M6 FLANGE
0-91180-106-0
02
1
1006-
427
NUT; TURN SIGNAL LAMP
M6 FLANGE
0-91180-106-0
02
1
1006-
437
SOCKET; SIDE,TURN
8-98051-390-0
02
1
1006-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
