Isuzu WW
▶
TRUCKS
▶
FTS
▶
11288 - FTS THAILAND
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶

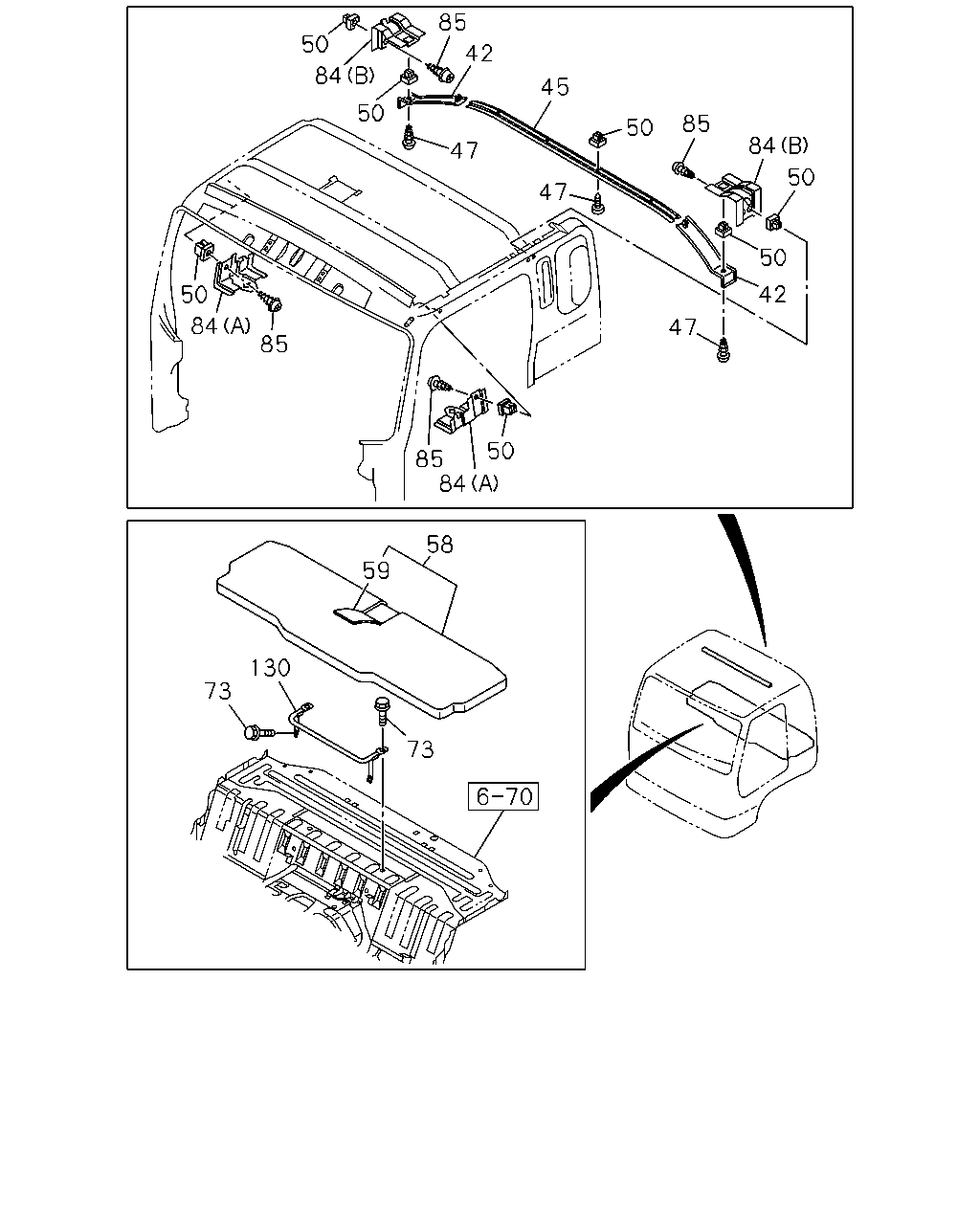

7-70 - SEPARATER AND BED
▶
7-70 — SEPARATER AND BED
(#18197) — 16 parça
85
50
42
84
45
50
85
50
84
47
50
47
50
42
50
84
85
47
50
85
84
58
59
130
73
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
42
STOPPER; CURTAIN RAIL
DARK GRAY
8-97407-972-2
01
1
1006-
42
STOPPER; CURTAIN RAIL
DARK GRAY
8-97407-499-2
01
1
1006-
45
RAIL; CURTAIN,FRT
DARK GRAY
8-97407-486-0
01
1
1006-
47
SCREW; CURTAIN RAIL
M5X20
5-09981-059-0
06
1
1006-
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
06
1
1406-
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
06
1
1006-1405
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
06
1
1006-1405
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
04
1
1406-
58
BED; MAT
DARK GRAY
8-97409-894-1
01
1
1006-
59
COVER ASM; TRIM,BED MAT
DARK GRAY
8-97414-135-0
01
1
1006-
73
BOLT; GUARD PIPE
M8X20 FLANGE
0-28450-820-0
04
1
1006-
84
BRACKET; CURTAIN RAIL
(A)
8-98028-326-1
02
1
1006-1405
84
BRACKET; CURTAIN RAIL
(B)
8-98042-152-0
04
1
1006-
85
SCREW; BRKT
M5X20
5-09981-059-0
06
1
1006-1405
85
SCREW; BRKT
M5X20
5-09981-059-0
04
1
1406-
130
PIPE; GUARD,BED
8-98014-968-0
01
1
1006-
