8-05 — INTERIOR LAMP (#1819) — 24 parça

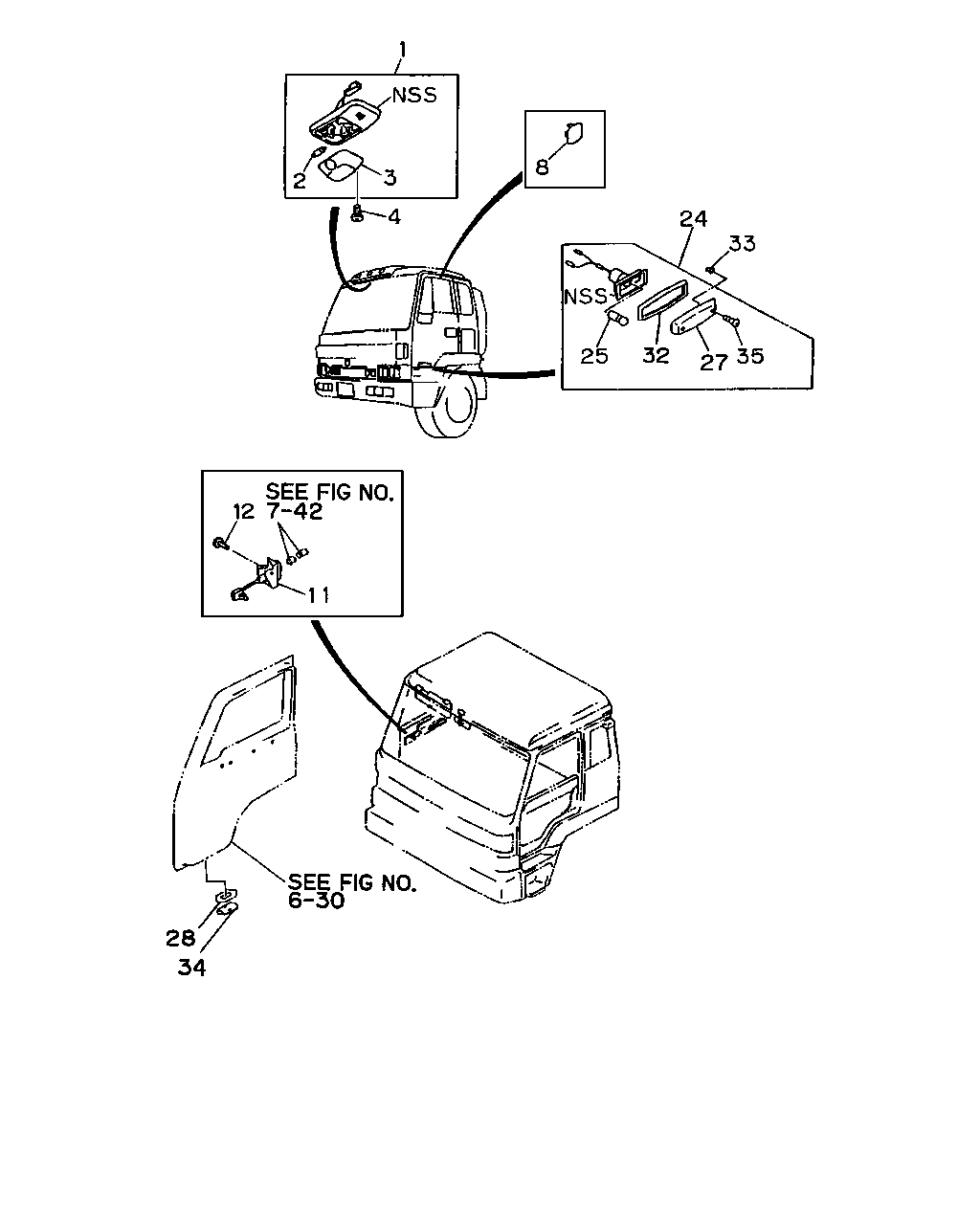

çizim 94140
3 2 1 4 8 24 33 35 27 32 25 11 12 28 34
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; ROOM 1-82140-039-0 01 1 9002-9306 ● ●
1 LAMP ASM; ROOM 1-82140-042-1 01 1 9307- ● ●
2 BULB; ROOM LAMP
24V 10W 		1-82195-001-0 02 1 9002- ● ●
3 LENS; ROOM LAMP 1-82145-002-0 01 1 9002-9306 ● ●
3 LENS; ROOM LAMP 8-94206-208-0 01 1 9307- ● ●
4 SCREW; ROOM LAMP
M5X20 TAPPING 		9-07066-520-0 03 1 9002- ● ●
8 COVER; BED ROOM LAMP
EXC. INTERIOR FULL TRIM<WM3> WHITE 		1-73347-433-2 01 1 9002- ● ●
11 LAMP ASM; ASH TRAY 1-76457-039-2 01 1 9205- ● ●
12 SCREW; LAMP,ASH TRAY
M4X12 TAPPING 		9-07076-412-0 01 1 9205- ● ●
24 LAMP; STEP
COURTESY LAMP<C97> EXC. POWER WINDOW<A30> 		1-82140-023-0 01 1 9002-9306 ●
24 LAMP; STEP
COURTESY LAMP<C97> 		1-82140-023-0 01 1 9002-9306 ●
24 LAMP; STEP
POWER WINDOW<A30> COURTESY LAMP<C97> 		1-82140-044-0 01 1 9302-9306 ●
24 LAMP; STEP
COURTESY LAMP<C97> 		1-82140-044-0 01 1 9307- ● ●
25 BULB; STEP LAMP
COURTESY LAMP<C97> 24V 12W 		1-82194-004-0 01 1 9002- ● ●
27 LENS; STEP LAMP
COURTESY LAMP<C97> 		1-87550-003-0 01 1 9002- ● ●
28 GASKET; STEP LAMP
COURTESY LAMP<C97> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74997-030-1 01 1 9002- ● ●
28 GASKET; STEP LAMP
DOOR WITH UNDER VIEW WINDOW<YD8> EXC. COURTESY LAMP<C97> 		1-74997-030-1 01 1 9002- ●
28 GASKET; STEP LAMP
EXC. COURTESY LAMP<C97>,DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74997-030-1 02 1 9002- ● ●
32 GASKET; HSG
COURTESY LAMP<C97> 		1-82146-004-0 01 1 9002- ● ●
33 GROMMET; SCREW,LAMP
COURTESY LAMP<C97> M4 		5-09470-002-0 02 1 9002- ● ●
34 COVER; STEP LAMP
COURTESY LAMP<C97> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74997-029-2 01 1 9002- ● ●
34 COVER; STEP LAMP
DOOR WITH UNDER VIEW WINDOW<YD8> EXC. COURTESY LAMP<C97> 		1-74997-029-2 01 1 9002- ●
34 COVER; STEP LAMP
EXC. COURTESY LAMP<C97>,DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74997-029-2 02 1 9002- ● ●
35 SCREW; STEP LAMP
COURTESY LAMP<C97> 		1-82149-002-0 02 1 9002- ● ●
