8-03 — LAMP; REAR AND REAR SIDE (#1818) — 87 parça

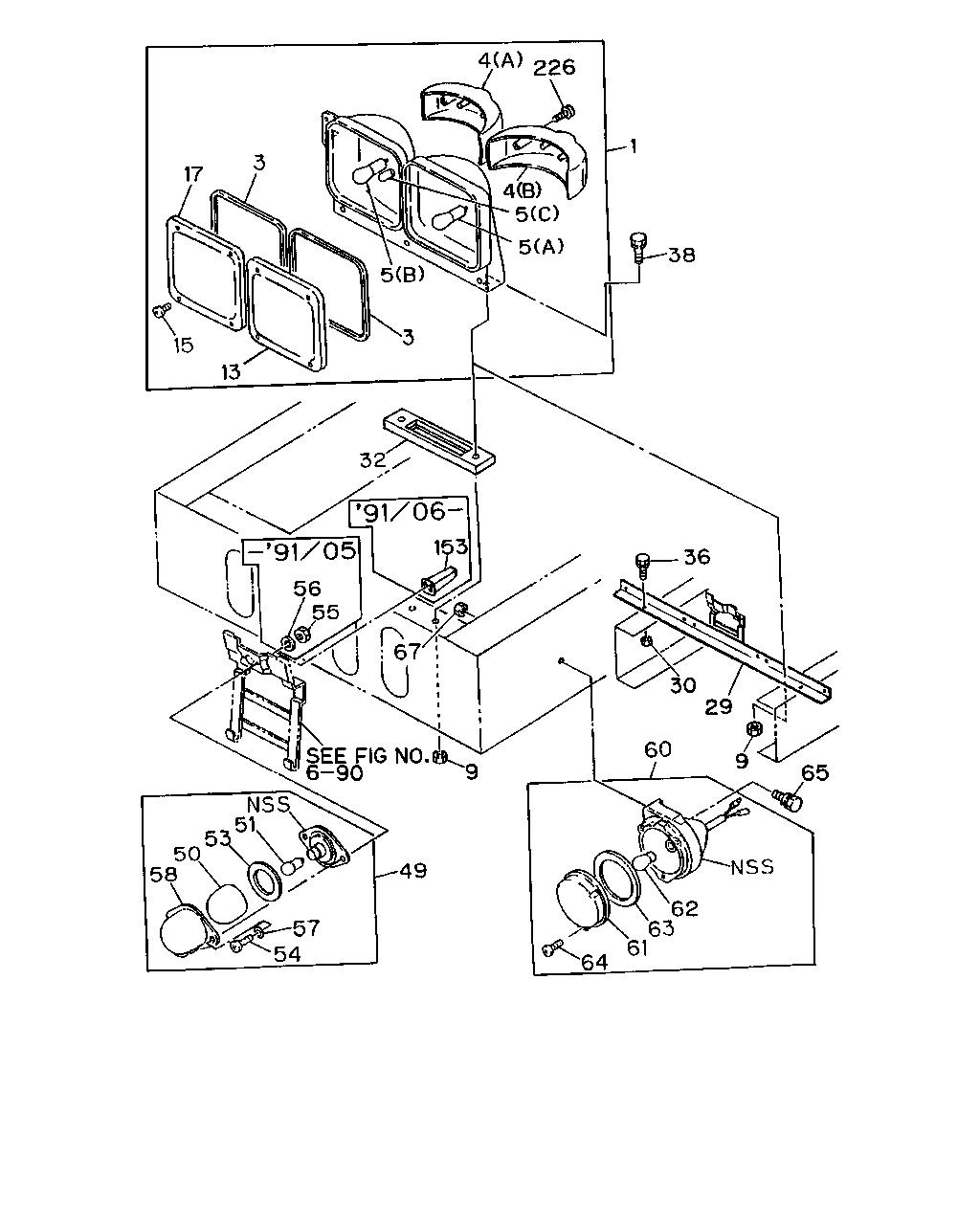

çizim 29261
4 226 1 5 5 4 38 5 3 3 17 15 13 32 153 56 36 30 29 9 65 60 62 63 61 64 49 9 57 54 51 53 50 58 67 55
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; RR COMB
W/REFLECTOR 		1-82230-118-2 01 1 9002-9509 ● ●
1 LAMP ASM; RR COMB
W/REFLECTOR 		1-82230-118-2 01 1 9510- ●
1 LAMP ASM; RR COMB
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) W/REFLECTOR 		1-82230-118-2 01 1 9510- ●
1 LAMP ASM; RR COMB
W/REFLECTOR 		1-82230-117-2 01 1 9002-9509 ● ●
1 LAMP ASM; RR COMB
W/REFLECTOR 		1-82230-117-2 01 1 9510- ●
1 LAMP ASM; RR COMB
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) W/REFLECTOR 		1-82230-117-2 01 1 9510- ●
1 LAMP ASM; RR COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-82230-160-1 01 1 9510- ●
1 LAMP ASM; RR COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-82230-159-1 01 1 9510- ●
3 GASKET; RR COMB LAMP 1-82236-003-0 04 1 9002- ● ●
4 COVER; RR,RR COMB LAMP
(A) TURN SIGNAL 		1-82239-033-0 02 1 9002- ● ●
4 COVER; RR,RR COMB LAMP
(B) STOP PARKING 		1-82239-034-0 02 1 9002- ● ●
5 BULB; RR COMB LAMP
(B) 24V 25/10W 		1-82194-028-0 02 1 9002-9509 ● ●
5 BULB; RR COMB LAMP
(B) 24V 25/10W 		1-82194-028-0 02 1 9510- ●
5 BULB; RR COMB LAMP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) 24V 25/10W 		1-82194-028-0 02 1 9510- ●
5 BULB; RR COMB LAMP
(A) 24V 25W 		1-82194-029-0 02 1 9002-9509 ● ●
5 BULB; RR COMB LAMP
(A) 24V 25W 		1-82194-029-0 02 1 9510- ●
5 BULB; RR COMB LAMP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 24V 25W 		1-82194-029-0 02 1 9510- ●
5 BULB; RR COMB LAMP
(C) 24V 3W 		9-82691-603-0 02 1 9002-9509 ● ●
5 BULB; RR COMB LAMP
(C) 24V 3W 		9-82691-603-0 02 1 9510- ●
5 BULB; RR COMB LAMP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) 24V 3W 		9-82691-603-0 02 1 9510- ●
5 BULB; RR COMB LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 24V 21W 		1-82194-036-0 02 1 9510- ●
5 BULB; RR COMB LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 24V 21/5W 		1-82194-038-0 02 1 9510- ●
9 NUT; LAMP,RR COMB
M8 FLANGE 		0-91150-108-0 04 1 9002- ● ●
13 LENS; TURN SIGNAL 1-82235-016-0 02 1 9002- ● ●
15 SCREW; RR COMB LAMP 1-82239-019-0 16 1 9002- ● ●
17 LENS; STOP,RR COMB LAMP 1-82235-002-0 02 1 9002- ● ●
29 BRACKET; LAMP,RR COMB 1-82237-037-2 01 1 9101-9304 ● ●
30 NUT; BRKT,RR COMB
M10 		9-09110-510-0 02 1 9101-9304 ● ●
32 PLATE; DIST RR COMB LAMP 1-82239-005-0 02 1 9002-9012 ● ●
36 BOLT; BRKT,RR COMB
M10X35 W/LK WASHER 		0-50041-035-0 02 1 9101-9304 ● ●
38 BOLT; LAMP,RR COMB
FRAME EQUIPMENT HEAVY DUTY<F03> M8X50 W/LK&PL WASHER 		0-50140-850-0 02 1 9307- ●
38 BOLT; LAMP,RR COMB
M8X40 		9-01960-840-0 04 1 9002-9012 ● ●
38 BOLT; LAMP,RR COMB
M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 9101-9302 ● ●
38 BOLT; LAMP,RR COMB
M8X35 W/LK&PL WASHER 		1-09030-073-0 04 1 9303-9306 ● ●
38 BOLT; LAMP,RR COMB
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 W/LK&PL WASHER 		1-09030-073-0 02 1 9307- ●
38 BOLT; LAMP,RR COMB
M8X35 W/LK&PL WASHER 		1-09030-073-0 02 1 9307- ●
49 LAMP; LICENSE PLATE 1-82120-011-1 01 1 9002-9105 ● ●
49 LAMP; LICENSE PLATE 1-82120-021-0 01 1 9106-9306 ● ●
49 LAMP; LICENSE PLATE 1-82120-020-0 01 1 9307- ● ●
50 LENS; LICENSE PLATE LAMP 1-82235-006-0 01 1 9002- ● ●
51 BULB; LICENSE PLATE LAMP
24V 12W 		1-82194-030-0 01 1 9002- ● ●
53 GASKET; LICENSE LAMP 1-82126-005-0 01 1 9002- ● ●
54 SCREW; LICENSE PLATE LAMP 1-82129-004-0 02 1 9002-9105 ● ●
54 SCREW; LICENSE PLATE LAMP
M5X20 		1-82129-007-0 02 1 9106- ● ●
55 NUT; LICENSE PLATE LAMP
M5 		9-99110-405-0 02 1 9002-9105 ● ●
56 WASHER; LK,LICENSE PLATE LAMP
ID=5.1 		9-09150-505-0 02 1 9002-9105 ● ●
57 WASHER; PL,LICENSE PLATE LAMP 1-82129-006-0 02 1 9002-9105 ● ●
57 WASHER; PL,LICENSE PLATE LAMP 1-82129-008-0 02 1 9106- ● ●
58 COVER; LICENSE PLATE LAMP 1-82129-005-0 01 1 9002- ● ●
60 LAMP; BACKUP 1-82130-012-1 01 1 9002-9306 ●
60 LAMP; BACKUP 1-82130-016-0 01 1 9307- ●
60 LAMP; BACKUP 1-82130-013-1 01 1 9002-9306 ●
60 LAMP; BACKUP 1-82130-017-0 01 1 9307-9509 ●
60 LAMP; BACKUP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-82130-017-0 01 1 9510- ●
60 LAMP; BACKUP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-82130-023-0 01 1 9510- ●
61 LENS; BACKUP LAMP 1-82135-003-0 01 1 9002- ● ●
62 BULB; BACKUP LAMP
24V 25W 		9-82691-347-0 01 1 9002-9509 ● ●
62 BULB; BACKUP LAMP
24V 25W 		9-82691-347-0 01 1 9510- ●
62 BULB; BACKUP LAMP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 24V 25W 		9-82691-347-0 01 1 9510- ●
62 BULB; BACKUP LAMP
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 24V 21W 		1-82194-036-0 01 1 9510- ●
63 GASKET; BACKUP LAMP 1-82136-002-0 01 1 9002- ● ●
64 SCREW; BACKUP LAMP 1-82139-002-0 03 1 9002- ● ●
65 BOLT; LAMP,BACKUP
M10X30 W/LK&PL WASHER 		9-01961-030-0 02 1 9002-9204 ● ●
65 BOLT; LAMP,BACKUP
M10X30 W/LK&PL WASHER 		0-50141-030-0 02 1 9205-9306 ● ●
65 BOLT; LAMP,BACKUP
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X30 W/LK&PL WASHER 		0-50141-030-0 02 1 9307- ●
65 BOLT; LAMP,BACKUP
M10X30 W/LK&PL WASHER 		0-50141-030-0 02 1 9307- ●
67 NUT; FLANGE
M10 		9-09110-510-0 02 1 9002- ● ●
153 BOLT; LICENSE PLATE LAMP
?????? D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 9106- ● ●
226 SCREW; PROTECTOR 1-82239-032-0 08 1 9002- ● ●

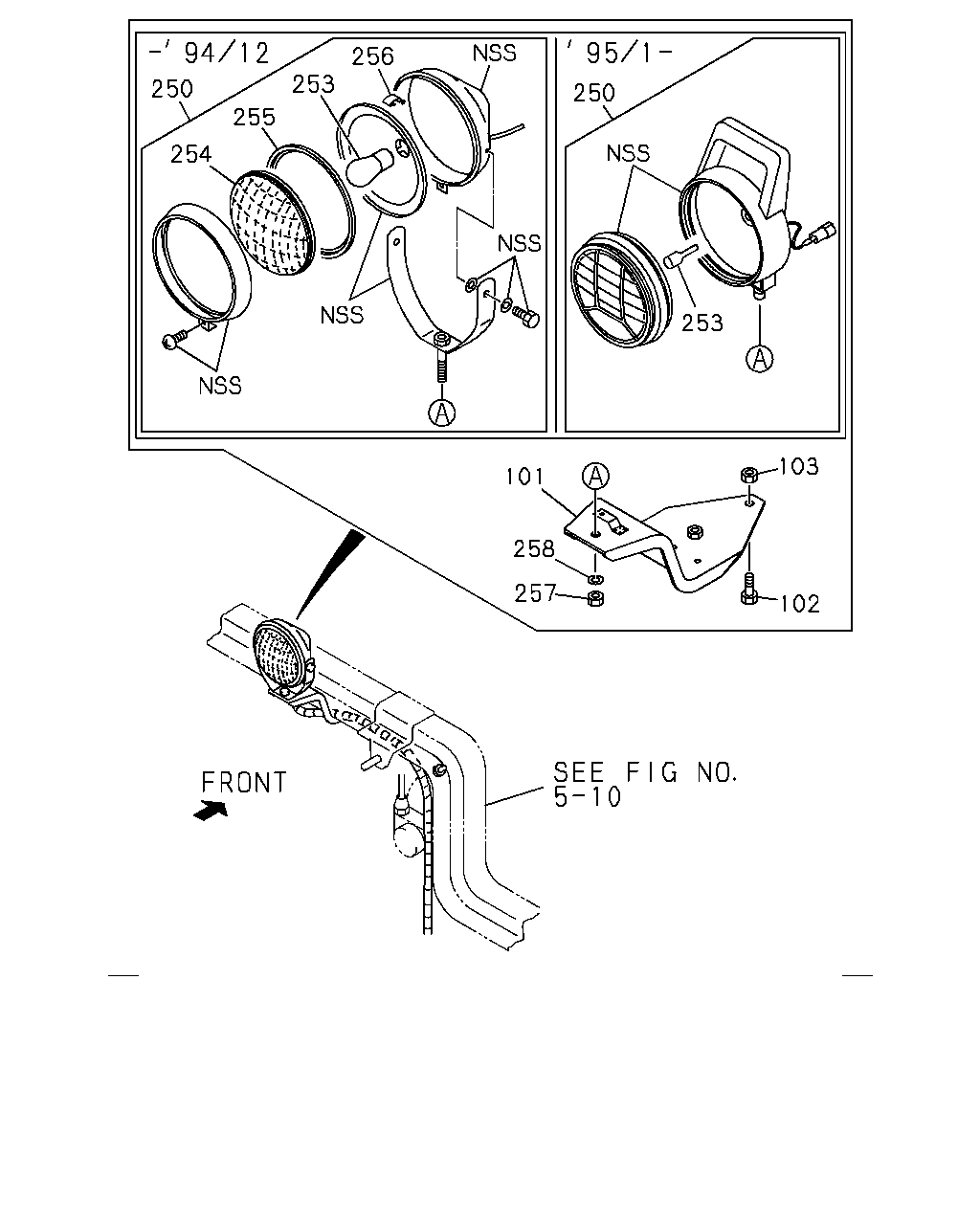

çizim 93716
254 255 253 256 250 253 103 102 257 258 101
BalonParca AdiParca NoAdetTipApplied Date A B
101 BRACKET; SEARCH LIGHT 1-53497-220-4 01 1 9002- ● ●
102 BOLT; BRKT
M8X25 W/LK WASHER 		9-01900-825-0 04 1 9002-9204 ● ●
102 BOLT; BRKT
M8X25 W/LK WASHER 		0-50040-825-0 04 1 9205-9210 ● ●
102 BOLT; BRKT
M8X20 W/LK WASHER 		0-50040-820-0 04 1 9211-9302 ● ●
102 BOLT; BRKT
M8X25 FLANGE 		0-28080-825-0 04 1 9303-9412 ● ●
102 BOLT; BRKT
M8X25 FLANGE 		0-28080-825-0 03 1 9501- ● ●
103 NUT
M8 		9-09110-408-0 04 1 9002-9412 ● ●
103 NUT
M8 		9-09110-408-0 03 1 9501- ● ●
250 LAMP ASM; SEARCH LIGHT 1-82180-007-0 01 1 9002-9306 ● ●
250 LAMP ASM; SEARCH LIGHT 1-82180-012-0 01 1 9307-9412 ● ●
250 LAMP ASM; SEARCH LIGHT 1-82180-013-0 01 1 9501- ● ●
253 BULB; SEARCH LIGHT 9-82691-605-0 01 1 9002-9412 ● ●
253 BULB; SEARCH LIGHT
24V 70W 		1-82194-087-0 01 1 9501- ● ●
254 LENS; SEARCH LIGHT 9-82681-207-0 01 1 9002-9412 ● ●
255 GASKET; SEARCH LIGHT 9-82681-706-0 01 1 9002-9412 ● ●
256 RIM; SEARCH LIGHT 9-82681-402-0 01 1 9002-9412 ● ●
257 NUT; SEARCH LIGHT
M10 		9-09110-510-0 01 1 9002- ● ●
258 WASHER; LK,SEARCH LIGHT
ID=10.2 		9-09150-510-0 01 1 9002- ● ●
