◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11288 - FTS THAILAND ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#18176) — 57 parça

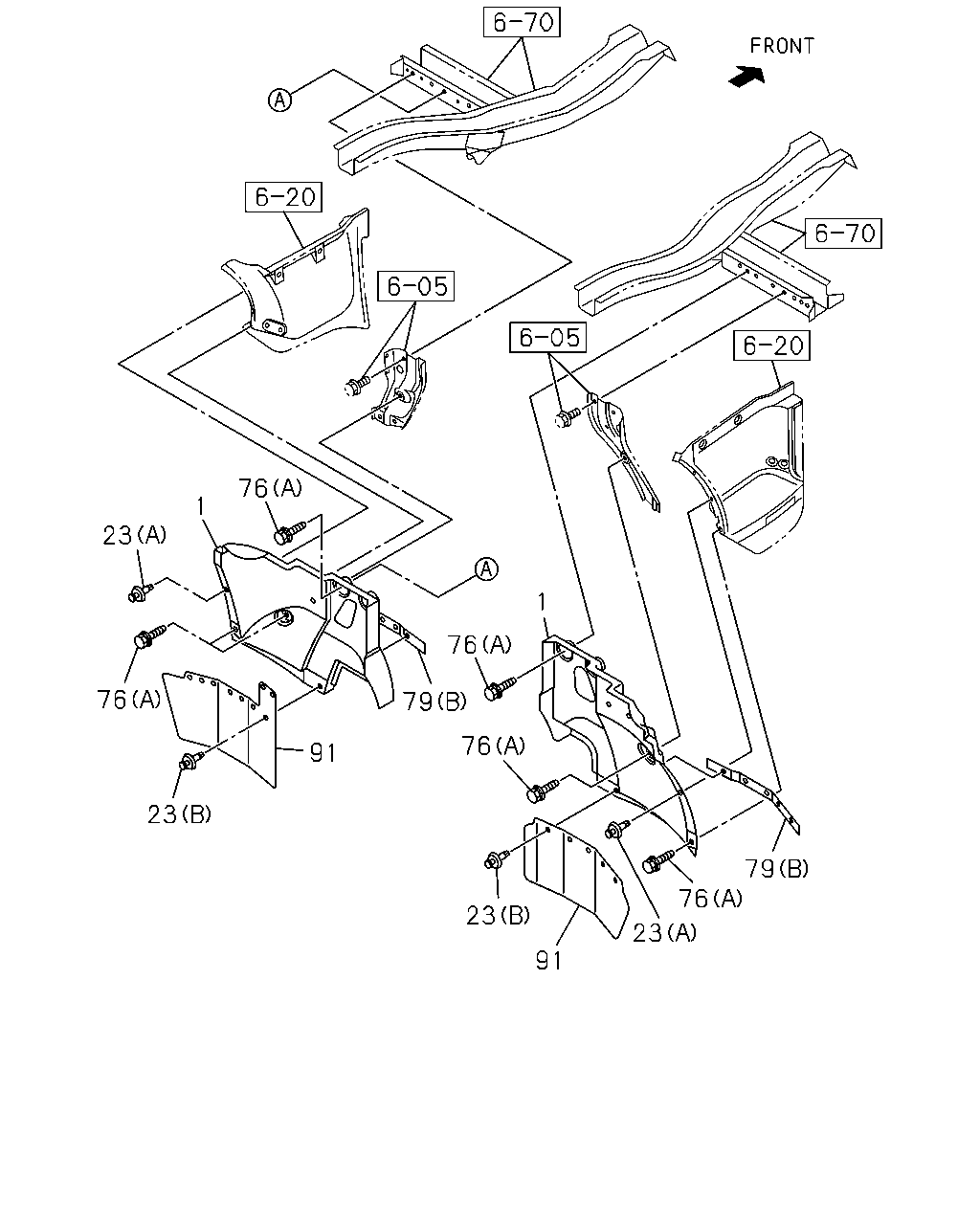

çizim 130278
76 1 23 1 76 76 79 76 91 23 79 76 23 23 91
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 8-98152-649-0 01 1 1006-
1 GUARD; MUD,FRT 8-98152-648-0 01 1 1006-
23 FASTENER; MUD COVER
(B) 		1-09470-001-0 10 1 1006-
23 FASTENER; MUD COVER
(A) D8X13.5 		1-09987-248-1 04 1 1006-
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 09 1 1006-1009
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 07 1 1010-1211
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 07 1 1212-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		8-94331-747-1 10 1 1006-
79 RETAINER; MUD COVER
(B) 		8-98041-218-1 02 1 1006-
79 RETAINER; MUD COVER
(A) 		8-98137-130-0 01 1 1006-
79 RETAINER; MUD COVER
(A) 		8-98137-129-0 01 1 1006-
91 COVER; MUD,FRT 8-98096-536-0 01 1 1006-
91 COVER; MUD,FRT 8-98096-535-0 01 1 1006-

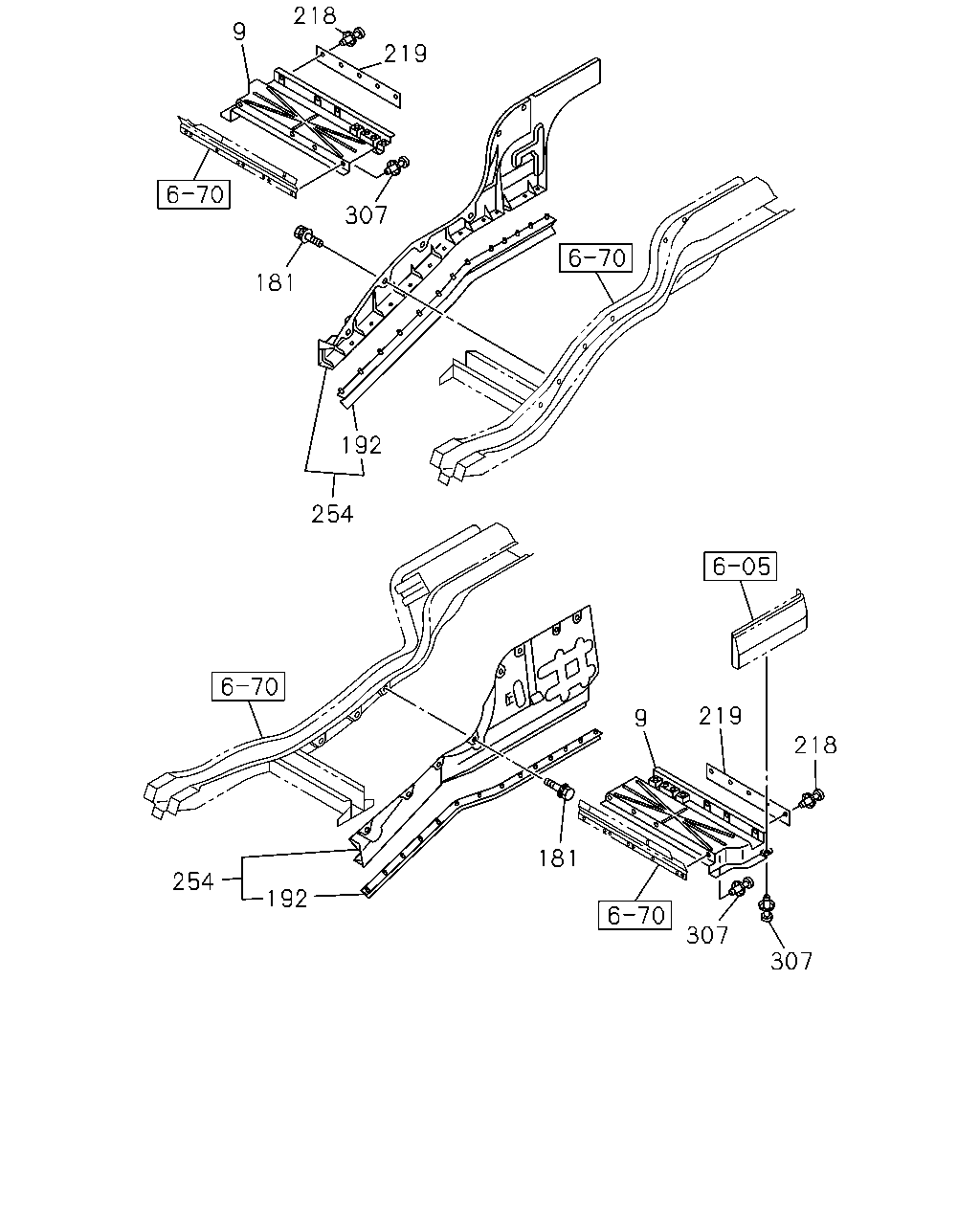

çizim 130461
218 9 219 307 181 192 254 219 9 218 181 254 192 307 307
BalonParca AdiParca NoAdetTipApplied Date
9 GUARD; SPLASH,WHEEL HOUSE 8-98057-963-0 01 1 1006-
9 GUARD; SPLASH,WHEEL HOUSE 8-98057-962-0 01 1 1006-
181 BOLT; COVER,SIDE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 16 1 1006-
192 SEAL; MUD COVER 8-98041-159-2 01 1 1006-
192 SEAL; MUD COVER 8-98041-158-1 01 1 1006-
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 10 1 1006-
219 FLAP; MUD GUARD 8-98041-151-1 02 1 1006-
254 COVER; MUD,VALANCE 8-98039-926-1 01 1 1006-
254 COVER; MUD,VALANCE 8-98039-925-2 01 1 1006-
307 RETAINER
D8X13.5 		1-09987-248-1 10 1 1006-

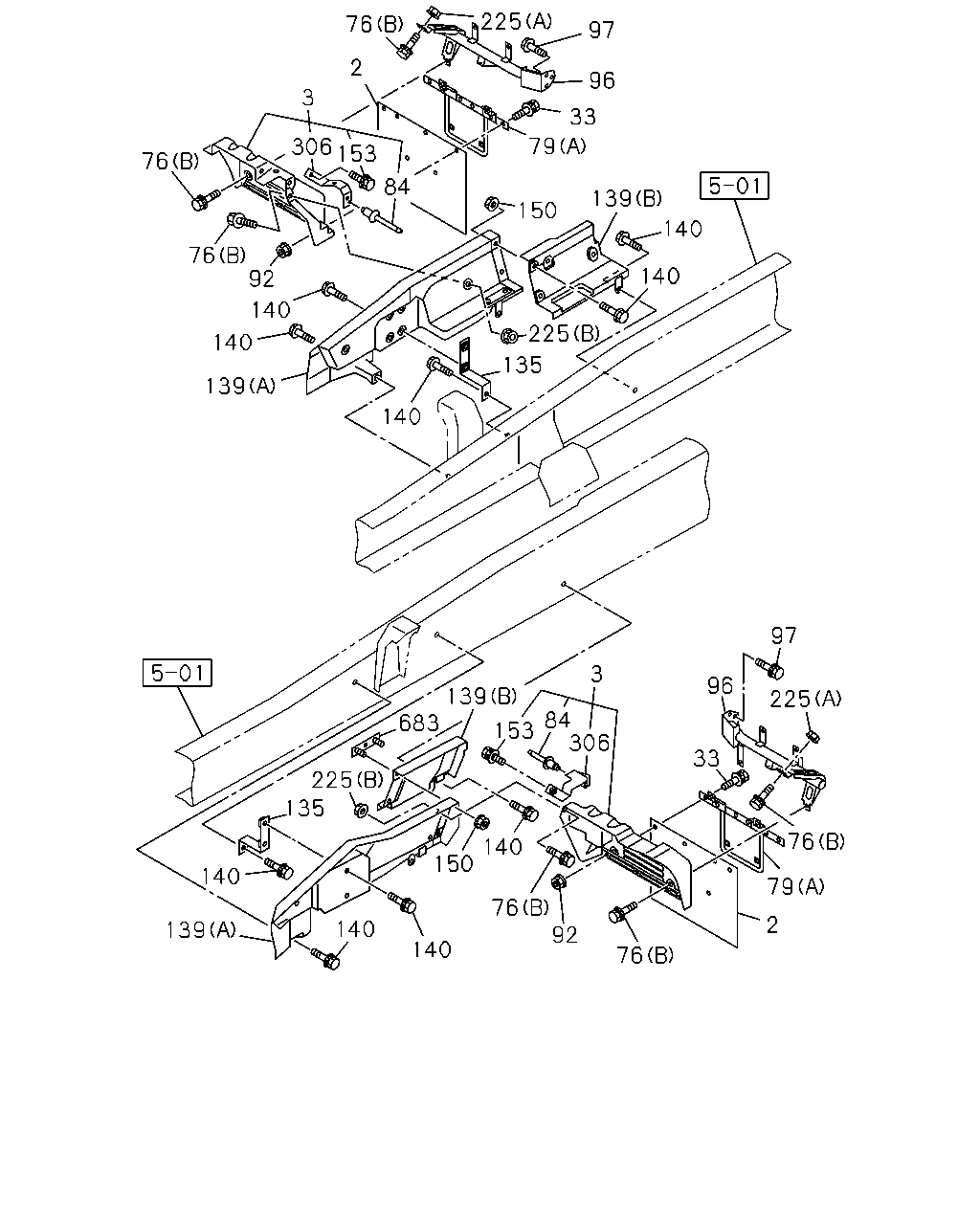

çizim 130462
2 79 76 225 97 96 33 76 92 76 140 150 140 140 139 140 135 225 683 139 153 84 306 3 140 139 140 140 92 76 76 3 2 76 225 97 96 33 79 150 139 140 225 135 306 153 84 140
BalonParca AdiParca NoAdetTipApplied Date
2 COVER; MUD,TIRE RR 8-98111-019-0 02 1 1006-
3 GUARD; MUD,RR 1-79931-473-1 01 1 1006-1211
3 GUARD; MUD,RR 8-98196-109-0 01 1 1212-
3 GUARD; MUD,RR 1-79931-546-1 01 1 1006-1212
3 GUARD; MUD,RR 8-98196-121-0 01 1 1301-
33 BOLT; MUD COVER
M6X20 W/LK&PL WASHER 		1-09980-495-0 12 1 1006-
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 09 1 1006-1009
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 07 1 1010-1211
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 07 1 1212-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		8-94331-747-1 10 1 1006-
79 RETAINER; MUD COVER
(B) 		8-98041-218-1 02 1 1006-
79 RETAINER; MUD COVER
(A) 		8-98137-130-0 01 1 1006-
79 RETAINER; MUD COVER
(A) 		8-98137-129-0 01 1 1006-
84 RIVET; MUD GUARD 5-09734-006-1 02 1 1212-1212
84 RIVET; MUD GUARD 5-09734-006-1 04 1 1301-
92 NUT; MUD COVER
M6 FLANGE 		0-91180-106-0 08 1 1006-
96 STAY; MUD GUARD 1-79931-523-2 01 1 1006-
96 STAY; MUD GUARD 1-79931-522-2 01 1 1006-
97 BOLT; STAY TO FRAME
M10X30 FLANGE 		0-28651-030-0 06 1 1006-
135 BRACKET; SIDE PANEL 1-53457-191-0 02 1 1006-
139 PANEL; SIDE
(B) 		1-53194-591-0 01 1 1006-
139 PANEL; SIDE
(A) 		8-98090-078-0 01 1 1006-
139 PANEL; SIDE
(B) 		1-53194-590-0 01 1 1006-
139 PANEL; SIDE
(A) 		8-98090-077-0 01 1 1006-
140 BOLT; SIDE PANEL
M8X30 W/LK&PL WASHER 		1-09030-095-0 15 1 1006-
150 NUT; SIDE PANEL
M8 W/DISHED WASHER 		8-97329-625-0 04 1 1006-
153 BOLT; BRKT
M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 1212-1212
153 BOLT; BRKT
M8X25 W/LK&PL WASHER 		1-09030-093-0 02 1 1301-
225 NUT; MUD GUARD
(A) M8 FLANGE 		0-91180-108-0 02 1 1006-
225 NUT; MUD GUARD
(B) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1006-
306 BRACKET; MUD GUARD 8-98196-125-0 01 1 1212-
306 BRACKET; MUD GUARD 8-98196-127-0 01 1 1301-
683 PLATE; SIDE PANEL 8-98067-739-0 01 1 1006-1211
683 PLATE; SIDE PANEL 8-98199-233-0 01 1 1212-
