2-05 — CLUTCH PIPING (#18162) — 43 parça

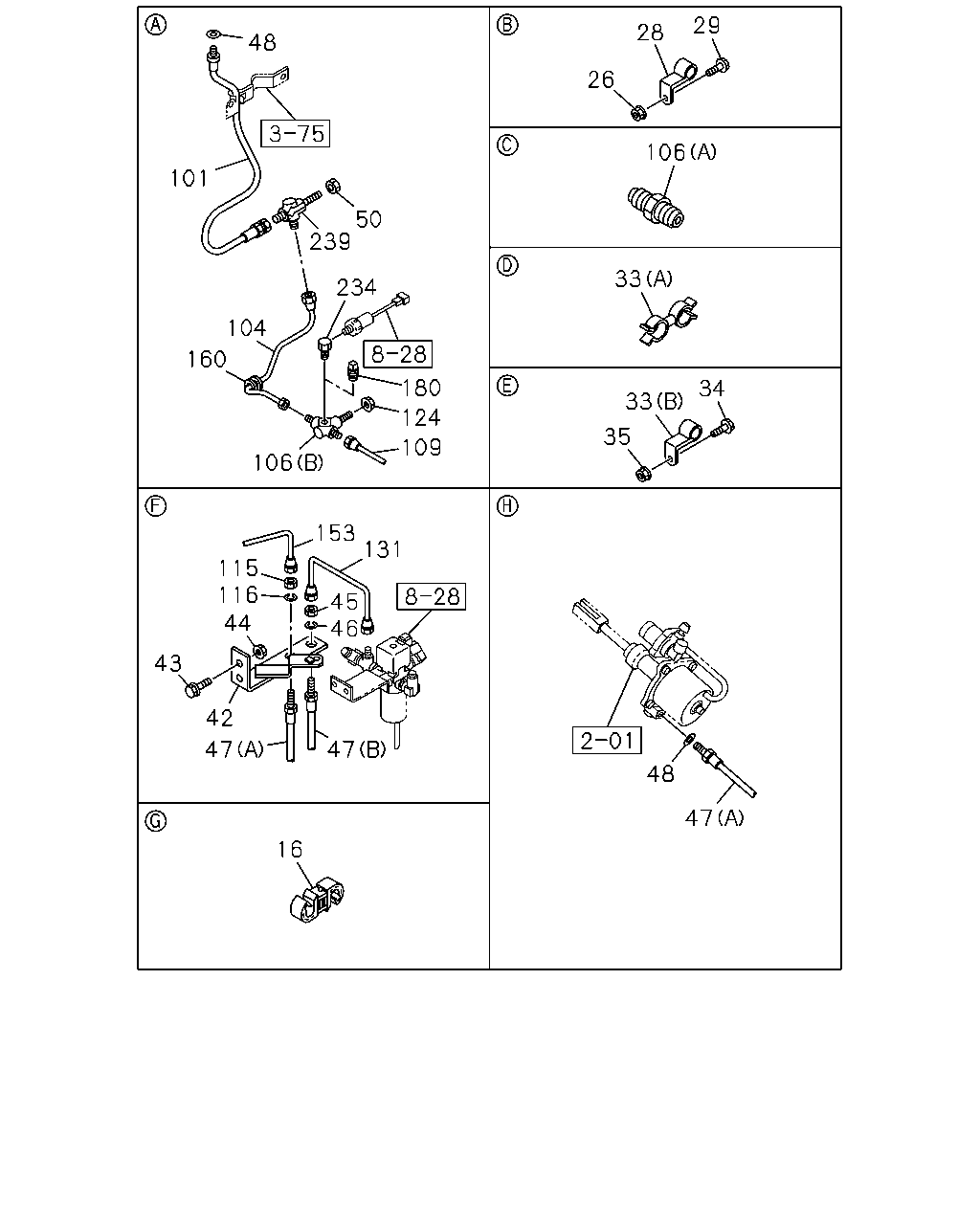

çizim 128045
29 28 48 26 106 101 50 239 33 234 104 160 180 34 33 124 35 109 106 153 131 115 116 44 45 46 43 42 47 47 48 47 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
ID=10 & 12 		1-09709-278-1 01 1 1001-
26 NUT; CLIP,OIL PIPE
M8 FLANGE SOU 		0-91180-108-0 03 1 1001-
28 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 03 1 1001-
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE SOU 		0-28650-825-0 02 1 1001-
29 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28650-830-0 01 1 1001-
33 CLIP; OIL PIPE
(B) ID=8 H=20 L=20 		1-09700-604-0 03 1 1001-
33 CLIP; OIL PIPE
(A) ID=8.3 & 10 		8-94176-792-0 01 1 1001-
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 03 1 1001-
35 NUT; PIPE CLIP
M8 FLANGE SOU 		0-91180-108-0 03 1 1001-
42 BRACKET; FLEX HOSE,CLU CONT 8-98099-521-1 01 1 1001-1011
42 BRACKET; FLEX HOSE,CLU CONT 8-98185-051-0 01 1 1012-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28650-830-0 02 1 1001-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE SOU 		0-91180-108-0 02 1 1001-
45 NUT; FLEX HOSE,CLU CONT
M12 		9-09840-280-0 01 1 1001-
46 WASHER; LK,FLEX HOSE,CLU CONT
ID=12.2 SOU 		0-91510-512-0 01 1 1001-1009
46 WASHER; LK,FLEX HOSE,CLU CONT
ID=12.2 		0-91510-812-0 01 1 1010-1011
47 HOSE; FLEX,CLU CONT
(B) L=280 		1-09363-610-0 01 1 1001-
47 HOSE; FLEX,CLU CONT
(A) L=520 		8-98130-713-0 01 1 1001-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 1001-
50 NUT; UNION
M12 		0-91111-512-0 01 1 1001-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440 		8-98072-346-0 01 1 1001-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=533 SERVICED BY L=550 		1-47428-753-0 01 1 1001-
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1001-
106 UNION; OIL PIPE
(B) M12 & M14 & PT1/4 3WAY 		1-09656-286-2 01 1 1001-
109 PIPE; AIR,UNION TO UNION
L=1413 SERVICED BY L=1550 		1-47428-766-0 01 1 1001-
115 NUT; FLEX HOSE,CLU CONT
M14 SOU 		0-91111-514-0 01 1 1001-
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 SOU 		0-91510-814-0 01 1 1001-1011
124 NUT; PIPE UNION
M12 		0-91111-512-0 01 1 1001-
131 PIPE; AIR,UNION TO FLEX HOSE
H.S.A SYSTEM<6EP> L=244 		8-98092-621-0 01 1 1001-
131 PIPE; AIR,UNION TO FLEX HOSE
EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244 		8-98092-621-0 01 1 1001-
131 PIPE; AIR,UNION TO FLEX HOSE
RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=262 		8-98108-925-0 01 1 1001-
153 PIPE ASM; CLU,UNION TO FLEX
L=2150 SERVICED BY L=2150 		1-47428-770-0 01 1 1001-
160 GROMMET; OIL PIPE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1001-
180 PLUG; PIPE
EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1001-
234 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> 		1-09660-012-0 01 1 1001-
239 UNION; CLU HOSE 8-98107-850-0 01 1 1001-

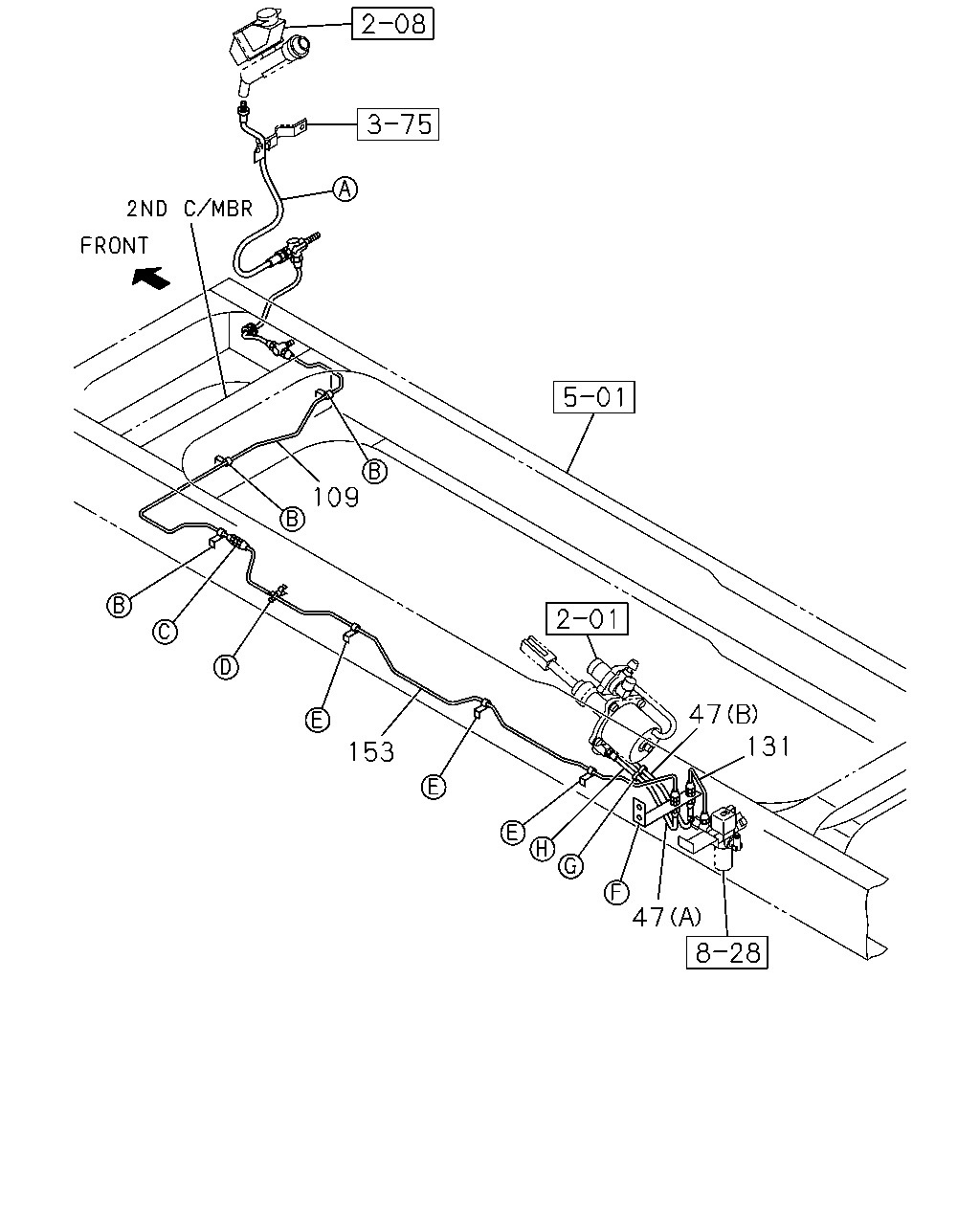

çizim 128049
109 47 131 153 47
BalonParca AdiParca NoAdetTipApplied Date
47 HOSE; FLEX,CLU CONT
(B) L=280 		1-09363-610-0 01 1 1001-
47 HOSE; FLEX,CLU CONT
(A) L=520 		8-98130-713-0 01 1 1001-
109 PIPE; AIR,UNION TO UNION
L=1413 SERVICED BY L=1550 		1-47428-766-0 01 1 1001-
131 PIPE; AIR,UNION TO FLEX HOSE
H.S.A SYSTEM<6EP> L=244 		8-98092-621-0 01 1 1001-
131 PIPE; AIR,UNION TO FLEX HOSE
EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244 		8-98092-621-0 01 1 1001-
131 PIPE; AIR,UNION TO FLEX HOSE
RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=262 		8-98108-925-0 01 1 1001-
153 PIPE ASM; CLU,UNION TO FLEX
L=2150 SERVICED BY L=2150 		1-47428-770-0 01 1 1001-
