◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11168 - FVM(SOUTH AFRICA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#18160) — 34 parça

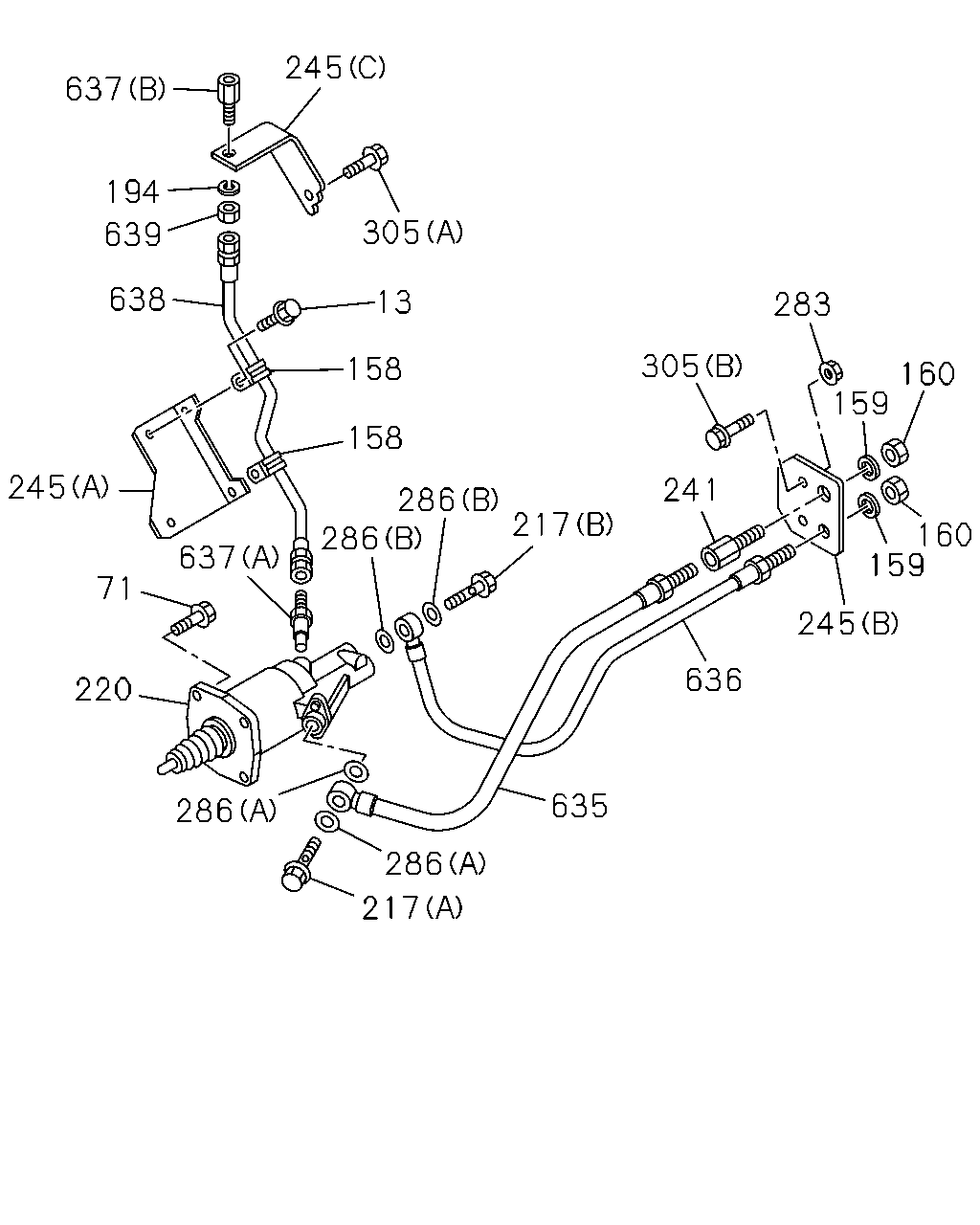

çizim 128043
245 637 194 305 639 638 13 283 305 158 160 159 158 245 241 286 217 286 160 159 637 71 245 636 220 286 635 286 217
BalonParca AdiParca NoAdetTipApplied Date
13 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1001-
71 BOLT
M8X30 HEX SOCKET 		0-58330-830-0 04 1 1001-
158 CLIP; FLEX HOSE
ID=18 L=28 		1-09701-067-0 02 1 1001-
159 WASHER; LK
ID=12.2 		0-91510-812-0 02 1 1001-
160 NUT
M12 		9-09840-280-0 02 1 1001-
194 WASHER; LK
ID=12.2 		0-91510-812-0 01 1 1001-
217 BOLT; EYE
(A) M16X30 		1-09675-026-0 01 1 1001-
217 BOLT; EYE
(B) M14X30 EYE-BOLT 		8-98037-827-0 01 1 1001-
220 BOOSTER ASM; CLU 1-31800-537-0 01 1 1001-
241 CONNECTOR 1-09661-823-0 01 1 1001-
245 BRACKET; HOSE
(A) 		1-31429-492-0 01 1 1001-
245 BRACKET; HOSE
(B) 		1-31429-493-0 01 1 1001-
245 BRACKET; HOSE
(C) 		1-47471-476-0 01 1 1001-
283 NUT; BRKT
M8 FLANGE SOU 		0-91180-208-0 04 1 1001-
286 GASKET; BOLT,EYE
(A) ID=16.2 		1-09630-086-0 02 1 1001-
286 GASKET; BOLT,EYE
(B) ID=14.2 OD=20.0 		9-09571-414-0 02 1 1001-
305 BOLT; BRACKET
(A) M12X25 FLANGE 		0-28151-225-0 01 1 1001-
305 BOLT; BRACKET
(B) M8X20 FLANGE 		0-28650-820-0 04 1 1001-
635 HOSE; AIR 1-09365-395-0 01 1 1001-
636 HOSE; OIL 1-09365-098-0 01 1 1001-
637 UNION
(A) M8 & M12 STRAIGHT 		1-09654-383-0 01 1 1001-
637 UNION
(B) 		1-09654-384-0 01 1 1001-
638 HOSE 1-09365-409-0 01 1 1001-
639 NUT; UNION
M12 		9-09840-280-0 01 1 1001-

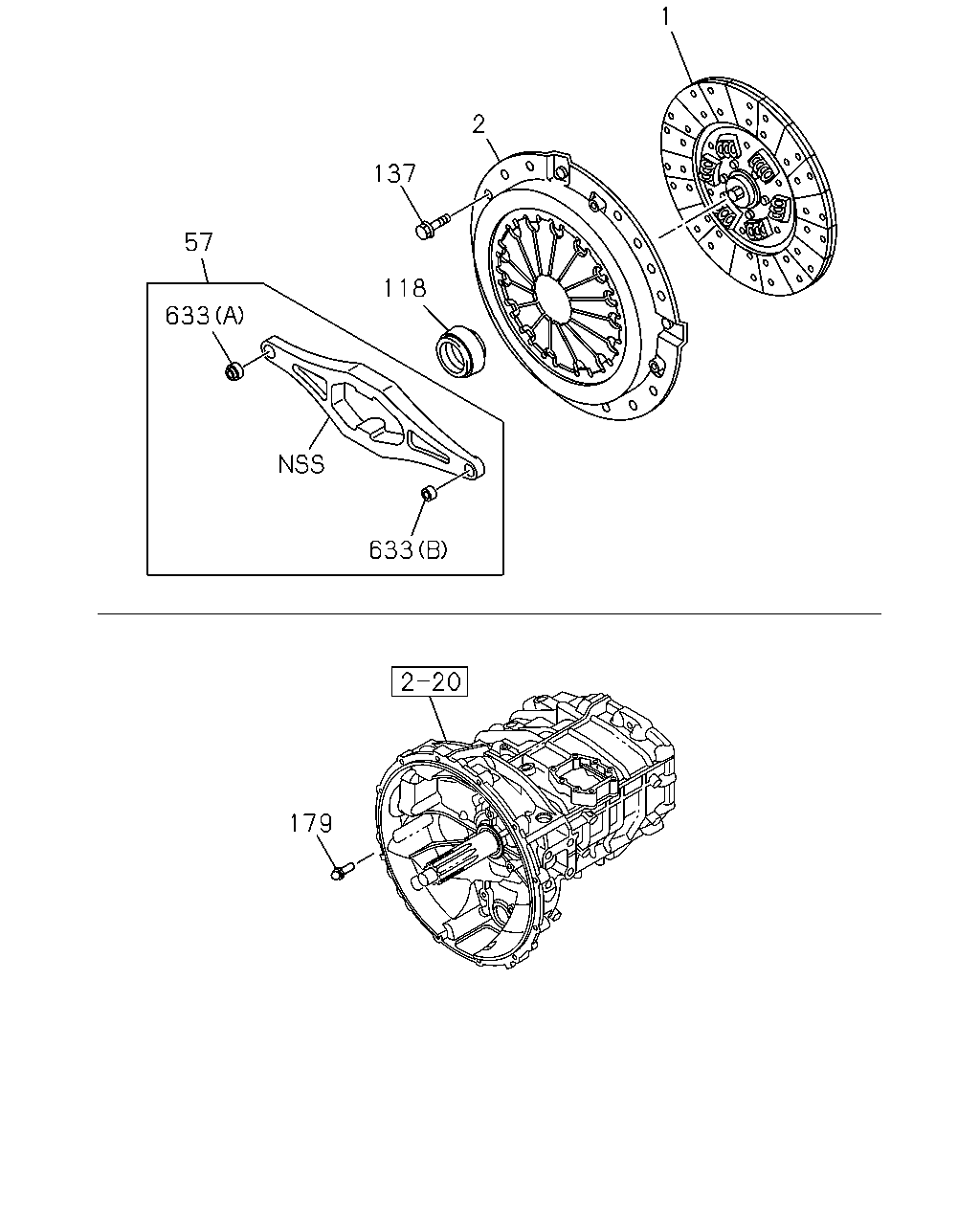

çizim 128050
1 2 137 57 118 633 633 179
BalonParca AdiParca NoAdetTipApplied Date
1 DISC; CLUTCH
BEST VALUE PARTS 		1-87610-119-0 01 1 1411-
1 DISC; CLUTCH
15" 		1-31240-851-2 01 1 1001-
2 PLATE ASM; PRESSURE,CLU 1-31220-412-0 01 1 1001-
57 FORK; SHIFT,CLU 1-31340-071-0 01 1 1001-
118 BEARING; CLU RELEASE 1-31310-019-1 01 1 1001-
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28151-020-0 12 1 1001-
179 SUPPORT; CLU FORK 1-33119-544-0 01 1 1001-1311
179 SUPPORT; CLU FORK 1-33119-628-0 01 1 1312-
633 SHEET; BALL
(A) 		1-31349-085-0 01 1 1001-
633 SHEET; BALL
(B) 		1-31349-086-0 01 1 1001-
