Sayfa 7-70 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10653 - EXZ ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-70 - SEPARATER AND BED ▶

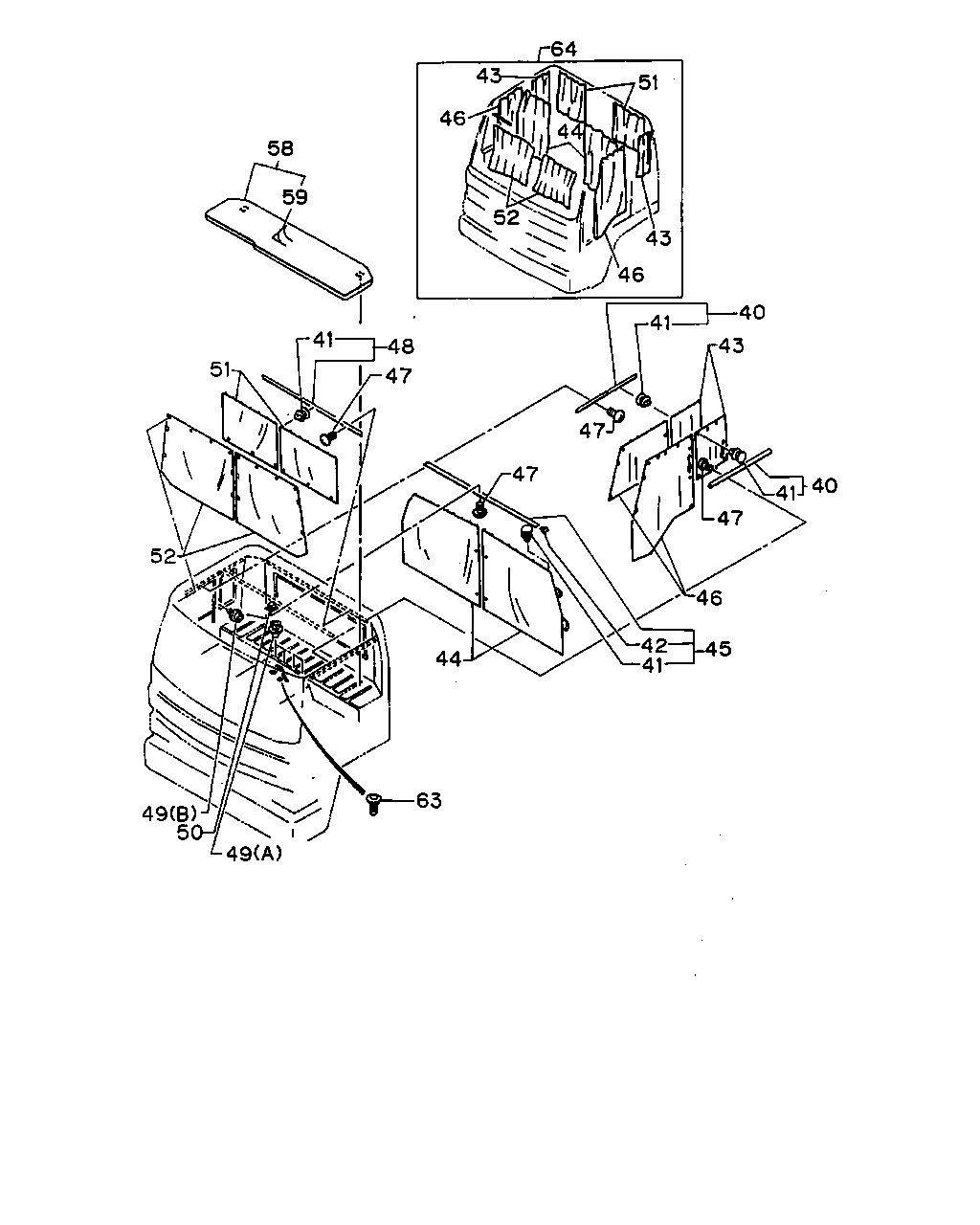

7-70 — SEPARATER AND BED (#1816) — 102 parça

64 43 46 51 44 43 46 52 41 40 43 47 47 47 41 40 46 45 42 41 44 63 49 50 49 52 47 48 41 51 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-154-0	01	1	9002-9306	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-153-0	01	1	9002-9306	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-334-0	01	1	9307-	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-333-0	01	1	9307-	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73997-940-0	02	1	9002-9306	●
40	RAIL; CURTAIN,SIDE	1-73997-940-0	02	1	9002-9306		●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-182-0	02	1	9307-	●
40	RAIL; CURTAIN,SIDE	1-73907-182-0	02	1	9307-		●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> GRAY MATT FINISH	1-73997-980-0	14	1	9002-9306	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>	1-73997-245-0	07	1	9307-	●
41	HOOK; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> GRAY MATT FINISH	1-73997-980-0	06	1	9002-9306	●
41	HOOK; CURTAIN RAIL GRAY MATT FINISH	1-73997-980-0	06	1	9002-9306		●
41	HOOK; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> GRAY	1-73907-245-0	06	1	9307-	●
41	HOOK; CURTAIN RAIL GRAY	1-73907-245-0	06	1	9307-		●
41	HOOK; CURTAIN RAIL GRAY MATT FINISH	1-73997-980-0	12	1	9002-9306	●	●
41	HOOK; CURTAIN RAIL GRAY MATT FINISH	1-73997-980-0	16	1	9002-9306	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> GRAY	1-73907-245-0	07	1	9307-	●
41	HOOK; CURTAIN RAIL GRAY	1-73907-245-0	12	1	9307-	●	●
41	HOOK; CURTAIN RAIL GRAY	1-73907-245-0	14	1	9307-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> SIDE	1-73907-163-0	01	1	9002-9306	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> SIDE	1-73907-162-0	01	1	9002-9306	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> SIDE	1-73907-340-0	01	1	9307-	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> SIDE	1-73907-339-0	01	1	9307-	●
42	STOPPER; CURTAIN RAIL CABIN	1-73997-982-0	01	1	9002-9306	●	●
42	STOPPER; CURTAIN RAIL CABIN	1-73997-981-0	01	1	9002-9306	●	●
42	STOPPER; CURTAIN RAIL CABIN	1-73907-250-0	01	1	9307-	●	●
42	STOPPER; CURTAIN RAIL CABIN	1-73907-249-0	01	1	9307-	●	●
43	CURTAIN ASM; QUARTER WINDOW MATTRESS SLEEPER CAB<E40>	1-73907-254-0	01	1	9307-	●	●
43	CURTAIN ASM; QUARTER WINDOW MATTRESS SLEEPER CAB<E40>	1-73907-253-0	01	1	9307-	●	●
43	CURTAIN ASM; QUARTER WINDOW MATTRESS SLEEPER CAB<E40> EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-73997-991-0	01	1	9002-9306	●	●
43	CURTAIN ASM; QUARTER WINDOW MATTRESS SLEEPER CAB<E40> EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-73997-990-0	01	1	9002-9306	●	●
43	CURTAIN ASM; QUARTER WINDOW MATTRESS SLEEPER CAB<E40> SAUDI ARABIA EQUIPMENT(WH1)	1-73907-171-0	01	1	9212-9306		●
43	CURTAIN ASM; QUARTER WINDOW MATTRESS SLEEPER CAB<E40> SAUDI ARABIA EQUIPMENT(WH1)	1-73907-170-0	01	1	9212-9306		●
44	CURTAIN ASM; CABIN CENTER MATTRESS SLEEPER CAB<E40>	1-73907-242-2	01	1	9307-	●	●
44	CURTAIN ASM; CABIN CENTER MATTRESS SLEEPER CAB<E40>	1-73907-240-2	01	1	9307-	●	●
44	CURTAIN ASM; CABIN CENTER MATTRESS SLEEPER CAB<E40> EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-73997-989-1	01	1	9002-9306	●	●
44	CURTAIN ASM; CABIN CENTER MATTRESS SLEEPER CAB<E40> EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-73997-988-1	01	1	9002-9306	●	●
44	CURTAIN ASM; CABIN CENTER MATTRESS SLEEPER CAB<E40> SAUDI ARABIA EQUIPMENT(WH1)	1-73907-169-1	01	1	9212-9306		●
44	CURTAIN ASM; CABIN CENTER MATTRESS SLEEPER CAB<E40> SAUDI ARABIA EQUIPMENT(WH1)	1-73907-168-1	01	1	9212-9306		●
45	RAIL; CURTAIN,FRT	1-73997-939-0	01	1	9002-9306	●
45	RAIL; CURTAIN,FRT EXC. TROPICAL ZONE KIT(WB6)	1-73997-939-0	01	1	9002-9306		●
45	RAIL; CURTAIN,FRT	1-73907-180-1	01	1	9307-	●	●
45	RAIL; CURTAIN,FRT TROPICAL ZONE KIT(WB6)	1-73907-152-0	01	1	9002-9306		●
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-167-0	01	1	9212-9306	●
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-166-0	01	1	9212-9306	●
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-346-0	01	1	9307-	●
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-345-0	01	1	9307-	●
47	SCREW; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> M4X16 TAPPING	1-09981-475-0	22	1	9002-9207	●
47	SCREW; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> M4X16 TAPPING	1-09981-477-0	22	1	9208-	●
47	SCREW; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> M4X16 TAPPING	1-09981-475-0	16	1	9002-9207	●
47	SCREW; CURTAIN RAIL M4X16 TAPPING	1-09981-475-0	16	1	9002-9207		●
47	SCREW; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> M4X16 TAPPING	1-09981-477-0	16	1	9208-	●
47	SCREW; CURTAIN RAIL M4X16 TAPPING	1-09981-477-0	16	1	9208-		●
47	SCREW; CURTAIN RAIL TROPICAL ZONE KIT(WB6) M4X16 TAPPING	1-09981-475-0	04	1	9002-9207		●
47	SCREW; CURTAIN RAIL TROPICAL ZONE KIT(WB6) M4X16 TAPPING	1-09981-477-0	04	1	9208-9306		●
48	RAIL; CURTAIN,BACK	1-73997-941-0	01	1	9002-9306	●	●
48	RAIL; CURTAIN,BACK	1-73907-181-0	01	1	9307-	●	●
49	HOOK; CURTAIN WINDOW CURTAIN ROUND<BW4> (B)	1-09981-286-0	06	1	9002-	●
49	HOOK; CURTAIN WINDOW CURTAIN ROUND<BW4> (A)	8-94291-778-0	07	1	9203-	●
49	HOOK; CURTAIN EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-09981-286-0	02	1	9002-	●
49	HOOK; CURTAIN (B)	1-09981-286-0	02	1	9002-		●
50	GROMMET; SCREW,CURTAIN RAIL M4	5-09470-002-0	01	1	9002-	●	●
51	CURTAIN; BACK MATTRESS SLEEPER CAB<E40>	1-73907-256-0	01	1	9307-	●	●
51	CURTAIN; BACK MATTRESS SLEEPER CAB<E40>	1-73907-255-0	01	1	9307-	●	●
51	CURTAIN; BACK MATTRESS SLEEPER CAB<E40> EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-73997-993-0	01	1	9002-9306	●	●
51	CURTAIN; BACK MATTRESS SLEEPER CAB<E40> EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-73997-992-0	01	1	9002-9306	●	●
51	CURTAIN; BACK MATTRESS SLEEPER CAB<E40> SAUDI ARABIA EQUIPMENT(WH1)	1-73907-173-0	01	1	9212-9306		●
51	CURTAIN; BACK MATTRESS SLEEPER CAB<E40> SAUDI ARABIA EQUIPMENT(WH1)	1-73907-172-0	01	1	9212-9306		●
52	CURTAIN ASM; FRT WINDOW WINDOW CURTAIN ROUND<BW4>	1-73907-165-0	01	1	9212-9306	●
52	CURTAIN ASM; FRT WINDOW WINDOW CURTAIN ROUND<BW4>	1-73907-164-0	01	1	9212-9306	●
52	CURTAIN ASM; FRT WINDOW WINDOW CURTAIN ROUND<BW4>	1-73907-344-0	01	1	9307-	●
52	CURTAIN ASM; FRT WINDOW WINDOW CURTAIN ROUND<BW4>	1-73907-343-0	01	1	9307-	●
58	BED; MAT DELUXE CAB(W14) EXC. PASSENGER SEAT MULTI USED(WX9)	1-75117-561-3	01	1	9002-9306	●
58	BED; MAT DELUXE CAB(W14) EXC. PASSENGER SEAT MULTI USED(WX9)	1-75117-750-0	01	1	9307-	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> EXC. DELUXE CAB(W14)	1-75117-615-1	01	1	9002-9306	●
58	BED; MAT PASSENGER SEAT MULTI USED(WX9)	1-75117-615-1	01	1	9002-9306	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> EXC. DELUXE CAB(W14)	1-75117-724-1	01	1	9307-	●
58	BED; MAT PASSENGER SEAT MULTI USED(WX9)	1-75117-724-1	01	1	9307-	●
58	BED; MAT DELUXE CAB(W14)	1-75117-743-0	01	1	9307-		●
58	BED; MAT DELUXE CAB(W14) EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-75117-562-3	01	1	9002-9306		●
58	BED; MAT MATTRESS SLEEPER CAB<E40> EXC. DELUXE CAB(W14)	1-75117-775-0	01	1	9307-		●
58	BED; MAT MATTRESS SLEEPER CAB<E40> SAUDI ARABIA EQUIPMENT(WH1) EXC. DELUXE CAB(W14)	1-75117-616-1	01	1	9002-9306		●
58	BED; MAT MATTRESS SLEEPER CAB<E40> EXC. SAUDI ARABIA EQUIPMENT(WH1),DELUXE CAB(W14)	1-75117-621-1	01	1	9002-9306		●
58	BED; MAT SAUDI ARABIA EQUIPMENT(WH1) DELUXE CAB(W14)	1-75117-555-3	01	1	9002-9306		●
59	COVER ASM; TRIM,BED MAT DELUXE CAB(W14) EXC. PASSENGER SEAT MULTI USED(WX9)	1-75117-565-0	01	1	9002-9306	●
59	COVER ASM; TRIM,BED MAT DELUXE CAB(W14) EXC. PASSENGER SEAT MULTI USED(WX9)	1-75117-769-0	01	1	9307-	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> EXC. DELUXE CAB(W14)	1-75117-664-0	01	1	9002-9306	●
59	COVER ASM; TRIM,BED MAT PASSENGER SEAT MULTI USED(WX9)	1-75117-664-0	01	1	9002-9306	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> EXC. DELUXE CAB(W14)	1-75117-739-1	01	1	9307-	●
59	COVER ASM; TRIM,BED MAT PASSENGER SEAT MULTI USED(WX9)	1-75117-739-1	01	1	9307-	●
59	COVER ASM; TRIM,BED MAT DELUXE CAB(W14)	1-75117-748-0	01	1	9307-		●
59	COVER ASM; TRIM,BED MAT DELUXE CAB(W14) EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-75117-566-0	01	1	9002-9306		●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> EXC. DELUXE CAB(W14)	1-75117-785-0	01	1	9307-		●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> SAUDI ARABIA EQUIPMENT(WH1) EXC. DELUXE CAB(W14)	1-75117-666-0	01	1	9002-9306		●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> EXC. SAUDI ARABIA EQUIPMENT(WH1),DELUXE CAB(W14)	1-75117-665-0	01	1	9002-9306		●
59	COVER ASM; TRIM,BED MAT SAUDI ARABIA EQUIPMENT(WH1) DELUXE CAB(W14)	1-75117-671-0	01	1	9002-9306		●
63	PLUG; SUPPORT D4.7X11	1-76378-154-0	01	1	9002-	●	●
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4>	1-73907-150-1	01	1	9002-9306	●
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4>	1-73907-332-1	01	1	9307-	●
64	CURTAIN KIT MATTRESS SLEEPER CAB<E40> EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-238-2	01	1	9307-	●	●
64	CURTAIN KIT MATTRESS SLEEPER CAB<E40> EXC. WINDOW CURTAIN ROUND<BW4>,SAUDI ARABIA EQUIPMENT(WH1)	1-73997-987-1	01	1	9002-9306	●	●
64	CURTAIN KIT MATTRESS SLEEPER CAB<E40> SAUDI ARABIA EQUIPMENT(WH1)	1-73907-151-1	01	1	9002-9306		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
