Isuzu WW
▶
TRUCKS
▶
FVM
▶
11168 - FVM(SOUTH AFRICA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

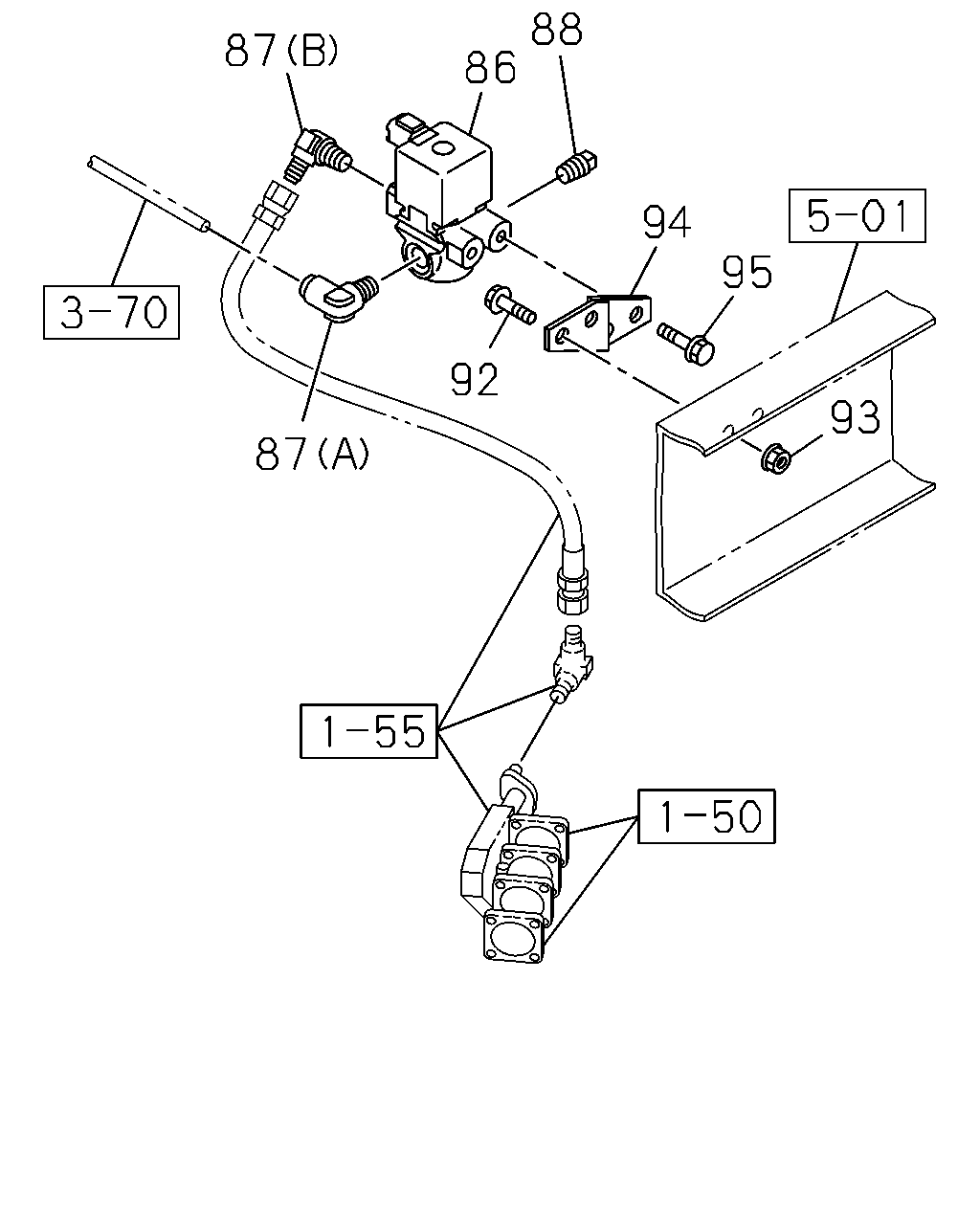

1-56 - EXHAUST BRAKE SYSTEM
▶
1-56 — EXHAUST BRAKE SYSTEM
(#18159) — 16 parça
88
86
87
94
95
92
93
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
86
VALVE; MAG,EXH BRK
SOU
1-82563-871-2
01
1
1001-1011
86
VALVE; MAG,EXH BRK
EXC. VIN MODEL YEAR 2011<VZB> SOU
1-82563-871-2
01
1
1012-1102
87
CONNECTOR
(B) M12 & PT1/4 ELBOW SOU
1-09650-430-0
01
1
1001-1011
87
CONNECTOR
EXC. VIN MODEL YEAR 2011<VZB> (B) M12 & PT1/4 ELBOW SOU
1-09650-430-0
01
1
1012-1102
87
CONNECTOR
(A) DIN12 & R1/4 ELBOW
1-09660-958-0
01
1
1001-1011
87
CONNECTOR
EXC. VIN MODEL YEAR 2011<VZB> (A) DIN12 & R1/4 ELBOW
1-09660-958-0
01
1
1012-1102
88
PLUG
PT1/4
9-99204-513-0
01
1
1001-1011
88
PLUG
EXC. VIN MODEL YEAR 2011<VZB> PT1/4
9-99204-513-0
01
1
1012-1102
92
BOLT; MAG VLV
M8X35 FLANGE SOU
0-28650-835-0
02
1
1001-1011
92
BOLT; MAG VLV
EXC. VIN MODEL YEAR 2011<VZB> M8X35 FLANGE SOU
0-28650-835-0
02
1
1012-1102
93
NUT; MAG VLV
M8 FLANGE SOU
0-91180-108-0
02
1
1001-1011
93
NUT; MAG VLV
EXC. VIN MODEL YEAR 2011<VZB> M8 FLANGE SOU
0-91180-108-0
02
1
1012-1102
94
BRACKET; MAG VLV,EXH BRAKE
SOU
8-98057-863-0
01
1
1001-1011
94
BRACKET; MAG VLV,EXH BRAKE
EXC. VIN MODEL YEAR 2011<VZB> SOU
8-98057-863-0
01
1
1012-1102
95
BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE
0-28650-820-0
02
1
1001-1011
95
BOLT; BRKT,MAG VLV,EXH BRAKE
EXC. VIN MODEL YEAR 2011<VZB> M8X20 FLANGE
0-28650-820-0
02
1
1012-1102
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
