Isuzu WW
▶
TRUCKS
▶
FVM
▶
11168 - FVM(SOUTH AFRICA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#18152) — 41 parça
◀

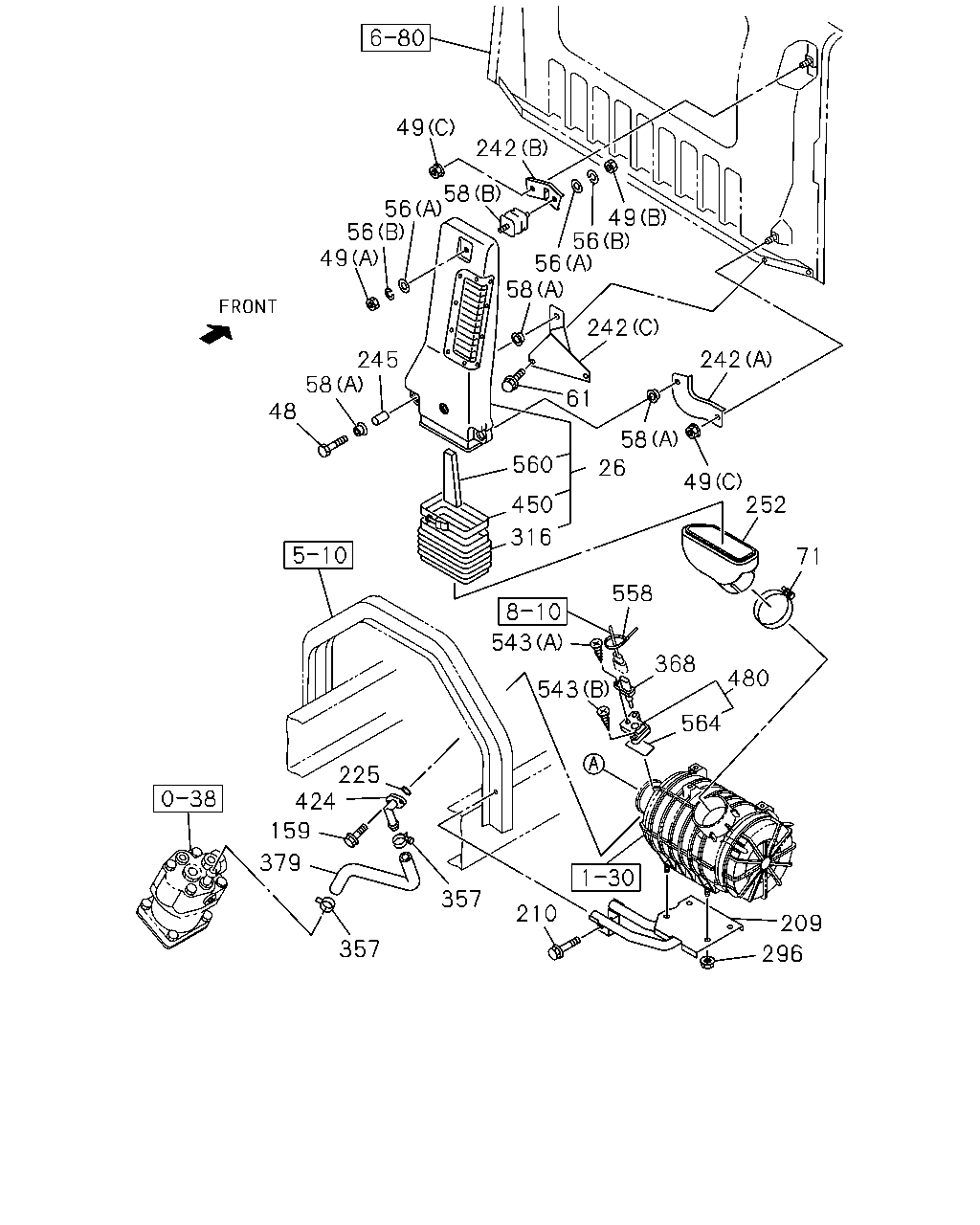

[131A] DUCT FIXING (34 parça)
[131A] PIPING (7 parça)
▶
296
209
210
357
357
379
159
424
225
543
543
558
368
480
564
71
316
252
49
26
58
242
61
560
450
245
58
48
242
58
56
56
49
58
56
56
49
242
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
DUCT; AIR INT
8-98010-361-2
01
1
1001-
48
BOLT; AIR DUCT
M10X60
1-09030-044-1
02
1
1001-
49
NUT; AIR DUCT
(B) M8 FLANGE SOU
1-09984-122-0
01
1
1001-
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
01
1
1001-
49
NUT; AIR DUCT
(C) M8 FLANGE SOU
8-94279-517-0
02
1
1001-
56
WASHER; LK,AIR INT DUCT
(A) ID=8.2 SOU
1-09985-177-0
02
1
1001-
56
WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22
1-09985-188-0
02
1
1001-
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
1001-
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
1001-
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
1001-
71
CLIP; AIR DUCT
ID=120-140
8-98133-367-0
01
1
1001-
159
BOLT; AIR PIPE
M6X16 FLANGE SOU
0-28050-616-0
02
1
1001-
209
BRACKET; ACL
8-98021-995-1
01
1
1001-
210
BOLT; ACL BRKT
M10X25 FLANGE SOU
0-28651-025-0
04
1
1001-
225
GASKET; AIR PIPE
ID=24.4
1-09623-057-0
01
1
1001-
242
BRACKET; AIR DUCT
(B)
8-98019-301-3
01
1
1001-
242
BRACKET; AIR DUCT
(C)
8-98019-302-1
01
1
1001-
242
BRACKET; AIR DUCT
(A)
8-98019-304-1
01
1
1001-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
1001-
252
DUCT; AIR INT
8-98012-861-1
01
1
1001-
296
NUT; ACL
M8 FLANGE SOU
0-91180-108-0
04
1
1001-
316
RUBBER; CUSHION,DUCT
8-98152-269-0
01
1
1001-
357
CLIP; RUBBER HOSE
ID=26
1-09707-091-0
02
1
1001-
368
SENSOR; TEMP
8-98065-377-0
01
1
1001-
379
HOSE; RUBBER
8-98077-469-0
01
1
1001-
424
PIPE; AIR,INL
8-98081-834-0
01
1
1001-
450
CLAMP; HOSE
9-09915-504-1
01
1
1001-
480
ADAPTER
8-98086-417-0
01
1
1001-
543
SCREW; SENSOR
(A) M5X14 W/LK WASHER
0-36220-514-0
01
1
1001-
543
SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1001-
558
CLIP; AIR FLOW SENSOR
L=600
1-09707-107-1
01
1
1001-
558
CLIP; AIR FLOW SENSOR
L=250 SOU
5-09707-030-1
02
1
1001-
560
FILTER; VERTICAL DUCT
8-98061-675-0
01
1
1001-
564
GASKET; ADAPTER
8-98071-416-0
01
1
1001-
353
353
353
353
488
353
353
548
353
320
353
5
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
(B) ID=110-130
8-98133-359-0
01
1
1001-
5
CLIP; AIR DUCT
(A) ID=90-110
8-98133-365-0
01
1
1001-
320
HOSE; CONN,ACL
8-98073-257-0
01
1
1001-
353
CLIP; RUBBER HOSE
ID=55-75
8-98133-349-0
08
1
1001-
488
HOSE; RUBBER,PIPE
8-98012-936-1
01
1
1001-
548
HOSE; RUBBER,TURBO TO INL PIPE
8-98065-044-0
01
1
1001-1101
548
HOSE; RUBBER,TURBO TO INL PIPE
8-98181-974-1
01
1
1102-
