Isuzu WW
▶
TRUCKS
▶
FVM
▶
11168 - FVM(SOUTH AFRICA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶
0-36 — TURBOCHARGER SYSTEM
(#18134) — 39 parça
◀

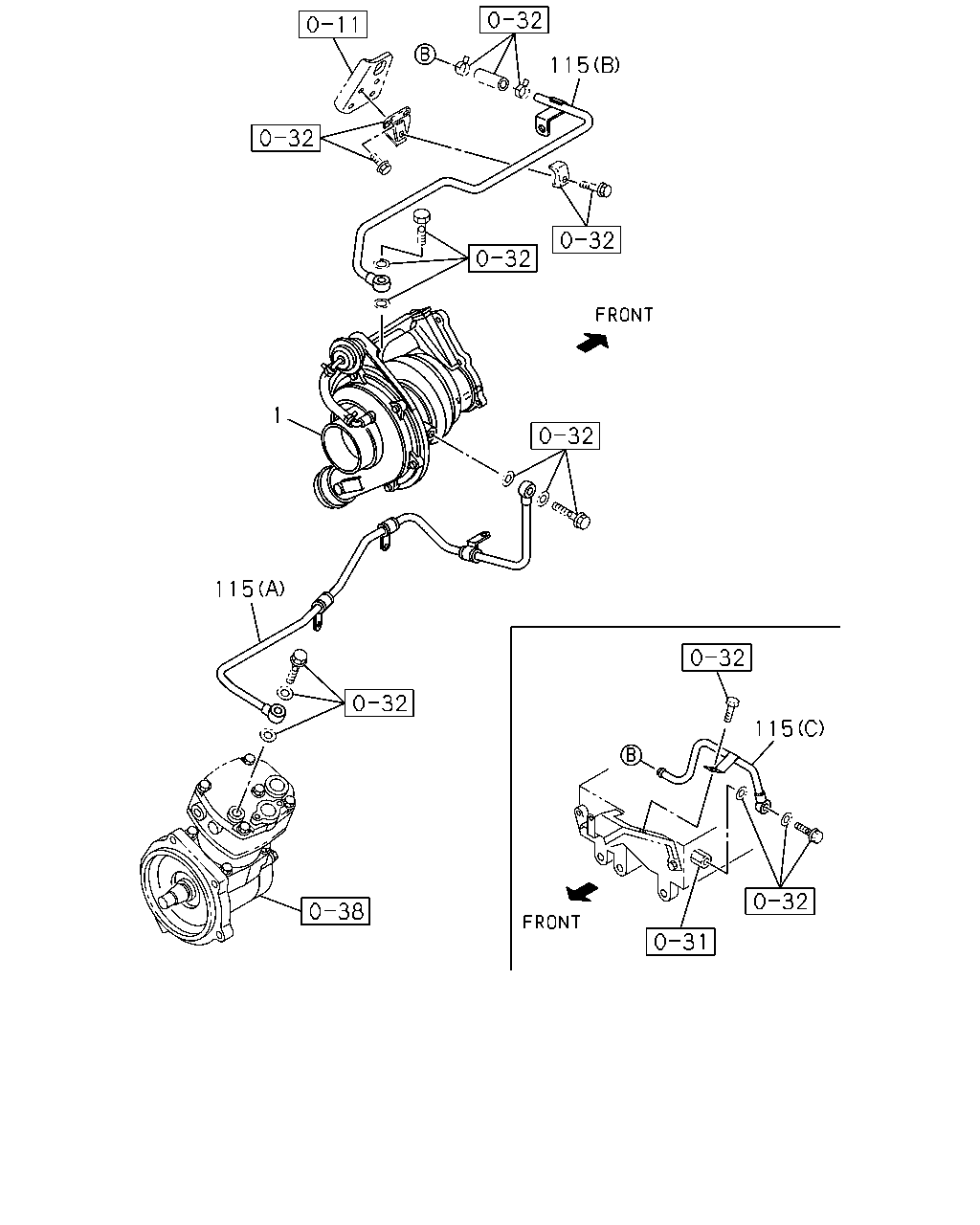

[036A] PIPING;WATER PIPE (4 parça)

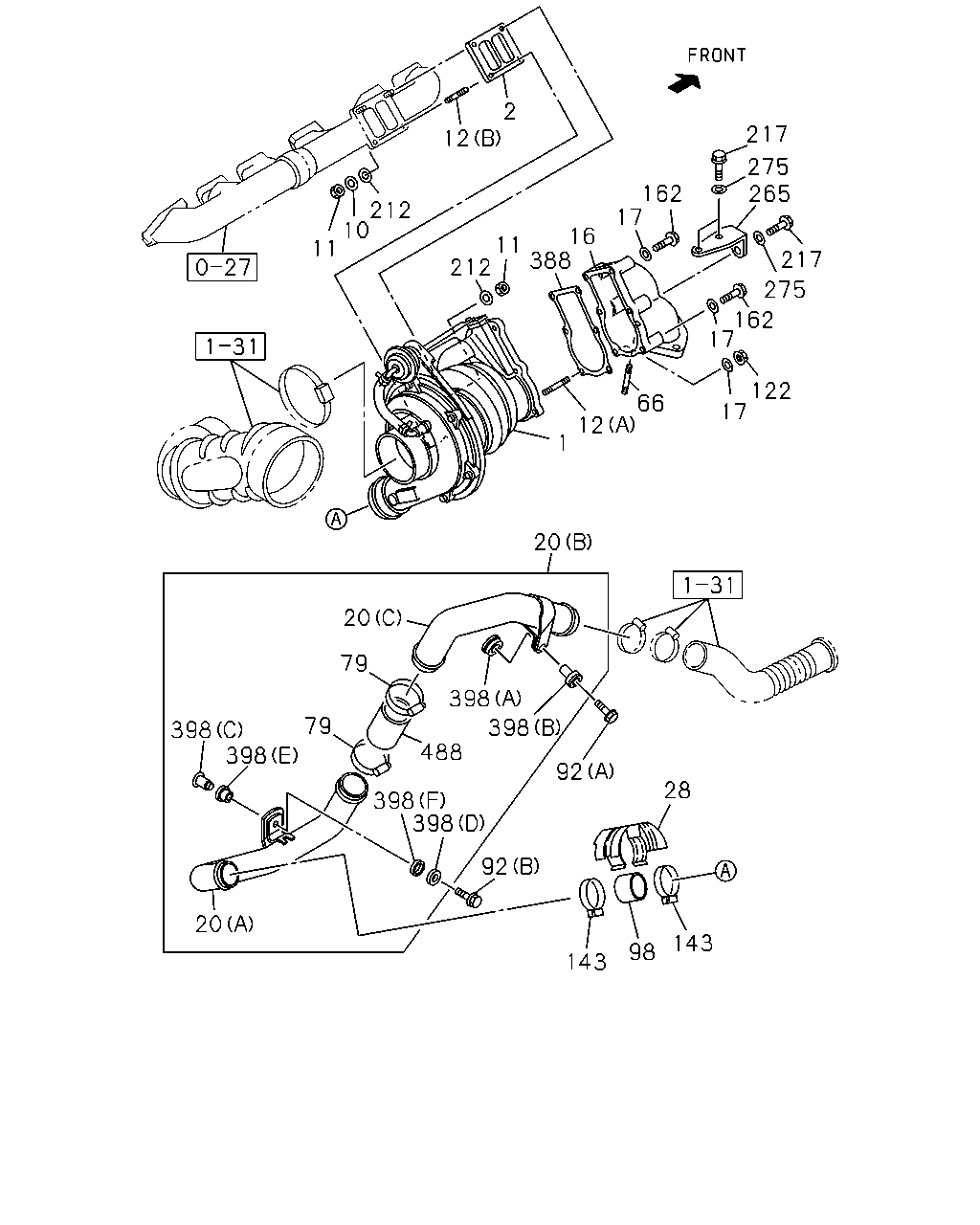

[036A] FIXING;TURBOCHARGER (35 parça)
▶
115
1
115
115
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
8-98078-779-1
01
1
1001-
115
PIPE; WATER,TURBOCHARGER OUT
(B)
8-94392-950-0
01
1
1001-
115
PIPE; WATER,TURBOCHARGER OUT
(C)
8-94395-454-4
01
1
1001-
115
PIPE; WATER,TURBOCHARGER OUT
(A)
8-97618-807-0
01
1
1001-
2
12
217
275
265
162
17
212
10
16
388
11
212
11
217
275
162
17
122
17
66
12
1
20
20
79
398
79
398
398
398
488
92
28
398
398
92
20
143
98
143
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
8-98078-779-1
01
1
1001-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94390-044-0
01
1
1001-
10
WASHER; LK,TURBOCHARGER
T=2.2
1-09556-015-0
02
1
1001-
11
NUT; TURBOCHARGER
M10
1-09420-005-0
04
1
1001-
12
STUD; TURBOCHARGER
(A) M8X25
9-04130-825-0
01
1
1001-
12
STUD; TURBOCHARGER
(B) M10X80
9-04731-080-0
02
1
1001-
16
ADAPTER; EXH PIPE
8-98069-083-0
01
1
1001-
17
WASHER; PL,ADAPTER
T=1.9
5-09500-012-0
06
1
1001-
20
PIPE; INL,TURBOCHARGER OUT
(A)
8-97606-675-1
01
1
1001-
20
PIPE; INL,TURBOCHARGER OUT
(B)
8-97618-726-2
01
1
1001-1408
20
PIPE; INL,TURBOCHARGER OUT
(B)
8-98251-577-0
01
1
1409-
20
PIPE; INL,TURBOCHARGER OUT
(C)
8-97618-734-0
01
1
1001-
28
PROTECTOR; HEAT,HOSE,AIR DUCT
8-94393-182-0
01
1
1001-
66
STUD; EXH PIPE
M12X30 L=48
8-98059-951-0
03
1
1001-
79
CLIP; RUBBER HOSE
ID=58-79
1-09707-136-0
02
1
1001-
92
BOLT; INL PIPE
(B) M8X35 FLANGE SOU
0-28650-835-0
01
1
1001-
92
BOLT; INL PIPE
(A) M8X40 FLANGE SOU
0-28650-840-0
01
1
1001-
98
HOSE; RUBBER,TURBOCHARGER OUTLET
ID=62 L=70
1-09360-797-1
01
1
1001-1408
98
HOSE; RUBBER,TURBOCHARGER OUTLET
ID=62 L=70
8-98245-240-0
01
1
1409-
122
NUT; ADAPTER
M8
1-09400-118-1
01
1
1001-
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=58-79
8-94126-771-0
02
1
1001-
162
BOLT; ADAPTER
M8X57
5-09000-275-0
05
1
1001-
212
WASHER; PL,TURBOCHARGER
ID=10
1-09503-033-1
04
1
1001-
217
BOLT; BRKT
M12X30
8-94394-324-0
03
1
1001-
265
BRACKET; EXH PIPE
8-94395-764-2
01
1
1001-
275
WASHER; PL
ID=12.2
1-09503-008-0
03
1
1001-
388
GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94394-248-2
01
1
1001-
398
MOUNTING
(F) ID=19 OD=26
8-94160-177-0
01
1
1001-
398
MOUNTING
(C) OD=28
8-94390-551-1
01
1
1001-
398
MOUNTING
(D) ID=13 OD=28
8-94394-504-0
01
1
1001-
398
MOUNTING
(E) OD=26
8-94394-529-0
01
1
1001-
398
MOUNTING
(A) OD=32
8-94395-766-0
01
1
1001-
398
MOUNTING
(B) OD=23
8-97105-689-6
01
1
1001-
488
HOSE; RUBBER
ID=62 L=70
1-09360-797-1
01
1
1001-1408
488
HOSE; RUBBER
ID=62 L=70
8-98245-240-0
01
1
1409-
