◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10653 - EXZ ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#1813) — 32 parça

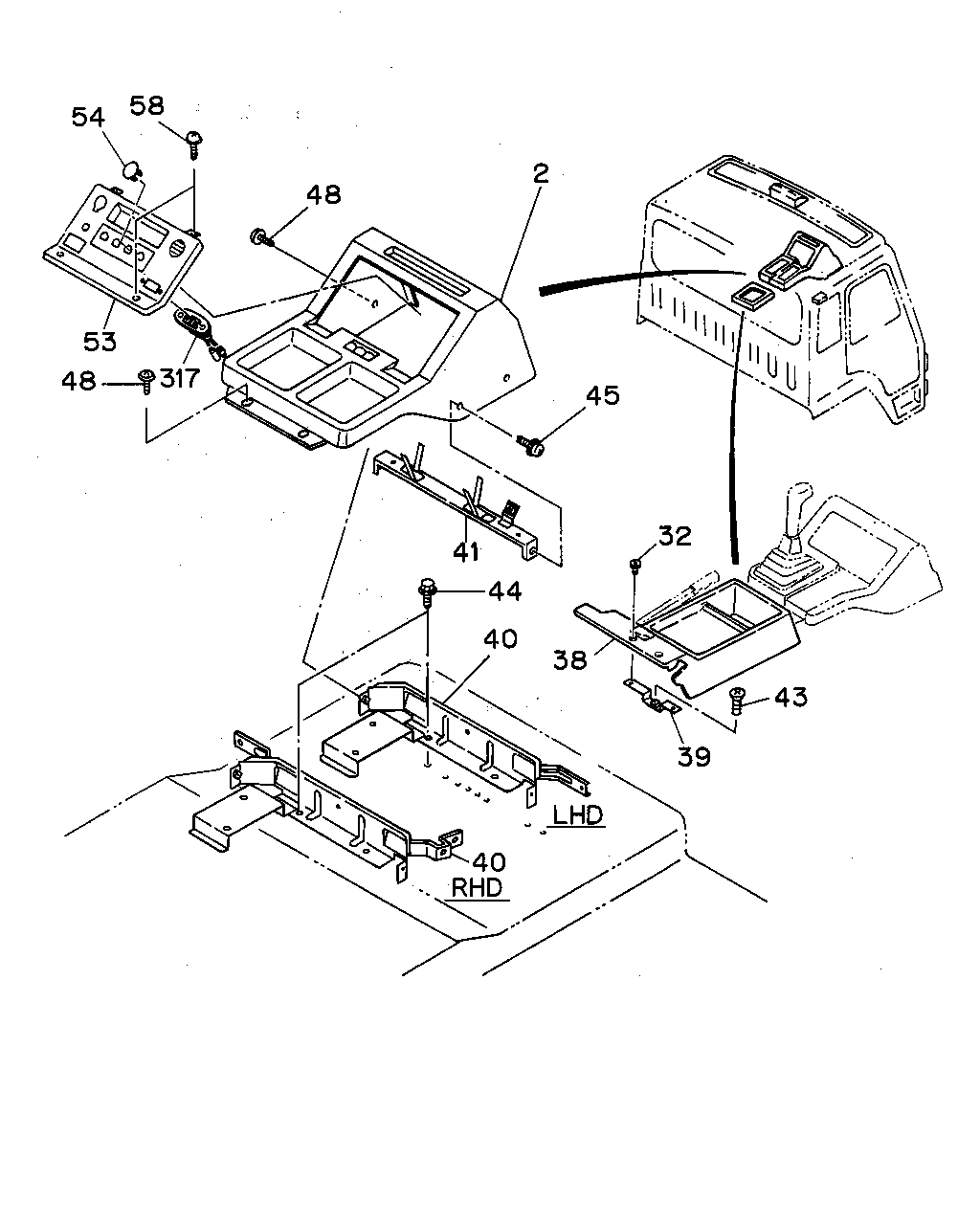

çizim 95332
2 48 58 54 53 48 317 45 32 41 44 40 38 39 43 40
BalonParca AdiParca NoAdetTipApplied Date A B
2 CONSOLE; CENTER 1-72447-417-1 01 1 9002-9306 ● ●
2 CONSOLE; CENTER 1-72447-538-1 01 1 9307- ● ●
32 SCREW; PARCEL BOX
M6X20 W/PL WASHER 		5-09981-023-0 04 1 9002- ●
32 SCREW; PARCEL BOX
M6X30 W/PL WASHER 		1-09981-448-0 01 1 9002- ●
32 SCREW; PARCEL BOX
M6X20 W/PL WASHER 		5-09981-023-0 03 1 9002- ●
38 TRAY; PARCEL,PIPING COVER 1-72497-036-2 01 1 9002-9306 ●
38 TRAY; PARCEL,PIPING COVER 1-72497-055-0 01 1 9307- ●
38 TRAY; PARCEL,PIPING COVER 1-72497-037-2 01 1 9002-9306 ●
38 TRAY; PARCEL,PIPING COVER 1-72497-056-0 01 1 9307- ●
39 BRACKET; TRAY,PIPE COVER 1-72497-016-1 01 1 9002- ●
40 BRACKET; SUPPORT,CENTER CONSOLE 1-65670-614-4 01 1 9002- ●
40 BRACKET; SUPPORT,CENTER CONSOLE 1-65670-689-2 01 1 9002-9008 ●
40 BRACKET; SUPPORT,CENTER CONSOLE
EXC. POWER WINDOW<A30> 		1-65670-689-2 01 1 9009-9306 ●
40 BRACKET; SUPPORT,CENTER CONSOLE 1-65670-689-2 01 1 9307-9505 ●
40 BRACKET; SUPPORT,CENTER CONSOLE 1-65671-481-0 01 1 9506- ●
40 BRACKET; SUPPORT,CENTER CONSOLE
POWER WINDOW<A30> 		1-65671-481-0 01 1 9009-9306 ●
41 STRUT ASM; CENTER CONSOLE 1-65670-599-2 01 1 9002- ● ●
43 SCREW; BRKT,PARCEL BOX
M6X20 W/PL WASHER 		5-09981-023-0 01 1 9002- ●
44 BOLT; SUPPORT,CTR CONSOLE
M6X16 W/LK&PL WASHER 		1-09980-497-0 02 1 9002-9301 ● ●
44 BOLT; SUPPORT,CTR CONSOLE
M6X16 W/LK&PL WASHER 		1-09980-586-0 02 1 9302- ● ●
45 SCREW; STRUT,CENTER CONSOLE
M6X16 W/LK&PL WASHER 		1-09981-367-0 02 1 9002- ● ●
48 SCREW; BRKT,CENTER CONSOLE
M6X16 W/LK&PL WASHER 		1-09981-367-0 04 1 9002- ● ●
53 PANEL; SW,CENTER CONSOLE
EXC. RADIO AM & TAPE PLAYER(UM1) 		1-72447-362-6 01 1 9002- ●
53 PANEL; SW,CENTER CONSOLE
RADIO AM & TAPE PLAYER(UM1) 		1-72447-588-0 01 1 9206- ●
53 PANEL; SW,CENTER CONSOLE 1-65670-883-3 01 1 9002- ●
54 BUTTON; CLIP,CTR CONSOLE 1-72447-390-0 01 1 9002-9502 ●
54 BUTTON; CLIP,CTR CONSOLE
EXC. EXH HEAT WARNING<W50> 		1-72447-390-0 01 1 9503- ●
54 BUTTON; CLIP,CTR CONSOLE 1-72447-390-0 02 1 9503- ●
58 SCREW; SW PNL
M5X14 W/PL WASHER 		5-09981-050-0 05 1 9002- ●
58 SCREW; SW PNL
M5X14 W/PL WASHER 		5-09981-050-0 04 1 9002- ●
317 CONSENT 1-82523-011-3 01 1 9002- ●
317 CONSENT 1-82523-010-2 01 1 9002- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
