Isuzu WW
▶
TRUCKS
▶
FVM
▶
11168 - FVM(SOUTH AFRICA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶
0-13 — OIL PAN AND LEVEL GAUGE
(#18121) — 19 parça
◀

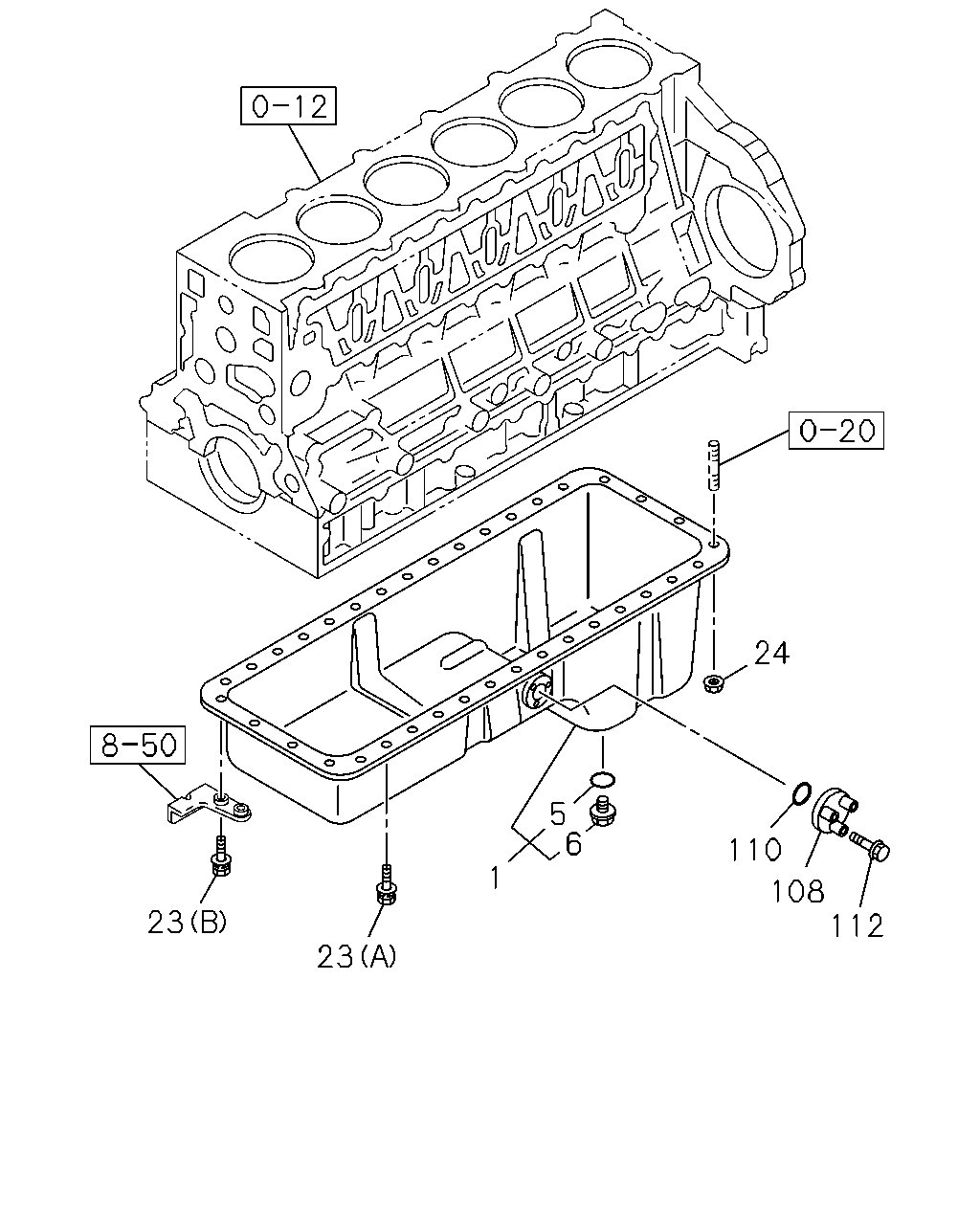

[013A] OIL PAN (10 parça)
[013A] OIL GAUGE (9 parça)
▶
24
5
6
110
1
108
112
23
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
8-97602-326-2
01
1
1001-1010
1
PAN ASM; OIL
8-98179-005-0
01
1
1011-
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4
1-09623-057-0
01
1
1001-
6
PLUG; OIL DRAIN
M20X16.5
9-09662-012-0
01
1
1001-
23
BOLT; OIL PAN
(A) M8X18 FLANGE
0-28080-818-0
28
1
1001-
23
BOLT; OIL PAN
(B) M8X28 FLANGE
8-97329-626-0
02
1
1001-
24
NUT; OIL PAN
M8 FLANGE SOU
0-91180-108-0
04
1
1001-
108
COVER; OIL PAN
8-97609-994-0
01
1
1001-1010
110
GASKET; SW,OIL LEVEL
ID=27
8-98056-488-0
01
1
1001-1010
112
BOLT; SW,OIL LEVEL
M6X25 FLANGE
0-28050-625-0
03
1
1001-1010
10
8
49
2
193
192
193
9
9
10
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GAUGE; OIL LEVEL
8-98092-600-0
01
1
1001-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
8-98063-554-0
01
1
1001-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
8-98084-773-0
01
1
1001-
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
1001-
10
BOLT; GUIDE TUBE
(A) M10X35 FLANGE
0-28151-035-0
01
1
1001-
10
BOLT; GUIDE TUBE
(B) M8X20 FLANGE
0-28650-820-0
01
1
1001-
49
NUT; GUIDE TUBE
M8 FLANGE SOU
0-91180-108-0
01
1
1001-
192
HOSE; GUIDE TUBE
L=463
8-98054-844-1
01
1
1001-
193
CLIP; HOSE,GUIDE TUBE
ID=17
1-09707-158-0
02
1
1001-
