7-43 — SUN VISOR AND ASSIST GRIP (#1812) — 149 parça

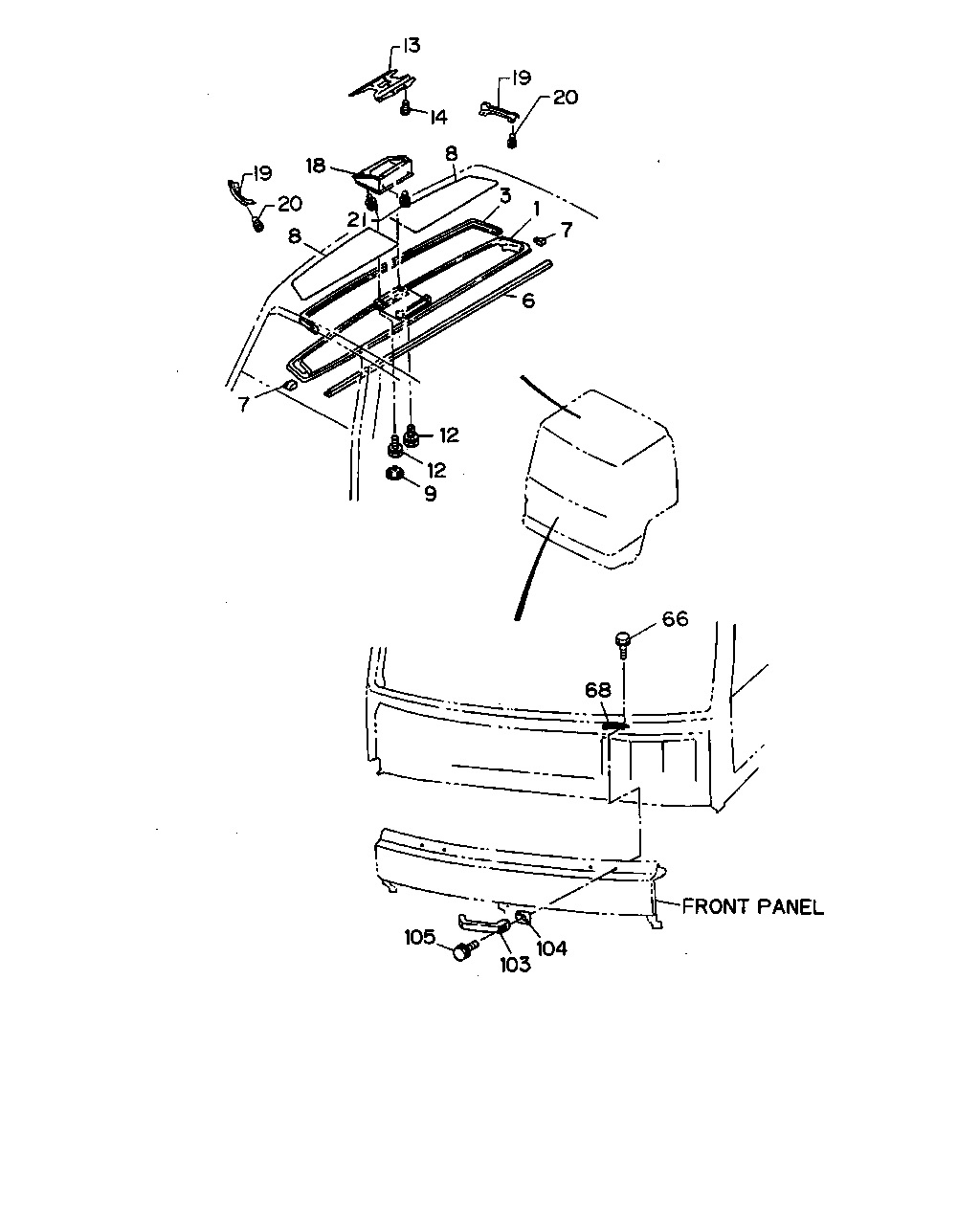

20 19 13 14 8 3 1 7 6 12 12 9 66 68 104 103 105 7 8 21 18 19 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BOARD; HEADER SHELF WINDOW CURTAIN ROUND<BW4>	1-73317-263-0	01	1	9002-9306	●
1	BOARD; HEADER SHELF WINDOW CURTAIN ROUND<BW4>	1-73317-312-0	01	1	9307-	●
1	BOARD; HEADER SHELF EXC. WINDOW CURTAIN ROUND<BW4>	1-73317-262-0	01	1	9002-9209	●
1	BOARD; HEADER SHELF EXC. CHEAPER CAB(SAX)	1-73317-262-0	01	1	9002-9209		●
1	BOARD; HEADER SHELF EXC. WINDOW CURTAIN ROUND<BW4>	1-73317-262-0	01	1	9210-9306	●
1	BOARD; HEADER SHELF	1-73317-262-0	01	1	9210-9306		●
1	BOARD; HEADER SHELF EXC. WINDOW CURTAIN ROUND<BW4>	1-73317-304-0	01	1	9307-	●
1	BOARD; HEADER SHELF	1-73317-304-0	01	1	9307-		●
1	BOARD; HEADER SHELF CHEAPER CAB(SAX)	1-73317-264-0	01	1	9002-9209		●
3	FINISHER; HEADER SHELF,FRT	1-73317-146-1	01	1	9002-	●	●
6	FINISHER; HEADER SHELF,REAR	1-73317-147-2	01	1	9002-	●	●
7	FINISHER; HEADER SHELF,CORNER	1-73317-165-2	01	1	9002-	●	●
7	FINISHER; HEADER SHELF,CORNER	1-73317-164-2	01	1	9002-	●	●
8	MAT; HD SHELF	1-73317-144-1	02	1	9002-9306	●
8	MAT; HD SHELF EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-73317-144-1	02	1	9002-9306		●
8	MAT; HD SHELF	1-73317-144-1	02	1	9307-	●	●
8	MAT; HD SHELF SAUDI ARABIA EQUIPMENT(WH1)	1-73317-226-0	02	1	9002-9306		●
9	COVER; HOLE,HEADER SHELF CENTER	1-73317-231-0	06	1	9002-9306	●	●
9	COVER; HOLE,HEADER SHELF CENTER	1-73317-271-0	06	1	9307-	●	●
12	SCREW; HEADER SHELF M6X20 W/LK&PL WASHER	1-09981-312-0	08	1	9002-	●	●
13	BRACKET ASM; ROOF CTR FRT	1-73317-149-2	01	1	9002-	●	●
14	SCREW; BRKT M6X16 W/LK WASHER	9-03910-616-0	05	1	9002-	●	●
18	SUPPORT; HEADER SHELF CENTER	1-73317-232-2	01	1	9002-9306	●	●
18	SUPPORT; HEADER SHELF CENTER	1-73317-267-0	01	1	9307-	●	●
19	SUPPORT ASM; HEADER SHELF	1-73317-155-3	01	1	9002-	●	●
19	SUPPORT ASM; HEADER SHELF	1-73317-154-3	01	1	9002-	●	●
20	SCREW; SUPPORT,HEADER SHELF M6X16 W/LK WASHER	9-03910-616-0	04	1	9002-	●	●
21	SCREW; SUPPORT,HEADER SHELF CENTER M6X20 W/LK&PL WASHER	1-09981-312-0	04	1	9002-	●	●
66	BOLT; ASSIST GRIP BRKT M6X20 W/LK&PL WASHER	1-09980-493-0	04	1	9203-	●	●
66	BOLT; ASSIST GRIP BRKT DOOR MIRROR<D32> M6X20 W/LK&PL WASHER	1-09980-493-0	04	1	9002-9202	●	●
66	BOLT; ASSIST GRIP BRKT EXC. DOOR MIRROR<D32> M6X20 W/LK&PL WASHER	1-09980-493-0	05	1	9002-9202	●	●
68	BRACKET; ASSIST GRIP,FRT PANEL	1-65580-192-0	02	1	9002-	●	●
103	GRIP; ASSIST,FRT PNL WHITE	1-71998-131-0	02	1	9002-	●	●
104	SPACER; ASSIST GRIP	1-71997-529-2	04	1	9002-	●	●
105	SCREW; ASSIST GRIP M6X30 W/PL WASHER M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9002-	●	●

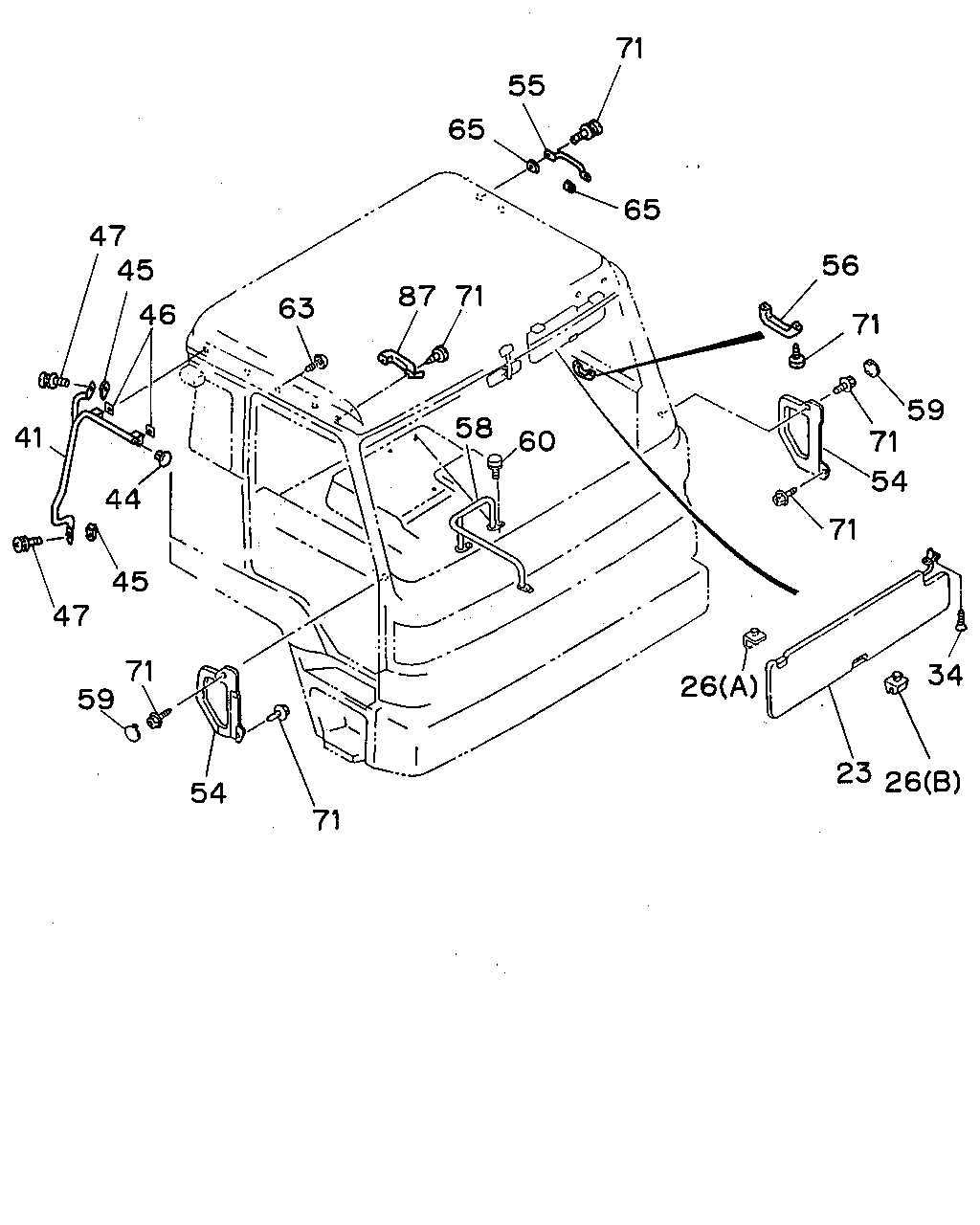

71 65 55 65 71 87 63 46 45 47 41 44 45 47 71 59 54 71 26 23 26 34 71 54 71 59 71 56 60 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	SUN VISOR	1-73137-151-0	01	1	9002-9209	●
23	SUN VISOR EXC. CHEAPER CAB(SAX)	1-73137-151-0	01	1	9002-9209		●
23	SUN VISOR	1-73137-151-0	01	1	9210-9306	●	●
23	SUN VISOR	1-73137-149-0	01	1	9002-9209	●
23	SUN VISOR EXC. CHEAPER CAB(SAX)	1-73137-149-0	01	1	9002-9209		●
23	SUN VISOR	1-73137-149-0	01	1	9210-9306	●	●
23	SUN VISOR	1-73137-169-0	01	1	9307-	●	●
23	SUN VISOR	1-73137-155-0	01	1	9307-	●	●
23	SUN VISOR CHEAPER CAB(SAX)	1-73137-152-0	01	1	9002-9209		●
26	HOLDER; SUN VISOR (A) FRONT	1-73137-141-0	02	1	9002-9209	●
26	HOLDER; SUN VISOR EXC. CHEAPER CAB(SAX) (A) FRONT	1-73137-141-0	02	1	9002-9209		●
26	HOLDER; SUN VISOR (A) FRONT	1-73137-141-0	02	1	9210-9306	●	●
26	HOLDER; SUN VISOR (B) REAR	1-73137-150-0	02	1	9002-9209	●
26	HOLDER; SUN VISOR EXC. CHEAPER CAB(SAX) (B) REAR	1-73137-150-0	02	1	9002-9209		●
26	HOLDER; SUN VISOR (B) REAR	1-73137-150-0	02	1	9210-9306	●	●
26	HOLDER; SUN VISOR (A) FRONT	1-73137-156-0	02	1	9307-	●	●
26	HOLDER; SUN VISOR (B) REAR	1-73137-157-0	02	1	9307-	●	●
26	HOLDER; SUN VISOR CHEAPER CAB(SAX) (A) FRONT	1-73137-141-0	01	1	9002-9209		●
26	HOLDER; SUN VISOR CHEAPER CAB(SAX) (B) REAR	1-73137-150-0	01	1	9002-9209		●
34	SCREW; SUN VISOR M6X20	1-09981-365-0	02	1	9002-	●	●
34	SCREW; SUN VISOR M6X20	1-09981-310-0	02	1	9210-	●	●
41	GRIP; ASSIST,BACK SIDE GRIP OUT SIDE<W52> WHITE	1-71997-542-2	01	1	9002-	●	●
44	CAP; ASSIST GRIP GRIP OUT SIDE<W52>	1-75997-018-1	01	1	9002-	●	●
45	SHEET; ASSIST GRIP,BACK SIDE GRIP OUT SIDE<W52>	1-71997-548-0	02	1	9002-	●	●
46	SEAL; ASSIST GRIP,BACK SIDE GRIP OUT SIDE<W52>	1-71997-691-0	02	1	9002-	●	●
47	SCREW; ASSIST GRIP,BACK SIDE GRIP OUT SIDE<W52> M8X20 W/LK&PL WASHER	1-09981-466-0	02	1	9002-	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73617-055-1	01	1	9002-9306	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73617-054-1	01	1	9002-9306	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73907-187-0	01	1	9307-	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73907-186-0	01	1	9307-	●	●
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52> WHITE	1-71997-477-0	01	1	9002-	●	●
56	GRIP; ASSIST,SIDE SILL WHITE	1-71998-131-0	02	1	9002-	●
56	GRIP; ASSIST,SIDE SILL EXC. CHEAPER CAB(SAX) WHITE	1-71998-131-0	02	1	9002-		●
58	GRIP; ASSIST,ENG HOOD	1-75147-579-0	01	1	9002-	●
58	GRIP; ASSIST,ENG HOOD	1-75147-583-0	01	1	9002-		●
59	COVER; ASSIST GRIP	1-73617-056-0	02	1	9002-9306	●	●
59	COVER; ASSIST GRIP	1-73617-060-0	02	1	9307-	●	●
60	BOLT; ASSIST GRIP,ENG HOOD M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9002-9112	●	●
60	BOLT; ASSIST GRIP,ENG HOOD M6X25	1-09980-544-0	02	1	9201-	●	●
60	BOLT; ASSIST GRIP,ENG HOOD M8X20 W/LK&PL WASHER	1-09980-496-0	01	1	9002-9112	●	●
60	BOLT; ASSIST GRIP,ENG HOOD M8X25	1-09980-491-0	01	1	9201-	●	●
63	PLUG; ASSIST GRIP,HOLE EXC. GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	01	1	9002-9306	●	●
63	PLUG; ASSIST GRIP,HOLE CENTER SEAT DELETE<SP9> OD=15 L=14.5	1-76378-157-0	02	1	9002-9306		●
63	PLUG; ASSIST GRIP,HOLE EXC. GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	01	1	9307-	●	●
63	PLUG; ASSIST GRIP,HOLE PASSENGER SEAT MULTI USED(WX9) OD=15 L=14.5	1-76378-157-0	01	1	9307-	●
65	SHEET; ASSIST GRIP,CAB SIDE UPR GRIP OUT SIDE<W52>	1-71997-478-1	02	1	9002-	●	●
71	SCREW M6X37 W/PL WASHER	1-09981-460-0	04	1	9002-	●
71	SCREW EXC. CHEAPER CAB(SAX) M6X37 W/PL WASHER	1-09981-460-0	04	1	9002-		●
71	SCREW EXC. WINDOW CURTAIN ROUND<BW4> M6X35 W/PL WASHER	1-09981-422-0	02	1	9002-	●
71	SCREW M6X35 W/PL WASHER	1-09981-422-0	02	1	9002-		●
71	SCREW M6X16 W/LK&PL WASHER	1-09981-172-0	04	1	9002-	●	●
87	GRIP; ASSIST,CANT RAIL SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73618-156-0	01	1	9002-9306	●
87	GRIP; ASSIST,CANT RAIL SIDE	1-73618-156-0	01	1	9002-9306		●
87	GRIP; ASSIST,CANT RAIL SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73618-161-0	01	1	9307-	●
87	GRIP; ASSIST,CANT RAIL SIDE	1-73618-161-0	01	1	9307-		●

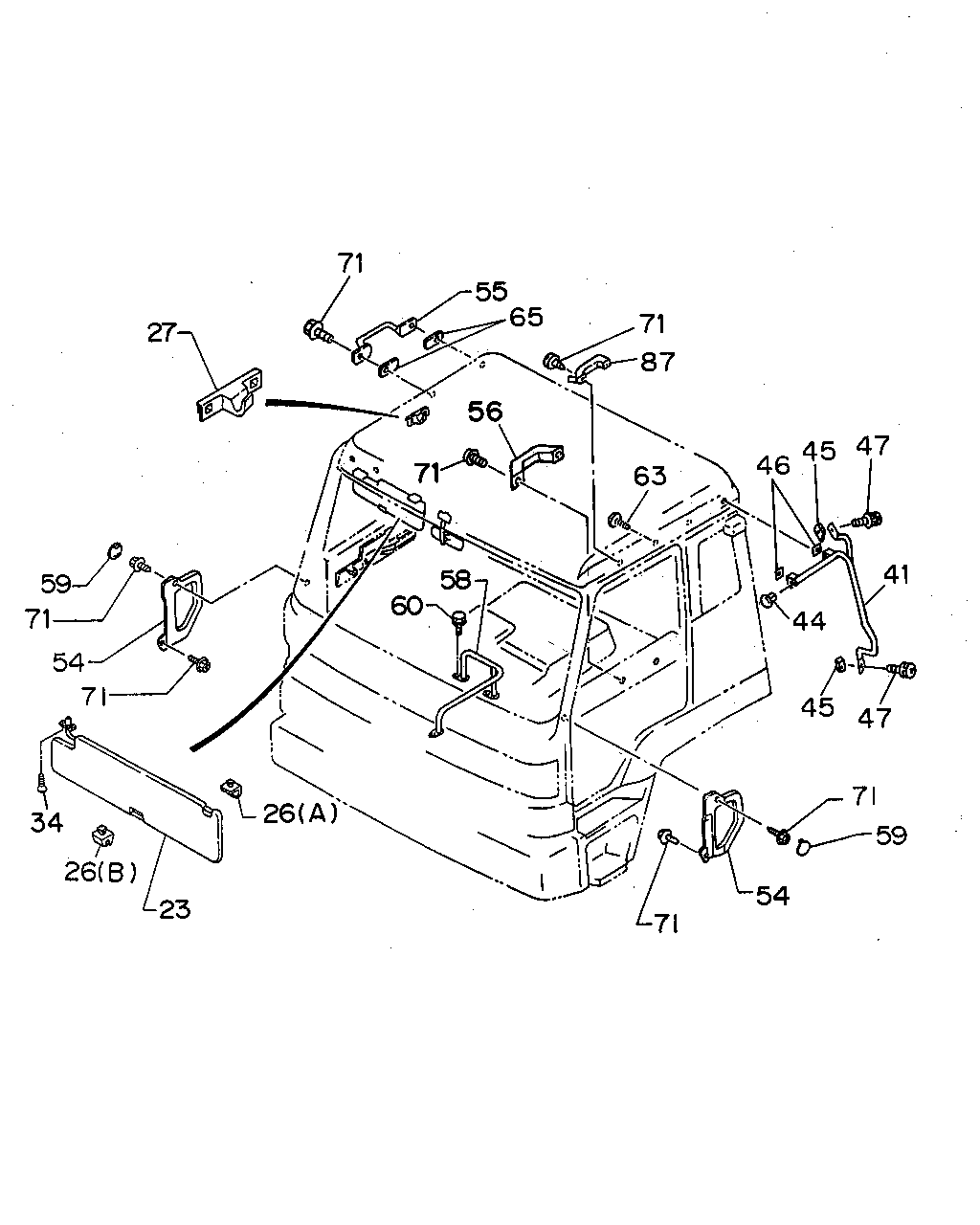

71 27 55 65 71 87 56 71 63 46 45 47 41 44 45 47 71 59 54 71 58 60 26 23 26 34 71 54 71 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	SUN VISOR	1-73137-151-0	01	1	9002-9209	●
23	SUN VISOR EXC. CHEAPER CAB(SAX)	1-73137-151-0	01	1	9002-9209		●
23	SUN VISOR	1-73137-151-0	01	1	9210-9306	●	●
23	SUN VISOR	1-73137-149-0	01	1	9002-9209	●
23	SUN VISOR EXC. CHEAPER CAB(SAX)	1-73137-149-0	01	1	9002-9209		●
23	SUN VISOR	1-73137-149-0	01	1	9210-9306	●	●
23	SUN VISOR	1-73137-169-0	01	1	9307-	●	●
23	SUN VISOR	1-73137-155-0	01	1	9307-	●	●
23	SUN VISOR CHEAPER CAB(SAX)	1-73137-152-0	01	1	9002-9209		●
26	HOLDER; SUN VISOR (A) FRONT	1-73137-141-0	02	1	9002-9209	●
26	HOLDER; SUN VISOR EXC. CHEAPER CAB(SAX) (A) FRONT	1-73137-141-0	02	1	9002-9209		●
26	HOLDER; SUN VISOR (A) FRONT	1-73137-141-0	02	1	9210-9306	●	●
26	HOLDER; SUN VISOR (B) REAR	1-73137-150-0	02	1	9002-9209	●
26	HOLDER; SUN VISOR EXC. CHEAPER CAB(SAX) (B) REAR	1-73137-150-0	02	1	9002-9209		●
26	HOLDER; SUN VISOR (B) REAR	1-73137-150-0	02	1	9210-9306	●	●
26	HOLDER; SUN VISOR (A) FRONT	1-73137-156-0	02	1	9307-	●	●
26	HOLDER; SUN VISOR (B) REAR	1-73137-157-0	02	1	9307-	●	●
26	HOLDER; SUN VISOR CHEAPER CAB(SAX) (A) FRONT	1-73137-141-0	01	1	9002-9209		●
26	HOLDER; SUN VISOR CHEAPER CAB(SAX) (B) REAR	1-73137-150-0	01	1	9002-9209		●
27	HOLDER; SUN VISOR WINDOW CURTAIN ROUND<BW4>	1-73137-154-0	01	1	9002-9306	●
27	HOLDER; SUN VISOR WINDOW CURTAIN ROUND<BW4>	1-73137-153-0	01	1	9002-9306	●
27	HOLDER; SUN VISOR WINDOW CURTAIN ROUND<BW4>	1-73137-172-0	01	1	9307-	●
27	HOLDER; SUN VISOR WINDOW CURTAIN ROUND<BW4>	1-73137-171-0	01	1	9307-	●
34	SCREW; SUN VISOR M6X20	1-09981-365-0	02	1	9002-	●	●
34	SCREW; SUN VISOR M6X20	1-09981-310-0	02	1	9210-	●	●
41	GRIP; ASSIST,BACK SIDE GRIP OUT SIDE<W52> WHITE	1-71997-542-2	01	1	9002-	●	●
44	CAP; ASSIST GRIP GRIP OUT SIDE<W52>	1-75997-018-1	01	1	9002-	●	●
45	SHEET; ASSIST GRIP,BACK SIDE GRIP OUT SIDE<W52>	1-71997-548-0	02	1	9002-	●	●
46	SEAL; ASSIST GRIP,BACK SIDE GRIP OUT SIDE<W52>	1-71997-691-0	02	1	9002-	●	●
47	SCREW; ASSIST GRIP,BACK SIDE GRIP OUT SIDE<W52> M8X20 W/LK&PL WASHER	1-09981-466-0	02	1	9002-	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73617-055-1	01	1	9002-9306	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73617-054-1	01	1	9002-9306	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73907-187-0	01	1	9307-	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73907-186-0	01	1	9307-	●	●
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52> WHITE	1-71997-477-0	01	1	9002-	●	●
56	GRIP; ASSIST,SIDE SILL WHITE	1-71998-131-0	02	1	9002-	●
56	GRIP; ASSIST,SIDE SILL EXC. CHEAPER CAB(SAX) WHITE	1-71998-131-0	02	1	9002-		●
58	GRIP; ASSIST,ENG HOOD	1-75147-579-0	01	1	9002-	●
58	GRIP; ASSIST,ENG HOOD	1-75147-583-0	01	1	9002-		●
59	COVER; ASSIST GRIP	1-73617-056-0	02	1	9002-9306	●	●
59	COVER; ASSIST GRIP	1-73617-060-0	02	1	9307-	●	●
60	BOLT; ASSIST GRIP,ENG HOOD M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9002-9112	●	●
60	BOLT; ASSIST GRIP,ENG HOOD M6X25	1-09980-544-0	02	1	9201-	●	●
60	BOLT; ASSIST GRIP,ENG HOOD M8X20 W/LK&PL WASHER	1-09980-496-0	01	1	9002-9112	●	●
60	BOLT; ASSIST GRIP,ENG HOOD M8X25	1-09980-491-0	01	1	9201-	●	●
63	PLUG; ASSIST GRIP,HOLE EXC. GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	01	1	9002-9306	●	●
63	PLUG; ASSIST GRIP,HOLE CENTER SEAT DELETE<SP9> OD=15 L=14.5	1-76378-157-0	02	1	9002-9306		●
63	PLUG; ASSIST GRIP,HOLE EXC. GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	01	1	9307-	●	●
63	PLUG; ASSIST GRIP,HOLE PASSENGER SEAT MULTI USED(WX9) OD=15 L=14.5	1-76378-157-0	01	1	9307-	●
65	SHEET; ASSIST GRIP,CAB SIDE UPR GRIP OUT SIDE<W52>	1-71997-478-1	02	1	9002-	●	●
71	SCREW M6X37 W/PL WASHER	1-09981-460-0	04	1	9002-	●
71	SCREW EXC. CHEAPER CAB(SAX) M6X37 W/PL WASHER	1-09981-460-0	04	1	9002-		●
71	SCREW EXC. WINDOW CURTAIN ROUND<BW4> M6X35 W/PL WASHER	1-09981-422-0	02	1	9002-	●
71	SCREW M6X35 W/PL WASHER	1-09981-422-0	02	1	9002-		●
71	SCREW M6X16 W/LK&PL WASHER	1-09981-172-0	04	1	9002-	●	●
87	GRIP; ASSIST,CANT RAIL SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73618-156-0	01	1	9002-9306	●
87	GRIP; ASSIST,CANT RAIL SIDE	1-73618-156-0	01	1	9002-9306		●
87	GRIP; ASSIST,CANT RAIL SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73618-161-0	01	1	9307-	●
87	GRIP; ASSIST,CANT RAIL SIDE	1-73618-161-0	01	1	9307-		●
