8-21 — METER ASM (#18099) — 13 parça

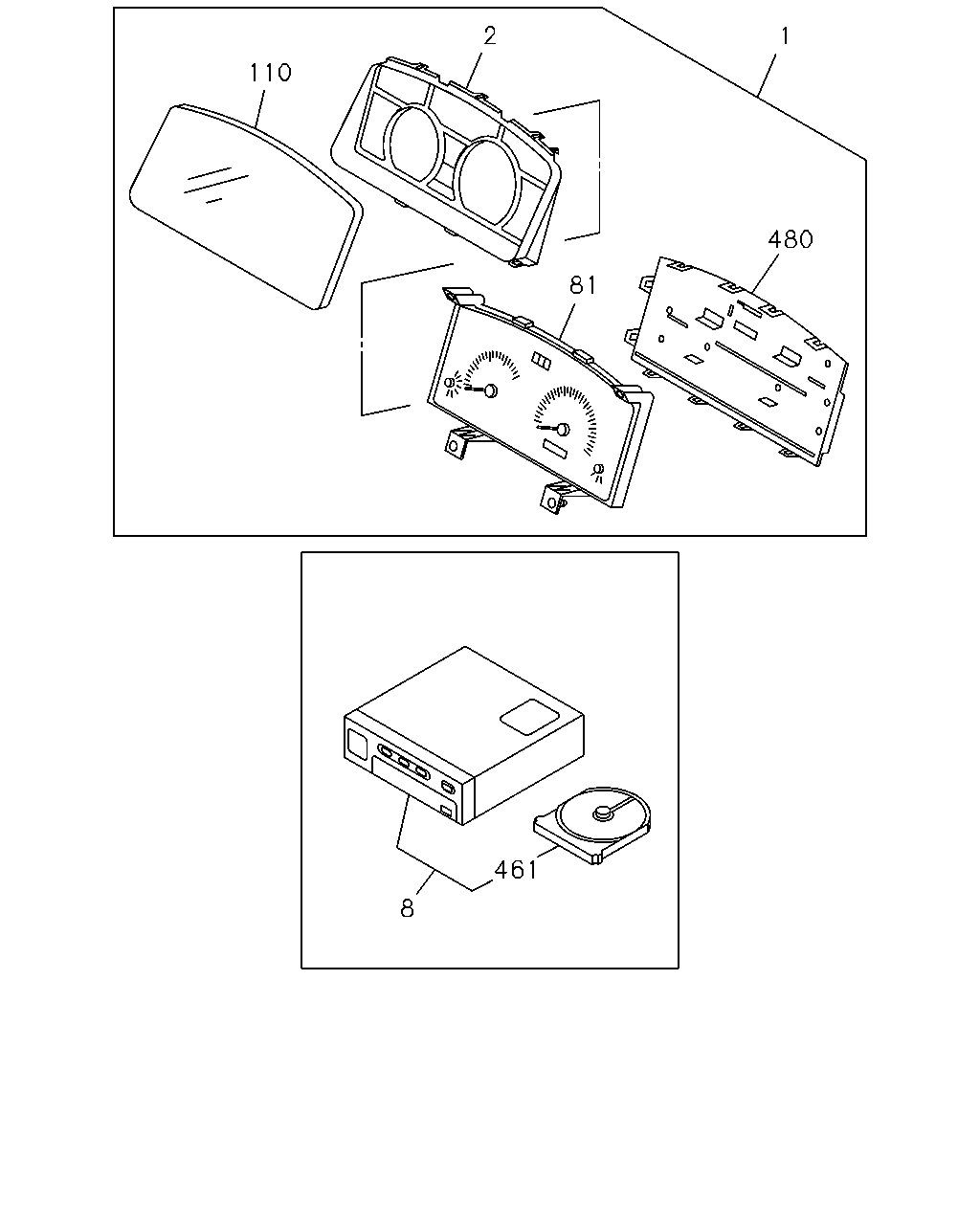

2 1 110 480 81 461 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER	8-98064-912-6	01	1	1001-
2	PANEL; CLUSTER	8-98054-432-0	01	1	1001-
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 140KM/H<WC7>	8-97387-082-2	01	1	1001-
81	METER SUB ASM	8-98079-682-0	01	1	1001-
110	GLASS; CLUSTER METER	8-98054-431-0	01	1	1001-
461	CARTRIDGE ASM; TACHOGRAPH TACHOGRAPH 140KM/H<WC7>	1-83129-433-0	01	1	1001-
480	COVER; METER BLACK	8-98054-433-0	01	1	1001-

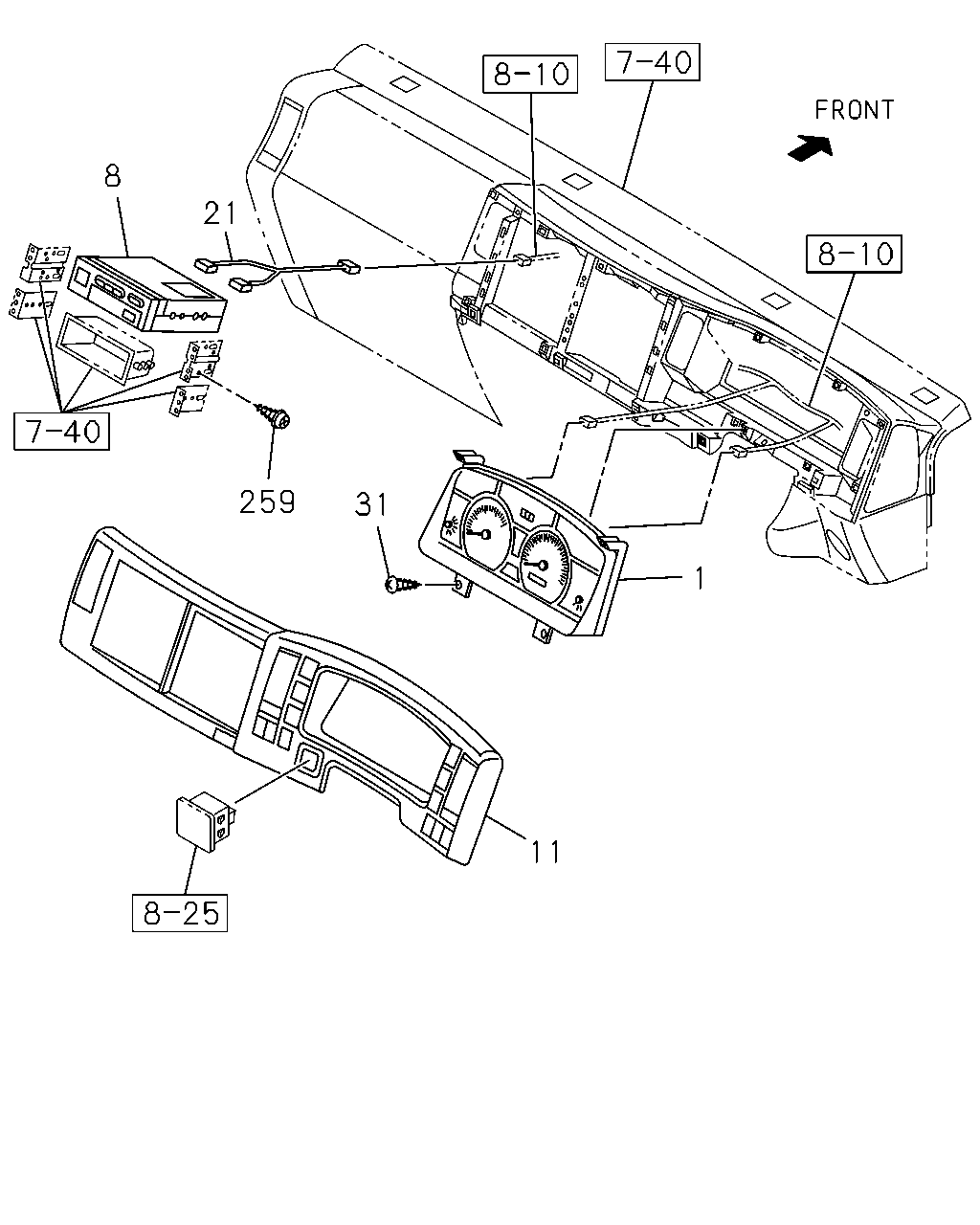

8 21 259 31 1 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER	8-98064-912-6	01	1	1001-
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 140KM/H<WC7>	8-97387-082-2	01	1	1001-
11	CLUSTER ASM; METER DARK GRAY	8-97405-350-6	01	1	1001-
21	HARNESS; TACHOGRAPH TACHOGRAPH 140KM/H<WC7>	8-98074-077-0	01	1	1001-
31	SCREW; METER,INST PANEL M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1001-
259	SCREW; TACHOGRAPH TACHOGRAPH 140KM/H<WC7> M5X7 HEXALOBULAR SOCKET	8-98063-767-0	04	1	1001-
