◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11167 - FVR(SOUTH AFRICA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#18097) — 217 parça

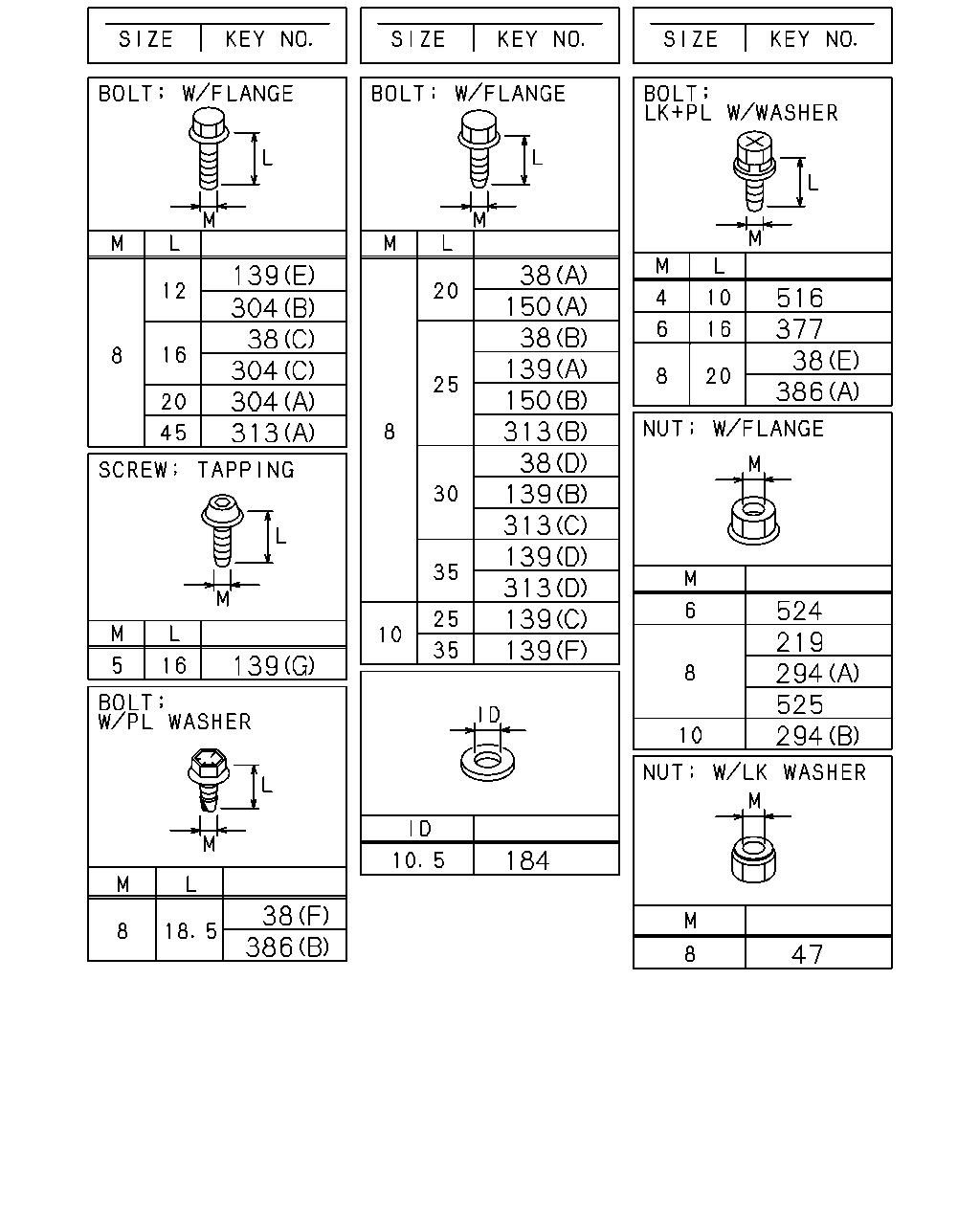

çizim 127835
139 304 304 38 304 313 139 38 386 38 150 38 139 150 313 139 38 313 313 139 139 139 184 516 38 377 386 524 219 294 525 294 47
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE SOU 		0-28050-816-0 02 1 1001-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1001-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1001-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1001-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE SOU 		0-28650-825-0 04 1 1001-
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 1001-
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 1001-
38 BOLT; CLIP,HARNESS
(E) M8X20 W/LK&PL WASHER SOU 		8-97086-825-0 03 1 1001-1201
38 BOLT; CLIP,HARNESS
(F) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202-
47 NUT; GEN TERMINAL
M8 W/LK WASHER SOU 		8-94279-050-0 01 1 1409-
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 1001-
139 BOLT; BRKT
(A) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1001-
139 BOLT; BRKT
(A) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1001-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1001-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1001-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 1001-
139 BOLT; BRKT
(D) M8X35 FLANGE SOU 		0-28650-835-0 01 1 1001-
139 BOLT; BRKT
(C) M10X25 FLANGE SOU 		0-28651-025-0 02 1 1001-
139 BOLT; BRKT
(F) M10X35 FLANGE SOU 		0-28651-035-0 01 1 1001-
139 BOLT; BRKT
(F) M10X35 FLANGE SOU 		0-28651-035-0 01 1 1001-
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (G) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1001-
150 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1001-
150 BOLT; CLIP
(B) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1001-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 SOU 		1-09503-265-0 02 1 1001-
219 NUT
M8 FLANGE SOU 		0-91180-108-0 01 1 1001-
219 NUT
M8 FLANGE SOU 		0-91180-108-0 02 1 1001-1509
219 NUT
M8 FLANGE SOU 		0-91180-108-0 02 1 1510-
219 NUT
M8 FLANGE SOU 		0-91180-108-0 02 1 1510-
219 NUT
M8 FLANGE SOU 		0-91180-108-0 02 1 1510-
219 NUT
M8 FLANGE SOU 		0-91180-108-0 04 1 1001-1509
294 NUT
(A) M8 FLANGE SOU 		0-91180-108-0 02 1 1001-
294 NUT
(A) M8 FLANGE SOU 		0-91180-108-0 04 1 1001-
294 NUT
(A) M8 FLANGE SOU 		0-91180-108-0 05 1 1001-
294 NUT
(A) M8 FLANGE SOU 		0-91180-108-0 01 1 1001-
294 NUT
(A) M8 FLANGE SOU 		0-91180-108-0 01 1 1001-
294 NUT
(A) M8 FLANGE SOU 		0-91180-108-0 01 1 1001-
294 NUT
(B) M10 FLANGE SOU 		0-91180-210-0 02 1 1001-
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 06 1 1001-
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE SOU 		0-28050-816-0 05 1 1001-
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 04 1 1001-
313 BOLT; BRKT
(A) M8X45 FLANGE SOU 		0-28050-845-0 01 1 1001-
313 BOLT; BRKT
(B) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1001-
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1001-
313 BOLT; BRKT
(D) M8X35 FLANGE SOU 		0-28650-835-0 01 1 1001-
313 BOLT; BRKT
(D) M8X35 FLANGE SOU 		0-28650-835-0 01 1 1001-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1001-
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER SOU 		8-97086-825-0 02 1 1001-1202
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203-
516 BOLT; HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1001-
524 NUT; HARNESS
M6 FLANGE SOU 		0-91180-106-0 04 1 1001-
525 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1001-
525 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 02 1 1001-

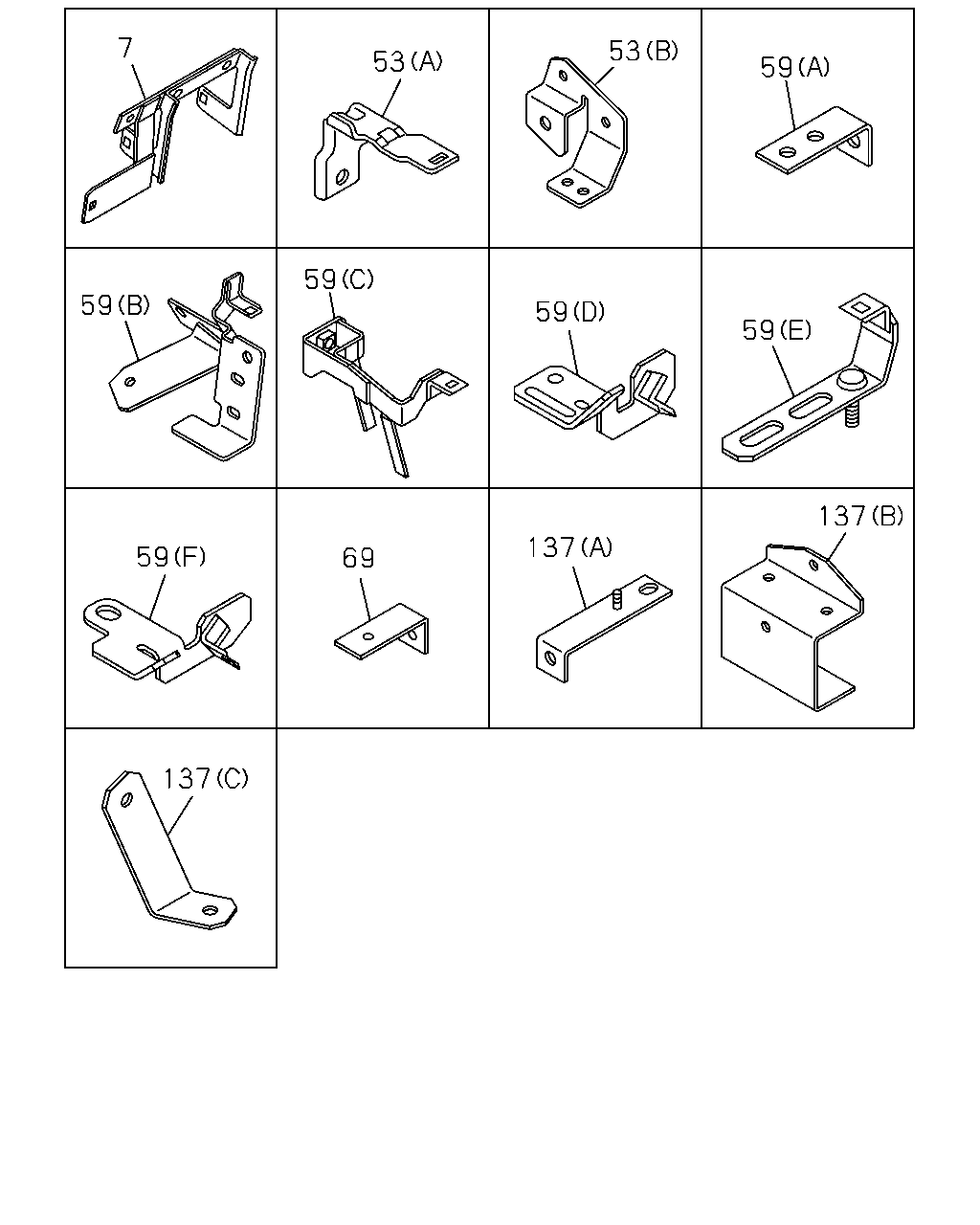

çizim 127846
7 59 59 137 53 59 69 53 59 137 59 59 137
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1001-
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1001-
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98084-590-0 01 1 1001-
59 BRACKET; FRAME HARNESS
(A) L=62 		1-21464-170-2 01 1 1001-
59 BRACKET; FRAME HARNESS
(C) 		8-97609-264-2 01 1 1001-
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 1001-1502
59 BRACKET; FRAME HARNESS
(F) 		8-98254-592-0 01 1 1503-
59 BRACKET; FRAME HARNESS
(E) 		8-98047-730-0 02 1 1001-
59 BRACKET; FRAME HARNESS
(B) 		8-98107-611-0 01 1 1001-
69 BRACKET; CLIP
L=55 		1-47475-304-0 01 1 1001-
137 BRACKET; HARNESS CLAMP
(B) 		8-97609-797-1 02 1 1001-
137 BRACKET; HARNESS CLAMP
(C) 		8-97614-728-1 01 1 1001-
137 BRACKET; HARNESS CLAMP
(A) 		8-97624-013-0 01 1 1001-
çizim 127848
308 308 308 308 335 324 428 312 312 428
BalonParca AdiParca NoAdetTipApplied Date
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1001-
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 1001-
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-98032-178-0 01 1 1001-
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98075-824-0 01 1 1001-
312 BRACKET; CLIP HARNESS
(B) L=55 		1-47475-304-0 01 1 1001-
312 BRACKET; CLIP HARNESS
(A) 		8-97609-110-1 01 1 1001-
324 BRACKET; CLIP 1-47479-430-0 02 1 1001-
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 1001-
428 BRACKET
(A) 		1-47476-658-0 01 1 1001-
428 BRACKET
(B) 		8-97620-514-0 01 1 1001-

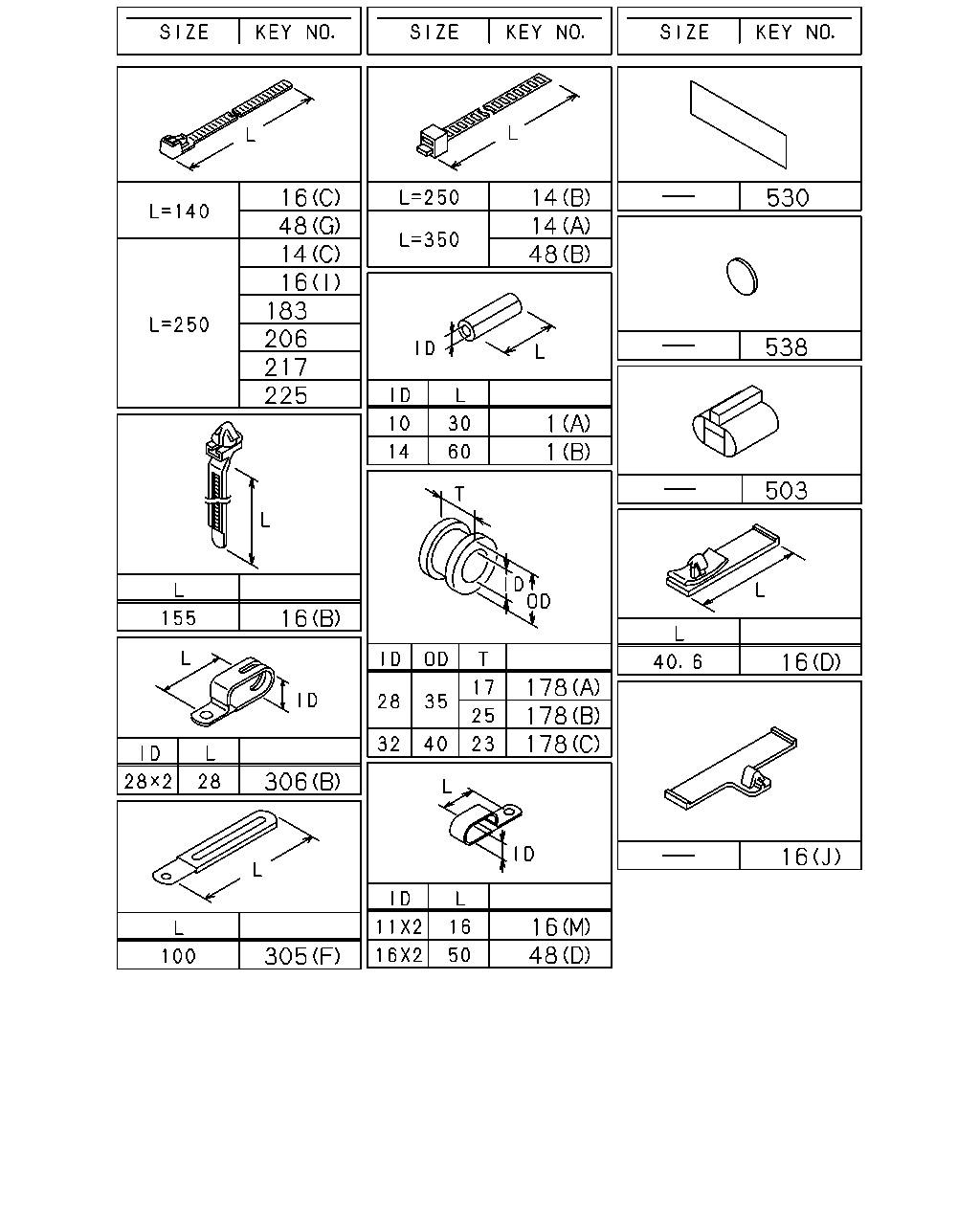

çizim 127867
16 48 14 16 183 206 217 225 14 14 48 530 538 1 1 503 16 16 178 178 178 306 16 16 48 305
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 1001-
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1001-
14 CLIP; BAND,HARNESS
(B) L=250 		1-09707-126-0 02 1 1001-
14 CLIP; BAND,HARNESS
(A) L=350 		1-09707-183-0 01 1 1001-
14 CLIP; BAND,HARNESS
(C) L=250 SOU 		5-09707-030-1 08 1 1001-1205
14 CLIP; BAND,HARNESS
(C) L=250 		8-98216-430-0 08 1 1206-
16 CLIP; HARNESS
(H) ID=11 L=16 		0-95235-025-0 02 1 1001-
16 CLIP; HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 1001-
16 CLIP; HARNESS
(M) ID=11X2 L=16 		0-95325-025-0 02 1 1001-
16 CLIP; HARNESS
(F) ID=14 H=50 L=20 		1-09700-843-0 02 1 1001-
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1001-
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1001-
16 CLIP; HARNESS
(K) ID=5-12 L=14.5 		1-09987-221-0 02 1 1001-
16 CLIP; HARNESS
(I) L=250 SOU 		5-09707-030-1 03 1 1001-
16 CLIP; HARNESS
(C) L=140 SOU 		5-09707-031-1 01 1 1001-
16 CLIP; HARNESS
(A) ID=10 & 16 SOU 		8-94413-325-0 01 1 1001-
16 CLIP; HARNESS
EXC. AIR DRYER<PS7> (E) OD=9 H=6 		1-09709-178-0 01 1 1001-1405
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 SOU 		8-97173-307-0 18 1 1001-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 SOU 		8-97173-307-0 18 1 1001-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=40.6 		8-97229-357-0 02 1 1001-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=40.6 		8-97229-357-0 02 1 1001-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (J) 		8-98052-679-0 02 1 1001-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (J) 		8-98052-679-0 02 1 1001-
48 CLIP; FRAME HARNESS
(L) ID=11 L=61 		1-09700-484-0 01 1 1108-
48 CLIP; FRAME HARNESS
(F) ID=33 L=83 		1-09701-291-0 01 1 1108-
48 CLIP; FRAME HARNESS
VIN MODEL YEAR 2011<VZB> (H) ID=20 L=70 		1-09700-485-0 03 1 1012-1102
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 03 1 1103-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 07 1 1008-
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 12 1 1008-
48 CLIP; FRAME HARNESS
(D) ID=16X2 L=50 		0-95325-586-0 01 1 1001-
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 1001-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 01 1 1001-
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 1001-
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 04 1 1001-1011
48 CLIP; FRAME HARNESS
EXC. VIN MODEL YEAR 2011<VZB> (H) ID=20 L=70 		1-09700-485-0 04 1 1012-1102
48 CLIP; FRAME HARNESS
(K) ID=28 L=78 		1-09700-858-0 02 1 1001-
48 CLIP; FRAME HARNESS
(A) ID=14.5 L=40 		1-09701-014-0 01 1 1001-
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1001-
48 CLIP; FRAME HARNESS
(F) ID=33 L=83 		1-09701-291-0 03 1 1001-
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 1001-
48 CLIP; FRAME HARNESS
(G) L=140 SOU 		5-09707-031-1 02 1 1001-
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 21 1 1001-1007
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 02 1 1008-1201
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 02 1 1202-
48 CLIP; FRAME HARNESS
(I) OD=9 H=13.5 		1-09709-180-0 01 1 1001-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 02 1 1001-
178 GROMMET; HARNESS
(C) ID=32 OD=40 T=23 		1-09332-112-0 01 1 1001-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1001-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1001-
183 CLIP; CONNECTOR
H.S.A SYSTEM<6EP> L=250 SOU 		5-09707-030-1 01 1 1001-
206 CLIP; FUEL TANK HARNESS
L=250 SOU 		5-09707-030-1 02 1 1001-
217 CLIP; RR BODY HARNESS
L=250 SOU 		5-09707-030-1 02 1 1001-
225 CLIP; AIR TANK HARNESS
L=250 SOU 		5-09707-030-1 04 1 1001-1011
225 CLIP; AIR TANK HARNESS
L=250 SOU 		5-09707-030-1 04 1 1012-1102
225 CLIP; AIR TANK HARNESS
VIN MODEL YEAR 2011<VZB> L=250 SOU 		5-09707-030-1 04 1 1012-1102
225 CLIP; AIR TANK HARNESS
L=250 SOU 		5-09707-030-1 04 1 1103-
225 CLIP; AIR TANK HARNESS
L=250 SOU 		5-09707-030-1 04 1 1103-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1001-
305 CLIP; ENG HARNESS
(I) ID=16 L=40 		0-95235-576-0 01 1 1001-
305 CLIP; ENG HARNESS
(G) ID=24 L=32 		1-09700-766-1 01 1 1001-
305 CLIP; ENG HARNESS
(E) ID=24 L=27 		1-09700-809-0 03 1 1001-
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1001-
305 CLIP; ENG HARNESS
(B) ID=19 L=39 H=21 		1-09700-972-1 01 1 1001-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1001-
305 CLIP; ENG HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 1001-
305 CLIP; ENG HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 01 1 1001-
305 CLIP; ENG HARNESS
(F) L=100 		8-94443-021-1 01 1 1001-1310
305 CLIP; ENG HARNESS
(F) L=100 		8-94443-021-1 02 1 1311-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 1001-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1001-
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) SOU 		1-82690-668-0 01 1 1001-
503 CONNECTOR
EXC. AIR DRYER<PS7> SOU 		1-82690-666-0 01 1 1001-1405
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 1001-1305
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1306-
530 SEAL; HARNESS
100X40 SOU 		1-72498-022-1 06 1 1001-1305
530 SEAL; HARNESS
EXC. H.S.A SYSTEM<6EP> 180X40 		1-72498-019-1 01 1 1306-
538 SEAL; HOLE
OD=25 BLACK SOU 		1-76798-019-0 01 1 1001-

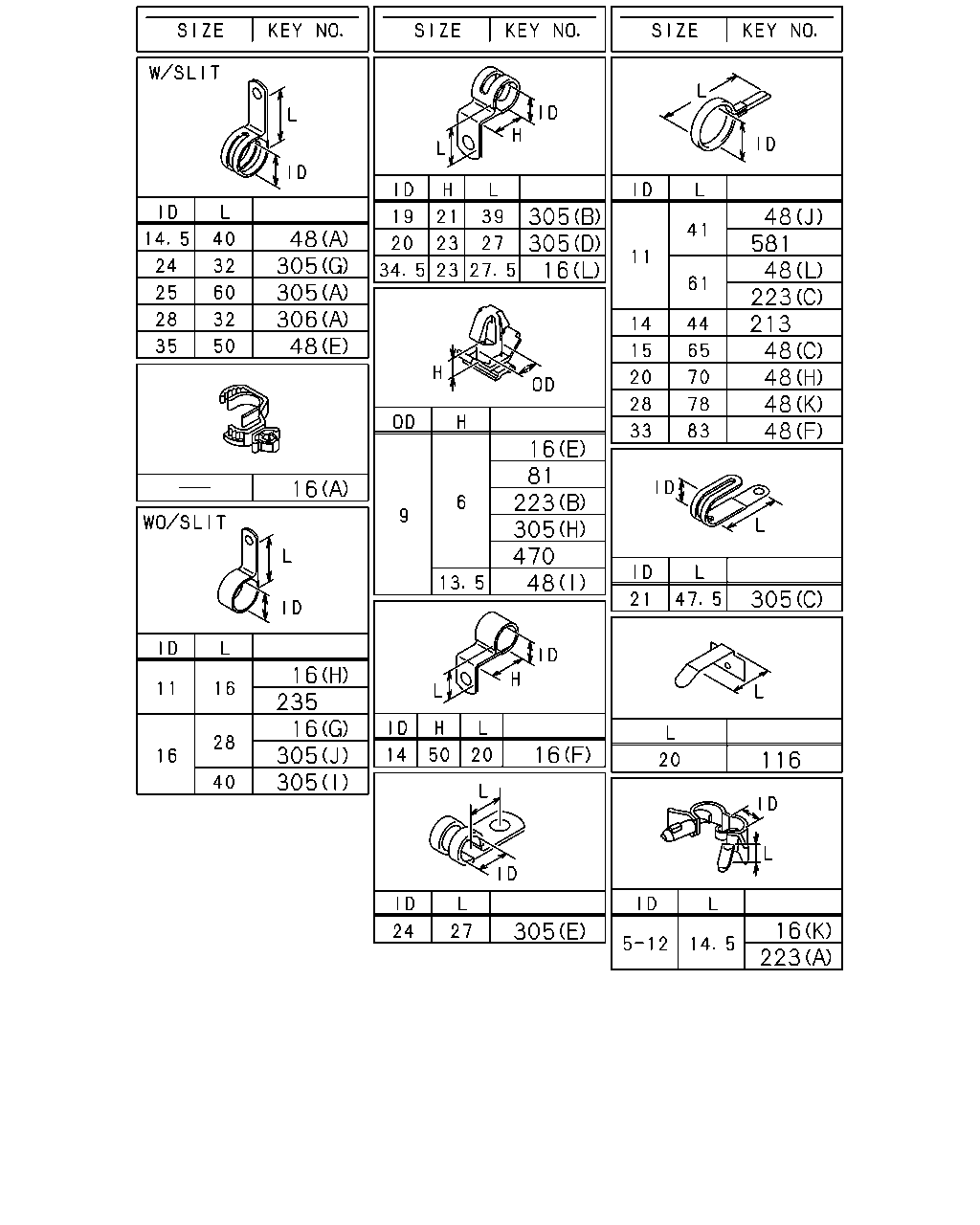

çizim 127889
305 305 16 48 581 48 223 213 48 48 48 48 48 305 305 306 48 16 81 223 305 470 48 16 305 16 235 16 305 305 16 116 16 223 305
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(H) ID=11 L=16 		0-95235-025-0 02 1 1001-
16 CLIP; HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 1001-
16 CLIP; HARNESS
(M) ID=11X2 L=16 		0-95325-025-0 02 1 1001-
16 CLIP; HARNESS
(F) ID=14 H=50 L=20 		1-09700-843-0 02 1 1001-
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1001-
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1001-
16 CLIP; HARNESS
(K) ID=5-12 L=14.5 		1-09987-221-0 02 1 1001-
16 CLIP; HARNESS
(I) L=250 SOU 		5-09707-030-1 03 1 1001-
16 CLIP; HARNESS
(C) L=140 SOU 		5-09707-031-1 01 1 1001-
16 CLIP; HARNESS
(A) ID=10 & 16 SOU 		8-94413-325-0 01 1 1001-
16 CLIP; HARNESS
EXC. AIR DRYER<PS7> (E) OD=9 H=6 		1-09709-178-0 01 1 1001-1405
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 SOU 		8-97173-307-0 18 1 1001-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 SOU 		8-97173-307-0 18 1 1001-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=40.6 		8-97229-357-0 02 1 1001-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=40.6 		8-97229-357-0 02 1 1001-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (J) 		8-98052-679-0 02 1 1001-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (J) 		8-98052-679-0 02 1 1001-
48 CLIP; FRAME HARNESS
(L) ID=11 L=61 		1-09700-484-0 01 1 1108-
48 CLIP; FRAME HARNESS
(F) ID=33 L=83 		1-09701-291-0 01 1 1108-
48 CLIP; FRAME HARNESS
VIN MODEL YEAR 2011<VZB> (H) ID=20 L=70 		1-09700-485-0 03 1 1012-1102
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 03 1 1103-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 07 1 1008-
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 12 1 1008-
48 CLIP; FRAME HARNESS
(D) ID=16X2 L=50 		0-95325-586-0 01 1 1001-
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 1001-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 01 1 1001-
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 1001-
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 04 1 1001-1011
48 CLIP; FRAME HARNESS
EXC. VIN MODEL YEAR 2011<VZB> (H) ID=20 L=70 		1-09700-485-0 04 1 1012-1102
48 CLIP; FRAME HARNESS
(K) ID=28 L=78 		1-09700-858-0 02 1 1001-
48 CLIP; FRAME HARNESS
(A) ID=14.5 L=40 		1-09701-014-0 01 1 1001-
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1001-
48 CLIP; FRAME HARNESS
(F) ID=33 L=83 		1-09701-291-0 03 1 1001-
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 1001-
48 CLIP; FRAME HARNESS
(G) L=140 SOU 		5-09707-031-1 02 1 1001-
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 21 1 1001-1007
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 02 1 1008-1201
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 02 1 1202-
48 CLIP; FRAME HARNESS
(I) OD=9 H=13.5 		1-09709-180-0 01 1 1001-
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> OD=9 H=6 		1-09709-178-0 01 1 1001-1010
81 CLIP; HARNESS
OD=9 H=6 		1-09709-178-0 01 1 1011-
116 CLIP; ROOF HARNESS
LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE SOU 		1-09987-246-2 04 1 1001-
116 CLIP; ROOF HARNESS
EXC. LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE SOU 		1-09987-246-2 03 1 1001-
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1001-
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 1001-1011
223 CLIP; AIR TANK HARNESS
EXC. VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61 		1-09700-484-0 01 1 1012-1102
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1001-1005
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1006-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (B) OD=9 H=6 		1-09709-178-0 01 1 1001-
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=11 L=16 		0-95235-025-0 02 1 1001-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1001-
305 CLIP; ENG HARNESS
(I) ID=16 L=40 		0-95235-576-0 01 1 1001-
305 CLIP; ENG HARNESS
(G) ID=24 L=32 		1-09700-766-1 01 1 1001-
305 CLIP; ENG HARNESS
(E) ID=24 L=27 		1-09700-809-0 03 1 1001-
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1001-
305 CLIP; ENG HARNESS
(B) ID=19 L=39 H=21 		1-09700-972-1 01 1 1001-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1001-
305 CLIP; ENG HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 1001-
305 CLIP; ENG HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 01 1 1001-
305 CLIP; ENG HARNESS
(F) L=100 		8-94443-021-1 01 1 1001-1310
305 CLIP; ENG HARNESS
(F) L=100 		8-94443-021-1 02 1 1311-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 1001-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1001-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1001-
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 01 1 1001-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
