7-40 — INSTRUMENT PANEL AND BOX (#1809) — 185 parça

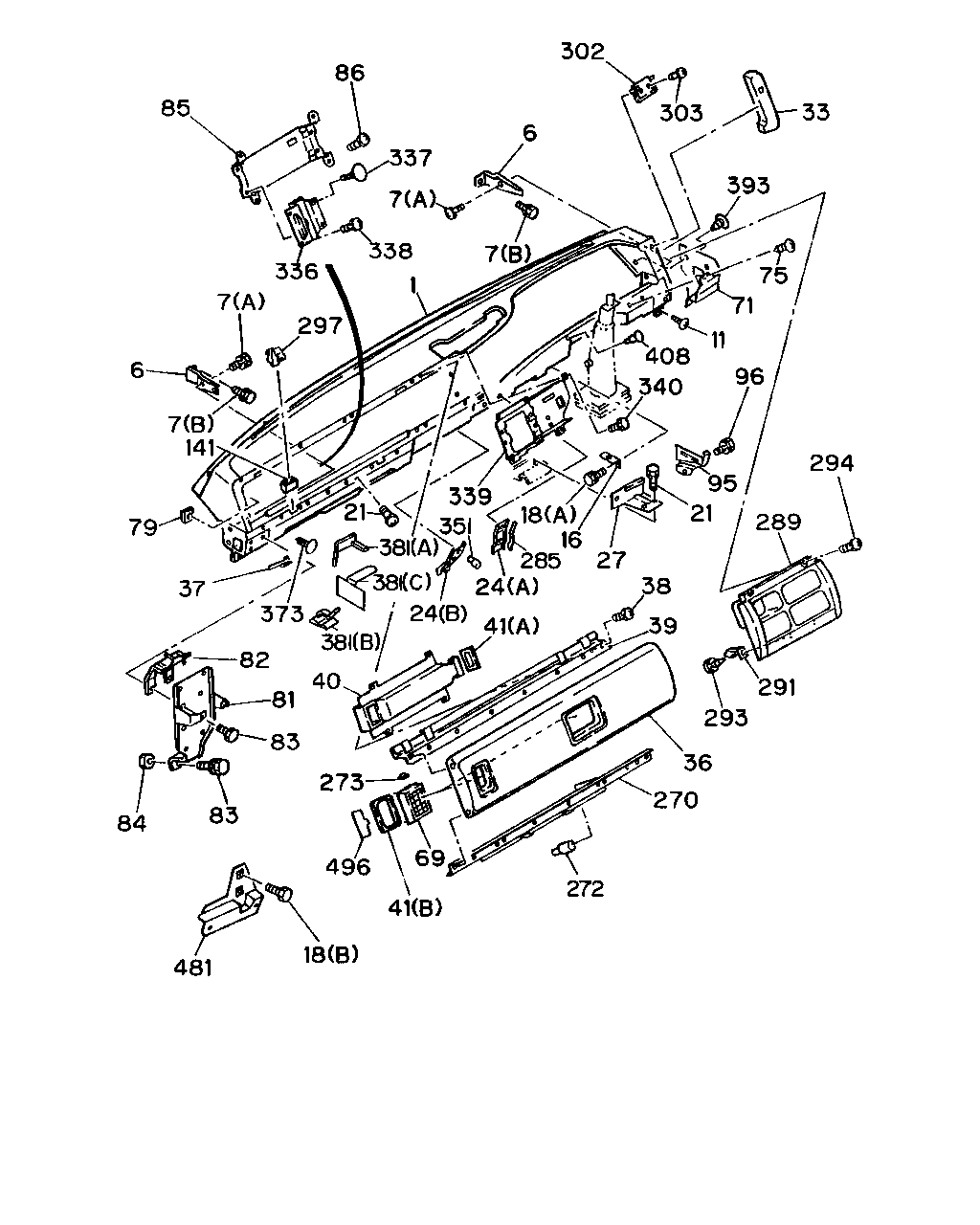

çizim 28502
302 303 33 393 75 71 11 96 408 340 95 294 289 21 27 38 39 291 293 36 270 272 69 41 496 18 481 84 83 273 83 81 82 40 381 373 37 79 21 381 381 24 41 24 285 16 18 339 351 141 7 6 7 297 336 338 1 7 7 337 86 85 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST 1-65671-334-1 01 1 9002-9306 ●
1 PANEL; INST 1-65671-542-0 01 1 9307- ●
1 PANEL; INST 1-65671-336-0 01 1 9002-9306 ●
1 PANEL; INST 1-65671-532-0 01 1 9307- ●
6 SUPPORT; INST PANEL 1-65670-592-2 01 1 9002- ● ●
6 SUPPORT; INST PANEL 1-65670-591-2 01 1 9002- ● ●
7 BOLT; SUPPORT,INST PNL
(A) 		1-09980-440-0 04 1 9002- ● ●
7 BOLT; SUPPORT,INST PNL
(B) 		1-09980-497-0 02 1 9002- ● ●
11 BOLT; INST PNL
M8X20 W/PL WASHER 		1-09981-479-0 09 1 9002- ● ●
16 BRACKET; INST PNL 1-65670-595-1 01 1 9002- ●
16 BRACKET; INST PNL
EXC. STEERING COLUMN WO/TILT<WV6> 		1-65670-595-1 01 1 9002- ●
16 BRACKET; INST PNL
STEERING COLUMN WO/TILT<WV6> 		1-65670-829-0 01 1 9002- ●
18 BOLT; BRKT
POWER WINDOW<A30> (B) M6X14 W/LK&PL WASHER 		8-94279-142-0 02 1 9307- ●
18 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-497-0 02 1 9002-9002 ● ●
18 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-527-0 02 1 9003-9008 ● ●
18 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-586-0 02 1 9009- ● ●
21 SCREW; STAY,INST
M6X16 W/LK&PL WASHER 		1-09981-141-0 04 1 9002- ● ●
24 STAY; INST CLUSTER
(A) 		1-65670-609-3 01 1 9002- ● ●
24 STAY; INST CLUSTER
(B) 		1-65670-695-2 01 1 9002- ● ●
27 SUPPORT ASM; STAY "B" 1-65670-653-2 01 1 9002- ●
27 SUPPORT ASM; STAY "B" 1-65670-679-2 01 1 9002- ●
33 LID; CHECK HOLE,CLU FLUID 1-73927-067-0 01 1 9002-9306 ●
33 LID; CHECK HOLE,CLU FLUID 1-73927-072-0 01 1 9307- ●
33 LID; CHECK HOLE,CLU FLUID 1-73927-068-0 01 1 9002-9306 ●
33 LID; CHECK HOLE,CLU FLUID 1-73927-073-0 01 1 9307- ●
36 BEZEL; INST SIDE CLUSTER 1-72547-094-0 01 1 9002-9306 ● ●
36 BEZEL; INST SIDE CLUSTER 1-72547-110-0 01 1 9307- ● ●
37 FASTENER; MALE,SIDE CLUSTER BEZEL 1-72557-051-1 02 1 9002- ● ●
38 SCREW; BEZEL,INST CLUSTER SIDE
M6X16 W/LK&PL WASHER 		1-09981-141-0 04 1 9002- ● ●
39 HINGE; BEZEL,INST SIDE CLUSTER 1-72557-047-3 01 1 9002- ● ●
40 DUCT; VENT,SIDE CLUSTER BEZEL 1-76377-089-1 01 1 9002- ● ●
41 SEAL; SIDE CLUSTER BEZEL
(A) 		1-76377-090-0 01 1 9002- ● ●
41 SEAL; SIDE CLUSTER BEZEL
(B) 		1-76377-091-0 01 1 9002- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-050-1 03 1 9002- ● ●
71 GARNISH; INST CLUSTER SIDE 1-72437-038-0 01 1 9002-9306 ●
71 GARNISH; INST CLUSTER SIDE 1-72437-078-0 01 1 9307- ●
71 GARNISH; INST CLUSTER SIDE 1-72437-039-0 01 1 9002-9306 ●
71 GARNISH; INST CLUSTER SIDE 1-72437-079-0 01 1 9307- ●
75 SCREW; GARNISH,INST CLUSTER
M5X14 W/PL WASHER 		5-09981-050-0 01 1 9002- ● ●
79 SEAL; SIDE DEFROSTER 1-76377-092-0 01 1 9002- ● ●
81 BRACKET; ELEC CONT UNIT
INTAKE HEATER<SL2> 		1-73997-839-7 01 1 9002-9103 ●
81 BRACKET; ELEC CONT UNIT
INTAKE HEATER<SL2> 		1-73907-235-0 01 1 9104- ●
81 BRACKET; ELEC CONT UNIT
INTAKE HEATER<SL2> 		1-73997-786-6 01 1 9002- ●
82 BRACKET; CONT UNIT,ELEC
INTAKE HEATER<SL2> 		1-73998-409-7 01 1 9002- ●
82 BRACKET; CONT UNIT,ELEC
INTAKE HEATER<SL2> 		1-73997-802-0 01 1 9002- ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> M6X16 W/LK&PL WASHER 		1-09980-458-0 01 1 9002-9304 ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> M6X16 W/LK&PL WASHER 		1-09980-586-0 01 1 9305- ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> M6X16 W/LK&PL WASHER 		9-01960-616-0 01 1 9002-9204 ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> M6X16 W/LK&PL WASHER 		0-50140-616-0 01 1 9205- ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> M6X20 W/LK&PL WASHER 		9-01960-620-0 03 1 9002-9204 ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> M6X20 W/LK&PL WASHER 		0-50140-620-0 03 1 9205- ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> M6X16 W/LK&PL WASHER 		9-01960-616-0 04 1 9002-9204 ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9205- ●
84 NUT; CONT UNIT BRKT
INTAKE HEATER<SL2> M6 FLANGE 		5-09440-004-0 01 1 9002- ●
85 PANEL; ELEC 1-73997-523-7 01 1 9002- ● ●
86 BOLT; ELEC PNL
M6X14 W/LK&PL WASHER 		1-09980-549-0 04 1 9002- ● ●
95 PANEL; BLIND,SIDE 1-65671-338-0 01 1 9002-9306 ●
95 PANEL; BLIND,SIDE 1-65671-562-0 01 1 9307- ●
96 SCREW; BLIND PNL
M6X16 W/LK&PL WASHER 		1-09981-141-0 01 1 9002- ●
141 PROTECTOR; EDGE
L=35 		1-73997-910-0 02 1 9002- ● ●
270 REINFORCEMENT; SIDE CLUSTER BEZEL 1-72557-053-2 01 1 9002- ● ●
272 CUSHION; SIDE CLUSTER BEZEL 1-72547-054-0 02 1 9002- ● ●
273 BUSHING; SIDE CLUSTER BEZEL 1-72547-048-1 03 1 9002- ● ●
285 FINISHER; INST PANEL
L=175 		8-94270-196-0 02 1 9002-9306 ● ●
285 FINISHER; INST PANEL
L=175 SERVICED BY L=2040 		1-71997-513-1 02 1 9307- ● ●
289 BEZEL; CENTER,INST CLUSTER 1-72437-036-0 01 1 9002-9306 ●
289 BEZEL; CENTER,INST CLUSTER 1-72437-084-0 01 1 9307- ●
289 BEZEL; CENTER,INST CLUSTER 1-72437-037-0 01 1 9002-9306 ●
289 BEZEL; CENTER,INST CLUSTER 1-72438-075-0 01 1 9307- ●
291 FASTENER; INST CLUSTER 1-72437-005-3 02 1 9002- ● ●
293 SCREW; FASTENER,BEZEL
M5X14 W/PL WASHER 		5-09981-050-0 02 1 9002- ● ●
294 SCREW; BEZEL
M6X16 W/PL WASHER 		1-09981-176-0 02 1 9002- ● ●
297 FASTENER; FEMALE,SIDE CLUSTER BEZEL 1-72557-052-3 02 1 9002- ● ●
302 CATCH; CHECK HOLE LID,CLU FLUID 1-73927-069-0 01 1 9002-9306 ● ●
302 CATCH; CHECK HOLE LID,CLU FLUID 1-73928-356-0 01 1 9307- ● ●
303 SCREW; CATCH,CHECK HOLE LID,CLU FLUID
M5X14 W/PL WASHER 		5-09981-050-0 02 1 9002- ● ●
336 COVER; INST PANEL SIDE 1-73997-623-0 01 1 9002- ●
336 COVER; INST PANEL SIDE 1-73997-745-0 01 1 9002- ●
337 FASTENER; COVER
BLACK 		8-94104-935-0 02 1 9407- ● ●
338 SCREW; COVER
M5X14 W/PL WASHER 		5-09981-050-0 01 1 9002- ● ●
339 PANEL; FUSE BOX 1-73997-838-3 01 1 9002- ●
339 PANEL; FUSE BOX 1-73997-877-1 01 1 9002- ●
340 BOLT; FUSE BOX PANEL
M6X14 W/LK&PL WASHER 		1-09980-549-0 04 1 9002- ● ●
351 STOPPER; CTR CONSOLE 1-09983-052-0 01 1 9002- ● ●
373 PLUG; BRKT HOLE,CONT UNIT
EXC. INTAKE HEATER<SL2> D4.7X11 		1-76378-154-0 01 1 9002- ●
381 CLIP; HARNESS
POWER WINDOW<A30> (B) 		1-09987-214-0 02 1 9205- ●
381 CLIP; HARNESS
POWER WINDOW<A30> (C) 		8-94138-987-0 01 1 9208- ●
381 CLIP; HARNESS
EXC. POWER WINDOW<A30> (B) 		1-09987-214-0 01 1 9307- ●
381 CLIP; HARNESS
(B) 		1-09987-214-0 01 1 9307- ●
381 CLIP; HARNESS
(A) 		5-09700-088-0 02 1 9002- ● ●
393 FASTENER; GARNISH PANEL 1-09987-195-0 02 1 9002-9306 ● ●
393 FASTENER; GARNISH PANEL 1-09987-213-0 02 1 9307- ● ●
408 PLUG; DUMMY HOLE,INST PANEL 1-09987-112-0 01 1 9002- ● ●
481 BRACKET; POWER WINDOW,COMPARTMENT PANE
POWER WINDOW<A30> 		1-65671-397-1 01 1 9307- ●
496 PANEL; SHUTTER,SIDE SLUSTER BEZEL 1-72547-049-0 01 1 9002- ● ●

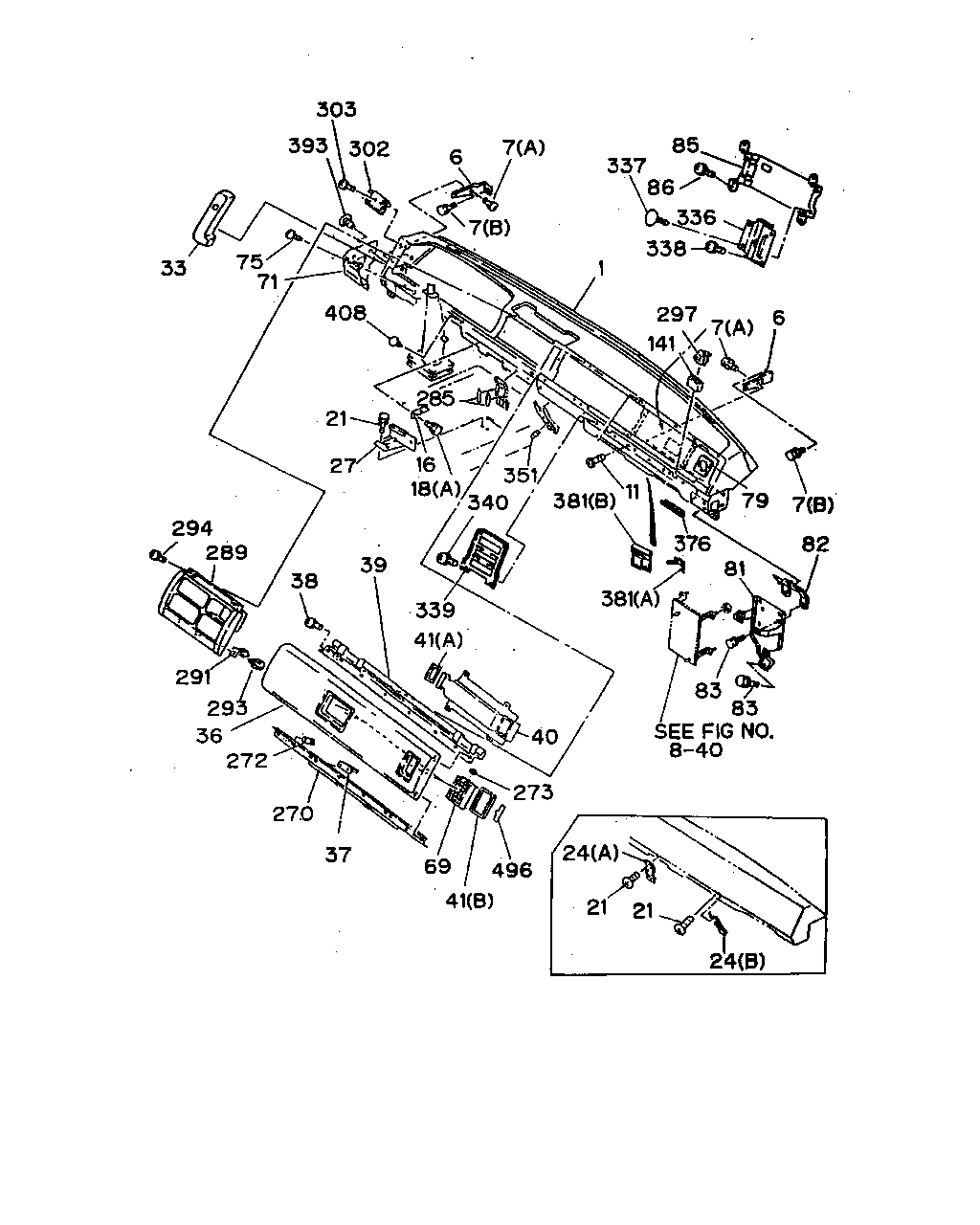

çizim 29375
85 337 86 336 338 297 7 6 141 1 7 7 6 302 303 393 33 75 71 408 285 21 27 16 18 340 351 381 11 79 7 82 376 81 381 83 83 24 21 21 24 496 41 69 37 270 272 36 293 291 294 289 38 39 339 41 40 273
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST 1-65671-334-1 01 1 9002-9306 ●
1 PANEL; INST 1-65671-542-0 01 1 9307- ●
1 PANEL; INST 1-65671-336-0 01 1 9002-9306 ●
1 PANEL; INST 1-65671-532-0 01 1 9307- ●
6 SUPPORT; INST PANEL 1-65670-592-2 01 1 9002- ● ●
6 SUPPORT; INST PANEL 1-65670-591-2 01 1 9002- ● ●
7 BOLT; SUPPORT,INST PNL
(A) 		1-09980-440-0 04 1 9002- ● ●
7 BOLT; SUPPORT,INST PNL
(B) 		1-09980-497-0 02 1 9002- ● ●
11 BOLT; INST PNL
M8X20 W/PL WASHER 		1-09981-479-0 09 1 9002- ● ●
16 BRACKET; INST PNL 1-65670-595-1 01 1 9002- ●
16 BRACKET; INST PNL
EXC. STEERING COLUMN WO/TILT<WV6> 		1-65670-595-1 01 1 9002- ●
16 BRACKET; INST PNL
STEERING COLUMN WO/TILT<WV6> 		1-65670-829-0 01 1 9002- ●
18 BOLT; BRKT
POWER WINDOW<A30> (B) M6X14 W/LK&PL WASHER 		8-94279-142-0 02 1 9307- ●
18 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-497-0 02 1 9002-9002 ● ●
18 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-527-0 02 1 9003-9008 ● ●
18 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-586-0 02 1 9009- ● ●
21 SCREW; STAY,INST
M6X16 W/LK&PL WASHER 		1-09981-141-0 04 1 9002- ● ●
24 STAY; INST CLUSTER
(A) 		1-65670-609-3 01 1 9002- ● ●
24 STAY; INST CLUSTER
(B) 		1-65670-695-2 01 1 9002- ● ●
27 SUPPORT ASM; STAY "B" 1-65670-653-2 01 1 9002- ●
27 SUPPORT ASM; STAY "B" 1-65670-679-2 01 1 9002- ●
33 LID; CHECK HOLE,CLU FLUID 1-73927-067-0 01 1 9002-9306 ●
33 LID; CHECK HOLE,CLU FLUID 1-73927-072-0 01 1 9307- ●
33 LID; CHECK HOLE,CLU FLUID 1-73927-068-0 01 1 9002-9306 ●
33 LID; CHECK HOLE,CLU FLUID 1-73927-073-0 01 1 9307- ●
36 BEZEL; INST SIDE CLUSTER 1-72547-094-0 01 1 9002-9306 ● ●
36 BEZEL; INST SIDE CLUSTER 1-72547-110-0 01 1 9307- ● ●
37 FASTENER; MALE,SIDE CLUSTER BEZEL 1-72557-051-1 02 1 9002- ● ●
38 SCREW; BEZEL,INST CLUSTER SIDE
M6X16 W/LK&PL WASHER 		1-09981-141-0 04 1 9002- ● ●
39 HINGE; BEZEL,INST SIDE CLUSTER 1-72557-047-3 01 1 9002- ● ●
40 DUCT; VENT,SIDE CLUSTER BEZEL 1-76377-089-1 01 1 9002- ● ●
41 SEAL; SIDE CLUSTER BEZEL
(A) 		1-76377-090-0 01 1 9002- ● ●
41 SEAL; SIDE CLUSTER BEZEL
(B) 		1-76377-091-0 01 1 9002- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-050-1 03 1 9002- ● ●
71 GARNISH; INST CLUSTER SIDE 1-72437-038-0 01 1 9002-9306 ●
71 GARNISH; INST CLUSTER SIDE 1-72437-078-0 01 1 9307- ●
71 GARNISH; INST CLUSTER SIDE 1-72437-039-0 01 1 9002-9306 ●
71 GARNISH; INST CLUSTER SIDE 1-72437-079-0 01 1 9307- ●
75 SCREW; GARNISH,INST CLUSTER
M5X14 W/PL WASHER 		5-09981-050-0 01 1 9002- ● ●
79 SEAL; SIDE DEFROSTER 1-76377-092-0 01 1 9002- ● ●
81 BRACKET; ELEC CONT UNIT
INTAKE HEATER<SL2> 		1-73997-839-7 01 1 9002-9103 ●
81 BRACKET; ELEC CONT UNIT
INTAKE HEATER<SL2> 		1-73907-235-0 01 1 9104- ●
81 BRACKET; ELEC CONT UNIT
INTAKE HEATER<SL2> 		1-73997-786-6 01 1 9002- ●
82 BRACKET; CONT UNIT,ELEC
INTAKE HEATER<SL2> 		1-73998-409-7 01 1 9002- ●
82 BRACKET; CONT UNIT,ELEC
INTAKE HEATER<SL2> 		1-73997-802-0 01 1 9002- ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> M6X16 W/LK&PL WASHER 		1-09980-458-0 01 1 9002-9304 ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> M6X16 W/LK&PL WASHER 		1-09980-586-0 01 1 9305- ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> M6X16 W/LK&PL WASHER 		9-01960-616-0 01 1 9002-9204 ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> M6X16 W/LK&PL WASHER 		0-50140-616-0 01 1 9205- ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> M6X20 W/LK&PL WASHER 		9-01960-620-0 03 1 9002-9204 ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> M6X20 W/LK&PL WASHER 		0-50140-620-0 03 1 9205- ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> M6X16 W/LK&PL WASHER 		9-01960-616-0 04 1 9002-9204 ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9205- ●
85 PANEL; ELEC 1-73997-523-7 01 1 9002- ● ●
86 BOLT; ELEC PNL
M6X14 W/LK&PL WASHER 		1-09980-549-0 04 1 9002- ● ●
141 PROTECTOR; EDGE
L=35 		1-73997-910-0 02 1 9002- ● ●
270 REINFORCEMENT; SIDE CLUSTER BEZEL 1-72557-053-2 01 1 9002- ● ●
272 CUSHION; SIDE CLUSTER BEZEL 1-72547-054-0 02 1 9002- ● ●
273 BUSHING; SIDE CLUSTER BEZEL 1-72547-048-1 03 1 9002- ● ●
285 FINISHER; INST PANEL
L=175 		8-94270-196-0 02 1 9002-9306 ● ●
285 FINISHER; INST PANEL
L=175 SERVICED BY L=2040 		1-71997-513-1 02 1 9307- ● ●
289 BEZEL; CENTER,INST CLUSTER 1-72437-036-0 01 1 9002-9306 ●
289 BEZEL; CENTER,INST CLUSTER 1-72437-084-0 01 1 9307- ●
289 BEZEL; CENTER,INST CLUSTER 1-72437-037-0 01 1 9002-9306 ●
289 BEZEL; CENTER,INST CLUSTER 1-72438-075-0 01 1 9307- ●
291 FASTENER; INST CLUSTER 1-72437-005-3 02 1 9002- ● ●
293 SCREW; FASTENER,BEZEL
M5X14 W/PL WASHER 		5-09981-050-0 02 1 9002- ● ●
294 SCREW; BEZEL
M6X16 W/PL WASHER 		1-09981-176-0 02 1 9002- ● ●
297 FASTENER; FEMALE,SIDE CLUSTER BEZEL 1-72557-052-3 02 1 9002- ● ●
302 CATCH; CHECK HOLE LID,CLU FLUID 1-73927-069-0 01 1 9002-9306 ● ●
302 CATCH; CHECK HOLE LID,CLU FLUID 1-73928-356-0 01 1 9307- ● ●
303 SCREW; CATCH,CHECK HOLE LID,CLU FLUID
M5X14 W/PL WASHER 		5-09981-050-0 02 1 9002- ● ●
336 COVER; INST PANEL SIDE 1-73997-623-0 01 1 9002- ●
336 COVER; INST PANEL SIDE 1-73997-745-0 01 1 9002- ●
337 FASTENER; COVER
BLACK 		8-94104-935-0 02 1 9407- ● ●
338 SCREW; COVER
M5X14 W/PL WASHER 		5-09981-050-0 01 1 9002- ● ●
339 PANEL; FUSE BOX 1-73997-838-3 01 1 9002- ●
339 PANEL; FUSE BOX 1-73997-877-1 01 1 9002- ●
340 BOLT; FUSE BOX PANEL
M6X14 W/LK&PL WASHER 		1-09980-549-0 04 1 9002- ● ●
351 STOPPER; CTR CONSOLE 1-09983-052-0 01 1 9002- ● ●
376 FINISHER; QOS
INTAKE HEATER<SL2> L=120 SERVICED BY L=2040 		1-71997-513-1 01 1 9002- ●
381 CLIP; HARNESS
POWER WINDOW<A30> (B) 		1-09987-214-0 02 1 9205- ●
381 CLIP; HARNESS
POWER WINDOW<A30> (C) 		8-94138-987-0 01 1 9208- ●
381 CLIP; HARNESS
EXC. POWER WINDOW<A30> (B) 		1-09987-214-0 01 1 9307- ●
381 CLIP; HARNESS
(B) 		1-09987-214-0 01 1 9307- ●
381 CLIP; HARNESS
(A) 		5-09700-088-0 02 1 9002- ● ●
393 FASTENER; GARNISH PANEL 1-09987-195-0 02 1 9002-9306 ● ●
393 FASTENER; GARNISH PANEL 1-09987-213-0 02 1 9307- ● ●
408 PLUG; DUMMY HOLE,INST PANEL 1-09987-112-0 01 1 9002- ● ●
496 PANEL; SHUTTER,SIDE SLUSTER BEZEL 1-72547-049-0 01 1 9002- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
