Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#18089) — 462 parça

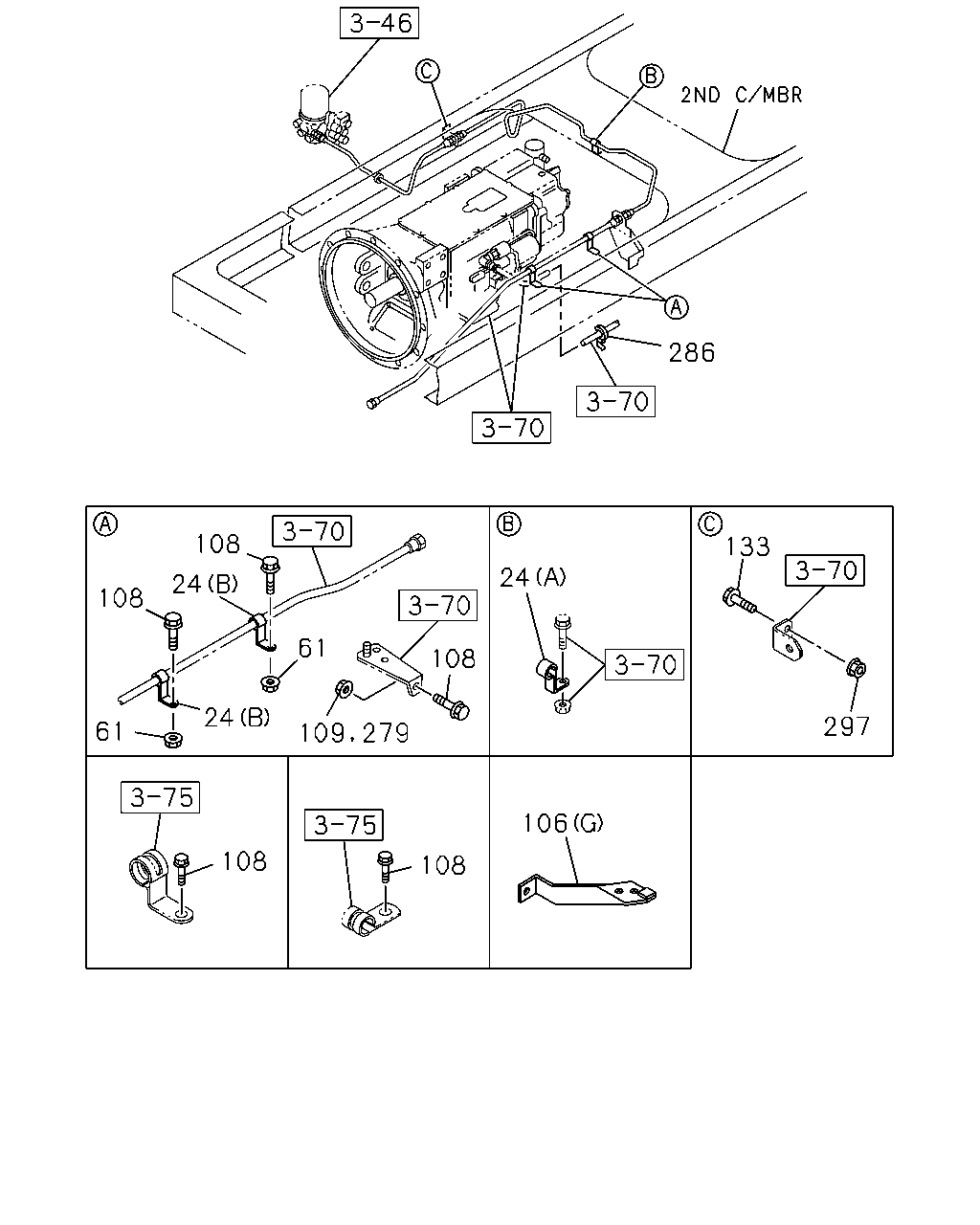

286 133 108 24 24 108 61 108 24 297 61 106 108 108 109 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0706-	●	●
24	CLIP; PIPE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	0706-	●	●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0706-	●	●
106	BRACKET; TUBE CLIP (I)	1-47471-108-0	01	1	0706-	●
106	BRACKET; TUBE CLIP (J)	1-47471-144-0	01	1	0706-0812	●
106	BRACKET; TUBE CLIP (L)	8-98122-297-0	01	1	0901-	●
106	BRACKET; TUBE CLIP (K)	1-47479-870-0	01	1	0706-	●
106	BRACKET; TUBE CLIP (D) W/STUD M8X20	1-47471-209-0	02	1	0706-	●	●
106	BRACKET; TUBE CLIP (H)	1-47471-450-0	01	1	0706-	●	●
106	BRACKET; TUBE CLIP (E)	1-47477-514-3	01	1	0706-	●	●
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	02	1	0706-	●	●
106	BRACKET; TUBE CLIP (G)	1-47477-746-0	01	1	0706-	●	●
106	BRACKET; TUBE CLIP (F)	1-47479-381-2	03	1	0706-	●	●
106	BRACKET; TUBE CLIP (B)	1-47479-553-0	01	1	0706-	●	●
106	BRACKET; TUBE CLIP (C)	1-47479-754-0	01	1	0706-		●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	04	1	0706-	●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	08	1	0706-	●	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	01	1	0706-	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	06	1	0706-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	03	1	0901-	●
133	BOLT; BRKT MIXER TRUCK<RA2> M8X25 FLANGE	0-28650-825-0	01	1	0706-0708	●
133	BOLT; BRKT MIXER TRUCK<RA2> M8X25 FLANGE	0-28650-825-0	01	1	0811-	●
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	0706-0708	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0706-0708		●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0709-0810	●	●
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	0811-	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0811-		●
133	BOLT; BRKT WHEEL BASE 4500MM(45W) DUMP TRUCK<RA1> M8X30 FLANGE	0-28650-830-0	01	1	0706-0708	●
133	BOLT; BRKT WHEEL BASE 4500MM(45W) M8X30 FLANGE	0-28650-830-0	01	1	0709-0810	●
133	BOLT; BRKT WHEEL BASE 4500MM(45W) DUMP TRUCK<RA1> M8X30 FLANGE	0-28650-830-0	01	1	0811-	●
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	0706-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	06	1	0706-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	06	1	0706-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	07	1	0706-0812	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	05	1	0901-	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0706-0901	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0902-	●	●
133	BOLT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) WHEEL BASE 4900MM(49W) M8X35 FLANGE	0-28650-835-0	01	1	0902-	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	07	1	0901-		●
133	BOLT; BRKT WHEEL BASE 5900MM(59W) M8X25 FLANGE	0-28650-825-0	02	1	0706-0708		●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0709-		●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	03	1	0706-0708		●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	17	1	0706-	●
279	NUT; BRKT DUMP TRUCK<RA1> M8 FLANGE	0-91180-108-0	20	1	0706-0708	●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	20	1	0706-0708		●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	20	1	0709-0810	●	●
279	NUT; BRKT WHEEL BASE 4500MM(45W) DUMP TRUCK<RA1> M8 FLANGE	0-91180-108-0	20	1	0811-	●
279	NUT; BRKT WHEEL BASE 5900MM(59W) M8 FLANGE	0-91180-108-0	20	1	0811-		●
279	NUT; BRKT WHEEL BASE 4500MM(45W) MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	19	1	0706-0708	●
279	NUT; BRKT WHEEL BASE 4500MM(45W) MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	19	1	0811-	●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0706-	●	●
279	NUT; BRKT M8 FLANGE	0-91180-108-0	14	1	0706-		●
286	CLIP; NYLON TUBE ASSISTOR SHIFT CONTROL<WX8> ID=15 & 7	1-09709-311-0	01	1	0706-	●	●
297	NUT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	01	1	0902-	●
297	NUT; BRKT WHEEL BASE 4500MM(45W) DUMP TRUCK<RA1> M8 FLANGE	0-91180-108-0	15	1	0706-0708	●
297	NUT; BRKT WHEEL BASE 4500MM(45W) M8 FLANGE	0-91180-108-0	15	1	0709-0810	●
297	NUT; BRKT WHEEL BASE 4500MM(45W) DUMP TRUCK<RA1> M8 FLANGE	0-91180-108-0	15	1	0811-	●
297	NUT; BRKT WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	09	1	0902-	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0706-0708	●	●
297	NUT; BRKT WHEEL BASE 4500MM(45W) MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	08	1	0706-0708	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0709-0810	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0811-	●	●
297	NUT; BRKT WHEEL BASE 4500MM(45W) MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	08	1	0811-	●
297	NUT; BRKT WHEEL BASE 5900MM(59W) M8 FLANGE	0-91180-108-0	11	1	0706-0708		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	11	1	0709-		●
297	NUT; BRKT WHEEL BASE 5900MM(59W) M8 FLANGE	0-91180-108-0	12	1	0706-0708		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	12	1	0709-		●
297	NUT; BRKT WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	35	1	0706-0708		●

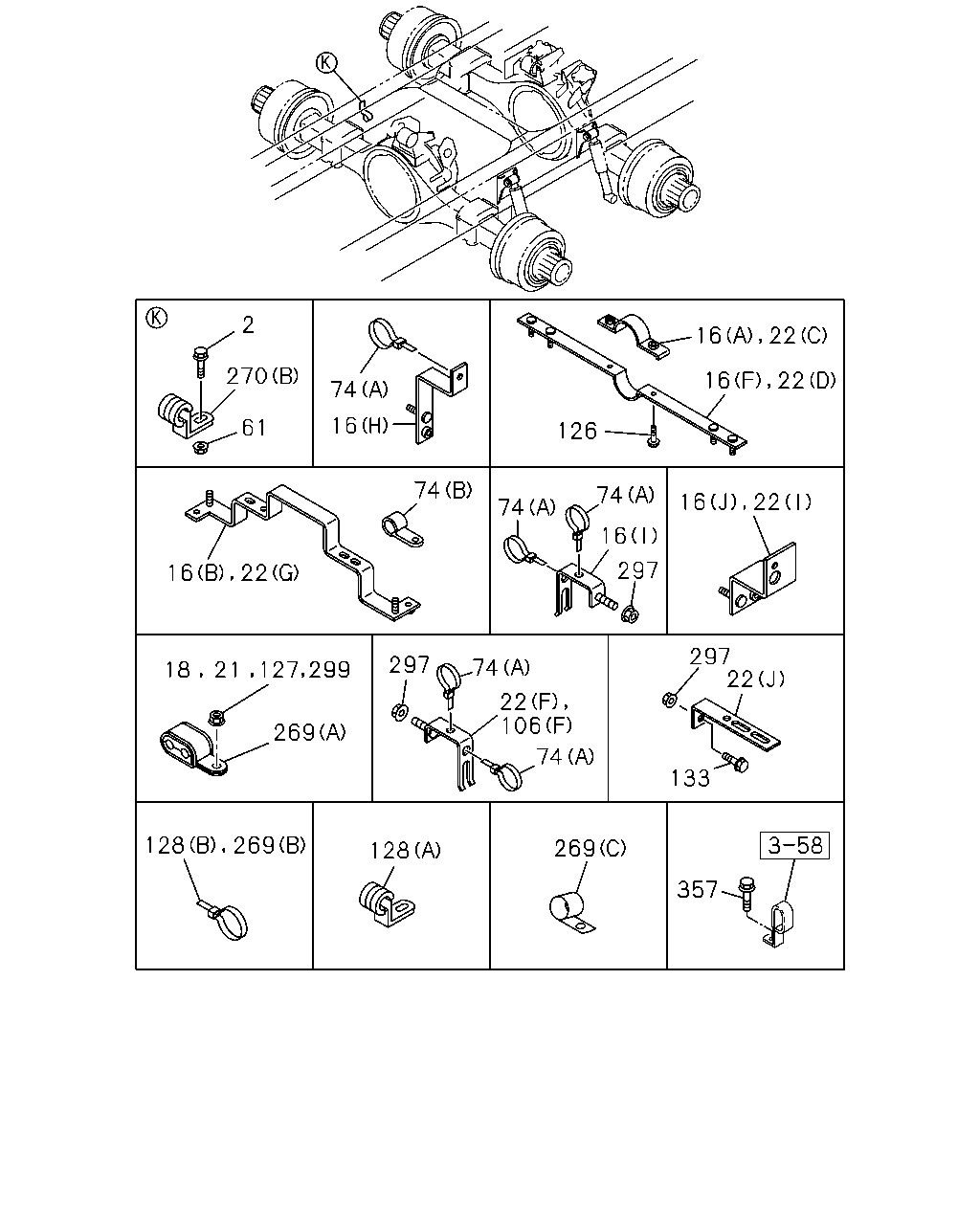

2 16 22 270 74 16 61 126 74 74 74 16 297 297 22 297 74 18 21 22 106 269 74 133 269 128 357 22 16 22 16 22 16 127 299 128 269

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	01	1	0706-	●	●
16	BRACKET; PIPE CLIP MIXER TRUCK<RA2> (G)	1-47479-693-0	01	1	0706-0708	●
16	BRACKET; PIPE CLIP MIXER TRUCK<RA2> (G)	1-47479-693-0	01	1	0811-	●
16	BRACKET; PIPE CLIP WHEEL BASE 4500MM(45W) (I)	1-47479-381-2	04	1	0706-	●
16	BRACKET; PIPE CLIP WHEEL BASE 4900MM(49W) (I)	1-47479-381-2	05	1	0902-	●
16	BRACKET; PIPE CLIP (D) L=30	1-47479-481-0	01	1	0706-	●	●
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	01	1	0706-	●	●
16	BRACKET; PIPE CLIP (C)	1-47479-554-0	01	1	0706-	●	●
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	01	1	0706-	●	●
16	BRACKET; PIPE CLIP (H)	1-47479-721-0	02	1	0706-	●	●
16	BRACKET; PIPE CLIP (J)	1-47479-722-1	01	1	0706-	●	●
16	BRACKET; PIPE CLIP (B)	1-47479-898-0	01	1	0706-	●	●
16	BRACKET; PIPE CLIP (E)	1-47479-800-0	01	1	0706-		●
16	BRACKET; PIPE CLIP WHEEL BASE 5900MM(59W) (I)	1-47479-381-2	03	1	0706-0708		●
16	BRACKET; PIPE CLIP (I)	1-47479-381-2	03	1	0709-		●
16	BRACKET; PIPE CLIP WHEEL BASE 5900MM(59W) (G)	1-47479-693-0	02	1	0706-0708		●
16	BRACKET; PIPE CLIP (G)	1-47479-693-0	02	1	0709-		●
16	BRACKET; PIPE CLIP WHEEL BASE 6600MM(66W) (I)	1-47479-381-2	09	1	0706-0708		●
16	BRACKET; PIPE CLIP WHEEL BASE 6600MM(66W) (G)	1-47479-693-0	03	1	0706-0708		●
18	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0706-	●	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	06	1	0706-	●	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0706-		●
22	BRACKET; CLIP MIXER TRUCK<RA2> (E)	1-47479-693-0	01	1	0706-0708	●
22	BRACKET; CLIP MIXER TRUCK<RA2> (E)	1-47479-693-0	01	1	0811-	●
22	BRACKET; CLIP EXC. MIXER TRUCK<RA2> (J) L=100 H=30	1-47477-645-2	01	1	0706-0708	●
22	BRACKET; CLIP (J) L=100 H=30	1-47477-645-2	01	1	0706-0708		●
22	BRACKET; CLIP (J) L=100 H=30	1-47477-645-2	01	1	0709-0810	●	●
22	BRACKET; CLIP EXC. MIXER TRUCK<RA2> (J) L=100 H=30	1-47477-645-2	01	1	0811-0901	●
22	BRACKET; CLIP (J) L=100 H=30	1-47477-645-2	01	1	0811-0901		●
22	BRACKET; CLIP EXC. MIXER TRUCK<RA2> (J) L=100 H=30	1-47477-645-2	01	1	0902-	●
22	BRACKET; CLIP TRANSMISSION SIDE PTO WO/LEVER(SH5) WHEEL BASE 4900MM(49W) (J) L=100 H=30	1-47477-645-2	01	1	0902-	●
22	BRACKET; CLIP (J) L=100 H=30	1-47477-645-2	01	1	0902-		●
22	BRACKET; CLIP WHEEL BASE 4500MM(45W) (A)	1-47479-329-0	01	1	0706-0708	●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (A)	1-47479-329-0	01	1	0706-0708		●
22	BRACKET; CLIP WHEEL BASE 4500MM(45W) (A)	1-47479-329-0	01	1	0709-	●
22	BRACKET; CLIP WHEEL BASE 4500MM(45W) (F)	1-47479-381-2	04	1	0706-0708	●
22	BRACKET; CLIP WHEEL BASE 5900MM(59W) (F)	1-47479-381-2	04	1	0706-0708		●
22	BRACKET; CLIP (F)	1-47479-381-2	04	1	0709-0804	●	●
22	BRACKET; CLIP WHEEL BASE 4500MM(45W) (F)	1-47479-381-2	04	1	0805-	●
22	BRACKET; CLIP WHEEL BASE 5900MM(59W) (F)	1-47479-381-2	04	1	0805-		●
22	BRACKET; CLIP WHEEL BASE 4900MM(49W) (L)	1-47479-333-0	01	1	0902-	●
22	BRACKET; CLIP WHEEL BASE 4900MM(49W) (F)	1-47479-381-2	05	1	0902-	●
22	BRACKET; CLIP (C)	1-47479-546-0	01	1	0706-	●	●
22	BRACKET; CLIP (H)	1-47479-554-0	01	1	0706-	●	●
22	BRACKET; CLIP (D)	1-47479-720-0	01	1	0706-	●	●
22	BRACKET; CLIP (I)	1-47479-722-1	01	1	0706-	●	●
22	BRACKET; CLIP (B)	1-47479-800-0	01	1	0706-	●	●
22	BRACKET; CLIP (G)	1-47479-898-0	01	1	0706-	●	●
22	BRACKET; CLIP WHEEL BASE 5900MM(59W) (A)	1-47471-188-0	01	1	0706-0708		●
22	BRACKET; CLIP (A)	1-47471-188-0	01	1	0709-		●
22	BRACKET; CLIP WHEEL BASE 5900MM(59W) (E)	1-47479-693-0	02	1	0706-0708		●
22	BRACKET; CLIP (E)	1-47479-693-0	02	1	0709-		●
22	BRACKET; CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) (K) L=130	1-47478-959-0	02	1	0706-0708		●
22	BRACKET; CLIP (K) L=130	1-47478-959-0	02	1	0709-0804		●
22	BRACKET; CLIP WHEEL BASE 5900MM(59W) (K) L=130	1-47478-959-0	02	1	0805-		●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (F)	1-47479-381-2	09	1	0706-0708		●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (E)	1-47479-693-0	03	1	0706-0708		●
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0706-	●	●
74	CLIP; NYLON TUBE TRANSMISSION SIDE PTO WO/LEVER(SH5) WHEEL BASE 4900MM(49W) (A) L=350	1-09707-183-0	02	1	0902-	●
74	CLIP; NYLON TUBE WHEEL BASE 4500MM(45W) (A) L=350	1-09707-183-0	11	1	0706-	●
74	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) (A) L=350	1-09707-183-0	12	1	0902-	●
74	CLIP; NYLON TUBE (B) ID=13	1-09701-030-1	03	1	0706-	●	●
74	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W) (A) L=350	1-09707-183-0	17	1	0706-0708		●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	17	1	0709-		●
74	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) (A) L=350	1-09707-183-0	18	1	0706-0708		●
106	BRACKET; TUBE CLIP (I)	1-47471-108-0	01	1	0706-	●
106	BRACKET; TUBE CLIP (J)	1-47471-144-0	01	1	0706-0812	●
106	BRACKET; TUBE CLIP (L)	8-98122-297-0	01	1	0901-	●
106	BRACKET; TUBE CLIP (K)	1-47479-870-0	01	1	0706-	●
106	BRACKET; TUBE CLIP (D) W/STUD M8X20	1-47471-209-0	02	1	0706-	●	●
106	BRACKET; TUBE CLIP (H)	1-47471-450-0	01	1	0706-	●	●
106	BRACKET; TUBE CLIP (E)	1-47477-514-3	01	1	0706-	●	●
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	02	1	0706-	●	●
106	BRACKET; TUBE CLIP (G)	1-47477-746-0	01	1	0706-	●	●
106	BRACKET; TUBE CLIP (F)	1-47479-381-2	03	1	0706-	●	●
106	BRACKET; TUBE CLIP (B)	1-47479-553-0	01	1	0706-	●	●
106	BRACKET; TUBE CLIP (C)	1-47479-754-0	01	1	0706-		●
126	BOLT; CLIP BRKT MIXER TRUCK<RA2> M8X25 FLANGE	0-28650-825-0	01	1	0706-0708	●
126	BOLT; CLIP BRKT MIXER TRUCK<RA2> M8X25 FLANGE	0-28650-825-0	01	1	0811-	●
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	02	1	0706-	●	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0706-0708	●	●
126	BOLT; CLIP BRKT WHEEL BASE 5900MM(59W) M8X25 FLANGE	0-28650-825-0	02	1	0706-0708		●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0709-0804	●	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0709-0804		●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0805-	●	●
126	BOLT; CLIP BRKT WHEEL BASE 5900MM(59W) M8X25 FLANGE	0-28650-825-0	02	1	0805-		●
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0706-	●	●
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	04	1	0706-	●	●
126	BOLT; CLIP BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	03	1	0706-0708		●
127	NUT; CLIP BRKT WHEEL BASE 4500MM(45W) MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	03	1	0706-0708	●
127	NUT; CLIP BRKT WHEEL BASE 4500MM(45W) MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	03	1	0811-	●
127	NUT; CLIP BRKT WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	04	1	0902-	●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0706-0708	●	●
127	NUT; CLIP BRKT DUMP TRUCK<RA1> M8 FLANGE	0-91180-108-0	02	1	0706-0708	●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0706-0708		●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0709-0810	●	●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0709-0810	●	●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0811-	●	●
127	NUT; CLIP BRKT WHEEL BASE 4500MM(45W) DUMP TRUCK<RA1> M8 FLANGE	0-91180-108-0	02	1	0811-	●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W) M8 FLANGE	0-91180-108-0	02	1	0811-		●
127	NUT; CLIP BRKT WHEEL BASE 5900MM(59W) M8 FLANGE	0-91180-108-0	08	1	0706-0708		●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	08	1	0709-		●
127	NUT; CLIP BRKT WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	15	1	0706-0708		●
128	CLIP; NYLON TUBE WHEEL BASE 4500MM(45W) (B) L=350	1-09707-183-0	09	1	0706-	●
128	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) (B) L=350	1-09707-183-0	10	1	0902-	●
128	CLIP; NYLON TUBE (A) ID=31 H=30 L=35	1-09700-994-0	02	1	0706-		●
128	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W) (B) L=350	1-09707-183-0	14	1	0706-0708		●
128	CLIP; NYLON TUBE (B) L=350	1-09707-183-0	14	1	0709-		●
128	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) (B) L=350	1-09707-183-0	17	1	0706-0708		●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	03	1	0901-	●
133	BOLT; BRKT MIXER TRUCK<RA2> M8X25 FLANGE	0-28650-825-0	01	1	0706-0708	●
133	BOLT; BRKT MIXER TRUCK<RA2> M8X25 FLANGE	0-28650-825-0	01	1	0811-	●
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	0706-0708	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0706-0708		●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0709-0810	●	●
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	0811-	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0811-		●
133	BOLT; BRKT WHEEL BASE 4500MM(45W) DUMP TRUCK<RA1> M8X30 FLANGE	0-28650-830-0	01	1	0706-0708	●
133	BOLT; BRKT WHEEL BASE 4500MM(45W) M8X30 FLANGE	0-28650-830-0	01	1	0709-0810	●
133	BOLT; BRKT WHEEL BASE 4500MM(45W) DUMP TRUCK<RA1> M8X30 FLANGE	0-28650-830-0	01	1	0811-	●
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	0706-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	06	1	0706-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	06	1	0706-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	07	1	0706-0812	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	05	1	0901-	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0706-0901	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0902-	●	●
133	BOLT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) WHEEL BASE 4900MM(49W) M8X35 FLANGE	0-28650-835-0	01	1	0902-	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	07	1	0901-		●
133	BOLT; BRKT WHEEL BASE 5900MM(59W) M8X25 FLANGE	0-28650-825-0	02	1	0706-0708		●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0709-		●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	03	1	0706-0708		●
269	CLIP; BAND,NYLON TUBE (C) ID=13	1-09701-030-1	03	1	0706-	●	●
269	CLIP; BAND,NYLON TUBE (A)	1-09701-306-0	06	1	0706-	●	●
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	03	1	0706-	●	●
270	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0706-	●	●
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	02	1	0706-0706	●	●
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	03	1	0707-	●	●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	02	1	0706-	●	●
270	CLIP; NYLON TUBE (A) ID=26 L=26	1-09701-236-0	01	1	0706-0706	●	●
297	NUT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	01	1	0902-	●
297	NUT; BRKT WHEEL BASE 4500MM(45W) DUMP TRUCK<RA1> M8 FLANGE	0-91180-108-0	15	1	0706-0708	●
297	NUT; BRKT WHEEL BASE 4500MM(45W) M8 FLANGE	0-91180-108-0	15	1	0709-0810	●
297	NUT; BRKT WHEEL BASE 4500MM(45W) DUMP TRUCK<RA1> M8 FLANGE	0-91180-108-0	15	1	0811-	●
297	NUT; BRKT WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	09	1	0902-	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0706-0708	●	●
297	NUT; BRKT WHEEL BASE 4500MM(45W) MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	08	1	0706-0708	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0709-0810	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0811-	●	●
297	NUT; BRKT WHEEL BASE 4500MM(45W) MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	08	1	0811-	●
297	NUT; BRKT WHEEL BASE 5900MM(59W) M8 FLANGE	0-91180-108-0	11	1	0706-0708		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	11	1	0709-		●
297	NUT; BRKT WHEEL BASE 5900MM(59W) M8 FLANGE	0-91180-108-0	12	1	0706-0708		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	12	1	0709-		●
297	NUT; BRKT WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	35	1	0706-0708		●
299	NUT; CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	0706-0708	●
299	NUT; CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	0811-0907	●
299	NUT; CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	03	1	0908-	●
357	BOLT; CLIP FIX M8X10 FLANGE	0-28050-810-0	02	1	0706-	●	●

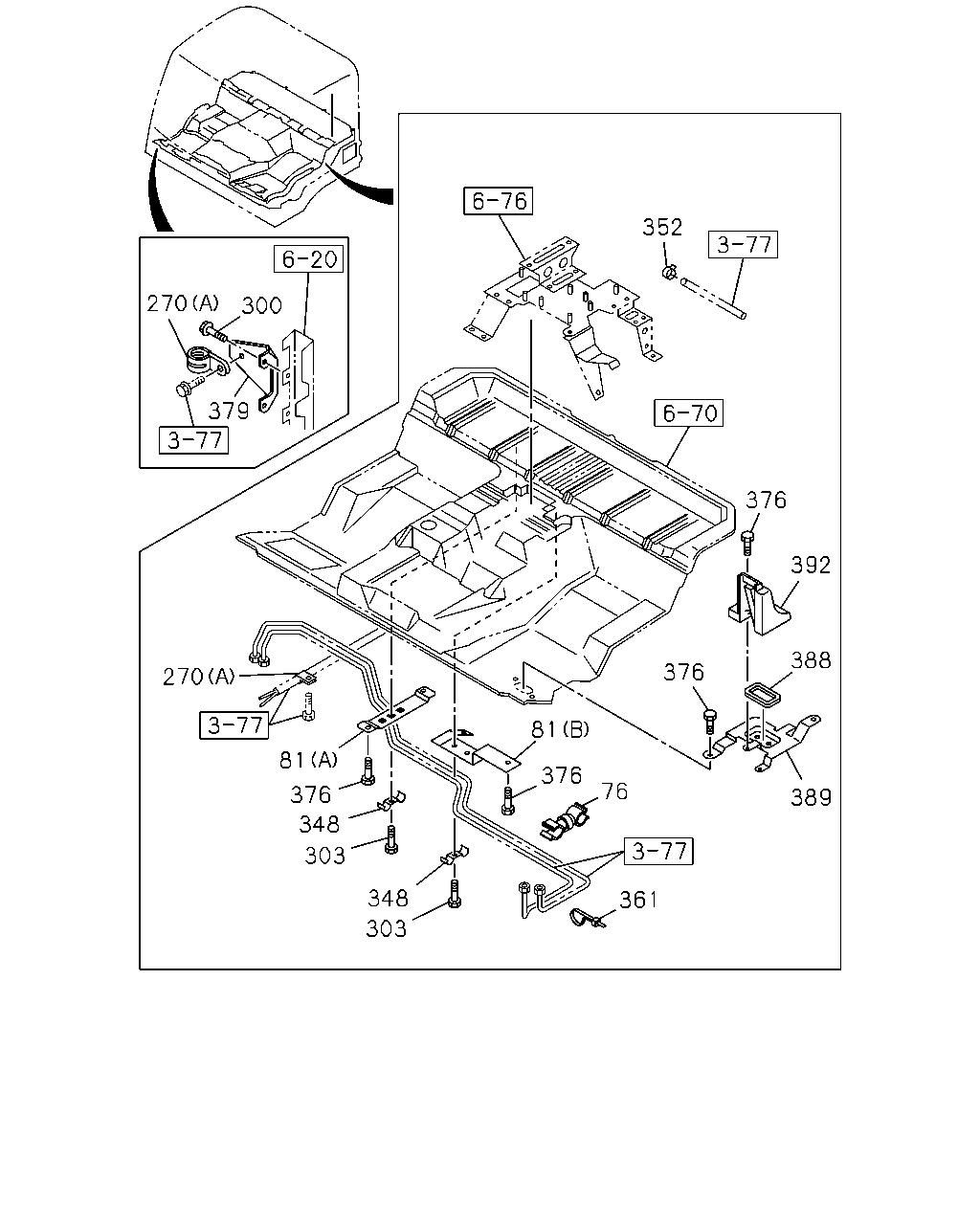

352 270 300 379 376 392 388 376 270 81 81 376 76 376 389 348 303 348 361 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
76	CLIP; NYLON TUBE ID=6 & 8.3	8-94167-742-0	01	1	0706-	●	●
81	BRACKET; CLIP (D) W/STUD M8X20	1-47471-209-0	02	1	0706-	●	●
81	BRACKET; CLIP (E) L=150	1-47471-217-0	02	1	0706-	●	●
81	BRACKET; CLIP (F) L=100 H=30	1-47477-645-2	04	1	0706-	●	●
81	BRACKET; CLIP (G)	1-47478-113-0	02	1	0706-	●	●
81	BRACKET; CLIP (C)	1-47479-381-2	04	1	0706-	●	●
81	BRACKET; CLIP (B)	1-79996-133-2	01	1	0706-	●	●
81	BRACKET; CLIP (A)	1-79996-127-2	01	1	0706-	●	●
270	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0706-	●	●
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	02	1	0706-0706	●	●
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	03	1	0707-	●	●
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	02	1	0706-	●	●
270	CLIP; NYLON TUBE (A) ID=26 L=26	1-09701-236-0	01	1	0706-0706	●	●
300	BOLT; TUBE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0706-	●	●
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0706-	●	●
348	CLIP; AIR PIPE ID=9 & 9 L=15 & 15	1-09700-061-0	01	1	0706-	●	●
348	CLIP; AIR PIPE ID=11 & 9 L=15 & 15	1-09700-062-0	03	1	0706-	●	●
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	0706-	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE L=250	5-09707-030-1	01	1	0706-	●	●
376	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0706-	●	●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0706-	●	●
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0706-0904	●	●
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-	●	●
379	BRACKET; NYLON TUBE	1-79996-110-2	01	1	0706-	●	●
388	SEAL L=215	1-79738-794-1	01	1	0706-	●	●
389	BRACKET; UNION	1-79738-790-1	01	1	0706-	●	●
392	COVER; BRKT	1-73996-264-1	01	1	0706-	●	●

107 81 107 81 71 71 107 106 133 16 22 16 22 81 106 22 81 106 106 106 106 106 106 106 106 81 22 22 16 22 16

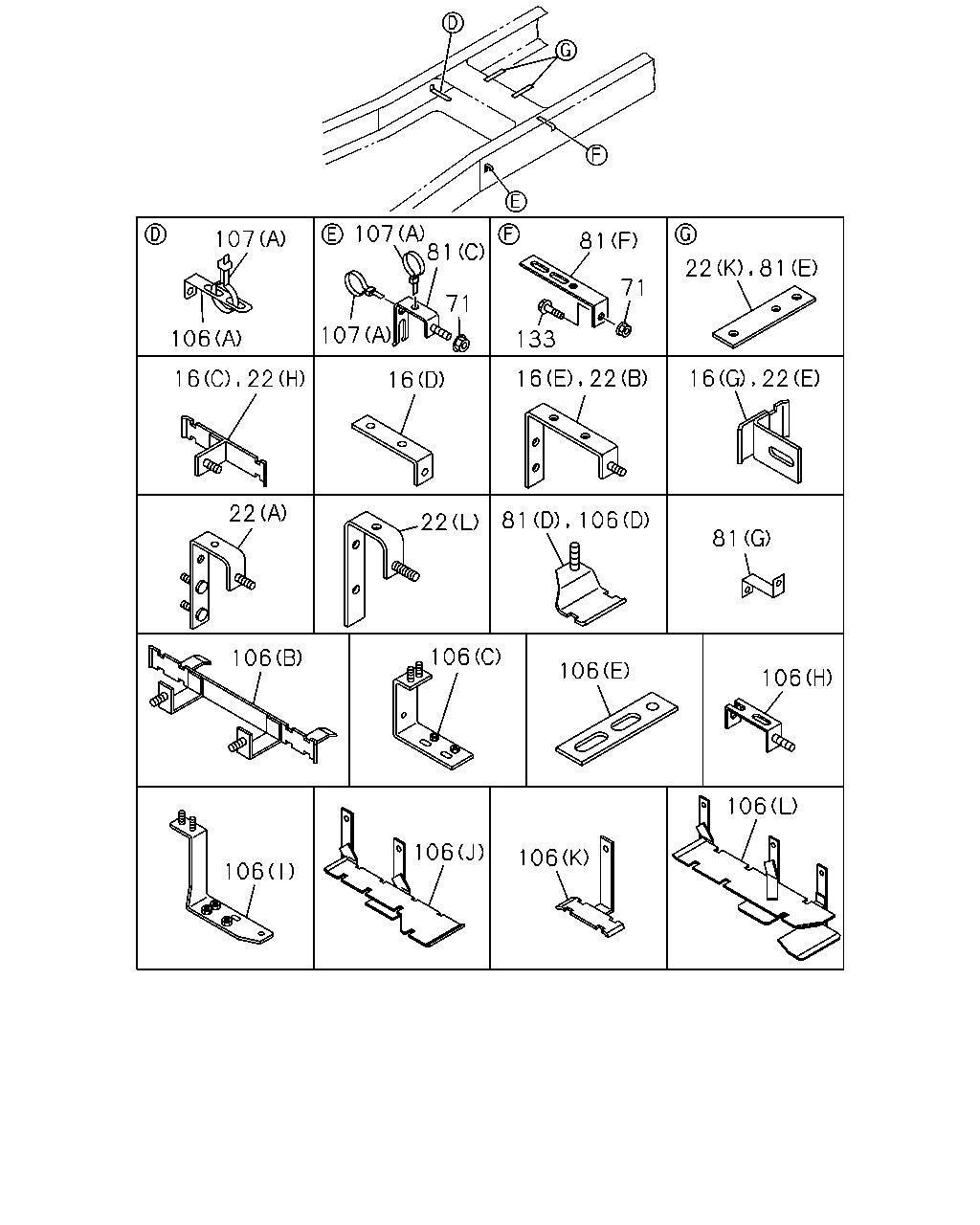

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	BRACKET; PIPE CLIP MIXER TRUCK<RA2> (G)	1-47479-693-0	01	1	0706-0708	●
16	BRACKET; PIPE CLIP MIXER TRUCK<RA2> (G)	1-47479-693-0	01	1	0811-	●
16	BRACKET; PIPE CLIP WHEEL BASE 4500MM(45W) (I)	1-47479-381-2	04	1	0706-	●
16	BRACKET; PIPE CLIP WHEEL BASE 4900MM(49W) (I)	1-47479-381-2	05	1	0902-	●
16	BRACKET; PIPE CLIP (D) L=30	1-47479-481-0	01	1	0706-	●	●
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	01	1	0706-	●	●
16	BRACKET; PIPE CLIP (C)	1-47479-554-0	01	1	0706-	●	●
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	01	1	0706-	●	●
16	BRACKET; PIPE CLIP (H)	1-47479-721-0	02	1	0706-	●	●
16	BRACKET; PIPE CLIP (J)	1-47479-722-1	01	1	0706-	●	●
16	BRACKET; PIPE CLIP (B)	1-47479-898-0	01	1	0706-	●	●
16	BRACKET; PIPE CLIP (E)	1-47479-800-0	01	1	0706-		●
16	BRACKET; PIPE CLIP WHEEL BASE 5900MM(59W) (I)	1-47479-381-2	03	1	0706-0708		●
16	BRACKET; PIPE CLIP (I)	1-47479-381-2	03	1	0709-		●
16	BRACKET; PIPE CLIP WHEEL BASE 5900MM(59W) (G)	1-47479-693-0	02	1	0706-0708		●
16	BRACKET; PIPE CLIP (G)	1-47479-693-0	02	1	0709-		●
16	BRACKET; PIPE CLIP WHEEL BASE 6600MM(66W) (I)	1-47479-381-2	09	1	0706-0708		●
16	BRACKET; PIPE CLIP WHEEL BASE 6600MM(66W) (G)	1-47479-693-0	03	1	0706-0708		●
22	BRACKET; CLIP MIXER TRUCK<RA2> (E)	1-47479-693-0	01	1	0706-0708	●
22	BRACKET; CLIP MIXER TRUCK<RA2> (E)	1-47479-693-0	01	1	0811-	●
22	BRACKET; CLIP EXC. MIXER TRUCK<RA2> (J) L=100 H=30	1-47477-645-2	01	1	0706-0708	●
22	BRACKET; CLIP (J) L=100 H=30	1-47477-645-2	01	1	0706-0708		●
22	BRACKET; CLIP (J) L=100 H=30	1-47477-645-2	01	1	0709-0810	●	●
22	BRACKET; CLIP EXC. MIXER TRUCK<RA2> (J) L=100 H=30	1-47477-645-2	01	1	0811-0901	●
22	BRACKET; CLIP (J) L=100 H=30	1-47477-645-2	01	1	0811-0901		●
22	BRACKET; CLIP EXC. MIXER TRUCK<RA2> (J) L=100 H=30	1-47477-645-2	01	1	0902-	●
22	BRACKET; CLIP TRANSMISSION SIDE PTO WO/LEVER(SH5) WHEEL BASE 4900MM(49W) (J) L=100 H=30	1-47477-645-2	01	1	0902-	●
22	BRACKET; CLIP (J) L=100 H=30	1-47477-645-2	01	1	0902-		●
22	BRACKET; CLIP WHEEL BASE 4500MM(45W) (A)	1-47479-329-0	01	1	0706-0708	●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (A)	1-47479-329-0	01	1	0706-0708		●
22	BRACKET; CLIP WHEEL BASE 4500MM(45W) (A)	1-47479-329-0	01	1	0709-	●
22	BRACKET; CLIP WHEEL BASE 4500MM(45W) (F)	1-47479-381-2	04	1	0706-0708	●
22	BRACKET; CLIP WHEEL BASE 5900MM(59W) (F)	1-47479-381-2	04	1	0706-0708		●
22	BRACKET; CLIP (F)	1-47479-381-2	04	1	0709-0804	●	●
22	BRACKET; CLIP WHEEL BASE 4500MM(45W) (F)	1-47479-381-2	04	1	0805-	●
22	BRACKET; CLIP WHEEL BASE 5900MM(59W) (F)	1-47479-381-2	04	1	0805-		●
22	BRACKET; CLIP WHEEL BASE 4900MM(49W) (L)	1-47479-333-0	01	1	0902-	●
22	BRACKET; CLIP WHEEL BASE 4900MM(49W) (F)	1-47479-381-2	05	1	0902-	●
22	BRACKET; CLIP (C)	1-47479-546-0	01	1	0706-	●	●
22	BRACKET; CLIP (H)	1-47479-554-0	01	1	0706-	●	●
22	BRACKET; CLIP (D)	1-47479-720-0	01	1	0706-	●	●
22	BRACKET; CLIP (I)	1-47479-722-1	01	1	0706-	●	●
22	BRACKET; CLIP (B)	1-47479-800-0	01	1	0706-	●	●
22	BRACKET; CLIP (G)	1-47479-898-0	01	1	0706-	●	●
22	BRACKET; CLIP WHEEL BASE 5900MM(59W) (A)	1-47471-188-0	01	1	0706-0708		●
22	BRACKET; CLIP (A)	1-47471-188-0	01	1	0709-		●
22	BRACKET; CLIP WHEEL BASE 5900MM(59W) (E)	1-47479-693-0	02	1	0706-0708		●
22	BRACKET; CLIP (E)	1-47479-693-0	02	1	0709-		●
22	BRACKET; CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) (K) L=130	1-47478-959-0	02	1	0706-0708		●
22	BRACKET; CLIP (K) L=130	1-47478-959-0	02	1	0709-0804		●
22	BRACKET; CLIP WHEEL BASE 5900MM(59W) (K) L=130	1-47478-959-0	02	1	0805-		●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (F)	1-47479-381-2	09	1	0706-0708		●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (E)	1-47479-693-0	03	1	0706-0708		●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	13	1	0706-	●	●
81	BRACKET; CLIP (D) W/STUD M8X20	1-47471-209-0	02	1	0706-	●	●
81	BRACKET; CLIP (E) L=150	1-47471-217-0	02	1	0706-	●	●
81	BRACKET; CLIP (F) L=100 H=30	1-47477-645-2	04	1	0706-	●	●
81	BRACKET; CLIP (G)	1-47478-113-0	02	1	0706-	●	●
81	BRACKET; CLIP (C)	1-47479-381-2	04	1	0706-	●	●
81	BRACKET; CLIP (B)	1-79996-133-2	01	1	0706-	●	●
81	BRACKET; CLIP (A)	1-79996-127-2	01	1	0706-	●	●
106	BRACKET; TUBE CLIP (I)	1-47471-108-0	01	1	0706-	●
106	BRACKET; TUBE CLIP (J)	1-47471-144-0	01	1	0706-0812	●
106	BRACKET; TUBE CLIP (L)	8-98122-297-0	01	1	0901-	●
106	BRACKET; TUBE CLIP (K)	1-47479-870-0	01	1	0706-	●
106	BRACKET; TUBE CLIP (D) W/STUD M8X20	1-47471-209-0	02	1	0706-	●	●
106	BRACKET; TUBE CLIP (H)	1-47471-450-0	01	1	0706-	●	●
106	BRACKET; TUBE CLIP (E)	1-47477-514-3	01	1	0706-	●	●
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	02	1	0706-	●	●
106	BRACKET; TUBE CLIP (G)	1-47477-746-0	01	1	0706-	●	●
106	BRACKET; TUBE CLIP (F)	1-47479-381-2	03	1	0706-	●	●
106	BRACKET; TUBE CLIP (B)	1-47479-553-0	01	1	0706-	●	●
106	BRACKET; TUBE CLIP (C)	1-47479-754-0	01	1	0706-		●
107	CLIP; NYLON TUBE (A) L=600	1-09707-107-1	02	1	1203-	●	●
107	CLIP; NYLON TUBE (B) ID=19 L=60	0-95235-896-0	01	1	0706-	●	●
107	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	02	1	0706-	●	●
107	CLIP; NYLON TUBE (C) ID=28 H=45 L=30	1-09700-948-0	01	1	0706-	●	●
107	CLIP; NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	02	1	0706-	●	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	16	1	0706-1202	●	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	14	1	1203-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	03	1	0901-	●
133	BOLT; BRKT MIXER TRUCK<RA2> M8X25 FLANGE	0-28650-825-0	01	1	0706-0708	●
133	BOLT; BRKT MIXER TRUCK<RA2> M8X25 FLANGE	0-28650-825-0	01	1	0811-	●
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	0706-0708	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0706-0708		●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0709-0810	●	●
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	0811-	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0811-		●
133	BOLT; BRKT WHEEL BASE 4500MM(45W) DUMP TRUCK<RA1> M8X30 FLANGE	0-28650-830-0	01	1	0706-0708	●
133	BOLT; BRKT WHEEL BASE 4500MM(45W) M8X30 FLANGE	0-28650-830-0	01	1	0709-0810	●
133	BOLT; BRKT WHEEL BASE 4500MM(45W) DUMP TRUCK<RA1> M8X30 FLANGE	0-28650-830-0	01	1	0811-	●
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	0706-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	06	1	0706-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	06	1	0706-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	07	1	0706-0812	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	05	1	0901-	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0706-0901	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0902-	●	●
133	BOLT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) WHEEL BASE 4900MM(49W) M8X35 FLANGE	0-28650-835-0	01	1	0902-	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	07	1	0901-		●
133	BOLT; BRKT WHEEL BASE 5900MM(59W) M8X25 FLANGE	0-28650-825-0	02	1	0706-0708		●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0709-		●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	03	1	0706-0708		●

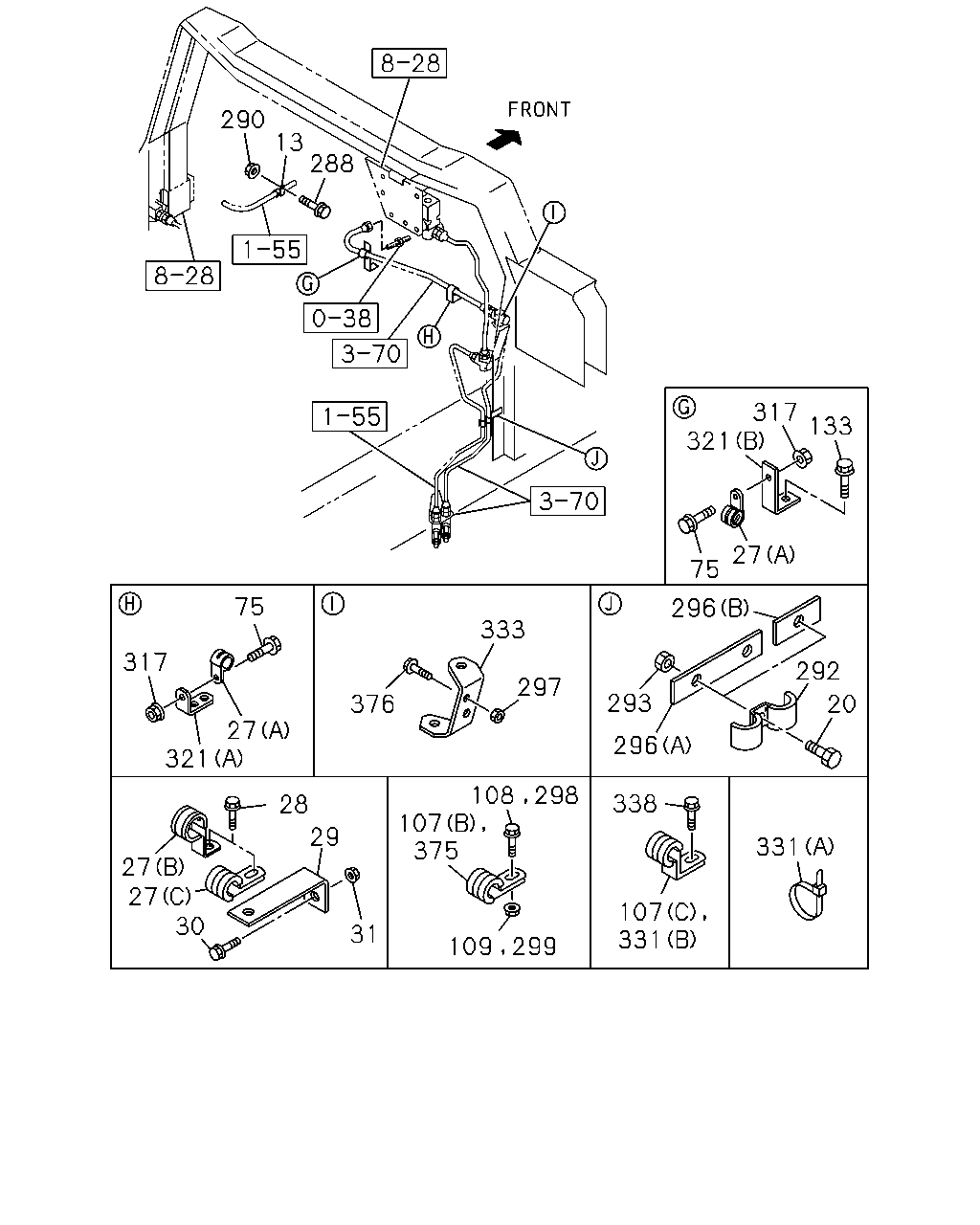

290 13 288 317 321 133 27 75 75 296 333 317 292 297 293 376 20 27 321 296 107 375 338 28 29 331 27 27 30 107 331 31 108 298 299 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	01	1	0706-	●	●
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0706-	●	●
27	CLIP; FLEX HOSE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	0706-	●
27	CLIP; FLEX HOSE EXC. MIXER TRUCK<RA2> (A) ID=15 L=28	1-09701-216-0	02	1	0706-0708	●
27	CLIP; FLEX HOSE (A) ID=15 L=28	1-09701-216-0	02	1	0706-0708		●
27	CLIP; FLEX HOSE (A) ID=15 L=28	1-09701-216-0	02	1	0709-0810	●	●
27	CLIP; FLEX HOSE EXC. MIXER TRUCK<RA2> (A) ID=15 L=28	1-09701-216-0	02	1	0811-	●
27	CLIP; FLEX HOSE (A) ID=15 L=28	1-09701-216-0	02	1	0811-		●
27	CLIP; FLEX HOSE (C) ID=26 L=27	1-09701-006-0	01	1	0706-		●
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	02	1	0706-	●
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	01	1	0706-		●
29	BRACKET; CLIP,AIR PIPE L=60	1-47476-217-0	01	1	0706-	●
29	BRACKET; CLIP,AIR PIPE L=95	1-82699-085-0	01	1	0706-		●
30	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0706-	●	●
31	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0706-		●
75	BOLT; CLIP EXC. MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	02	1	0706-0708	●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0706-0708		●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0709-0810	●	●
75	BOLT; CLIP EXC. MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	02	1	0811-	●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0811-		●
107	CLIP; NYLON TUBE (A) L=600	1-09707-107-1	02	1	1203-	●	●
107	CLIP; NYLON TUBE (B) ID=19 L=60	0-95235-896-0	01	1	0706-	●	●
107	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	02	1	0706-	●	●
107	CLIP; NYLON TUBE (C) ID=28 H=45 L=30	1-09700-948-0	01	1	0706-	●	●
107	CLIP; NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	02	1	0706-	●	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	16	1	0706-1202	●	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	14	1	1203-	●	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	04	1	0706-	●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	08	1	0706-	●	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	01	1	0706-	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	06	1	0706-	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	03	1	0901-	●
133	BOLT; BRKT MIXER TRUCK<RA2> M8X25 FLANGE	0-28650-825-0	01	1	0706-0708	●
133	BOLT; BRKT MIXER TRUCK<RA2> M8X25 FLANGE	0-28650-825-0	01	1	0811-	●
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	0706-0708	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0706-0708		●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0709-0810	●	●
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	0811-	●
133	BOLT; BRKT M6X10 FLANGE	0-28050-610-0	01	1	0811-		●
133	BOLT; BRKT WHEEL BASE 4500MM(45W) DUMP TRUCK<RA1> M8X30 FLANGE	0-28650-830-0	01	1	0706-0708	●
133	BOLT; BRKT WHEEL BASE 4500MM(45W) M8X30 FLANGE	0-28650-830-0	01	1	0709-0810	●
133	BOLT; BRKT WHEEL BASE 4500MM(45W) DUMP TRUCK<RA1> M8X30 FLANGE	0-28650-830-0	01	1	0811-	●
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	0706-	●	●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	06	1	0706-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	06	1	0706-	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	07	1	0706-0812	●	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	05	1	0901-	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0706-0901	●	●
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0902-	●	●
133	BOLT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) WHEEL BASE 4900MM(49W) M8X35 FLANGE	0-28650-835-0	01	1	0902-	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	07	1	0901-		●
133	BOLT; BRKT WHEEL BASE 5900MM(59W) M8X25 FLANGE	0-28650-825-0	02	1	0706-0708		●
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0709-		●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	03	1	0706-0708		●
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	01	1	0706-	●	●
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-208-0	01	1	0706-	●	●
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0706-	●	●
293	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0706-	●	●
296	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	0706-	●	●
296	BRACKET; CLIP (B)	1-47475-648-0	01	1	0706-	●	●
297	NUT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	01	1	0902-	●
297	NUT; BRKT WHEEL BASE 4500MM(45W) DUMP TRUCK<RA1> M8 FLANGE	0-91180-108-0	15	1	0706-0708	●
297	NUT; BRKT WHEEL BASE 4500MM(45W) M8 FLANGE	0-91180-108-0	15	1	0709-0810	●
297	NUT; BRKT WHEEL BASE 4500MM(45W) DUMP TRUCK<RA1> M8 FLANGE	0-91180-108-0	15	1	0811-	●
297	NUT; BRKT WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	09	1	0902-	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0706-0708	●	●
297	NUT; BRKT WHEEL BASE 4500MM(45W) MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	08	1	0706-0708	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0709-0810	●	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0811-	●	●
297	NUT; BRKT WHEEL BASE 4500MM(45W) MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	08	1	0811-	●
297	NUT; BRKT WHEEL BASE 5900MM(59W) M8 FLANGE	0-91180-108-0	11	1	0706-0708		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	11	1	0709-		●
297	NUT; BRKT WHEEL BASE 5900MM(59W) M8 FLANGE	0-91180-108-0	12	1	0706-0708		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	12	1	0709-		●
297	NUT; BRKT WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	35	1	0706-0708		●
298	BOLT; CLIP MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	0706-0708	●
298	BOLT; CLIP MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	0811-0907	●
298	BOLT; CLIP MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	03	1	0908-	●
299	NUT; CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	0706-0708	●
299	NUT; CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	0811-0907	●
299	NUT; CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	03	1	0908-	●
317	NUT; CLIP EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	02	1	0706-0708	●
317	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0706-0708		●
317	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0709-0810	●	●
317	NUT; CLIP EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	02	1	0811-	●
317	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0811-		●
321	BRACKET; CLIP EXC. MIXER TRUCK<RA2> (A)	1-47477-337-1	01	1	0706-0708	●
321	BRACKET; CLIP (A)	1-47477-337-1	01	1	0706-0708		●
321	BRACKET; CLIP (A)	1-47477-337-1	01	1	0709-0810	●	●
321	BRACKET; CLIP EXC. MIXER TRUCK<RA2> (A)	1-47477-337-1	01	1	0811-	●
321	BRACKET; CLIP (A)	1-47477-337-1	01	1	0811-		●
321	BRACKET; CLIP EXC. MIXER TRUCK<RA2> (B) L=75	1-47478-328-0	01	1	0706-0708	●
321	BRACKET; CLIP (B) L=75	1-47478-328-0	01	1	0706-0708		●
321	BRACKET; CLIP (B) L=75	1-47478-328-0	01	1	0709-0810	●	●
321	BRACKET; CLIP EXC. MIXER TRUCK<RA2> (B) L=75	1-47478-328-0	01	1	0811-	●
321	BRACKET; CLIP (B) L=75	1-47478-328-0	01	1	0811-		●
331	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	02	1	0706-	●	●
331	CLIP; NYLON TUBE (B) ID=13 H=75 L=25	1-09700-601-0	02	1	0706-		●
333	BRACKET; BRK AIR PIPE	1-47477-045-0	01	1	0706-	●	●
338	BOLT; PIPE CLIP M8X35 FLANGE	0-28650-835-0	02	1	0706-		●
375	CLIP; AIR PIPE MIXER TRUCK<RA2> ID=7 L=20	0-95234-635-0	02	1	0908-	●
376	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0706-	●	●
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0706-	●	●
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0706-0904	●	●
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
