◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11330 - CYZ MIDDLE EAST WITH 2STEPS ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#18086) — 211 parça

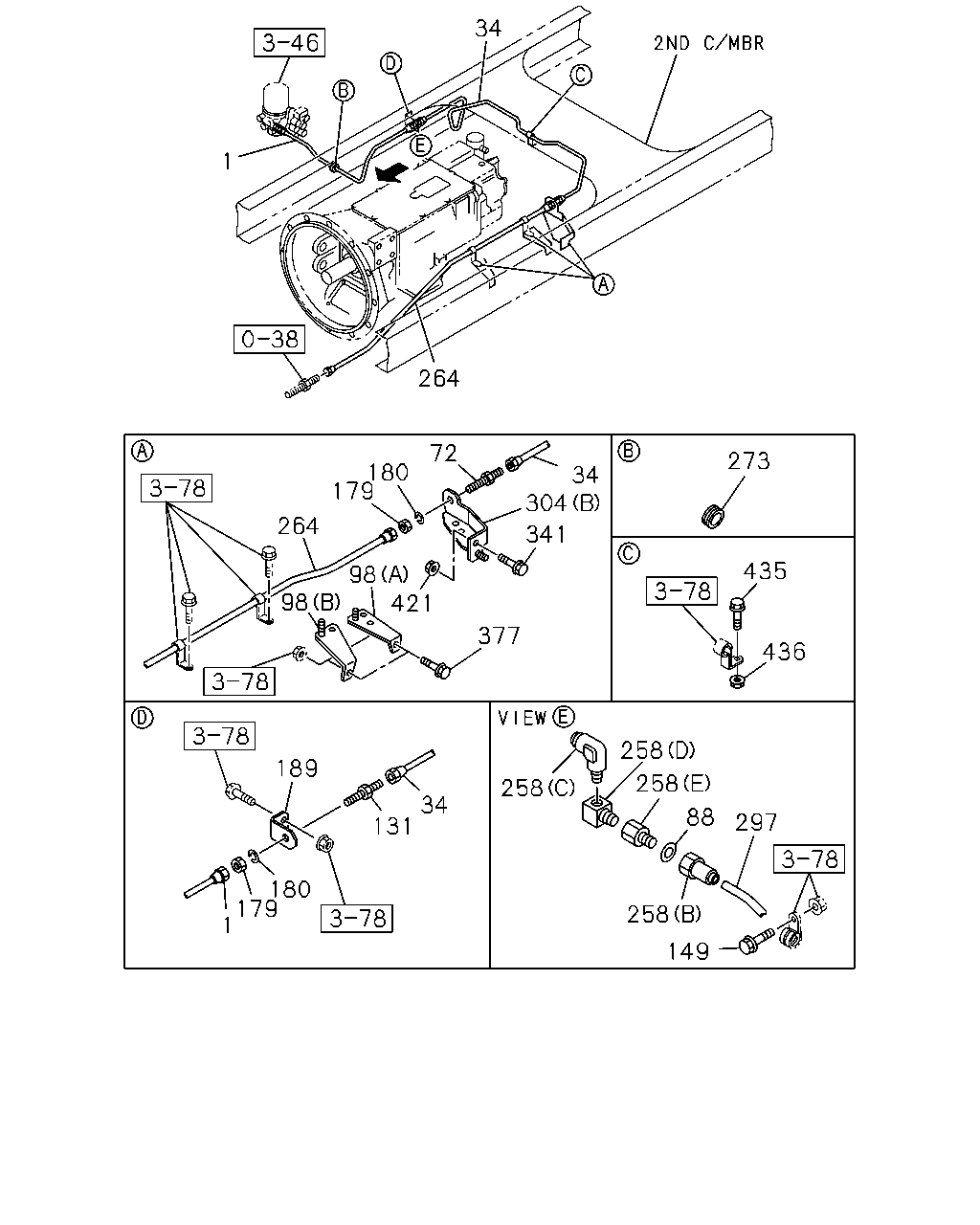

çizim 134342
34 1 264 72 273 180 179 34 304 264 341 435 98 98 421 377 436 258 189 258 258 34 88 297 131 180 179 1 258 149
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=1350 		1-09363-925-0 01 1 0706- ●
1 HOSE; FLEX,AIR TANK
L=660 		1-09363-766-0 01 1 0706- ●
34 PIPE; AIR
L=1126 		1-49124-667-0 01 1 0706- ● ●
72 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 0706- ● ●
88 GASKET; NYLON TUBE
ID=14.2 OD=23.0 		9-09572-014-0 01 1 0706- ● ●
98 BRACKET; AIR PIPE
(B) 		1-47479-639-0 01 1 0706- ● ●
98 BRACKET; AIR PIPE
(A) 		1-47479-723-0 01 1 0706- ● ●
131 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 0706- ● ●
149 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0706- ● ●
179 NUT; UNION
M22 		0-91111-522-0 02 1 0706- ● ●
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 02 1 0706- ● ●
189 BRACKET; FLEX HOSE 1-47479-473-0 01 1 0706- ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0706- ● ●
258 CONNECTOR; NYLON TUBE
(D) 		1-09661-303-0 01 1 0706- ● ●
258 CONNECTOR; NYLON TUBE
(E) 		1-48319-059-0 01 1 0706- ● ●
258 CONNECTOR; NYLON TUBE
ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0706- ● ●
258 CONNECTOR; NYLON TUBE
ASSISTOR SHIFT CONTROL<WX8> (A) PT3/8 3WAY 		1-09661-300-0 01 1 0706- ● ●
264 HOSE; FLEX
L=1000 		1-09363-794-0 01 1 0706- ● ●
273 GROMMET
ID=28 OD=35 T=25 		1-09332-011-1 01 1 0706- ● ●
297 TUBE; NYLON
MIXER TRUCK<RA2> L=200 OD=12 		1-49219-176-0 01 1 0706-0708 ●
297 TUBE; NYLON
MIXER TRUCK<RA2> L=200 OD=12 		1-49219-176-0 01 1 0811-0901 ●
297 TUBE; NYLON
MIXER TRUCK<RA2> MAL6 M/T<X9G> L=200 OD=12 		1-49219-176-0 01 1 0902- ●
297 TUBE; NYLON
EXC. MIXER TRUCK<RA2> L=270 OD=12 		1-49219-177-0 01 1 0706-0708 ●
297 TUBE; NYLON
L=270 OD=12 		1-49219-177-0 01 1 0706-0708 ●
297 TUBE; NYLON
L=270 OD=12 		1-49219-177-0 01 1 0709-0810 ● ●
297 TUBE; NYLON
EXC. MIXER TRUCK<RA2> L=270 OD=12 		1-49219-177-0 01 1 0811-0901 ●
297 TUBE; NYLON
L=270 OD=12 		1-49219-177-0 01 1 0811-0901 ●
297 TUBE; NYLON
MAL6 M/T<X9G> EXC. MIXER TRUCK<RA2> L=270 OD=12 		1-49219-177-0 01 1 0902- ●
297 TUBE; NYLON
L=270 OD=12 		1-49219-177-0 01 1 0902- ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0902- ● ●
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 0706- ● ●
304 BRACKET; UNION
(B) 		8-97610-319-1 01 1 0706- ● ●
341 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0706- ● ●
377 BOLT; BRKT FIX
M8X35 FLANGE 		0-28650-835-0 02 1 0706- ● ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0706- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0706- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0706- ● ●

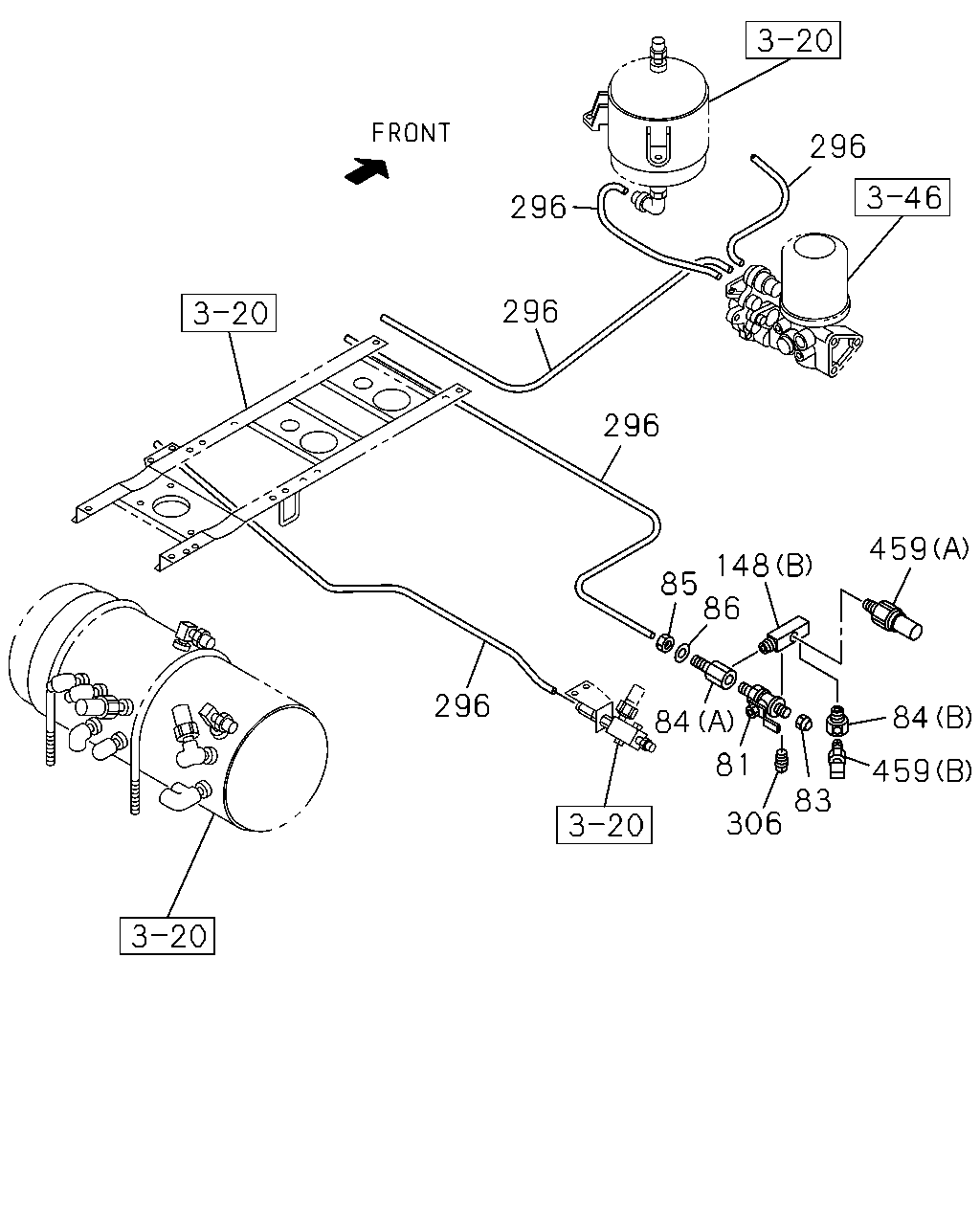

çizim 134343
296 296 296 296 459 148 85 86 84 296 84 81 459 83 306
BalonParca AdiParca NoAdetTipApplied Date A B
81 COCK; AIR
TIRE INFLATOR DEVICE<SG4> 		1-09680-099-0 01 1 0706- ● ●
83 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> 		9-48319-102-0 01 1 0706- ● ●
84 UNION; NYLON TUBE
(B) PT1/4 2WAY 		1-09660-693-0 01 1 0706-0804 ● ●
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 0706- ● ●
85 NUT; UNION
M18 		0-91110-518-0 01 1 0706- ● ●
86 WASHER; LK,TUBE UNION
ID=18.2 		0-91510-518-0 01 1 0706- ● ●
148 CONNECTOR; UNION
(B) PT1/4 4WAY 		1-09660-358-0 01 1 0706- ● ●
148 CONNECTOR; UNION
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0706- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0706- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0706- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0706- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0706- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0706- ● ●
306 PLUG; NYLON TUBE
TIRE INFLATOR DEVICE<SG4> PT1/4 		9-99204-513-0 01 1 0706- ● ●
306 PLUG; NYLON TUBE
EXC. TIRE INFLATOR DEVICE<SG4> PT1/4 		9-99204-513-0 02 1 0706- ● ●
459 SWITCH; PRESS
(A) 		1-48340-058-2 01 1 0706- ● ●
459 SWITCH; PRESS
(B) THREAD R1/4 		1-80220-023-1 01 1 0706- ● ●

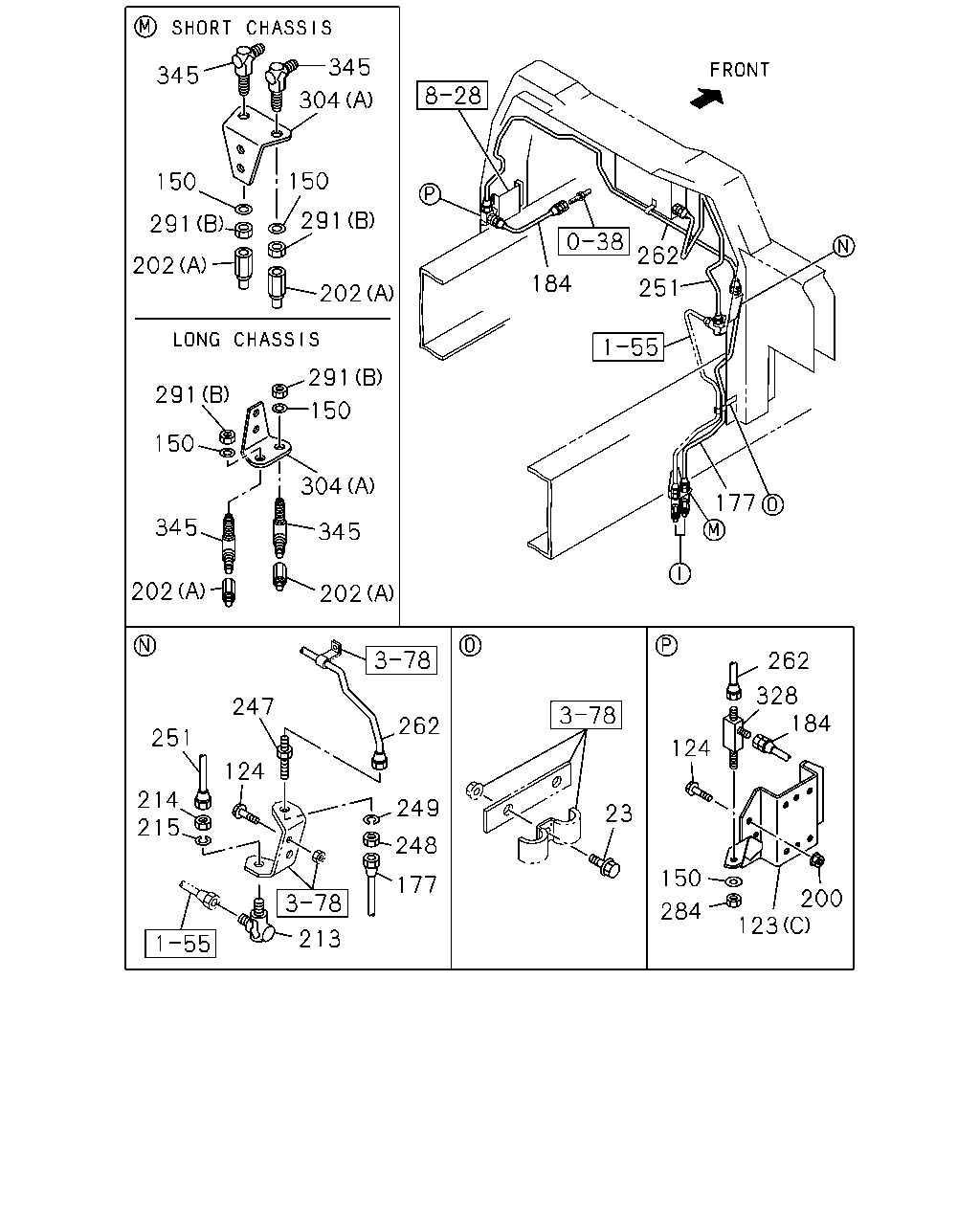

çizim 134348
345 345 304 150 150 291 291 262 202 184 251 202 291 291 150 150 304 177 345 345 202 202 262 328 184 247 262 251 124 124 214 215 249 23 248 150 177 200 123 284 213
BalonParca AdiParca NoAdetTipApplied Date A B
23 BOLT; BRKT,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0706- ● ●
123 BRACKET; UNION
MIXER TRUCK<RA2> (C) 		1-82569-367-1 01 1 0908- ●
123 BRACKET; UNION
(A) 		1-47479-401-0 01 1 0706- ● ●
123 BRACKET; UNION
(B) 		1-53457-161-0 01 1 0706- ● ●
124 BOLT; BRKT
MIXER TRUCK<RA2> M8X25 FLANGE 		0-28650-825-0 04 1 0908- ●
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0706- ● ●
150 WASHER; LK,UNION
MIXER TRUCK<RA2> ID=12.2 		0-91510-512-0 01 1 0908- ●
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 0706- ● ●
177 PIPE; AIR,UNION TO UNION
WHEEL BASE 4500MM(45W) L=807 SERVICED BY L=900 		1-47428-813-0 01 1 0706-0901 ●
177 PIPE; AIR,UNION TO UNION
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) L=807 SERVICED BY L=900 		1-47428-813-0 01 1 0902- ●
177 PIPE; AIR,UNION TO UNION
L=714 SERVICED BY L=800 		1-47428-812-0 01 1 0706- ●
184 HOSE; FLEX,AIR GOV
MIXER TRUCK<RA2> L=370 		1-09363-771-0 01 1 0706-0708 ●
184 HOSE; FLEX,AIR GOV
MIXER TRUCK<RA2> L=370 		1-09363-771-0 01 1 0811- ●
184 HOSE; FLEX,AIR GOV
EXC. MIXER TRUCK<RA2> L=780 		1-09363-620-0 01 1 0706-0708 ●
184 HOSE; FLEX,AIR GOV
L=780 		1-09363-620-0 01 1 0706-0708 ●
184 HOSE; FLEX,AIR GOV
L=780 		1-09363-620-0 01 1 0709-0810 ● ●
184 HOSE; FLEX,AIR GOV
EXC. MIXER TRUCK<RA2> L=780 		1-09363-620-0 01 1 0811- ●
184 HOSE; FLEX,AIR GOV
L=780 		1-09363-620-0 01 1 0811- ●
200 NUT; BRKT
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 04 1 0908- ●
202 ADAPTER
(B) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0706- ● ●
202 ADAPTER
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0706- ● ●
213 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0706- ● ●
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0706- ● ●
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 0706- ● ●
247 UNION; AIR PIPE
MIXER TRUCK<RA2> M12 L=66.5 		0-92113-306-0 01 1 0706-0708 ●
247 UNION; AIR PIPE
MIXER TRUCK<RA2> M12 L=66.5 		0-92113-306-0 01 1 0811- ●
247 UNION; AIR PIPE
EXC. MIXER TRUCK<RA2> M12 ELBOW 		0-92125-206-0 01 1 0706-0708 ●
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0706-0708 ●
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0709-0810 ● ●
247 UNION; AIR PIPE
EXC. MIXER TRUCK<RA2> M12 ELBOW 		0-92125-206-0 01 1 0811- ●
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0811- ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0706- ● ●
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 0706- ● ●
251 PIPE; AIR,UNION TO MAG VLV
L=771 SERVICED BY L=800 		1-47428-812-0 01 1 0706- ● ●
262 PIPE; AIR,UNION TO FLEX
MIXER TRUCK<RA2> 		1-49124-345-0 01 1 0706-0708 ●
262 PIPE; AIR,UNION TO FLEX
MIXER TRUCK<RA2> 		1-49124-345-0 01 1 0811- ●
284 NUT; UNION
MIXER TRUCK<RA2> M12 		9-09840-280-0 01 1 0908- ●
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 0706- ● ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0706- ● ●
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 0706- ● ●
304 BRACKET; UNION
(B) 		8-97610-319-1 01 1 0706- ● ●
328 UNION; AIR PIPE
MIXER TRUCK<RA2> M12 2WAY 		1-09654-059-2 01 1 0908- ●
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 0706- ● ●

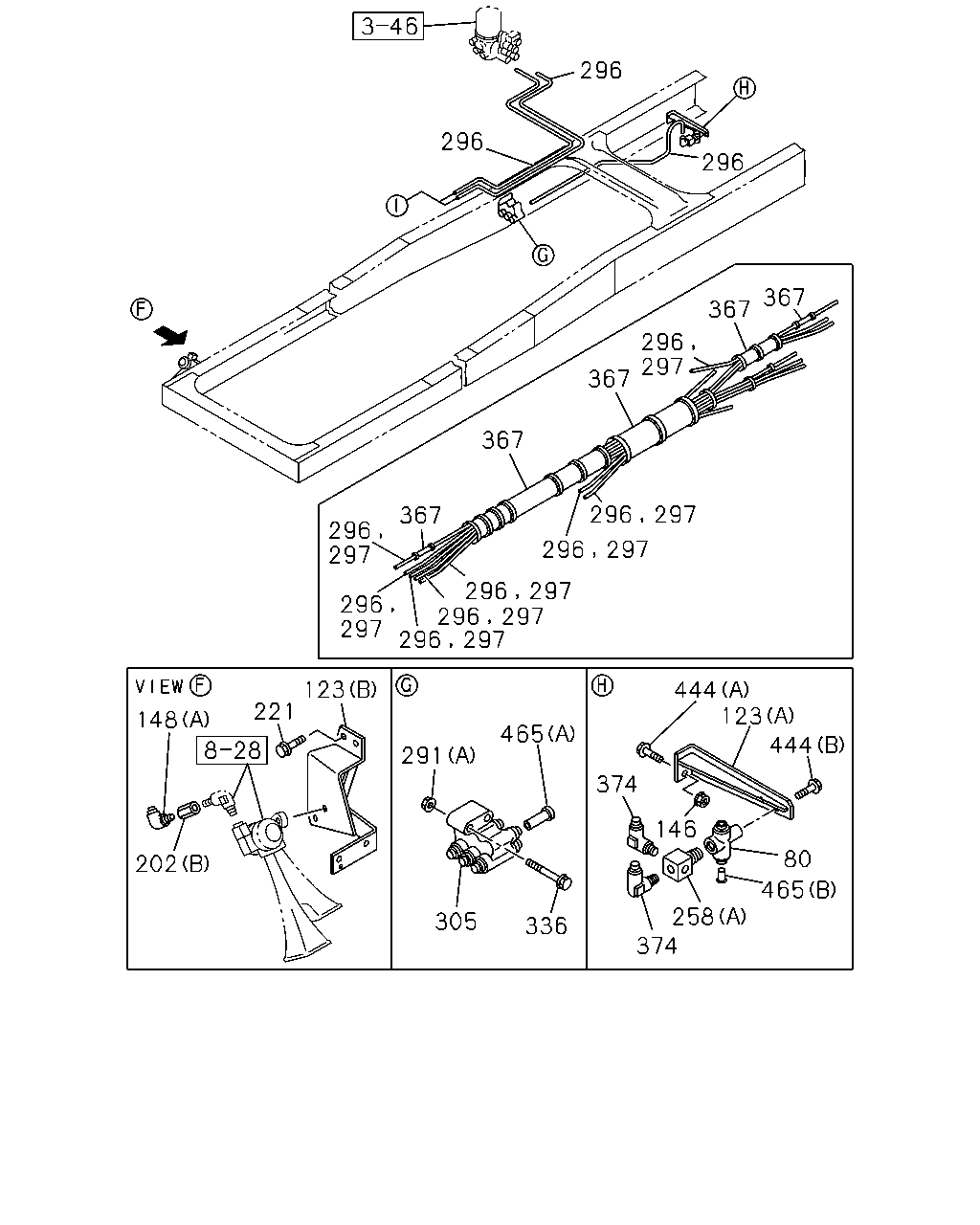

çizim 134358
296 296 296 367 367 296 297 367 367 367 296 297 296 297 123 444 123 221 148 465 444 291 374 146 80 202 465 258 305 336 374 297 296 296 297 297 296 296 297 297 296
BalonParca AdiParca NoAdetTipApplied Date A B
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0706- ● ●
123 BRACKET; UNION
MIXER TRUCK<RA2> (C) 		1-82569-367-1 01 1 0908- ●
123 BRACKET; UNION
(A) 		1-47479-401-0 01 1 0706- ● ●
123 BRACKET; UNION
(B) 		1-53457-161-0 01 1 0706- ● ●
146 NUT; UNION
M8 FLANGE 		0-91180-108-0 01 1 0706- ● ●
148 CONNECTOR; UNION
(B) PT1/4 4WAY 		1-09660-358-0 01 1 0706- ● ●
148 CONNECTOR; UNION
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0706- ● ●
202 ADAPTER
(B) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0706- ● ●
202 ADAPTER
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0706- ● ●
221 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 0706- ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0706- ● ●
258 CONNECTOR; NYLON TUBE
(D) 		1-09661-303-0 01 1 0706- ● ●
258 CONNECTOR; NYLON TUBE
(E) 		1-48319-059-0 01 1 0706- ● ●
258 CONNECTOR; NYLON TUBE
ASSISTOR SHIFT CONTROL<WX8> (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0706- ● ●
258 CONNECTOR; NYLON TUBE
ASSISTOR SHIFT CONTROL<WX8> (A) PT3/8 3WAY 		1-09661-300-0 01 1 0706- ● ●
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 0706- ● ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0706- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0706- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0706- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0706- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0706- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0706- ● ●
297 TUBE; NYLON
MIXER TRUCK<RA2> L=200 OD=12 		1-49219-176-0 01 1 0706-0708 ●
297 TUBE; NYLON
MIXER TRUCK<RA2> L=200 OD=12 		1-49219-176-0 01 1 0811-0901 ●
297 TUBE; NYLON
MIXER TRUCK<RA2> MAL6 M/T<X9G> L=200 OD=12 		1-49219-176-0 01 1 0902- ●
297 TUBE; NYLON
EXC. MIXER TRUCK<RA2> L=270 OD=12 		1-49219-177-0 01 1 0706-0708 ●
297 TUBE; NYLON
L=270 OD=12 		1-49219-177-0 01 1 0706-0708 ●
297 TUBE; NYLON
L=270 OD=12 		1-49219-177-0 01 1 0709-0810 ● ●
297 TUBE; NYLON
EXC. MIXER TRUCK<RA2> L=270 OD=12 		1-49219-177-0 01 1 0811-0901 ●
297 TUBE; NYLON
L=270 OD=12 		1-49219-177-0 01 1 0811-0901 ●
297 TUBE; NYLON
MAL6 M/T<X9G> EXC. MIXER TRUCK<RA2> L=270 OD=12 		1-49219-177-0 01 1 0902- ●
297 TUBE; NYLON
L=270 OD=12 		1-49219-177-0 01 1 0902- ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0902- ● ●
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 0706- ● ●
336 BOLT; PIPE UNION
M8X80 FLANGE 		0-28050-880-0 02 1 0706-0906 ● ●
336 BOLT; PIPE UNION
M8X70 FLANGE 		0-28050-870-0 02 1 0907- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0706- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0706- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0706- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 0706- ● ●
374 CONNECTOR
ASSISTOR SHIFT CONTROL<WX8> DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0706- ● ●
374 CONNECTOR
EXC. ASSISTOR SHIFT CONTROL<WX8> DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0706- ● ●
444 BOLT; UNION
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0706- ● ●
444 BOLT; UNION
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0706-0810 ● ●
444 BOLT; UNION
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0811- ● ●
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 0706-0708 ● ●
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 0706-0708 ● ●
465 PLUG
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27 		1-09661-615-0 01 1 0706-0708 ● ●
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 0709-0810 ● ●
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 0709-0810 ● ●
465 PLUG
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27 		1-09661-615-0 01 1 0709-0810 ●
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 0811- ● ●
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 0811- ● ●
465 PLUG
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27 		1-09661-615-0 01 1 0811- ● ●
465 PLUG
(B) OD=8 		1-09661-616-0 01 1 0706- ● ●
çizim 134361
434 337 337 232 231 330 334 330 232 231 343 343 297 335 286 372 120
BalonParca AdiParca NoAdetTipApplied Date A B
120 CONNECTOR; AIR PIPE 1-47470-418-2 01 1 0706- ● ●
231 UNION; AIR PIPE
(B) M10 ELBOW 		1-09654-186-2 01 1 0706- ● ●
231 UNION; AIR PIPE
(A) M10 STRAIGHT 		1-09654-361-0 01 1 0706- ● ●
232 NUT; UNION,AIR PIPE
(B) M10 		0-91110-510-0 01 1 0706- ● ●
232 NUT; UNION,AIR PIPE
(A) M10 H=8 		1-09400-029-0 01 1 0706- ● ●
286 PLUG; AIR PIPE 9-09204-510-0 01 1 0706- ● ●
297 TUBE; NYLON
MIXER TRUCK<RA2> L=200 OD=12 		1-49219-176-0 01 1 0706-0708 ●
297 TUBE; NYLON
MIXER TRUCK<RA2> L=200 OD=12 		1-49219-176-0 01 1 0811-0901 ●
297 TUBE; NYLON
MIXER TRUCK<RA2> MAL6 M/T<X9G> L=200 OD=12 		1-49219-176-0 01 1 0902- ●
297 TUBE; NYLON
EXC. MIXER TRUCK<RA2> L=270 OD=12 		1-49219-177-0 01 1 0706-0708 ●
297 TUBE; NYLON
L=270 OD=12 		1-49219-177-0 01 1 0706-0708 ●
297 TUBE; NYLON
L=270 OD=12 		1-49219-177-0 01 1 0709-0810 ● ●
297 TUBE; NYLON
EXC. MIXER TRUCK<RA2> L=270 OD=12 		1-49219-177-0 01 1 0811-0901 ●
297 TUBE; NYLON
L=270 OD=12 		1-49219-177-0 01 1 0811-0901 ●
297 TUBE; NYLON
MAL6 M/T<X9G> EXC. MIXER TRUCK<RA2> L=270 OD=12 		1-49219-177-0 01 1 0902- ●
297 TUBE; NYLON
L=270 OD=12 		1-49219-177-0 01 1 0902- ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0902- ● ●
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 02 1 0706- ● ●
334 SPACER; PIPE UNION
ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 0706- ● ●
335 SEAL; UNION
OD=30 BLACK 		1-76798-035-0 01 1 0706- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-57210-720-0 02 1 0706- ● ●
343 UNION; NYLON TUBE 1-09660-796-1 02 1 0706- ● ●
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 0706- ● ●
434 CLIP
ID=10 & 10 		1-09709-221-0 01 1 0706- ● ●

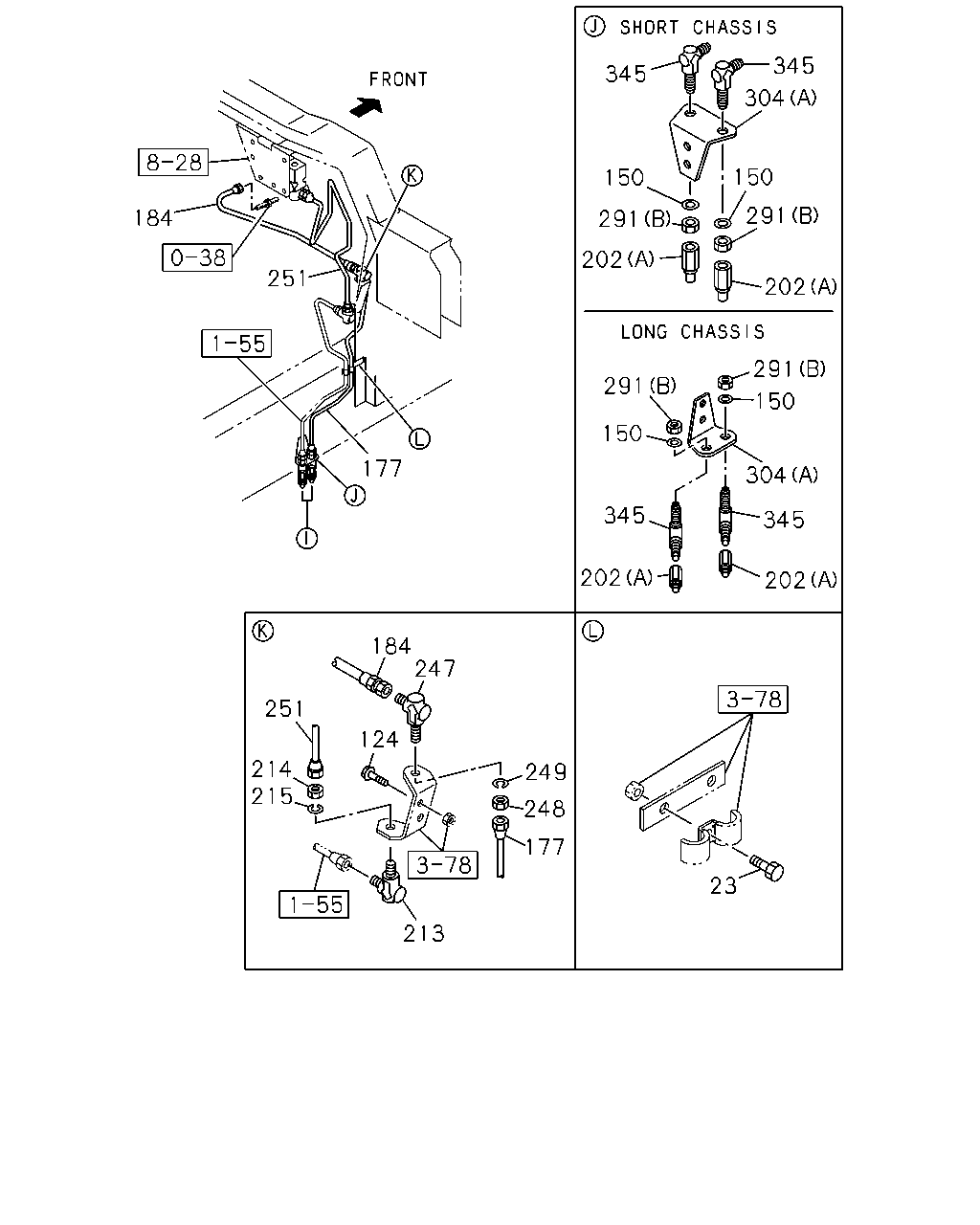

çizim 134363
345 345 304 150 150 291 184 291 202 251 202 291 291 150 150 304 177 345 345 202 202 184 247 251 124 214 215 249 248 177 23 213
BalonParca AdiParca NoAdetTipApplied Date A B
23 BOLT; BRKT,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0706- ● ●
124 BOLT; BRKT
MIXER TRUCK<RA2> M8X25 FLANGE 		0-28650-825-0 04 1 0908- ●
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0706- ● ●
150 WASHER; LK,UNION
MIXER TRUCK<RA2> ID=12.2 		0-91510-512-0 01 1 0908- ●
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 0706- ● ●
177 PIPE; AIR,UNION TO UNION
WHEEL BASE 4500MM(45W) L=807 SERVICED BY L=900 		1-47428-813-0 01 1 0706-0901 ●
177 PIPE; AIR,UNION TO UNION
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) L=807 SERVICED BY L=900 		1-47428-813-0 01 1 0902- ●
177 PIPE; AIR,UNION TO UNION
L=714 SERVICED BY L=800 		1-47428-812-0 01 1 0706- ●
184 HOSE; FLEX,AIR GOV
MIXER TRUCK<RA2> L=370 		1-09363-771-0 01 1 0706-0708 ●
184 HOSE; FLEX,AIR GOV
MIXER TRUCK<RA2> L=370 		1-09363-771-0 01 1 0811- ●
184 HOSE; FLEX,AIR GOV
EXC. MIXER TRUCK<RA2> L=780 		1-09363-620-0 01 1 0706-0708 ●
184 HOSE; FLEX,AIR GOV
L=780 		1-09363-620-0 01 1 0706-0708 ●
184 HOSE; FLEX,AIR GOV
L=780 		1-09363-620-0 01 1 0709-0810 ● ●
184 HOSE; FLEX,AIR GOV
EXC. MIXER TRUCK<RA2> L=780 		1-09363-620-0 01 1 0811- ●
184 HOSE; FLEX,AIR GOV
L=780 		1-09363-620-0 01 1 0811- ●
202 ADAPTER
(B) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0706- ● ●
202 ADAPTER
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0706- ● ●
213 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0706- ● ●
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0706- ● ●
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 0706- ● ●
247 UNION; AIR PIPE
MIXER TRUCK<RA2> M12 L=66.5 		0-92113-306-0 01 1 0706-0708 ●
247 UNION; AIR PIPE
MIXER TRUCK<RA2> M12 L=66.5 		0-92113-306-0 01 1 0811- ●
247 UNION; AIR PIPE
EXC. MIXER TRUCK<RA2> M12 ELBOW 		0-92125-206-0 01 1 0706-0708 ●
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0706-0708 ●
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0709-0810 ● ●
247 UNION; AIR PIPE
EXC. MIXER TRUCK<RA2> M12 ELBOW 		0-92125-206-0 01 1 0811- ●
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0811- ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0706- ● ●
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 0706- ● ●
251 PIPE; AIR,UNION TO MAG VLV
L=771 SERVICED BY L=800 		1-47428-812-0 01 1 0706- ● ●
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 0706- ● ●
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0706- ● ●
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 0706- ● ●
304 BRACKET; UNION
(B) 		8-97610-319-1 01 1 0706- ● ●
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 0706- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
