◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10653 - EXZ ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#1808) — 19 parça

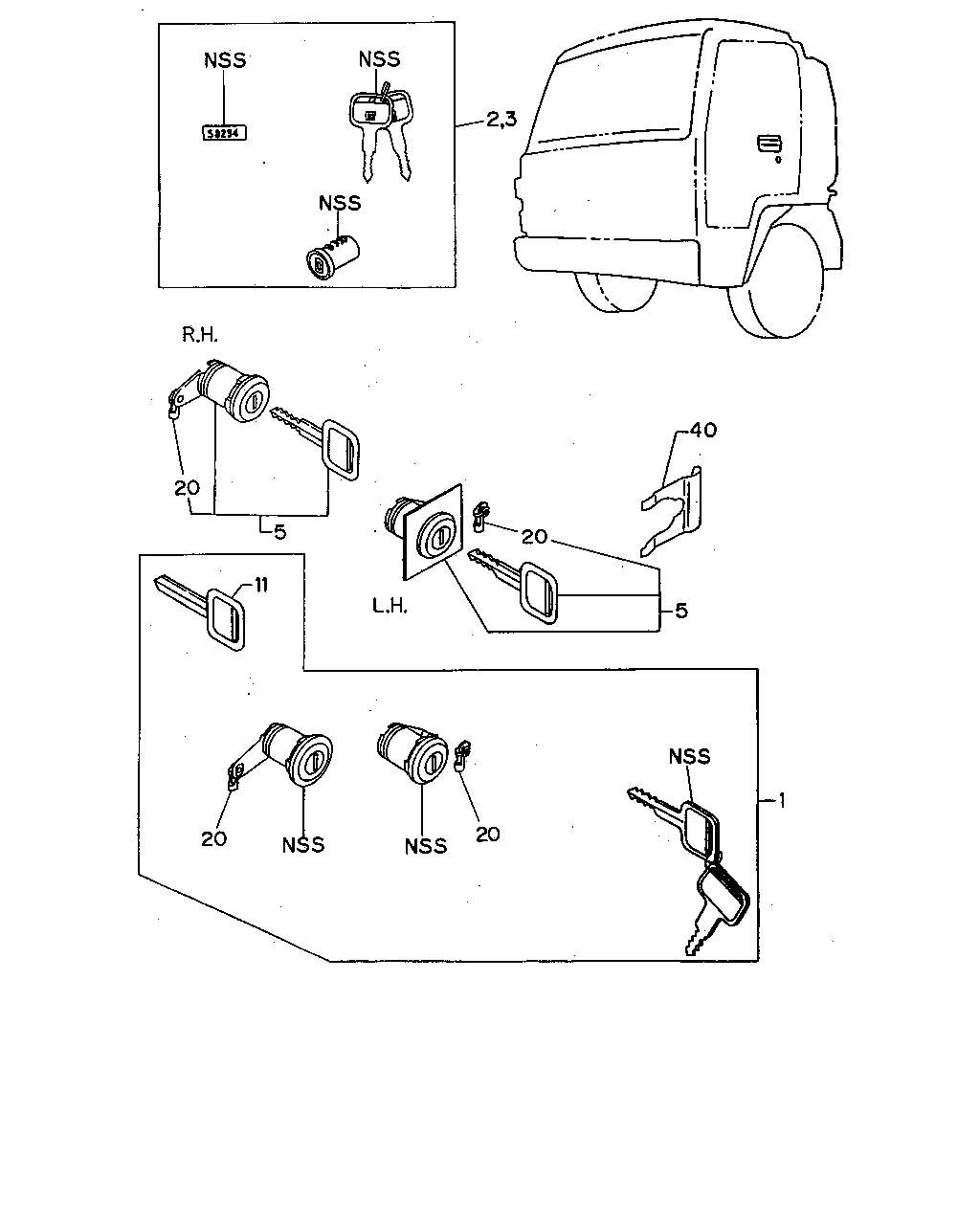

çizim 95085
2 3 20 5 20 40 5 1 20 20 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER SET; CAR LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-79137-038-3 01 1 9002-9409 ●
1 CYLINDER SET; CAR LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-79137-077-2 01 1 9410- ●
1 CYLINDER SET; CAR LOCK
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-79137-037-4 01 1 9002-9409 ●
1 CYLINDER SET; CAR LOCK 1-79137-037-4 01 1 9002-9409 ●
1 CYLINDER SET; CAR LOCK
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-79137-076-2 01 1 9410- ●
1 CYLINDER SET; CAR LOCK 1-79137-076-2 01 1 9410- ●
2 BARREL ASM; W/KEY,STRG LOCK 1-79137-118-2 01 1 9410- ● ●
3 BARREL ASM; W/KEY 1-79137-034-2 01 1 9002-9409 ● ●
5 CYLINDER ASM; DOOR LOCK
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> W/KEY 		1-79137-094-1 01 1 9410- ●
5 CYLINDER ASM; DOOR LOCK
W/KEY 		1-79137-094-1 01 1 9410- ●
5 CYLINDER ASM; DOOR LOCK
W/KEY 		1-79138-101-2 01 1 9002-9409 ● ●
5 CYLINDER ASM; DOOR LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-79137-117-1 01 1 9410- ●
5 CYLINDER ASM; DOOR LOCK
W/KEY 		1-79138-100-2 01 1 9002-9409 ● ●
5 CYLINDER ASM; DOOR LOCK
W/KEY 		1-79137-093-1 01 1 9410- ● ●
11 KEY; BLANK 1-79137-039-0 01 1 9002-9409 ● ●
11 KEY; BLANK 1-79137-129-1 01 1 9410- ● ●
20 SNAP; DOOR LOCK CYL
YELLOW 		1-79138-166-0 01 1 9210- ● ●
20 SNAP; DOOR LOCK CYL
NATURAL FOR D=3.5 		1-79138-167-0 01 1 9210- ● ●
40 CLIP; CYL LK 1-79137-033-1 02 1 9002- ● ●
