2-53 — TRANSMISSION OIL COOLER SYSTEM (#18070) — 178 parça
çizim 134657
11 95 29 178 50 12 50 12 11 95 1 48 117 116 114 8 109 73 179 77 76 91 19 50 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; ATF
MIXER TRUCK<RA2> L=450 		1-09364-625-0 01 1 0706-0708 ●
1 HOSE; ATF
MIXER TRUCK<RA2> L=450 		1-09364-625-0 01 1 0811-0901 ●
1 HOSE; ATF
MIXER TRUCK<RA2> MAL6 M/T<X9G> L=450 		1-09364-625-0 01 1 0902- ●
1 HOSE; ATF
EXC. MIXER TRUCK<RA2> L=500 		1-09365-150-0 01 1 0706-0708 ●
1 HOSE; ATF
L=500 		1-09365-150-0 01 1 0706-0708 ●
1 HOSE; ATF
L=500 		1-09365-150-0 01 1 0709-0810 ● ●
1 HOSE; ATF
EXC. MIXER TRUCK<RA2> L=500 		1-09365-150-0 01 1 0811-0901 ●
1 HOSE; ATF
L=500 		1-09365-150-0 01 1 0811-0901 ●
1 HOSE; ATF
MAL6 M/T<X9G> EXC. MIXER TRUCK<RA2> L=500 		1-09365-150-0 01 1 0902- ●
1 HOSE; ATF
L=500 		1-09365-150-0 01 1 0902- ●
1 HOSE; ATF
MJT7 M/T<Y9E> L=430 		1-09364-872-0 01 1 0902- ●
8 UNION
M16 L=42 		0-92123-010-0 01 1 0706- ● ●
11 CLIP; PIPE
(A) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 01 1 0706-0901 ● ●
11 CLIP; PIPE
MAL6 M/T<X9G>,MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 01 1 0902- ●
11 CLIP; PIPE
(A) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 01 1 0902- ●
11 CLIP; PIPE
(B) ID=16 & 11 L=21.5 & 21.5 		1-09700-924-0 02 1 0706-0901 ● ●
11 CLIP; PIPE
MAL6 M/T<X9G>,MJT7 M/T<Y9E> (B) ID=16 & 11 L=21.5 & 21.5 		1-09700-924-0 02 1 0902- ●
11 CLIP; PIPE
(B) ID=16 & 11 L=21.5 & 21.5 		1-09700-924-0 02 1 0902- ●
11 CLIP; PIPE
(C) ID=11 H=20 L=20 		5-09700-351-0 01 1 0706-0707 ● ●
11 CLIP; PIPE
(C) ID=11 H=20 L=20 		8-98033-780-0 01 1 0708-0810 ● ●
11 CLIP; PIPE
(D) ID=11X2 L=20 		9-09535-036-0 01 1 0706- ● ●
11 CLIP; PIPE
(D) ID=11X2 L=20 		9-09535-036-0 04 1 0706-0901 ● ●
11 CLIP; PIPE
MAL6 M/T<X9G>,MJT7 M/T<Y9E> (D) ID=11X2 L=20 		9-09535-036-0 04 1 0902- ●
11 CLIP; PIPE
(D) ID=11X2 L=20 		9-09535-036-0 04 1 0902- ●
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 07 1 0706-0802 ● ●
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 0803-0901 ● ●
12 NUT; BRKT
MAL6 M/T<X9G>,MJT7 M/T<Y9E> M8 FLANGE 		0-91180-108-0 06 1 0902- ●
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 0902- ●
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0706- ● ●
19 BRACKET; FLEX HOSE 1-47479-559-0 01 1 0706- ● ●
29 BOLT; FILTER TO BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0706-0901 ● ●
29 BOLT; FILTER TO BRKT
MAL6 M/T<X9G>,MJT7 M/T<Y9E> M8X30 FLANGE 		0-28650-830-0 03 1 0902- ●
29 BOLT; FILTER TO BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0902- ●
29 BOLT; FILTER TO BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0706- ● ●
29 BOLT; FILTER TO BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0706- ● ●
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0706- ● ●
50 BOLT; CLIP
M8X20 FLANGE 		0-28050-820-0 01 1 0706-0810 ● ●
50 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0706-0901 ● ●
50 BOLT; CLIP
MAL6 M/T<X9G>,MJT7 M/T<Y9E> M8X20 FLANGE 		0-28650-820-0 02 1 0902- ●
50 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0902- ●
50 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0706-0901 ● ●
50 BOLT; CLIP
MAL6 M/T<X9G>,MJT7 M/T<Y9E> M8X25 FLANGE 		0-28650-825-0 01 1 0902- ●
50 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0902- ●
50 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 04 1 0706- ● ●
50 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0706- ● ●
73 HOSE; FLEX,TRANS
MIXER TRUCK<RA2> L=450 		1-09364-625-0 01 1 0706-0708 ●
73 HOSE; FLEX,TRANS
MIXER TRUCK<RA2> L=450 		1-09364-625-0 01 1 0811-0901 ●
73 HOSE; FLEX,TRANS
MIXER TRUCK<RA2> MAL6 M/T<X9G> L=450 		1-09364-625-0 01 1 0902- ●
73 HOSE; FLEX,TRANS
EXC. MIXER TRUCK<RA2> L=430 		1-09364-872-0 01 1 0706-0708 ●
73 HOSE; FLEX,TRANS
L=430 		1-09364-872-0 01 1 0706-0708 ●
73 HOSE; FLEX,TRANS
L=430 		1-09364-872-0 01 1 0709-0810 ● ●
73 HOSE; FLEX,TRANS
EXC. MIXER TRUCK<RA2> L=430 		1-09364-872-0 01 1 0811-0901 ●
73 HOSE; FLEX,TRANS
L=430 		1-09364-872-0 01 1 0811-0901 ●
73 HOSE; FLEX,TRANS
MAL6 M/T<X9G> EXC. MIXER TRUCK<RA2> L=430 		1-09364-872-0 01 1 0902- ●
73 HOSE; FLEX,TRANS
MJT7 M/T<Y9E> L=430 		1-09364-872-0 01 1 0902- ●
73 HOSE; FLEX,TRANS
L=430 		1-09364-872-0 01 1 0902- ●
76 NUT; FLEX HOSE
M16 		0-91111-516-0 01 1 0706- ● ●
77 WASHER; LK
ID=16.2 		0-91510-516-0 01 1 0706- ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
L=799 SERVICED BY L=800 		1-47428-872-0 01 1 0706-0901 ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
MAL6 M/T<X9G>,MJT7 M/T<Y9E> L=799 SERVICED BY L=800 		1-47428-872-0 01 1 0902- ●
91 PIPE; OIL,FLEX HOSE TO UNION
L=799 SERVICED BY L=800 		1-47428-872-0 01 1 0902- ●
95 BRACKET; CLIP
(B) L=50 		1-47475-299-2 01 1 0706- ● ●
95 BRACKET; CLIP
(A) 		1-47479-482-0 01 1 0706- ● ●
95 BRACKET; CLIP
(A) 		1-47479-482-0 04 1 0706-0901 ● ●
95 BRACKET; CLIP
MAL6 M/T<X9G>,MJT7 M/T<Y9E> (A) 		1-47479-482-0 04 1 0902- ●
95 BRACKET; CLIP
(A) 		1-47479-482-0 04 1 0902- ●
109 UNION
M16 L=42 		0-92123-010-0 01 1 0706- ● ●
109 UNION
M16 L=42 		0-92123-010-0 01 1 0706- ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
L=849 SERVICED BY L=900 		1-47428-873-0 01 1 0706-0901 ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
MAL6 M/T<X9G>,MJT7 M/T<Y9E> L=849 SERVICED BY L=900 		1-47428-873-0 01 1 0902- ●
114 PIPE; OIL,UNION TO FLEX HOSE
L=849 SERVICED BY L=900 		1-47428-873-0 01 1 0902- ●
116 NUT; BRKT,FLEX HOSE
M16 		0-91111-516-0 01 1 0706- ● ●
117 WASHER; LK,FLEX HOSE
ID=16.2 		0-91510-516-0 01 1 0706- ● ●
178 BOLT; BRKT,CLIP
M8X35 FLANGE 		0-28650-835-0 01 1 0706- ● ●
179 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 0706- ● ●

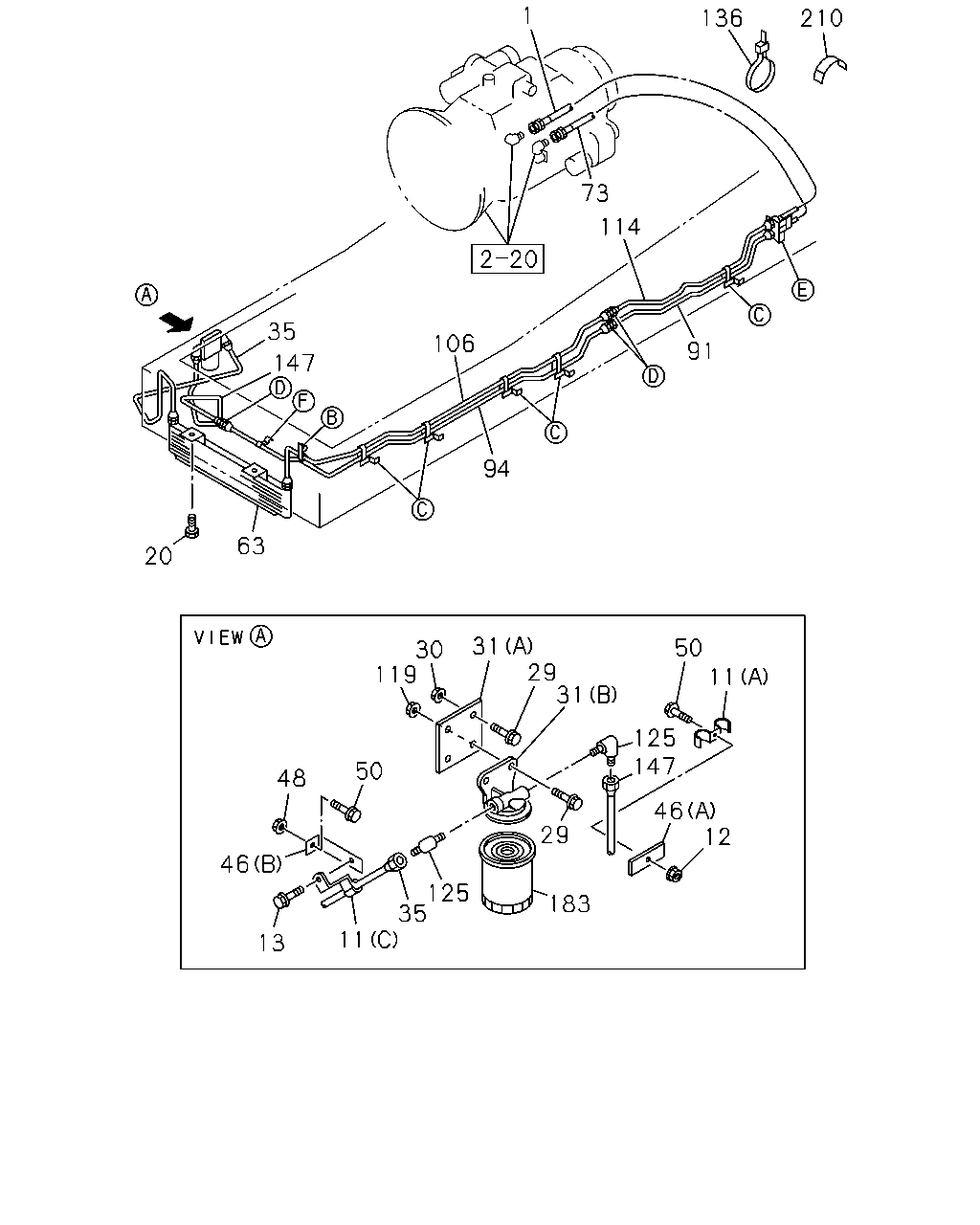

çizim 134669
1 136 210 73 114 35 106 91 147 94 63 20 31 29 31 50 11 30 119 125 147 50 48 46 12 29 46 125 35 11 183 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; ATF
MIXER TRUCK<RA2> L=450 		1-09364-625-0 01 1 0706-0708 ●
1 HOSE; ATF
MIXER TRUCK<RA2> L=450 		1-09364-625-0 01 1 0811-0901 ●
1 HOSE; ATF
MIXER TRUCK<RA2> MAL6 M/T<X9G> L=450 		1-09364-625-0 01 1 0902- ●
1 HOSE; ATF
EXC. MIXER TRUCK<RA2> L=500 		1-09365-150-0 01 1 0706-0708 ●
1 HOSE; ATF
L=500 		1-09365-150-0 01 1 0706-0708 ●
1 HOSE; ATF
L=500 		1-09365-150-0 01 1 0709-0810 ● ●
1 HOSE; ATF
EXC. MIXER TRUCK<RA2> L=500 		1-09365-150-0 01 1 0811-0901 ●
1 HOSE; ATF
L=500 		1-09365-150-0 01 1 0811-0901 ●
1 HOSE; ATF
MAL6 M/T<X9G> EXC. MIXER TRUCK<RA2> L=500 		1-09365-150-0 01 1 0902- ●
1 HOSE; ATF
L=500 		1-09365-150-0 01 1 0902- ●
1 HOSE; ATF
MJT7 M/T<Y9E> L=430 		1-09364-872-0 01 1 0902- ●
11 CLIP; PIPE
(A) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 01 1 0706-0901 ● ●
11 CLIP; PIPE
MAL6 M/T<X9G>,MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 01 1 0902- ●
11 CLIP; PIPE
(A) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 01 1 0902- ●
11 CLIP; PIPE
(B) ID=16 & 11 L=21.5 & 21.5 		1-09700-924-0 02 1 0706-0901 ● ●
11 CLIP; PIPE
MAL6 M/T<X9G>,MJT7 M/T<Y9E> (B) ID=16 & 11 L=21.5 & 21.5 		1-09700-924-0 02 1 0902- ●
11 CLIP; PIPE
(B) ID=16 & 11 L=21.5 & 21.5 		1-09700-924-0 02 1 0902- ●
11 CLIP; PIPE
(C) ID=11 H=20 L=20 		5-09700-351-0 01 1 0706-0707 ● ●
11 CLIP; PIPE
(C) ID=11 H=20 L=20 		8-98033-780-0 01 1 0708-0810 ● ●
11 CLIP; PIPE
(D) ID=11X2 L=20 		9-09535-036-0 01 1 0706- ● ●
11 CLIP; PIPE
(D) ID=11X2 L=20 		9-09535-036-0 04 1 0706-0901 ● ●
11 CLIP; PIPE
MAL6 M/T<X9G>,MJT7 M/T<Y9E> (D) ID=11X2 L=20 		9-09535-036-0 04 1 0902- ●
11 CLIP; PIPE
(D) ID=11X2 L=20 		9-09535-036-0 04 1 0902- ●
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 07 1 0706-0802 ● ●
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 0803-0901 ● ●
12 NUT; BRKT
MAL6 M/T<X9G>,MJT7 M/T<Y9E> M8 FLANGE 		0-91180-108-0 06 1 0902- ●
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 0902- ●
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0706- ● ●
13 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0706-0802 ● ●
20 BOLT; COOLER TO BRKT
M10X20 FLANGE 		0-28051-020-0 02 1 0706- ● ●
29 BOLT; FILTER TO BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0706-0901 ● ●
29 BOLT; FILTER TO BRKT
MAL6 M/T<X9G>,MJT7 M/T<Y9E> M8X30 FLANGE 		0-28650-830-0 03 1 0902- ●
29 BOLT; FILTER TO BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0902- ●
29 BOLT; FILTER TO BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0706- ● ●
29 BOLT; FILTER TO BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0706- ● ●
30 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0706-0901 ● ●
30 NUT; BRKT
MAL6 M/T<X9G>,MJT7 M/T<Y9E> M10 FLANGE 		0-91180-210-0 02 1 0902- ●
30 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0902- ●
31 BRACKET; OIL FILTER
(B) 		1-33119-222-0 01 1 0706-0901 ● ●
31 BRACKET; OIL FILTER
MAL6 M/T<X9G>,MJT7 M/T<Y9E> (B) 		1-33119-222-0 01 1 0902- ●
31 BRACKET; OIL FILTER
(B) 		1-33119-222-0 01 1 0902- ●
31 BRACKET; OIL FILTER
(A) 		1-47471-155-0 01 1 0706-0901 ● ●
31 BRACKET; OIL FILTER
MAL6 M/T<X9G>,MJT7 M/T<Y9E> (A) 		1-47471-155-0 01 1 0902- ●
31 BRACKET; OIL FILTER
(A) 		1-47471-155-0 01 1 0902- ●
35 PIPE; OIL,OIL COOLER TO FILTER
L=787 		1-49167-386-0 01 1 0706-0901 ● ●
35 PIPE; OIL,OIL COOLER TO FILTER
MAL6 M/T<X9G>,MJT7 M/T<Y9E> L=787 		1-49167-386-0 01 1 0902- ●
35 PIPE; OIL,OIL COOLER TO FILTER
L=787 		1-49167-386-0 01 1 0902- ●
46 BRACKET; OIL PIPE
(A) L=50 		1-47475-299-2 01 1 0706-0901 ● ●
46 BRACKET; OIL PIPE
MAL6 M/T<X9G>,MJT7 M/T<Y9E> (A) L=50 		1-47475-299-2 01 1 0902- ●
46 BRACKET; OIL PIPE
(A) L=50 		1-47475-299-2 01 1 0902- ●
46 BRACKET; OIL PIPE
(B) 		1-47475-519-0 01 1 0706-0802 ● ●
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0706- ● ●
50 BOLT; CLIP
M8X20 FLANGE 		0-28050-820-0 01 1 0706-0810 ● ●
50 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0706-0901 ● ●
50 BOLT; CLIP
MAL6 M/T<X9G>,MJT7 M/T<Y9E> M8X20 FLANGE 		0-28650-820-0 02 1 0902- ●
50 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0902- ●
50 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0706-0901 ● ●
50 BOLT; CLIP
MAL6 M/T<X9G>,MJT7 M/T<Y9E> M8X25 FLANGE 		0-28650-825-0 01 1 0902- ●
50 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0902- ●
50 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 04 1 0706- ● ●
50 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0706- ● ●
63 COOLER; OIL 1-21700-394-0 01 1 0706-1405 ● ●
63 COOLER; OIL 8-98269-766-0 01 1 1406- ● ●
73 HOSE; FLEX,TRANS
MIXER TRUCK<RA2> L=450 		1-09364-625-0 01 1 0706-0708 ●
73 HOSE; FLEX,TRANS
MIXER TRUCK<RA2> L=450 		1-09364-625-0 01 1 0811-0901 ●
73 HOSE; FLEX,TRANS
MIXER TRUCK<RA2> MAL6 M/T<X9G> L=450 		1-09364-625-0 01 1 0902- ●
73 HOSE; FLEX,TRANS
EXC. MIXER TRUCK<RA2> L=430 		1-09364-872-0 01 1 0706-0708 ●
73 HOSE; FLEX,TRANS
L=430 		1-09364-872-0 01 1 0706-0708 ●
73 HOSE; FLEX,TRANS
L=430 		1-09364-872-0 01 1 0709-0810 ● ●
73 HOSE; FLEX,TRANS
EXC. MIXER TRUCK<RA2> L=430 		1-09364-872-0 01 1 0811-0901 ●
73 HOSE; FLEX,TRANS
L=430 		1-09364-872-0 01 1 0811-0901 ●
73 HOSE; FLEX,TRANS
MAL6 M/T<X9G> EXC. MIXER TRUCK<RA2> L=430 		1-09364-872-0 01 1 0902- ●
73 HOSE; FLEX,TRANS
MJT7 M/T<Y9E> L=430 		1-09364-872-0 01 1 0902- ●
73 HOSE; FLEX,TRANS
L=430 		1-09364-872-0 01 1 0902- ●
91 PIPE; OIL,FLEX HOSE TO UNION
L=799 SERVICED BY L=800 		1-47428-872-0 01 1 0706-0901 ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
MAL6 M/T<X9G>,MJT7 M/T<Y9E> L=799 SERVICED BY L=800 		1-47428-872-0 01 1 0902- ●
91 PIPE; OIL,FLEX HOSE TO UNION
L=799 SERVICED BY L=800 		1-47428-872-0 01 1 0902- ●
94 PIPE; OIL,UNION TO UNION
L=2298 SERVICED BY L=2500 		1-47428-883-0 01 1 0706-0709 ● ●
94 PIPE; OIL,UNION TO UNION
L=2296 SERVICED BY L=2500 		1-47428-883-0 01 1 0710-0901 ● ●
94 PIPE; OIL,UNION TO UNION
MAL6 M/T<X9G>,MJT7 M/T<Y9E> L=2296 SERVICED BY L=2500 		1-47428-883-0 01 1 0902- ●
94 PIPE; OIL,UNION TO UNION
L=2296 SERVICED BY L=2500 		1-47428-883-0 01 1 0902- ●
106 PIPE ASM; OIL,COOLER TO UNION
L=1747 SERVICED BY L=1900 		1-47428-881-0 01 1 0706-0709 ● ●
106 PIPE ASM; OIL,COOLER TO UNION
L=1743 		1-49167-896-0 01 1 0710-0901 ● ●
106 PIPE ASM; OIL,COOLER TO UNION
MAL6 M/T<X9G>,MJT7 M/T<Y9E> L=1743 		1-49167-896-0 01 1 0902-1208 ●
106 PIPE ASM; OIL,COOLER TO UNION
L=1743 		1-49167-896-0 01 1 0902-1208 ●
106 PIPE ASM; OIL,COOLER TO UNION
L=1742.5 		8-98147-168-0 01 1 1209- ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
L=849 SERVICED BY L=900 		1-47428-873-0 01 1 0706-0901 ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
MAL6 M/T<X9G>,MJT7 M/T<Y9E> L=849 SERVICED BY L=900 		1-47428-873-0 01 1 0902- ●
114 PIPE; OIL,UNION TO FLEX HOSE
L=849 SERVICED BY L=900 		1-47428-873-0 01 1 0902- ●
119 NUT; FILTER TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 0706-0901 ● ●
119 NUT; FILTER TO BRKT
MAL6 M/T<X9G>,MJT7 M/T<Y9E> M10 FLANGE 		0-91180-210-0 02 1 0902- ●
119 NUT; FILTER TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 0902- ●
125 CONNECTOR; OIL FILTER
M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 0706-0901 ● ●
125 CONNECTOR; OIL FILTER
MAL6 M/T<X9G>,MJT7 M/T<Y9E> M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 0902- ●
125 CONNECTOR; OIL FILTER
M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 0902- ●
136 CLIP; FLEX HOSE
L=350 		1-09707-183-0 01 1 0706- ● ●
147 PIPE; OIL,UNION TO FILTER
L=739 SERVICED BY L=800 		1-47428-872-0 01 1 0706-0901 ● ●
147 PIPE; OIL,UNION TO FILTER
MAL6 M/T<X9G>,MJT7 M/T<Y9E> L=739 SERVICED BY L=800 		1-47428-872-0 01 1 0902- ●
147 PIPE; OIL,UNION TO FILTER
L=739 SERVICED BY L=800 		1-47428-872-0 01 1 0902- ●
183 CARTRIDGE; OIL FILTER 8-94459-700-1 01 1 0706-0901 ● ●
183 CARTRIDGE; OIL FILTER
MAL6 M/T<X9G>,MJT7 M/T<Y9E> 		8-94459-700-1 01 1 0902- ●
183 CARTRIDGE; OIL FILTER 8-94459-700-1 01 1 0902- ●
210 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 0706- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
