Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#1807) — 256 parça

63 66 72 17 14 25 63 66 28 13 36 72 71 89 50 72 66 59 86 87 85 49 89 71 63 59 66 70 72 71 66 66 34 30 35 35 32 86 49 85 87 63 14 25 63 66 66 13 28 17 72 89 28 13 26 27 32 27 71 89 72 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-730-0	01	1	9002-	●
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<D32> (C)	1-71737-487-3	02	1	9002-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-729-0	01	1	9002-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E)	1-71737-920-1	01	1	9208-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-919-1	01	1	9208-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-917-1	01	1	9208-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-731-0	01	1	9405-		●
14	MIRROR ASM; OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-924-0	01	1	9208-	●	●
14	MIRROR ASM; OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> PIVOT ID=22.2	1-71707-152-1	01	1	9208-	●	●
17	NUT; CAP,MIRROR STAY DOOR MIRROR<D32> (A) M8 FLANGE	1-09984-122-0	04	1	9002-	●	●
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M8 FLANGE	1-09984-122-0	01	1	9002-	●	●
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) M10	1-09984-145-0	01	1	9002-	●	●
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D) M5	1-09984-124-0	04	1	9208-	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M5X50	1-09981-444-0	04	1	9208-	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5X40 W/PL WASHER	1-71737-797-0	02	1	9208-	●	●
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-652-1	01	1	9208-	●	●
27	GASKET; SIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71736-661-0	01	1	9208-	●	●
27	GASKET; SIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-748-0	02	1	9208-	●	●
28	GROMMET; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-678-0	03	1	9208-	●	●
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-631-6	01	1	9208-	●	●
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-732-0	01	1	9002-	●	●
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M6X16 W/LK&PL WASHER	1-09981-431-0	04	1	9208-	●	●
34	CAP; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-649-1	01	1	9208-	●	●
35	GASKET; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71736-661-0	01	1	9208-	●	●
35	GASKET; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-748-0	02	1	9208-	●	●
36	GROMMET; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-678-0	01	1	9208-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71737-738-0	01	1	9002-	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71737-735-0	01	1	9002-	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-733-0	01	1	9002-	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9>, MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-803-0	01	1	9002-	●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E)	1-71737-778-0	01	1	9307-	●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (F)	1-71798-001-0	01	1	9307-	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (C)	1-71737-802-0	01	1	9002-	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71737-737-0	01	1	9002-		●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71737-736-0	01	1	9002-		●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-734-0	01	1	9002-		●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9>, MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-804-0	01	1	9002-		●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (F)	1-71797-052-0	01	1	9208-		●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E)	1-71797-114-0	01	1	9208-		●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (C)	1-71737-792-0	01	1	9002-		●
50	STAY; CAB SIDE EXC. DOOR MIRROR<D32> (A)	1-71737-779-0	01	1	9002-	●
50	STAY; CAB SIDE EXC. DOOR MIRROR<D32> (B)	1-71737-780-2	01	1	9002-	●
50	STAY; CAB SIDE EXC. DOOR MIRROR<D32> (A)	1-71737-793-0	01	1	9002-		●
50	STAY; CAB SIDE EXC. DOOR MIRROR<D32> (B)	1-71737-794-1	01	1	9002-		●
59	WASHER; LK DOOR MIRROR<D32>	1-09985-177-0	04	1	9002-	●	●
59	WASHER; LK EXC. DOOR MIRROR<D32> (A)	1-09985-177-0	02	1	9002-	●	●
59	WASHER; LK EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-09985-180-0	01	1	9002-	●	●
63	NUT; STAY (A) M10	1-09984-134-0	04	1	9002-	●	●
63	NUT; STAY DOOR MIRROR<D32> (B)	1-71736-200-0	02	1	9007-	●	●
63	NUT; STAY EXC. DOOR MIRROR<D32> (B) M8 FLANGE	1-09984-126-0	02	1	9002-	●	●
66	WASHER; PL DOOR MIRROR<D32>	1-09985-204-0	08	1	9002-	●	●
66	WASHER; PL EXC. DOOR MIRROR<D32> (A)	1-09985-174-0	02	1	9002-	●	●
66	WASHER; PL EXC. DOOR MIRROR<D32> (B)	1-09985-204-0	13	1	9002-	●	●
70	BOLT; STAY TO BRKT EXC. DOOR MIRROR<D32> M10X30	1-09980-517-0	01	1	9002-	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32>	1-71798-002-1	04	1	9002-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (A)	1-71736-578-0	01	1	9002-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (B)	1-71737-783-0	01	1	9002-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (C)	1-71798-002-1	02	1	9002-	●	●
72	SHEET DOOR MIRROR<D32> (A)	1-71737-428-0	04	1	9002-	●	●
72	SHEET DOOR MIRROR<D32> (B)	1-71736-247-0	04	1	9007-	●	●
72	SHEET EXC. DOOR MIRROR<D32> (A)	1-71736-247-0	02	1	9002-	●	●
72	SHEET EXC. DOOR MIRROR<D32> (B)	1-71737-428-0	02	1	9002-	●	●
72	SHEET EXC. DOOR MIRROR<D32> (C)	1-71737-444-0	01	1	9002-	●	●
72	SHEET EXC. DOOR MIRROR<D32> (D)	1-71737-636-0	01	1	9002-	●	●
85	PIVOT; MAIN MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> ID=22.2	1-71736-489-2	04	1	9208-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-0	02	1	9208-	●	●
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-704-0	02	1	9307-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> M6X20	1-09981-494-0	08	1	9002-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. DOOR MIRROR<D32> M6X20	1-09981-494-0	09	1	9002-	●	●

90 13 17 60 63 59 66 71 72 63 72 63 92 59 66 17 90 60 60 13 60 66 72 71 89 17 60 49 66 59 63 89 71 72 72 89 71 66 59 17 60 49 60 63 89 92 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-730-0	01	1	9002-	●
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<D32> (C)	1-71737-487-3	02	1	9002-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-729-0	01	1	9002-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E)	1-71737-920-1	01	1	9208-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-919-1	01	1	9208-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-917-1	01	1	9208-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-731-0	01	1	9405-		●
17	NUT; CAP,MIRROR STAY DOOR MIRROR<D32> (A) M8 FLANGE	1-09984-122-0	04	1	9002-	●	●
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M8 FLANGE	1-09984-122-0	01	1	9002-	●	●
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) M10	1-09984-145-0	01	1	9002-	●	●
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D) M5	1-09984-124-0	04	1	9208-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71737-738-0	01	1	9002-	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71737-735-0	01	1	9002-	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-733-0	01	1	9002-	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9>, MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-803-0	01	1	9002-	●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E)	1-71737-778-0	01	1	9307-	●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (F)	1-71798-001-0	01	1	9307-	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (C)	1-71737-802-0	01	1	9002-	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71737-737-0	01	1	9002-		●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71737-736-0	01	1	9002-		●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-734-0	01	1	9002-		●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9>, MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-804-0	01	1	9002-		●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (F)	1-71797-052-0	01	1	9208-		●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E)	1-71797-114-0	01	1	9208-		●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (C)	1-71737-792-0	01	1	9002-		●
59	WASHER; LK DOOR MIRROR<D32>	1-09985-177-0	04	1	9002-	●	●
59	WASHER; LK EXC. DOOR MIRROR<D32> (A)	1-09985-177-0	02	1	9002-	●	●
59	WASHER; LK EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-09985-180-0	01	1	9002-	●	●
60	WASHER; PL,OUTSIDE MIRROR DOOR MIRROR<D32>	1-09985-188-0	08	1	9002-	●	●
60	WASHER; PL,OUTSIDE MIRROR EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-09985-173-0	01	1	9002-	●	●
60	WASHER; PL,OUTSIDE MIRROR EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-09985-174-0	01	1	9002-	●	●
63	NUT; STAY (A) M10	1-09984-134-0	04	1	9002-	●	●
63	NUT; STAY DOOR MIRROR<D32> (B)	1-71736-200-0	02	1	9007-	●	●
63	NUT; STAY EXC. DOOR MIRROR<D32> (B) M8 FLANGE	1-09984-126-0	02	1	9002-	●	●
66	WASHER; PL DOOR MIRROR<D32>	1-09985-204-0	08	1	9002-	●	●
66	WASHER; PL EXC. DOOR MIRROR<D32> (A)	1-09985-174-0	02	1	9002-	●	●
66	WASHER; PL EXC. DOOR MIRROR<D32> (B)	1-09985-204-0	13	1	9002-	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32>	1-71798-002-1	04	1	9002-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (A)	1-71736-578-0	01	1	9002-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (B)	1-71737-783-0	01	1	9002-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (C)	1-71798-002-1	02	1	9002-	●	●
72	SHEET DOOR MIRROR<D32> (A)	1-71737-428-0	04	1	9002-	●	●
72	SHEET DOOR MIRROR<D32> (B)	1-71736-247-0	04	1	9007-	●	●
72	SHEET EXC. DOOR MIRROR<D32> (A)	1-71736-247-0	02	1	9002-	●	●
72	SHEET EXC. DOOR MIRROR<D32> (B)	1-71737-428-0	02	1	9002-	●	●
72	SHEET EXC. DOOR MIRROR<D32> (C)	1-71737-444-0	01	1	9002-	●	●
72	SHEET EXC. DOOR MIRROR<D32> (D)	1-71737-636-0	01	1	9002-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> M6X20	1-09981-494-0	08	1	9002-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. DOOR MIRROR<D32> M6X20	1-09981-494-0	09	1	9002-	●	●
90	BRACKET; MIRROR STAY DOOR MIRROR<D32>	1-71737-764-0	01	1	9002-	●	●
90	BRACKET; MIRROR STAY DOOR MIRROR<D32>	1-71737-763-0	01	1	9002-	●	●
92	BOLT; STAY BRKT,MIRROR DOOR MIRROR<D32> M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9002-	●	●

63 59 66 72 50 63 59 66 50 72 72 50 66 59 63 63 59 66 50 72 66 63 70 72 89 13 96 63 66 72 71 89 49 95 17 60 94 93 13 89 72 71 63 63 66 72 71 89 49 95 96 17 60 94 93 21 38 39 30 70 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-730-0	01	1	9002-	●
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<D32> (C)	1-71737-487-3	02	1	9002-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-729-0	01	1	9002-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E)	1-71737-920-1	01	1	9208-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-919-1	01	1	9208-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-917-1	01	1	9208-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-731-0	01	1	9405-		●
17	NUT; CAP,MIRROR STAY DOOR MIRROR<D32> (A) M8 FLANGE	1-09984-122-0	04	1	9002-	●	●
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M8 FLANGE	1-09984-122-0	01	1	9002-	●	●
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) M10	1-09984-145-0	01	1	9002-	●	●
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D) M5	1-09984-124-0	04	1	9208-	●	●
21	NUT; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5	1-09984-124-0	02	1	9208-	●	●
21	NUT; MIRROR MIRROR O/S UNDER VIEW<RR9> M8 FLANGE	1-09984-122-0	01	1	9002-	●	●
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-631-6	01	1	9208-	●	●
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-732-0	01	1	9002-	●	●
38	WASHER; LK,UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> ID=8.2	1-09985-177-0	01	1	9002-	●	●
39	WASHER; PL,UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> ID=8.4 OD=16	1-09985-174-0	01	1	9002-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71737-738-0	01	1	9002-	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71737-735-0	01	1	9002-	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-733-0	01	1	9002-	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9>, MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-803-0	01	1	9002-	●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E)	1-71737-778-0	01	1	9307-	●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (F)	1-71798-001-0	01	1	9307-	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (C)	1-71737-802-0	01	1	9002-	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71737-737-0	01	1	9002-		●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71737-736-0	01	1	9002-		●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-734-0	01	1	9002-		●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9>, MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-804-0	01	1	9002-		●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (F)	1-71797-052-0	01	1	9208-		●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E)	1-71797-114-0	01	1	9208-		●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (C)	1-71737-792-0	01	1	9002-		●
50	STAY; CAB SIDE EXC. DOOR MIRROR<D32> (A)	1-71737-779-0	01	1	9002-	●
50	STAY; CAB SIDE EXC. DOOR MIRROR<D32> (B)	1-71737-780-2	01	1	9002-	●
50	STAY; CAB SIDE EXC. DOOR MIRROR<D32> (A)	1-71737-793-0	01	1	9002-		●
50	STAY; CAB SIDE EXC. DOOR MIRROR<D32> (B)	1-71737-794-1	01	1	9002-		●
59	WASHER; LK DOOR MIRROR<D32>	1-09985-177-0	04	1	9002-	●	●
59	WASHER; LK EXC. DOOR MIRROR<D32> (A)	1-09985-177-0	02	1	9002-	●	●
59	WASHER; LK EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-09985-180-0	01	1	9002-	●	●
60	WASHER; PL,OUTSIDE MIRROR DOOR MIRROR<D32>	1-09985-188-0	08	1	9002-	●	●
60	WASHER; PL,OUTSIDE MIRROR EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-09985-173-0	01	1	9002-	●	●
60	WASHER; PL,OUTSIDE MIRROR EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-09985-174-0	01	1	9002-	●	●
63	NUT; STAY (A) M10	1-09984-134-0	04	1	9002-	●	●
63	NUT; STAY DOOR MIRROR<D32> (B)	1-71736-200-0	02	1	9007-	●	●
63	NUT; STAY EXC. DOOR MIRROR<D32> (B) M8 FLANGE	1-09984-126-0	02	1	9002-	●	●
66	WASHER; PL DOOR MIRROR<D32>	1-09985-204-0	08	1	9002-	●	●
66	WASHER; PL EXC. DOOR MIRROR<D32> (A)	1-09985-174-0	02	1	9002-	●	●
66	WASHER; PL EXC. DOOR MIRROR<D32> (B)	1-09985-204-0	13	1	9002-	●	●
70	BOLT; STAY TO BRKT EXC. DOOR MIRROR<D32> M10X30	1-09980-517-0	01	1	9002-	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32>	1-71798-002-1	04	1	9002-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (A)	1-71736-578-0	01	1	9002-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (B)	1-71737-783-0	01	1	9002-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (C)	1-71798-002-1	02	1	9002-	●	●
72	SHEET DOOR MIRROR<D32> (A)	1-71737-428-0	04	1	9002-	●	●
72	SHEET DOOR MIRROR<D32> (B)	1-71736-247-0	04	1	9007-	●	●
72	SHEET EXC. DOOR MIRROR<D32> (A)	1-71736-247-0	02	1	9002-	●	●
72	SHEET EXC. DOOR MIRROR<D32> (B)	1-71737-428-0	02	1	9002-	●	●
72	SHEET EXC. DOOR MIRROR<D32> (C)	1-71737-444-0	01	1	9002-	●	●
72	SHEET EXC. DOOR MIRROR<D32> (D)	1-71737-636-0	01	1	9002-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> M6X20	1-09981-494-0	08	1	9002-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. DOOR MIRROR<D32> M6X20	1-09981-494-0	09	1	9002-	●	●
93	BOLT; BACK MIRROR EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> M8X45 W/LK&PL WASHER	1-09980-542-0	01	1	9002-	●	●
94	HOLDER; BACK MIRROR EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-755-0	01	1	9002-	●	●
95	GASKET; NYLON,BACK MIRROR EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-290-1	01	1	9002-	●	●
96	CAP; MIRROR STAY EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-292-0	01	1	9002-	●	●

2 1 63 49 60 71 59 89 71 72 66 66 63 13 89 72 71 66 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

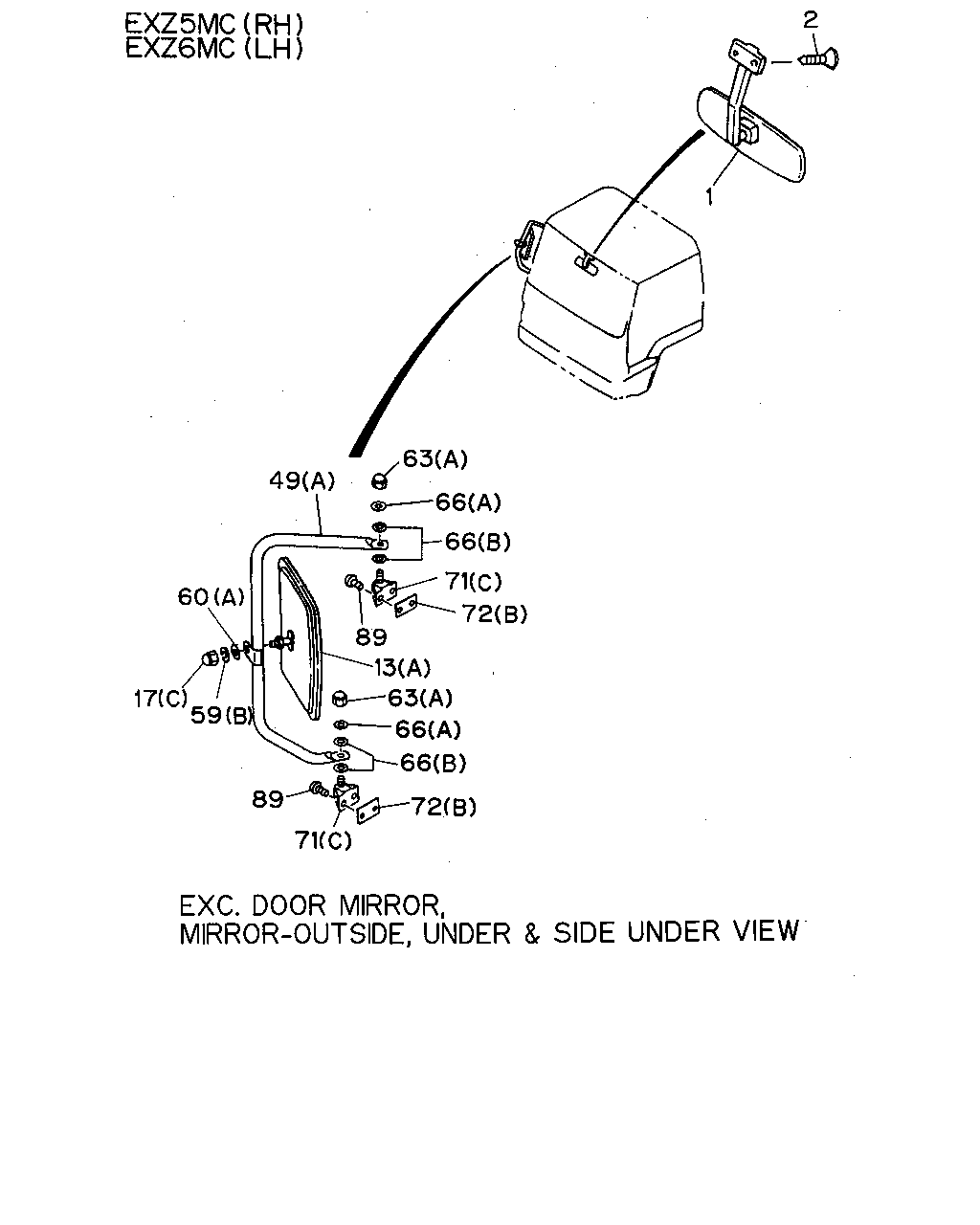

1	MIRROR; ROOM	1-73117-026-1	01	1	9002-	●	●
2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	9002-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-730-0	01	1	9002-	●
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<D32> (C)	1-71737-487-3	02	1	9002-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-729-0	01	1	9002-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E)	1-71737-920-1	01	1	9208-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-919-1	01	1	9208-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-917-1	01	1	9208-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-731-0	01	1	9405-		●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71737-738-0	01	1	9002-	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71737-735-0	01	1	9002-	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-733-0	01	1	9002-	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9>, MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-803-0	01	1	9002-	●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E)	1-71737-778-0	01	1	9307-	●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (F)	1-71798-001-0	01	1	9307-	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (C)	1-71737-802-0	01	1	9002-	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71737-737-0	01	1	9002-		●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71737-736-0	01	1	9002-		●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-734-0	01	1	9002-		●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9>, MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-804-0	01	1	9002-		●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (F)	1-71797-052-0	01	1	9208-		●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E)	1-71797-114-0	01	1	9208-		●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (C)	1-71737-792-0	01	1	9002-		●
59	WASHER; LK DOOR MIRROR<D32>	1-09985-177-0	04	1	9002-	●	●
59	WASHER; LK EXC. DOOR MIRROR<D32> (A)	1-09985-177-0	02	1	9002-	●	●
59	WASHER; LK EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-09985-180-0	01	1	9002-	●	●
60	WASHER; PL,OUTSIDE MIRROR DOOR MIRROR<D32>	1-09985-188-0	08	1	9002-	●	●
60	WASHER; PL,OUTSIDE MIRROR EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-09985-173-0	01	1	9002-	●	●
60	WASHER; PL,OUTSIDE MIRROR EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-09985-174-0	01	1	9002-	●	●
63	NUT; STAY (A) M10	1-09984-134-0	04	1	9002-	●	●
63	NUT; STAY DOOR MIRROR<D32> (B)	1-71736-200-0	02	1	9007-	●	●
63	NUT; STAY EXC. DOOR MIRROR<D32> (B) M8 FLANGE	1-09984-126-0	02	1	9002-	●	●
66	WASHER; PL DOOR MIRROR<D32>	1-09985-204-0	08	1	9002-	●	●
66	WASHER; PL EXC. DOOR MIRROR<D32> (A)	1-09985-174-0	02	1	9002-	●	●
66	WASHER; PL EXC. DOOR MIRROR<D32> (B)	1-09985-204-0	13	1	9002-	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32>	1-71798-002-1	04	1	9002-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (A)	1-71736-578-0	01	1	9002-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (B)	1-71737-783-0	01	1	9002-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (C)	1-71798-002-1	02	1	9002-	●	●
72	SHEET DOOR MIRROR<D32> (A)	1-71737-428-0	04	1	9002-	●	●
72	SHEET DOOR MIRROR<D32> (B)	1-71736-247-0	04	1	9007-	●	●
72	SHEET EXC. DOOR MIRROR<D32> (A)	1-71736-247-0	02	1	9002-	●	●
72	SHEET EXC. DOOR MIRROR<D32> (B)	1-71737-428-0	02	1	9002-	●	●
72	SHEET EXC. DOOR MIRROR<D32> (C)	1-71737-444-0	01	1	9002-	●	●
72	SHEET EXC. DOOR MIRROR<D32> (D)	1-71737-636-0	01	1	9002-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> M6X20	1-09981-494-0	08	1	9002-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. DOOR MIRROR<D32> M6X20	1-09981-494-0	09	1	9002-	●	●

132 133 21 134 53 26 25 13 134 86 85 133 132 14

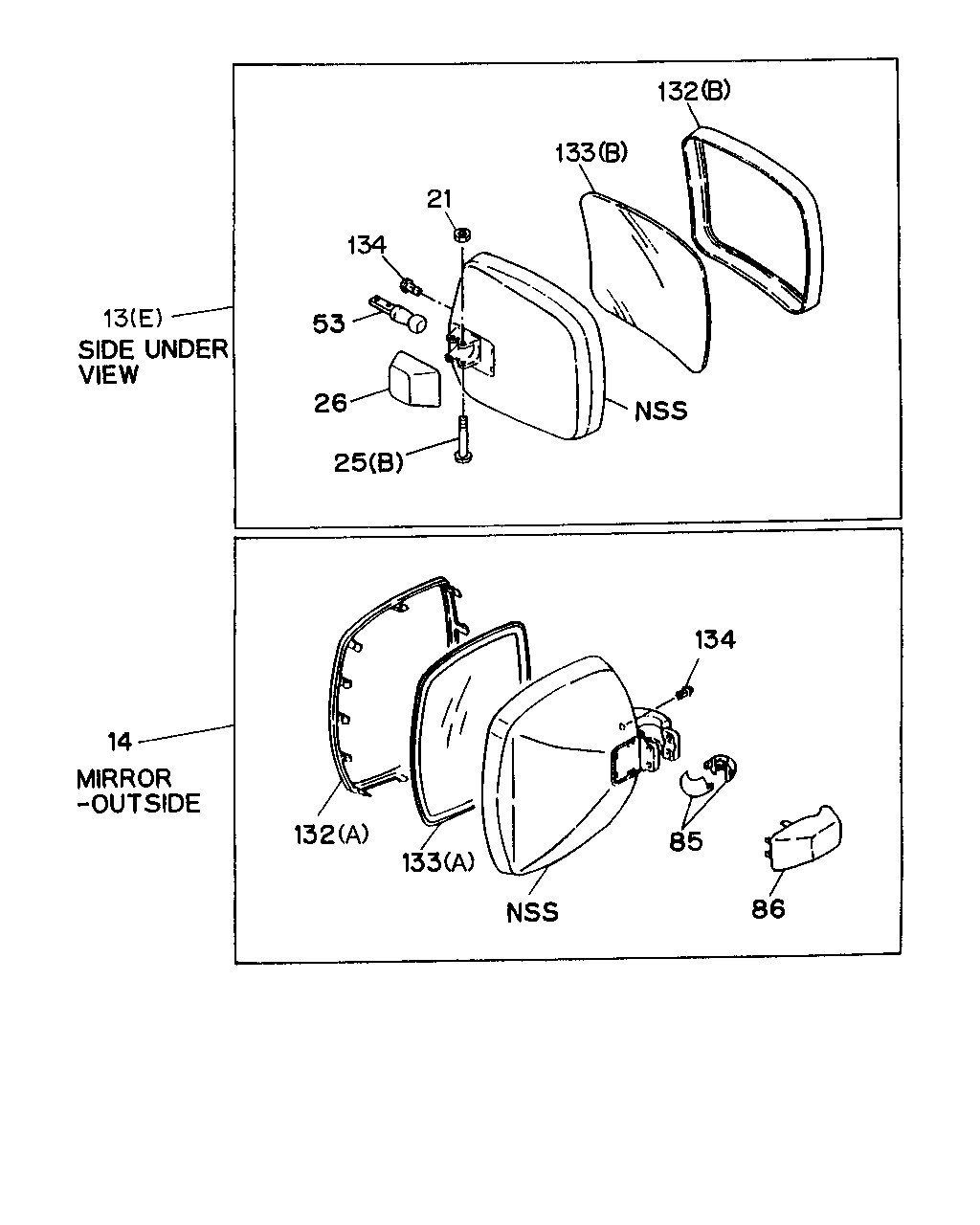

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-730-0	01	1	9002-	●
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<D32> (C)	1-71737-487-3	02	1	9002-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-729-0	01	1	9002-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E)	1-71737-920-1	01	1	9208-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-919-1	01	1	9208-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-917-1	01	1	9208-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-731-0	01	1	9405-		●
14	MIRROR ASM; OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-924-0	01	1	9208-	●	●
14	MIRROR ASM; OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> PIVOT ID=22.2	1-71707-152-1	01	1	9208-	●	●
21	NUT; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5	1-09984-124-0	02	1	9208-	●	●
21	NUT; MIRROR MIRROR O/S UNDER VIEW<RR9> M8 FLANGE	1-09984-122-0	01	1	9002-	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M5X50	1-09981-444-0	04	1	9208-	●	●
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5X40 W/PL WASHER	1-71737-797-0	02	1	9208-	●	●
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-652-1	01	1	9208-	●	●
53	PIVOT; SIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-645-1	01	1	9208-	●	●
85	PIVOT; MAIN MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> ID=22.2	1-71736-489-2	04	1	9208-	●	●
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-0	02	1	9208-	●	●
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-934-0	01	1	9208-	●	●
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-935-0	01	1	9307-	●	●
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-933-0	01	1	9307-	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-928-0	01	1	9208-	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-926-0	01	1	9208-	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-929-0	01	1	9307-	●	●
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	03	1	9208-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
