2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#18068) — 66 parça

22 25 24 112 15 25 22 15 22 28 25 28 24 36 44 35 32 5 38 38 44 36 32 35 30 30 6 45 47 49 8 47 49 45 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	ROD; LINK,3RD SHIFT MIXER TRUCK<RA2> L=1190	1-33652-922-0	01	1	0706-0708	●
5	ROD; LINK,3RD SHIFT MIXER TRUCK<RA2> L=1190	1-33652-922-0	01	1	0811-	●
5	ROD; LINK,3RD SHIFT EXC. MIXER TRUCK<RA2> L=1120	1-33652-603-0	01	1	0706-0708	●
5	ROD; LINK,3RD SHIFT L=1120	1-33652-603-0	01	1	0706-0708		●
5	ROD; LINK,3RD SHIFT L=1120	1-33652-603-0	01	1	0709-0810	●	●
5	ROD; LINK,3RD SHIFT EXC. MIXER TRUCK<RA2> L=1120	1-33652-603-0	01	1	0811-	●
5	ROD; LINK,3RD SHIFT L=1120	1-33652-603-0	01	1	0811-		●
6	ROD; LINK,3RD SELECT ASSISTOR SHIFT CONTROL<WX8> EXC. MIXER TRUCK<RA2> L=1458	1-33662-005-1	01	1	0706-0708	●
6	ROD; LINK,3RD SELECT ASSISTOR SHIFT CONTROL<WX8> L=1458	1-33662-005-1	01	1	0706-0708		●
6	ROD; LINK,3RD SELECT ASSISTOR SHIFT CONTROL<WX8> L=1458	1-33662-005-1	01	1	0709-0810	●	●
6	ROD; LINK,3RD SELECT ASSISTOR SHIFT CONTROL<WX8> EXC. MIXER TRUCK<RA2> L=1458	1-33662-005-1	01	1	0811-0901	●
6	ROD; LINK,3RD SELECT ASSISTOR SHIFT CONTROL<WX8> L=1458	1-33662-005-1	01	1	0811-0901		●
6	ROD; LINK,3RD SELECT MAL6 M/T<X9G> ASSISTOR SHIFT CONTROL<WX8> EXC. MIXER TRUCK<RA2> L=1458	1-33662-005-1	01	1	0902-	●
6	ROD; LINK,3RD SELECT ASSISTOR SHIFT CONTROL<WX8> L=1458	1-33662-005-1	01	1	0902-		●
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> ASSISTOR SHIFT CONTROL<WX8> L=1528	1-33662-006-1	01	1	0706-0708	●
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> ASSISTOR SHIFT CONTROL<WX8> L=1528	1-33662-006-1	01	1	0811-0901	●
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> MAL6 M/T<X9G> ASSISTOR SHIFT CONTROL<WX8> L=1528	1-33662-006-1	01	1	0902-	●
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> EXC. ASSISTOR SHIFT CONTROL<WX8> L=1547	1-33662-017-2	01	1	0706-0708	●
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> EXC. ASSISTOR SHIFT CONTROL<WX8> L=1547	1-33662-017-3	01	1	0811-0901	●
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> MAL6 M/T<X9G> EXC. ASSISTOR SHIFT CONTROL<WX8> L=1547	1-33662-017-3	01	1	0902-	●
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> MJT7 M/T<Y9E> ASSISTOR SHIFT CONTROL<WX8> L=1722	1-33662-003-2	01	1	0902-	●
6	ROD; LINK,3RD SELECT EXC. MIXER TRUCK<RA2>,ASSISTOR SHIFT CONTROL<WX8> L=1475	1-33662-016-3	01	1	0706-0708	●
6	ROD; LINK,3RD SELECT EXC. ASSISTOR SHIFT CONTROL<WX8> L=1475	1-33662-016-3	01	1	0706-0708		●
6	ROD; LINK,3RD SELECT EXC. ASSISTOR SHIFT CONTROL<WX8> L=1475	1-33662-016-3	01	1	0709-0810	●	●
6	ROD; LINK,3RD SELECT EXC. MIXER TRUCK<RA2>,ASSISTOR SHIFT CONTROL<WX8> L=1475	1-33662-016-3	01	1	0811-0901	●
6	ROD; LINK,3RD SELECT EXC. ASSISTOR SHIFT CONTROL<WX8> L=1475	1-33662-016-3	01	1	0811-0901		●
6	ROD; LINK,3RD SELECT MAL6 M/T<X9G> EXC. MIXER TRUCK<RA2>,ASSISTOR SHIFT CONTROL<WX8> L=1475	1-33662-016-3	01	1	0902-	●
6	ROD; LINK,3RD SELECT EXC. ASSISTOR SHIFT CONTROL<WX8> L=1475	1-33662-016-3	01	1	0902-		●
6	ROD; LINK,3RD SELECT MJT7 M/T<Y9E> ASSISTOR SHIFT CONTROL<WX8> EXC. MIXER TRUCK<RA2> L=1652	1-33652-935-2	01	1	0902-	●
8	ROD; LINK,4TH SHIFT MJT7 M/T<Y9E> ASSISTOR SHIFT CONTROL<WX8> L=370	1-33652-654-1	01	1	0902-	●
8	ROD; LINK,4TH SHIFT ASSISTOR SHIFT CONTROL<WX8> L=177	1-33652-815-1	01	1	0706-0901	●	●
8	ROD; LINK,4TH SHIFT MAL6 M/T<X9G> ASSISTOR SHIFT CONTROL<WX8> L=177	1-33652-815-1	01	1	0902-	●
8	ROD; LINK,4TH SHIFT ASSISTOR SHIFT CONTROL<WX8> L=177	1-33652-815-1	01	1	0902-		●
8	ROD; LINK,4TH SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> L=303	1-33662-015-1	01	1	0706-0901	●	●
8	ROD; LINK,4TH SHIFT MAL6 M/T<X9G> EXC. ASSISTOR SHIFT CONTROL<WX8> L=303	1-33662-015-1	01	1	0902-	●
8	ROD; LINK,4TH SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> L=303	1-33662-015-1	01	1	0902-		●
15	ROD; LINK 1ST SHIFT (A) L=556	1-33652-744-0	01	1	0706-	●	●
15	ROD; LINK 1ST SHIFT (B) L=474	1-33652-803-2	01	1	0706-	●	●
15	ROD; LINK 1ST SHIFT (C) L=446	1-33652-998-2	01	1	0706-	●	●
22	JOINT; BALL,SCREW,LINK ROD (B)	1-09760-109-0	02	1	0706-	●	●
22	JOINT; BALL,SCREW,LINK ROD (A)	1-09760-125-0	01	1	0706-	●	●
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0706-	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M10	0-91111-510-0	02	1	0706-	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	0-91111-512-0	02	1	0706-	●	●
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	02	1	0706-	●	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	0706-	●	●
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0706-	●	●
35	NUT; LK,RIGHT SCREW,LINK ROD M10	0-91111-510-0	02	1	0706-	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	0706-	●	●
38	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0706-	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD M10	0-91111-510-0	02	1	0706-	●	●
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	02	1	0706-	●	●
47	NUT; 4TH LINK ROD M10 FLANGE	1-09440-061-0	02	1	0706-	●	●
49	NUT; LK,RIGHT SCREW,LINK ROD M12	0-91111-512-0	02	1	0706-	●	●
112	JOINT; RUBBER	1-33670-413-1	02	1	0706-	●	●

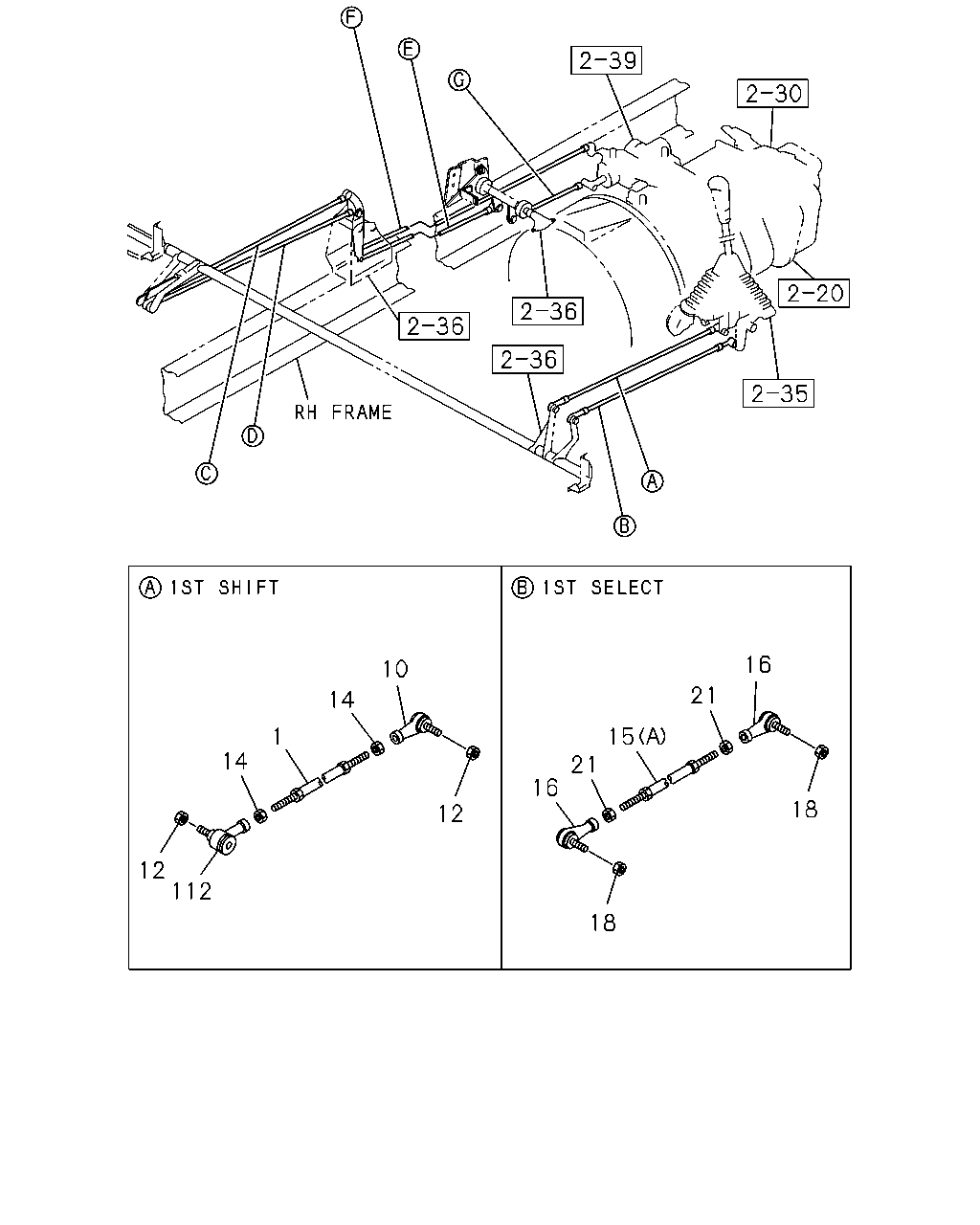

16 10 21 14 15 1 14 21 16 18 12 12 112 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ROD; LINK,1ST SHIFT L=480	9-08401-248-0	01	1	0706-	●	●
10	JOINT ASM; BALL,SELECT ROD	1-09760-125-0	01	1	0706-	●	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0706-	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD M12	0-91111-512-0	02	1	0706-	●	●
15	ROD; LINK 1ST SHIFT (A) L=556	1-33652-744-0	01	1	0706-	●	●
15	ROD; LINK 1ST SHIFT (B) L=474	1-33652-803-2	01	1	0706-	●	●
15	ROD; LINK 1ST SHIFT (C) L=446	1-33652-998-2	01	1	0706-	●	●
16	JOINT ASM; BALL,CONT ROD	1-09760-108-0	02	1	0706-	●	●
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	0706-	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD M8	0-91111-508-0	02	1	0706-	●	●
112	JOINT; RUBBER	1-33670-413-1	02	1	0706-	●	●
