Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#18062) — 220 parça

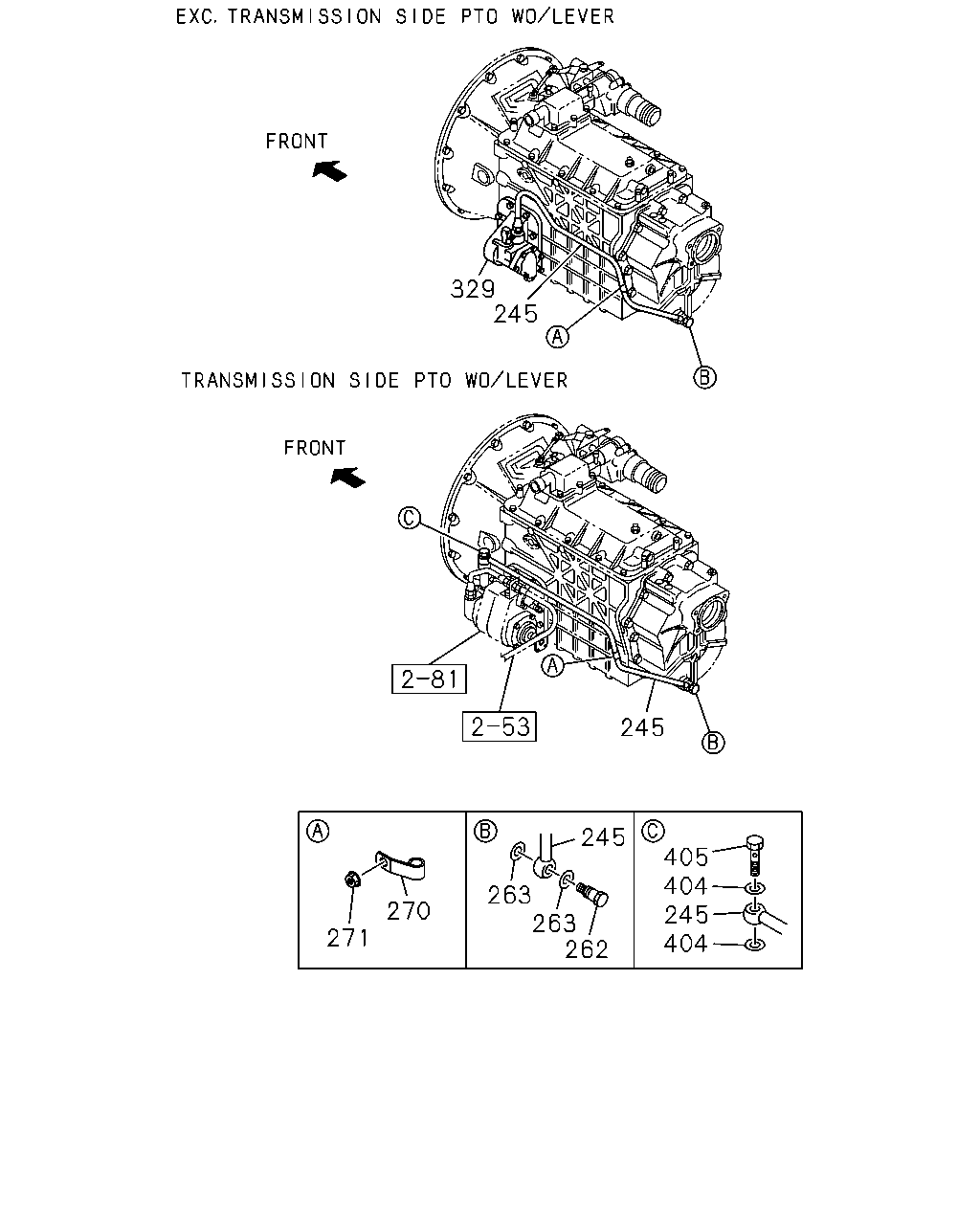

329 245 245 405 404 245 404 245 263 263 262 270 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
245	PIPE; OIL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-32571-151-0	01	1	0706-	●
245	PIPE; OIL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-49166-670-0	01	1	0706-	●
262	STRAINER; OIL PUMP	1-34159-039-1	01	1	0706-	●
263	GASKET; STRAINER ALSO INCLUDED IN GASKET SET(M/T). ID=24.2	1-09630-090-0	02	1	0706-	●
270	CLIP; OIL PIPE	1-09701-117-0	01	1	0706-	●
271	NUT; CLIP M10 FLANGE	0-91180-210-0	01	1	0706-	●
329	PUMP ASM; OIL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-34150-090-5	01	1	0706-	●
329	PUMP ASM; OIL	1-34150-112-0	01	1	0902-		●
404	GASKET; OIL PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=24.2	1-09630-090-0	02	1	0706-	●
405	BOLT; EYE,OIL PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) M24X39	1-09675-132-1	01	1	0706-1404	●
405	BOLT; EYE,OIL PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) M24X39	1-09675-175-2	01	1	1405-	●

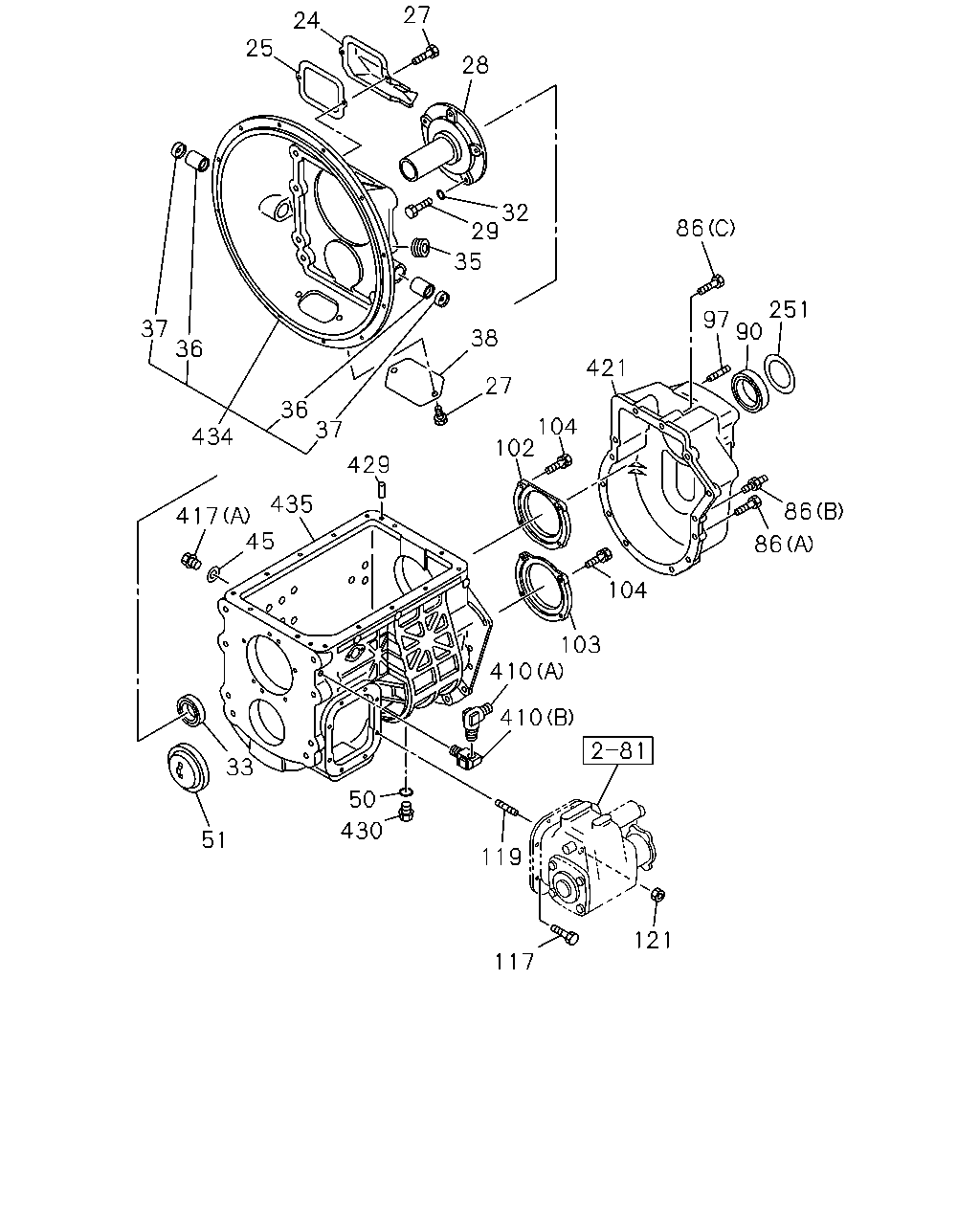

27 24 25 28 32 29 86 35 251 97 90 37 36 38 421 27 36 37 104 102 434 429 435 86 417 45 86 104 103 410 410 33 50 430 51 119 121 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0706-0901	●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0902-	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0706-0901	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0902-1406	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	04	1	0706-	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	0902-		●
28	COVER; FRT,TRANS CASE	1-33121-123-1	01	1	0706-	●
28	COVER; FRT,TRANS CASE	1-33121-158-3	01	1	0902-		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	05	1	0706-0805	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	05	1	0806-	●
29	BOLT; FRT COVER M10X40 FLANGE	0-28161-040-0	06	1	0902-1211		●
29	BOLT; FRT COVER M10X40 FLANGE	8-98230-249-0	06	1	1212-		●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	0706-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0706-0901	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0902-	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0706-	●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	0902-		●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0706-0901	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0902-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0706-0901	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0902-	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	0706-0901	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	0902-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0706-0901	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0902-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0706-0901	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0902-	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-195-1	01	1	0706-	●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	08	1	0706-	●
86	BOLT; RR COVER (C) M12X65 FLANGE	1-09044-113-0	02	1	0706-	●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	0706-	●
86	BOLT; RR COVER (E) M12X40 FLANGE	0-28151-240-0	14	1	0902-		●
86	BOLT; RR COVER (D) M10X16,M12X40 L=67.7	1-09029-082-0	02	1	0902-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-578-1	01	1	0706-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	0902-		●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0706-0901	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0902-	●	●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-020-1	01	1	0706-	●
103	RETAINER; BRG	9-33151-014-0	01	1	0706-	●
103	RETAINER; BRG	1-33151-059-0	01	1	0902-		●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	0706-	●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	0902-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE	0-28181-022-0	02	1	0706-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X35 FLANGE	0-28151-235-0	02	1	0902-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X130 FLANGE	0-28166-213-0	02	1	0902-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	06	1	0706-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	0-44011-225-0	04	1	0902-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	0706-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91180-212-0	04	1	0902-		●
251	RETAINER; OIL,PARKING BRK	1-33139-116-0	01	1	0706-1204	●
410	UNION; OIL PIPE (B) PT1/4 2WAY	1-09660-693-0	01	1	0706-	●
410	UNION; OIL PIPE (A) R1/4 & M16 ELBOW	1-09660-800-1	01	1	0706-	●
410	UNION; OIL PIPE (A) R1/4 & M16 ELBOW	1-09660-800-1	02	1	0902-		●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	0706-0901	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	0902-	●	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	0902-		●
421	COVER; RR,TRANS	1-33131-191-2	01	1	0706-1002	●
421	COVER; RR,TRANS	1-33131-192-2	01	1	1003-	●
421	COVER; RR,TRANS	1-33131-243-1	01	1	0902-0910		●
421	COVER; RR,TRANS	8-98077-636-0	01	1	0911-1110		●
421	COVER; RR,TRANS	8-98191-936-1	01	1	1111-1502		●
421	COVER; RR,TRANS	8-98304-558-0	01	1	1503-		●
429	PIN; STRAIGHT OD=8 L=16	9-08150-816-0	02	1	0706-	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	06	1	0902-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0706-0901	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0902-	●	●
434	HOUSING; CLU	1-31110-179-3	01	1	0706-	●
435	CASE; TRANS	1-33111-328-0	01	1	0706-	●
435	CASE; TRANS	1-33111-359-0	01	1	0902-0902		●
435	CASE; TRANS	8-98132-970-0	01	1	0903-		●

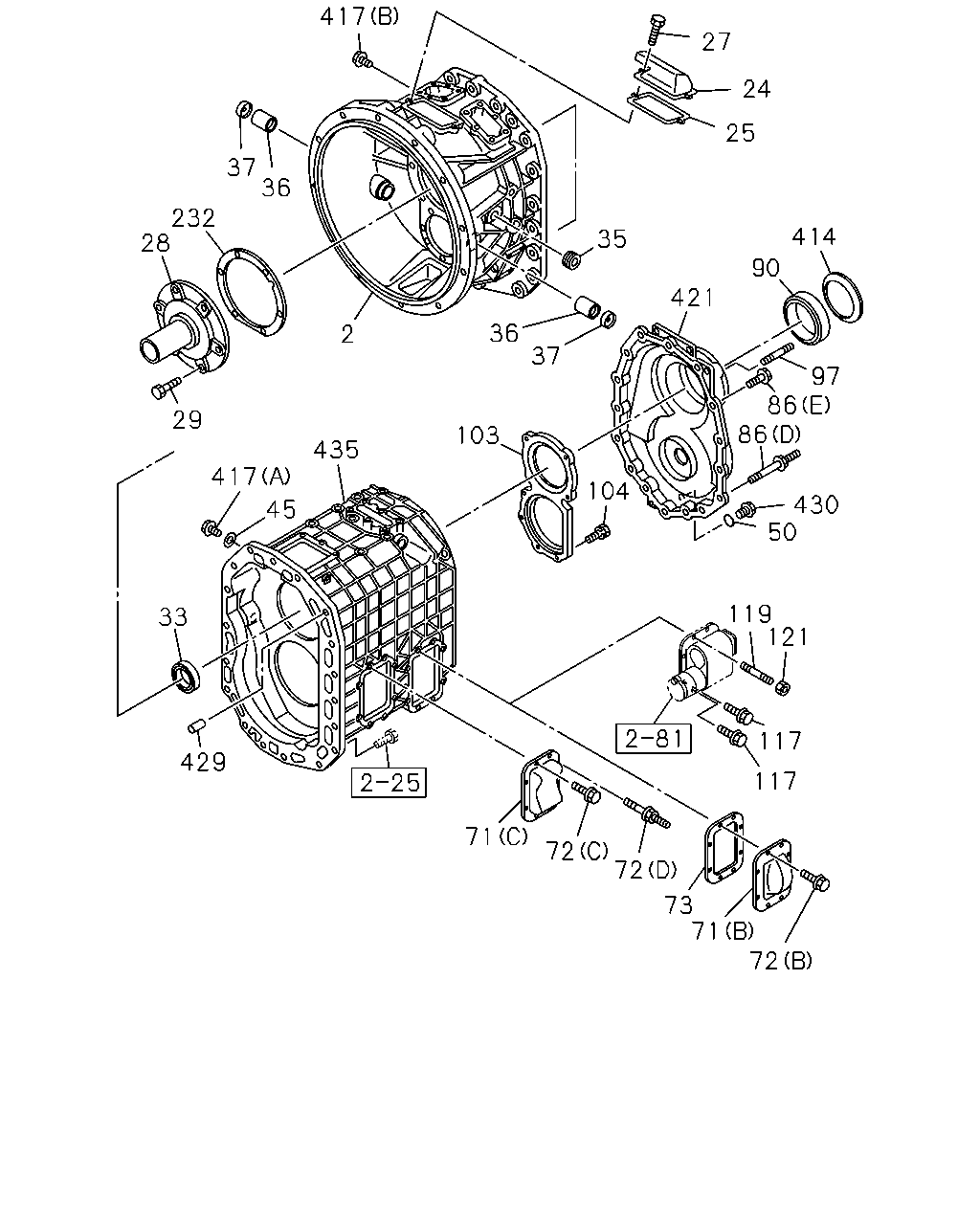

417 27 24 25 37 36 232 28 414 35 90 421 36 2 37 97 86 86 29 103 435 104 417 430 50 45 119 121 33 117 429 117 71 72 72 73 71 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; CLU	1-31111-200-0	01	1	0902-0902		●
2	HOUSING; CLU	8-98077-166-1	01	1	0903-1405		●
2	HOUSING; CLU	8-98200-947-0	01	1	1406-		●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0706-0901	●
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0902-	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0706-0901	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0902-1406	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	04	1	0706-	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	0902-		●
28	COVER; FRT,TRANS CASE	1-33121-123-1	01	1	0706-	●
28	COVER; FRT,TRANS CASE	1-33121-158-3	01	1	0902-		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	05	1	0706-0805	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	05	1	0806-	●
29	BOLT; FRT COVER M10X40 FLANGE	0-28161-040-0	06	1	0902-1211		●
29	BOLT; FRT COVER M10X40 FLANGE	8-98230-249-0	06	1	1212-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0706-0901	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0902-	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0706-	●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	0902-		●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0706-0901	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0902-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0706-0901	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0902-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0706-0901	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0902-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0706-0901	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0902-	●	●
71	COVER; SIDE,TRANS CASE (C)	1-33141-057-1	01	1	0902-		●
71	COVER; SIDE,TRANS CASE (A)	1-33141-058-0	01	1	0902-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-044-1	01	1	0902-		●
72	BOLT; SIDE COVER (A) M10X30 FLANGE	0-28151-030-0	04	1	0902-		●
72	BOLT; SIDE COVER (C) M12X40 FLANGE	0-28151-240-0	07	1	0902-		●
72	BOLT; SIDE COVER (D) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	0902-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X30 FLANGE	0-28751-230-0	08	1	0902-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-041-0	01	1	0902-		●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	08	1	0706-	●
86	BOLT; RR COVER (C) M12X65 FLANGE	1-09044-113-0	02	1	0706-	●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	0706-	●
86	BOLT; RR COVER (E) M12X40 FLANGE	0-28151-240-0	14	1	0902-		●
86	BOLT; RR COVER (D) M10X16,M12X40 L=67.7	1-09029-082-0	02	1	0902-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-578-1	01	1	0706-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	0902-		●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0706-0901	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0902-	●	●
103	RETAINER; BRG	9-33151-014-0	01	1	0706-	●
103	RETAINER; BRG	1-33151-059-0	01	1	0902-		●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	0706-	●
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	0902-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE	0-28181-022-0	02	1	0706-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X35 FLANGE	0-28151-235-0	02	1	0902-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X130 FLANGE	0-28166-213-0	02	1	0902-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	06	1	0706-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	0-44011-225-0	04	1	0902-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	0706-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91180-212-0	04	1	0902-		●
232	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33142-051-1	01	1	0902-		●
414	COVER; DUST,RR COVER	1-33139-011-1	01	1	0902-1211		●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	0706-0901	●
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	0902-	●	●
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	0902-		●
421	COVER; RR,TRANS	1-33131-191-2	01	1	0706-1002	●
421	COVER; RR,TRANS	1-33131-192-2	01	1	1003-	●
421	COVER; RR,TRANS	1-33131-243-1	01	1	0902-0910		●
421	COVER; RR,TRANS	8-98077-636-0	01	1	0911-1110		●
421	COVER; RR,TRANS	8-98191-936-1	01	1	1111-1502		●
421	COVER; RR,TRANS	8-98304-558-0	01	1	1503-		●
429	PIN; STRAIGHT OD=8 L=16	9-08150-816-0	02	1	0706-	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	06	1	0902-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0706-0901	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0902-	●	●
435	CASE; TRANS	1-33111-328-0	01	1	0706-	●
435	CASE; TRANS	1-33111-359-0	01	1	0902-0902		●
435	CASE; TRANS	8-98132-970-0	01	1	0903-		●

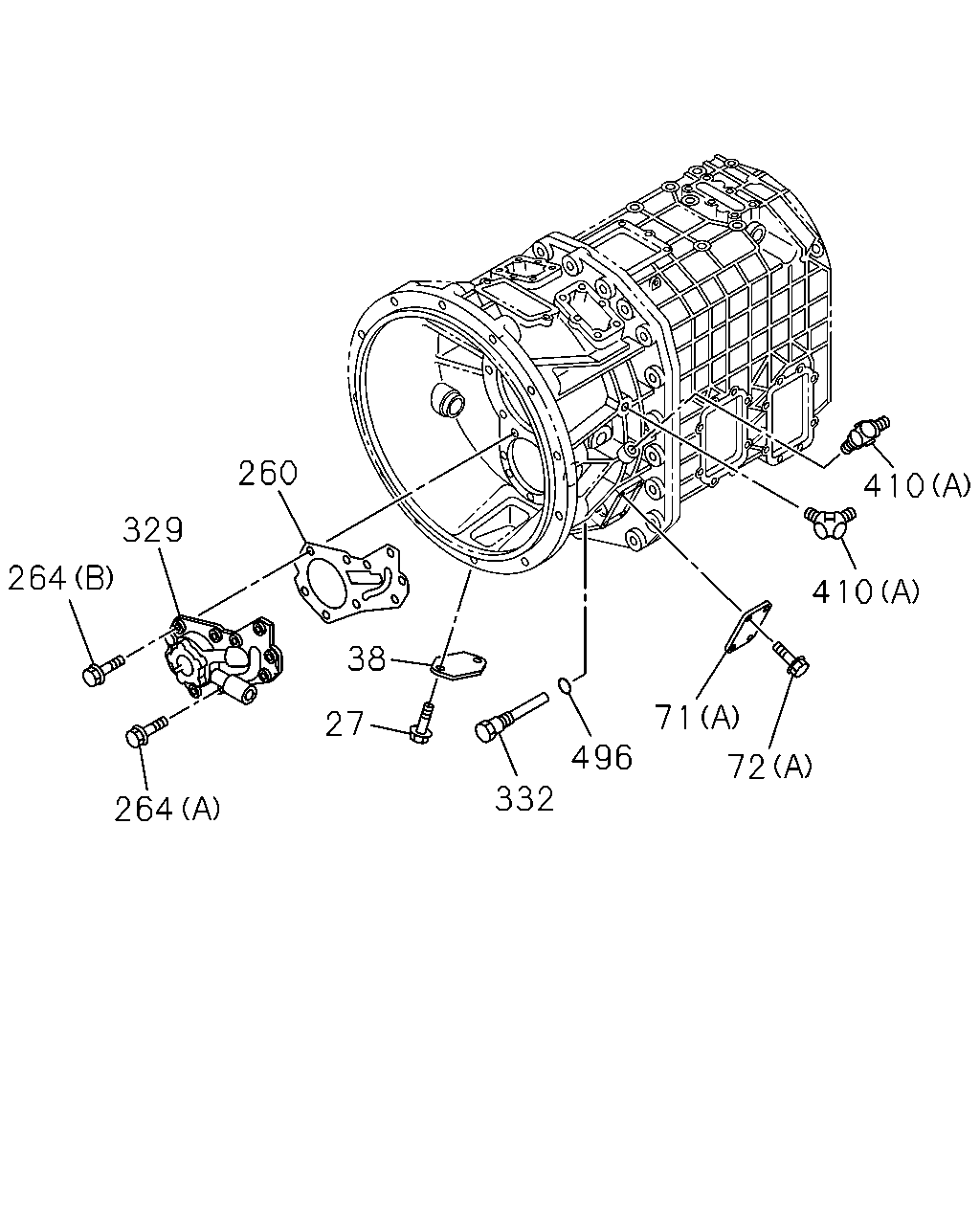

260 410 329 264 410 38 71 27 496 72 332 264

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	04	1	0706-	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	0902-		●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	0706-0901	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	0902-	●	●
71	COVER; SIDE,TRANS CASE (C)	1-33141-057-1	01	1	0902-		●
71	COVER; SIDE,TRANS CASE (A)	1-33141-058-0	01	1	0902-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-044-1	01	1	0902-		●
72	BOLT; SIDE COVER (A) M10X30 FLANGE	0-28151-030-0	04	1	0902-		●
72	BOLT; SIDE COVER (C) M12X40 FLANGE	0-28151-240-0	07	1	0902-		●
72	BOLT; SIDE COVER (D) M10X16,M12X40 L=67.7	1-09029-082-0	01	1	0902-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X30 FLANGE	0-28751-230-0	08	1	0902-		●
260	GASKET; OIL PUMP	1-34142-031-0	01	1	0902-		●
264	BOLT; OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M10X22 FLANGE	0-28181-022-0	06	1	0706-	●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	0-28151-040-0	09	1	0902-1211		●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	8-98230-249-0	09	1	1212-		●
264	BOLT; OIL PUMP (A) M10X70 FLANGE	0-28151-070-0	01	1	0902-		●
329	PUMP ASM; OIL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-34150-090-5	01	1	0706-	●
329	PUMP ASM; OIL	1-34150-112-0	01	1	0902-		●
332	FILTER; OIL	1-34159-050-1	01	1	0902-		●
410	UNION; OIL PIPE (B) PT1/4 2WAY	1-09660-693-0	01	1	0706-	●
410	UNION; OIL PIPE (A) R1/4 & M16 ELBOW	1-09660-800-1	01	1	0706-	●
410	UNION; OIL PIPE (A) R1/4 & M16 ELBOW	1-09660-800-1	02	1	0902-		●
496	GASKET; OIL FILTER ID=24.2	1-09630-090-0	01	1	0902-		●

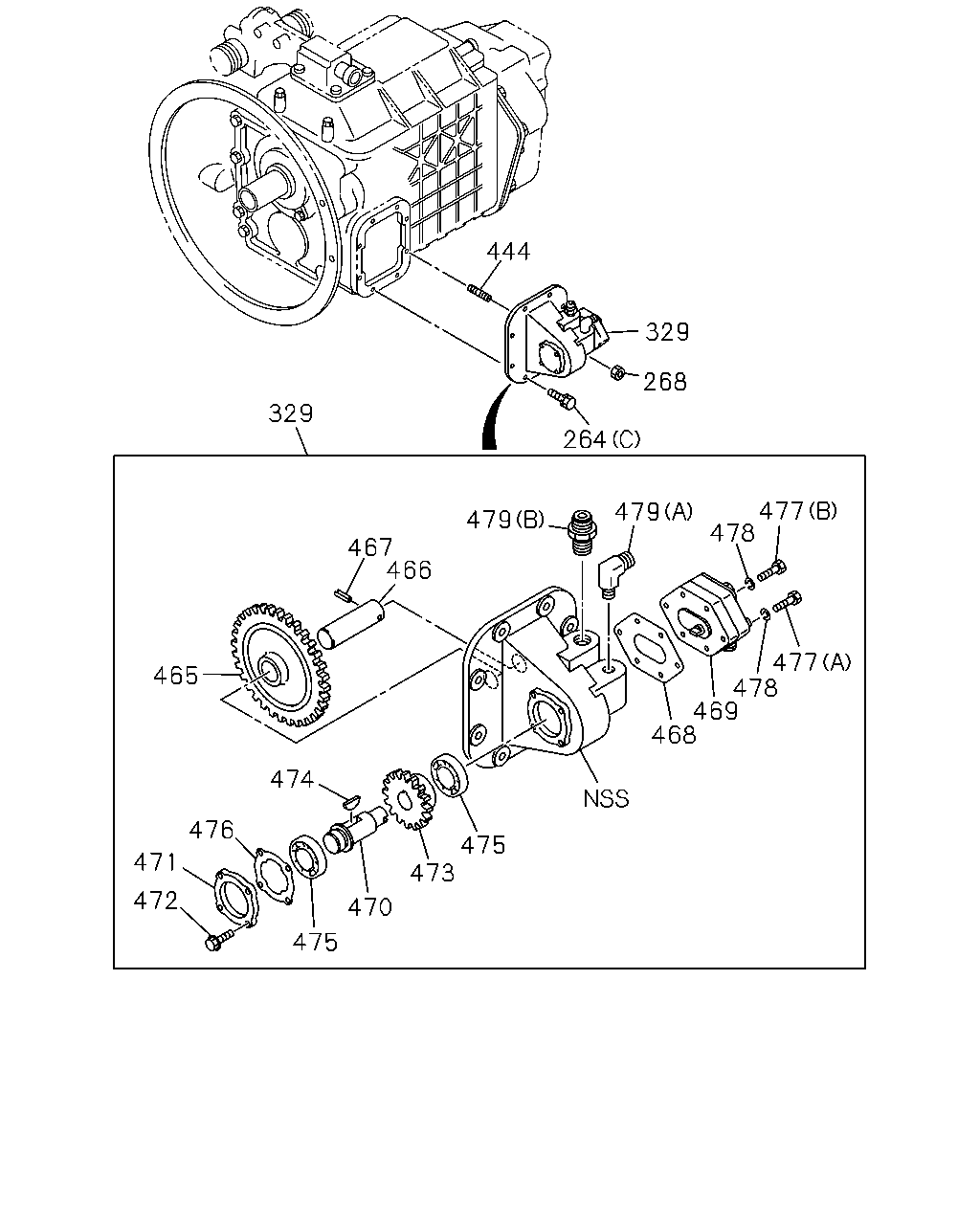

444 329 268 329 264 477 478 479 479 467 466 477 478 469 468 465 474 476 475 473 471 472 470 475

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
264	BOLT; OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M10X22 FLANGE	0-28181-022-0	06	1	0706-	●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	0-28151-040-0	09	1	0902-1211		●
264	BOLT; OIL PUMP (B) M10X40 FLANGE	8-98230-249-0	09	1	1212-		●
264	BOLT; OIL PUMP (A) M10X70 FLANGE	0-28151-070-0	01	1	0902-		●
268	NUT EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0706-	●
329	PUMP ASM; OIL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-34150-090-5	01	1	0706-	●
329	PUMP ASM; OIL	1-34150-112-0	01	1	0902-		●
444	STUD; OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0706-	●
465	GEAR; IDLE,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=34	1-34159-073-1	01	1	0706-	●
466	SHAFT; IDLE GEAR,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-34159-072-0	01	1	0706-	●
467	PIN; SPRING,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) L=16	9-09878-613-0	01	1	0706-	●
468	GASKET; OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-34142-027-0	01	1	0706-	●
469	PUMP; OIL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-34150-049-0	01	1	0706-	●
470	SHAFT; OUTPUT,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-34159-043-0	01	1	0706-	●
471	COVER; FRT,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-34159-042-0	01	1	0706-	●
472	BOLT; COVER,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X16 FLANGE	0-28080-816-0	04	1	0706-1208	●
472	BOLT; COVER,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X16 FLANGE	0-28050-816-0	04	1	1209-	●
473	GEAR; OUTPUT,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=15	1-34152-011-0	01	1	0706-	●
474	KEY; OUTPUT SHAFT,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-08055-628-0	01	1	0706-	●
475	BEARING; OUTPUT SHAFT,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-34159-044-0	02	1	0706-	●
476	GASKET; COVER,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-34159-045-0	01	1	0706-	●
477	BOLT; OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X50	0-10805-850-0	02	1	0706-1208	●
477	BOLT; OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X50 FLANGE	0-28050-850-0	02	1	1209-	●
477	BOLT; OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X70	0-10805-870-0	02	1	0706-1208	●
477	BOLT; OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X70 FLANGE	0-28050-870-0	02	1	1209-	●
478	WASHER; LK,OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8.2	9-09150-508-0	04	1	0706-1208	●
479	CONNECTOR; OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-09650-518-0	01	1	0706-1310	●
479	CONNECTOR; OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-09650-538-0	01	1	1311-	●
479	CONNECTOR; OIL PUMP EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) FLARE M22 PT1/2	9-09231-815-1	01	1	0706-	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

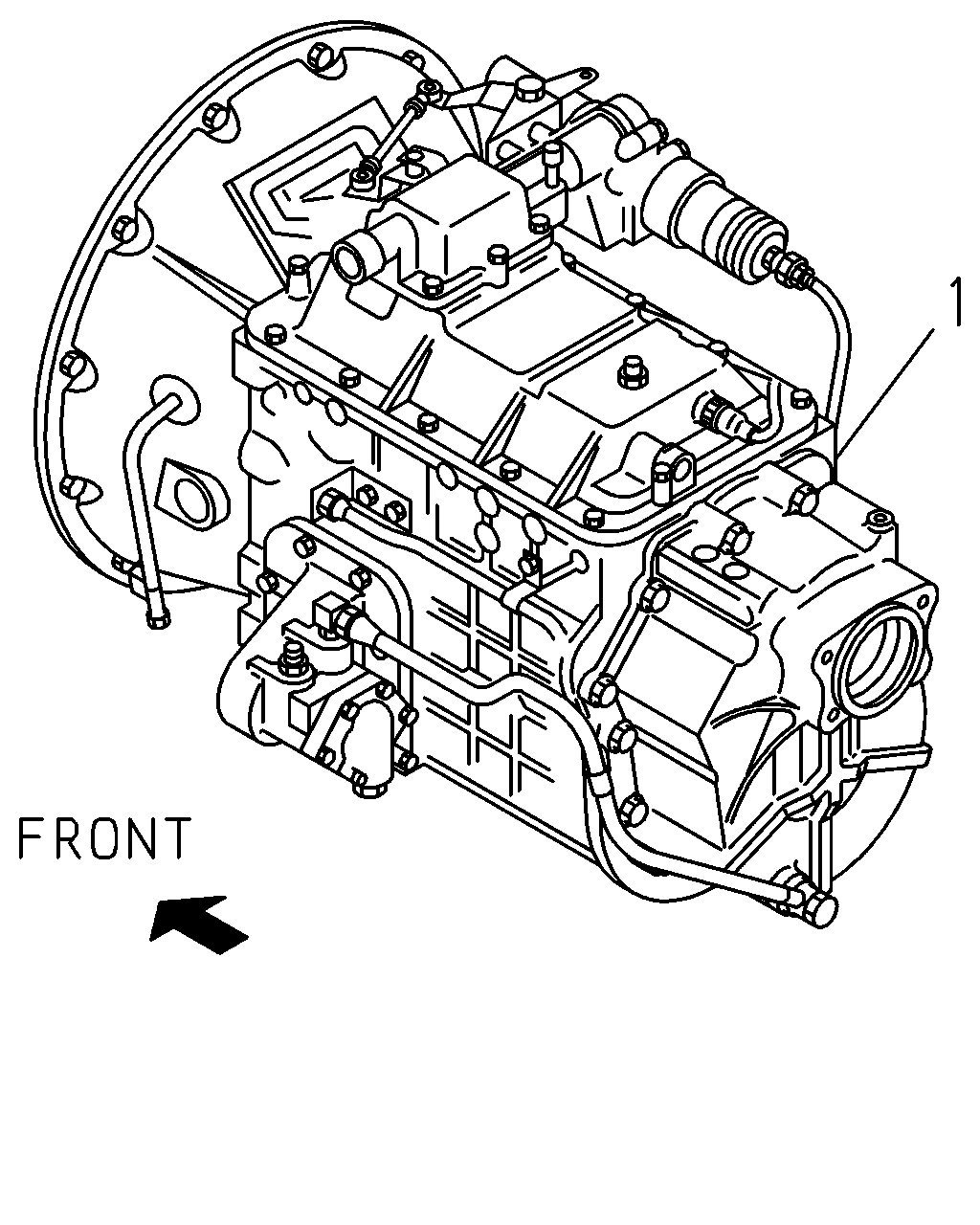

1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-781-0	01	1	0706-	●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-781-0	01	1	0706-	●
1	TRANSMISSION ASM; MANUAL MANUAL SHIFT CONTROL<B3G> TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-779-0	01	1	0706-	●
1	TRANSMISSION ASM; MANUAL MANUAL SHIFT CONTROL<B3G> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-779-0	01	1	0706-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-783-0	01	1	0902-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-783-0	01	1	0902-		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

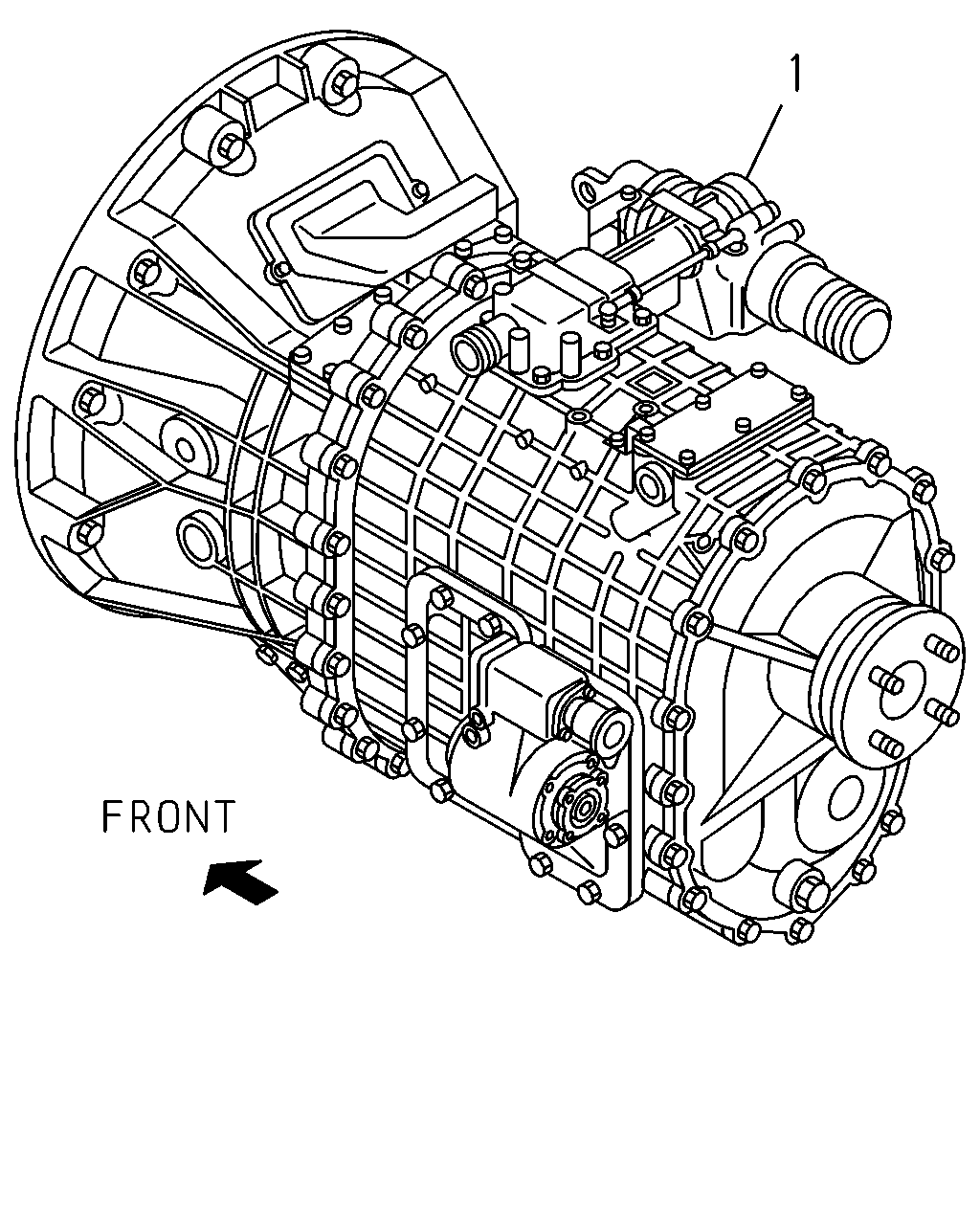

1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-781-0	01	1	0706-	●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-781-0	01	1	0706-	●
1	TRANSMISSION ASM; MANUAL MANUAL SHIFT CONTROL<B3G> TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-779-0	01	1	0706-	●
1	TRANSMISSION ASM; MANUAL MANUAL SHIFT CONTROL<B3G> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-779-0	01	1	0706-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-783-0	01	1	0902-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-783-0	01	1	0902-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
