◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10653 - EXZ ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#1806) — 62 parça
çizim 28467
60 60 60 63
BalonParca AdiParca NoAdetTipApplied Date A B
60 PLATE; CAUTION,CAB TILT
(C) 		1-85881-511-0 01 1 9002- ●
60 PLATE; CAUTION,CAB TILT
EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8> (C) 		1-85881-511-0 01 1 9002- ●
60 PLATE; CAUTION,CAB TILT
AUTO CAB TILT<WV2> (B) 		1-85883-094-2 01 1 9002- ●
60 PLATE; CAUTION,CAB TILT
AUTO CAB TILT<WV2> (A) 		1-85883-097-0 02 1 9002- ●
60 PLATE; CAUTION,CAB TILT
CAUTIONS ARABIAN<WJ7> (C) 		1-85881-529-0 01 1 9002- ●
60 PLATE; CAUTION,CAB TILT
CAUTIONS CHINESE<SL7> (C) 		1-85881-527-0 01 1 9002- ●
60 PLATE; CAUTION,CAB TILT
CAUTIONS FRENCH<WJ8> (C) 		1-85881-528-0 01 1 9002- ●
63 PLATE; CAUTION,SEAT AIR
SUSP SEAT W/SEAT BELT ANCHRAGE(WN5) 		1-75537-199-0 01 1 9002- ●
63 PLATE; CAUTION,SEAT AIR
SUSP SEAT W/SEAT BELT ANCHRAGE(WN5) EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> 		1-75537-199-0 01 1 9002- ●
63 PLATE; CAUTION,SEAT AIR
SUSP SEAT W/SEAT BELT ANCHRAGE(WN5) CAUTIONS ARABIAN<WJ7> 		1-75537-202-0 01 1 9002- ●
63 PLATE; CAUTION,SEAT AIR
SUSP SEAT W/SEAT BELT ANCHRAGE(WN5) CAUTIONS CHINESE<SL7> 		1-75537-200-0 01 1 9002- ●
63 PLATE; CAUTION,SEAT AIR
SUSP SEAT W/SEAT BELT ANCHRAGE(WN5) CAUTIONS FRENCH<WJ8> 		1-75537-201-0 01 1 9002- ●
63 PLATE; CAUTION,SEAT AIR
SUSP SEAT W/SEAT BELT ANCHRAGE(WN5) CAUTIONS SPANISH<YN1> 		1-75537-203-0 01 1 9002- ●
çizim 28647
173
BalonParca AdiParca NoAdetTipApplied Date A B
173 PLATE; CAUTION,FUEL FILTER
CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-85886-176-0 01 1 9311- ●
çizim 29030
49 39 39 39 74 51 51 58 58
BalonParca AdiParca NoAdetTipApplied Date A B
39 PLATE; CAUTION,ENG STOP
AUTO ENG SHUTOFF<KB6> EXC. INTAKE HEATER<SL2> (A) 		1-85877-308-0 01 1 9308- ●
39 PLATE; CAUTION,ENG STOP
INTAKE HEATER<SL2> (B) 		1-85877-230-0 01 1 9002-9307 ● ●
39 PLATE; CAUTION,ENG STOP
INTAKE HEATER<SL2> EXC. AUTO ENG SHUTOFF<KB6> (B) 		1-85877-230-0 01 1 9308- ● ●
39 PLATE; CAUTION,ENG STOP
EXC. INTAKE HEATER<SL2> (C) 		1-85877-199-0 01 1 9002-9307 ● ●
39 PLATE; CAUTION,ENG STOP
EXC. AUTO ENG SHUTOFF<KB6>,INTAKE HEATER<SL2> (C) 		1-85877-199-0 01 1 9308- ● ●
49 PLATE; CAUTION,FUSE BOX 1-85887-691-4 01 1 9002- ●
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS CHINESE<SL7> 		1-85887-691-4 01 1 9002- ●
49 PLATE; CAUTION,FUSE BOX
CAUTIONS CHINESE<SL7> 		1-85887-795-1 01 1 9002- ●
51 PLATE; CAUTION,WARNING
(B) 		1-85880-569-0 01 1 9002- ●
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8> (B) 		1-85880-569-0 01 1 9002- ●
51 PLATE; CAUTION,WARNING
(A) 		1-85887-454-1 01 1 9002- ●
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8> (A) 		1-85887-454-1 01 1 9002- ●
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7> (B) 		1-85880-572-0 01 1 9002- ●
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7> (A) 		1-85887-514-1 01 1 9002- ●
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7> (B) 		1-85880-570-0 01 1 9002- ●
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7> (A) 		1-85887-512-1 01 1 9002- ●
51 PLATE; CAUTION,WARNING
CAUTIONS FRENCH<WJ8> (B) 		1-85880-571-0 01 1 9002- ●
51 PLATE; CAUTION,WARNING
CAUTIONS FRENCH<WJ8> (A) 		1-85887-513-2 01 1 9002- ●
58 PLATE; CAUTION,ENG START
(A) 		1-85887-457-0 01 1 9002- ●
58 PLATE; CAUTION,ENG START
EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8> (A) 		1-85887-457-0 01 1 9002- ●
58 PLATE; CAUTION,ENG START
CAUTIONS ARABIAN<WJ7> (B) 		1-85887-537-0 01 1 9002- ●
58 PLATE; CAUTION,ENG START
CAUTIONS CHINESE<SL7> (B) 		1-85887-536-0 01 1 9002- ●
58 PLATE; CAUTION,ENG START
CAUTIONS FRENCH<WJ8> (B) 		1-85887-535-0 01 1 9002- ●
74 PLATE; CAUTION,CHANGE LEV
RTO14613 M/T FULLER(MRU),RTO11613 M/T FULLER(MV6) COUNTER SHAFT BRAKE<BAP>,COUNTER SHAFT BRAKE MULTIDISC<BCP> 		1-85881-617-0 01 1 9307- ●
74 PLATE; CAUTION,CHANGE LEV
RTO11613 M/T FULLER(MV6) COUNTER SHAFT BRAKE<BAP> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-85881-617-0 01 1 9307- ●
74 PLATE; CAUTION,CHANGE LEV
RT11609A M/T FULLER(PQ4),RTX11609B M/T FULLER(X8W) COUNTER SHAFT BRAKE<BAP>,COUNTER SHAFT BRAKE MULTIDISC<BCP> 		1-85881-614-0 01 1 9307- ●
74 PLATE; CAUTION,CHANGE LEV
RTX11609B M/T FULLER(X8W) COUNTER SHAFT BRAKE<BAP> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-85881-614-0 01 1 9307- ●
74 PLATE; CAUTION,CHANGE LEV
RTO11613 M/T FULLER(MV6) COUNTER SHAFT BRAKE<BAP> CAUTIONS ARABIAN<WJ7> 		1-85881-619-0 01 1 9307- ●
74 PLATE; CAUTION,CHANGE LEV
RTO11613 M/T FULLER(MV6) COUNTER SHAFT BRAKE<BAP> CAUTIONS FRENCH<WJ8> 		1-85881-618-0 01 1 9307- ●
74 PLATE; CAUTION,CHANGE LEV
RTX11609B M/T FULLER(X8W) COUNTER SHAFT BRAKE<BAP> CAUTIONS ARABIAN<WJ7> 		1-85881-616-0 01 1 9307- ●
74 PLATE; CAUTION,CHANGE LEV
RTX11609B M/T FULLER(X8W) COUNTER SHAFT BRAKE<BAP> CAUTIONS FRENCH<WJ8> 		1-85881-615-0 01 1 9307- ●

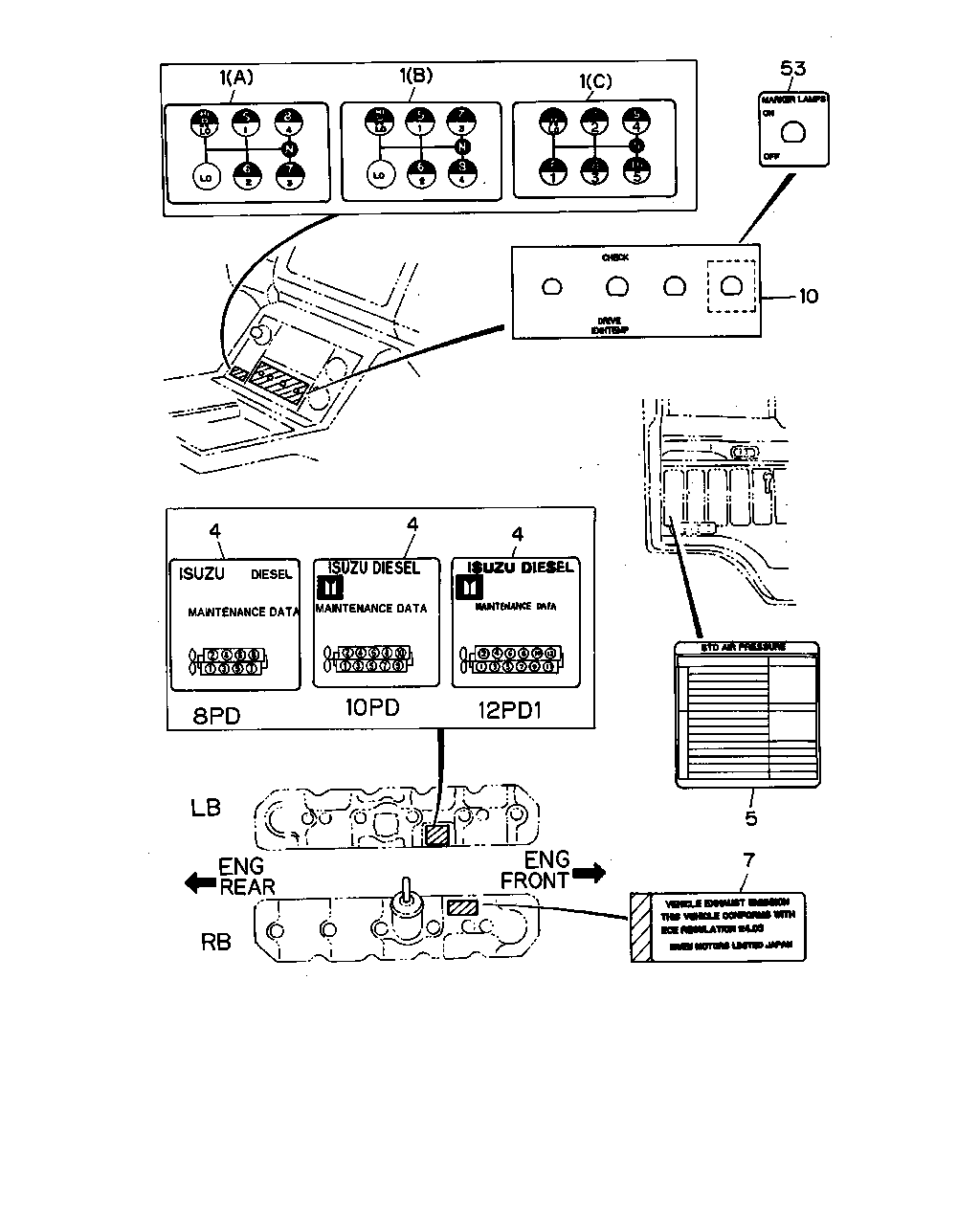

çizim 29184
53 1 10 1 1 4 4 4 5 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 PLATE; CAUTION,SHIFT PATTERN
RT14715 M/T FULLER(X8L) (C) 		1-85881-613-0 01 1 9002-9306 ●
1 PLATE; CAUTION,SHIFT PATTERN
FULLER M/T<X9B> (B) 		1-85881-519-0 01 1 9307- ● ●
1 PLATE; CAUTION,SHIFT PATTERN
RTO11609B M/T FULLER(X4Z) (A) 		1-85881-521-1 01 1 9002-9306 ● ●
1 PLATE; CAUTION,SHIFT PATTERN
RTO14613 M/T FULLER(MRU),RTO11613 M/T FULLER(MV6), RT11609A M/T FULLER(PQ4),RTX11609B M/T FULLER(X8W) (B) 		1-85881-519-0 01 1 9002-9306 ● ●
4 LABEL; ENG MAINTENANCE
10PD1 STD ENG(40L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-85886-797-0 01 1 9502- ●
4 LABEL; ENG MAINTENANCE
10PD1 STD ENG(40L) EXC. TAIWAN EQUIPMENT(WW5) 		1-85886-634-0 01 1 9002-9306 ● ●
4 LABEL; ENG MAINTENANCE
10PD1 STD ENG(40L) 		1-85886-634-0 01 1 9307-9501 ● ●
4 LABEL; ENG MAINTENANCE
10PD1 STD ENG(40L) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-85886-634-0 01 1 9502- ●
4 LABEL; ENG MAINTENANCE 1-85886-634-0 01 1 9502- ●
4 LABEL; ENG MAINTENANCE
8PD1 STD ENG(38L) 		1-85886-711-0 01 1 9307- ● ●
4 LABEL; ENG MAINTENANCE
10PD1 STD ENG(40L) TAIWAN EQUIPMENT(WW5) 		1-85886-640-0 01 1 9002-9306 ●
4 LABEL; ENG MAINTENANCE
12PD1 STD ENG(42L) 		1-85886-635-0 01 1 9002-9306 ●
5 LABEL; TIRE AIR PRESSURE 1-85881-387-0 01 1 9002-9003 ● ●
5 LABEL; TIRE AIR PRESSURE 1-85881-655-0 01 1 9004- ● ●
7 LABEL; EMISSION
10PD1 STD ENG(40L) CAUTIONS ECE<WX4> 		8-97042-609-0 01 1 9308- ● ●
10 PLATE; NAME
EXH HEAT WARNING<W50> 		1-85877-209-0 01 1 9002- ●
53 PLATE; CAUTION,MARKER LAMP
MARKER LAMP THREE AMBER<WD9> 		1-85877-356-0 01 1 9002-9306 ●
