2-07 — CLUTCH BOOSTER; MINIPACK (#18059) — 102 parça

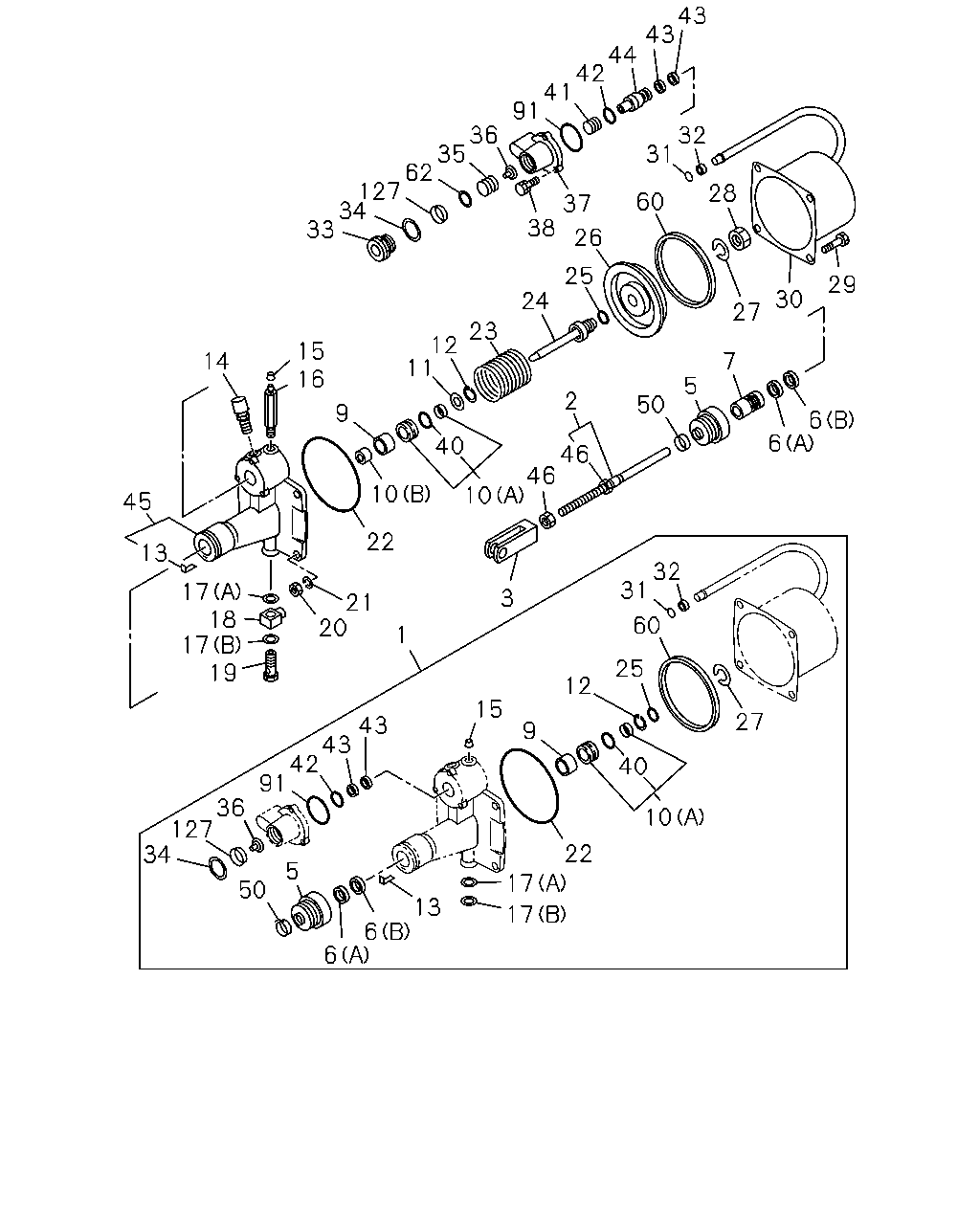

çizim 134645
43 43 44 42 41 91 36 35 62 127 34 33 32 31 28 60 37 38 26 25 29 30 24 27 23 12 11 15 16 7 14 5 2 50 9 6 6 40 46 46 10 10 45 22 13 32 31 17 18 17 19 3 21 20 60 1 25 12 15 27 43 43 42 91 9 40 36 127 34 10 22 17 5 50 13 6 17 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-523-0 01 1 0706-0901 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-523-0 01 1 0902- ● ●
2 ROD; PUSH,CLU BOOSTER 1-31824-233-0 01 1 0706-0901 ●
2 ROD; PUSH,CLU BOOSTER 1-31824-233-0 01 1 0902- ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 0706-0901 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 0902- ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 0706-0901 ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 0902- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0706-0901 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0902- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0706-0901 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0902- ● ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0706-0901 ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0902- ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0706-0901 ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0902- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 0706-0901 ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 0902- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0706-0901 ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0902- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0706-0901 ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0902- ● ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 0706-0901 ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 0902- ● ●
13 PIN; SPR 1-31829-109-0 01 1 0706-0901 ●
13 PIN; SPR 1-31829-109-0 01 1 0902- ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0706-0901 ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0902- ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0706-0901 ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0902- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0706-0901 ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0902- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0706-0901 ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0902- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0706-0901 ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0902- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0706-0901 ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0902- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0706-0901 ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0902- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0706-0901 ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0902- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0706-0901 ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0902- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 0706-0901 ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 0902- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-350-0 01 1 0706-0901 ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-350-0 01 1 0902- ● ●
24 ROD; PUSH,CLU BOOSTER 1-31824-158-0 01 1 0706-0901 ●
24 ROD; PUSH,CLU BOOSTER 1-31824-158-0 01 1 0902- ● ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 0706-0901 ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 0902- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 0706-0901 ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 0902- ● ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 0706-0901 ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 0902- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 0706-0901 ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 0902- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0706-0901 ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0902- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-117-0 01 1 0706-0901 ●
30 SHELL; CYL,CLU BOOSTER 1-31811-117-0 01 1 0902- ● ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0706-0901 ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0902- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0706-0901 ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0902- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0706-0901 ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0902- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0706-0901 ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0902- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 0706-0901 ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 0902- ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 0706-0901 ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 0902- ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0706-0901 ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0902- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0706-0901 ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0902- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0706-0901 ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0902- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 0706-0901 ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 0902- ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-123-0 01 1 0706-0901 ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-123-0 01 1 0902- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0706-0901 ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0902- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-089-0 01 1 0706-0901 ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-089-0 01 1 0902- ● ●
45 PLATE; END,CLU BOOSTER 1-31811-138-0 01 1 0706-0901 ●
45 PLATE; END,CLU BOOSTER 1-31811-138-0 01 1 0902- ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0706-0901 ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0902- ● ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 0706-0901 ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 0902- ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 0706-0901 ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 0902- ● ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0706-0901 ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0902- ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0706-0901 ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0902- ● ●
127 FILTER; POPPET 1-31829-495-0 01 1 0706-0901 ●
127 FILTER; POPPET 1-31829-495-0 01 1 0902- ● ●
