1-41 — FUEL PIPING; CHASSIS (#18052) — 115 parça

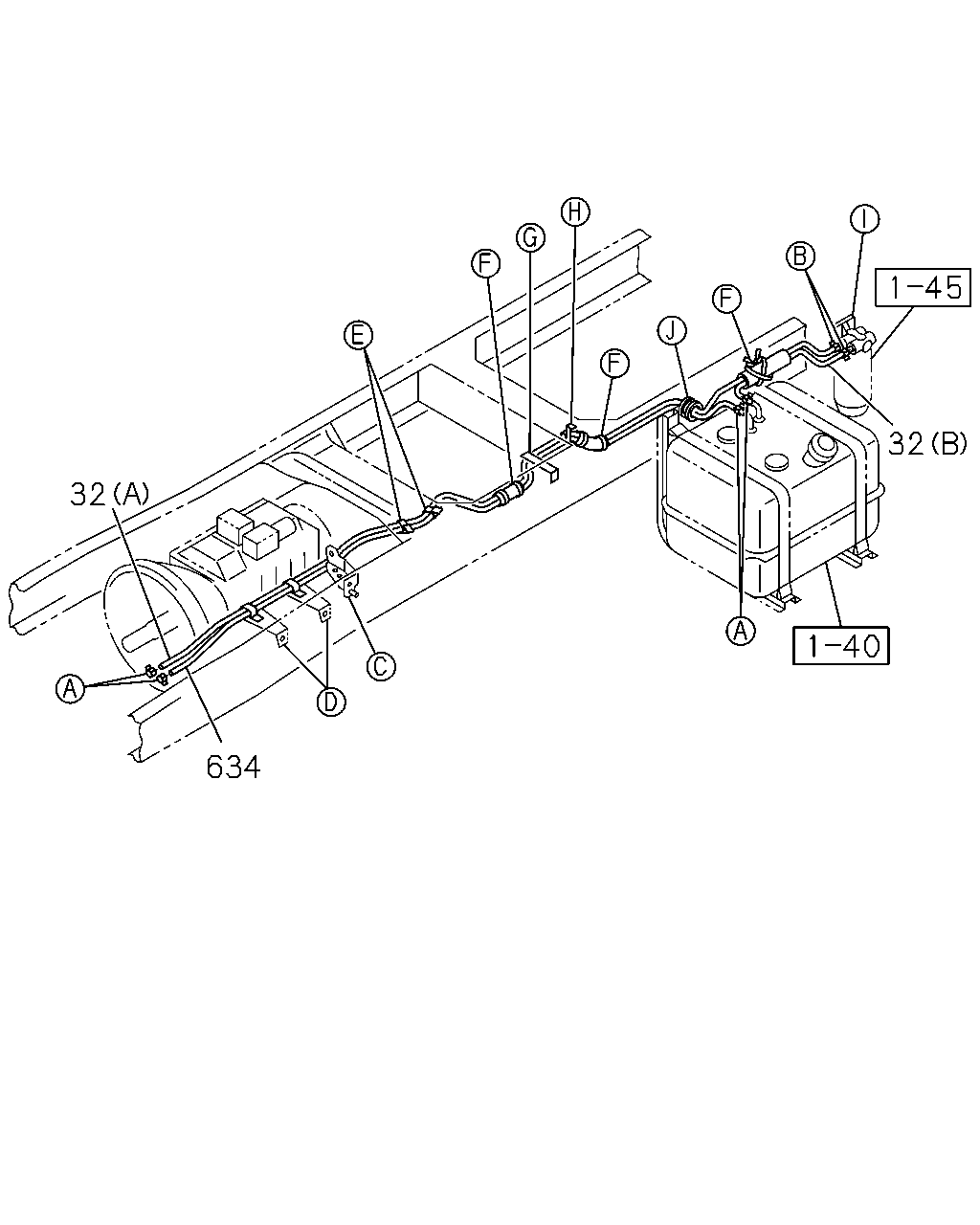

32 32 634

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L AL<EBF> (B) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	0706-0708	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L AL<EBF> (A) L=2200 SERVICED BY L=3000	0-01262-300-0	01	1	0706-0708	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L AL<EBF> (A) L=2200 SERVICED BY L=3000	0-01262-300-0	01	1	0811-	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL TANK 300L AL<EBF> (B) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	0706-0708	●
32	PIPE; DELIVERY,FUEL TANK (B) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	0709-0810	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL TANK 300L AL<EBF> (B) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	0811-	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL TANK 300L AL<EBF> (A) L=1950 SERVICED BY L=3000	0-01262-300-0	01	1	0706-0708	●
32	PIPE; DELIVERY,FUEL TANK (A) L=1950 SERVICED BY L=3000	0-01262-300-0	01	1	0709-0810	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL TANK 300L AL<EBF> (A) L=1950 SERVICED BY L=3000	0-01262-300-0	01	1	0811-	●
32	PIPE; DELIVERY,FUEL TANK (B) L=500 SERVICED BY L=3000	0-01260-300-0	01	1	0706-0708		●
32	PIPE; DELIVERY,FUEL TANK (B) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	0709-0810		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L AL<EBF> (B) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	0811-	●
32	PIPE; DELIVERY,FUEL TANK (B) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	0811-		●
32	PIPE; DELIVERY,FUEL TANK (A) L=2750 SERVICED BY L=3000	0-01262-300-0	01	1	0706-0708		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> (A) L=3100 SERVICED BY L=5350	0-01262-535-0	01	1	0709-0804		●
32	PIPE; DELIVERY,FUEL TANK (A) L=3100 SERVICED BY L=5350	0-01262-535-0	01	1	0805-0810		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> (A) L=3100 SERVICED BY L=5350	0-01262-535-0	01	1	0811-		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (A) L=3050 SERVICED BY L=5050	0-01262-505-0	01	1	0811-		●
634	HOSE; RUBBER RETURN FUEL TANK 300L AL<EBF> L=1850 SERVICED BY L=3000	0-01260-300-0	01	1	0706-0708	●
634	HOSE; RUBBER RETURN FUEL TANK 300L AL<EBF> L=1850 SERVICED BY L=3000	0-01260-300-0	01	1	0811-	●
634	HOSE; RUBBER RETURN WHEEL BASE 4500MM(45W) EXC. FUEL TANK 300L AL<EBF> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	0706-0708	●
634	HOSE; RUBBER RETURN WHEEL BASE 4500MM(45W) L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	0709-0810	●
634	HOSE; RUBBER RETURN WHEEL BASE 4500MM(45W) EXC. FUEL TANK 300L AL<EBF> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	0811-0901	●
634	HOSE; RUBBER RETURN WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) EXC. FUEL TANK 300L AL<EBF> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	0902-	●
634	HOSE; RUBBER RETURN L=2500 SERVICED BY L=3000	0-01260-300-0	01	1	0706-0708		●
634	HOSE; RUBBER RETURN L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	0709-		●

101 48 80 101 100 100 41 99 97 83 103 97 102 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	02	1	0706-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	02	1	0706-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	0706-	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L AL<THF> (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	0709-0804		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	0805-0810		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L AL<THF> (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	0811-		●
48	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0706-0708		●
48	BOLT; BRKT (A) M8X35 FLANGE	0-28650-835-0	01	1	0706-0708		●
48	BOLT; BRKT (A) M8X35 FLANGE	0-28650-835-0	02	1	0709-		●
80	BOLT; CLIP,FUEL TANK FUEL TANK 200L AL<THF> M8X20 FLANGE	0-28650-820-0	01	1	0709-0804		●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	0805-0810		●
80	BOLT; CLIP,FUEL TANK FUEL TANK 200L AL<THF> M8X20 FLANGE	0-28650-820-0	01	1	0811-		●
83	NUT; CLIP,FUEL TANK FUEL TANK 200L AL<THF> M8 FLANGE	0-91180-108-0	01	1	0709-0804		●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	0805-0810		●
83	NUT; CLIP,FUEL TANK FUEL TANK 200L AL<THF> M8 FLANGE	0-91180-108-0	01	1	0811-		●
97	BRACKET; CLIP (B) L=55	1-47475-304-0	01	1	0706-		●
97	BRACKET; CLIP (A)	1-82698-358-0	01	1	0706-0708		●
97	BRACKET; CLIP (A)	1-82698-358-0	02	1	0709-		●
97	BRACKET; CLIP FUEL TANK 200L AL<THF> (C)	1-47475-927-0	01	1	0709-0804		●
97	BRACKET; CLIP (C)	1-47475-927-0	01	1	0805-0810		●
97	BRACKET; CLIP FUEL TANK 200L AL<THF> (C)	1-47475-927-0	01	1	0811-1010		●
97	BRACKET; CLIP FUEL TANK 200L AL<THF> (C) L=68	1-47475-525-0	01	1	1011-		●
98	BOLT; BRKT,FUEL PIPE FUEL TANK 200L AL<THF> M8X35 FLANGE	0-28650-835-0	01	1	0709-0804		●
98	BOLT; BRKT,FUEL PIPE M8X35 FLANGE	0-28650-835-0	01	1	0805-0810		●
98	BOLT; BRKT,FUEL PIPE FUEL TANK 200L AL<THF> M8X35 FLANGE	0-28650-835-0	01	1	0811-		●
99	NUT; BRKT,CLIP,FUEL TANK FUEL TANK 200L AL<THF> M8 FLANGE	0-91180-108-0	01	1	0709-0804		●
99	NUT; BRKT,CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	0805-0810		●
99	NUT; BRKT,CLIP,FUEL TANK FUEL TANK 200L AL<THF> M8 FLANGE	0-91180-108-0	01	1	0811-		●
100	CLIP; FUEL PIPE WHEEL BASE 4500MM(45W) ID=19X32 H=17.5 L=22.5	1-09701-315-0	04	1	0706-0901	●
100	CLIP; FUEL PIPE WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) ID=19X32 H=17.5 L=22.5	1-09701-315-0	04	1	0902-	●
100	CLIP; FUEL PIPE WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) ID=19X32 H=17.5 L=22.5	1-09701-315-0	07	1	0706-0708		●
100	CLIP; FUEL PIPE ID=19X32 H=17.5 L=22.5	1-09701-315-0	07	1	0709-0709		●
100	CLIP; FUEL PIPE ID=19X32 H=17.5 L=22.5	1-09701-315-0	08	1	0709-0804		●
100	CLIP; FUEL PIPE WHEEL BASE 5900MM(59W) ID=19X32 H=17.5 L=22.5	1-09701-315-0	08	1	0805-		●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28650-820-0	03	1	0706-	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0706-	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28650-820-0	05	1	0706-0708		●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28650-820-0	06	1	0709-		●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0706-		●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	04	1	0706-	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	07	1	0706-0708		●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	08	1	0709-		●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0706-		●

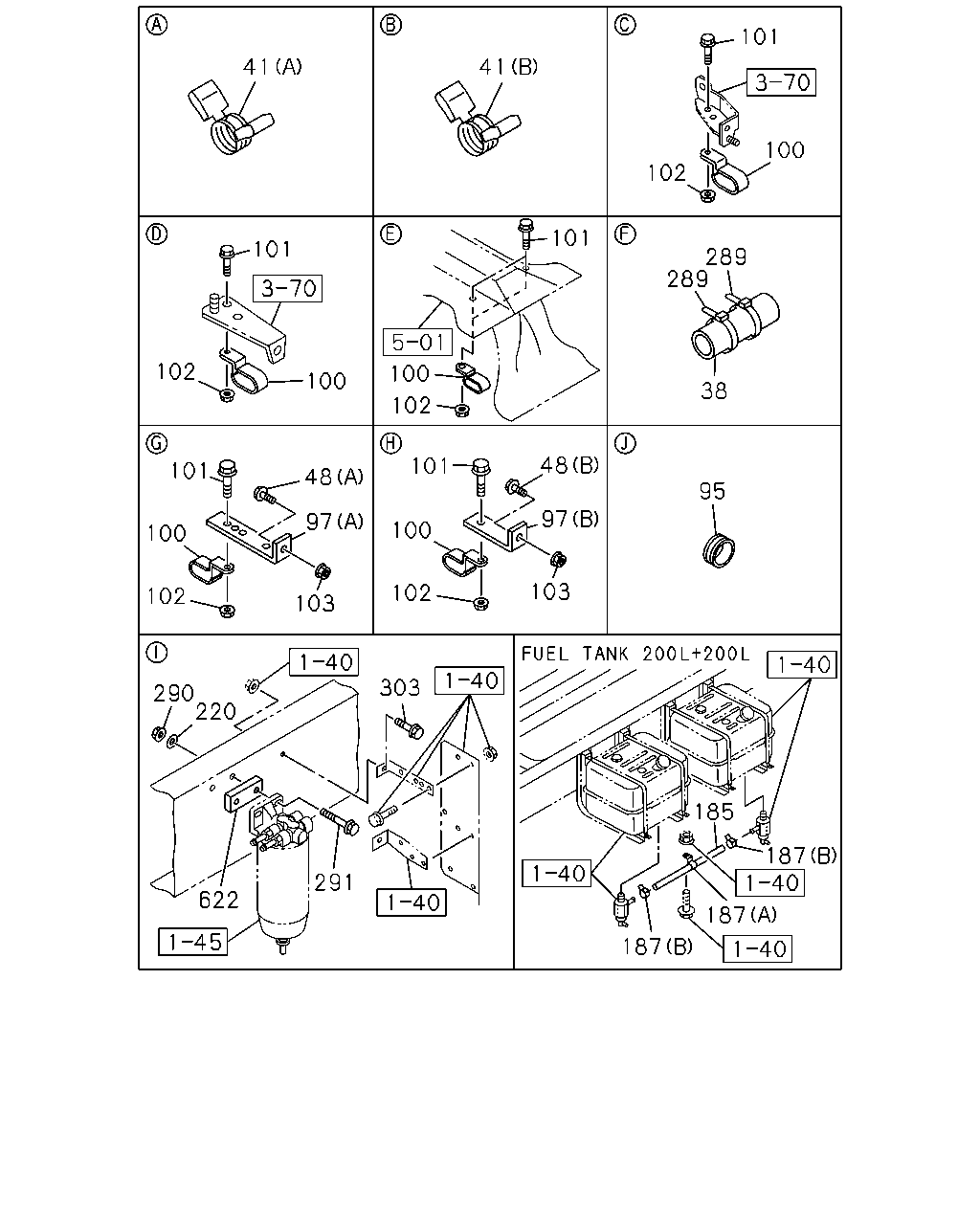

101 41 41 100 102 101 101 289 289 102 100 100 38 102 48 101 101 48 95 97 97 100 100 103 102 102 103 303 290 220 185 187 291 622 187 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0706-	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0706-		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	02	1	0706-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	02	1	0706-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	0706-	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L AL<THF> (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	0709-0804		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	0805-0810		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L AL<THF> (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	0811-		●
48	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0706-0708		●
48	BOLT; BRKT (A) M8X35 FLANGE	0-28650-835-0	01	1	0706-0708		●
48	BOLT; BRKT (A) M8X35 FLANGE	0-28650-835-0	02	1	0709-		●
95	BUSHING; PIPE,FUEL TANK ID=32 OD=40 T=23	1-09332-112-0	01	1	0706-	●	●
97	BRACKET; CLIP (B) L=55	1-47475-304-0	01	1	0706-		●
97	BRACKET; CLIP (A)	1-82698-358-0	01	1	0706-0708		●
97	BRACKET; CLIP (A)	1-82698-358-0	02	1	0709-		●
97	BRACKET; CLIP FUEL TANK 200L AL<THF> (C)	1-47475-927-0	01	1	0709-0804		●
97	BRACKET; CLIP (C)	1-47475-927-0	01	1	0805-0810		●
97	BRACKET; CLIP FUEL TANK 200L AL<THF> (C)	1-47475-927-0	01	1	0811-1010		●
97	BRACKET; CLIP FUEL TANK 200L AL<THF> (C) L=68	1-47475-525-0	01	1	1011-		●
100	CLIP; FUEL PIPE WHEEL BASE 4500MM(45W) ID=19X32 H=17.5 L=22.5	1-09701-315-0	04	1	0706-0901	●
100	CLIP; FUEL PIPE WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) ID=19X32 H=17.5 L=22.5	1-09701-315-0	04	1	0902-	●
100	CLIP; FUEL PIPE WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) ID=19X32 H=17.5 L=22.5	1-09701-315-0	07	1	0706-0708		●
100	CLIP; FUEL PIPE ID=19X32 H=17.5 L=22.5	1-09701-315-0	07	1	0709-0709		●
100	CLIP; FUEL PIPE ID=19X32 H=17.5 L=22.5	1-09701-315-0	08	1	0709-0804		●
100	CLIP; FUEL PIPE WHEEL BASE 5900MM(59W) ID=19X32 H=17.5 L=22.5	1-09701-315-0	08	1	0805-		●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28650-820-0	03	1	0706-	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0706-	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28650-820-0	05	1	0706-0708		●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28650-820-0	06	1	0709-		●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0706-		●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	04	1	0706-	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	07	1	0706-0708		●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	08	1	0709-		●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0706-		●
185	PIPE; FUEL TANK TO TANK FUEL TANK 200L+200L<NF7> L=1050 SERVICED BY L=3000	0-01262-300-0	01	1	0706-0708		●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> (B) ID=17.1	8-94122-679-0	02	1	0706-0708		●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> (A) ID=19 H=25 L=25	9-09917-035-0	02	1	0706-0708		●
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	02	1	0706-	●	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	03	1	0706-	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	05	1	0706-		●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	0706-	●	●
291	BOLT; FILER TO BRKT M10X50 FLANGE	0-28051-050-0	02	1	0706-0806	●	●
291	BOLT; FILER TO BRKT M10X60 FLANGE	0-28051-060-0	02	1	0706-	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0706-	●
622	SPACER; BRKT	1-53168-492-0	01	1	0706-0806	●	●
622	SPACER; BRKT	8-98124-944-0	01	1	0807-	●	●
