Sayfa 1-40 - Isuzu EPC

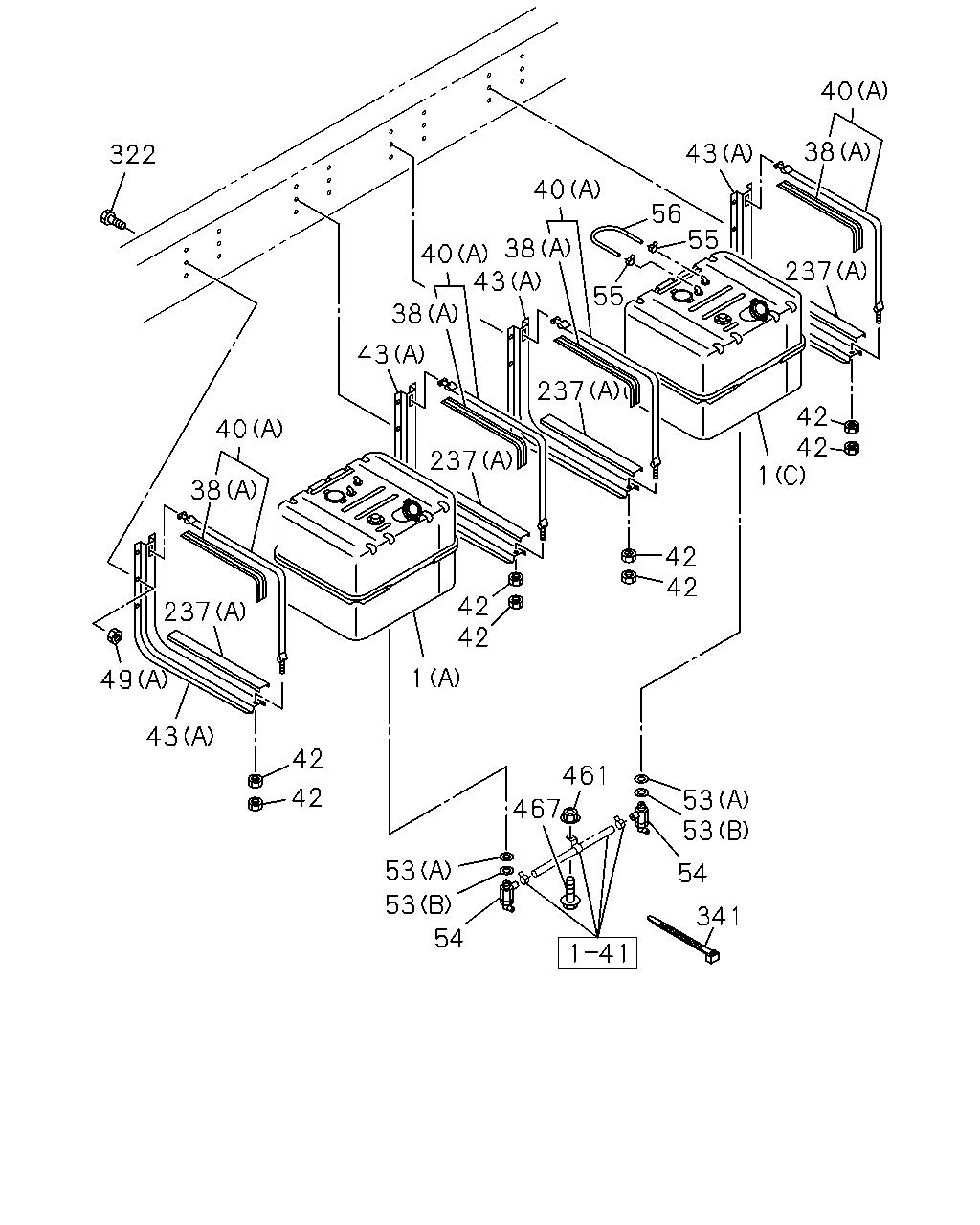

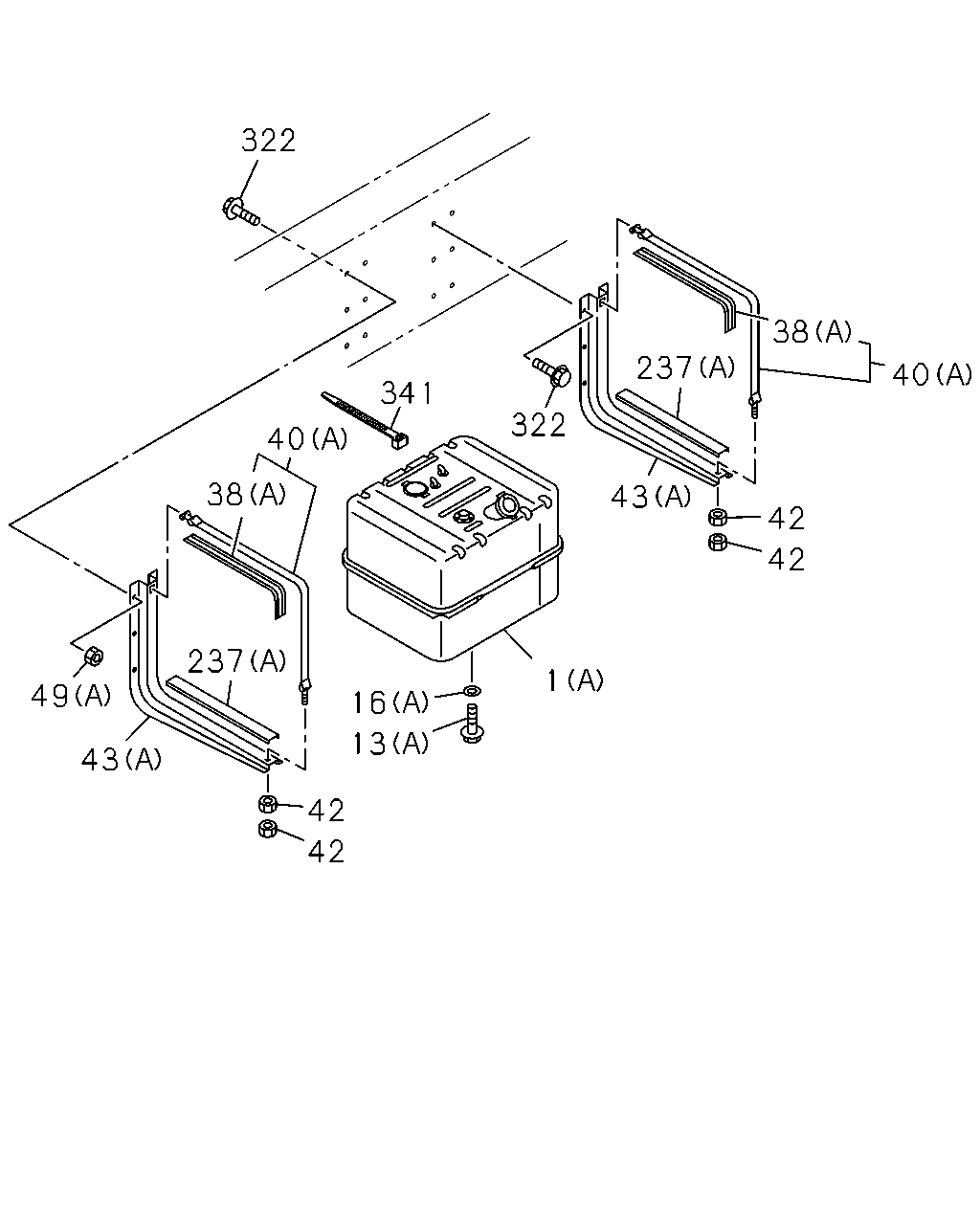

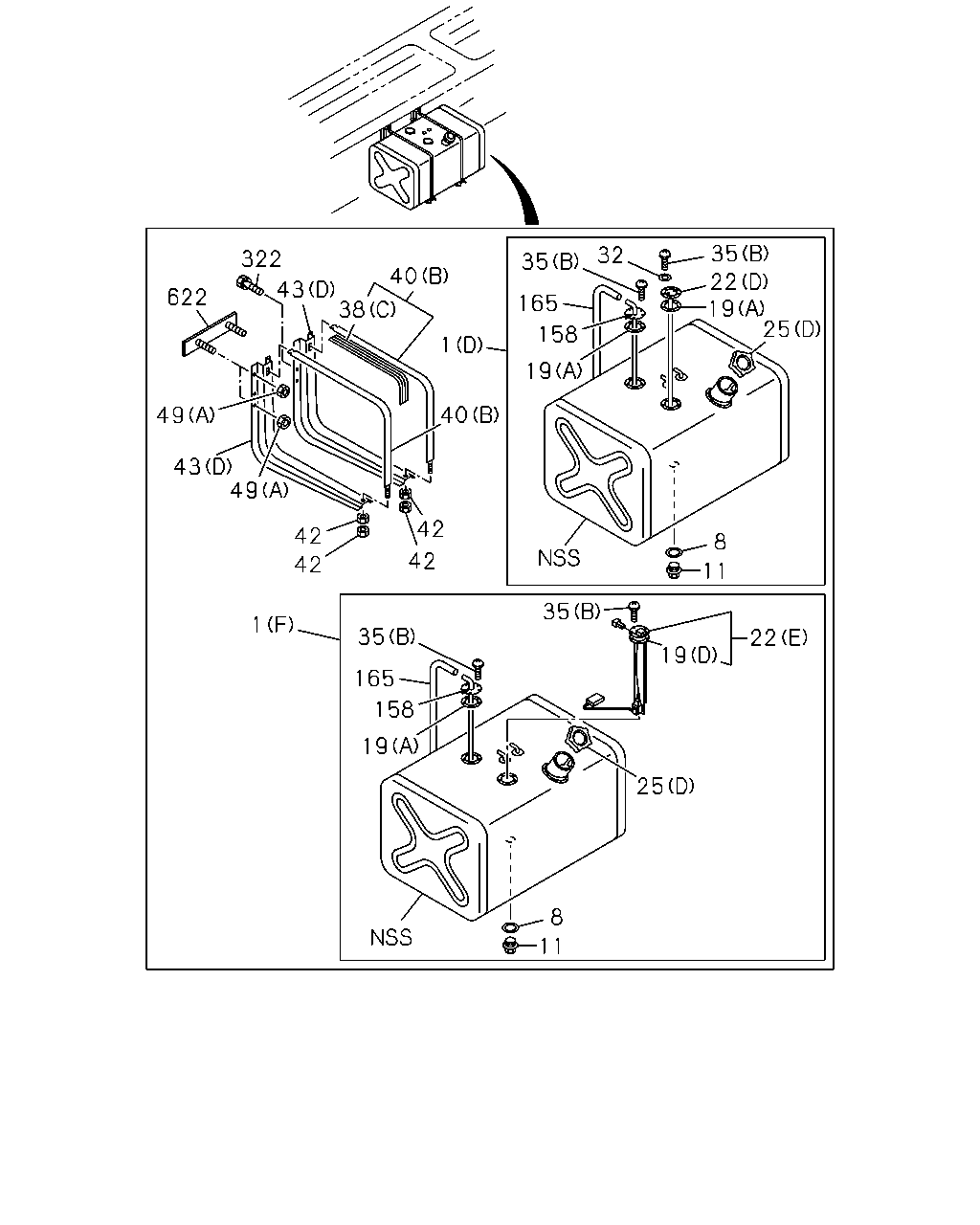

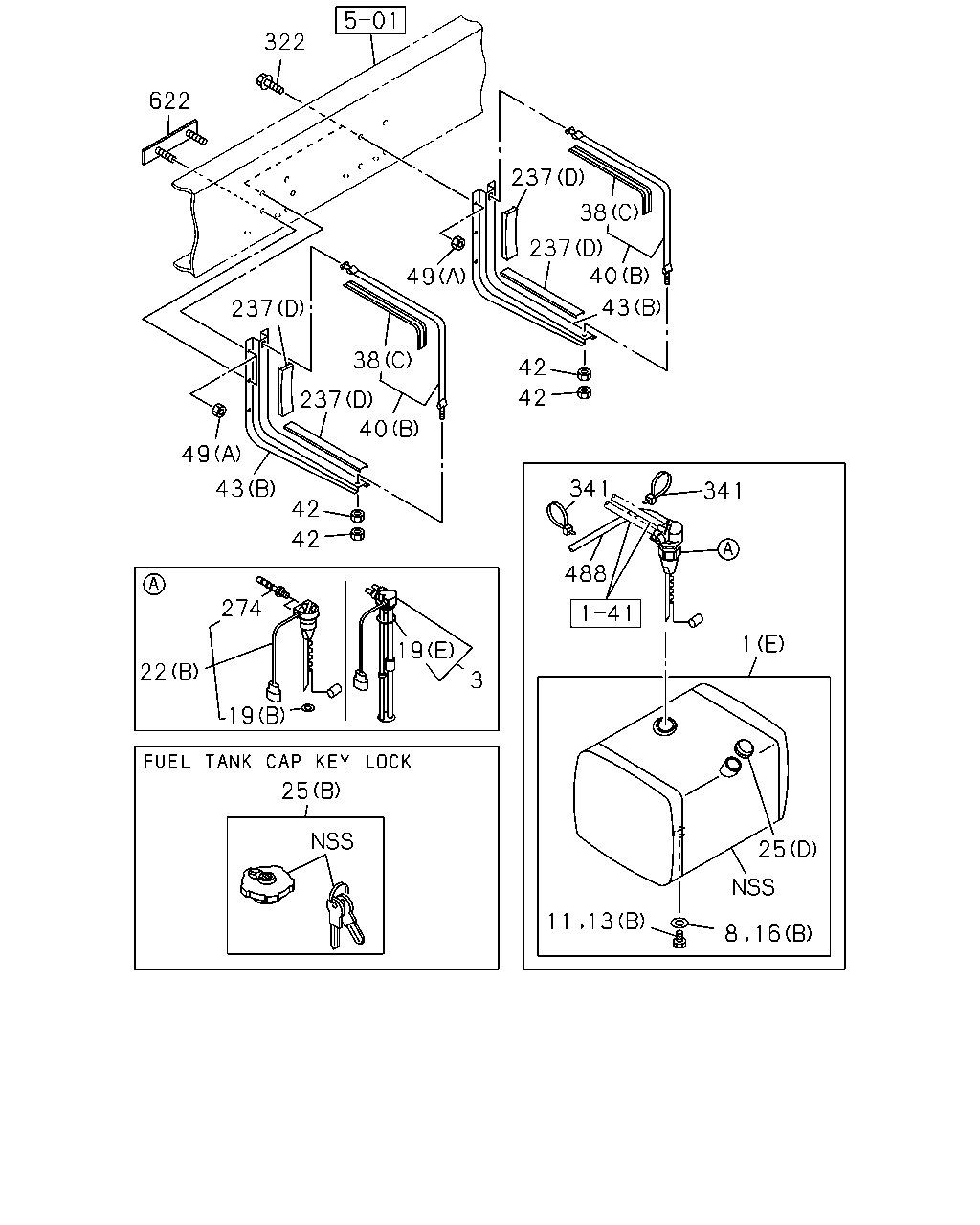

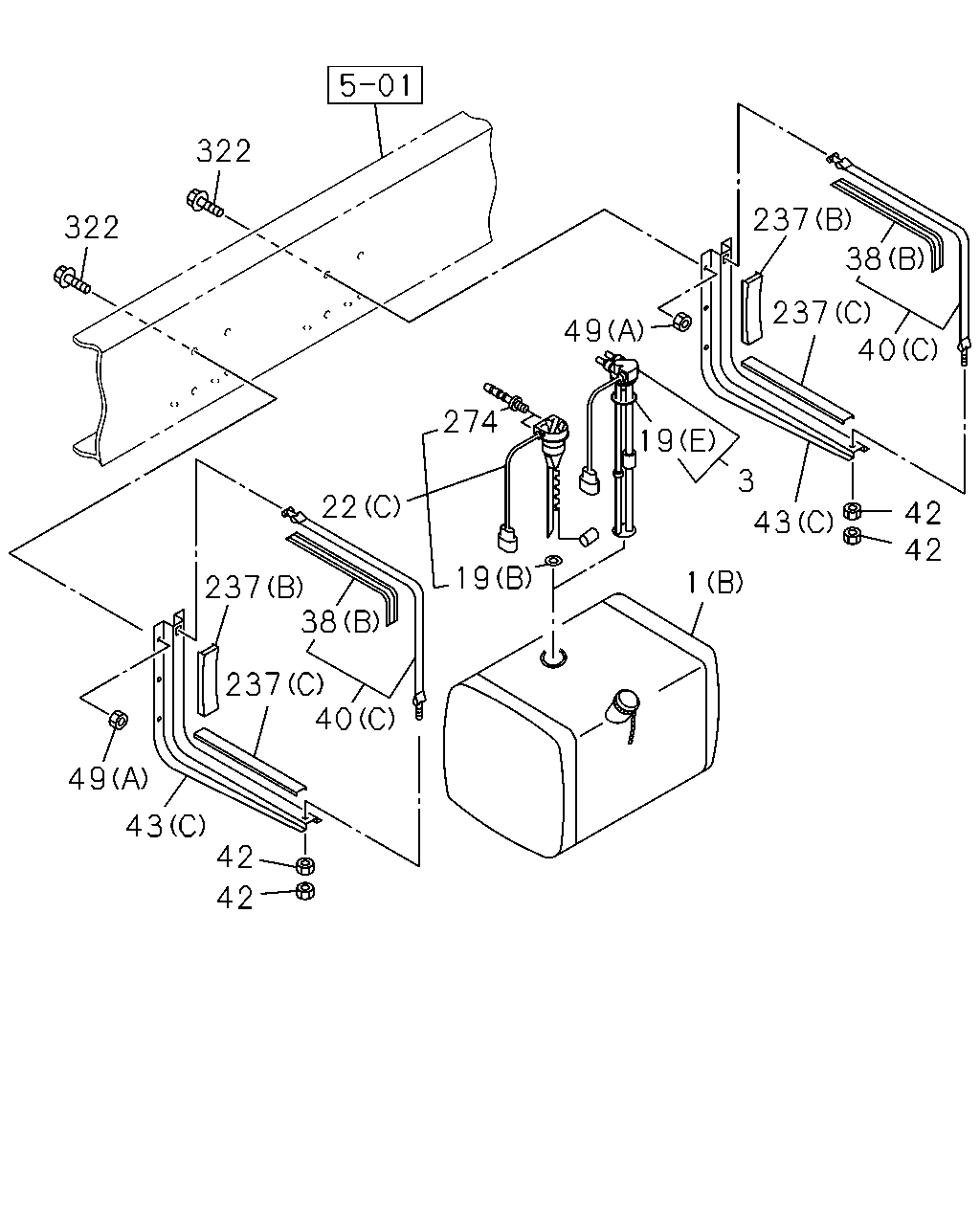

1-40 — FUEL TANK (#18051) — 823 parça

322 38 237 40 341 322 40 38 43 42 42 237 1 49 16 13 43 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 720X610X496 200L	1-22401-190-1	01	1	0706-0708	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> (A) 720X610X496 200L	1-22401-190-1	01	1	0706-0708		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> (A) 720X610X496 200L	1-22401-190-1	01	1	0709-0709		●
1	TANK; FUEL FUEL TANK 300L AL<EBF> (D) 790X730X635 300L	1-22401-150-4	01	1	0706-0708	●
1	TANK; FUEL FUEL TANK 300L AL<EBF> (D) 790X730X635 300L	8-98115-603-1	01	1	0811-1308	●
1	TANK; FUEL FUEL TANK 300L AL<EBF> (F) 790X730X635 300L	8-98248-751-0	01	1	1309-	●
1	TANK; FUEL FUEL TANK 200L AL<THF> (B) 745X650X480 200L	1-87411-169-0	01	1	0706-0708	●	●
1	TANK; FUEL (B) 745X650X480 200L	1-87411-169-0	01	1	0709-0804	●
1	TANK; FUEL FUEL TANK 200L AL<THF> (B) 745X650X480 200L	1-87411-169-0	01	1	0709-0804		●
1	TANK; FUEL (B) 745X650X480 200L	1-87411-169-0	01	1	0805-0810	●	●
1	TANK; FUEL FUEL TANK 200L AL<THF> (B) 745X650X480 200L	1-87411-169-0	01	1	0811-	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> (C) 720X610X496 200L	1-22401-212-0	01	1	0706-0708		●
1	TANK; FUEL FUEL TANK 400L<SDH> (E) 1050X680X625 400L	1-87411-173-1	01	1	0811-0811		●
1	TANK; FUEL FUEL TANK 400L<SDH> (E) 1050X680X625 400L	1-87411-699-1	01	1	0811-1109		●
1	TANK; FUEL FUEL TANK 400L<SDH> (E) 1050X680X625 400L	1-87411-788-3	01	1	1110-		●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 200L AL<THF> (B) M18X12	0-92002-418-0	01	1	0706-0708	●	●
13	PLUG; SCREW,SUB TANK JOINT (B) M18X12	0-92002-418-0	01	1	0709-0804	●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 200L AL<THF> (B) M18X12	0-92002-418-0	01	1	0709-0804		●
13	PLUG; SCREW,SUB TANK JOINT (B) M18X12	0-92002-418-0	01	1	0805-0810	●	●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 200L AL<THF> (B) M18X12	0-92002-418-0	01	1	0811-1210	●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (B) M18X12	0-92002-418-0	01	1	0811-1210		●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 200L FRAME SIDE<N20> (A) M14X14	9-09862-156-0	01	1	0706-0708	●	●
16	GASKET; PLUG FUEL TANK 200L AL<THF> (B) ID=18.2 T=1.6	8-98030-453-0	01	1	0706-0708	●	●
16	GASKET; PLUG (B) ID=18.2 T=1.6	8-98030-453-0	01	1	0709-0804	●
16	GASKET; PLUG FUEL TANK 200L AL<THF> (B) ID=18.2 T=1.6	8-98030-453-0	01	1	0709-0804		●
16	GASKET; PLUG (B) ID=18.2 T=1.6	8-98030-453-0	01	1	0805-0810	●	●
16	GASKET; PLUG FUEL TANK 200L AL<THF> (B) ID=18.2 T=1.6	8-98030-453-0	01	1	0811-1210	●
16	GASKET; PLUG FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (B) ID=18.2 T=1.6	8-98030-453-0	01	1	0811-1210		●
16	GASKET; PLUG FUEL TANK 200L FRAME SIDE<N20> (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	0706-0708	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 300L AL<EBF> (C) L=1156	1-22553-039-1	02	1	0706-0708	●
38	INSULATION; SUPPORT BELT FUEL TANK 300L AL<EBF> (C) L=1156	1-22553-039-1	02	1	0811-	●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> (C) L=1156	1-22553-039-1	02	1	0811-		●
38	INSULATION; SUPPORT BELT FUEL TANK 200L AL<THF> (B) L=960	1-22553-044-0	02	1	0706-0708	●	●
38	INSULATION; SUPPORT BELT (B) L=960	1-22553-044-0	02	1	0709-0804	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L AL<THF> (B) L=960	1-22553-044-0	02	1	0709-0804		●
38	INSULATION; SUPPORT BELT (B) L=960	1-22553-044-0	02	1	0805-0810	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L AL<THF> (B) L=960	1-22553-044-0	02	1	0811-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> (A) L=650	1-22553-022-1	02	1	0706-0708	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (A) L=650	1-22553-022-1	04	1	0706-0708		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L AL<EBF> (B) L=1210	1-22550-261-0	02	1	0706-0708	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L AL<EBF> (B) L=1210	1-22550-261-0	02	1	0811-1110	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> (B) L=1210	1-22550-261-0	02	1	0811-1110		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L AL<EBF> (B) L=1210	8-98202-448-0	02	1	1111-	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> (B) L=1210	8-98202-448-0	02	1	1111-		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L AL<THF> (C) L=1045	1-22550-262-0	02	1	0706-0708	●	●
40	BELT; SUPPORT,FUEL TANK (C) L=1045	1-22550-262-0	02	1	0709-0804	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L AL<THF> (C) L=1045	1-22550-262-0	02	1	0709-0804		●
40	BELT; SUPPORT,FUEL TANK (C) L=1045	1-22550-262-0	02	1	0805-0810	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L AL<THF> (C) L=1045	1-22550-262-0	02	1	0811-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) L=1030	1-22550-204-2	02	1	0706-0708	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7> (A) L=1030	1-22550-204-2	04	1	0706-0708		●
42	NUT; SUPPORT BELT FUEL TANK 300L AL<EBF>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> M10	0-91110-510-0	04	1	0706-0708	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> M10	0-91110-510-0	04	1	0706-0708		●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0709-0804	●
42	NUT; SUPPORT BELT FUEL TANK 200L AL<THF> M10	0-91110-510-0	04	1	0709-0804		●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0805-0810	●	●
42	NUT; SUPPORT BELT FUEL TANK 300L AL<EBF>,FUEL TANK 200L AL<THF> M10	0-91110-510-0	04	1	0811-	●
42	NUT; SUPPORT BELT FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> M10	0-91110-510-0	04	1	0811-		●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	0-91110-510-0	08	1	0706-0708		●
43	BRACKET; FUEL TANK FUEL TANK 300L AL<EBF> (D)	8-97620-945-0	02	1	0706-0708	●
43	BRACKET; FUEL TANK FUEL TANK 300L AL<EBF> (D)	8-97620-945-0	02	1	0811-	●
43	BRACKET; FUEL TANK FUEL TANK 200L AL<THF> (C)	1-53461-543-0	02	1	0706-0708	●	●
43	BRACKET; FUEL TANK (C)	1-53461-543-0	02	1	0709-0804	●
43	BRACKET; FUEL TANK FUEL TANK 200L AL<THF> (C)	1-53461-543-0	02	1	0709-0804		●
43	BRACKET; FUEL TANK (C)	1-53461-543-0	02	1	0805-0810	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L AL<THF> (C)	1-53461-543-0	02	1	0811-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	1-53461-279-4	02	1	0706-0708	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7> (A)	1-53461-279-4	04	1	0706-0708		●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH> (B)	1-53461-525-1	02	1	0811-		●
49	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0706-	●
49	NUT; BRKT FUEL TANK 300L AL<EBF> (A) M12	0-91110-512-0	12	1	0706-0708	●
49	NUT; BRKT FUEL TANK 300L AL<EBF> (A) M12	0-91110-512-0	12	1	0811-	●
49	NUT; BRKT FUEL TANK 400L<SDH> (A) M12	0-91110-512-0	12	1	0811-		●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> (A) M12	0-91110-512-0	08	1	0706-0708	●	●
49	NUT; BRKT (A) M12	0-91110-512-0	08	1	0709-0804	●
49	NUT; BRKT FUEL TANK 200L AL<THF> (A) M12	0-91110-512-0	08	1	0709-0804		●
49	NUT; BRKT (A) M12	0-91110-512-0	08	1	0805-0810	●	●
49	NUT; BRKT FUEL TANK 200L AL<THF> (A) M12	0-91110-512-0	08	1	0811-	●	●
49	NUT; BRKT FUEL TANK 200L+200L<NF7> (A) M12	0-91110-512-0	16	1	0706-0708		●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> (B) L=340	1-22553-043-2	02	1	0706-0708	●	●
237	GASKET; BRKT TO FUEL TANK (B) L=340	1-22553-043-2	02	1	0709-0804	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> (B) L=340	1-22553-043-2	02	1	0709-0804		●
237	GASKET; BRKT TO FUEL TANK (B) L=340	1-22553-043-2	02	1	0805-0810	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> (B) L=340	1-22553-043-2	02	1	0811-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> (C) L=540	1-22553-064-1	02	1	0706-0708	●	●
237	GASKET; BRKT TO FUEL TANK (C) L=540	1-22553-064-1	02	1	0709-0804	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> (C) L=540	1-22553-064-1	02	1	0709-0804		●
237	GASKET; BRKT TO FUEL TANK (C) L=540	1-22553-064-1	02	1	0805-0810	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> (C) L=540	1-22553-064-1	02	1	0811-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) L=580	1-22553-003-0	02	1	0706-0708	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L<NF7> (A) L=580	1-22553-003-0	04	1	0706-0708		●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH> (D)	1-22553-037-1	04	1	0811-		●
322	BOLT; BRKT FIX FUEL TANK 300L AL<EBF> M12X45 FLANGE	0-28051-245-0	10	1	0706-0708	●
322	BOLT; BRKT FIX FUEL TANK 300L AL<EBF> M12X45 FLANGE	0-28051-245-0	10	1	0811-	●
322	BOLT; BRKT FIX FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> M12X35 FLANGE	0-28051-235-0	08	1	0706-0708	●	●
322	BOLT; BRKT FIX M12X35 FLANGE	0-28051-235-0	08	1	0709-0804	●
322	BOLT; BRKT FIX FUEL TANK 200L AL<THF> M12X35 FLANGE	0-28051-235-0	08	1	0709-0804		●
322	BOLT; BRKT FIX M12X35 FLANGE	0-28051-235-0	08	1	0805-0810	●	●
322	BOLT; BRKT FIX FUEL TANK 200L AL<THF> M12X35 FLANGE	0-28051-235-0	08	1	0811-	●	●
322	BOLT; BRKT FIX FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28051-235-0	16	1	0706-0708		●
322	BOLT; BRKT FIX FUEL TANK 400L<SDH> M12X40 FLANGE	0-28051-240-0	10	1	0811-		●
341	CLIP; BAND,RUBBER HOSE FUEL TANK 200L FRAME SIDE<N20> L=350	1-09707-183-0	01	1	0706-0708	●	●
341	CLIP; BAND,RUBBER HOSE FUEL TANK 200L+200L<NF7> L=350	1-09707-183-0	02	1	0706-0708		●
341	CLIP; BAND,RUBBER HOSE FUEL TANK 400L<SDH> L=350	1-09707-183-0	02	1	0811-		●

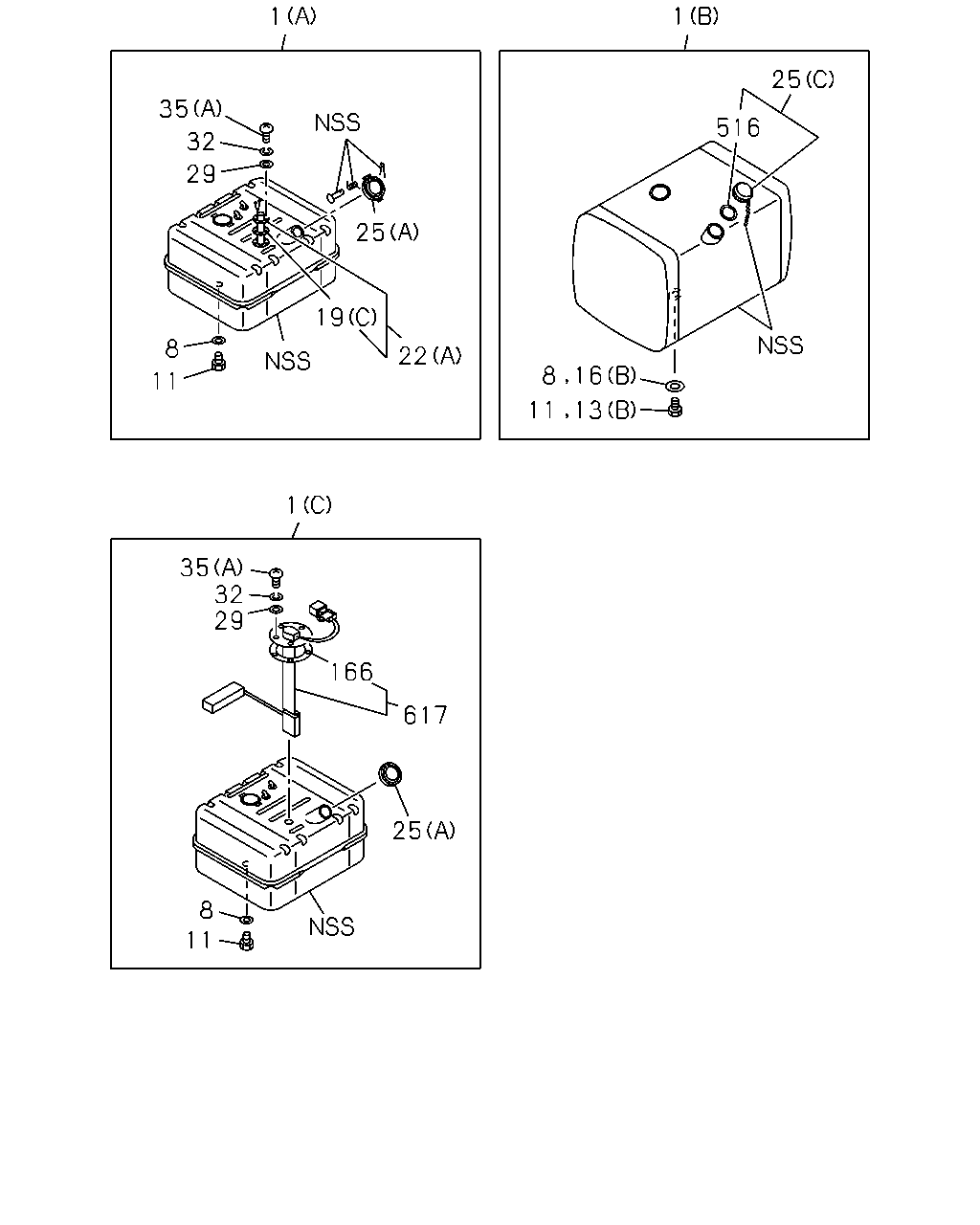

1 1 25 516 8 16 11 13 19 8 11 29 32 35 1 35 32 29 166 617 25 11 8 25 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 720X610X496 200L	1-22401-190-1	01	1	0706-0708	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> (A) 720X610X496 200L	1-22401-190-1	01	1	0706-0708		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> (A) 720X610X496 200L	1-22401-190-1	01	1	0709-0709		●
1	TANK; FUEL FUEL TANK 300L AL<EBF> (D) 790X730X635 300L	1-22401-150-4	01	1	0706-0708	●
1	TANK; FUEL FUEL TANK 300L AL<EBF> (D) 790X730X635 300L	8-98115-603-1	01	1	0811-1308	●
1	TANK; FUEL FUEL TANK 300L AL<EBF> (F) 790X730X635 300L	8-98248-751-0	01	1	1309-	●
1	TANK; FUEL FUEL TANK 200L AL<THF> (B) 745X650X480 200L	1-87411-169-0	01	1	0706-0708	●	●
1	TANK; FUEL (B) 745X650X480 200L	1-87411-169-0	01	1	0709-0804	●
1	TANK; FUEL FUEL TANK 200L AL<THF> (B) 745X650X480 200L	1-87411-169-0	01	1	0709-0804		●
1	TANK; FUEL (B) 745X650X480 200L	1-87411-169-0	01	1	0805-0810	●	●
1	TANK; FUEL FUEL TANK 200L AL<THF> (B) 745X650X480 200L	1-87411-169-0	01	1	0811-	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> (C) 720X610X496 200L	1-22401-212-0	01	1	0706-0708		●
1	TANK; FUEL FUEL TANK 400L<SDH> (E) 1050X680X625 400L	1-87411-173-1	01	1	0811-0811		●
1	TANK; FUEL FUEL TANK 400L<SDH> (E) 1050X680X625 400L	1-87411-699-1	01	1	0811-1109		●
1	TANK; FUEL FUEL TANK 400L<SDH> (E) 1050X680X625 400L	1-87411-788-3	01	1	1110-		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L AL<THF> ID=18.2 T=1.6	8-98030-453-0	01	1	1211-	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> ID=18.2 T=1.6	8-98030-453-0	01	1	1211-		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> ID=14.2 OD=23.0	9-09572-014-0	01	1	0706-0708	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> ID=14.2 OD=23.0	9-09572-014-0	01	1	0706-0708		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> ID=14.2 OD=23.0	9-09572-014-0	01	1	0706-0708		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> ID=14.2 OD=23.0	9-09572-014-0	01	1	0709-0709		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> ID=14.2 OD=23.0	9-09572-014-0	01	1	0709-0709		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 300L AL<EBF>	1-22416-006-0	01	1	0706-0708	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 300L AL<EBF>	1-22416-006-0	01	1	0811-	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L AL<THF> M18X12	0-92002-418-0	01	1	1211-	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> M18X12	0-92002-418-0	01	1	1211-		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> M14X14	9-09862-156-0	01	1	0706-0708	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7> M14X14	9-09862-156-0	01	1	0706-0708		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> M14X14	9-09862-156-0	01	1	0706-0708		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7> M14X14	9-09862-156-0	01	1	0709-0709		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7> M14X14	9-09862-156-0	01	1	0709-0709		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 300L AL<EBF> M36	1-09604-052-0	01	1	0706-0708	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 300L AL<EBF> M36	1-09604-052-0	01	1	0811-	●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 200L AL<THF> (B) M18X12	0-92002-418-0	01	1	0706-0708	●	●
13	PLUG; SCREW,SUB TANK JOINT (B) M18X12	0-92002-418-0	01	1	0709-0804	●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 200L AL<THF> (B) M18X12	0-92002-418-0	01	1	0709-0804		●
13	PLUG; SCREW,SUB TANK JOINT (B) M18X12	0-92002-418-0	01	1	0805-0810	●	●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 200L AL<THF> (B) M18X12	0-92002-418-0	01	1	0811-1210	●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (B) M18X12	0-92002-418-0	01	1	0811-1210		●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 200L FRAME SIDE<N20> (A) M14X14	9-09862-156-0	01	1	0706-0708	●	●
16	GASKET; PLUG FUEL TANK 200L AL<THF> (B) ID=18.2 T=1.6	8-98030-453-0	01	1	0706-0708	●	●
16	GASKET; PLUG (B) ID=18.2 T=1.6	8-98030-453-0	01	1	0709-0804	●
16	GASKET; PLUG FUEL TANK 200L AL<THF> (B) ID=18.2 T=1.6	8-98030-453-0	01	1	0709-0804		●
16	GASKET; PLUG (B) ID=18.2 T=1.6	8-98030-453-0	01	1	0805-0810	●	●
16	GASKET; PLUG FUEL TANK 200L AL<THF> (B) ID=18.2 T=1.6	8-98030-453-0	01	1	0811-1210	●
16	GASKET; PLUG FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (B) ID=18.2 T=1.6	8-98030-453-0	01	1	0811-1210		●
16	GASKET; PLUG FUEL TANK 200L FRAME SIDE<N20> (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	0706-0708	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 300L AL<EBF> (D) ID=45 OD=67	1-83149-003-0	01	1	1309-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> (A) ID=42 OD=71	5-83148-001-0	01	1	0706-0708	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> (A) ID=42 OD=71	5-83148-001-0	01	1	0706-0708		●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> (A) ID=42 OD=71	5-83148-001-0	01	1	0709-0709		●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> (C)	9-83135-003-0	01	1	0706-0708	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> (C)	9-83135-003-0	01	1	0706-0708		●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> (C)	9-83135-003-0	01	1	0709-0709		●
19	GASKET; FUEL TANK UNIT FUEL TANK 300L AL<EBF> (A)	1-22459-001-1	02	1	0706-0708	●
19	GASKET; FUEL TANK UNIT FUEL TANK 300L AL<EBF> (A)	1-22459-001-1	02	1	0811-1308	●
19	GASKET; FUEL TANK UNIT FUEL TANK 300L AL<EBF> (A)	1-22459-001-1	01	1	1309-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L AL<THF> (B) ID=58	1-83149-005-0	01	1	0706-0708	●	●
19	GASKET; FUEL TANK UNIT (B) ID=58	1-83149-005-0	01	1	0709-0804	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L AL<THF> (B) ID=58	1-83149-005-0	01	1	0709-0804		●
19	GASKET; FUEL TANK UNIT (B) ID=58	1-83149-005-0	01	1	0805-0810	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L AL<THF> (B) ID=58	1-83149-005-0	01	1	0811-1210	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (B) ID=58	1-83149-005-0	01	1	0811-1210		●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L AL<THF> (E) ID=54.5	8-98299-580-0	01	1	1211-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (E) ID=54.5	8-98299-580-0	01	1	1211-		●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	1-83141-124-0	01	1	0706-0708	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> (A)	1-83141-124-0	01	1	0706-0708		●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7> (A)	1-83141-124-0	01	1	0709-0709		●
22	UNIT; FUEL TANK FUEL TANK 300L AL<EBF> (D)	1-83141-146-0	01	1	0706-0708	●
22	UNIT; FUEL TANK FUEL TANK 300L AL<EBF> (D)	1-83141-146-0	01	1	0811-1308	●
22	UNIT; FUEL TANK FUEL TANK 300L AL<EBF> (E)	8-98232-859-0	01	1	1309-	●
22	UNIT; FUEL TANK FUEL TANK 200L AL<THF> (C)	1-83141-131-0	01	1	0706-0708	●	●
22	UNIT; FUEL TANK (C)	1-83141-131-0	01	1	0709-0804	●
22	UNIT; FUEL TANK FUEL TANK 200L AL<THF> (C)	1-83141-131-0	01	1	0709-0804		●
22	UNIT; FUEL TANK (C)	1-83141-131-0	01	1	0805-0810	●	●
22	UNIT; FUEL TANK FUEL TANK 200L AL<THF> (C)	1-83141-131-0	01	1	0811-1210	●	●
22	UNIT; FUEL TANK FUEL TANK 400L<SDH> (B)	1-83141-132-0	01	1	0811-1210		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	1-22440-046-1	01	1	0706-0708	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> (A)	1-22440-046-1	01	1	0706-0708		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> (A)	1-22440-046-1	01	1	0706-0708		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> (A)	1-22440-046-1	01	1	0709-0709		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> (A)	1-22440-046-1	01	1	0709-0709		●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L AL<EBF> (D)	1-22440-063-1	01	1	0706-0708	●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L AL<EBF> (D)	8-98115-780-0	01	1	0811-0811	●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L AL<EBF> (D)	8-98115-780-0	01	1	0811-1109	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (D)	8-98115-780-0	01	1	0811-1109		●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L AL<EBF> (D)	8-98182-306-0	01	1	1110-	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (D)	8-98182-306-0	01	1	1110-		●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L AL<EBF> FUEL TANK CAP KEY LOCK<N05> (B)	8-98108-595-0	01	1	0811-	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> FUEL TANK CAP KEY LOCK<N05> (B)	8-98108-595-0	01	1	0811-		●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> (B)	1-22440-057-2	01	1	0808-0810	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L AL<THF> (B)	1-22440-057-2	01	1	0811-1210	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L AL<THF> (B)	1-22440-057-2	01	1	1211-1212	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L AL<THF> (B)	1-22440-057-2	01	1	1211-1212	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L AL<THF> (B)	1-22440-057-2	01	1	1301-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L AL<THF> (C)	1-22440-056-0	01	1	0706-0708	●	●
25	CAP; FILLER,FUEL TANK (C)	1-22440-056-0	01	1	0709-0804	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L AL<THF> (C)	1-22440-056-0	01	1	0709-0804		●
25	CAP; FILLER,FUEL TANK (C)	1-22440-056-0	01	1	0805-0810	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L AL<THF> (C)	1-22440-056-0	01	1	0811-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (D)	1-22440-063-1	01	1	0811-0811		●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	0-91610-505-0	01	1	0706-0708	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=5.3	0-91610-505-0	01	1	0706-0708		●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> ID=5.3	0-91610-505-0	01	1	0706-0708		●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=5.3	0-91610-505-0	01	1	0709-0709		●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=5.3	0-91610-505-0	01	1	0709-0709		●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	0-91510-505-0	05	1	0706-0708	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=5.1	0-91510-505-0	05	1	0706-0708		●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> ID=5.1	0-91510-505-0	05	1	0706-0708		●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=5.1	0-91510-505-0	05	1	0709-0709		●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=5.1	0-91510-505-0	05	1	0709-0709		●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 300L AL<EBF> ID=5.1	0-91510-505-0	01	1	0706-0708	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 300L AL<EBF> ID=5.1	0-91510-505-0	01	1	0811-1308	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> (A) M5X10	0-34218-510-0	05	1	0706-0708	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> (A) M5X10	0-34218-510-0	05	1	0706-0708		●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> (A) M5X10	0-34218-510-0	05	1	0706-0708		●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> (A) M5X10	0-34218-510-0	05	1	0709-0709		●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> (A) M5X10	0-34218-510-0	05	1	0709-0709		●
35	SCREW; FUEL TANK UNIT FUEL TANK 300L AL<EBF> (B) M5X12 W/LK WASHER	0-36220-512-0	10	1	0706-0708	●
35	SCREW; FUEL TANK UNIT FUEL TANK 300L AL<EBF> (B) M5X12 W/LK WASHER	0-36220-512-0	10	1	0811-	●
166	GASKET FUEL TANK 200L+200L<NF7>	8-94366-904-0	01	1	0706-0708		●
516	GASKET; CAP FUEL TANK 200L AL<THF> ID=78	8-98259-383-0	01	1	0706-0708	●	●
516	GASKET; CAP ID=78	8-98259-383-0	01	1	0709-0804	●
516	GASKET; CAP FUEL TANK 200L AL<THF> ID=78	8-98259-383-0	01	1	0709-0804		●
516	GASKET; CAP ID=78	8-98259-383-0	01	1	0805-0810	●	●
516	GASKET; CAP FUEL TANK 200L AL<THF> ID=78	8-98259-383-0	01	1	0811-	●	●
617	PLATE FUEL TANK 200L+200L<NF7>	1-22419-021-0	01	1	0706-0708		●

322 322 237 22 274 19 49 237 38 49 42 43 42 40 19 1 43 3 42 237 237 40 38 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 720X610X496 200L	1-22401-190-1	01	1	0706-0708	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> (A) 720X610X496 200L	1-22401-190-1	01	1	0706-0708		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> (A) 720X610X496 200L	1-22401-190-1	01	1	0709-0709		●
1	TANK; FUEL FUEL TANK 300L AL<EBF> (D) 790X730X635 300L	1-22401-150-4	01	1	0706-0708	●
1	TANK; FUEL FUEL TANK 300L AL<EBF> (D) 790X730X635 300L	8-98115-603-1	01	1	0811-1308	●
1	TANK; FUEL FUEL TANK 300L AL<EBF> (F) 790X730X635 300L	8-98248-751-0	01	1	1309-	●
1	TANK; FUEL FUEL TANK 200L AL<THF> (B) 745X650X480 200L	1-87411-169-0	01	1	0706-0708	●	●
1	TANK; FUEL (B) 745X650X480 200L	1-87411-169-0	01	1	0709-0804	●
1	TANK; FUEL FUEL TANK 200L AL<THF> (B) 745X650X480 200L	1-87411-169-0	01	1	0709-0804		●
1	TANK; FUEL (B) 745X650X480 200L	1-87411-169-0	01	1	0805-0810	●	●
1	TANK; FUEL FUEL TANK 200L AL<THF> (B) 745X650X480 200L	1-87411-169-0	01	1	0811-	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> (C) 720X610X496 200L	1-22401-212-0	01	1	0706-0708		●
1	TANK; FUEL FUEL TANK 400L<SDH> (E) 1050X680X625 400L	1-87411-173-1	01	1	0811-0811		●
1	TANK; FUEL FUEL TANK 400L<SDH> (E) 1050X680X625 400L	1-87411-699-1	01	1	0811-1109		●
1	TANK; FUEL FUEL TANK 400L<SDH> (E) 1050X680X625 400L	1-87411-788-3	01	1	1110-		●
3	UNIT; FUEL TANK,SUB FUEL TANK 200L AL<THF>	8-98217-750-0	01	1	1211-	●	●
3	UNIT; FUEL TANK,SUB FUEL TANK 400L<SDH>	8-98217-749-0	01	1	1211-		●
19	GASKET; FUEL TANK UNIT FUEL TANK 300L AL<EBF> (D) ID=45 OD=67	1-83149-003-0	01	1	1309-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> (A) ID=42 OD=71	5-83148-001-0	01	1	0706-0708	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> (A) ID=42 OD=71	5-83148-001-0	01	1	0706-0708		●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> (A) ID=42 OD=71	5-83148-001-0	01	1	0709-0709		●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> (C)	9-83135-003-0	01	1	0706-0708	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> (C)	9-83135-003-0	01	1	0706-0708		●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> (C)	9-83135-003-0	01	1	0709-0709		●
19	GASKET; FUEL TANK UNIT FUEL TANK 300L AL<EBF> (A)	1-22459-001-1	02	1	0706-0708	●
19	GASKET; FUEL TANK UNIT FUEL TANK 300L AL<EBF> (A)	1-22459-001-1	02	1	0811-1308	●
19	GASKET; FUEL TANK UNIT FUEL TANK 300L AL<EBF> (A)	1-22459-001-1	01	1	1309-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L AL<THF> (B) ID=58	1-83149-005-0	01	1	0706-0708	●	●
19	GASKET; FUEL TANK UNIT (B) ID=58	1-83149-005-0	01	1	0709-0804	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L AL<THF> (B) ID=58	1-83149-005-0	01	1	0709-0804		●
19	GASKET; FUEL TANK UNIT (B) ID=58	1-83149-005-0	01	1	0805-0810	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L AL<THF> (B) ID=58	1-83149-005-0	01	1	0811-1210	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (B) ID=58	1-83149-005-0	01	1	0811-1210		●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L AL<THF> (E) ID=54.5	8-98299-580-0	01	1	1211-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (E) ID=54.5	8-98299-580-0	01	1	1211-		●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	1-83141-124-0	01	1	0706-0708	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> (A)	1-83141-124-0	01	1	0706-0708		●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7> (A)	1-83141-124-0	01	1	0709-0709		●
22	UNIT; FUEL TANK FUEL TANK 300L AL<EBF> (D)	1-83141-146-0	01	1	0706-0708	●
22	UNIT; FUEL TANK FUEL TANK 300L AL<EBF> (D)	1-83141-146-0	01	1	0811-1308	●
22	UNIT; FUEL TANK FUEL TANK 300L AL<EBF> (E)	8-98232-859-0	01	1	1309-	●
22	UNIT; FUEL TANK FUEL TANK 200L AL<THF> (C)	1-83141-131-0	01	1	0706-0708	●	●
22	UNIT; FUEL TANK (C)	1-83141-131-0	01	1	0709-0804	●
22	UNIT; FUEL TANK FUEL TANK 200L AL<THF> (C)	1-83141-131-0	01	1	0709-0804		●
22	UNIT; FUEL TANK (C)	1-83141-131-0	01	1	0805-0810	●	●
22	UNIT; FUEL TANK FUEL TANK 200L AL<THF> (C)	1-83141-131-0	01	1	0811-1210	●	●
22	UNIT; FUEL TANK FUEL TANK 400L<SDH> (B)	1-83141-132-0	01	1	0811-1210		●
38	INSULATION; SUPPORT BELT FUEL TANK 300L AL<EBF> (C) L=1156	1-22553-039-1	02	1	0706-0708	●
38	INSULATION; SUPPORT BELT FUEL TANK 300L AL<EBF> (C) L=1156	1-22553-039-1	02	1	0811-	●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> (C) L=1156	1-22553-039-1	02	1	0811-		●
38	INSULATION; SUPPORT BELT FUEL TANK 200L AL<THF> (B) L=960	1-22553-044-0	02	1	0706-0708	●	●
38	INSULATION; SUPPORT BELT (B) L=960	1-22553-044-0	02	1	0709-0804	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L AL<THF> (B) L=960	1-22553-044-0	02	1	0709-0804		●
38	INSULATION; SUPPORT BELT (B) L=960	1-22553-044-0	02	1	0805-0810	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L AL<THF> (B) L=960	1-22553-044-0	02	1	0811-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> (A) L=650	1-22553-022-1	02	1	0706-0708	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (A) L=650	1-22553-022-1	04	1	0706-0708		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L AL<EBF> (B) L=1210	1-22550-261-0	02	1	0706-0708	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L AL<EBF> (B) L=1210	1-22550-261-0	02	1	0811-1110	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> (B) L=1210	1-22550-261-0	02	1	0811-1110		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L AL<EBF> (B) L=1210	8-98202-448-0	02	1	1111-	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> (B) L=1210	8-98202-448-0	02	1	1111-		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L AL<THF> (C) L=1045	1-22550-262-0	02	1	0706-0708	●	●
40	BELT; SUPPORT,FUEL TANK (C) L=1045	1-22550-262-0	02	1	0709-0804	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L AL<THF> (C) L=1045	1-22550-262-0	02	1	0709-0804		●
40	BELT; SUPPORT,FUEL TANK (C) L=1045	1-22550-262-0	02	1	0805-0810	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L AL<THF> (C) L=1045	1-22550-262-0	02	1	0811-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) L=1030	1-22550-204-2	02	1	0706-0708	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7> (A) L=1030	1-22550-204-2	04	1	0706-0708		●
42	NUT; SUPPORT BELT FUEL TANK 300L AL<EBF>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> M10	0-91110-510-0	04	1	0706-0708	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> M10	0-91110-510-0	04	1	0706-0708		●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0709-0804	●
42	NUT; SUPPORT BELT FUEL TANK 200L AL<THF> M10	0-91110-510-0	04	1	0709-0804		●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0805-0810	●	●
42	NUT; SUPPORT BELT FUEL TANK 300L AL<EBF>,FUEL TANK 200L AL<THF> M10	0-91110-510-0	04	1	0811-	●
42	NUT; SUPPORT BELT FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> M10	0-91110-510-0	04	1	0811-		●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	0-91110-510-0	08	1	0706-0708		●
43	BRACKET; FUEL TANK FUEL TANK 300L AL<EBF> (D)	8-97620-945-0	02	1	0706-0708	●
43	BRACKET; FUEL TANK FUEL TANK 300L AL<EBF> (D)	8-97620-945-0	02	1	0811-	●
43	BRACKET; FUEL TANK FUEL TANK 200L AL<THF> (C)	1-53461-543-0	02	1	0706-0708	●	●
43	BRACKET; FUEL TANK (C)	1-53461-543-0	02	1	0709-0804	●
43	BRACKET; FUEL TANK FUEL TANK 200L AL<THF> (C)	1-53461-543-0	02	1	0709-0804		●
43	BRACKET; FUEL TANK (C)	1-53461-543-0	02	1	0805-0810	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L AL<THF> (C)	1-53461-543-0	02	1	0811-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	1-53461-279-4	02	1	0706-0708	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7> (A)	1-53461-279-4	04	1	0706-0708		●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH> (B)	1-53461-525-1	02	1	0811-		●
49	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0706-	●
49	NUT; BRKT FUEL TANK 300L AL<EBF> (A) M12	0-91110-512-0	12	1	0706-0708	●
49	NUT; BRKT FUEL TANK 300L AL<EBF> (A) M12	0-91110-512-0	12	1	0811-	●
49	NUT; BRKT FUEL TANK 400L<SDH> (A) M12	0-91110-512-0	12	1	0811-		●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> (A) M12	0-91110-512-0	08	1	0706-0708	●	●
49	NUT; BRKT (A) M12	0-91110-512-0	08	1	0709-0804	●
49	NUT; BRKT FUEL TANK 200L AL<THF> (A) M12	0-91110-512-0	08	1	0709-0804		●
49	NUT; BRKT (A) M12	0-91110-512-0	08	1	0805-0810	●	●
49	NUT; BRKT FUEL TANK 200L AL<THF> (A) M12	0-91110-512-0	08	1	0811-	●	●
49	NUT; BRKT FUEL TANK 200L+200L<NF7> (A) M12	0-91110-512-0	16	1	0706-0708		●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> (B) L=340	1-22553-043-2	02	1	0706-0708	●	●
237	GASKET; BRKT TO FUEL TANK (B) L=340	1-22553-043-2	02	1	0709-0804	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> (B) L=340	1-22553-043-2	02	1	0709-0804		●
237	GASKET; BRKT TO FUEL TANK (B) L=340	1-22553-043-2	02	1	0805-0810	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> (B) L=340	1-22553-043-2	02	1	0811-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> (C) L=540	1-22553-064-1	02	1	0706-0708	●	●
237	GASKET; BRKT TO FUEL TANK (C) L=540	1-22553-064-1	02	1	0709-0804	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> (C) L=540	1-22553-064-1	02	1	0709-0804		●
237	GASKET; BRKT TO FUEL TANK (C) L=540	1-22553-064-1	02	1	0805-0810	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> (C) L=540	1-22553-064-1	02	1	0811-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) L=580	1-22553-003-0	02	1	0706-0708	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L<NF7> (A) L=580	1-22553-003-0	04	1	0706-0708		●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH> (D)	1-22553-037-1	04	1	0811-		●
274	CONNECTOR; ELBOW,FUEL TANK PIPE FUEL TANK 200L AL<THF>	1-83149-006-0	02	1	0706-0708	●	●
274	CONNECTOR; ELBOW,FUEL TANK PIPE	1-83149-006-0	02	1	0709-0804	●
274	CONNECTOR; ELBOW,FUEL TANK PIPE FUEL TANK 200L AL<THF>	1-83149-006-0	02	1	0709-0804		●
274	CONNECTOR; ELBOW,FUEL TANK PIPE	1-83149-006-0	02	1	0805-0810	●	●
274	CONNECTOR; ELBOW,FUEL TANK PIPE FUEL TANK 200L AL<THF>	1-83149-006-0	02	1	0811-1210	●
274	CONNECTOR; ELBOW,FUEL TANK PIPE FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF>	1-83149-006-0	02	1	0811-1210		●
322	BOLT; BRKT FIX FUEL TANK 300L AL<EBF> M12X45 FLANGE	0-28051-245-0	10	1	0706-0708	●
322	BOLT; BRKT FIX FUEL TANK 300L AL<EBF> M12X45 FLANGE	0-28051-245-0	10	1	0811-	●
322	BOLT; BRKT FIX FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> M12X35 FLANGE	0-28051-235-0	08	1	0706-0708	●	●
322	BOLT; BRKT FIX M12X35 FLANGE	0-28051-235-0	08	1	0709-0804	●
322	BOLT; BRKT FIX FUEL TANK 200L AL<THF> M12X35 FLANGE	0-28051-235-0	08	1	0709-0804		●
322	BOLT; BRKT FIX M12X35 FLANGE	0-28051-235-0	08	1	0805-0810	●	●
322	BOLT; BRKT FIX FUEL TANK 200L AL<THF> M12X35 FLANGE	0-28051-235-0	08	1	0811-	●	●
322	BOLT; BRKT FIX FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28051-235-0	16	1	0706-0708		●
322	BOLT; BRKT FIX FUEL TANK 400L<SDH> M12X40 FLANGE	0-28051-240-0	10	1	0811-		●

322 622 237 49 237 237 42 38 40 42 43 341 1 488 341 25 3 19 19 274 42 43 22 25 11 13 237 42 40 38 16 8 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 720X610X496 200L	1-22401-190-1	01	1	0706-0708	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> (A) 720X610X496 200L	1-22401-190-1	01	1	0706-0708		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> (A) 720X610X496 200L	1-22401-190-1	01	1	0709-0709		●
1	TANK; FUEL FUEL TANK 300L AL<EBF> (D) 790X730X635 300L	1-22401-150-4	01	1	0706-0708	●
1	TANK; FUEL FUEL TANK 300L AL<EBF> (D) 790X730X635 300L	8-98115-603-1	01	1	0811-1308	●
1	TANK; FUEL FUEL TANK 300L AL<EBF> (F) 790X730X635 300L	8-98248-751-0	01	1	1309-	●
1	TANK; FUEL FUEL TANK 200L AL<THF> (B) 745X650X480 200L	1-87411-169-0	01	1	0706-0708	●	●
1	TANK; FUEL (B) 745X650X480 200L	1-87411-169-0	01	1	0709-0804	●
1	TANK; FUEL FUEL TANK 200L AL<THF> (B) 745X650X480 200L	1-87411-169-0	01	1	0709-0804		●
1	TANK; FUEL (B) 745X650X480 200L	1-87411-169-0	01	1	0805-0810	●	●
1	TANK; FUEL FUEL TANK 200L AL<THF> (B) 745X650X480 200L	1-87411-169-0	01	1	0811-	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> (C) 720X610X496 200L	1-22401-212-0	01	1	0706-0708		●
1	TANK; FUEL FUEL TANK 400L<SDH> (E) 1050X680X625 400L	1-87411-173-1	01	1	0811-0811		●
1	TANK; FUEL FUEL TANK 400L<SDH> (E) 1050X680X625 400L	1-87411-699-1	01	1	0811-1109		●
1	TANK; FUEL FUEL TANK 400L<SDH> (E) 1050X680X625 400L	1-87411-788-3	01	1	1110-		●
3	UNIT; FUEL TANK,SUB FUEL TANK 200L AL<THF>	8-98217-750-0	01	1	1211-	●	●
3	UNIT; FUEL TANK,SUB FUEL TANK 400L<SDH>	8-98217-749-0	01	1	1211-		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L AL<THF> ID=18.2 T=1.6	8-98030-453-0	01	1	1211-	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> ID=18.2 T=1.6	8-98030-453-0	01	1	1211-		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> ID=14.2 OD=23.0	9-09572-014-0	01	1	0706-0708	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> ID=14.2 OD=23.0	9-09572-014-0	01	1	0706-0708		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> ID=14.2 OD=23.0	9-09572-014-0	01	1	0706-0708		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> ID=14.2 OD=23.0	9-09572-014-0	01	1	0709-0709		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> ID=14.2 OD=23.0	9-09572-014-0	01	1	0709-0709		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 300L AL<EBF>	1-22416-006-0	01	1	0706-0708	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 300L AL<EBF>	1-22416-006-0	01	1	0811-	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L AL<THF> M18X12	0-92002-418-0	01	1	1211-	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> M18X12	0-92002-418-0	01	1	1211-		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> M14X14	9-09862-156-0	01	1	0706-0708	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7> M14X14	9-09862-156-0	01	1	0706-0708		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> M14X14	9-09862-156-0	01	1	0706-0708		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7> M14X14	9-09862-156-0	01	1	0709-0709		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7> M14X14	9-09862-156-0	01	1	0709-0709		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 300L AL<EBF> M36	1-09604-052-0	01	1	0706-0708	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 300L AL<EBF> M36	1-09604-052-0	01	1	0811-	●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 200L AL<THF> (B) M18X12	0-92002-418-0	01	1	0706-0708	●	●
13	PLUG; SCREW,SUB TANK JOINT (B) M18X12	0-92002-418-0	01	1	0709-0804	●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 200L AL<THF> (B) M18X12	0-92002-418-0	01	1	0709-0804		●
13	PLUG; SCREW,SUB TANK JOINT (B) M18X12	0-92002-418-0	01	1	0805-0810	●	●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 200L AL<THF> (B) M18X12	0-92002-418-0	01	1	0811-1210	●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (B) M18X12	0-92002-418-0	01	1	0811-1210		●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 200L FRAME SIDE<N20> (A) M14X14	9-09862-156-0	01	1	0706-0708	●	●
16	GASKET; PLUG FUEL TANK 200L AL<THF> (B) ID=18.2 T=1.6	8-98030-453-0	01	1	0706-0708	●	●
16	GASKET; PLUG (B) ID=18.2 T=1.6	8-98030-453-0	01	1	0709-0804	●
16	GASKET; PLUG FUEL TANK 200L AL<THF> (B) ID=18.2 T=1.6	8-98030-453-0	01	1	0709-0804		●
16	GASKET; PLUG (B) ID=18.2 T=1.6	8-98030-453-0	01	1	0805-0810	●	●
16	GASKET; PLUG FUEL TANK 200L AL<THF> (B) ID=18.2 T=1.6	8-98030-453-0	01	1	0811-1210	●
16	GASKET; PLUG FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (B) ID=18.2 T=1.6	8-98030-453-0	01	1	0811-1210		●
16	GASKET; PLUG FUEL TANK 200L FRAME SIDE<N20> (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	0706-0708	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 300L AL<EBF> (D) ID=45 OD=67	1-83149-003-0	01	1	1309-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> (A) ID=42 OD=71	5-83148-001-0	01	1	0706-0708	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> (A) ID=42 OD=71	5-83148-001-0	01	1	0706-0708		●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> (A) ID=42 OD=71	5-83148-001-0	01	1	0709-0709		●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> (C)	9-83135-003-0	01	1	0706-0708	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> (C)	9-83135-003-0	01	1	0706-0708		●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> (C)	9-83135-003-0	01	1	0709-0709		●
19	GASKET; FUEL TANK UNIT FUEL TANK 300L AL<EBF> (A)	1-22459-001-1	02	1	0706-0708	●
19	GASKET; FUEL TANK UNIT FUEL TANK 300L AL<EBF> (A)	1-22459-001-1	02	1	0811-1308	●
19	GASKET; FUEL TANK UNIT FUEL TANK 300L AL<EBF> (A)	1-22459-001-1	01	1	1309-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L AL<THF> (B) ID=58	1-83149-005-0	01	1	0706-0708	●	●
19	GASKET; FUEL TANK UNIT (B) ID=58	1-83149-005-0	01	1	0709-0804	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L AL<THF> (B) ID=58	1-83149-005-0	01	1	0709-0804		●
19	GASKET; FUEL TANK UNIT (B) ID=58	1-83149-005-0	01	1	0805-0810	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L AL<THF> (B) ID=58	1-83149-005-0	01	1	0811-1210	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (B) ID=58	1-83149-005-0	01	1	0811-1210		●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L AL<THF> (E) ID=54.5	8-98299-580-0	01	1	1211-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (E) ID=54.5	8-98299-580-0	01	1	1211-		●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	1-83141-124-0	01	1	0706-0708	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> (A)	1-83141-124-0	01	1	0706-0708		●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7> (A)	1-83141-124-0	01	1	0709-0709		●
22	UNIT; FUEL TANK FUEL TANK 300L AL<EBF> (D)	1-83141-146-0	01	1	0706-0708	●
22	UNIT; FUEL TANK FUEL TANK 300L AL<EBF> (D)	1-83141-146-0	01	1	0811-1308	●
22	UNIT; FUEL TANK FUEL TANK 300L AL<EBF> (E)	8-98232-859-0	01	1	1309-	●
22	UNIT; FUEL TANK FUEL TANK 200L AL<THF> (C)	1-83141-131-0	01	1	0706-0708	●	●
22	UNIT; FUEL TANK (C)	1-83141-131-0	01	1	0709-0804	●
22	UNIT; FUEL TANK FUEL TANK 200L AL<THF> (C)	1-83141-131-0	01	1	0709-0804		●
22	UNIT; FUEL TANK (C)	1-83141-131-0	01	1	0805-0810	●	●
22	UNIT; FUEL TANK FUEL TANK 200L AL<THF> (C)	1-83141-131-0	01	1	0811-1210	●	●
22	UNIT; FUEL TANK FUEL TANK 400L<SDH> (B)	1-83141-132-0	01	1	0811-1210		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	1-22440-046-1	01	1	0706-0708	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> (A)	1-22440-046-1	01	1	0706-0708		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> (A)	1-22440-046-1	01	1	0706-0708		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> (A)	1-22440-046-1	01	1	0709-0709		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> (A)	1-22440-046-1	01	1	0709-0709		●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L AL<EBF> (D)	1-22440-063-1	01	1	0706-0708	●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L AL<EBF> (D)	8-98115-780-0	01	1	0811-0811	●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L AL<EBF> (D)	8-98115-780-0	01	1	0811-1109	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (D)	8-98115-780-0	01	1	0811-1109		●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L AL<EBF> (D)	8-98182-306-0	01	1	1110-	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (D)	8-98182-306-0	01	1	1110-		●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L AL<EBF> FUEL TANK CAP KEY LOCK<N05> (B)	8-98108-595-0	01	1	0811-	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> FUEL TANK CAP KEY LOCK<N05> (B)	8-98108-595-0	01	1	0811-		●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> (B)	1-22440-057-2	01	1	0808-0810	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L AL<THF> (B)	1-22440-057-2	01	1	0811-1210	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L AL<THF> (B)	1-22440-057-2	01	1	1211-1212	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L AL<THF> (B)	1-22440-057-2	01	1	1211-1212	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L AL<THF> (B)	1-22440-057-2	01	1	1301-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L AL<THF> (C)	1-22440-056-0	01	1	0706-0708	●	●
25	CAP; FILLER,FUEL TANK (C)	1-22440-056-0	01	1	0709-0804	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L AL<THF> (C)	1-22440-056-0	01	1	0709-0804		●
25	CAP; FILLER,FUEL TANK (C)	1-22440-056-0	01	1	0805-0810	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L AL<THF> (C)	1-22440-056-0	01	1	0811-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (D)	1-22440-063-1	01	1	0811-0811		●
38	INSULATION; SUPPORT BELT FUEL TANK 300L AL<EBF> (C) L=1156	1-22553-039-1	02	1	0706-0708	●
38	INSULATION; SUPPORT BELT FUEL TANK 300L AL<EBF> (C) L=1156	1-22553-039-1	02	1	0811-	●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> (C) L=1156	1-22553-039-1	02	1	0811-		●
38	INSULATION; SUPPORT BELT FUEL TANK 200L AL<THF> (B) L=960	1-22553-044-0	02	1	0706-0708	●	●
38	INSULATION; SUPPORT BELT (B) L=960	1-22553-044-0	02	1	0709-0804	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L AL<THF> (B) L=960	1-22553-044-0	02	1	0709-0804		●
38	INSULATION; SUPPORT BELT (B) L=960	1-22553-044-0	02	1	0805-0810	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L AL<THF> (B) L=960	1-22553-044-0	02	1	0811-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> (A) L=650	1-22553-022-1	02	1	0706-0708	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (A) L=650	1-22553-022-1	04	1	0706-0708		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L AL<EBF> (B) L=1210	1-22550-261-0	02	1	0706-0708	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L AL<EBF> (B) L=1210	1-22550-261-0	02	1	0811-1110	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> (B) L=1210	1-22550-261-0	02	1	0811-1110		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L AL<EBF> (B) L=1210	8-98202-448-0	02	1	1111-	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> (B) L=1210	8-98202-448-0	02	1	1111-		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L AL<THF> (C) L=1045	1-22550-262-0	02	1	0706-0708	●	●
40	BELT; SUPPORT,FUEL TANK (C) L=1045	1-22550-262-0	02	1	0709-0804	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L AL<THF> (C) L=1045	1-22550-262-0	02	1	0709-0804		●
40	BELT; SUPPORT,FUEL TANK (C) L=1045	1-22550-262-0	02	1	0805-0810	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L AL<THF> (C) L=1045	1-22550-262-0	02	1	0811-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) L=1030	1-22550-204-2	02	1	0706-0708	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7> (A) L=1030	1-22550-204-2	04	1	0706-0708		●
42	NUT; SUPPORT BELT FUEL TANK 300L AL<EBF>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> M10	0-91110-510-0	04	1	0706-0708	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> M10	0-91110-510-0	04	1	0706-0708		●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0709-0804	●
42	NUT; SUPPORT BELT FUEL TANK 200L AL<THF> M10	0-91110-510-0	04	1	0709-0804		●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0805-0810	●	●
42	NUT; SUPPORT BELT FUEL TANK 300L AL<EBF>,FUEL TANK 200L AL<THF> M10	0-91110-510-0	04	1	0811-	●
42	NUT; SUPPORT BELT FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> M10	0-91110-510-0	04	1	0811-		●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	0-91110-510-0	08	1	0706-0708		●
43	BRACKET; FUEL TANK FUEL TANK 300L AL<EBF> (D)	8-97620-945-0	02	1	0706-0708	●
43	BRACKET; FUEL TANK FUEL TANK 300L AL<EBF> (D)	8-97620-945-0	02	1	0811-	●
43	BRACKET; FUEL TANK FUEL TANK 200L AL<THF> (C)	1-53461-543-0	02	1	0706-0708	●	●
43	BRACKET; FUEL TANK (C)	1-53461-543-0	02	1	0709-0804	●
43	BRACKET; FUEL TANK FUEL TANK 200L AL<THF> (C)	1-53461-543-0	02	1	0709-0804		●
43	BRACKET; FUEL TANK (C)	1-53461-543-0	02	1	0805-0810	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L AL<THF> (C)	1-53461-543-0	02	1	0811-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	1-53461-279-4	02	1	0706-0708	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7> (A)	1-53461-279-4	04	1	0706-0708		●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH> (B)	1-53461-525-1	02	1	0811-		●
49	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0706-	●
49	NUT; BRKT FUEL TANK 300L AL<EBF> (A) M12	0-91110-512-0	12	1	0706-0708	●
49	NUT; BRKT FUEL TANK 300L AL<EBF> (A) M12	0-91110-512-0	12	1	0811-	●
49	NUT; BRKT FUEL TANK 400L<SDH> (A) M12	0-91110-512-0	12	1	0811-		●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> (A) M12	0-91110-512-0	08	1	0706-0708	●	●
49	NUT; BRKT (A) M12	0-91110-512-0	08	1	0709-0804	●
49	NUT; BRKT FUEL TANK 200L AL<THF> (A) M12	0-91110-512-0	08	1	0709-0804		●
49	NUT; BRKT (A) M12	0-91110-512-0	08	1	0805-0810	●	●
49	NUT; BRKT FUEL TANK 200L AL<THF> (A) M12	0-91110-512-0	08	1	0811-	●	●
49	NUT; BRKT FUEL TANK 200L+200L<NF7> (A) M12	0-91110-512-0	16	1	0706-0708		●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> (B) L=340	1-22553-043-2	02	1	0706-0708	●	●
237	GASKET; BRKT TO FUEL TANK (B) L=340	1-22553-043-2	02	1	0709-0804	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> (B) L=340	1-22553-043-2	02	1	0709-0804		●
237	GASKET; BRKT TO FUEL TANK (B) L=340	1-22553-043-2	02	1	0805-0810	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> (B) L=340	1-22553-043-2	02	1	0811-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> (C) L=540	1-22553-064-1	02	1	0706-0708	●	●
237	GASKET; BRKT TO FUEL TANK (C) L=540	1-22553-064-1	02	1	0709-0804	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> (C) L=540	1-22553-064-1	02	1	0709-0804		●
237	GASKET; BRKT TO FUEL TANK (C) L=540	1-22553-064-1	02	1	0805-0810	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> (C) L=540	1-22553-064-1	02	1	0811-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) L=580	1-22553-003-0	02	1	0706-0708	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L<NF7> (A) L=580	1-22553-003-0	04	1	0706-0708		●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH> (D)	1-22553-037-1	04	1	0811-		●
274	CONNECTOR; ELBOW,FUEL TANK PIPE FUEL TANK 200L AL<THF>	1-83149-006-0	02	1	0706-0708	●	●
274	CONNECTOR; ELBOW,FUEL TANK PIPE	1-83149-006-0	02	1	0709-0804	●
274	CONNECTOR; ELBOW,FUEL TANK PIPE FUEL TANK 200L AL<THF>	1-83149-006-0	02	1	0709-0804		●
274	CONNECTOR; ELBOW,FUEL TANK PIPE	1-83149-006-0	02	1	0805-0810	●	●
274	CONNECTOR; ELBOW,FUEL TANK PIPE FUEL TANK 200L AL<THF>	1-83149-006-0	02	1	0811-1210	●
274	CONNECTOR; ELBOW,FUEL TANK PIPE FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF>	1-83149-006-0	02	1	0811-1210		●
322	BOLT; BRKT FIX FUEL TANK 300L AL<EBF> M12X45 FLANGE	0-28051-245-0	10	1	0706-0708	●
322	BOLT; BRKT FIX FUEL TANK 300L AL<EBF> M12X45 FLANGE	0-28051-245-0	10	1	0811-	●
322	BOLT; BRKT FIX FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> M12X35 FLANGE	0-28051-235-0	08	1	0706-0708	●	●
322	BOLT; BRKT FIX M12X35 FLANGE	0-28051-235-0	08	1	0709-0804	●
322	BOLT; BRKT FIX FUEL TANK 200L AL<THF> M12X35 FLANGE	0-28051-235-0	08	1	0709-0804		●
322	BOLT; BRKT FIX M12X35 FLANGE	0-28051-235-0	08	1	0805-0810	●	●
322	BOLT; BRKT FIX FUEL TANK 200L AL<THF> M12X35 FLANGE	0-28051-235-0	08	1	0811-	●	●
322	BOLT; BRKT FIX FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28051-235-0	16	1	0706-0708		●
322	BOLT; BRKT FIX FUEL TANK 400L<SDH> M12X40 FLANGE	0-28051-240-0	10	1	0811-		●
341	CLIP; BAND,RUBBER HOSE FUEL TANK 200L FRAME SIDE<N20> L=350	1-09707-183-0	01	1	0706-0708	●	●
341	CLIP; BAND,RUBBER HOSE FUEL TANK 200L+200L<NF7> L=350	1-09707-183-0	02	1	0706-0708		●
341	CLIP; BAND,RUBBER HOSE FUEL TANK 400L<SDH> L=350	1-09707-183-0	02	1	0811-		●
488	HOSE; RUBBER FUEL TANK 400L<SDH>	8-98049-832-0	01	1	0811-0811		●
488	HOSE; RUBBER FUEL TANK 400L<SDH>	8-98134-936-0	01	1	0812-		●
622	STUD; BRACKET FUEL TANK 300L AL<EBF>	1-53461-534-0	01	1	0706-0708	●
622	STUD; BRACKET FUEL TANK 300L AL<EBF>	1-53461-534-0	01	1	0811-	●
622	STUD; BRACKET FUEL TANK 400L<SDH>	1-53461-534-0	01	1	0811-		●

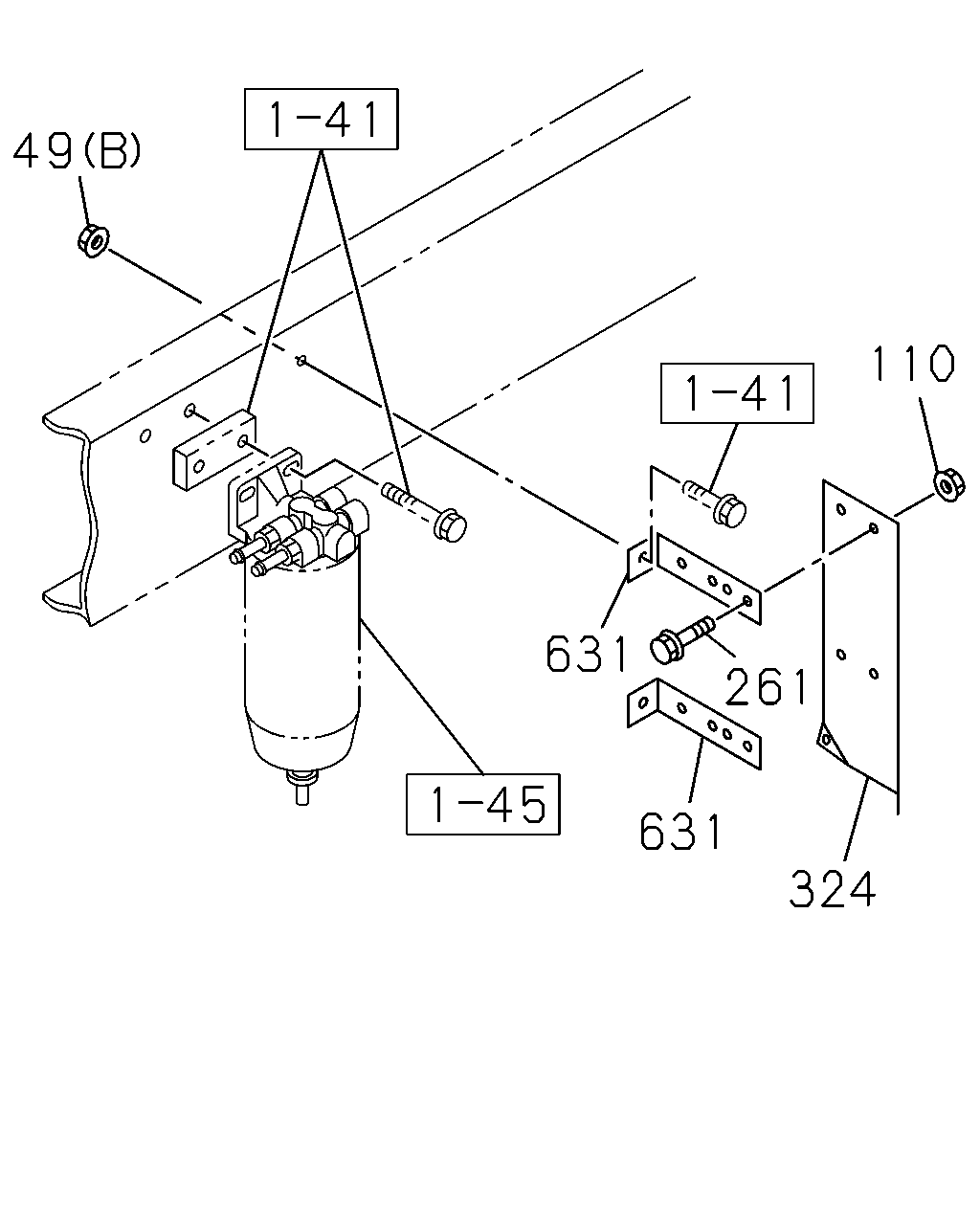

49 110 631 261 631 324

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0706-	●
49	NUT; BRKT FUEL TANK 300L AL<EBF> (A) M12	0-91110-512-0	12	1	0706-0708	●
49	NUT; BRKT FUEL TANK 300L AL<EBF> (A) M12	0-91110-512-0	12	1	0811-	●
49	NUT; BRKT FUEL TANK 400L<SDH> (A) M12	0-91110-512-0	12	1	0811-		●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> (A) M12	0-91110-512-0	08	1	0706-0708	●	●
49	NUT; BRKT (A) M12	0-91110-512-0	08	1	0709-0804	●
49	NUT; BRKT FUEL TANK 200L AL<THF> (A) M12	0-91110-512-0	08	1	0709-0804		●
49	NUT; BRKT (A) M12	0-91110-512-0	08	1	0805-0810	●	●
49	NUT; BRKT FUEL TANK 200L AL<THF> (A) M12	0-91110-512-0	08	1	0811-	●	●
49	NUT; BRKT FUEL TANK 200L+200L<NF7> (A) M12	0-91110-512-0	16	1	0706-0708		●
110	NUT; PROTECTOR M8 FLANGE	0-91180-108-0	04	1	0706-	●
261	BOLT; PROTECTOR M8X20 FLANGE	0-28650-820-0	04	1	0706-	●
324	PROTECTOR; FUEL SEDIMENTER	1-47471-216-0	01	1	0706-	●
631	BRACKET; PROTECTOR	1-82698-358-0	02	1	0706-	●

8 11 19 158 165 35 32 35 19 22 25 22 19 35 25 8 11 19 165 158 35 1 42 42 42 42 49 43 49 622 322 38 40 43 1 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 720X610X496 200L	1-22401-190-1	01	1	0706-0708	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> (A) 720X610X496 200L	1-22401-190-1	01	1	0706-0708		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> (A) 720X610X496 200L	1-22401-190-1	01	1	0709-0709		●
1	TANK; FUEL FUEL TANK 300L AL<EBF> (D) 790X730X635 300L	1-22401-150-4	01	1	0706-0708	●
1	TANK; FUEL FUEL TANK 300L AL<EBF> (D) 790X730X635 300L	8-98115-603-1	01	1	0811-1308	●
1	TANK; FUEL FUEL TANK 300L AL<EBF> (F) 790X730X635 300L	8-98248-751-0	01	1	1309-	●
1	TANK; FUEL FUEL TANK 200L AL<THF> (B) 745X650X480 200L	1-87411-169-0	01	1	0706-0708	●	●
1	TANK; FUEL (B) 745X650X480 200L	1-87411-169-0	01	1	0709-0804	●
1	TANK; FUEL FUEL TANK 200L AL<THF> (B) 745X650X480 200L	1-87411-169-0	01	1	0709-0804		●
1	TANK; FUEL (B) 745X650X480 200L	1-87411-169-0	01	1	0805-0810	●	●
1	TANK; FUEL FUEL TANK 200L AL<THF> (B) 745X650X480 200L	1-87411-169-0	01	1	0811-	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> (C) 720X610X496 200L	1-22401-212-0	01	1	0706-0708		●
1	TANK; FUEL FUEL TANK 400L<SDH> (E) 1050X680X625 400L	1-87411-173-1	01	1	0811-0811		●
1	TANK; FUEL FUEL TANK 400L<SDH> (E) 1050X680X625 400L	1-87411-699-1	01	1	0811-1109		●
1	TANK; FUEL FUEL TANK 400L<SDH> (E) 1050X680X625 400L	1-87411-788-3	01	1	1110-		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L AL<THF> ID=18.2 T=1.6	8-98030-453-0	01	1	1211-	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> ID=18.2 T=1.6	8-98030-453-0	01	1	1211-		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> ID=14.2 OD=23.0	9-09572-014-0	01	1	0706-0708	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> ID=14.2 OD=23.0	9-09572-014-0	01	1	0706-0708		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> ID=14.2 OD=23.0	9-09572-014-0	01	1	0706-0708		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> ID=14.2 OD=23.0	9-09572-014-0	01	1	0709-0709		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> ID=14.2 OD=23.0	9-09572-014-0	01	1	0709-0709		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 300L AL<EBF>	1-22416-006-0	01	1	0706-0708	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 300L AL<EBF>	1-22416-006-0	01	1	0811-	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L AL<THF> M18X12	0-92002-418-0	01	1	1211-	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> M18X12	0-92002-418-0	01	1	1211-		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> M14X14	9-09862-156-0	01	1	0706-0708	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7> M14X14	9-09862-156-0	01	1	0706-0708		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> M14X14	9-09862-156-0	01	1	0706-0708		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7> M14X14	9-09862-156-0	01	1	0709-0709		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7> M14X14	9-09862-156-0	01	1	0709-0709		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 300L AL<EBF> M36	1-09604-052-0	01	1	0706-0708	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 300L AL<EBF> M36	1-09604-052-0	01	1	0811-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 300L AL<EBF> (D) ID=45 OD=67	1-83149-003-0	01	1	1309-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> (A) ID=42 OD=71	5-83148-001-0	01	1	0706-0708	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> (A) ID=42 OD=71	5-83148-001-0	01	1	0706-0708		●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> (A) ID=42 OD=71	5-83148-001-0	01	1	0709-0709		●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> (C)	9-83135-003-0	01	1	0706-0708	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> (C)	9-83135-003-0	01	1	0706-0708		●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> (C)	9-83135-003-0	01	1	0709-0709		●
19	GASKET; FUEL TANK UNIT FUEL TANK 300L AL<EBF> (A)	1-22459-001-1	02	1	0706-0708	●
19	GASKET; FUEL TANK UNIT FUEL TANK 300L AL<EBF> (A)	1-22459-001-1	02	1	0811-1308	●
19	GASKET; FUEL TANK UNIT FUEL TANK 300L AL<EBF> (A)	1-22459-001-1	01	1	1309-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L AL<THF> (B) ID=58	1-83149-005-0	01	1	0706-0708	●	●
19	GASKET; FUEL TANK UNIT (B) ID=58	1-83149-005-0	01	1	0709-0804	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L AL<THF> (B) ID=58	1-83149-005-0	01	1	0709-0804		●
19	GASKET; FUEL TANK UNIT (B) ID=58	1-83149-005-0	01	1	0805-0810	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L AL<THF> (B) ID=58	1-83149-005-0	01	1	0811-1210	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (B) ID=58	1-83149-005-0	01	1	0811-1210		●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L AL<THF> (E) ID=54.5	8-98299-580-0	01	1	1211-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (E) ID=54.5	8-98299-580-0	01	1	1211-		●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	1-83141-124-0	01	1	0706-0708	●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> (A)	1-83141-124-0	01	1	0706-0708		●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7> (A)	1-83141-124-0	01	1	0709-0709		●
22	UNIT; FUEL TANK FUEL TANK 300L AL<EBF> (D)	1-83141-146-0	01	1	0706-0708	●
22	UNIT; FUEL TANK FUEL TANK 300L AL<EBF> (D)	1-83141-146-0	01	1	0811-1308	●
22	UNIT; FUEL TANK FUEL TANK 300L AL<EBF> (E)	8-98232-859-0	01	1	1309-	●
22	UNIT; FUEL TANK FUEL TANK 200L AL<THF> (C)	1-83141-131-0	01	1	0706-0708	●	●
22	UNIT; FUEL TANK (C)	1-83141-131-0	01	1	0709-0804	●
22	UNIT; FUEL TANK FUEL TANK 200L AL<THF> (C)	1-83141-131-0	01	1	0709-0804		●
22	UNIT; FUEL TANK (C)	1-83141-131-0	01	1	0805-0810	●	●
22	UNIT; FUEL TANK FUEL TANK 200L AL<THF> (C)	1-83141-131-0	01	1	0811-1210	●	●
22	UNIT; FUEL TANK FUEL TANK 400L<SDH> (B)	1-83141-132-0	01	1	0811-1210		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	1-22440-046-1	01	1	0706-0708	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> (A)	1-22440-046-1	01	1	0706-0708		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> (A)	1-22440-046-1	01	1	0706-0708		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> (A)	1-22440-046-1	01	1	0709-0709		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> (A)	1-22440-046-1	01	1	0709-0709		●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L AL<EBF> (D)	1-22440-063-1	01	1	0706-0708	●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L AL<EBF> (D)	8-98115-780-0	01	1	0811-0811	●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L AL<EBF> (D)	8-98115-780-0	01	1	0811-1109	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (D)	8-98115-780-0	01	1	0811-1109		●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L AL<EBF> (D)	8-98182-306-0	01	1	1110-	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (D)	8-98182-306-0	01	1	1110-		●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L AL<EBF> FUEL TANK CAP KEY LOCK<N05> (B)	8-98108-595-0	01	1	0811-	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> FUEL TANK CAP KEY LOCK<N05> (B)	8-98108-595-0	01	1	0811-		●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> (B)	1-22440-057-2	01	1	0808-0810	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L AL<THF> (B)	1-22440-057-2	01	1	0811-1210	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L AL<THF> (B)	1-22440-057-2	01	1	1211-1212	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L AL<THF> (B)	1-22440-057-2	01	1	1211-1212	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L AL<THF> (B)	1-22440-057-2	01	1	1301-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L AL<THF> (C)	1-22440-056-0	01	1	0706-0708	●	●
25	CAP; FILLER,FUEL TANK (C)	1-22440-056-0	01	1	0709-0804	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L AL<THF> (C)	1-22440-056-0	01	1	0709-0804		●
25	CAP; FILLER,FUEL TANK (C)	1-22440-056-0	01	1	0805-0810	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L AL<THF> (C)	1-22440-056-0	01	1	0811-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (D)	1-22440-063-1	01	1	0811-0811		●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	0-91510-505-0	05	1	0706-0708	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=5.1	0-91510-505-0	05	1	0706-0708		●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> ID=5.1	0-91510-505-0	05	1	0706-0708		●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=5.1	0-91510-505-0	05	1	0709-0709		●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=5.1	0-91510-505-0	05	1	0709-0709		●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 300L AL<EBF> ID=5.1	0-91510-505-0	01	1	0706-0708	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 300L AL<EBF> ID=5.1	0-91510-505-0	01	1	0811-1308	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> (A) M5X10	0-34218-510-0	05	1	0706-0708	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> (A) M5X10	0-34218-510-0	05	1	0706-0708		●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> (A) M5X10	0-34218-510-0	05	1	0706-0708		●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> (A) M5X10	0-34218-510-0	05	1	0709-0709		●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> (A) M5X10	0-34218-510-0	05	1	0709-0709		●
35	SCREW; FUEL TANK UNIT FUEL TANK 300L AL<EBF> (B) M5X12 W/LK WASHER	0-36220-512-0	10	1	0706-0708	●
35	SCREW; FUEL TANK UNIT FUEL TANK 300L AL<EBF> (B) M5X12 W/LK WASHER	0-36220-512-0	10	1	0811-	●
38	INSULATION; SUPPORT BELT FUEL TANK 300L AL<EBF> (C) L=1156	1-22553-039-1	02	1	0706-0708	●
38	INSULATION; SUPPORT BELT FUEL TANK 300L AL<EBF> (C) L=1156	1-22553-039-1	02	1	0811-	●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> (C) L=1156	1-22553-039-1	02	1	0811-		●
38	INSULATION; SUPPORT BELT FUEL TANK 200L AL<THF> (B) L=960	1-22553-044-0	02	1	0706-0708	●	●
38	INSULATION; SUPPORT BELT (B) L=960	1-22553-044-0	02	1	0709-0804	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L AL<THF> (B) L=960	1-22553-044-0	02	1	0709-0804		●
38	INSULATION; SUPPORT BELT (B) L=960	1-22553-044-0	02	1	0805-0810	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L AL<THF> (B) L=960	1-22553-044-0	02	1	0811-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> (A) L=650	1-22553-022-1	02	1	0706-0708	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (A) L=650	1-22553-022-1	04	1	0706-0708		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L AL<EBF> (B) L=1210	1-22550-261-0	02	1	0706-0708	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L AL<EBF> (B) L=1210	1-22550-261-0	02	1	0811-1110	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> (B) L=1210	1-22550-261-0	02	1	0811-1110		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L AL<EBF> (B) L=1210	8-98202-448-0	02	1	1111-	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> (B) L=1210	8-98202-448-0	02	1	1111-		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L AL<THF> (C) L=1045	1-22550-262-0	02	1	0706-0708	●	●
40	BELT; SUPPORT,FUEL TANK (C) L=1045	1-22550-262-0	02	1	0709-0804	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L AL<THF> (C) L=1045	1-22550-262-0	02	1	0709-0804		●
40	BELT; SUPPORT,FUEL TANK (C) L=1045	1-22550-262-0	02	1	0805-0810	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L AL<THF> (C) L=1045	1-22550-262-0	02	1	0811-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) L=1030	1-22550-204-2	02	1	0706-0708	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7> (A) L=1030	1-22550-204-2	04	1	0706-0708		●
42	NUT; SUPPORT BELT FUEL TANK 300L AL<EBF>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> M10	0-91110-510-0	04	1	0706-0708	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> M10	0-91110-510-0	04	1	0706-0708		●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0709-0804	●
42	NUT; SUPPORT BELT FUEL TANK 200L AL<THF> M10	0-91110-510-0	04	1	0709-0804		●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0805-0810	●	●
42	NUT; SUPPORT BELT FUEL TANK 300L AL<EBF>,FUEL TANK 200L AL<THF> M10	0-91110-510-0	04	1	0811-	●
42	NUT; SUPPORT BELT FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> M10	0-91110-510-0	04	1	0811-		●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	0-91110-510-0	08	1	0706-0708		●
43	BRACKET; FUEL TANK FUEL TANK 300L AL<EBF> (D)	8-97620-945-0	02	1	0706-0708	●
43	BRACKET; FUEL TANK FUEL TANK 300L AL<EBF> (D)	8-97620-945-0	02	1	0811-	●
43	BRACKET; FUEL TANK FUEL TANK 200L AL<THF> (C)	1-53461-543-0	02	1	0706-0708	●	●
43	BRACKET; FUEL TANK (C)	1-53461-543-0	02	1	0709-0804	●
43	BRACKET; FUEL TANK FUEL TANK 200L AL<THF> (C)	1-53461-543-0	02	1	0709-0804		●
43	BRACKET; FUEL TANK (C)	1-53461-543-0	02	1	0805-0810	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L AL<THF> (C)	1-53461-543-0	02	1	0811-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	1-53461-279-4	02	1	0706-0708	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7> (A)	1-53461-279-4	04	1	0706-0708		●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH> (B)	1-53461-525-1	02	1	0811-		●
49	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0706-	●
49	NUT; BRKT FUEL TANK 300L AL<EBF> (A) M12	0-91110-512-0	12	1	0706-0708	●
49	NUT; BRKT FUEL TANK 300L AL<EBF> (A) M12	0-91110-512-0	12	1	0811-	●
49	NUT; BRKT FUEL TANK 400L<SDH> (A) M12	0-91110-512-0	12	1	0811-		●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> (A) M12	0-91110-512-0	08	1	0706-0708	●	●
49	NUT; BRKT (A) M12	0-91110-512-0	08	1	0709-0804	●
49	NUT; BRKT FUEL TANK 200L AL<THF> (A) M12	0-91110-512-0	08	1	0709-0804		●
49	NUT; BRKT (A) M12	0-91110-512-0	08	1	0805-0810	●	●
49	NUT; BRKT FUEL TANK 200L AL<THF> (A) M12	0-91110-512-0	08	1	0811-	●	●
49	NUT; BRKT FUEL TANK 200L+200L<NF7> (A) M12	0-91110-512-0	16	1	0706-0708		●
158	VALVE; ROLL OVER & FLOAT FUEL TANK 300L AL<EBF>	1-22452-002-0	01	1	0706-0708	●
158	VALVE; ROLL OVER & FLOAT FUEL TANK 300L AL<EBF>	1-22452-002-0	01	1	0811-	●
165	HOSE; ROLL OVER & FLOAT VLV TO FUEL TA FUEL TANK 300L AL<EBF>	1-09366-262-0	01	1	0706-0708	●
165	HOSE; ROLL OVER & FLOAT VLV TO FUEL TA FUEL TANK 300L AL<EBF>	1-09366-262-0	01	1	0811-	●
322	BOLT; BRKT FIX FUEL TANK 300L AL<EBF> M12X45 FLANGE	0-28051-245-0	10	1	0706-0708	●
322	BOLT; BRKT FIX FUEL TANK 300L AL<EBF> M12X45 FLANGE	0-28051-245-0	10	1	0811-	●
322	BOLT; BRKT FIX FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> M12X35 FLANGE	0-28051-235-0	08	1	0706-0708	●	●
322	BOLT; BRKT FIX M12X35 FLANGE	0-28051-235-0	08	1	0709-0804	●
322	BOLT; BRKT FIX FUEL TANK 200L AL<THF> M12X35 FLANGE	0-28051-235-0	08	1	0709-0804		●
322	BOLT; BRKT FIX M12X35 FLANGE	0-28051-235-0	08	1	0805-0810	●	●
322	BOLT; BRKT FIX FUEL TANK 200L AL<THF> M12X35 FLANGE	0-28051-235-0	08	1	0811-	●	●
322	BOLT; BRKT FIX FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28051-235-0	16	1	0706-0708		●
322	BOLT; BRKT FIX FUEL TANK 400L<SDH> M12X40 FLANGE	0-28051-240-0	10	1	0811-		●
622	STUD; BRACKET FUEL TANK 300L AL<EBF>	1-53461-534-0	01	1	0706-0708	●
622	STUD; BRACKET FUEL TANK 300L AL<EBF>	1-53461-534-0	01	1	0811-	●
622	STUD; BRACKET FUEL TANK 400L<SDH>	1-53461-534-0	01	1	0811-		●

40 38 43 322 40 56 55 38 40 43 237 55 38 43 237 42 42 1 40 237 38 42 42 42 42 237 1 49 43 42 461 42 53 53 467 53 54 53 341 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 720X610X496 200L	1-22401-190-1	01	1	0706-0708	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME SIDE<N20> (A) 720X610X496 200L	1-22401-190-1	01	1	0706-0708		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> (A) 720X610X496 200L	1-22401-190-1	01	1	0709-0709		●
1	TANK; FUEL FUEL TANK 300L AL<EBF> (D) 790X730X635 300L	1-22401-150-4	01	1	0706-0708	●
1	TANK; FUEL FUEL TANK 300L AL<EBF> (D) 790X730X635 300L	8-98115-603-1	01	1	0811-1308	●
1	TANK; FUEL FUEL TANK 300L AL<EBF> (F) 790X730X635 300L	8-98248-751-0	01	1	1309-	●
1	TANK; FUEL FUEL TANK 200L AL<THF> (B) 745X650X480 200L	1-87411-169-0	01	1	0706-0708	●	●
1	TANK; FUEL (B) 745X650X480 200L	1-87411-169-0	01	1	0709-0804	●
1	TANK; FUEL FUEL TANK 200L AL<THF> (B) 745X650X480 200L	1-87411-169-0	01	1	0709-0804		●
1	TANK; FUEL (B) 745X650X480 200L	1-87411-169-0	01	1	0805-0810	●	●
1	TANK; FUEL FUEL TANK 200L AL<THF> (B) 745X650X480 200L	1-87411-169-0	01	1	0811-	●	●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> (C) 720X610X496 200L	1-22401-212-0	01	1	0706-0708		●
1	TANK; FUEL FUEL TANK 400L<SDH> (E) 1050X680X625 400L	1-87411-173-1	01	1	0811-0811		●
1	TANK; FUEL FUEL TANK 400L<SDH> (E) 1050X680X625 400L	1-87411-699-1	01	1	0811-1109		●
1	TANK; FUEL FUEL TANK 400L<SDH> (E) 1050X680X625 400L	1-87411-788-3	01	1	1110-		●
38	INSULATION; SUPPORT BELT FUEL TANK 300L AL<EBF> (C) L=1156	1-22553-039-1	02	1	0706-0708	●
38	INSULATION; SUPPORT BELT FUEL TANK 300L AL<EBF> (C) L=1156	1-22553-039-1	02	1	0811-	●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> (C) L=1156	1-22553-039-1	02	1	0811-		●
38	INSULATION; SUPPORT BELT FUEL TANK 200L AL<THF> (B) L=960	1-22553-044-0	02	1	0706-0708	●	●
38	INSULATION; SUPPORT BELT (B) L=960	1-22553-044-0	02	1	0709-0804	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L AL<THF> (B) L=960	1-22553-044-0	02	1	0709-0804		●
38	INSULATION; SUPPORT BELT (B) L=960	1-22553-044-0	02	1	0805-0810	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L AL<THF> (B) L=960	1-22553-044-0	02	1	0811-	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> (A) L=650	1-22553-022-1	02	1	0706-0708	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (A) L=650	1-22553-022-1	04	1	0706-0708		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L AL<EBF> (B) L=1210	1-22550-261-0	02	1	0706-0708	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L AL<EBF> (B) L=1210	1-22550-261-0	02	1	0811-1110	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> (B) L=1210	1-22550-261-0	02	1	0811-1110		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L AL<EBF> (B) L=1210	8-98202-448-0	02	1	1111-	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> (B) L=1210	8-98202-448-0	02	1	1111-		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L AL<THF> (C) L=1045	1-22550-262-0	02	1	0706-0708	●	●
40	BELT; SUPPORT,FUEL TANK (C) L=1045	1-22550-262-0	02	1	0709-0804	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L AL<THF> (C) L=1045	1-22550-262-0	02	1	0709-0804		●
40	BELT; SUPPORT,FUEL TANK (C) L=1045	1-22550-262-0	02	1	0805-0810	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L AL<THF> (C) L=1045	1-22550-262-0	02	1	0811-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) L=1030	1-22550-204-2	02	1	0706-0708	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7> (A) L=1030	1-22550-204-2	04	1	0706-0708		●
42	NUT; SUPPORT BELT FUEL TANK 300L AL<EBF>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> M10	0-91110-510-0	04	1	0706-0708	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> M10	0-91110-510-0	04	1	0706-0708		●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0709-0804	●
42	NUT; SUPPORT BELT FUEL TANK 200L AL<THF> M10	0-91110-510-0	04	1	0709-0804		●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0805-0810	●	●
42	NUT; SUPPORT BELT FUEL TANK 300L AL<EBF>,FUEL TANK 200L AL<THF> M10	0-91110-510-0	04	1	0811-	●
42	NUT; SUPPORT BELT FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> M10	0-91110-510-0	04	1	0811-		●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	0-91110-510-0	08	1	0706-0708		●
43	BRACKET; FUEL TANK FUEL TANK 300L AL<EBF> (D)	8-97620-945-0	02	1	0706-0708	●
43	BRACKET; FUEL TANK FUEL TANK 300L AL<EBF> (D)	8-97620-945-0	02	1	0811-	●
43	BRACKET; FUEL TANK FUEL TANK 200L AL<THF> (C)	1-53461-543-0	02	1	0706-0708	●	●
43	BRACKET; FUEL TANK (C)	1-53461-543-0	02	1	0709-0804	●
43	BRACKET; FUEL TANK FUEL TANK 200L AL<THF> (C)	1-53461-543-0	02	1	0709-0804		●
43	BRACKET; FUEL TANK (C)	1-53461-543-0	02	1	0805-0810	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L AL<THF> (C)	1-53461-543-0	02	1	0811-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A)	1-53461-279-4	02	1	0706-0708	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7> (A)	1-53461-279-4	04	1	0706-0708		●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH> (B)	1-53461-525-1	02	1	0811-		●
49	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0706-	●
49	NUT; BRKT FUEL TANK 300L AL<EBF> (A) M12	0-91110-512-0	12	1	0706-0708	●
49	NUT; BRKT FUEL TANK 300L AL<EBF> (A) M12	0-91110-512-0	12	1	0811-	●
49	NUT; BRKT FUEL TANK 400L<SDH> (A) M12	0-91110-512-0	12	1	0811-		●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> (A) M12	0-91110-512-0	08	1	0706-0708	●	●
49	NUT; BRKT (A) M12	0-91110-512-0	08	1	0709-0804	●
49	NUT; BRKT FUEL TANK 200L AL<THF> (A) M12	0-91110-512-0	08	1	0709-0804		●
49	NUT; BRKT (A) M12	0-91110-512-0	08	1	0805-0810	●	●
49	NUT; BRKT FUEL TANK 200L AL<THF> (A) M12	0-91110-512-0	08	1	0811-	●	●
49	NUT; BRKT FUEL TANK 200L+200L<NF7> (A) M12	0-91110-512-0	16	1	0706-0708		●
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L<NF7> (B) ID=14.2	8-94462-114-0	02	1	0706-0708		●
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L<NF7> (A) ID=14.2 OD=20.0	9-09571-414-0	02	1	0706-0708		●
54	COCK ASM; FUEL TANK FUEL TANK 200L+200L<NF7>	1-09680-072-0	02	1	0706-0708		●
55	CLIP; FUEL PIPE FUEL TANK 200L+200L<NF7> ID=14	1-09704-102-0	02	1	0706-0708		●
56	PIPE; FUEL SHUTTER FUEL TANK 200L+200L<NF7> L=260 SERVICED BY L=3000	0-01260-300-0	01	1	0706-0708		●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> (B) L=340	1-22553-043-2	02	1	0706-0708	●	●
237	GASKET; BRKT TO FUEL TANK (B) L=340	1-22553-043-2	02	1	0709-0804	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> (B) L=340	1-22553-043-2	02	1	0709-0804		●
237	GASKET; BRKT TO FUEL TANK (B) L=340	1-22553-043-2	02	1	0805-0810	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> (B) L=340	1-22553-043-2	02	1	0811-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> (C) L=540	1-22553-064-1	02	1	0706-0708	●	●
237	GASKET; BRKT TO FUEL TANK (C) L=540	1-22553-064-1	02	1	0709-0804	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> (C) L=540	1-22553-064-1	02	1	0709-0804		●
237	GASKET; BRKT TO FUEL TANK (C) L=540	1-22553-064-1	02	1	0805-0810	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> (C) L=540	1-22553-064-1	02	1	0811-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) L=580	1-22553-003-0	02	1	0706-0708	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L+200L<NF7> (A) L=580	1-22553-003-0	04	1	0706-0708		●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH> (D)	1-22553-037-1	04	1	0811-		●
322	BOLT; BRKT FIX FUEL TANK 300L AL<EBF> M12X45 FLANGE	0-28051-245-0	10	1	0706-0708	●
322	BOLT; BRKT FIX FUEL TANK 300L AL<EBF> M12X45 FLANGE	0-28051-245-0	10	1	0811-	●
322	BOLT; BRKT FIX FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> M12X35 FLANGE	0-28051-235-0	08	1	0706-0708	●	●
322	BOLT; BRKT FIX M12X35 FLANGE	0-28051-235-0	08	1	0709-0804	●
322	BOLT; BRKT FIX FUEL TANK 200L AL<THF> M12X35 FLANGE	0-28051-235-0	08	1	0709-0804		●
322	BOLT; BRKT FIX M12X35 FLANGE	0-28051-235-0	08	1	0805-0810	●	●
322	BOLT; BRKT FIX FUEL TANK 200L AL<THF> M12X35 FLANGE	0-28051-235-0	08	1	0811-	●	●
322	BOLT; BRKT FIX FUEL TANK 200L+200L<NF7> M12X35 FLANGE	0-28051-235-0	16	1	0706-0708		●
322	BOLT; BRKT FIX FUEL TANK 400L<SDH> M12X40 FLANGE	0-28051-240-0	10	1	0811-		●
341	CLIP; BAND,RUBBER HOSE FUEL TANK 200L FRAME SIDE<N20> L=350	1-09707-183-0	01	1	0706-0708	●	●
341	CLIP; BAND,RUBBER HOSE FUEL TANK 200L+200L<NF7> L=350	1-09707-183-0	02	1	0706-0708		●
341	CLIP; BAND,RUBBER HOSE FUEL TANK 400L<SDH> L=350	1-09707-183-0	02	1	0811-		●
461	NUT; CLIP,FUEL PIPE FUEL TANK 200L+200L<NF7> M8 FLANGE	0-91180-108-0	02	1	0706-0708		●
467	BOLT FUEL TANK 200L+200L<NF7> M8X25 FLANGE	0-28650-825-0	02	1	0706-0708		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
