Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11330 - CYZ MIDDLE EAST WITH 2STEPS
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-35 - CHARGE AIR COOLER
▶

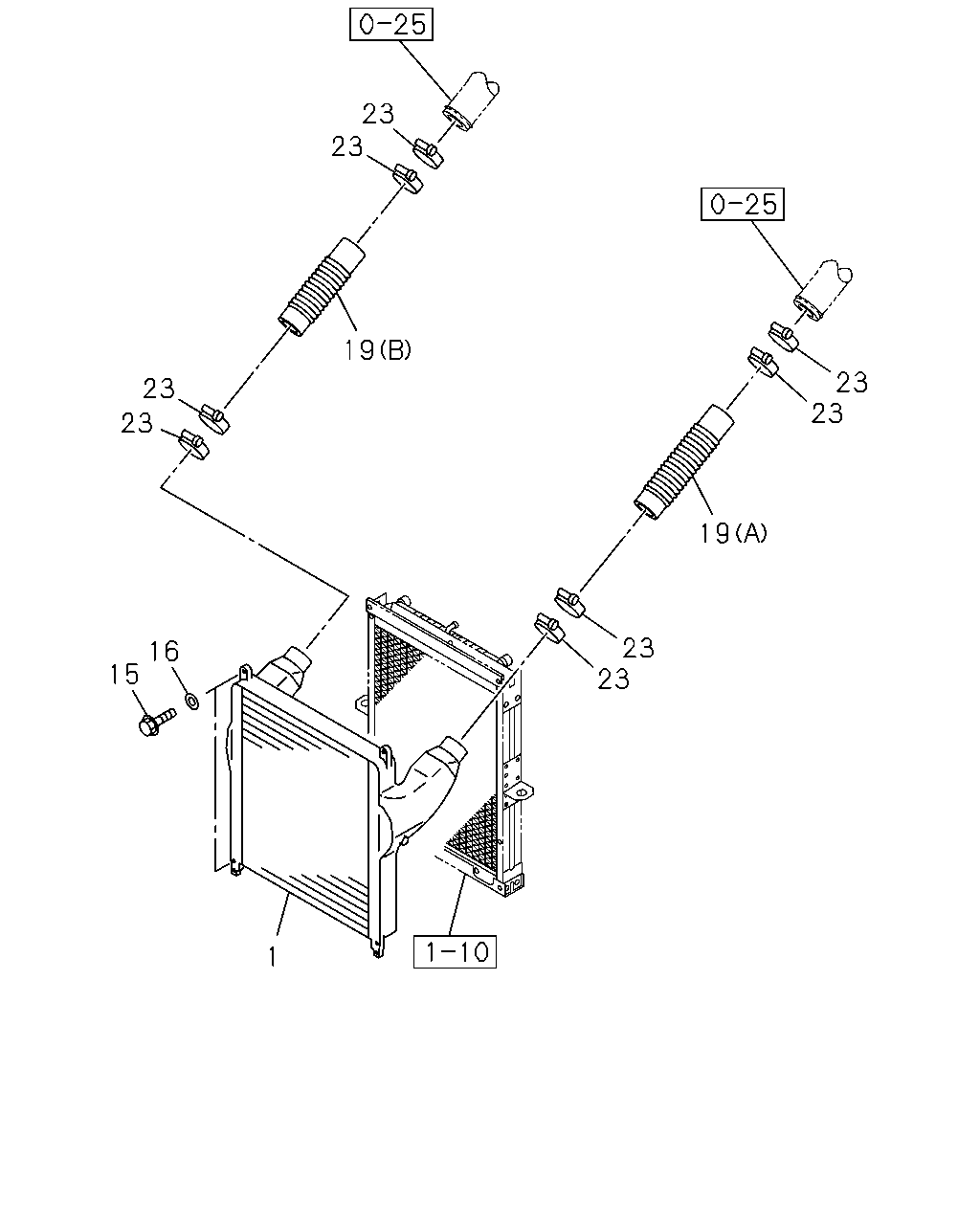

1-35 — CHARGE AIR COOLER
(#18050) — 12 parça
Tümü
A - 6WF1 TC-C
B - 6WF1 TC
23
23
19
23
23
23
23
19
23
23
16
15
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COOLER; CHARGE AIR
1-14431-055-6
01
1
0706-
●
●
15
BOLT; CHARGE AIR COOLER
1-21469-151-0
04
1
0706-
●
●
16
WASHER; PL,CHARGE AIR COOLER
1-21469-132-0
02
1
0909-1112
●
●
16
WASHER; PL,CHARGE AIR COOLER
LONG CHASSIS & LHD(CYZ6MF) EXC. CONCRETE PUMP<RA5>
1-21469-132-0
02
1
1201-
●
16
WASHER; PL,CHARGE AIR COOLER
SHORT CHASSIS & LHD(CYZ6MC)
1-21469-132-0
02
1
1201-
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(A)
1-09361-130-0
01
1
0706-
●
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B)
1-09361-131-0
01
1
0706-1402
●
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B)
8-98258-227-0
01
1
1403-
●
●
23
CLIP; HOSE
ID=87-113
1-09707-199-0
08
1
0706-0811
●
●
23
CLIP; HOSE
ID=90-110
8-98133-365-0
08
1
0812-1001
●
●
23
CLIP; HOSE
ID=87-112
8-97375-040-0
08
1
1002-1010
●
●
23
CLIP; HOSE
L=64
1-09707-138-0
08
1
1011-
●
●
