Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11330 - CYZ MIDDLE EAST WITH 2STEPS
▶
0 - Engine, Emission, Engine Electrical
▶
0-87 - COUPLING; INJECTION PUMP
▶

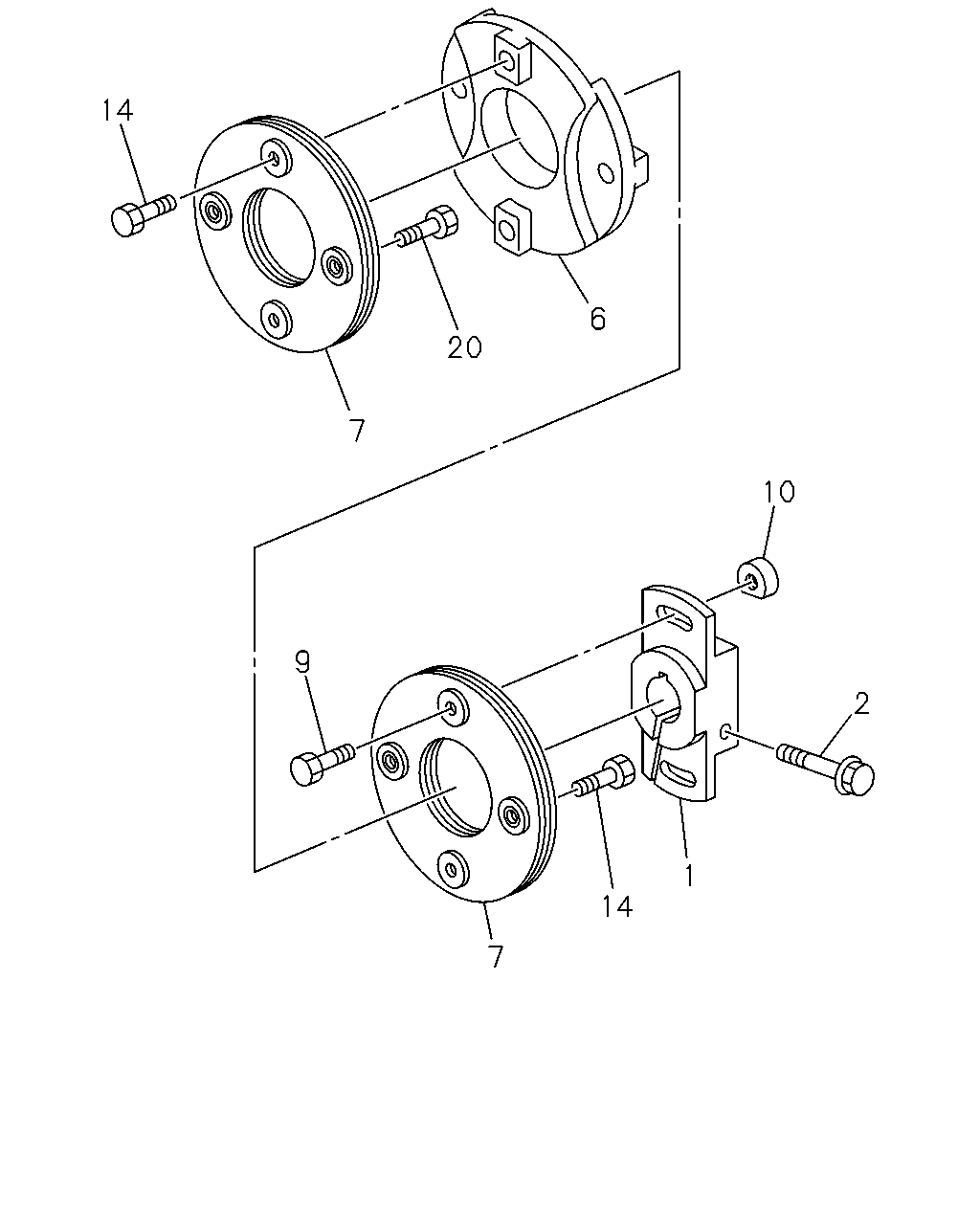

0-87 — COUPLING; INJECTION PUMP
(#18043) — 16 parça
Tümü
A - 6WF1 TC
B - 6WF1 TC-C
14
6
20
7
10
9
2
1
14
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COUPLING; INJ PUMP DRIVE
1-15789-207-0
01
1
0706-0901
●
1
COUPLING; INJ PUMP DRIVE
1-15789-207-0
01
1
0902-
●
●
2
BOLT; COUPLING FIX,INJ PUMP
1-15789-212-0
01
1
0706-0901
●
2
BOLT; COUPLING FIX,INJ PUMP
1-15789-212-0
01
1
0902-
●
●
6
COUPLING; CROSS,INJ PUMP DRIVE
1-15789-208-0
01
1
0706-0901
●
6
COUPLING; CROSS,INJ PUMP DRIVE
1-15789-208-0
01
1
0902-
●
●
7
PLATE; COUPLING,COUPLING SIDE
1-15789-209-0
02
1
0706-0901
●
7
PLATE; COUPLING,COUPLING SIDE
1-15789-209-0
02
1
0902-
●
●
9
BOLT; PLATE TO COUPLING,INJ PUMP
1-15789-210-0
02
1
0706-0901
●
9
BOLT; PLATE TO COUPLING,INJ PUMP
1-15789-210-0
02
1
0902-
●
●
10
NUT; PLATE TO COUPLING,INJ PUMP
1-15789-213-0
02
1
0706-0901
●
10
NUT; PLATE TO COUPLING,INJ PUMP
1-15789-213-0
02
1
0902-
●
●
14
BOLT; PLATE TO CROSS COUPLING,TIMER SI
1-15789-211-0
04
1
0706-0901
●
14
BOLT; PLATE TO CROSS COUPLING,TIMER SI
1-15789-211-0
04
1
0902-
●
●
20
BOLT; COUPLING TO INJ PUMP
1-15789-214-0
02
1
0706-0901
●
20
BOLT; COUPLING TO INJ PUMP
1-15789-214-0
02
1
0902-
●
●
