Sayfa 0-61 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11330 - CYZ MIDDLE EAST WITH 2STEPS ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶

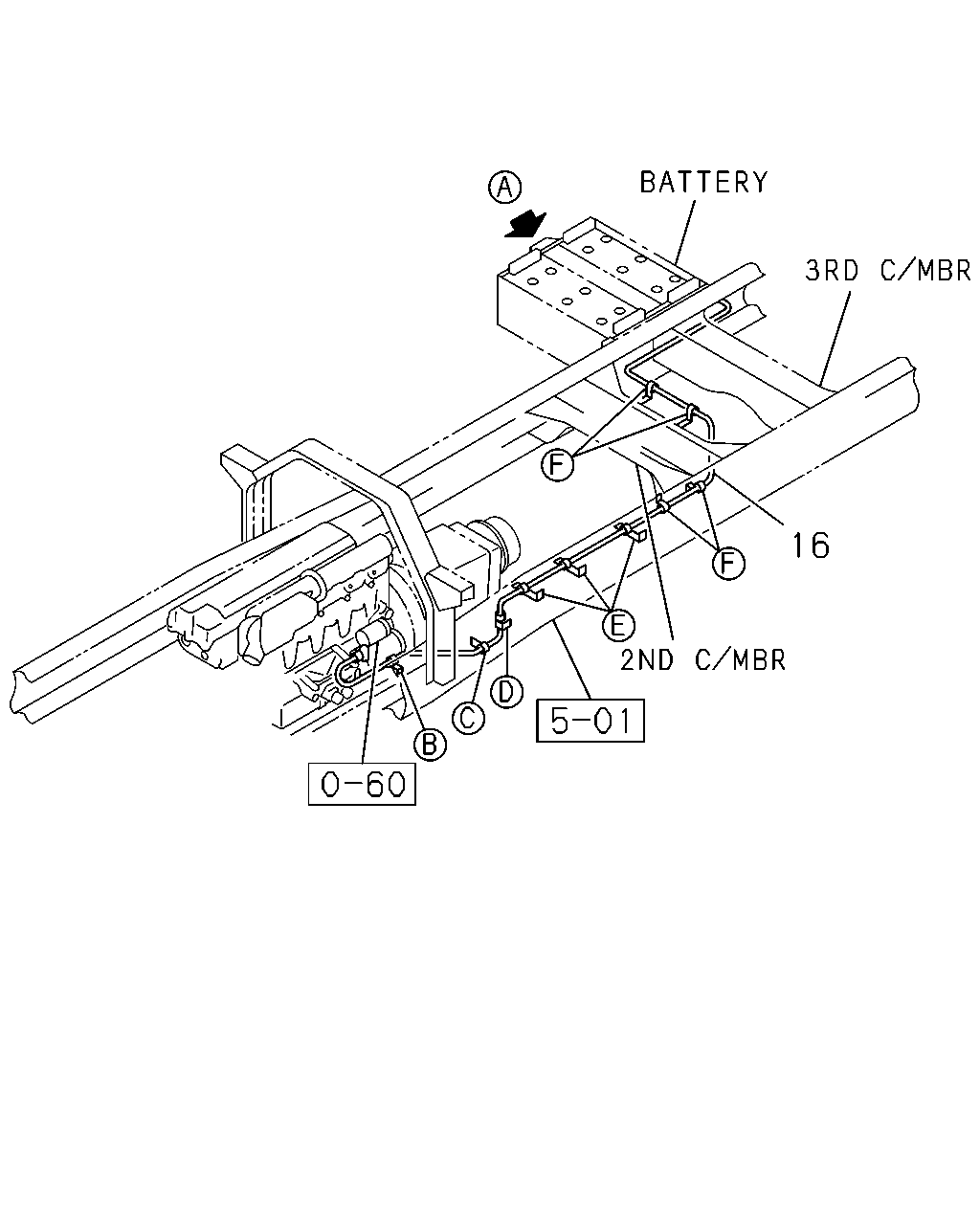

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#18040) — 182 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CABLE; STARTER TO RELAY MIXER TRUCK<RA2> L=5560	1-82653-004-0	01	1	0706-0708	●
16	CABLE; STARTER TO RELAY MIXER TRUCK<RA2> L=5560	1-82653-004-0	01	1	0811-	●
16	CABLE; STARTER TO RELAY EXC. MIXER TRUCK<RA2> L=5600	1-82653-002-0	01	1	0706-0708	●
16	CABLE; STARTER TO RELAY L=5600	1-82653-002-0	01	1	0709-0810	●
16	CABLE; STARTER TO RELAY EXC. MIXER TRUCK<RA2> L=5600	1-82653-002-0	01	1	0811-	●
16	CABLE; STARTER TO RELAY L=4840	1-82653-003-0	01	1	0706-		●

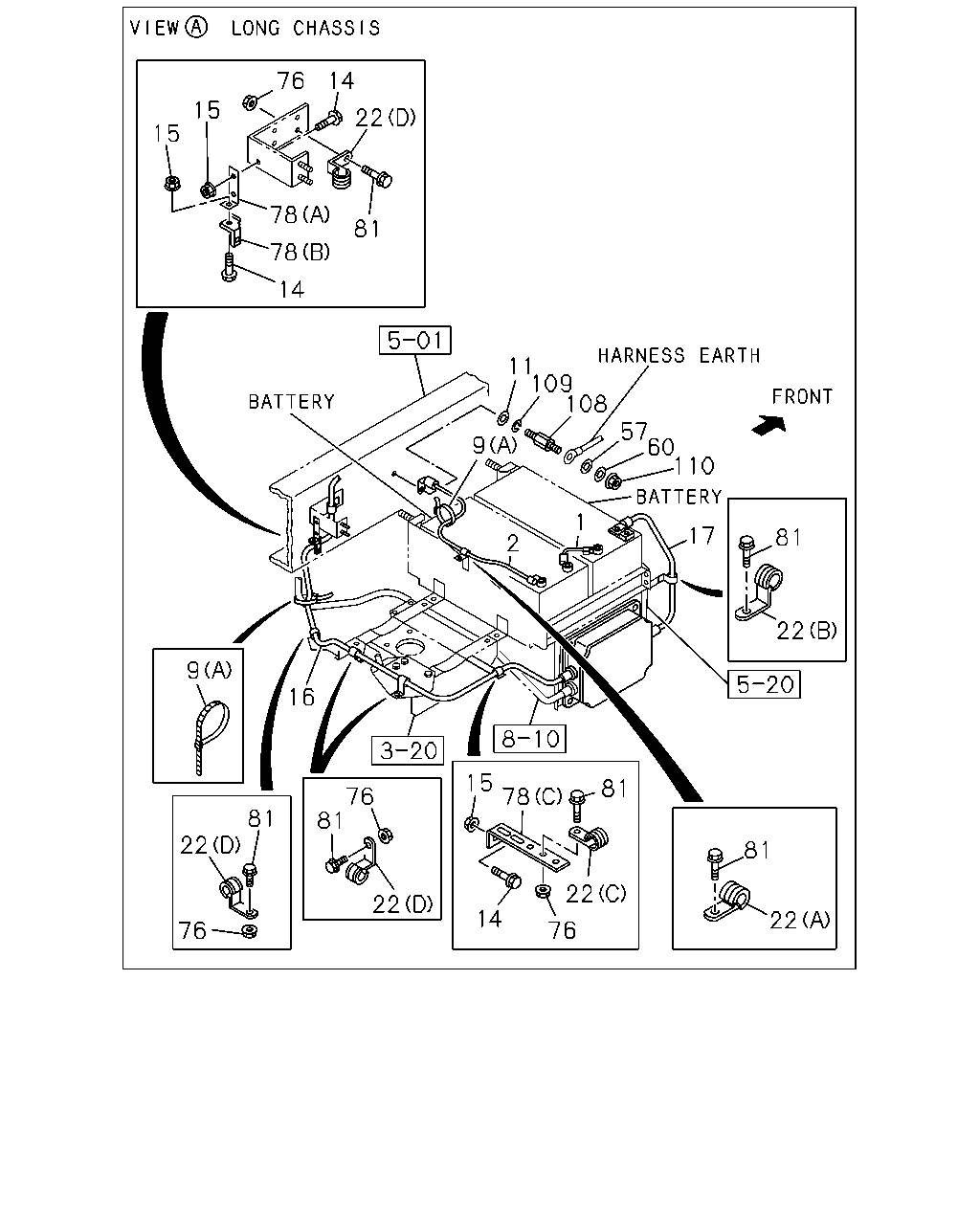

14 78 81 81 22 76 15 22 78 14 11 109 108 76 57 60 110 17 9 1 2 22 81 9 81 22 16 22 81 76 81 22 15 14 81 15 14 81 14 81 78 22 76 78 23 76 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY BATTERY 115F51 N120<SJ3> L=265	1-82650-388-1	01	1	0706-	●	●
1	CABLE; BATTERY BATTERY 145G51 N150<SJ8> L=450	1-82650-389-1	01	1	0706-	●	●
2	CABLE; BATTERY L=720	1-82650-384-1	01	1	0706-	●
2	CABLE; BATTERY L=680	1-82650-385-1	01	1	0706-		●
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	02	1	0706-	●
9	CLIP; BATTERY CABLE (B) ID=19 L=28	0-95235-856-0	02	1	0706-	●	●
9	CLIP; BATTERY CABLE (C) ID=18 L=28	1-09701-067-0	02	1	0706-	●	●
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	03	1	0706-		●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	0706-	●	●
14	BOLT; BRKT CLIP M8X20 FLANGE	0-28650-820-0	04	1	0706-	●
14	BOLT; BRKT CLIP M8X20 FLANGE	0-28650-820-0	03	1	0706-		●
15	NUT; BRKT CLIP M8 FLANGE	0-91180-108-0	03	1	0706-	●	●
16	CABLE; STARTER TO RELAY MIXER TRUCK<RA2> L=5560	1-82653-004-0	01	1	0706-0708	●
16	CABLE; STARTER TO RELAY MIXER TRUCK<RA2> L=5560	1-82653-004-0	01	1	0811-	●
16	CABLE; STARTER TO RELAY EXC. MIXER TRUCK<RA2> L=5600	1-82653-002-0	01	1	0706-0708	●
16	CABLE; STARTER TO RELAY L=5600	1-82653-002-0	01	1	0709-0810	●
16	CABLE; STARTER TO RELAY EXC. MIXER TRUCK<RA2> L=5600	1-82653-002-0	01	1	0811-	●
16	CABLE; STARTER TO RELAY L=4840	1-82653-003-0	01	1	0706-		●
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-760-3	01	1	0706-	●	●
22	CLIP; BATTERY CABLE (D) ID=20 H=23 L=27	1-09700-861-0	08	1	0706-	●
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0706-	●	●
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	0706-	●	●
22	CLIP; BATTERY CABLE (D) ID=20 H=23 L=27	1-09700-861-0	04	1	0706-		●
22	CLIP; BATTERY CABLE (C) ID=21 L=24	8-94176-807-1	01	1	0706-		●
23	BRACKET; CABLE CLIP TO FRAME ENGINE REAR PTO(SV1) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-47479-642-0	01	1	0811-	●
23	BRACKET; CABLE CLIP TO FRAME MIXER TRUCK<RA2> (C)	1-47479-642-0	01	1	0706-0708	●
23	BRACKET; CABLE CLIP TO FRAME EXC. MIXER TRUCK<RA2> (A) L=112	1-47475-694-1	01	1	0706-0708	●
23	BRACKET; CABLE CLIP TO FRAME (A) L=112	1-47475-694-1	01	1	0706-0708		●
23	BRACKET; CABLE CLIP TO FRAME (A) L=112	1-47475-694-1	01	1	0709-0810	●	●
23	BRACKET; CABLE CLIP TO FRAME EXC. ENGINE REAR PTO(SV1) (A) L=112	1-47475-694-1	01	1	0811-	●
23	BRACKET; CABLE CLIP TO FRAME (A) L=112	1-47475-694-1	01	1	0811-		●
23	BRACKET; CABLE CLIP TO FRAME TRANSMISSION SIDE PTO WO/LEVER(SH5) ENGINE REAR PTO(SV1) (C)	8-98131-866-0	01	1	0811-	●
23	BRACKET; CABLE CLIP TO FRAME (B) L=95	1-82699-085-0	03	1	0706-	●	●
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	0706-	●	●
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	0706-	●	●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	07	1	0706-	●
76	NUT; BATTERY CABLE M10 FLANGE	0-91180-210-0	01	1	0706-0901	●	●
76	NUT; BATTERY CABLE MAL6 M/T<X9G> M10 FLANGE	0-91180-210-0	01	1	0902-	●
76	NUT; BATTERY CABLE M10 FLANGE	0-91180-210-0	01	1	0902-		●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	05	1	0706-		●
78	BRACKET; CLIP BATTERY (F)	1-47476-396-1	01	1	0706-	●
78	BRACKET; CLIP BATTERY (D) L=117	1-47478-116-0	01	1	0706-	●
78	BRACKET; CLIP BATTERY (E) L=110	1-82699-589-0	01	1	0706-	●
78	BRACKET; CLIP BATTERY (C) L=160 H=30	1-47479-759-0	01	1	0706-	●	●
78	BRACKET; CLIP BATTERY (A) L=90 B=25	1-47476-630-0	01	1	0706-		●
78	BRACKET; CLIP BATTERY (B)	8-97304-944-0	01	1	0706-		●
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	10	1	0706-	●
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	07	1	0706-		●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	0706-	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	0706-	●	●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	0706-	●	●

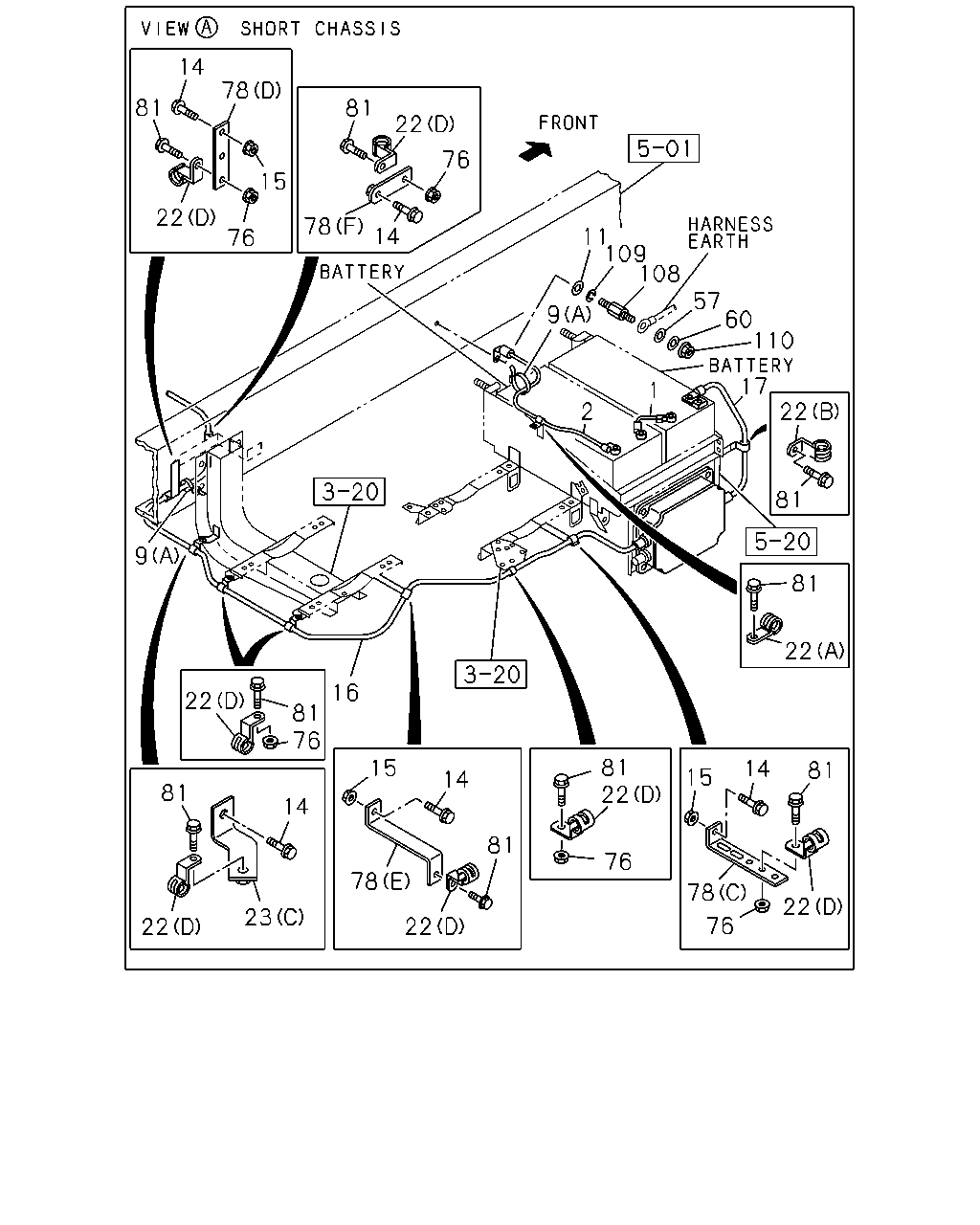

76 14 15 22 15 78 81 78 14 11 109 108 57 60 110 9 1 17 81 2 22 9 16 15 78 81 76 81 81 22 81 22 22 14 22 76 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY BATTERY 115F51 N120<SJ3> L=265	1-82650-388-1	01	1	0706-	●	●
1	CABLE; BATTERY BATTERY 145G51 N150<SJ8> L=450	1-82650-389-1	01	1	0706-	●	●
2	CABLE; BATTERY L=720	1-82650-384-1	01	1	0706-	●
2	CABLE; BATTERY L=680	1-82650-385-1	01	1	0706-		●
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	02	1	0706-	●
9	CLIP; BATTERY CABLE (B) ID=19 L=28	0-95235-856-0	02	1	0706-	●	●
9	CLIP; BATTERY CABLE (C) ID=18 L=28	1-09701-067-0	02	1	0706-	●	●
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	03	1	0706-		●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	0706-	●	●
14	BOLT; BRKT CLIP M8X20 FLANGE	0-28650-820-0	04	1	0706-	●
14	BOLT; BRKT CLIP M8X20 FLANGE	0-28650-820-0	03	1	0706-		●
15	NUT; BRKT CLIP M8 FLANGE	0-91180-108-0	03	1	0706-	●	●
16	CABLE; STARTER TO RELAY MIXER TRUCK<RA2> L=5560	1-82653-004-0	01	1	0706-0708	●
16	CABLE; STARTER TO RELAY MIXER TRUCK<RA2> L=5560	1-82653-004-0	01	1	0811-	●
16	CABLE; STARTER TO RELAY EXC. MIXER TRUCK<RA2> L=5600	1-82653-002-0	01	1	0706-0708	●
16	CABLE; STARTER TO RELAY L=5600	1-82653-002-0	01	1	0709-0810	●
16	CABLE; STARTER TO RELAY EXC. MIXER TRUCK<RA2> L=5600	1-82653-002-0	01	1	0811-	●
16	CABLE; STARTER TO RELAY L=4840	1-82653-003-0	01	1	0706-		●
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-760-3	01	1	0706-	●	●
22	CLIP; BATTERY CABLE (D) ID=20 H=23 L=27	1-09700-861-0	08	1	0706-	●
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0706-	●	●
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	0706-	●	●
22	CLIP; BATTERY CABLE (D) ID=20 H=23 L=27	1-09700-861-0	04	1	0706-		●
22	CLIP; BATTERY CABLE (C) ID=21 L=24	8-94176-807-1	01	1	0706-		●
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	0706-	●	●
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	0706-	●	●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	07	1	0706-	●
76	NUT; BATTERY CABLE M10 FLANGE	0-91180-210-0	01	1	0706-0901	●	●
76	NUT; BATTERY CABLE MAL6 M/T<X9G> M10 FLANGE	0-91180-210-0	01	1	0902-	●
76	NUT; BATTERY CABLE M10 FLANGE	0-91180-210-0	01	1	0902-		●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	05	1	0706-		●
78	BRACKET; CLIP BATTERY (F)	1-47476-396-1	01	1	0706-	●
78	BRACKET; CLIP BATTERY (D) L=117	1-47478-116-0	01	1	0706-	●
78	BRACKET; CLIP BATTERY (E) L=110	1-82699-589-0	01	1	0706-	●
78	BRACKET; CLIP BATTERY (C) L=160 H=30	1-47479-759-0	01	1	0706-	●	●
78	BRACKET; CLIP BATTERY (A) L=90 B=25	1-47476-630-0	01	1	0706-		●
78	BRACKET; CLIP BATTERY (B)	8-97304-944-0	01	1	0706-		●
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	10	1	0706-	●
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	07	1	0706-		●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	0706-	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	0706-	●	●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	0706-	●	●

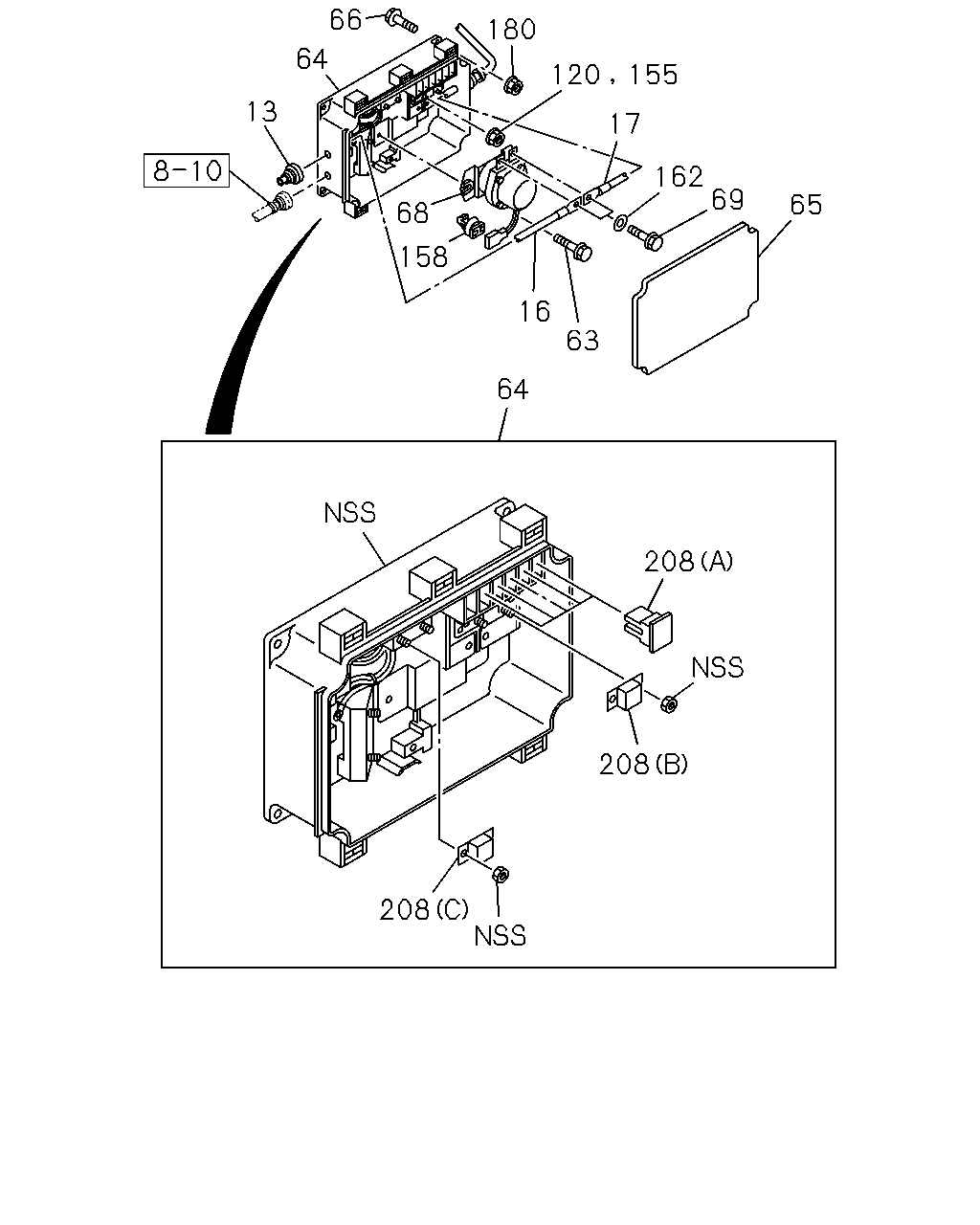

66 180 64 120 155 13 17 162 69 65 68 158 16 63 64 208 208 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	GROMMET; BATTERY CABLE ID=26	1-09333-140-0	01	1	0706-	●	●
16	CABLE; STARTER TO RELAY MIXER TRUCK<RA2> L=5560	1-82653-004-0	01	1	0706-0708	●
16	CABLE; STARTER TO RELAY MIXER TRUCK<RA2> L=5560	1-82653-004-0	01	1	0811-	●
16	CABLE; STARTER TO RELAY EXC. MIXER TRUCK<RA2> L=5600	1-82653-002-0	01	1	0706-0708	●
16	CABLE; STARTER TO RELAY L=5600	1-82653-002-0	01	1	0709-0810	●
16	CABLE; STARTER TO RELAY EXC. MIXER TRUCK<RA2> L=5600	1-82653-002-0	01	1	0811-	●
16	CABLE; STARTER TO RELAY L=4840	1-82653-003-0	01	1	0706-		●
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-760-3	01	1	0706-	●	●
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0706-	●	●
64	BOX; BATTERY RELAY	1-82510-648-0	01	1	0706-	●	●
65	COVER; BATTERY RELAY	1-82510-654-1	01	1	0706-	●	●
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0706-	●	●
68	RELAY; BATTERY	1-82550-313-0	01	1	0706-	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0706-	●	●
120	NUT; RELAY BATTERY M8 FLANGE	0-91180-108-0	01	1	0911-	●	●
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	0706-	●	●
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	0706-	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	0706-	●	●
180	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	0706-	●	●
208	FUSE (C) 80A	1-82516-031-0	01	1	0706-	●	●
208	FUSE (B) 100A	1-82516-032-0	01	1	0706-	●	●
208	FUSE (A) 40A GREEN	8-94468-662-0	05	1	0706-	●	●

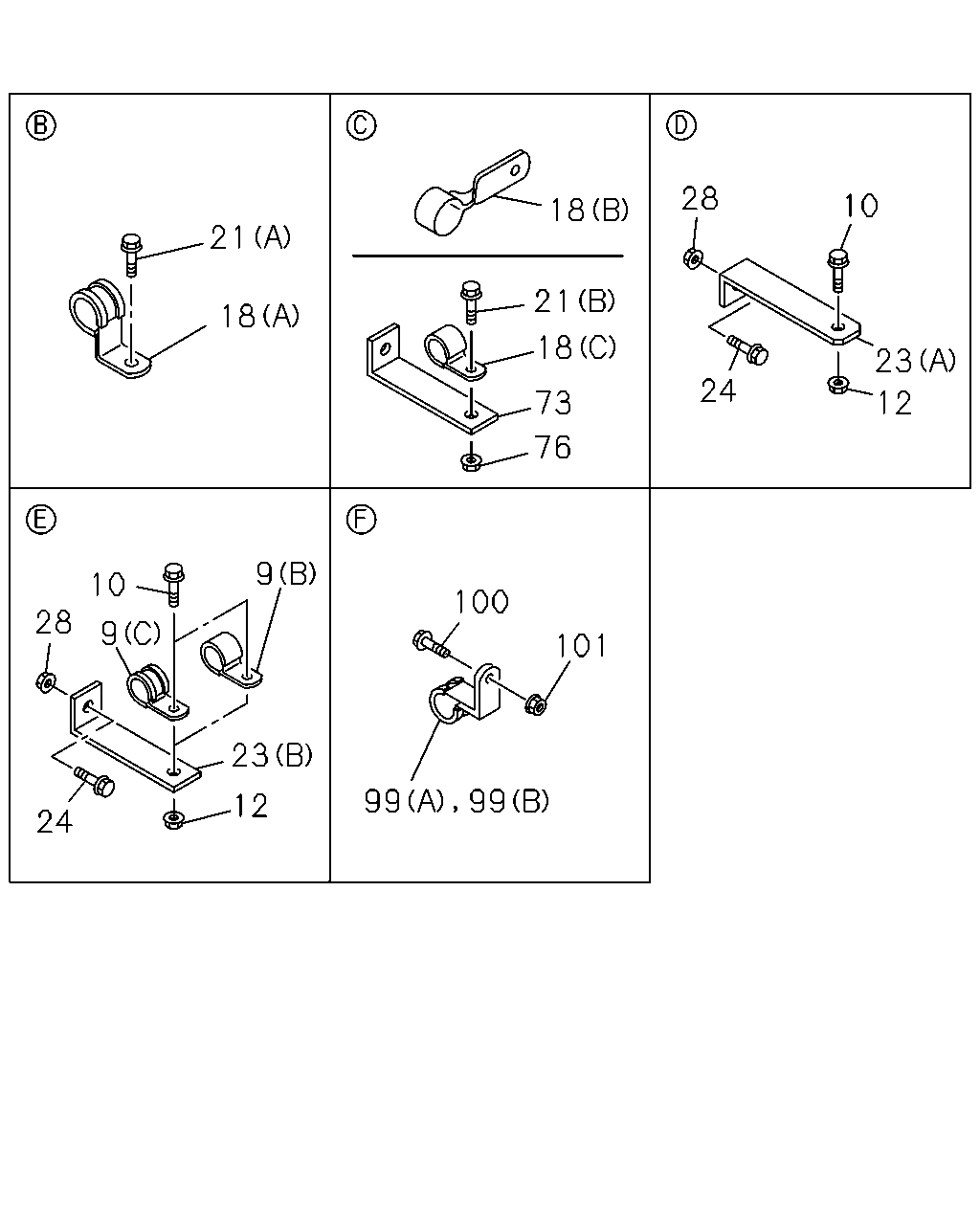

28 10 18 21 21 18 18 23 24 73 12 76 9 10 100 28 9 101 23 99 99 12 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	02	1	0706-	●
9	CLIP; BATTERY CABLE (B) ID=19 L=28	0-95235-856-0	02	1	0706-	●	●
9	CLIP; BATTERY CABLE (C) ID=18 L=28	1-09701-067-0	02	1	0706-	●	●
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	03	1	0706-		●
10	BOLT; BATTERY CABLE CLIP M8X20 FLANGE	0-28650-820-0	04	1	0706-	●	●
12	NUT; BATTERY CABLE CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	03	1	0706-0708	●
12	NUT; BATTERY CABLE CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	03	1	0811-	●
12	NUT; BATTERY CABLE CLIP EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	04	1	0706-0708	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	04	1	0706-0708		●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	04	1	0709-0810	●	●
12	NUT; BATTERY CABLE CLIP EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	04	1	0811-0901	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	04	1	0811-0901		●
12	NUT; BATTERY CABLE CLIP MAL6 M/T<X9G>,MJT7 M/T<Y9E> EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	04	1	0902-	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	04	1	0902-		●
12	NUT; BATTERY CABLE CLIP MJT7 M/T<Y9E> M10 FLANGE	0-91180-210-0	01	1	0902-	●
18	CLIP; BATTERY CABLE MJT7 M/T<Y9E> (B) ID=18 L=54	1-09701-106-0	01	1	0902-	●
18	CLIP; BATTERY CABLE (C) ID=19 L=28	0-95235-856-0	01	1	0706-0901	●	●
18	CLIP; BATTERY CABLE MAL6 M/T<X9G> (C) ID=19 L=28	0-95235-856-0	01	1	0902-	●
18	CLIP; BATTERY CABLE (C) ID=19 L=28	0-95235-856-0	01	1	0902-		●
18	CLIP; BATTERY CABLE (A) ID=20 H=23 L=27	1-09700-861-0	01	1	0706-	●	●
21	BOLT; CLIP CABLE (A) M8X16 FLANGE	0-28050-816-0	01	1	0706-	●	●
21	BOLT; CLIP CABLE (B) M8X20 FLANGE	0-28650-820-0	01	1	0706-0901	●	●
21	BOLT; CLIP CABLE MAL6 M/T<X9G> (B) M8X20 FLANGE	0-28650-820-0	01	1	0902-	●
21	BOLT; CLIP CABLE (B) M8X20 FLANGE	0-28650-820-0	01	1	0902-		●
23	BRACKET; CABLE CLIP TO FRAME ENGINE REAR PTO(SV1) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-47479-642-0	01	1	0811-	●
23	BRACKET; CABLE CLIP TO FRAME MIXER TRUCK<RA2> (C)	1-47479-642-0	01	1	0706-0708	●
23	BRACKET; CABLE CLIP TO FRAME EXC. MIXER TRUCK<RA2> (A) L=112	1-47475-694-1	01	1	0706-0708	●
23	BRACKET; CABLE CLIP TO FRAME (A) L=112	1-47475-694-1	01	1	0706-0708		●
23	BRACKET; CABLE CLIP TO FRAME (A) L=112	1-47475-694-1	01	1	0709-0810	●	●
23	BRACKET; CABLE CLIP TO FRAME EXC. ENGINE REAR PTO(SV1) (A) L=112	1-47475-694-1	01	1	0811-	●
23	BRACKET; CABLE CLIP TO FRAME (A) L=112	1-47475-694-1	01	1	0811-		●
23	BRACKET; CABLE CLIP TO FRAME TRANSMISSION SIDE PTO WO/LEVER(SH5) ENGINE REAR PTO(SV1) (C)	8-98131-866-0	01	1	0811-	●
23	BRACKET; CABLE CLIP TO FRAME (B) L=95	1-82699-085-0	03	1	0706-	●	●
24	BOLT; BRKT TO FRAME ENGINE REAR PTO(SV1) M8X20 FLANGE	0-28650-820-0	01	1	0811-	●
24	BOLT; BRKT TO FRAME EXC. ENGINE REAR PTO(SV1) M8X30 FLANGE	0-28650-830-0	04	1	0811-	●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	04	1	0811-		●
24	BOLT; BRKT TO FRAME MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	0706-0708	●
24	BOLT; BRKT TO FRAME MIXER TRUCK<RA2> M8X30 FLANGE	0-28650-830-0	03	1	0706-0708	●
24	BOLT; BRKT TO FRAME EXC. MIXER TRUCK<RA2> M8X30 FLANGE	0-28650-830-0	04	1	0706-0708	●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	04	1	0706-0708		●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	04	1	0709-0810	●	●
24	BOLT; BRKT TO FRAME ENGINE REAR PTO(SV1) M8X30 FLANGE	0-28650-830-0	03	1	0811-	●
28	NUT; BRKT TO FRAME EXC. ENGINE REAR PTO(SV1) M8 FLANGE	0-91180-108-0	04	1	0811-	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	04	1	0811-		●
28	NUT; BRKT TO FRAME MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	03	1	0706-0708	●
28	NUT; BRKT TO FRAME EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	04	1	0706-0708	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	04	1	0706-0708		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	04	1	0709-0810	●	●
28	NUT; BRKT TO FRAME ENGINE REAR PTO(SV1) M8 FLANGE	0-91180-108-0	03	1	0811-	●
73	BRACKET; BATTERY CABLE	1-82699-104-0	01	1	0706-0901	●	●
73	BRACKET; BATTERY CABLE MAL6 M/T<X9G>	1-82699-104-0	01	1	0902-	●
73	BRACKET; BATTERY CABLE	1-82699-104-0	01	1	0902-		●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	07	1	0706-	●
76	NUT; BATTERY CABLE M10 FLANGE	0-91180-210-0	01	1	0706-0901	●	●
76	NUT; BATTERY CABLE MAL6 M/T<X9G> M10 FLANGE	0-91180-210-0	01	1	0902-	●
76	NUT; BATTERY CABLE M10 FLANGE	0-91180-210-0	01	1	0902-		●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	05	1	0706-		●
99	CLIP; BATTERY CABLE (B) ID=18 L=25 H=50	1-09701-096-0	02	1	0706-	●	●
99	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	02	1	0706-	●	●
100	BOLT; BATTERY CABLE CLIP M8X25 FLANGE	0-28650-825-0	04	1	0706-	●	●
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	04	1	0706-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
