0-41 — FUEL FILTER AND BRACKET (#18033) — 51 parça

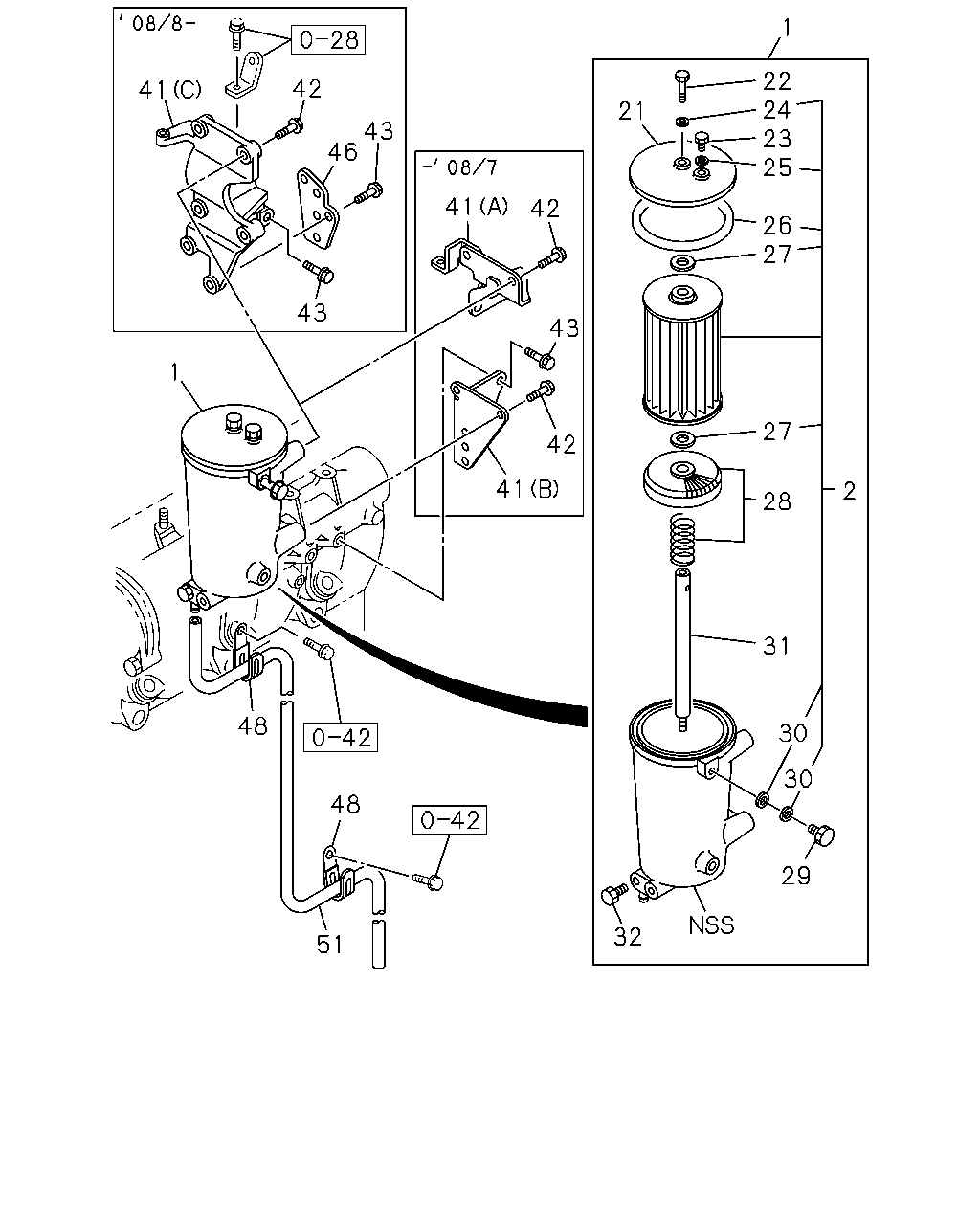

çizim 134584
1 22 24 23 25 42 41 21 43 46 41 42 26 27 43 43 1 27 42 41 2 28 31 48 30 30 48 29 32 51
BalonParca AdiParca NoAdetTipApplied Date A B
1 FILTER ASM; FUEL 1-13201-006-1 01 1 0706-0901 ●
1 FILTER ASM; FUEL 1-13201-006-1 01 1 0902-1106 ● ●
1 FILTER ASM; FUEL 8-98175-164-0 01 1 1107- ● ●
2 ELEMENT KIT; FUEL FILTER 1-87810-976-0 01 1 0706-0901 ●
2 ELEMENT KIT; FUEL FILTER 1-87810-976-0 01 1 0902-1106 ● ●
2 ELEMENT KIT; FUEL FILTER 8-98174-903-0 01 1 1107- ● ●
2 ELEMENT KIT; FUEL FILTER
BEST VALUE PARTS 		1-87610-152-0 01 1 1107- ● ●
21 COVER; UPR,FUEL FILTER 1-13212-049-1 01 1 0706-0901 ●
21 COVER; UPR,FUEL FILTER 1-13212-049-1 01 1 0902- ● ●
22 BOLT; CENTER TUBE,COVER 1-13219-045-0 01 1 0706-0901 ●
22 BOLT; CENTER TUBE,COVER 1-13219-045-0 01 1 0902- ● ●
23 PLUG; COVER 1-13219-074-0 01 1 0706-0901 ●
23 PLUG; COVER 1-13219-074-0 01 1 0902- ● ●
24 GASKET; CENTER TUBE BOLT
ID=10.2 OD=15.2 		1-09630-083-0 01 1 0706-0901 ●
24 GASKET; CENTER TUBE BOLT
ID=10.2 OD=15.2 		1-09630-083-0 01 1 0902- ● ●
25 GASKET; AIR DRAIN PLUG
ID=10.2 OD=15.2 		1-09630-083-0 01 1 0706-0901 ●
25 GASKET; AIR DRAIN PLUG
ID=10.2 OD=15.2 		1-09630-083-0 01 1 0902- ● ●
26 GASKET; COVER TO BODY 9-09720-797-0 01 1 0706-0901 ●
26 GASKET; COVER TO BODY 9-09720-797-0 01 1 0902- ● ●
27 GASKET; ELEMENT 1-09630-007-0 02 1 0706-0901 ●
27 GASKET; ELEMENT 1-09630-007-0 02 1 0902- ● ●
28 STRAINER; WATER,FUEL FILTER 1-13251-001-0 01 1 0706-0901 ●
28 STRAINER; WATER,FUEL FILTER 1-13251-001-0 01 1 0902- ● ●
29 VALVE; OVERFLOW 1-13260-116-0 01 1 0706-0901 ●
29 VALVE; OVERFLOW 1-13260-116-0 01 1 0902- ● ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0706-0901 ●
30 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0902- ● ●
31 TUBE; CENTER BOLT 1-13231-026-0 01 1 0706-0901 ●
31 TUBE; CENTER BOLT 1-13231-026-0 01 1 0902- ● ●
32 BOLT; DRAIN,FUEL FILTER 1-13219-030-0 01 1 0706-0901 ●
32 BOLT; DRAIN,FUEL FILTER 1-13219-030-0 01 1 0902- ● ●
41 BRACKET; FUEL FILTER
(A) 		1-13219-350-2 01 1 0706-0807 ●
41 BRACKET; FUEL FILTER
(C) 		8-97628-937-0 01 1 0808-0901 ●
41 BRACKET; FUEL FILTER
(C) 		8-97628-937-0 01 1 0902- ● ●
41 BRACKET; FUEL FILTER
(B) 		1-13219-351-2 01 1 0706-0807 ●
42 BOLT; FUEL FILTER
M10X20 FLANGE 		0-28051-020-0 04 1 0706-0807 ●
42 BOLT; FUEL FILTER
M10X40 FLANGE 		0-28051-040-0 04 1 0808-0901 ●
42 BOLT; FUEL FILTER
M10X40 FLANGE 		0-28051-040-0 04 1 0902- ● ●
43 BOLT; BRKT
M10X20 FLANGE 		0-28151-020-0 04 1 0706-0807 ●
43 BOLT; BRKT
M10X30 FLANGE 		0-28151-030-0 02 1 0808-0901 ●
43 BOLT; BRKT
M10X30 FLANGE 		0-28151-030-0 02 1 0902- ● ●
43 BOLT; BRKT
M10X60 FLANGE 		0-28151-060-0 02 1 0808-0901 ●
43 BOLT; BRKT
M10X60 FLANGE 		0-28151-060-0 02 1 0902- ● ●
43 BOLT; BRKT
M10X30 FLANGE 		0-28151-030-0 02 1 0808-0901 ●
43 BOLT; BRKT
M10X30 FLANGE 		0-28151-030-0 02 1 0902- ● ●
46 BRACKET 8-97629-738-1 01 1 0808-0901 ●
46 BRACKET 8-97629-738-1 01 1 0902- ● ●
48 CLIP; VINYL PIPE
ID=21 L=47.5 		8-94178-108-0 02 1 0706-0901 ●
48 CLIP; VINYL PIPE
ID=21 L=47.5 		8-94178-108-0 02 1 0902- ● ●
51 PIPE; VINYL
L=800 SERVICED BY L=10000 		9-09914-909-0 01 1 0706-0901 ●
51 PIPE; VINYL
L=800 SERVICED BY L=10000 		9-09914-909-0 01 1 0902- ● ●
