0-32 — WATER PIPING; ENGINE (#18025) — 77 parça

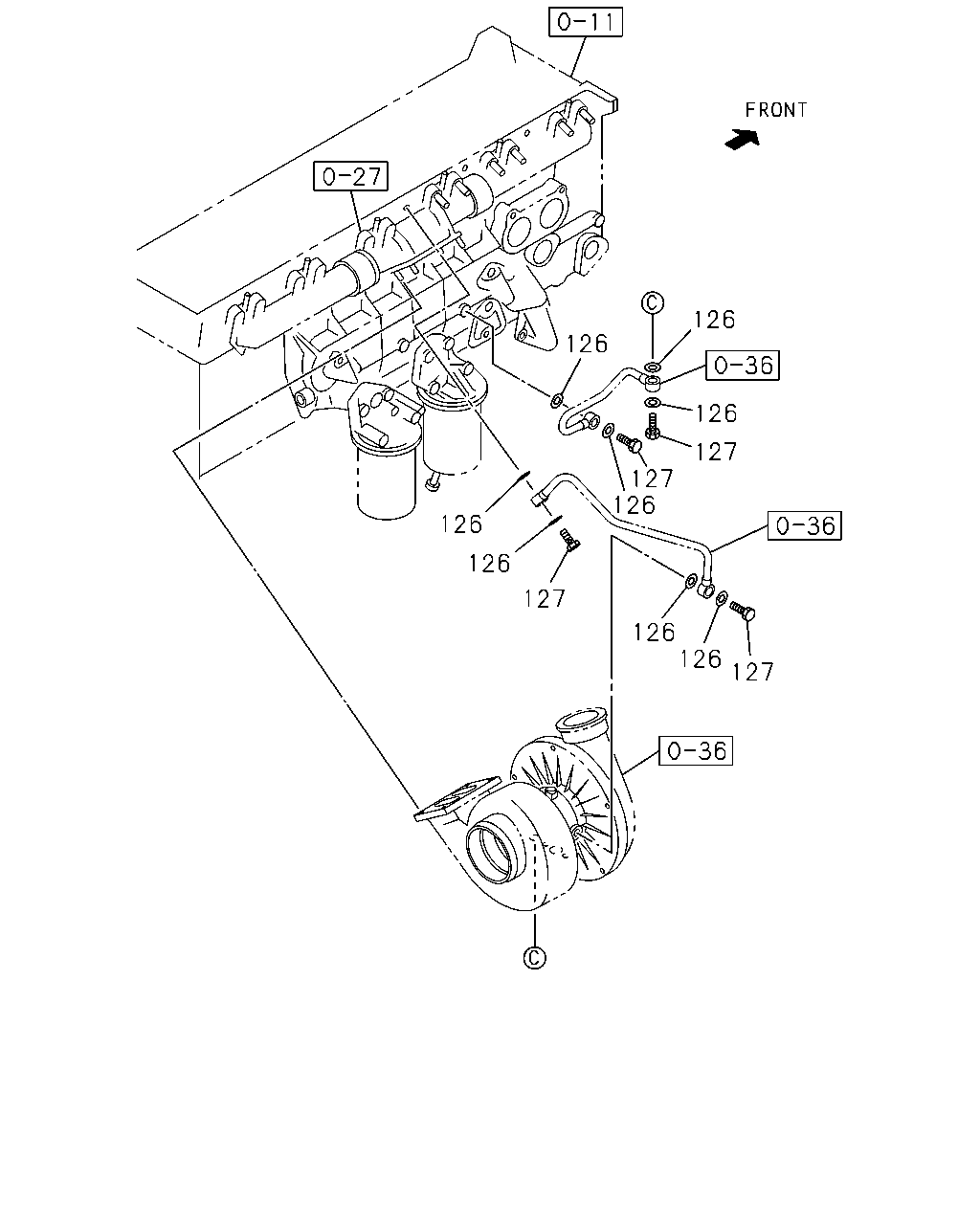

126 126 126 127 127 126 126 126 127 126 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	0706-0901	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	0902-1312	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	0706-0901	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	0902-	●	●
127	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	04	1	0706-0901	●
127	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	04	1	0902-	●	●

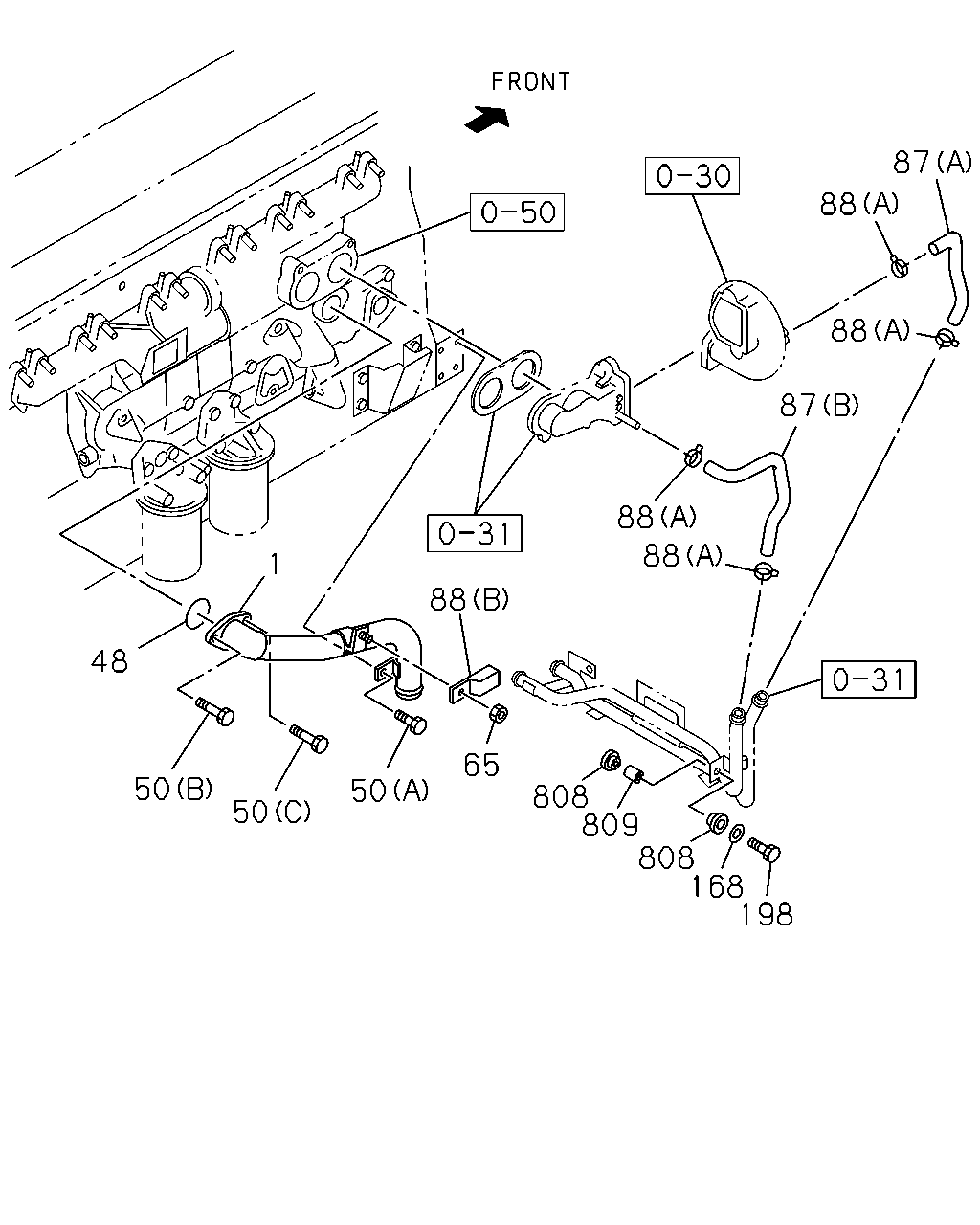

87 88 88 87 88 88 1 88 48 65 50 50 808 809 808 168 198 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; WATER PUMP,INL	8-97606-255-1	01	1	0706-0901	●
1	PIPE; WATER PUMP,INL	8-97606-255-2	01	1	0902-	●	●
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	0706-0901	●
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	0902-	●	●
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28151-030-0	01	1	0706-0901	●
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28151-030-0	01	1	0902-	●	●
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28151-080-0	01	1	0706-0901	●
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28151-080-0	01	1	0902-	●	●
50	BOLT; WATER PIPE INL (A) M14X25 FLANGE	0-28951-425-0	01	1	0706-0901	●
50	BOLT; WATER PIPE INL (A) M14X25 FLANGE	0-28951-425-0	01	1	0902-	●	●
65	NUT M10 FLANGE	0-91150-110-0	01	1	0706-0901	●
65	NUT M10 FLANGE	0-91150-110-0	01	1	0902-	●	●
65	NUT M10 FLANGE	0-91180-110-0	01	1	0706-0901	●
65	NUT M10 FLANGE	0-91180-110-0	01	1	0902-	●	●
87	HOSE; RUBBER,HTR (A)	1-83565-572-0	01	1	0706-0901	●
87	HOSE; RUBBER,HTR (A)	1-83565-572-0	01	1	0902-	●	●
87	HOSE; RUBBER,HTR (B)	1-83565-577-0	01	1	0706-0901	●
87	HOSE; RUBBER,HTR (B)	1-83565-577-0	01	1	0902-	●	●
88	CLIP; HOSE,HTR (A) ID=20	1-09707-084-1	04	1	0706-0901	●
88	CLIP; HOSE,HTR (A) ID=20	1-09707-084-1	04	1	0902-	●	●
88	CLIP; HOSE,HTR (B)	9-09915-663-0	01	1	0706-0901	●
88	CLIP; HOSE,HTR (B)	9-09915-663-0	01	1	0902-1206	●	●
88	CLIP; HOSE,HTR (B)	8-98166-024-0	01	1	1207-	●	●
168	WASHER; PL,PIPE ID=10.5 OD=26	0-91614-710-0	02	1	0706-0901	●
168	WASHER; PL,PIPE ID=10.5 OD=26	0-91614-710-0	02	1	0902-	●	●
198	BOLT; PIPE M10X45 FLANGE	0-28051-045-0	02	1	0706-0901	●
198	BOLT; PIPE M10X45 FLANGE	0-28051-045-0	02	1	0902-	●	●
808	RUBBER; MTG	1-09337-017-0	04	1	0706-0901	●
808	RUBBER; MTG	1-09337-017-0	04	1	0902-	●	●
809	TUBE; DIST ID=11.8 L=27	1-21559-149-0	02	1	0706-0901	●
809	TUBE; DIST ID=11.8 L=27	1-21559-149-0	02	1	0902-	●	●

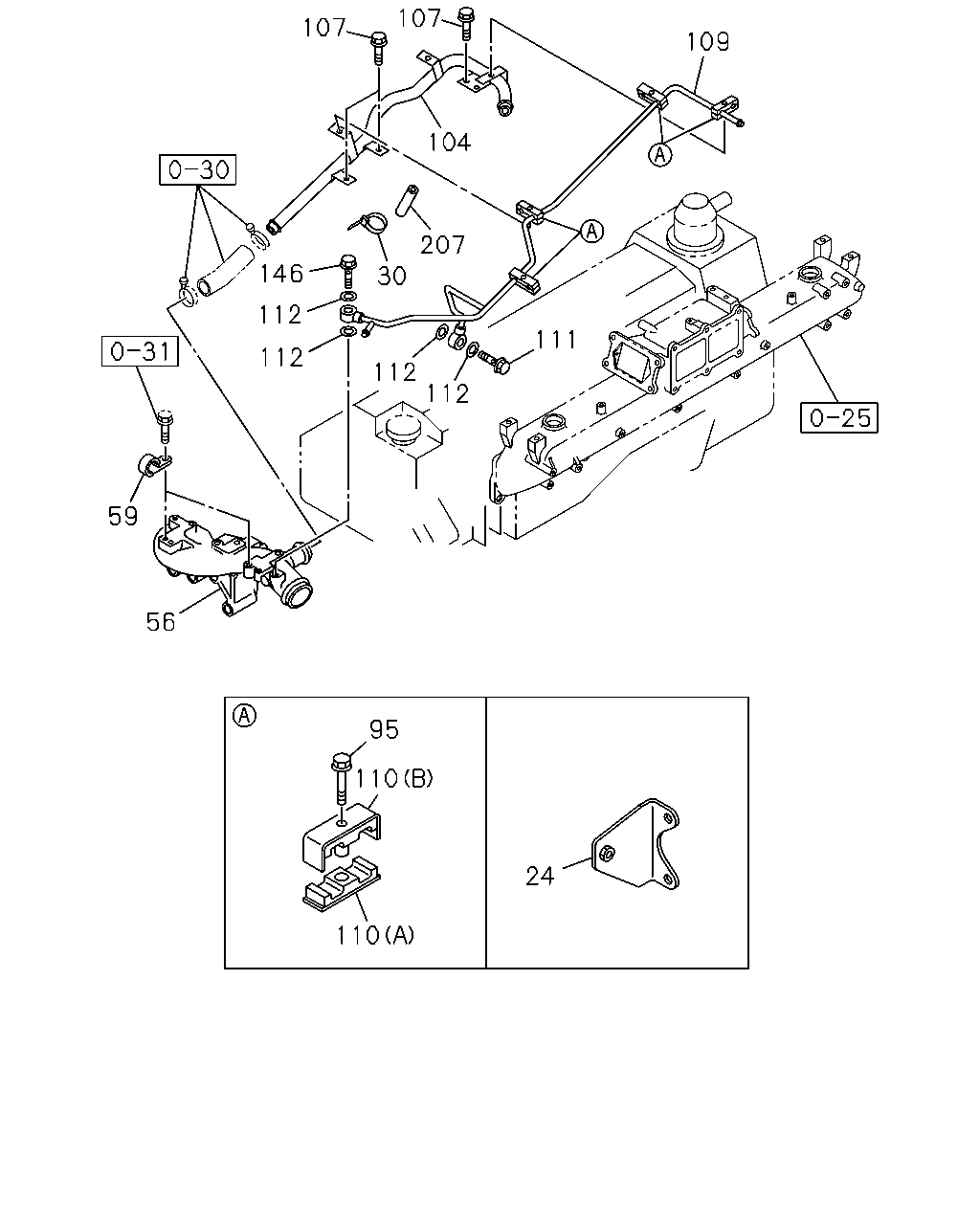

107 107 109 104 207 146 30 112 111 112 112 112 59 56 95 110 24 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; WATER PIPE	1-13729-060-0	01	1	0706-0901	●
24	BRACKET; WATER PIPE	1-13729-060-0	01	1	0902-	●	●
30	CLIP; HARNESS L=140	5-09707-031-1	02	1	0706-0901	●
30	CLIP; HARNESS L=140	5-09707-031-1	02	1	0902-1205	●	●
30	CLIP; HARNESS L=140	8-98216-431-0	02	1	1206-	●	●
56	PIPE; WATER OUTLET	8-98039-673-0	01	1	0706-0901	●
56	PIPE; WATER OUTLET	8-98039-673-0	01	1	0902-	●	●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=24	0-95235-045-0	02	1	0706-0901	●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=24	0-95235-045-0	02	1	0902-	●	●
95	BOLT; CLIP M6X40 FLANGE	0-28050-640-0	04	1	0706-0707	●
95	BOLT; CLIP M6X35 FLANGE	0-28050-635-0	04	1	0708-0901	●
95	BOLT; CLIP M6X35 FLANGE	0-28050-635-0	04	1	0902-	●	●
104	PIPE; WATER CHARGE	1-13721-913-2	01	1	0706-0901	●
104	PIPE; WATER CHARGE	1-13721-913-2	01	1	0902-1208	●	●
104	PIPE; WATER CHARGE	8-98228-041-0	01	1	1209-	●	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	04	1	0706-0901	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	04	1	0902-	●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG	8-97606-594-0	01	1	0707-0901	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG	8-97606-594-0	01	1	0902-	●	●
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	04	1	0706-0901	●
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	04	1	0902-	●	●
110	CLIP; AIR PIPE (B) ID=10 & 10 L=25	8-94393-280-3	04	1	0706-0901	●
110	CLIP; AIR PIPE (B) ID=10 & 10 L=25	8-94393-280-3	04	1	0902-	●	●
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	0706-0901	●
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	0902-	●	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	0706-0901	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	04	1	0902-	●	●
146	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	01	1	0706-0901	●
146	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	01	1	0902-	●	●
207	COUPLING; RUBBER ID=14 OD=18 L=60	1-09337-030-0	02	1	0706-0901	●
207	COUPLING; RUBBER ID=14 OD=18 L=60	1-09337-030-0	02	1	0902-	●	●

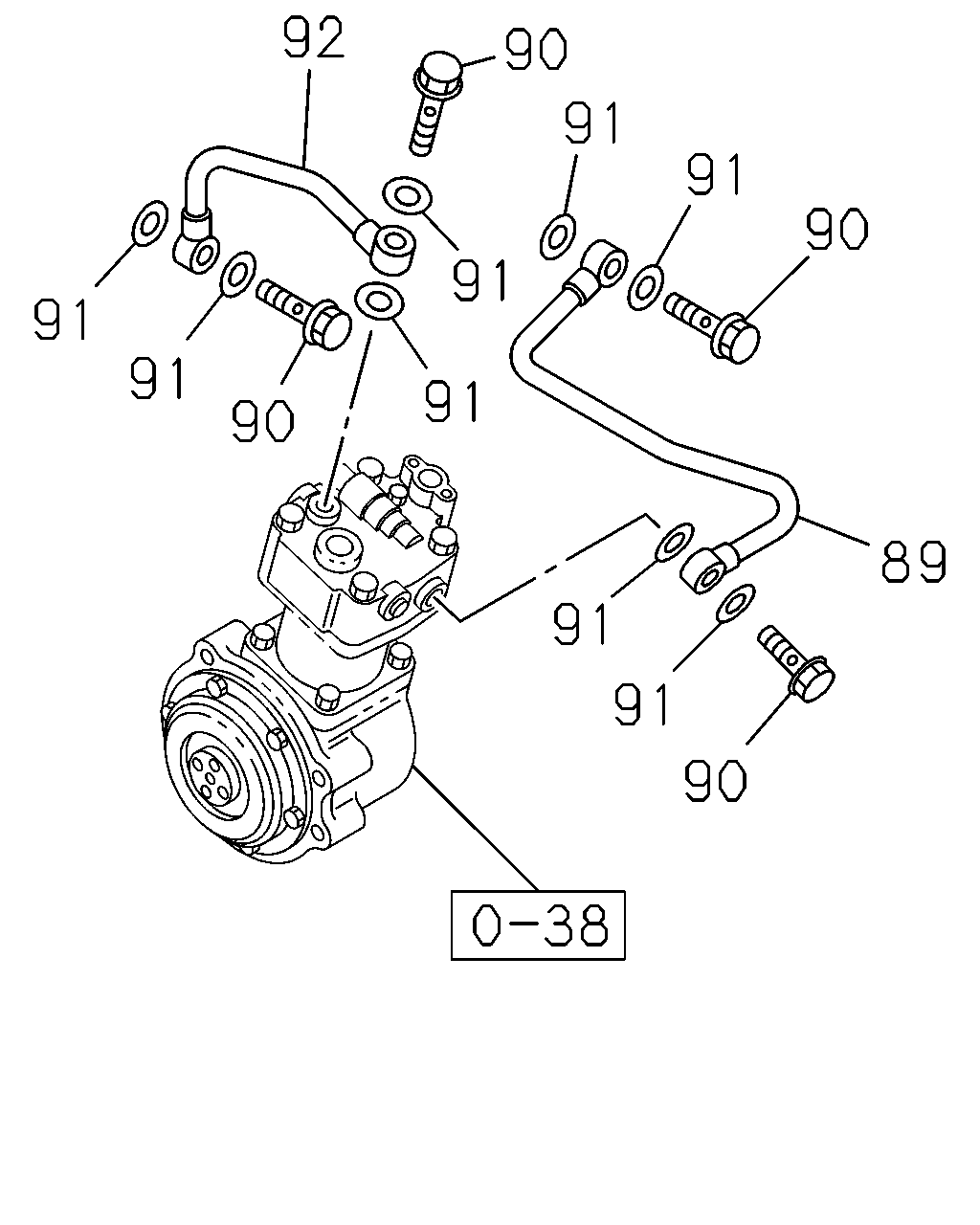

92 90 91 91 90 91 91 91 91 90 89 91 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
89	PIPE; WATER,AIR CMPR,IN	1-13721-794-0	01	1	0706-0901	●
89	PIPE; WATER,AIR CMPR,IN	1-13721-794-0	01	1	0902-	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	0706-0901	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	0902-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	08	1	0706-0901	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	08	1	0902-	●	●
92	PIPE; WATER,AIR CMPR,OUT	1-13722-003-0	01	1	0706-0901	●
92	PIPE; WATER,AIR CMPR,OUT	1-13722-003-0	01	1	0902-	●	●
