Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11330 - CYZ MIDDLE EAST WITH 2STEPS
▶
0 - Engine, Emission, Engine Electrical
▶
0-25 - INLET MANIFOLD
▶
0-25 — INLET MANIFOLD
(#18020) — 52 parça
Tümü
A - 6WF1 TC
B - 6WF1 TC-C
◀

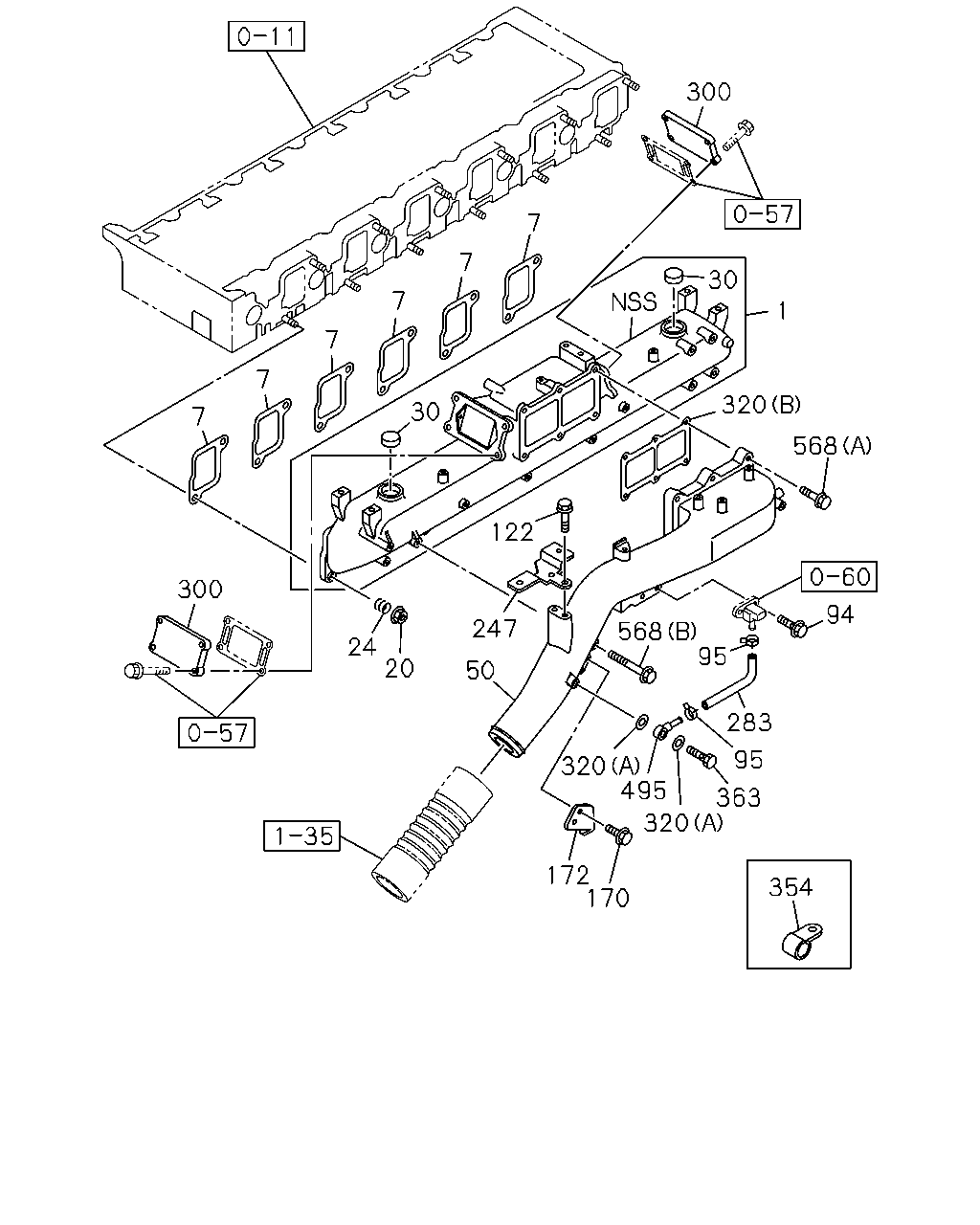

[025A] MANIFOLD ASM AND INL PIPE (44 parça)

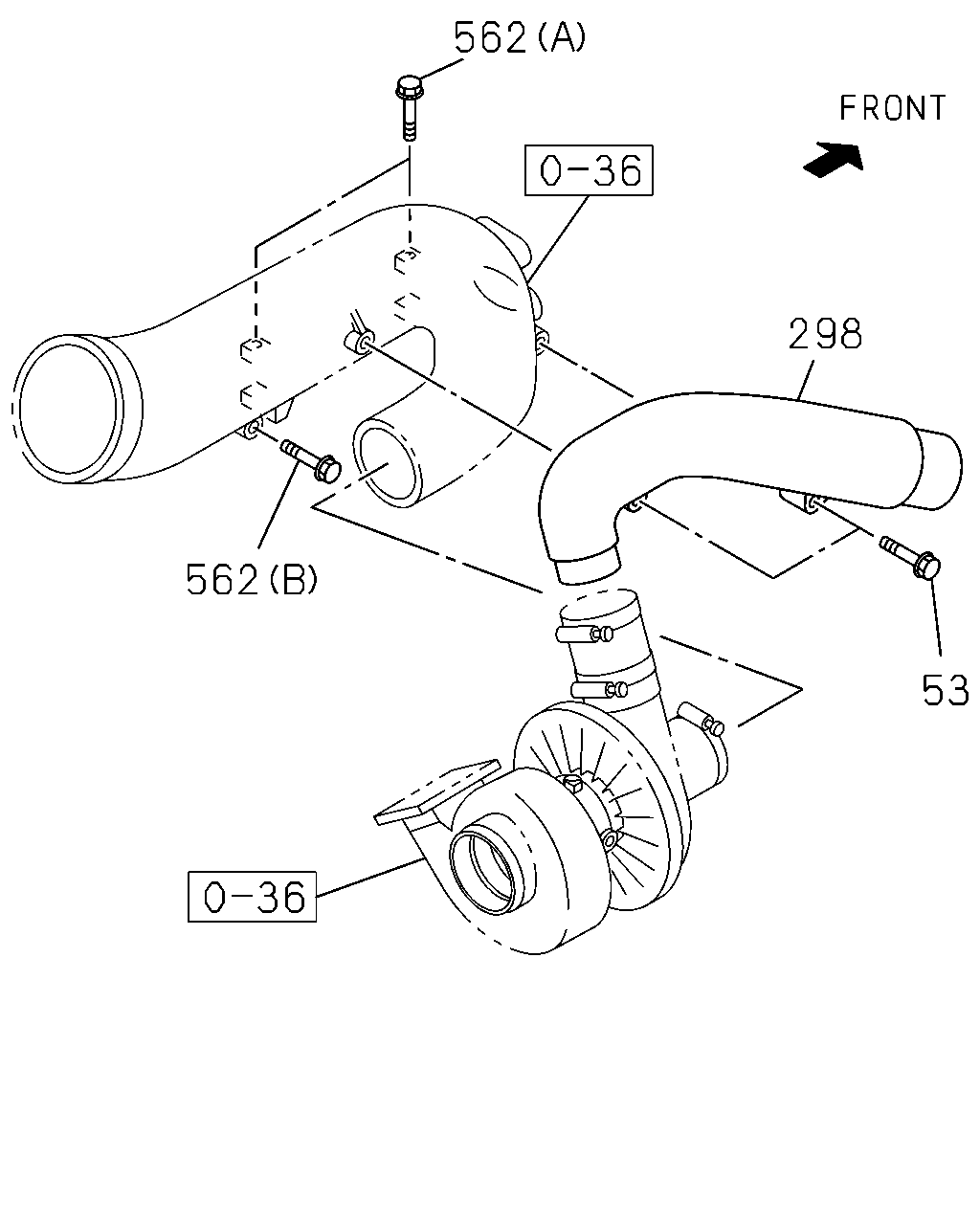

[025A] INL TO TURBOCHARGER (8 parça)
▶
300
7
7
30
7
1
7
7
320
30
7
568
122
300
94
247
568
95
24
20
50
283
95
320
495
363
320
172
170
354
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
MANIFOLD; INL
1-14110-620-0
01
1
0706-0901
●
1
MANIFOLD; INL
1-14110-620-0
01
1
0902-1010
●
●
1
MANIFOLD; INL
8-98167-210-0
01
1
1011-
●
●
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14115-096-1
06
1
0706-0901
●
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14115-096-1
06
1
0902-
●
●
20
NUT; INL MANIF
M10 FLANGE
0-91180-110-0
12
1
0706-0901
●
20
NUT; INL MANIF
M10 FLANGE
0-91180-110-0
12
1
0902-
●
●
24
SPRING; INL MANIF
1-09580-156-0
12
1
0706-0901
●
24
SPRING; INL MANIF
1-09580-156-0
12
1
0902-
●
●
30
CUP; SEALING,INL MANIF
OD=40
8-94241-637-0
02
1
0706-0901
●
30
CUP; SEALING,INL MANIF
OD=40
8-94241-637-0
02
1
0902-1010
●
●
50
PIPE; INL
8-97617-049-0
01
1
0706-0901
●
50
PIPE; INL
8-97617-049-0
01
1
0902-
●
●
94
BOLT
M6X12 FLANGE
0-28050-612-0
02
1
0706-0901
●
94
BOLT
M6X12 FLANGE
0-28050-612-0
02
1
0902-
●
●
95
CLIP; RUBBER HOSE
ID=11 WHITE
5-09707-005-1
02
1
0706-0901
●
95
CLIP; RUBBER HOSE
ID=11 WHITE
5-09707-005-1
02
1
0902-
●
●
122
BOLT; BRKT
M10X20 FLANGE
0-28151-020-0
02
1
0706-0901
●
122
BOLT; BRKT
M10X20 FLANGE
0-28151-020-0
02
1
0902-
●
●
170
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
02
1
0706-0901
●
170
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
02
1
0902-
●
●
172
BRACKET; HARNESS
1-14119-428-1
01
1
0706-0901
●
172
BRACKET; HARNESS
1-14119-428-1
01
1
0902-
●
●
247
BRACKET; CLIP
1-14319-130-1
01
1
0706-0901
●
247
BRACKET; CLIP
1-14319-130-1
01
1
0902-
●
●
283
RUBBER
1-14119-416-0
01
1
0706-0901
●
283
RUBBER
1-14119-416-0
01
1
0902-
●
●
300
COVER; INL MANIF
1-11749-208-0
02
1
0706-0901
●
300
COVER; INL MANIF
1-11749-208-0
02
1
0902-1011
●
●
300
COVER; INL MANIF
8-98178-944-0
02
1
1012-
●
●
320
GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2
1-09630-082-0
02
1
0706-0901
●
320
GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2
1-09630-082-0
02
1
0902-
●
●
320
GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)
1-14115-094-1
01
1
0706-0901
●
320
GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)
1-14115-094-1
01
1
0902-
●
●
354
CLIP; AIR PIPE
DUMP TRUCK<RA1> ID=7X2 L=20
0-95324-635-0
02
1
0706-0708
●
354
CLIP; AIR PIPE
DUMP TRUCK<RA1> ID=7X2 L=20
0-95324-635-0
02
1
0811-0811
●
363
BOLT; EYE
M8X24
8-97257-826-0
01
1
0706-0901
●
363
BOLT; EYE
M8X24
8-97257-826-0
01
1
0902-
●
●
495
PIPE; BOOST SENSOR
8-94428-807-0
01
1
0706-0901
●
495
PIPE; BOOST SENSOR
8-94428-807-0
01
1
0902-
●
●
568
BOLT; PIPE
(A) M10X30 FLANGE
0-28151-030-0
06
1
0706-0901
●
568
BOLT; PIPE
(A) M10X30 FLANGE
0-28151-030-0
06
1
0902-
●
●
568
BOLT; PIPE
(B) M10X80 FLANGE
0-28151-080-0
01
1
0706-0901
●
568
BOLT; PIPE
(B) M10X80 FLANGE
0-28151-080-0
01
1
0902-
●
●
562
298
562
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
53
BOLT; INL PIPE
M10X60 FLANGE
0-28151-060-0
02
1
0706-0901
●
53
BOLT; INL PIPE
M10X60 FLANGE
0-28151-060-0
02
1
0902-
●
●
298
PIPE; INL,TURBOCHARGER TO INL COVER
1-14112-710-1
01
1
0706-0901
●
298
PIPE; INL,TURBOCHARGER TO INL COVER
1-14112-710-1
01
1
0902-
●
●
562
BOLT; INL DUCT
(B) M10X40 FLANGE
0-28151-040-0
01
1
0706-0901
●
562
BOLT; INL DUCT
(B) M10X40 FLANGE
0-28151-040-0
01
1
0902-
●
●
562
BOLT; INL DUCT
(A) M10X50 FLANGE
0-28151-050-0
02
1
0706-0901
●
562
BOLT; INL DUCT
(A) M10X50 FLANGE
0-28151-050-0
02
1
0902-
●
●
