◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11330 - CYZ MIDDLE EAST WITH 2STEPS ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13 - OIL PAN AND LEVEL GAUGE ▶
0-13 — OIL PAN AND LEVEL GAUGE (#18015) — 46 parça

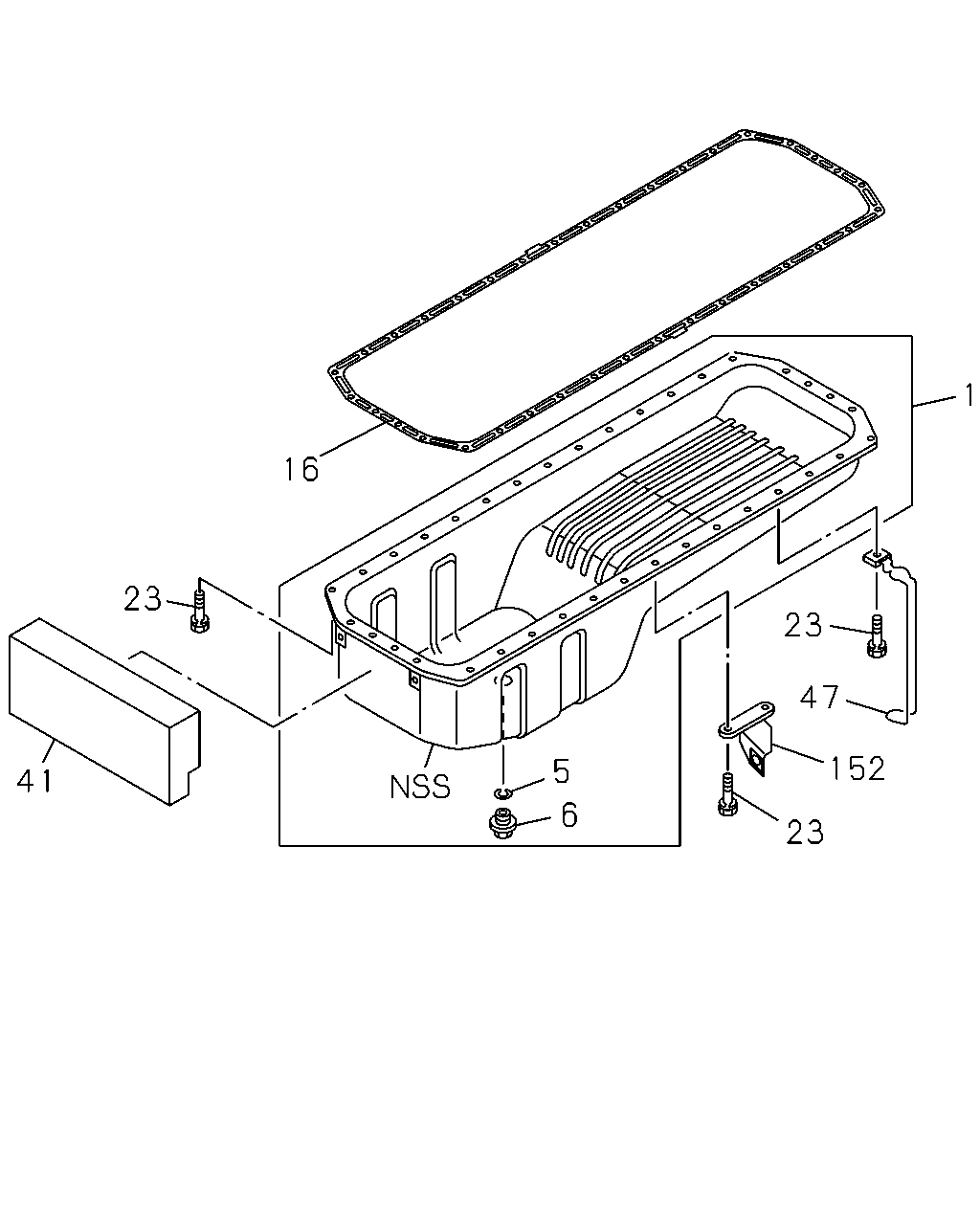

çizim 134559
1 16 23 23 47 152 5 41 6 23
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL 1-11360-912-0 01 1 0706-0901 ●
1 PAN ASM; OIL 1-11360-912-0 01 1 0902- ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 0706-0901 ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 0902- ● ●
6 PLUG; OIL DRAIN
M20X16.5 		9-09662-012-0 01 1 0706-0901 ●
6 PLUG; OIL DRAIN
M20X16.5 		9-09662-012-0 01 1 0902- ● ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-130-0 01 1 0706-0901 ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-130-0 01 1 0902- ● ●
23 BOLT; OIL PAN
M10X28 W/LK&PL WASHER 		0-50151-028-0 36 1 0706-0901 ●
23 BOLT; OIL PAN
M10X28 W/LK&PL WASHER 		0-50151-028-0 36 1 0902-0906 ● ●
23 BOLT; OIL PAN
M10X28 W/LK&PL WASHER 		0-50651-028-0 36 1 0907-0909 ● ●
23 BOLT; OIL PAN
M10X20 FLANGE 		0-28151-020-0 36 1 0910-0912 ● ●
23 BOLT; OIL PAN
M10X20 FLANGE 		0-28151-020-0 34 1 1001- ● ●
23 BOLT; OIL PAN
M10X30 FLANGE 		0-28151-030-0 02 1 1001- ● ●
41 RUBBER; SPACE 1-19389-209-0 01 1 0706-0901 ●
41 RUBBER; SPACE 1-19389-209-0 01 1 0902- ● ●
47 CLIP; HOSE,AIR BREATHER 1-11369-147-1 01 1 0706-0901 ●
47 CLIP; HOSE,AIR BREATHER 1-11369-147-1 01 1 0902- ● ●
152 BRACKET; CLIP POWER STRG PIPE 1-21119-130-1 01 1 0706-0901 ●
152 BRACKET; CLIP POWER STRG PIPE 1-21119-130-1 01 1 0902- ● ●

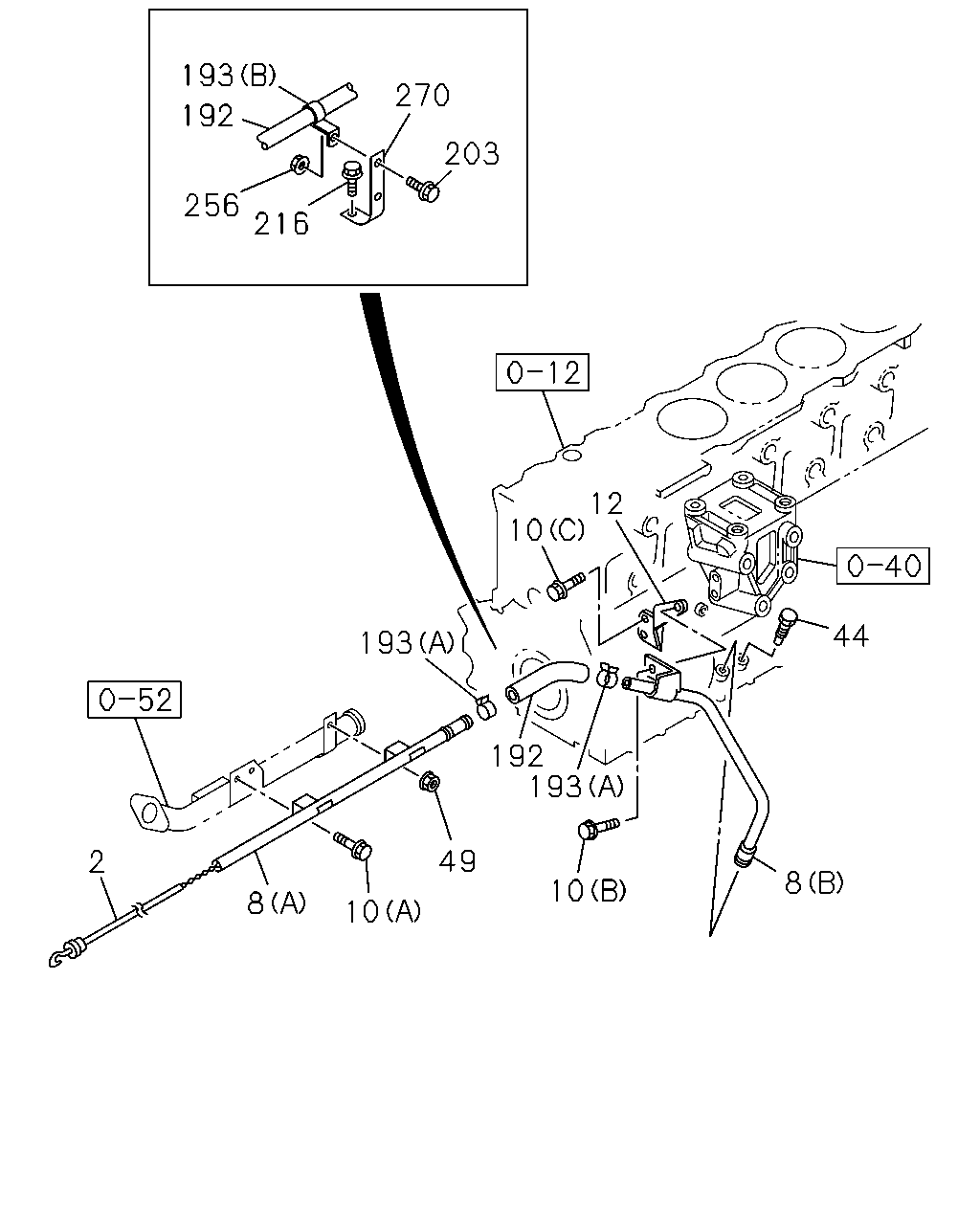

çizim 134565
193 270 192 203 256 216 12 10 44 193 192 193 49 2 8 10 8 10
BalonParca AdiParca NoAdetTipApplied Date A B
2 GAUGE; OIL LEVEL
AIR COMPRESSOR HEAVY DUTY VAR2(E6A) 		1-11760-405-0 01 1 0706-1305 ● ●
2 GAUGE; OIL LEVEL
AIR COMPRESSOR HEAVY DUTY VAR2(E6A) 		1-11760-427-0 01 1 1306- ● ●
2 GAUGE; OIL LEVEL
EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) 		1-11760-427-0 01 1 0706-1305 ● ●
2 GAUGE; OIL LEVEL
EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) 		8-98246-684-0 01 1 1306- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		1-11766-608-0 01 1 0706-0901 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		1-11766-608-0 01 1 0902- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		1-11766-604-2 01 1 0706- ● ●
10 BOLT; GUIDE TUBE
(B) M10X20 FLANGE 		0-28051-020-0 01 1 0706-0901 ●
10 BOLT; GUIDE TUBE
(B) M10X20 FLANGE 		0-28051-020-0 01 1 0902- ● ●
10 BOLT; GUIDE TUBE
(C) M10X20 FLANGE 		0-28151-020-0 02 1 0706-0901 ●
10 BOLT; GUIDE TUBE
(C) M10X20 FLANGE 		0-28151-020-0 02 1 0902- ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0706- ● ●
12 BRACKET; TUBE,OIL LEVEL GAUGE 1-11769-204-1 01 1 0706-0901 ●
12 BRACKET; TUBE,OIL LEVEL GAUGE 1-11769-204-1 01 1 0902- ● ●
44 PLUG
M22X41 		1-09604-098-0 01 1 0706-0901 ●
44 PLUG
M22X41 		1-09604-098-0 01 1 0902- ● ●
49 NUT; GUIDE TUBE
M8 FLANGE 		0-91180-108-0 01 1 0706- ● ●
192 HOSE; GUIDE TUBE
AIR COMPRESSOR HEAVY DUTY VAR2(E6A) L=620 L=430 		0-02361-300-0 01 1 0706- ● ●
192 HOSE; GUIDE TUBE
EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) L=600 L=430 		0-02361-300-0 01 1 0706- ● ●
193 CLIP; HOSE,GUIDE TUBE
(B) ID=20 H=23 L=27 		1-09700-861-0 01 1 0706- ● ●
193 CLIP; HOSE,GUIDE TUBE
(A) ID=17 		1-09707-158-0 02 1 0706- ● ●
203 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0706- ● ●
216 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0706- ● ●
256 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0706- ● ●
270 BRACKET ASM; TUBE,OIL LEVEL GAUGE
AIR COMPRESSOR HEAVY DUTY VAR2(E6A) 		1-47471-382-0 01 1 0706- ● ●
270 BRACKET ASM; TUBE,OIL LEVEL GAUGE
EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) 		1-47479-855-0 01 1 0706- ● ●
