Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#18011) — 430 parça

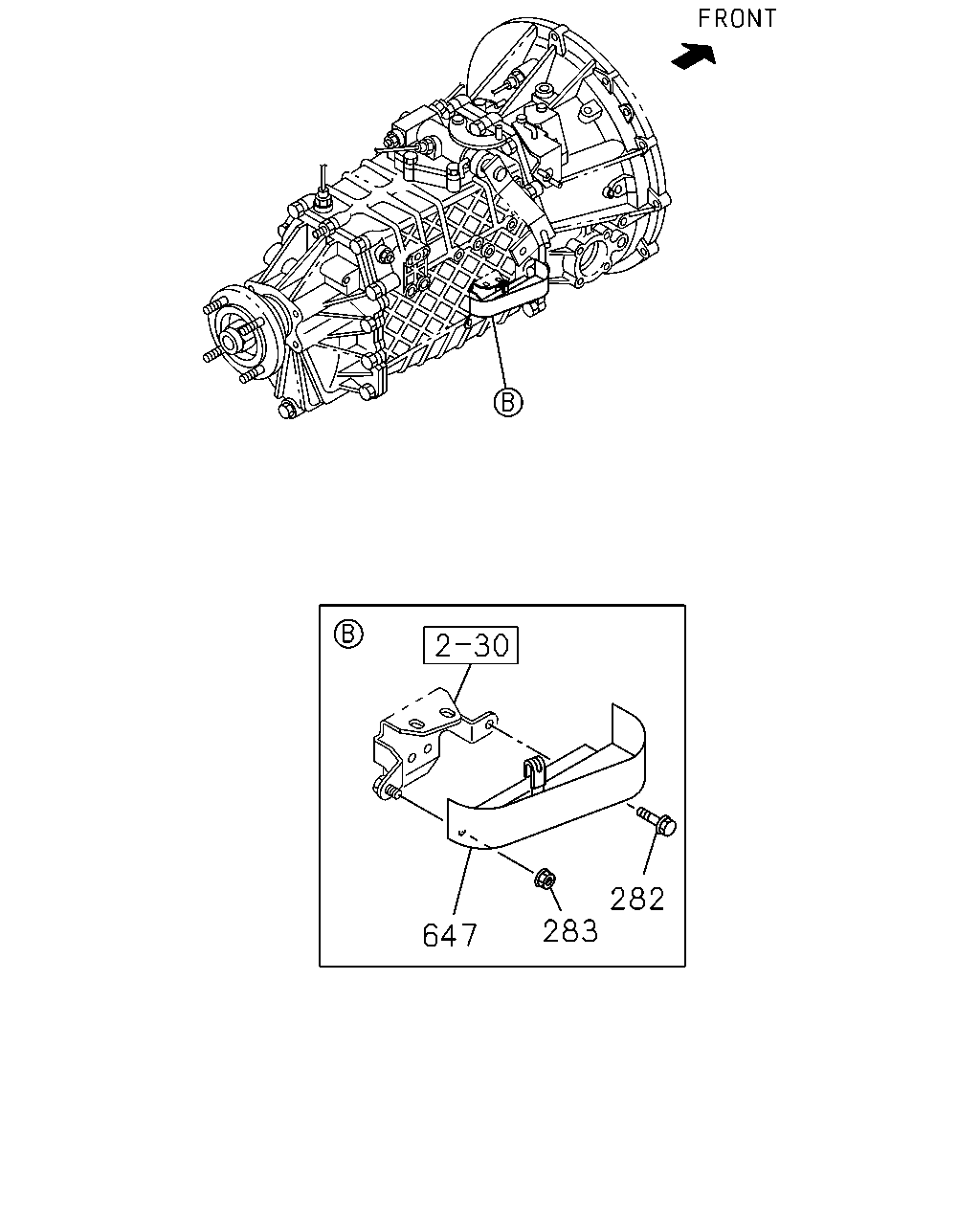

282 283 647

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
282	BOLT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	0710-0906	●
282	BOLT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	0907-	●	●
283	NUT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	0710-0906	●
283	NUT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	0907-	●	●
647	PROTECTOR; HEAT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97329-465-0	01	1	0710-0906	●
647	PROTECTOR; HEAT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97329-465-0	01	1	0907-	●	●

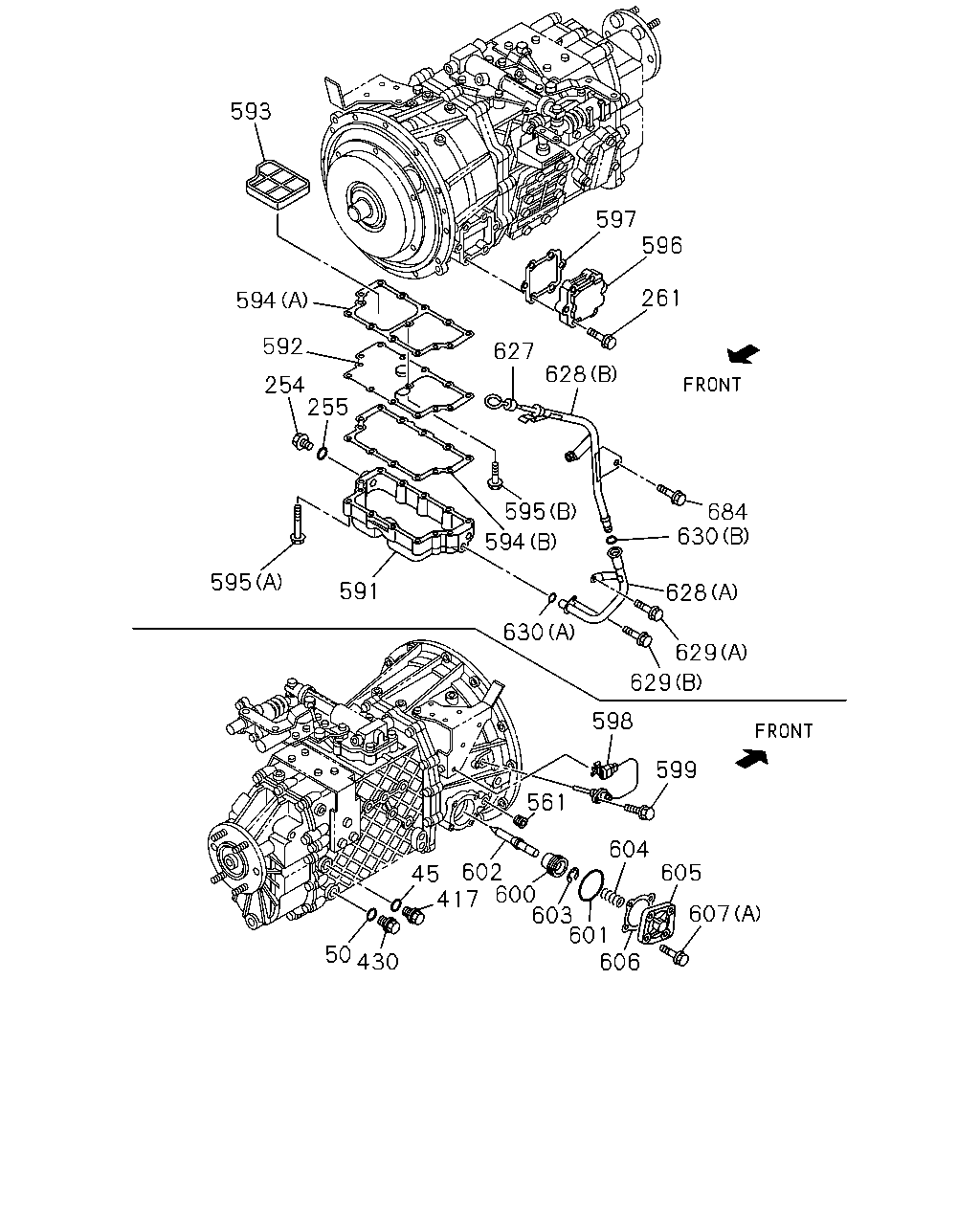

593 597 596 261 594 592 627 628 254 255 595 684 630 594 595 591 628 630 629 629 598 599 561 604 600 417 603 601 606 605 607 50 430 45 602

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0710-0906	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0806-			●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0710-0906	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-1404	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1405-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0806-			●	●
254	PLUG; DRAIN,OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-377-0	01	1	0710-0801	●
254	PLUG; DRAIN,OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97365-374-0	01	1	0802-0906	●
254	PLUG; DRAIN,OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97365-374-0	01	1	0907-	●	●
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) ID=17	8-97115-712-0	01	1	0710-0906	●
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) ID=17	8-97115-712-0	01	1	0907-	●	●
261	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) M6X35 FLANGE	0-28650-635-0	06	1	0710-0906	●
261	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) M6X35 FLANGE	0-28650-635-0	06	1	0907-	●	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0710-0906	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0907-	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0806-			●	●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0710-0906	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0907-1404	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1405-	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0806-			●	●
561	PLUG TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97320-204-0	01	1	0710-0906	●
561	PLUG TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97320-204-0	01	1	0907-	●	●
591	PAN; OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-429-2	01	1	0710-0906	●
591	PAN; OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-429-2	01	1	0907-	●	●
592	COVER; STRAINER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-771-1	01	1	0710-0906	●
592	COVER; STRAINER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-771-1	01	1	0907-	●	●
593	FILTER; STRAINER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-438-1	01	1	0710-0906	●
593	FILTER; STRAINER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-438-1	01	1	0907-	●	●
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97256-430-1	01	1	0710-0906	●
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97256-430-1	01	1	0907-	●	●
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97289-772-0	01	1	0710-0906	●
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97289-772-0	01	1	0907-	●	●
595	BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X16 FLANGE	0-28650-616-0	01	1	0710-0906	●
595	BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X16 FLANGE	0-28650-616-0	01	1	0907-	●	●
595	BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X35 FLANGE	0-28650-635-0	13	1	0710-0906	●
595	BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X35 FLANGE	0-28650-635-0	13	1	0907-	●	●
596	COVER; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-773-0	01	1	0710-0906	●
596	COVER; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-773-0	01	1	0907-	●	●
597	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-774-0	01	1	0710-0906	●
597	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-774-0	01	1	0907-	●	●
598	SENSOR; TURBINE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97316-495-1	01	1	0710-0906	●
598	SENSOR; TURBINE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97316-495-1	01	1	0907-	●	●
599	BOLT; SENSOR TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE	0-28650-616-0	01	1	0710-0906	●
599	BOLT; SENSOR TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE	0-28650-616-0	01	1	0907-	●	●
600	PISTON; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-652-1	01	1	0710-0906	●
600	PISTON; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-652-1	01	1	0907-	●	●
601	SEAL; PISTON ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-755-0	01	1	0710-0906	●
601	SEAL; PISTON ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-755-0	01	1	0907-	●	●
602	PLUNGER; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98009-306-1	01	1	0710-0906	●
602	PLUNGER; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98009-306-1	01	1	0907-	●	●
603	RING; SNAP TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8	9-09185-008-0	01	1	0710-0906	●
603	RING; SNAP TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8	9-09185-008-0	01	1	0907-	●	●
604	SPRING; PISTON TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97371-467-0	01	1	0710-0906	●
604	SPRING; PISTON TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97371-467-0	01	1	0907-	●	●
605	COVER; CYLINDER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-756-0	01	1	0710-0906	●
605	COVER; CYLINDER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-756-0	01	1	0907-	●	●
606	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-757-0	01	1	0710-0906	●
606	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-757-0	01	1	0907-	●	●
607	BOLT; COVER (B) M8X16 FLANGE	0-28050-816-0	02	1	0710-0906	●
607	BOLT; COVER (B) M8X16 FLANGE	0-28050-816-0	02	1	0907-	●	●
607	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	04	1	0710-0906	●
607	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	04	1	0907-	●	●
627	GAUGE; OIL LEVEL SGL CAB(FC*M) 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98024-424-0	01	1	0710-0906	●
627	GAUGE; OIL LEVEL SGL CAB(FC*M) 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98024-424-0	01	1	0907-	●	●
627	GAUGE; OIL LEVEL DBL CAB(FC*W) 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98010-240-0	01	1	0712-0906	●
627	GAUGE; OIL LEVEL DBL CAB(FC*W) 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98010-240-0	01	1	0907-	●	●
628	TUBE; OIL FILLER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98018-867-0	01	1	0712-0906	●
628	TUBE; OIL FILLER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98018-867-0	01	1	0907-	●	●
628	TUBE; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-673-0	01	1	0710-0906	●
628	TUBE; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-673-0	01	1	0907-	●	●
628	TUBE; OIL FILLER SGL CAB(FC*M) 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98005-327-0	01	1	0710-0906	●
628	TUBE; OIL FILLER SGL CAB(FC*M) 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98005-327-0	01	1	0907-	●	●
628	TUBE; OIL FILLER DBL CAB(FC*W) 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98005-328-0	01	1	0712-0906	●
628	TUBE; OIL FILLER DBL CAB(FC*W) 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98005-328-0	01	1	0907-	●	●
629	BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M10X16 FLANGE	0-28151-016-0	01	1	0710-0906	●
629	BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M10X16 FLANGE	0-28151-016-0	01	1	0907-	●	●
629	BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X16 FLANGE	0-28650-616-0	01	1	0710-0906	●
629	BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X16 FLANGE	0-28650-616-0	01	1	0907-	●	●
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=15.8	8-97305-656-0	01	1	0710-0906	●
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=15.8	8-97305-656-0	01	1	0907-	●	●
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=12.3	8-97313-558-0	01	1	0710-0906	●
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=12.3	8-97313-558-0	01	1	0907-	●	●
684	BOLT; OIL FILLER TUBE SGL CAB(FC*M) 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X16 FLANGE	0-28151-016-0	02	1	0710-0906	●
684	BOLT; OIL FILLER TUBE SGL CAB(FC*M) 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X16 FLANGE	0-28151-016-0	02	1	0907-	●	●
684	BOLT; OIL FILLER TUBE DBL CAB(FC*W) 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X16 FLANGE	0-28151-016-0	01	1	0712-0906	●
684	BOLT; OIL FILLER TUBE DBL CAB(FC*W) 4HK1-TCS ENG(RJS),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) M10X16 FLANGE	0-28151-016-0	01	1	0907-	●	●

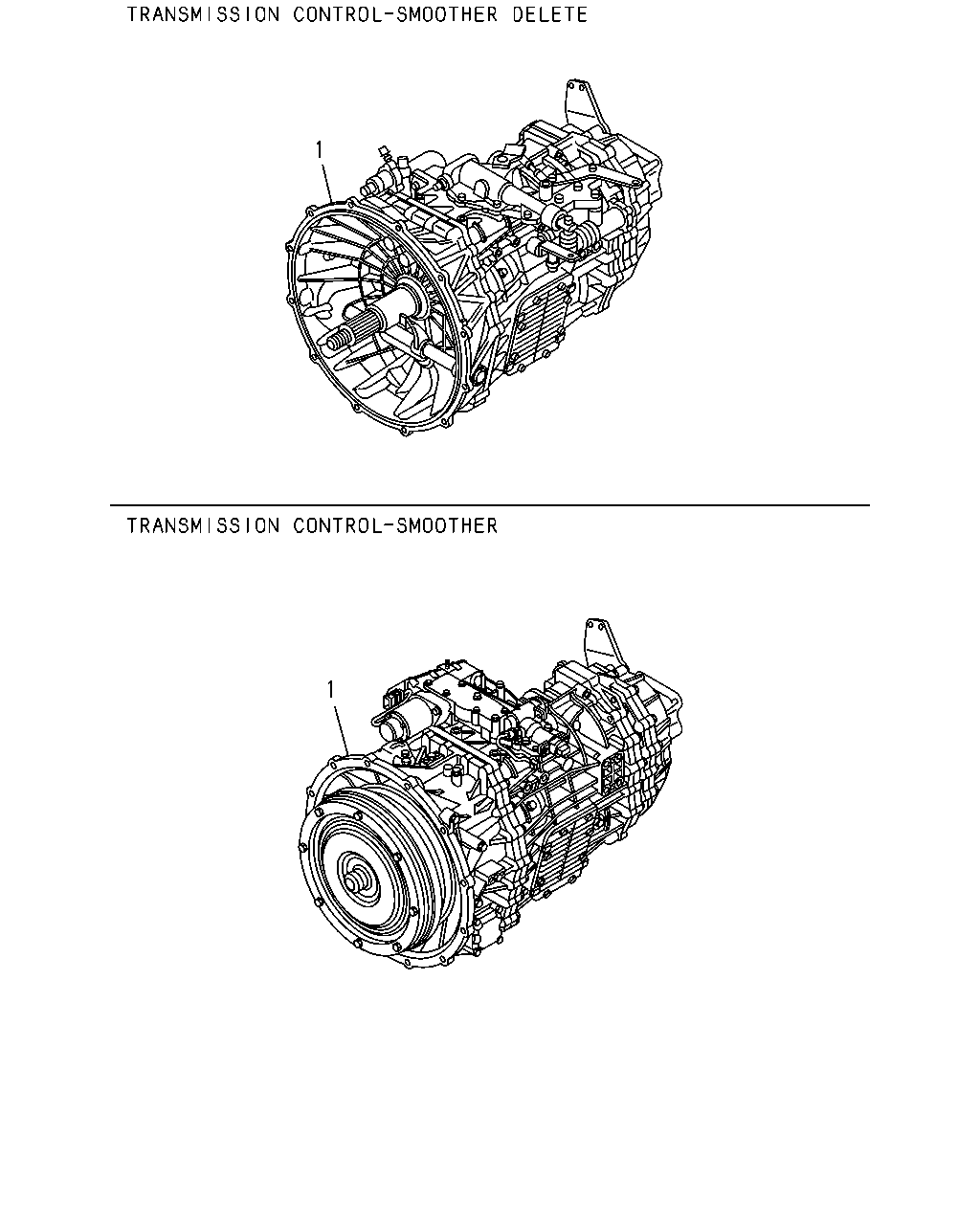

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98041-830-0	01	1	0712-0803	●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-537-0	01	1	0804-	●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98064-379-0	01	1	0712-0803	●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98115-546-0	01	1	0804-	●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98041-828-0	01	1	0712-0803	●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-557-0	01	1	0804-	●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8>	8-98041-830-0	01	1	0712-	●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98064-379-0	01	1	0712-	●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98041-828-0	01	1	0712-	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98041-819-0	01	1	0710-0803	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-532-0	01	1	0804-	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98064-381-0	01	1	0710-0803	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98115-543-0	01	1	0804-	●
1	TRANSMISSION ASM; MANUAL SGL CAB(FC*M) 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98041-809-0	01	1	0710-0803	●
1	TRANSMISSION ASM; MANUAL SGL CAB(FC*M) 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-548-0	01	1	0804-	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98041-819-0	01	1	0710-	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98064-381-0	01	1	0710-	●
1	TRANSMISSION ASM; MANUAL SGL CAB(FC*M) 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98041-809-0	01	1	0710-	●
1	TRANSMISSION ASM; MANUAL DBL CAB(FC*W) 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98041-813-0	01	1	0712-0803	●
1	TRANSMISSION ASM; MANUAL DBL CAB(FC*W) 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-549-0	01	1	0804-0906	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-549-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL DBL CAB(FC*W) 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98041-813-0	01	1	0712-	●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-270-0	01	1	0806-			●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-270-0	01	1	0806-			●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-279-0	01	1	0806-			●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33044-279-0	01	1	0806-			●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33044-279-0	01	1	0806-			●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	1-33044-278-0	01	1	0806-			●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-299-0	01	1	0806-				●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33044-299-0	01	1	0806-				●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33044-298-0	01	1	0806-				●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	1-33044-298-0	01	1	0806-				●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-586-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	1006-		●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	1006-		●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-617-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98134-586-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98134-617-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-520-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL SGL CAB(FC*M) 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-568-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8>	8-98134-520-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL SGL CAB(FC*M) 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98134-568-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL DBL CAB(FC*W) 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-569-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL DBL CAB(FC*W) 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98134-569-0	01	1	0907-		●

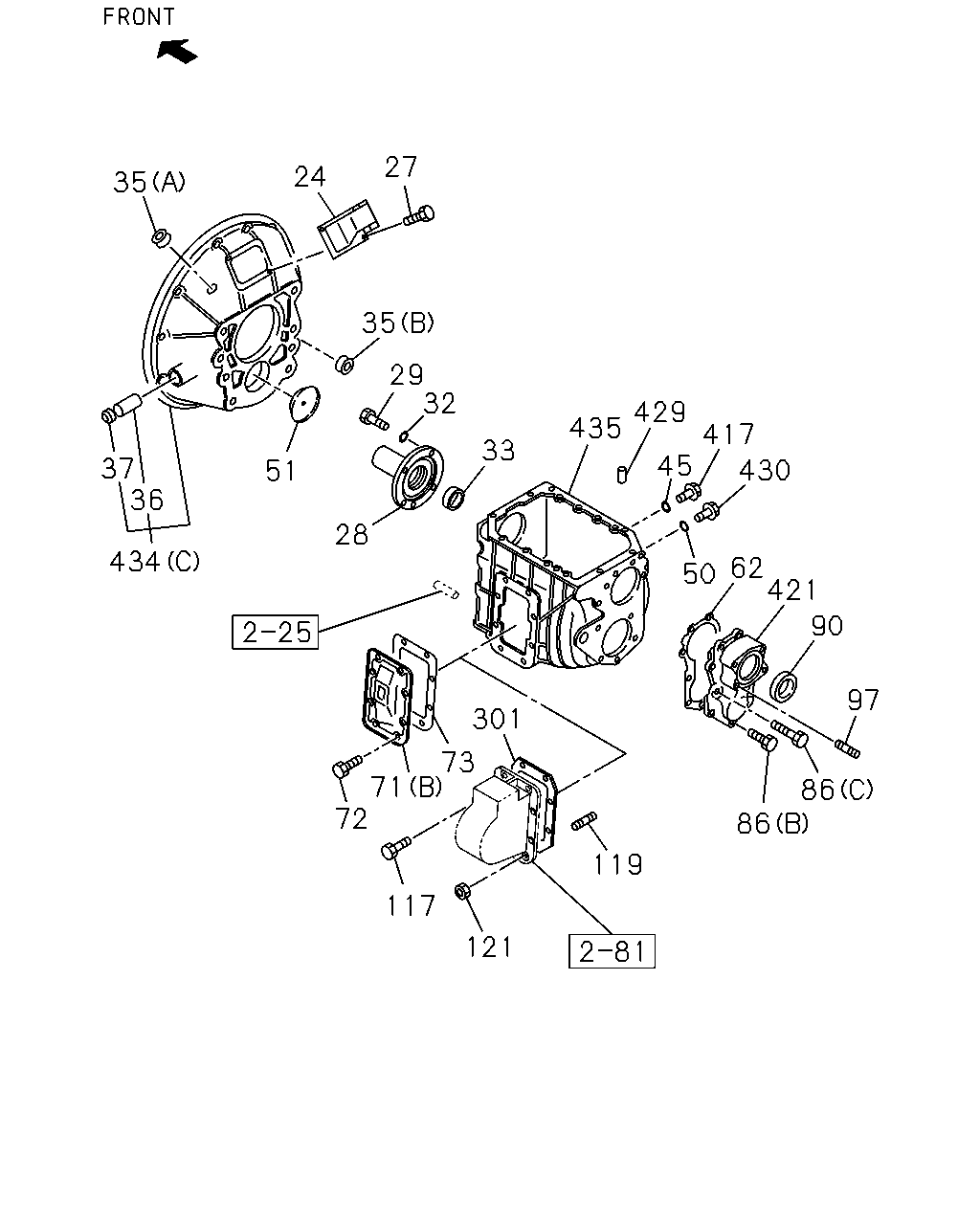

27 24 35 35 29 32 429 435 417 45 33 37 36 430 51 28 434 62 421 50 90 97 301 73 71 72 86 86 119 117 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31131-041-0	01	1	0710-0805	●
24	COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31131-041-0	01	1	0806-0906	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0806-0906			●	●
24	COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31131-041-0	01	1	0907-	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0907-			●	●
27	BOLT; COVER TO CLU HSG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X12 FLANGE	0-28050-812-0	02	1	0710-0906	●
27	BOLT; COVER TO CLU HSG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X12 FLANGE	0-28050-812-0	02	1	0907-	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0806-			●	●
28	COVER; FRT,TRANS CASE	1-33121-108-1	01	1	0806-			●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	0806-			●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	0806-			●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97377-947-0	01	1	0710-0906	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97377-947-0	01	1	0907-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-187-0	02	1	0710-0906	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-187-0	02	1	0907-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0806-			●	●
35	GROMMET; CLU HSG 15" CLUTCH(RE9) (A)	9-09575-796-0	01	1	0806-			●	●
35	GROMMET; CLU HSG 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (B) OD=15 T=6.6	8-97037-246-0	01	1	0806-			●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0806-			●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0806-			●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0710-0906	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0806-			●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0710-0906	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-1404	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1405-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0806-			●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	0806-			●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	0806-			●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97377-949-0	01	1	0710-0901	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97252-624-2	01	1	0902-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-033-0	01	1	0806-			●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98122-318-0	01	1	0907-1408		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98270-265-0	01	1	1409-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0806-			●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	08	1	0710-0803	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	06	1	0804-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20	8-98114-447-0	02	1	0804-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X12 FLANGE	0-28050-812-0	01	1	0804-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	1-09044-081-0	08	1	0907-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0710-0805	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0806-	●		●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98122-320-0	01	1	0907-0908		●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	0710-0906	●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	0907-	●	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	0806-			●	●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	0806-			●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0710-0805	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0806-0906	●		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0907-1103	●	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1104-			●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1104-	●	●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0710-0805	●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0806-0906	●		●	●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0907-	●	●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE	0-28751-030-0	06	1	0710-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	0806-			●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	0907-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0710-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	0-44011-030-0	02	1	0806-			●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	0907-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0710-0805	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0806-	●		●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	0907-		●
301	PLATE; DIST,PTO TO TRANS TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-037-0	01	1	0806-			●	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0710-0906	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0907-	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0806-			●	●
421	COVER; RR,TRANS	8-98004-790-1	01	1	0710-0901	●
421	COVER; RR,TRANS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L)	8-98004-790-1	01	1	0902-0906	●
421	COVER; RR,TRANS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L)	8-98004-790-1	01	1	0907-	●	●
421	COVER; RR,TRANS 4HK1-TCS ENG(RJS)	8-98051-477-0	01	1	0902-0906	●
421	COVER; RR,TRANS 4HK1-TCS ENG(RJS)	8-98051-477-0	01	1	0907-	●	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0806-			●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0806-			●	●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0710-0906	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0907-1404	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1405-	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0806-			●	●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98004-506-2	01	1	0710-0711	●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 15" CLUTCH(RE9) (A)	8-98004-506-2	01	1	0712-0906	●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 15" CLUTCH(RE9) (A)	8-98004-506-2	01	1	0907-	●	●
434	HOUSING; CLU 14" CLUTCH(WF6) (A)	8-98004-507-2	01	1	0712-0906	●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 14" CLUTCH(WF6) (A)	8-98004-507-2	01	1	0907-	●	●
434	HOUSING; CLU 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97383-564-3	01	1	0712-0906	●
434	HOUSING; CLU 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98100-981-1	01	1	0907-	●	●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-404-3	01	1	0710-0711	●
434	HOUSING; CLU 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-404-3	01	1	0712-0906	●
434	HOUSING; CLU 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98100-982-1	01	1	0907-	●	●
434	HOUSING; CLU 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98114-530-2	01	1	0806-			●
434	HOUSING; CLU 15" CLUTCH(RE9) (C)	1-31110-169-0	01	1	0806-			●	●
435	CASE; TRANS	8-97388-872-4	01	1	0710-	●
435	CASE; TRANS 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8>	8-98113-243-0	01	1	0806-			●
435	CASE; TRANS 15" CLUTCH(RE9)	1-33111-355-0	01	1	0806-			●	●
435	CASE; TRANS	8-98123-098-1	01	1	0907-1108		●
435	CASE; TRANS	8-98186-449-0	01	1	1109-1404		●
435	CASE; TRANS	8-98236-421-1	01	1	1405-		●

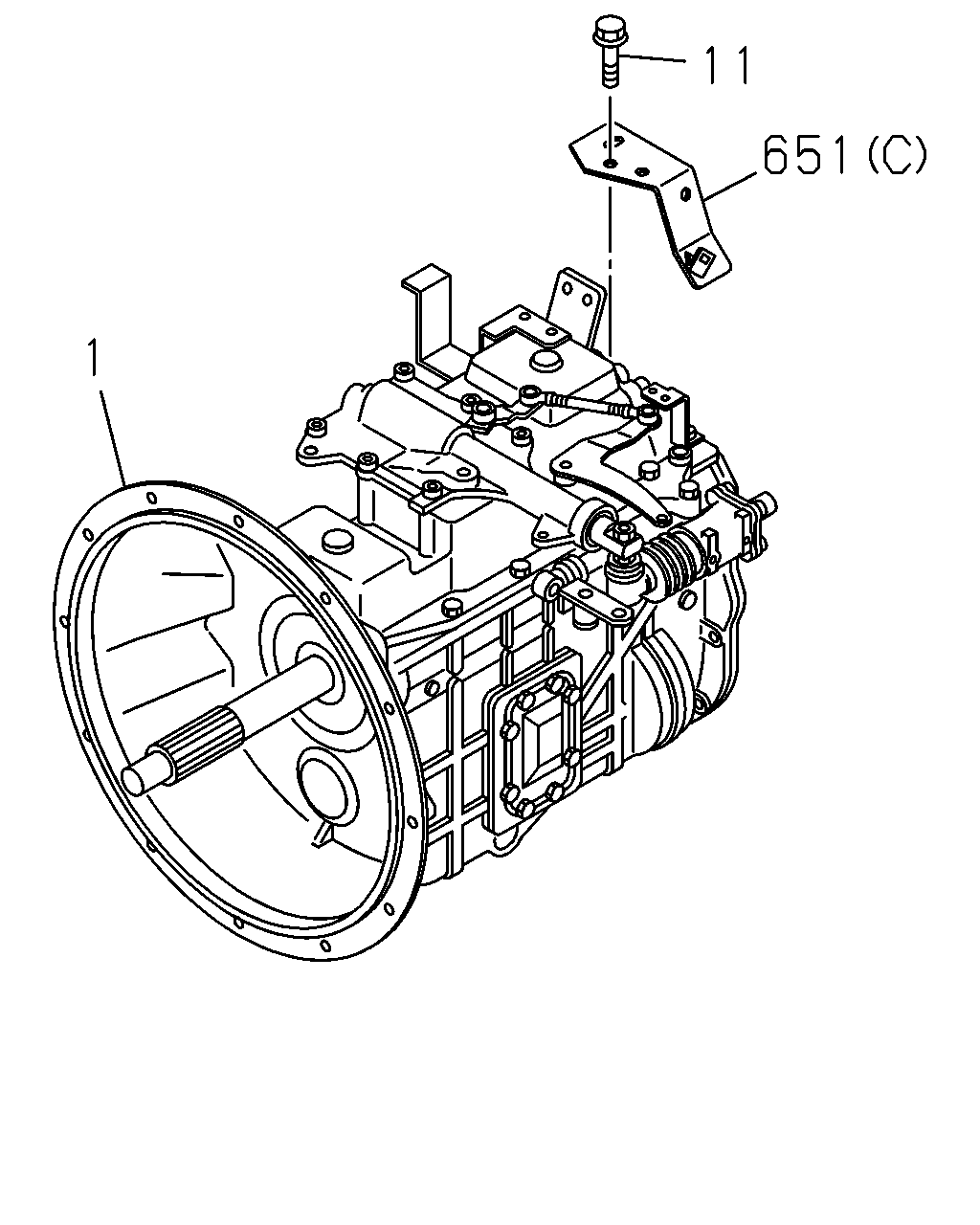

11 651 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98041-830-0	01	1	0712-0803	●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-537-0	01	1	0804-	●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98064-379-0	01	1	0712-0803	●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98115-546-0	01	1	0804-	●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98041-828-0	01	1	0712-0803	●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-557-0	01	1	0804-	●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8>	8-98041-830-0	01	1	0712-	●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98064-379-0	01	1	0712-	●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98041-828-0	01	1	0712-	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98041-819-0	01	1	0710-0803	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-532-0	01	1	0804-	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98064-381-0	01	1	0710-0803	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98115-543-0	01	1	0804-	●
1	TRANSMISSION ASM; MANUAL SGL CAB(FC*M) 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98041-809-0	01	1	0710-0803	●
1	TRANSMISSION ASM; MANUAL SGL CAB(FC*M) 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-548-0	01	1	0804-	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98041-819-0	01	1	0710-	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98064-381-0	01	1	0710-	●
1	TRANSMISSION ASM; MANUAL SGL CAB(FC*M) 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98041-809-0	01	1	0710-	●
1	TRANSMISSION ASM; MANUAL DBL CAB(FC*W) 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98041-813-0	01	1	0712-0803	●
1	TRANSMISSION ASM; MANUAL DBL CAB(FC*W) 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-549-0	01	1	0804-0906	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-549-0	01	1	0907-	●
1	TRANSMISSION ASM; MANUAL DBL CAB(FC*W) 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98041-813-0	01	1	0712-	●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-270-0	01	1	0806-			●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	1-33044-270-0	01	1	0806-			●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-279-0	01	1	0806-			●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33044-279-0	01	1	0806-			●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33044-279-0	01	1	0806-			●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	1-33044-278-0	01	1	0806-			●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-299-0	01	1	0806-				●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33044-299-0	01	1	0806-				●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33044-298-0	01	1	0806-				●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	1-33044-298-0	01	1	0806-				●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-586-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	1006-		●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	1006-		●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-617-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98134-586-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98134-617-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-520-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL SGL CAB(FC*M) 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-568-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8>	8-98134-520-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL SGL CAB(FC*M) 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98134-568-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL DBL CAB(FC*W) 6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-569-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL DBL CAB(FC*W) 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98134-569-0	01	1	0907-		●
11	BOLT; BRKT 4HK1-TCS ENG(RJS) M12X25 FLANGE	0-28151-225-0	02	1	1309-	●	●	●
11	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	0-28650-835-0	02	1	0710-0906	●
11	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	0-28650-835-0	02	1	0907-	●	●
11	BOLT; BRKT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) M8X16 FLANGE	0-28050-816-0	02	1	0806-			●	●
651	BRACKET; T/M HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97610-090-3	01	1	0710-0906	●
651	BRACKET; T/M HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97610-090-3	01	1	0907-	●	●
651	BRACKET; T/M HARNESS 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97609-800-3	01	1	0712-0906	●
651	BRACKET; T/M HARNESS 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97609-800-3	01	1	0907-	●	●
651	BRACKET; T/M HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97627-300-0	01	1	0806-			●	●

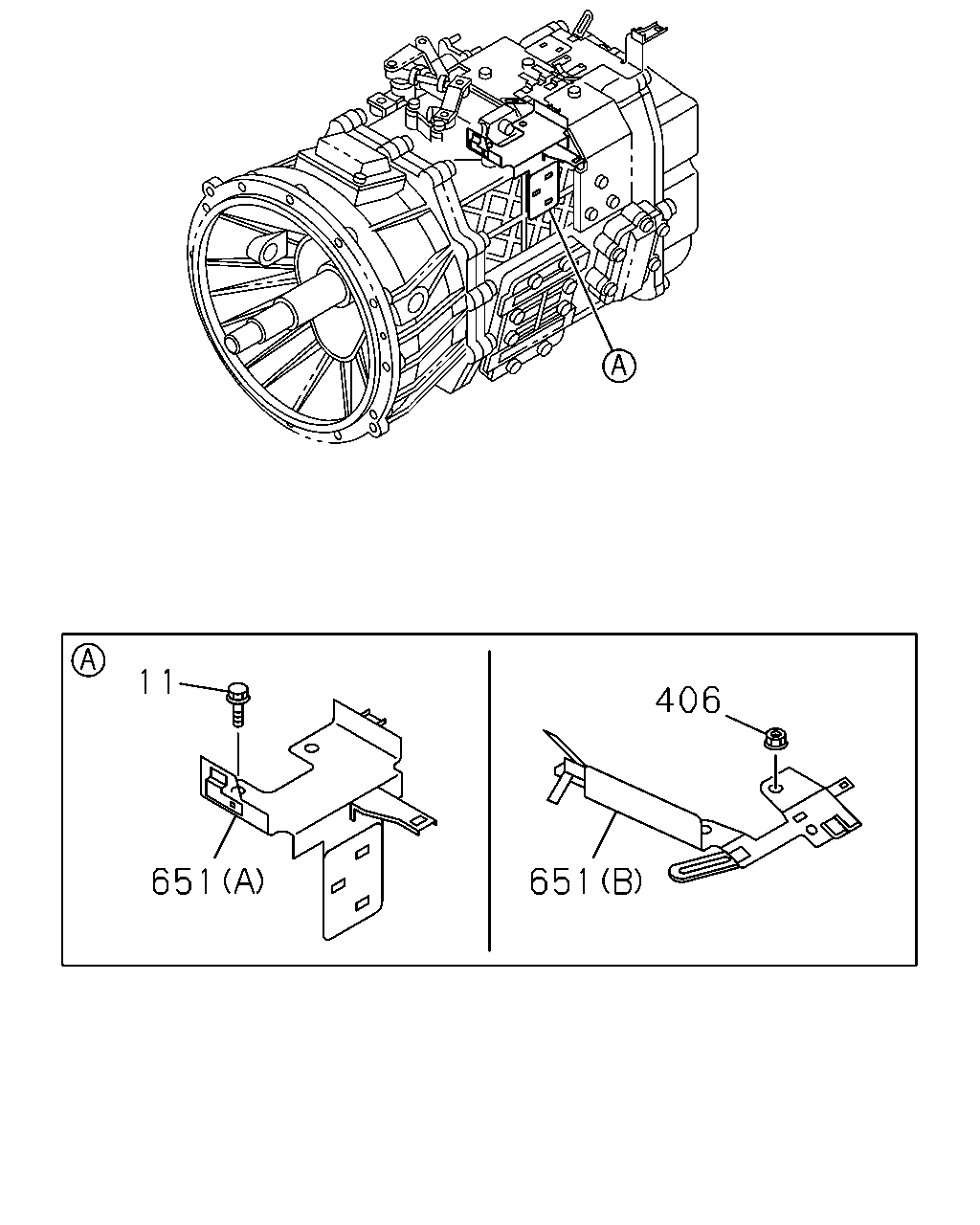

11 406 651 651

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
11	BOLT; BRKT 4HK1-TCS ENG(RJS) M12X25 FLANGE	0-28151-225-0	02	1	1309-	●	●	●
11	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	0-28650-835-0	02	1	0710-0906	●
11	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	0-28650-835-0	02	1	0907-	●	●
11	BOLT; BRKT 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) M8X16 FLANGE	0-28050-816-0	02	1	0806-			●	●
406	NUT; BRKT 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	0712-0906	●
406	NUT; BRKT 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	02	1	0907-	●	●
651	BRACKET; T/M HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97610-090-3	01	1	0710-0906	●
651	BRACKET; T/M HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97610-090-3	01	1	0907-	●	●
651	BRACKET; T/M HARNESS 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97609-800-3	01	1	0712-0906	●
651	BRACKET; T/M HARNESS 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97609-800-3	01	1	0907-	●	●
651	BRACKET; T/M HARNESS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97627-300-0	01	1	0806-			●	●

202 587 691 27 24 685 607 685 607 33 33 33 688 434 434 316 688 316 435 692 41 256 295 417 45 430 692 686 72 692 73 609 50 71 421 86 73 97 72 71 265 315 692 90 119 117 257 72 86 121 257

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31131-041-0	01	1	0710-0805	●
24	COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31131-041-0	01	1	0806-0906	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0806-0906			●	●
24	COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31131-041-0	01	1	0907-	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0907-			●	●
27	BOLT; COVER TO CLU HSG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X12 FLANGE	0-28050-812-0	02	1	0710-0906	●
27	BOLT; COVER TO CLU HSG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X12 FLANGE	0-28050-812-0	02	1	0907-	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0806-			●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97377-947-0	01	1	0710-0906	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97377-947-0	01	1	0907-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-187-0	02	1	0710-0906	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-187-0	02	1	0907-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0806-			●	●
41	SPRING; DETENT BALL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98071-140-0	01	1	0710-0906	●
41	SPRING; DETENT BALL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98071-140-0	01	1	0907-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0710-0906	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0806-			●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0710-0906	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-1404	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1405-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0806-			●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97377-949-0	01	1	0710-0901	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97252-624-2	01	1	0902-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-033-0	01	1	0806-			●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98122-318-0	01	1	0907-1408		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98270-265-0	01	1	1409-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0806-			●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	08	1	0710-0803	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	06	1	0804-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20	8-98114-447-0	02	1	0804-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X12 FLANGE	0-28050-812-0	01	1	0804-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	1-09044-081-0	08	1	0907-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0710-0805	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0806-	●		●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98122-320-0	01	1	0907-0908		●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	0710-0906	●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	0907-	●	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	0806-			●	●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	0806-			●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0710-0805	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0806-0906	●		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0907-1103	●	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1104-			●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1104-	●	●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0710-0805	●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0806-0906	●		●	●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0907-	●	●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE	0-28751-030-0	06	1	0710-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	0806-			●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	0907-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0710-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	0-44011-030-0	02	1	0806-			●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	0907-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0710-0805	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0806-	●		●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	0907-		●
202	BOLT; PLATE TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	0710-0906	●
202	BOLT; PLATE TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	0907-	●	●
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	0710-0906	●
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	0907-	●	●
257	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8	8-97329-633-0	01	1	0710-0906	●
257	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8	8-97329-633-0	01	1	0907-	●
257	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8	8-97329-633-0	01	1	0907-		●
265	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	01	1	0907-		●
295	PLATE; COVER,PTO EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98116-575-0	01	1	0804-	●
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	0710-0906	●
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	0907-	●	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0710-0906	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0907-	●	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0710-0906	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0907-	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0806-			●	●
421	COVER; RR,TRANS	8-98004-790-1	01	1	0710-0901	●
421	COVER; RR,TRANS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L)	8-98004-790-1	01	1	0902-0906	●
421	COVER; RR,TRANS 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L)	8-98004-790-1	01	1	0907-	●	●
421	COVER; RR,TRANS 4HK1-TCS ENG(RJS)	8-98051-477-0	01	1	0902-0906	●
421	COVER; RR,TRANS 4HK1-TCS ENG(RJS)	8-98051-477-0	01	1	0907-	●	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0806-			●	●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0710-0906	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0907-1404	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1405-	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0806-			●	●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98004-506-2	01	1	0710-0711	●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 15" CLUTCH(RE9) (A)	8-98004-506-2	01	1	0712-0906	●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 15" CLUTCH(RE9) (A)	8-98004-506-2	01	1	0907-	●	●
434	HOUSING; CLU 14" CLUTCH(WF6) (A)	8-98004-507-2	01	1	0712-0906	●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 14" CLUTCH(WF6) (A)	8-98004-507-2	01	1	0907-	●	●
434	HOUSING; CLU 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97383-564-3	01	1	0712-0906	●
434	HOUSING; CLU 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98100-981-1	01	1	0907-	●	●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-404-3	01	1	0710-0711	●
434	HOUSING; CLU 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-404-3	01	1	0712-0906	●
434	HOUSING; CLU 6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98100-982-1	01	1	0907-	●	●
434	HOUSING; CLU 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (C)	8-98114-530-2	01	1	0806-			●
434	HOUSING; CLU 15" CLUTCH(RE9) (C)	1-31110-169-0	01	1	0806-			●	●
435	CASE; TRANS	8-97388-872-4	01	1	0710-	●
435	CASE; TRANS 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8>	8-98113-243-0	01	1	0806-			●
435	CASE; TRANS 15" CLUTCH(RE9)	1-33111-355-0	01	1	0806-			●	●
435	CASE; TRANS	8-98123-098-1	01	1	0907-1108		●
435	CASE; TRANS	8-98186-449-0	01	1	1109-1404		●
435	CASE; TRANS	8-98236-421-1	01	1	1405-		●
587	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97358-318-0	01	1	0710-0906	●
587	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97358-318-0	01	1	0907-	●	●
607	BOLT; COVER (B) M8X16 FLANGE	0-28050-816-0	02	1	0710-0906	●
607	BOLT; COVER (B) M8X16 FLANGE	0-28050-816-0	02	1	0907-	●	●
607	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	04	1	0710-0906	●
607	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	04	1	0907-	●	●
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	0710-0906	●
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	0907-	●	●
685	COVER; OIL PORT	8-98018-864-1	01	1	0710-0906	●
685	COVER; OIL PORT	8-98018-864-1	01	1	0907-	●	●
686	CASE; RR,TRANS	8-97388-873-1	01	1	0710-0906	●
686	CASE; RR,TRANS	8-97388-873-1	01	1	0907-	●	●
688	NOZZLE; OIL,COUNTER	8-98007-741-0	01	1	0710-0906	●
688	NOZZLE; OIL,COUNTER	8-98007-741-0	01	1	0907-1110	●	●
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1111-	●	●
691	PLATE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98044-428-0	01	1	0710-0906	●
691	PLATE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98044-428-0	01	1	0907-	●	●
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	0710-0906	●
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	0907-	●	●
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	0710-0906	●
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	0907-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
