◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11330 - CYZ MIDDLE EAST WITH 2STEPS ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#17999) — 14 parça

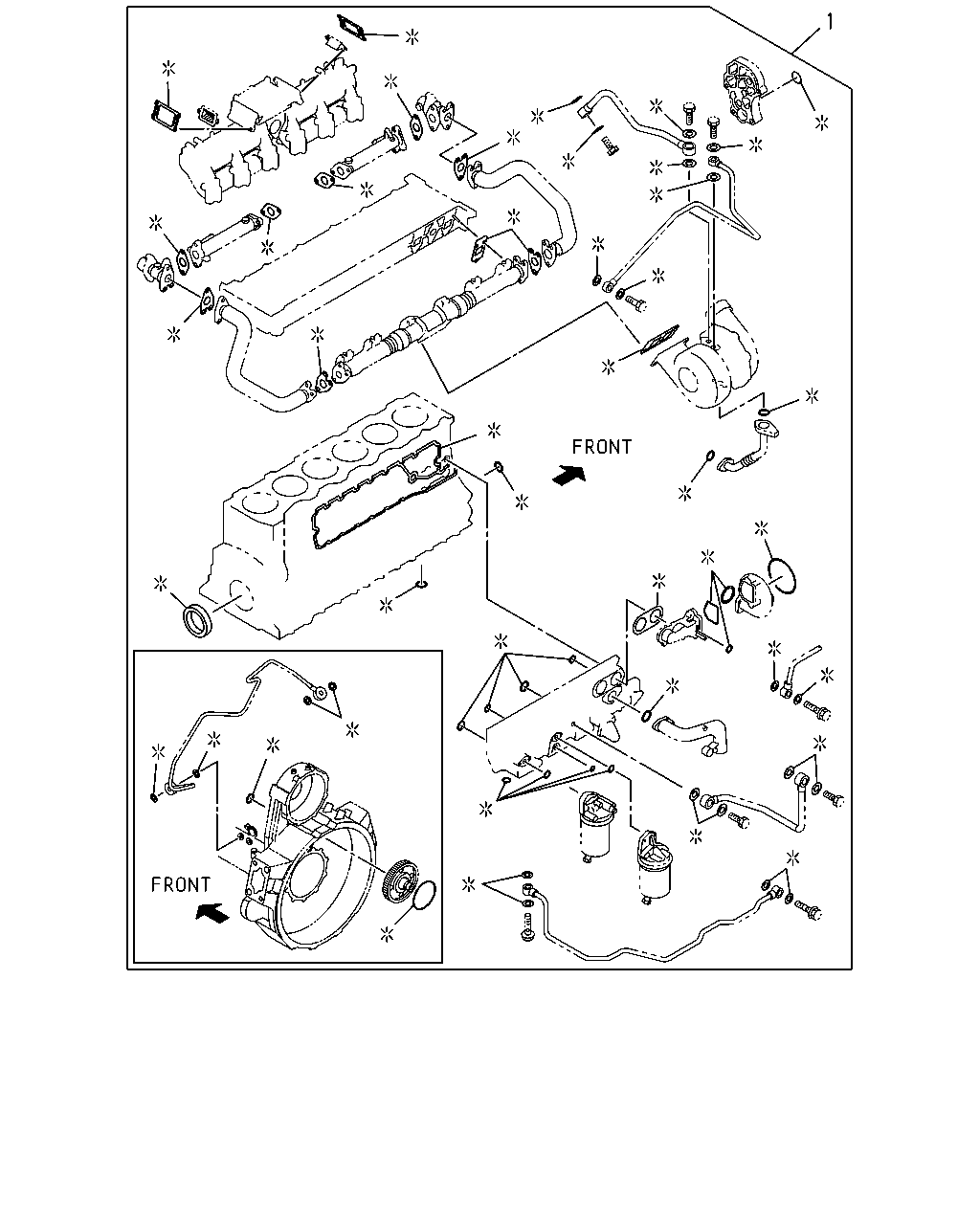

çizim 134548
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL 1-87813-230-1 01 1 0706-0901 ●
1 GASKET SET; ENG OVERHAUL 1-87813-230-5 01 1 0902-1111 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-811-0 01 1 1112-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-657-0 01 1 1401-1502 ● ●
1 GASKET SET; ENG OVERHAUL 1-87815-586-0 01 1 1503- ● ●

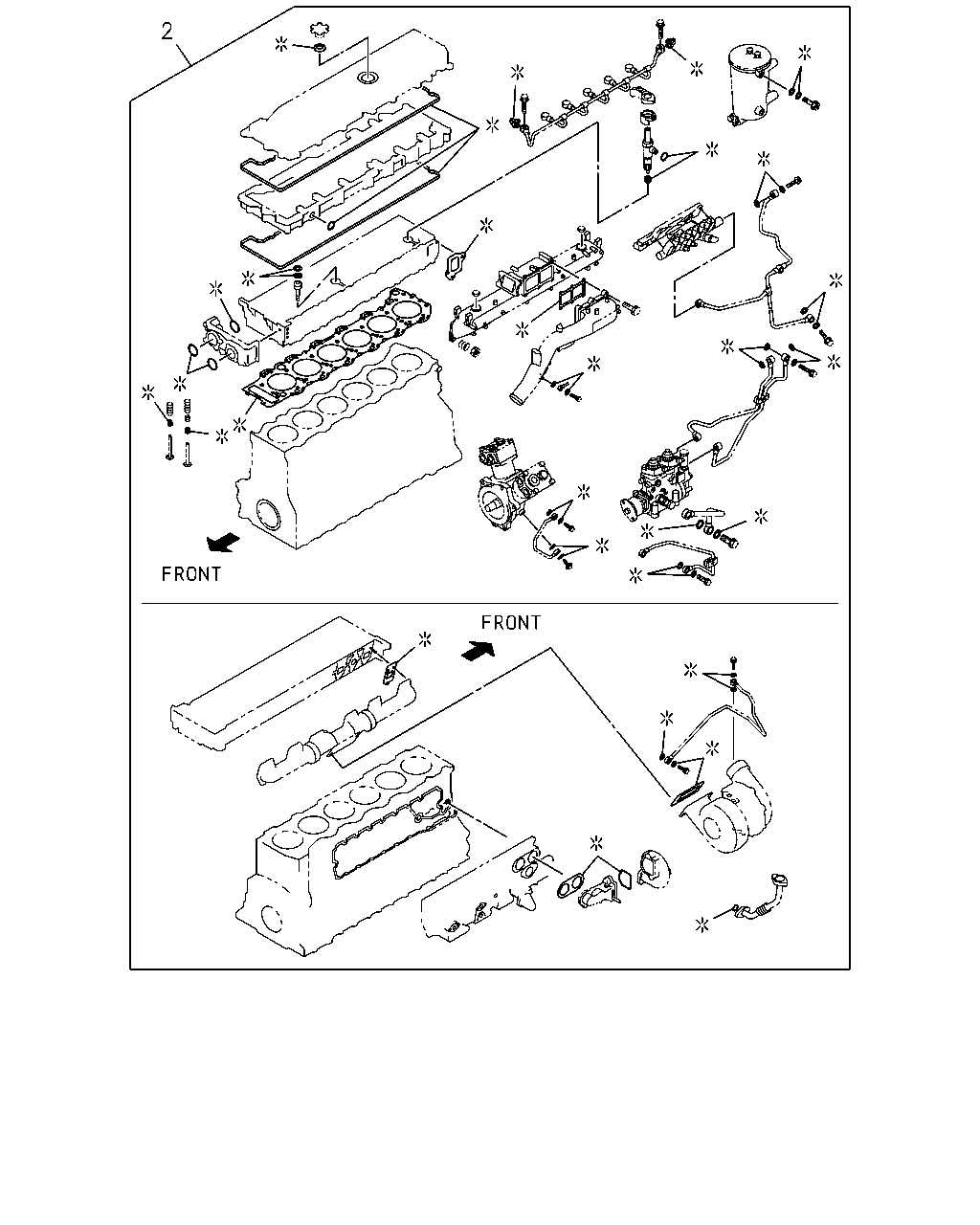

çizim 134551
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 GASKET SET; ENG HD OVERHAUL 1-87813-192-1 01 1 0706-0901 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-192-4 01 1 0902-1111 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-812-0 01 1 1112-1312 ● ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-658-0 01 1 1401- ● ●

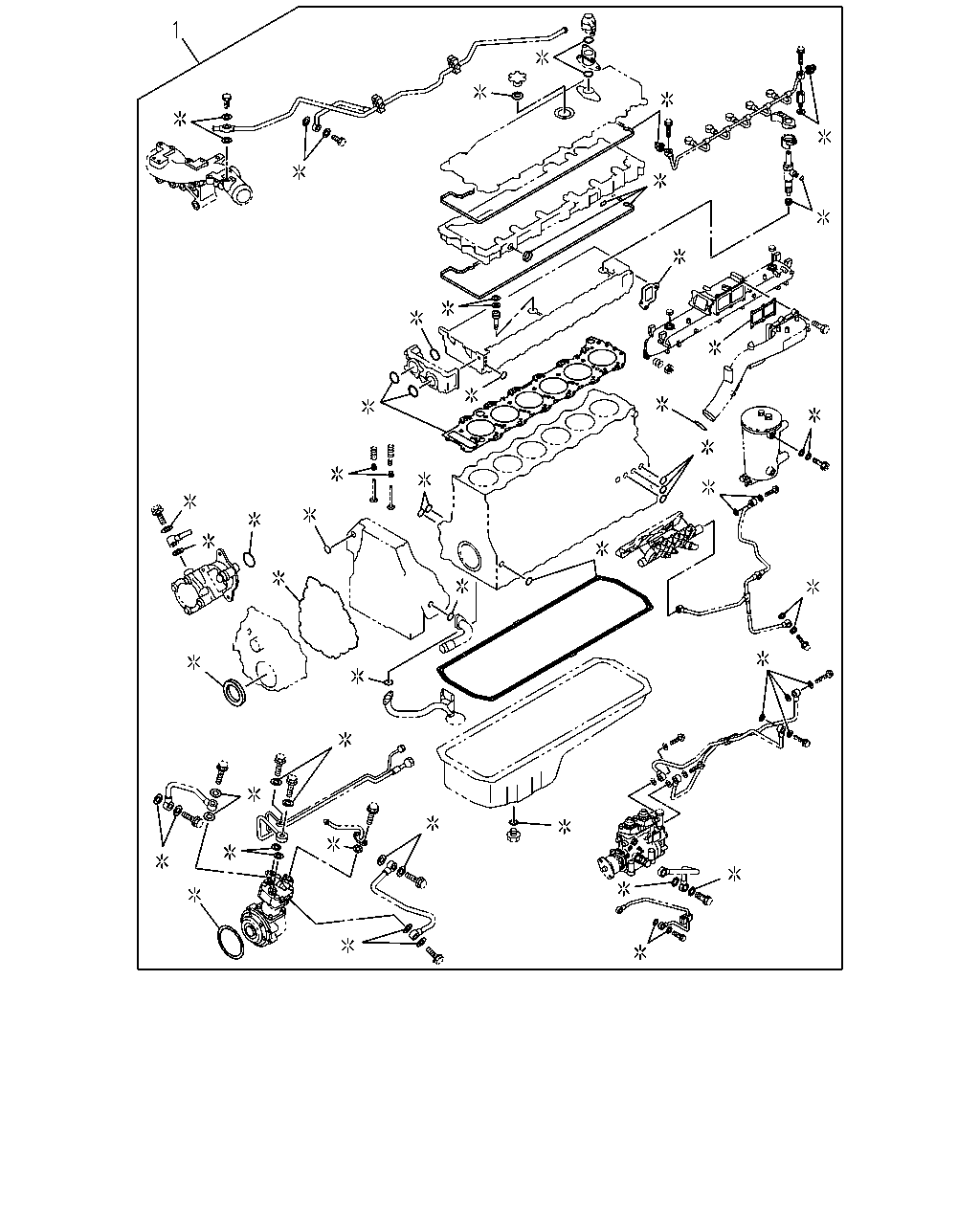

çizim 134556
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL 1-87813-230-1 01 1 0706-0901 ●
1 GASKET SET; ENG OVERHAUL 1-87813-230-5 01 1 0902-1111 ● ●
1 GASKET SET; ENG OVERHAUL 1-87813-811-0 01 1 1112-1312 ● ●
1 GASKET SET; ENG OVERHAUL 1-87814-657-0 01 1 1401-1502 ● ●
1 GASKET SET; ENG OVERHAUL 1-87815-586-0 01 1 1503- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
