◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10653 - EXZ ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#1799) — 13 parça

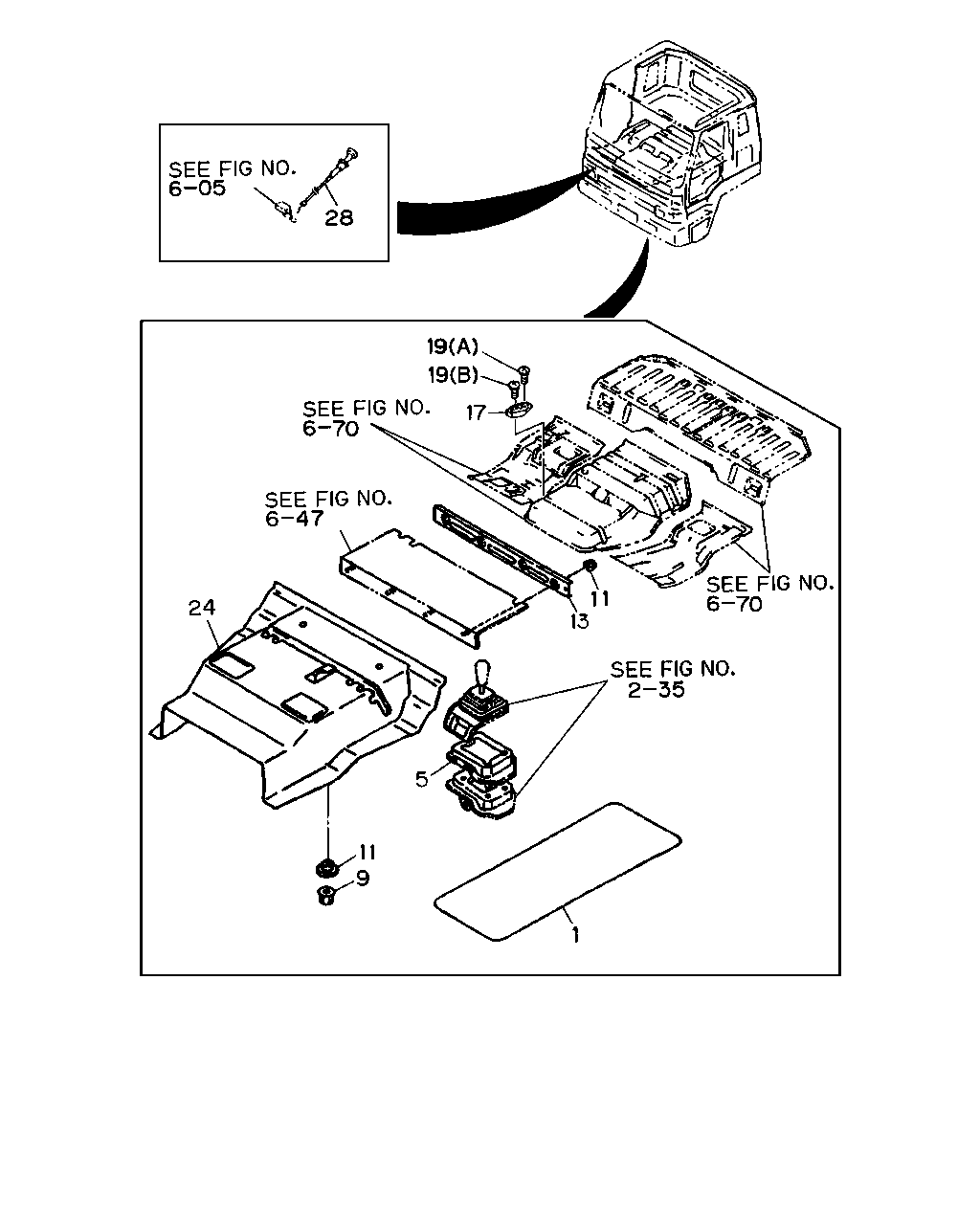

çizim 94431
28 19 19 17 11 13 5 1 9 11 24
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 9002- ● ●
5 COVER; CHANGE LEVER 1-33619-163-0 01 1 9002- ● ●
9 WASHER; HEAT INSULATOR 1-73377-052-1 03 1 9002- ● ●
11 NUT; HEAT INSULATOR
M6 FLANGE 		1-09984-141-0 07 1 9002- ● ●
13 PLATE; HEAT INSULATOR 1-71997-751-1 01 1 9002-9108 ● ●
13 PLATE; HEAT INSULATOR 1-71907-021-2 01 1 9109- ● ●
17 REST; FOOT,DRIVER 1-73907-176-0 01 1 9002- ●
19 BOLT; FOOT REST
(A) M6X16 		1-09980-508-0 01 1 9002- ●
19 BOLT; FOOT REST
(B) M6X50 		1-09980-509-0 01 1 9002-9407 ●
19 BOLT; FOOT REST
(B) M6X47 		8-94407-876-1 01 1 9408- ●
24 INSULATOR; HEAT,FRT 1-71997-485-5 01 1 9002- ●
24 INSULATOR; HEAT,FRT 1-71997-538-3 01 1 9002- ●
28 CABLE ASM; CONT,DASH VENTILATOR 1-76337-233-6 01 1 9002- ● ●
