◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11369 - FVR(LHD)EURO4 W/DOC ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#17986) — 17 parça
çizim 110171
35 160 49
BalonParca AdiParca NoAdetTipApplied Date
35 PLATE; CAUTION,CAB
CAUTIONS SPANISH<YN1> 		8-98070-109-0 01 1 1109-
35 PLATE; CAUTION,CAB
EXC. CAUTIONS SPANISH<YN1> 		8-98065-363-0 01 1 1109-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS SPANISH<YN1> 		8-98069-841-0 01 1 1109-
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS SPANISH<YN1> 		8-98122-354-0 01 1 1109-
160 PLATE; CAUTION,TOWING
ZF9S1110 M/T(Y5E) CAUTIONS SPANISH<YN1> 		8-98190-143-0 01 1 1109-
160 PLATE; CAUTION,TOWING
ZF9S1110 M/T(Y5E) EXC. CAUTIONS SPANISH<YN1> 		1-85888-737-1 01 1 1109-

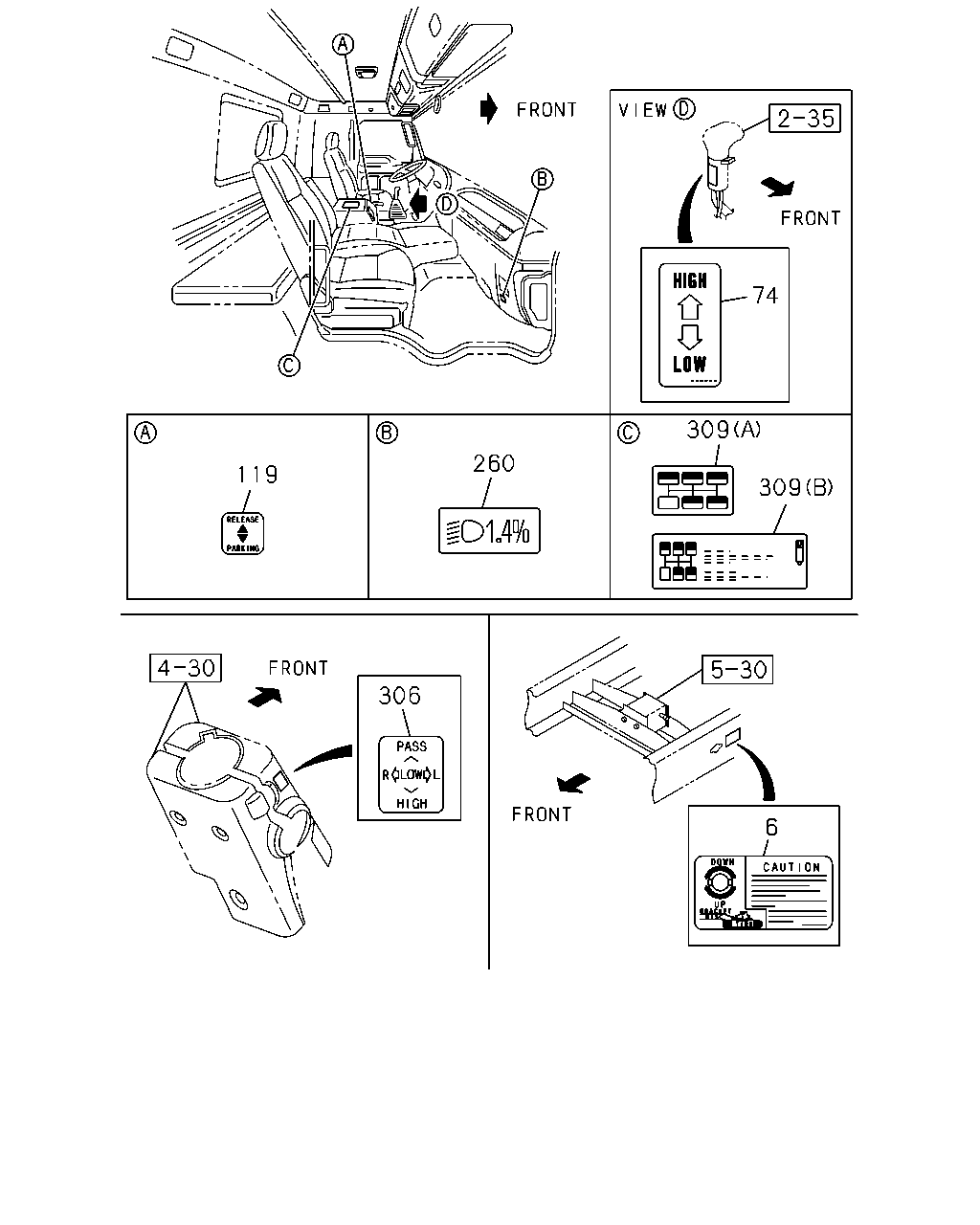

çizim 110179
74 309 260 119 309 306 6
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS SPANISH<YN1> 		8-98082-439-0 01 1 1109-1205
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS SPANISH<YN1> 		8-98082-439-0 01 1 1206-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS SPANISH<YN1> 		8-98082-437-0 01 1 1109-1205
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS SPANISH<YN1> 		8-98082-437-0 01 1 1206-
74 PLATE; CAUTION,CHANGE LEV
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98118-493-0 01 1 1206-
119 PLATE; CAUTION,HAND BRK LEVER
CAUTIONS SPANISH<YN1> 		1-85881-944-0 01 1 1109-
119 PLATE; CAUTION,HAND BRK LEVER
EXC. CAUTIONS SPANISH<YN1> 		1-85881-759-0 01 1 1109-
260 PLATE; CAUTION,HEAD LAMP LEVELING 8-98008-779-0 01 1 1109-
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1109-
309 LABEL; M/T SHIFT
FULLER ES11109 DD M/T(Y5N) (A) 		1-85881-598-0 01 1 1206-
309 LABEL; M/T SHIFT
FULLER ES11109 DD M/T(Y5N) (B) 		8-98098-606-0 01 1 1206-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
