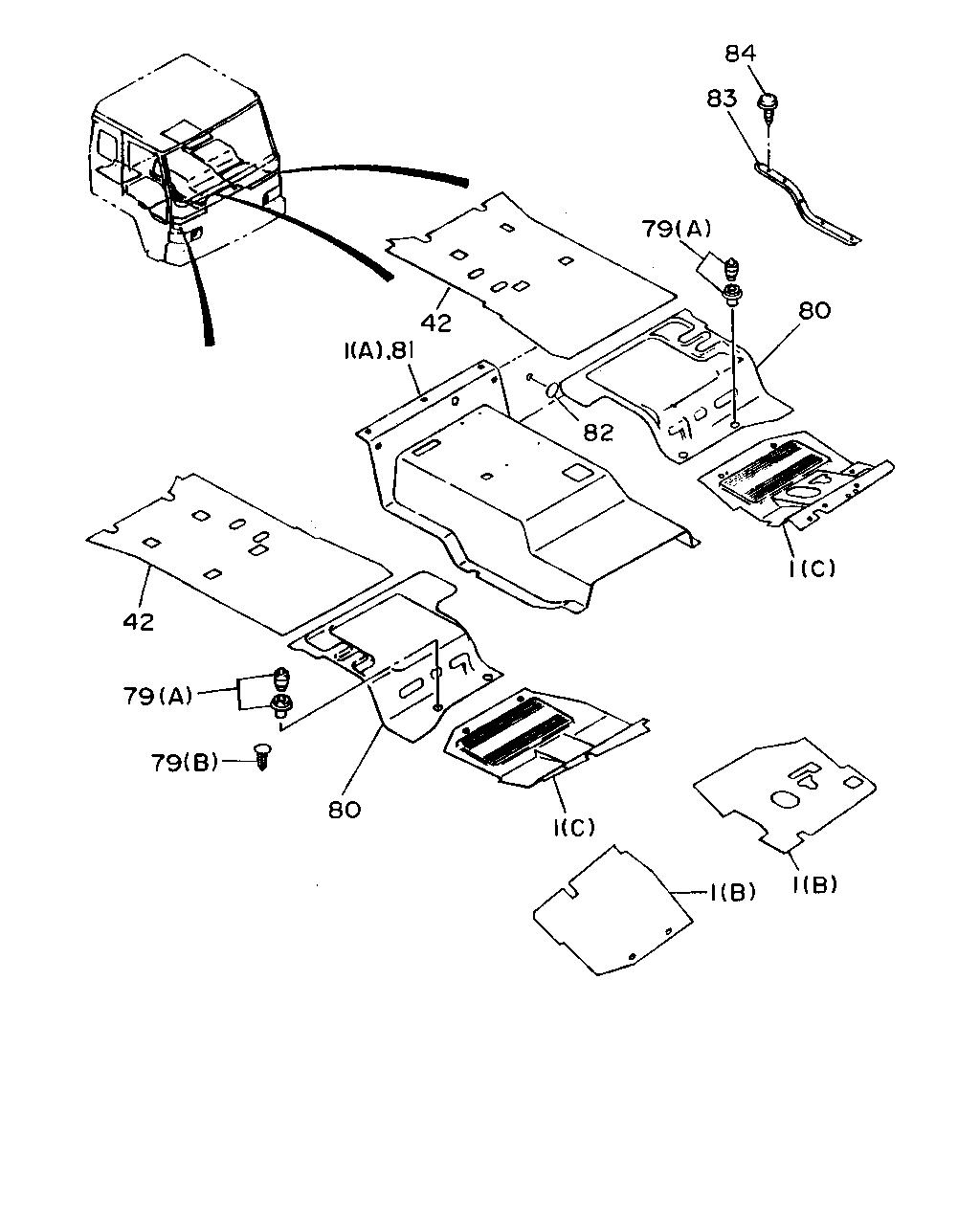

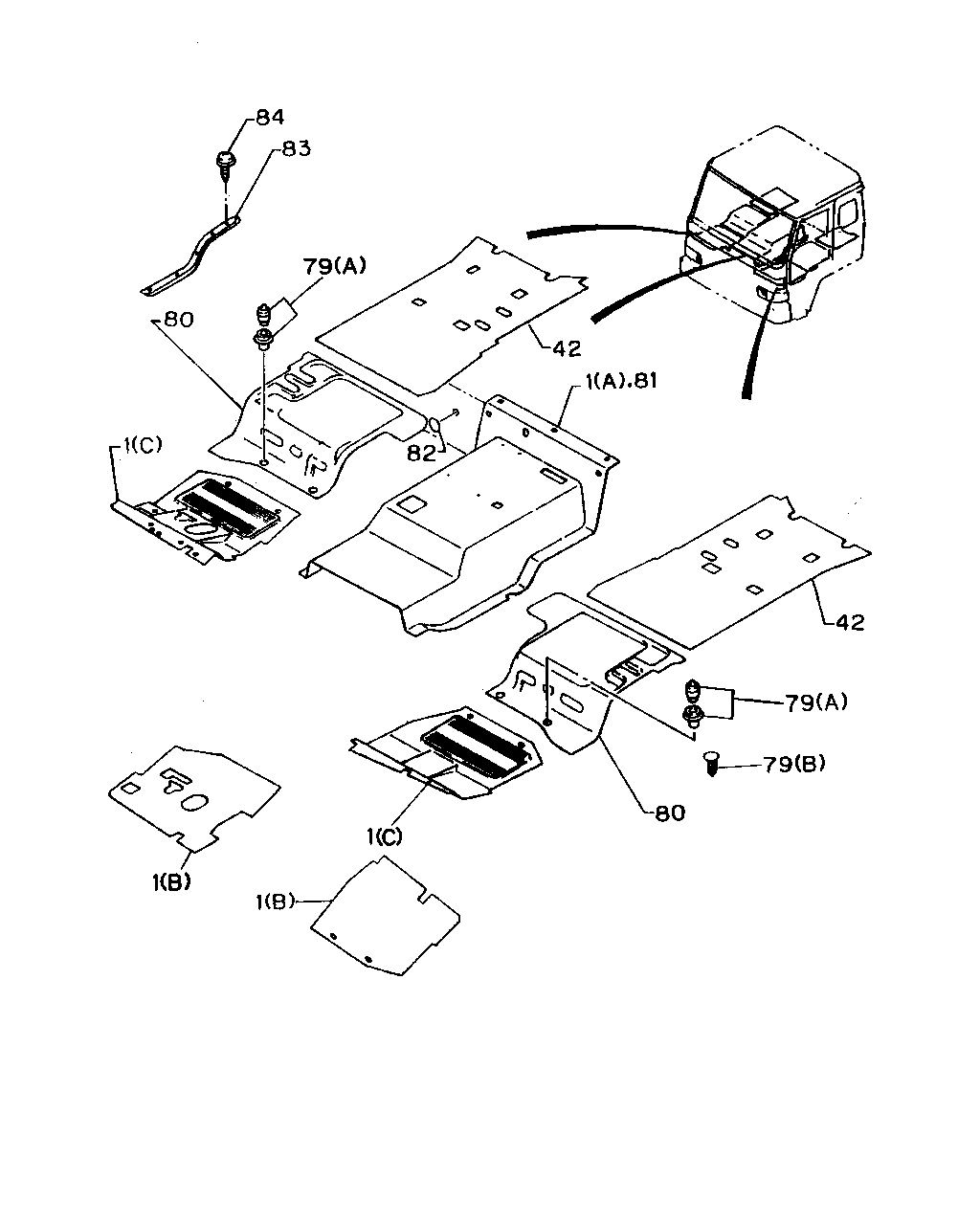

6-75 — MAT AND CARPET (#1798) — 122 parça

84 83 79 42 1 81 82 80 1 1 1 1 80 79 79 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CARPET; FLOOR,FRT DELUXE CARPET<BF2> (A)	1-73211-255-0	01	1	9002-9306	●
1	CARPET; FLOOR,FRT DELUXE CARPET<BF2> (A)	1-73211-348-1	01	1	9307-	●
1	CARPET; FLOOR,FRT DELUXE CARPET<BF2> (B)	1-73211-240-0	01	1	9002-9106	●
1	CARPET; FLOOR,FRT DELUXE CARPET<BF2> (B)	1-73211-183-0	01	1	9107-9306	●
1	CARPET; FLOOR,FRT DELUXE CARPET<BF2> (B)	1-73211-278-0	01	1	9307-	●
1	CARPET; FLOOR,FRT DELUXE CARPET<BF2> (B)	1-73211-241-0	01	1	9002-9106	●
1	CARPET; FLOOR,FRT DELUXE CARPET<BF2> (B)	1-73211-166-1	01	1	9107-9306	●
1	CARPET; FLOOR,FRT DELUXE CARPET<BF2> (B)	1-73211-277-2	01	1	9307-	●
1	CARPET; FLOOR,FRT EXC. DELUXE CARPET<BF2> (C)	1-73237-386-0	01	1	9002-9306	●
1	CARPET; FLOOR,FRT EXC. DELUXE CARPET<BF2> (C)	1-73237-404-0	01	1	9307-	●
1	CARPET; FLOOR,FRT EXC. DELUXE CARPET<BF2> (C)	1-73237-385-0	01	1	9002-9306	●
1	CARPET; FLOOR,FRT EXC. DELUXE CARPET<BF2> (C)	1-73237-403-1	01	1	9307-	●
1	CARPET; FLOOR,FRT DELUXE CARPET<BF2> (A)	1-73211-256-1	01	1	9002-9306		●
1	CARPET; FLOOR,FRT DELUXE CARPET<BF2> (A)	1-73211-358-0	01	1	9307-		●
1	CARPET; FLOOR,FRT DELUXE CARPET<BF2> (B)	1-73211-244-0	01	1	9002-9306		●
1	CARPET; FLOOR,FRT DELUXE CARPET<BF2> (B)	1-73211-353-0	01	1	9307-		●
1	CARPET; FLOOR,FRT DELUXE CARPET<BF2> TAIWAN EQUIPMENT(WW5) (B)	1-73211-276-0	01	1	9002-9306		●
1	CARPET; FLOOR,FRT DELUXE CARPET<BF2> EXC. TAIWAN EQUIPMENT(WW5) (B)	1-73211-243-0	01	1	9002-9306		●
1	CARPET; FLOOR,FRT DELUXE CARPET<BF2> (B)	1-73211-354-0	01	1	9307-		●
1	CARPET; FLOOR,FRT EXC. DELUXE CARPET<BF2> (C)	1-73237-387-0	01	1	9002-9306		●
1	CARPET; FLOOR,FRT EXC. DELUXE CARPET<BF2> (C)	1-73237-419-0	01	1	9307-		●
1	CARPET; FLOOR,FRT EXC. DELUXE CARPET<BF2>,TAIWAN EQUIPMENT(WW5) (C)	1-73237-388-0	01	1	9002-9306		●
1	CARPET; FLOOR,FRT EXC. DELUXE CARPET<BF2> (C)	1-73237-420-0	01	1	9307-		●
1	CARPET; FLOOR,FRT TAIWAN EQUIPMENT(WW5) EXC. DELUXE CARPET<BF2> (C)	1-73237-389-0	01	1	9002-9306		●
42	CARPET; FLOOR,RR DELUXE CARPET<BF2>	1-73211-250-2	01	1	9002-9306	●
42	CARPET; FLOOR,RR DELUXE CARPET<BF2>	1-73211-350-0	01	1	9307-	●
42	CARPET; FLOOR,RR DELUXE CARPET<BF2> DUMP CONTROL LEVER<RC4> EXC. HONG KONG EQUIPMENT(PQ1)	1-73211-361-0	01	1	9307-	●
42	CARPET; FLOOR,RR DELUXE CARPET<BF2> HONG KONG EQUIPMENT(PQ1)	1-73211-248-0	01	1	9002-9202	●
42	CARPET; FLOOR,RR DELUXE CARPET<BF2> HONG KONG EQUIPMENT(PQ1)	1-73211-351-0	01	1	9203-9306	●
42	CARPET; FLOOR,RR DELUXE CARPET<BF2> EXC. HONG KONG EQUIPMENT(PQ1)	1-73211-246-0	01	1	9002-9306	●
42	CARPET; FLOOR,RR DELUXE CARPET<BF2> NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-73211-349-0	01	1	9307-	●
42	CARPET; FLOOR,RR DELUXE CARPET<BF2> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),DUMP CONTROL LEVER<RC4>	1-73211-360-0	01	1	9307-	●
42	CARPET; FLOOR,RR DELUXE CARPET<BF2>	1-73211-251-0	01	1	9002-9306		●
42	CARPET; FLOOR,RR DELUXE CARPET<BF2>	1-73211-249-1	01	1	9002-9306		●
42	CARPET; FLOOR,RR DELUXE CARPET<BF2>	1-73211-364-0	01	1	9307-		●
42	CARPET; FLOOR,RR DELUXE CARPET<BF2>	1-73211-363-0	01	1	9307-		●
79	HOOK; MALE (B) D6X23 BLACK	1-09987-114-0	01	1	9002-	●	●
79	HOOK; MALE (A)	8-94291-778-0	04	1	9002-	●	●
80	MAT; FLOOR,RR	1-73237-428-2	01	1	9307-9308	●
80	MAT; FLOOR,RR EXC. DELUXE CARPET<BF2>	1-73237-407-1	01	1	9309-9412	●
80	MAT; FLOOR,RR EXC. DELUXE CARPET<BF2>	1-73237-521-0	01	1	9501-	●
80	MAT; FLOOR,RR EXC. DELUXE CARPET<BF2>	1-73237-376-1	01	1	9002-9306	●
80	MAT; FLOOR,RR HONG KONG EQUIPMENT(PQ1) EXC. DELUXE CARPET<BF2>	1-73237-377-0	01	1	9002-9306	●
80	MAT; FLOOR,RR HONG KONG EQUIPMENT(PQ1) EXC. DELUXE CARPET<BF2>	1-73237-425-1	01	1	9307-	●
80	MAT; FLOOR,RR EXC. DELUXE CARPET<BF2>,HONG KONG EQUIPMENT(PQ1), NYLON TUBE AIR PIPING<Z29>	1-73237-425-1	01	1	9307-	●
80	MAT; FLOOR,RR NYLON TUBE AIR PIPING<Z29> EXC. DELUXE CARPET<BF2>	1-73237-422-1	01	1	9307-	●
80	MAT; FLOOR,RR PARKING BRAKE VALVE LEVER TYPE<W48> EXC. DELUXE CARPET<BF2>,HONG KONG EQUIPMENT(PQ1)	1-73237-371-0	01	1	9002-9306	●
80	MAT; FLOOR,RR EXC. DELUXE CARPET<BF2>	1-73237-374-0	01	1	9002-9306		●
80	MAT; FLOOR,RR EXC. DELUXE CARPET<BF2>	1-73237-370-0	01	1	9002-9306		●
80	MAT; FLOOR,RR EXC. DELUXE CARPET<BF2>	1-73237-427-2	01	1	9307-		●
80	MAT; FLOOR,RR EXC. DELUXE CARPET<BF2>	1-73237-421-2	01	1	9307-		●
81	MAT; FLOOR,CENTER EXC. DELUXE CARPET<BF2>	1-73237-381-1	01	1	9002-9306	●
81	MAT; FLOOR,CENTER EXC. DELUXE CARPET<BF2>	1-73237-490-1	01	1	9307-	●
81	MAT; FLOOR,CENTER CENTER SEAT DELETE<SP9> EXC. DELUXE CARPET<BF2>	1-73237-378-1	01	1	9002-9306		●
81	MAT; FLOOR,CENTER EXC. DELUXE CARPET<BF2>	1-73237-489-2	01	1	9307-		●
81	MAT; FLOOR,CENTER EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE<SP9>	1-73237-380-1	01	1	9002-9306		●
82	SEAL; BED PAN	1-76798-018-0	04	1	9002-	●	●
83	PLATE; KICKING,FLOOR MAT	1-76797-019-3	01	1	9002-	●	●
83	PLATE; KICKING,FLOOR MAT	1-76797-018-3	01	1	9002-	●	●
84	SCREW; PLATE TO FLOOR M6X16 W/PL WASHER	1-09981-505-0	06	1	9002-	●	●
84	SCREW; PLATE TO FLOOR CHEAPER CAB(SAX) M6X24 W/PL WASHER	1-09981-504-0	04	1	9002-		●

84 83 79 80 1 82 42 1 81 42 79 79 80 1 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CARPET; FLOOR,FRT DELUXE CARPET<BF2> (A)	1-73211-255-0	01	1	9002-9306	●
1	CARPET; FLOOR,FRT DELUXE CARPET<BF2> (A)	1-73211-348-1	01	1	9307-	●
1	CARPET; FLOOR,FRT DELUXE CARPET<BF2> (B)	1-73211-240-0	01	1	9002-9106	●
1	CARPET; FLOOR,FRT DELUXE CARPET<BF2> (B)	1-73211-183-0	01	1	9107-9306	●
1	CARPET; FLOOR,FRT DELUXE CARPET<BF2> (B)	1-73211-278-0	01	1	9307-	●
1	CARPET; FLOOR,FRT DELUXE CARPET<BF2> (B)	1-73211-241-0	01	1	9002-9106	●
1	CARPET; FLOOR,FRT DELUXE CARPET<BF2> (B)	1-73211-166-1	01	1	9107-9306	●
1	CARPET; FLOOR,FRT DELUXE CARPET<BF2> (B)	1-73211-277-2	01	1	9307-	●
1	CARPET; FLOOR,FRT EXC. DELUXE CARPET<BF2> (C)	1-73237-386-0	01	1	9002-9306	●
1	CARPET; FLOOR,FRT EXC. DELUXE CARPET<BF2> (C)	1-73237-404-0	01	1	9307-	●
1	CARPET; FLOOR,FRT EXC. DELUXE CARPET<BF2> (C)	1-73237-385-0	01	1	9002-9306	●
1	CARPET; FLOOR,FRT EXC. DELUXE CARPET<BF2> (C)	1-73237-403-1	01	1	9307-	●
1	CARPET; FLOOR,FRT DELUXE CARPET<BF2> (A)	1-73211-256-1	01	1	9002-9306		●
1	CARPET; FLOOR,FRT DELUXE CARPET<BF2> (A)	1-73211-358-0	01	1	9307-		●
1	CARPET; FLOOR,FRT DELUXE CARPET<BF2> (B)	1-73211-244-0	01	1	9002-9306		●
1	CARPET; FLOOR,FRT DELUXE CARPET<BF2> (B)	1-73211-353-0	01	1	9307-		●
1	CARPET; FLOOR,FRT DELUXE CARPET<BF2> TAIWAN EQUIPMENT(WW5) (B)	1-73211-276-0	01	1	9002-9306		●
1	CARPET; FLOOR,FRT DELUXE CARPET<BF2> EXC. TAIWAN EQUIPMENT(WW5) (B)	1-73211-243-0	01	1	9002-9306		●
1	CARPET; FLOOR,FRT DELUXE CARPET<BF2> (B)	1-73211-354-0	01	1	9307-		●
1	CARPET; FLOOR,FRT EXC. DELUXE CARPET<BF2> (C)	1-73237-387-0	01	1	9002-9306		●
1	CARPET; FLOOR,FRT EXC. DELUXE CARPET<BF2> (C)	1-73237-419-0	01	1	9307-		●
1	CARPET; FLOOR,FRT EXC. DELUXE CARPET<BF2>,TAIWAN EQUIPMENT(WW5) (C)	1-73237-388-0	01	1	9002-9306		●
1	CARPET; FLOOR,FRT EXC. DELUXE CARPET<BF2> (C)	1-73237-420-0	01	1	9307-		●
1	CARPET; FLOOR,FRT TAIWAN EQUIPMENT(WW5) EXC. DELUXE CARPET<BF2> (C)	1-73237-389-0	01	1	9002-9306		●
42	CARPET; FLOOR,RR DELUXE CARPET<BF2>	1-73211-250-2	01	1	9002-9306	●
42	CARPET; FLOOR,RR DELUXE CARPET<BF2>	1-73211-350-0	01	1	9307-	●
42	CARPET; FLOOR,RR DELUXE CARPET<BF2> DUMP CONTROL LEVER<RC4> EXC. HONG KONG EQUIPMENT(PQ1)	1-73211-361-0	01	1	9307-	●
42	CARPET; FLOOR,RR DELUXE CARPET<BF2> HONG KONG EQUIPMENT(PQ1)	1-73211-248-0	01	1	9002-9202	●
42	CARPET; FLOOR,RR DELUXE CARPET<BF2> HONG KONG EQUIPMENT(PQ1)	1-73211-351-0	01	1	9203-9306	●
42	CARPET; FLOOR,RR DELUXE CARPET<BF2> EXC. HONG KONG EQUIPMENT(PQ1)	1-73211-246-0	01	1	9002-9306	●
42	CARPET; FLOOR,RR DELUXE CARPET<BF2> NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-73211-349-0	01	1	9307-	●
42	CARPET; FLOOR,RR DELUXE CARPET<BF2> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),DUMP CONTROL LEVER<RC4>	1-73211-360-0	01	1	9307-	●
42	CARPET; FLOOR,RR DELUXE CARPET<BF2>	1-73211-251-0	01	1	9002-9306		●
42	CARPET; FLOOR,RR DELUXE CARPET<BF2>	1-73211-249-1	01	1	9002-9306		●
42	CARPET; FLOOR,RR DELUXE CARPET<BF2>	1-73211-364-0	01	1	9307-		●
42	CARPET; FLOOR,RR DELUXE CARPET<BF2>	1-73211-363-0	01	1	9307-		●
79	HOOK; MALE (B) D6X23 BLACK	1-09987-114-0	01	1	9002-	●	●
79	HOOK; MALE (A)	8-94291-778-0	04	1	9002-	●	●
80	MAT; FLOOR,RR	1-73237-428-2	01	1	9307-9308	●
80	MAT; FLOOR,RR EXC. DELUXE CARPET<BF2>	1-73237-407-1	01	1	9309-9412	●
80	MAT; FLOOR,RR EXC. DELUXE CARPET<BF2>	1-73237-521-0	01	1	9501-	●
80	MAT; FLOOR,RR EXC. DELUXE CARPET<BF2>	1-73237-376-1	01	1	9002-9306	●
80	MAT; FLOOR,RR HONG KONG EQUIPMENT(PQ1) EXC. DELUXE CARPET<BF2>	1-73237-377-0	01	1	9002-9306	●
80	MAT; FLOOR,RR HONG KONG EQUIPMENT(PQ1) EXC. DELUXE CARPET<BF2>	1-73237-425-1	01	1	9307-	●
80	MAT; FLOOR,RR EXC. DELUXE CARPET<BF2>,HONG KONG EQUIPMENT(PQ1), NYLON TUBE AIR PIPING<Z29>	1-73237-425-1	01	1	9307-	●
80	MAT; FLOOR,RR NYLON TUBE AIR PIPING<Z29> EXC. DELUXE CARPET<BF2>	1-73237-422-1	01	1	9307-	●
80	MAT; FLOOR,RR PARKING BRAKE VALVE LEVER TYPE<W48> EXC. DELUXE CARPET<BF2>,HONG KONG EQUIPMENT(PQ1)	1-73237-371-0	01	1	9002-9306	●
80	MAT; FLOOR,RR EXC. DELUXE CARPET<BF2>	1-73237-374-0	01	1	9002-9306		●
80	MAT; FLOOR,RR EXC. DELUXE CARPET<BF2>	1-73237-370-0	01	1	9002-9306		●
80	MAT; FLOOR,RR EXC. DELUXE CARPET<BF2>	1-73237-427-2	01	1	9307-		●
80	MAT; FLOOR,RR EXC. DELUXE CARPET<BF2>	1-73237-421-2	01	1	9307-		●
81	MAT; FLOOR,CENTER EXC. DELUXE CARPET<BF2>	1-73237-381-1	01	1	9002-9306	●
81	MAT; FLOOR,CENTER EXC. DELUXE CARPET<BF2>	1-73237-490-1	01	1	9307-	●
81	MAT; FLOOR,CENTER CENTER SEAT DELETE<SP9> EXC. DELUXE CARPET<BF2>	1-73237-378-1	01	1	9002-9306		●
81	MAT; FLOOR,CENTER EXC. DELUXE CARPET<BF2>	1-73237-489-2	01	1	9307-		●
81	MAT; FLOOR,CENTER EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE<SP9>	1-73237-380-1	01	1	9002-9306		●
82	SEAL; BED PAN	1-76798-018-0	04	1	9002-	●	●
83	PLATE; KICKING,FLOOR MAT	1-76797-019-3	01	1	9002-	●	●
83	PLATE; KICKING,FLOOR MAT	1-76797-018-3	01	1	9002-	●	●
84	SCREW; PLATE TO FLOOR M6X16 W/PL WASHER	1-09981-505-0	06	1	9002-	●	●
84	SCREW; PLATE TO FLOOR CHEAPER CAB(SAX) M6X24 W/PL WASHER	1-09981-504-0	04	1	9002-		●
