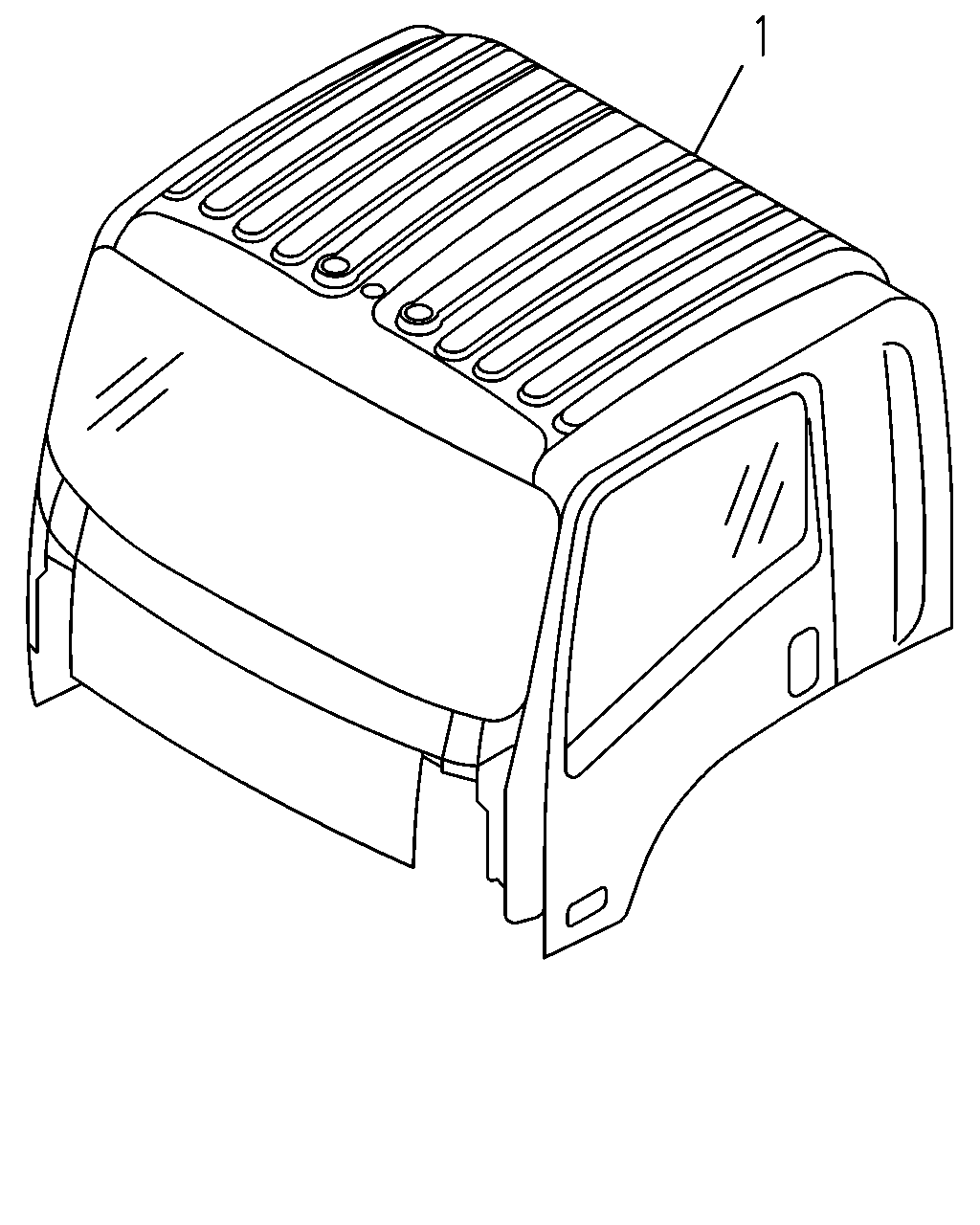

6-04 — CAB ASM (#17965) — 3 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) CHILE EQUIPMENT(KE1) FUEL TANK 200L FRAME SIDE<N20> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,ROUND CURTAIN RAIL<EDH>,FUEL TANK CAP KEY LOCK<N05>,MIRROR O/S UNDER VIEW<RR9>,2-SPEAKER SYSTEM BASE<U95>,INTERIOR FULL TRIM<WM3>,FLUORESCENT LAMP<6UC>, ASH TRAY PASSENGER DOOR<8LX>	1-61088-856-0	01	1	1109-
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) COLOMBIA EQUIPMENT(CB7) FUEL TANK 400L<SDH> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FULLER ES11109 DD M/T(Y5N) AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> FUEL TANK CAP KEY LOCK<N05> MIRROR O/S UNDER VIEW<RR9> 2-SPEAKER SYSTEM BASE<U95> INTERIOR FULL TRIM<WM3> EXC. ROUND CURTAIN RAIL<EDH>,FLUORESCENT LAMP<6UC>, ASH TRAY PASSENGER DOOR<8LX>	1-61089-511-0	01	1	1206-
1	CAB ASM; SERVICE,WO/ELEC BODY COLOR ARC WHITE(729) COLOMBIA EQUIPMENT(CB7) FUEL TANK 200L FRAME SIDE<N20> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FULLER ES11109 DD M/T(Y5N) AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> FUEL TANK CAP KEY LOCK<N05> MIRROR O/S UNDER VIEW<RR9> 2-SPEAKER SYSTEM BASE<U95> INTERIOR FULL TRIM<WM3> EXC. ROUND CURTAIN RAIL<EDH>,FLUORESCENT LAMP<6UC>, ASH TRAY PASSENGER DOOR<8LX>	1-61089-512-0	01	1	1206-
