◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11369 - FVR(LHD)EURO4 W/DOC ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#17958) — 113 parça

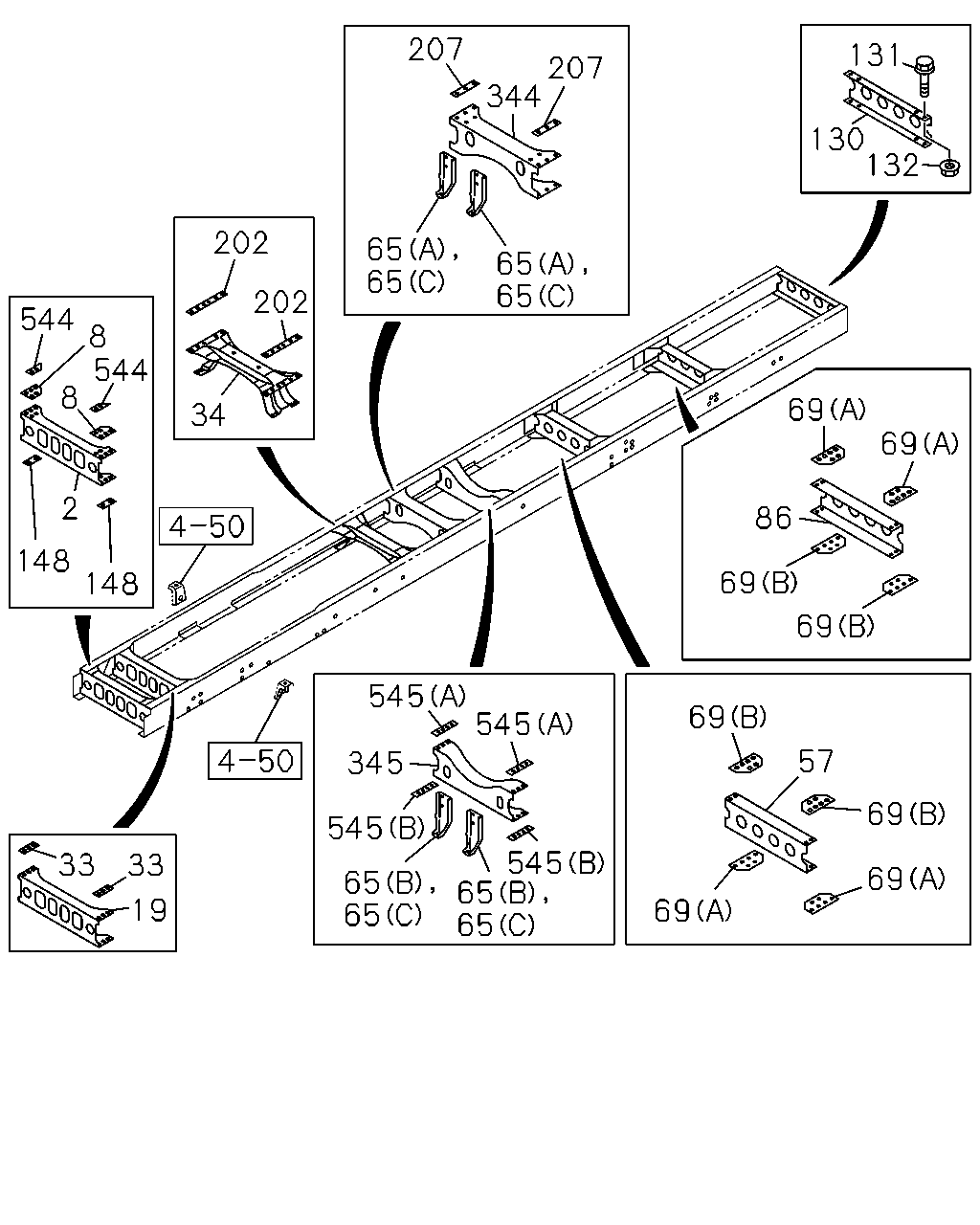

çizim 110130
69 69 57 69 69 65 65 545 65 65 545 345 545 545 19 33 33 148 148 2 8 544 8 544 202 202 34 65 65 65 65 207 344 207 131 132 130 69 69 86 69 69
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST 8-97610-852-6 01 1 1109-1205 ● ●
2 MEMBER; CROSS,1ST 8-97610-852-7 01 1 1206- ● ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 1109-1205 ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 1206- ● ● ●
19 MEMBER; CROSS,2ND 8-97623-239-2 01 1 1109-1205 ● ●
19 MEMBER; CROSS,2ND 8-97623-239-3 01 1 1206- ● ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 1109-1205 ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 1206- ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 1109-1205 ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 1206- ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97619-888-3 01 1 1109-1205 ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97619-888-3 01 1 1206- ● ● ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L) (A) 		8-97623-229-0 02 1 1206- ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L) FULLER ES11109 DD M/T(Y5N) (C) 		8-97614-139-0 04 1 1206- ●
65 BRACKET; CENTER BRG
6HK1-TCN ENG(82L) (A) 		8-98103-401-0 02 1 1206- ●
65 BRACKET; CENTER BRG
(A) 		8-97614-136-0 02 1 1109- ●
65 BRACKET; CENTER BRG
(B) 		8-97614-133-0 02 1 1109-1205 ●
65 BRACKET; CENTER BRG
6HK1-TCN ENG(82L) (B) 		8-97614-133-0 02 1 1206- ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) (B) 		8-97614-133-0 02 1 1206- ●
65 BRACKET; CENTER BRG
(A) 		8-97621-881-0 02 1 1109-1205 ●
65 BRACKET; CENTER BRG
6HK1-TCN ENG(82L) (A) 		8-97621-881-0 02 1 1206- ●
65 BRACKET; CENTER BRG
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) (A) 		8-97621-881-0 02 1 1206- ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97619-889-0 04 1 1109-1205 ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97619-889-0 04 1 1206- ● ● ●
69 GUSSET; RR SUSP,UPR
(B) 		8-97619-890-0 04 1 1109-1205 ● ●
69 GUSSET; RR SUSP,UPR
(B) 		8-97619-890-0 04 1 1206- ● ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97619-888-3 01 1 1109-1205 ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97619-888-3 01 1 1206- ● ● ●
130 MEMBER; CROSS,END 8-97610-869-1 01 1 1109-1205 ● ●
130 MEMBER; CROSS,END 8-97610-869-1 01 1 1206- ● ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 1109-1205 ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 1206- ● ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 1109-1205 ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 1206- ● ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 1109-1205 ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 1206- ● ● ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 1109-1205 ● ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 1206- ● ● ●
207 SPACER; 4TH C/MBR
0.24KG 		8-97611-245-0 02 1 1109- ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 1109-1205 ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 1206- ● ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 1109-1205 ● ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 1206- ● ● ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 1109- ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 1109-1205 ● ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 1206- ● ● ●
545 SPACER; 5TH C/MBR
6HK1-TCS ENG(80L) FULLER ES11109 DD M/T(Y5N) (B) 0.25KG 		8-97611-244-0 02 1 1206- ●
545 SPACER; 5TH C/MBR
(A) 0.24KG 		8-97611-245-0 02 1 1109- ●

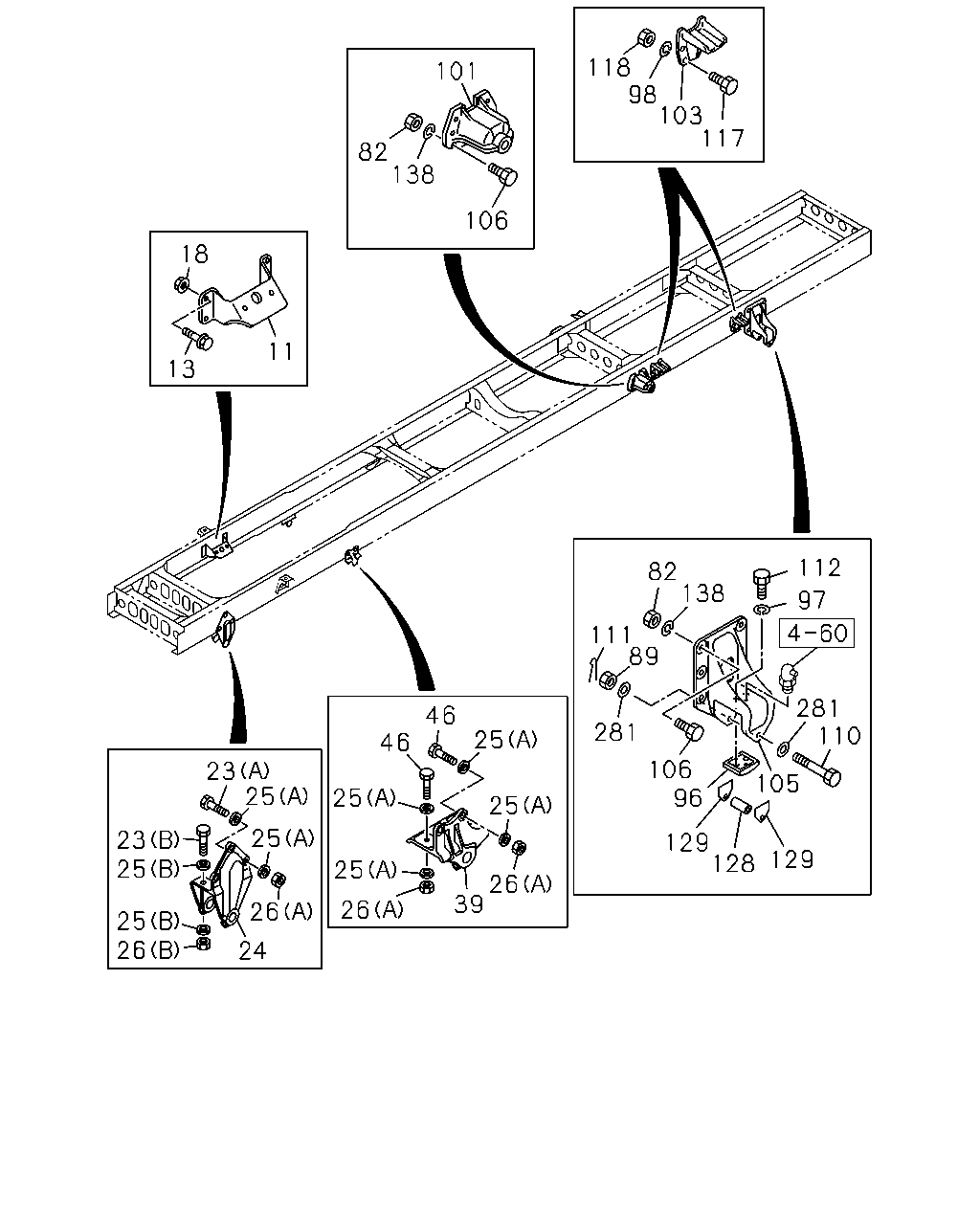

çizim 110136
118 98 103 117 101 82 138 106 18 11 13 112 82 138 97 111 89 281 110 46 281 25 46 106 96 23 25 25 105 25 25 23 25 129 128 129 25 26 39 26 26 25 26 24
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BRACKET; ENG MTG 8-97619-550-0 02 1 1109-1205 ● ●
11 BRACKET; ENG MTG 8-97619-550-0 02 1 1206- ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1109-1205 ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1206- ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1109-1205 ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1206- ● ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 1109-1205 ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 1206- ● ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 1109-1205 ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 1206- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 1109-1205 ● ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 1206- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 1109-1205 ● ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 1206- ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 1109-1205 ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 1206- ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1109-1205 ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1206- ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 1109-1205 ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 1206- ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 1109-1205 ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 1206- ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-648-0 01 1 1109-1205 ● ●
39 BRACKET; FRT SPR,RR 8-98043-648-0 01 1 1206- ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-649-0 01 1 1109-1205 ● ●
39 BRACKET; FRT SPR,RR 8-98043-649-0 01 1 1206- ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 1109-1205 ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 1206- ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 24 1 1109-1205 ● ●
82 NUT; BRKT
M14 		0-91110-514-0 24 1 1206- ● ● ●
89 NUT; LEAF SPR STOPPER
M14 SLOTTED 		0-91116-514-0 02 1 1109-1205 ● ●
89 NUT; LEAF SPR STOPPER
M14 SLOTTED 		0-91116-514-0 02 1 1206- ● ● ●
96 PAD; RR SPR 1-53359-047-0 02 1 1109-1205 ● ●
96 PAD; RR SPR 1-53359-047-0 02 1 1206- ● ● ●
97 WASHER; LK,PAD
ID=14.2 		0-91510-514-0 04 1 1109-1205 ● ●
97 WASHER; LK,PAD
ID=14.2 		0-91510-514-0 04 1 1206- ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 1109-1205 ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 1206- ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-078-1 02 1 1109-1205 ● ●
101 BRACKET; RR SPR,FRT 1-53353-078-1 02 1 1206- ● ● ●
103 STOPPER; SUB SPR 1-53356-057-0 04 1 1109-1205 ● ●
103 STOPPER; SUB SPR 1-53356-057-0 04 1 1206- ● ● ●
105 BRACKET; RR SPR,RR 1-53354-064-1 02 1 1109-1205 ● ●
105 BRACKET; RR SPR,RR 1-53354-064-1 02 1 1206- ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 24 1 1109-1205 ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 24 1 1206- ● ● ●
110 BOLT; LEAF SPR STOPPER 1-09000-007-0 02 1 1109-1205 ● ●
110 BOLT; LEAF SPR STOPPER 1-09000-007-0 02 1 1206- ● ● ●
111 PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28 		0-81123-028-0 02 1 1109-1205 ● ●
111 PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28 		0-81123-028-0 02 1 1206- ● ● ●
112 BOLT; PAD
M14X35 		0-20851-435-0 04 1 1109-1205 ● ●
112 BOLT; PAD
M14X35 		0-20851-435-0 04 1 1206- ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1109-1205 ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1206- ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1109-1205 ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1206- ● ● ●
128 COLLAR; RUBBER
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53359-004-0 02 1 1206- ● ● ●
129 SHIM; SIDE
T=4.5 		1-53359-061-1 02 1 1109-1205 ● ●
129 SHIM; SIDE
T=4.5 		1-53359-061-1 02 1 1206- ● ● ●
129 SHIM; SIDE
T=3.2 		1-53359-062-1 02 1 1109-1205 ● ●
129 SHIM; SIDE
T=3.2 		1-53359-062-1 02 1 1206- ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-814-0 24 1 1109-1205 ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-814-0 24 1 1206- ● ● ●
281 WASHER; LEAF SPR STOPPER
ID=15 OD=30 		9-09160-614-0 04 1 1109-1205 ● ●
281 WASHER; LEAF SPR STOPPER
ID=15 OD=30 		9-09160-614-0 04 1 1206- ● ● ●
